USER MANUAL ASCM 12 QC Fein

OBJ_BUCH-0000000196-001.book Page 2 Wednesday, June 24, 2015 10:13 AM3

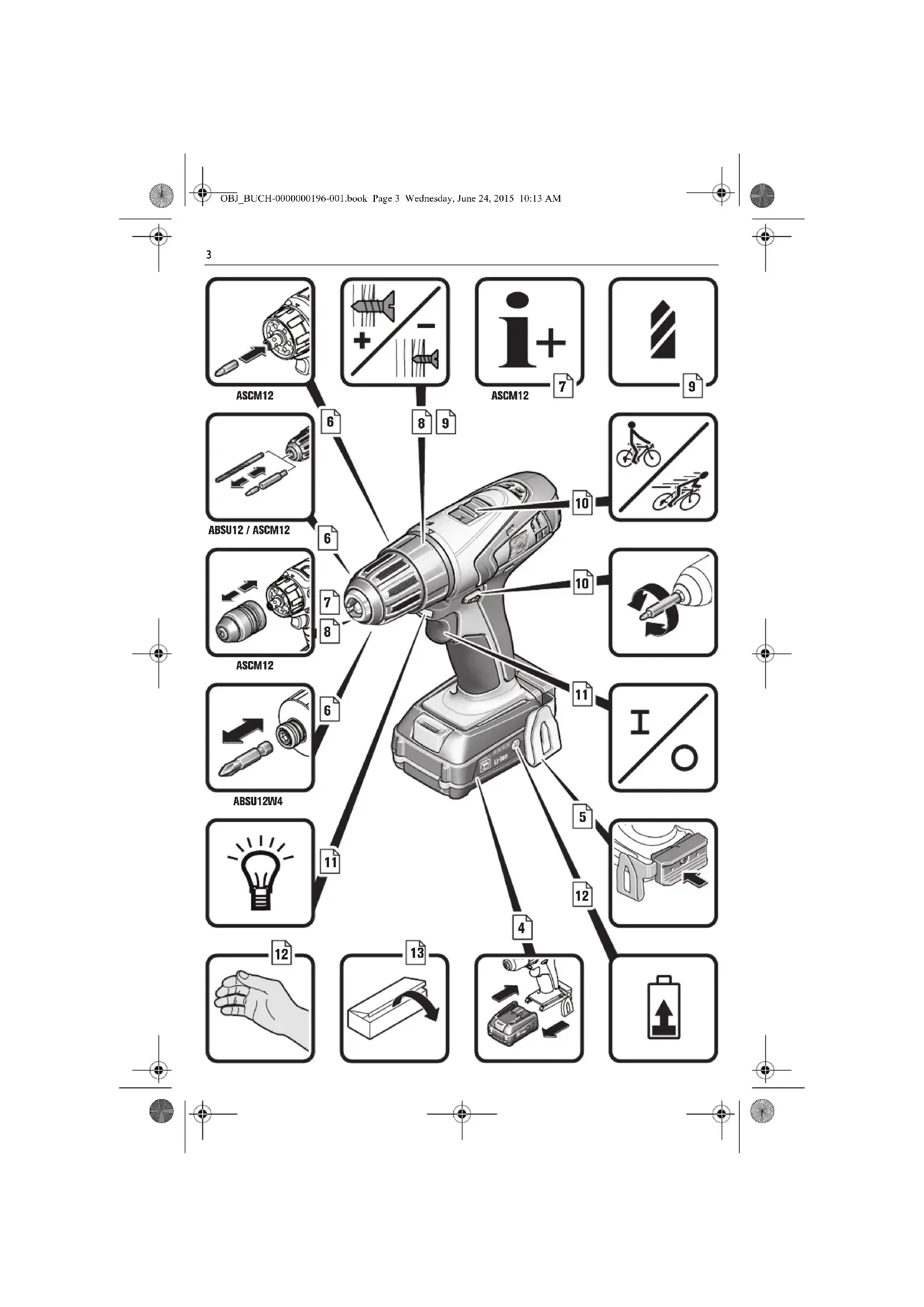

ASCM12 ABSU12W4 ASCM12 ASCM12 ABSU12 / ASCM12 OBJ_BUCH-0000000196-001.book Page 3 Wednesday, June 24, 2015 10:13 AM4

OBJ_BUCH-0000000196-001.book Page 4 Wednesday, June 24, 2015 10:13 AM5

OBJ_BUCH-0000000196-001.book Page 5 Wednesday, June 24, 2015 10:13 AM6 ABSU12 ASCM12 ASCM12 ABSU12W4

OBJ_BUCH-0000000196-001.book Page 6 Wednesday, June 24, 2015 10:13 AM7

ASCM12 OBJ_BUCH-0000000196-001.book Page 7 Wednesday, June 24, 2015 10:13 AM8

ABSU12 OBJ_BUCH-0000000196-001.book Page 8 Wednesday, June 24, 2015 10:13 AM9

ASCM12 OBJ_BUCH-0000000196-001.book Page 9 Wednesday, June 24, 2015 10:13 AM10 ABSU12 ABSU12W4 ASCM12 OBJ_BUCH-0000000196-001.book Page 10 Wednesday, June 24, 2015 10:13 AM11

OBJ_BUCH-0000000196-001.book Page 12 Wednesday, June 24, 2015 10:13 AM13 ASCM12 (**) OBJ_BUCH-0000000196-001.book Page 13 Wednesday, June 24, 2015 10:13 AM14

OBJ_BUCH-0000000196-001.book Page 14 Wednesday, June 24, 2015 10:13 AM15

Original Instructions. Symbols, abbreviations and terms used. Symbol, character Explanation Do not touch the rotating parts of the power tool. Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions. Observe the instructions in the text or graphic opposite! Before commencing this working step, remove the battery from the power tool. Other- wise there may be danger of injury caused by unintentional starting of the power tool. Use eye protection during operation. Use ear protection during operation. Use protective gloves during operation. General prohibition sign. This action is prohibited. Do not charge damaged batteries. Keep the battery away from fire. Protect the battery against heat, e. g. against continuous intense sunlight. Observe the information in the adjacent text! Additional information. Gripping surface Confirms the conformity of the power tool with the directives of the European Commu- nity. This symbol confirms the certification of this product for the USA and Canada. This sign indicates a possible dangerous situation that could cause severe or fatal injury. Recycling symbol: designates recyclable materials Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling. Battery type

1. gear/2. gear/3. gear/4. gear

Drilling diameter, steel Drilling diameter, wood Drilling diameter, stone Chuck clamping range Screw diameter Weight according to EPTA-Procedure 01 Low speed WARNING

OBJ_BUCH-0000000196-001.book Page 18 Wednesday, June 24, 2015 10:13 AM19

For your safety. Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. Do not use this power tool before you have thor- oughly read and completely understood this Instruction Manual and the enclosed “General Safety Instructions” (document number 3 41 30 054 06 1). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold. Please also observe the relevant national industrial safety regulations. Intended use of the power tool: Hand-held cordless drill/driver for screwing in and unscrewing screws and nuts, and for drilling and screw- driving in metal, wood, plastic, ceramics, as well as for tapping in weather-protected environments without water supply using the application tools and accessories recommended by FEIN. Special safety instructions. Hold the power tool by the insulated gripping surfaces when performing operations where the application tool could contact hidden wires. Contact with a “live” wire will also make exposed metal parts of the power tool “live” and shock the operator. Beware of any concealed electric cables, gas or water conduits. Check the working area before commencing work, e. g. with a metal detector. Wear personal protective equipment. Depending on appli- cation, use face shield, safety goggles or safety glasses. Where appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your opera- tion. Prolonged exposure to high intensity noise may cause hearing loss. Secure the work piece firmly. A work piece that is gripped tightly in a clamping device or vice, is more secure than if held by hand. Hold the power tool firmly. High reaction torque can briefly occur. High speed Reduce torque Increase torque (**) may contain numbers and letters Character Unit of measurement, international Unit of measurement, national Explanation U VVDC voltage f Hz Hz Frequency

, rpm, r/min rpm No-load speed (with fully charged battery)

dB dB Sound pressure level

pCpeak dB dB Peak sound pressure level K... Uncertainty m/s

Vibrational emission value according to EN 60745 (vector sum of three directions) h,D m/s

Mean vibrational value for drilling in metal

Basic and derived units of measurement from the international system of units SI. Symbol, character Explanation WARNING OBJ_BUCH-0000000196-001.book Page 19 Wednesday, June 24, 2015 10:13 AM20

Do not machine any material containing asbestos. Asbes- tos is cancerogenic. Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective. Adhesive labels are recommended. Do not use accessories which are not specifically designed and recommended by the power tool manufac- turer. Safe operation is not ensured merely because an accessory fits your power tool. Clean the ventilation openings on the power tool at regu- lar intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accu- mulation of metallic dust can cause an electrical hazard. Never look or stare into the light of the power tool’s lamp from a short distance. Never point the light of the lamp into the eyes of other persons in close vicinity. The radi- ation produced by the lamp can be harmful for the eye. Do not direct the power tool against yourself, other per- sons or animals. Danger of injury from sharp or hot application tools. Use and handling of the battery (battery pack). To avoid hazardous situations such as burns, fire, explo- sion, skin injuries, and other injuries when handling the battery, observe the following instructions: Batteries must not be disassembled, opened or reduced in size. Do not subject batteries to mechanical impact or shock. Hazardous vapours and fluid can escape in case of damage and improper use of the battery. The vapours can irritate the respiratory system. Liquid ejected from the battery may cause skin irritations or burns. When battery fluid from a damaged battery has come into contact with objects close by, check the respective com- ponents, clean them or replace them as required. Keep the battery away from heat and fire. Do not store the battery in direct sunlight. Do not remove the battery from its original packaging until it is going to be used. Before any work on the machine itself, remove the bat- tery from the power tool. If the power tool accidentally starts, there is danger of injury. Remove the battery only when the power tool is switched off. Keep the battery away from children. Keep the battery clean and protect it against moisture and water. Clean contaminated battery terminals and power tool connections with a dry, clean cloth. Use only intact original FEIN batteries that are intended for your power tool. When working with and charging incorrect, damaged, repaired or reconditioned batteries, imitations or other brands, there is danger of fire and/or explosion. Follow the safety warnings in the operating instructions of the battery charger. Hand/arm vibrations The vibration emission level given in this information sheet has been measured in accordance with a standard- ised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the opera- tor from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns. Handling hazardous dusts For work procedures with this power tool where mate- rial is removed, dusts develop that can be hazardous to one’s health. Contact with or inhaling some dust types, e. g. asbestos and asbestos-containing materials, lead-containing coat- ings, metal, some wood types, minerals, silicate particles from materials containing stone, paint solvents, wood preservatives, antifouling paints for vessels, can trigger allergic reactions to the operator or bystanders and/or lead to respiratory infections, cancer, birth defects or other reproductive harm. The risk from inhaling dusts depends on the exposition. Use dust extraction matched appropriately for the developing dust, as well as personal protective equipment and provide for good ventilation of the workplace. Leave the processing of asbestos-contain- ing materials to specialists. Wood and light-metal dust, hot mixtures of grinding dust and chemical materials can self-ignite under unfavourable conditions or cause an explosion. Avoid sparking in the direction of the dust collector as well as overheating of the power tool and the materials being sanded, empty the dust collector/container in time, observe the material manufacturer’s working instructions, as well as the rele- vant regulations in your country for the materials being worked. Operating Instructions. Adjust the rotational direction switch and the gear switch only when the machine is at a complete stop. Always push the gear switch through to the stop. Other- wise, the machine can become damaged. Thermal overload of the power tool is indicated through flashing of the LED in the handle. In case of overload, the machine switches off. To avoid accidental starting, e. g., during transport, set the rotation selector switch to the centre position. Setting the torque The factory setting is for the small to mid-size screw range. OBJ_BUCH-0000000196-001.book Page 20 Wednesday, June 24, 2015 10:13 AM21

Handling the battery. Operate and charge the battery only within the battery operating-temperature range of 0°C – 45°C (32°F – 113°F). At the beginning of the charging procedure, the battery temperature must be within the battery operat- ing-temperature range. The real percentage of the battery charge condition is only indicated when the power tool motor is stopped. The electronics automatically switch off the motor prior to the battery being deep discharged. Repair and customer service. When working metal under extreme operat- ing conditions, it is possible for conductive dust to settle in the interior of the power tool. Blow out the interior of the power tool via the ventila- tion slots frequently with dry and oil-free compressed air. The current spare parts list for this power tool can be found in the Internet at www.fein.com. If required, you can change the following parts yourself: application tools, battery, belt hook, bit garage, drill chuck (ASCM12 (**)) Warranty and liability. The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer’s warranty declaration. The delivery scope of your power tool may include only a part of the accessories described or shown in this Instruction Manual. Declaration of conformity. FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual. Technical documents at: C. & E. Fein GmbH, C-DB_IA, D-73529 Schwäbisch Gmünd Environmental protection, disposal. Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling. Dispose of batteries only when discharged. For batteries that are not completely discharged, insulate the terminals with tape as a protective measure against short-circuiting. LED indica- tor Meaning Activity 1 – 4 green LED Percentage of charge condi- tion Operation Continu- ous red light Battery is almost empty Charge battery Red flash- ing light Battery is not ready for operation Bring the battery into the battery operating- temperature range, then charge OBJ_BUCH-0000000196-001.book Page 21 Wednesday, June 24, 2015 10:13 AM22

OBJ_BUCH-0000000196-001.book Page 22 Wednesday, June 24, 2015 10:13 AM23

OBJ_BUCH-0000000196-001.book Page 26 Wednesday, June 24, 2015 10:13 AM27

OBJ_BUCH-0000000196-001.book Page 30 Wednesday, June 24, 2015 10:13 AM31

OBJ_BUCH-0000000196-001.book Page 34 Wednesday, June 24, 2015 10:13 AM35

OBJ_BUCH-0000000196-001.book Page 38 Wednesday, June 24, 2015 10:13 AM39

OBJ_BUCH-0000000196-001.book Page 42 Wednesday, June 24, 2015 10:13 AM43

OBJ_BUCH-0000000196-001.book Page 45 Wednesday, June 24, 2015 10:13 AM46

OBJ_BUCH-0000000196-001.book Page 47 Wednesday, June 24, 2015 10:13 AM48

OBJ_BUCH-0000000196-001.book Page 51 Wednesday, June 24, 2015 10:13 AM52

OBJ_BUCH-0000000196-001.book Page 55 Wednesday, June 24, 2015 10:13 AM56

OBJ_BUCH-0000000196-001.book Page 59 Wednesday, June 24, 2015 10:13 AM60

OBJ_BUCH-0000000196-001.book Page 63 Wednesday, June 24, 2015 10:13 AM64

OBJ_BUCH-0000000196-001.book Page 67 Wednesday, June 24, 2015 10:13 AM68

OBJ_BUCH-0000000196-001.book Page 71 Wednesday, June 24, 2015 10:13 AM72

OBJ_BUCH-0000000196-001.book Page 75 Wednesday, June 24, 2015 10:13 AM76

OBJ_BUCH-0000000196-001.book Page 79 Wednesday, June 24, 2015 10:13 AM80

OBJ_BUCH-0000000196-001.book Page 83 Wednesday, June 24, 2015 10:13 AM84

OBJ_BUCH-0000000196-001.book Page 87 Wednesday, June 24, 2015 10:13 AM88

OBJ_BUCH-0000000196-001.book Page 91 Wednesday, June 24, 2015 10:13 AM92

OBJ_BUCH-0000000196-001.book Page 95 Wednesday, June 24, 2015 10:13 AM96

OBJ_BUCH-0000000196-001.book Page 99 Wednesday, June 24, 2015 10:13 AM100

OBJ_BUCH-0000000196-001.book Page 100 Wednesday, June 24, 2015 10:13 AM101

OBJ_BUCH-0000000196-001.book Page 104 Wednesday, June 24, 2015 10:13 AM105

OBJ_BUCH-0000000196-001.book Page 108 Wednesday, June 24, 2015 10:13 AM109

OBJ_BUCH-0000000196-001.book Page 111 Wednesday, June 24, 2015 10:13 AM112

OBJ_BUCH-0000000196-001.book Page 112 Wednesday, June 24, 2015 10:13 AM113

OBJ_BUCH-0000000196-001.book Page 113 Wednesday, June 24, 2015 10:13 AM114

OBJ_BUCH-0000000196-001.book Page 117 Wednesday, June 24, 2015 10:13 AM118

OBJ_BUCH-0000000196-001.book Page 121 Wednesday, June 24, 2015 10:13 AM122

OBJ_BUCH-0000000196-001.book Page 125 Wednesday, June 24, 2015 10:13 AM126 zh (CM)

OBJ_BUCH-0000000196-001.book Page 127 Wednesday, June 24, 2015 10:13 AM128 zh (CM)

OBJ_BUCH-0000000196-001.book Page 129 Wednesday, June 24, 2015 10:13 AM130 zh (CK)

OBJ_BUCH-0000000196-001.book Page 131 Wednesday, June 24, 2015 10:13 AM132 zh (CK)

OBJ_BUCH-0000000196-001.book Page 133 Wednesday, June 24, 2015 10:13 AM134

OBJ_BUCH-0000000196-001.book Page 136 Wednesday, June 24, 2015 10:13 AM137

OBJ_BUCH-0000000196-001.book Page 137 Wednesday, June 24, 2015 10:13 AM138

OBJ_BUCH-0000000196-001.book Page 140 Wednesday, June 24, 2015 10:13 AM141

OBJ_BUCH-0000000196-001.book Page 142 Wednesday, June 24, 2015 10:13 AM143

OBJ_BUCH-0000000196-001.book Page 145 Wednesday, June 24, 2015 10:13 AM146

OBJ_BUCH-0000000196-001.book Page 146 Wednesday, June 24, 2015 10:13 AM147

OBJ_BUCH-0000000196-001.book Page 147 Wednesday, June 24, 2015 11:05 AM148

OBJ_BUCH-0000000196-001.book Page 148 Wednesday, June 24, 2015 10:13 AM149

OBJ_BUCH-0000000196-001.book Page 149 Wednesday, June 24, 2015 10:13 AM150

,mm ,A ,kg ,s ,m ,N ,Hz ,W ,V ,dB ,°C m/s
