USER MANUAL PDSSA 20Li A1 PARKSIDE

Translation of the original instructions

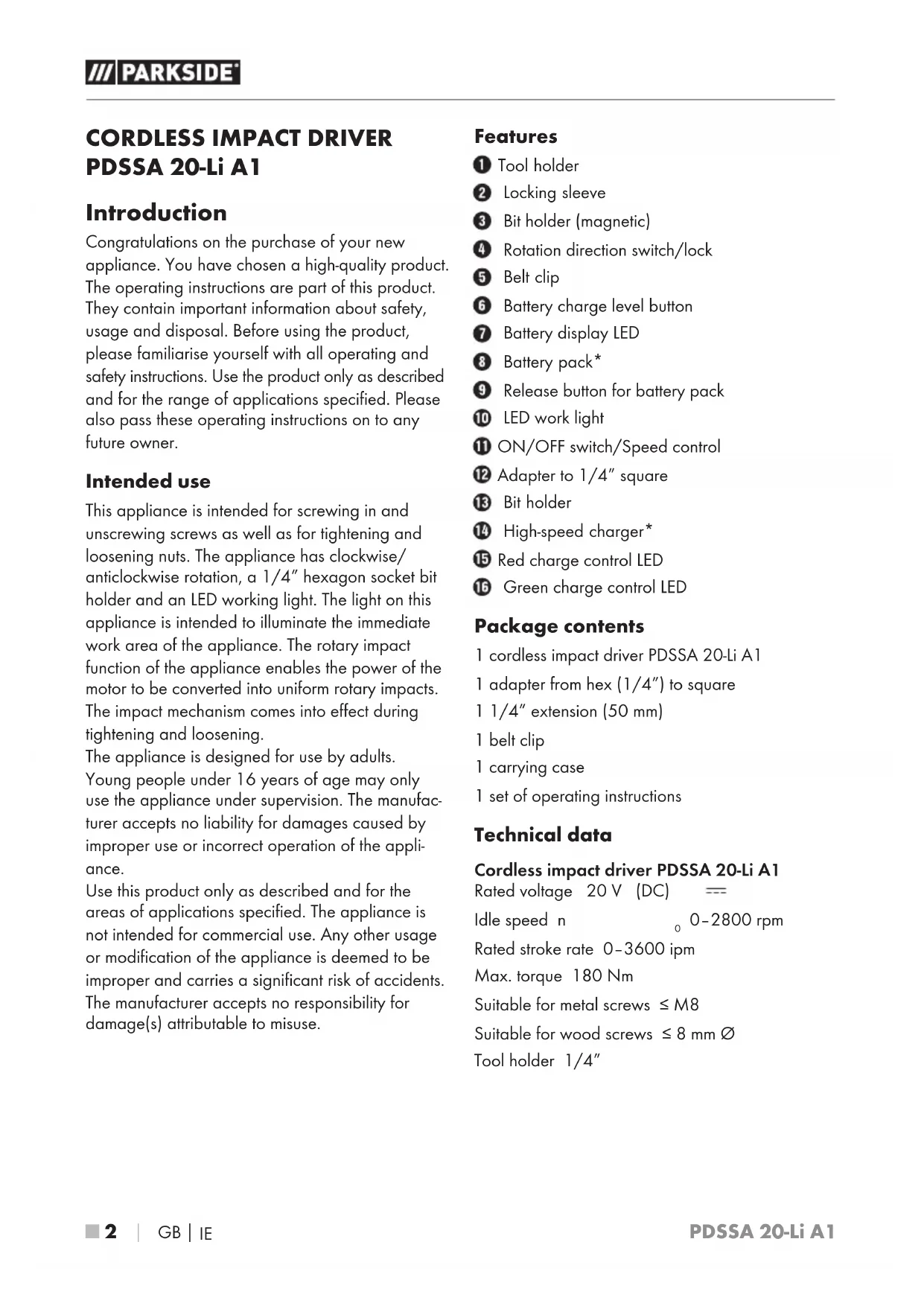

PDSSA 20-Li A1 Introduction Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner. Intended use This appliance is intended for screwing in and unscrewing screws as well as for tightening and loosening nuts. The appliance has clockwise/ anticlockwise rotation, a 1/4” hexagon socket bit holder and an LED working light. The light on this appliance is intended to illuminate the immediate work area of the appliance. The rotary impact function of the appliance enables the power of the motor to be converted into uniform rotary impacts. The impact mechanism comes into effect during tightening and loosening. The appliance is designed for use by adults. Young people under 16 years of age may only use the appliance under supervision. The manufac- turer accepts no liability for damages caused by improper use or incorrect operation of the appli- ance. Use this product only as described and for the areas of applications specified. The appliance is not intended for commercial use. Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse. Features Tool holder Locking sleeve Bit holder (magnetic) Rotation direction switch/lock Belt clip Battery charge level button Battery display LED Battery pack* Release button for battery pack LED work light ON/OFF switch/Speed control Adapter to 1/4” square Bit holder High-speed charger* Red charge control LED Green charge control LED Package contents 1 cordless impact driver PDSSA 20-Li A1 1 adapter from hex (1/4”) to square 1 1/4” extension (50 mm) 1 belt clip 1 carrying case 1 set of operating instructions Technical data Cordless impact driver PDSSA 20-Li A1 Rated voltage 20 V (DC) Idle speed n

0–2800 rpm Rated stroke rate 0–3600 ipm Max. torque 180 Nm Suitable for metal screws ≤ M8 Suitable for wood screws ≤ 8 mm Ø Tool holder 1/4”PDSSA 20-Li A1

 3 ■ Battery PAP 20 A1* Type LITHIUM ION Rated voltage 20 V (DC) Capacity 2 Ah Cells 5 High-speed battery charger PLG20A1* INPUT Rated voltage 230–240 V ∼, 50 Hz (AC) Rated power consumption 65 W Fuse (internal) 3.15 A T3.15A OUTPUT Rated voltage 21.5 V (DC) Rated current 2.4 A Charging time approx. 60 min Protection class II / (double insulation)

• BATTERY AND CHARGER NOT INCLUDED IN DELIVERY Noise emission value Noise measurement value determined in accord- ance with EN 62841. The A-rated noise level of the tool is typically: Sound pressure level L

= 83 dB (A) Uncertainty K

= 3 dB Sound power level L

= 94 dB (A) Uncertainty K

= 3 dB Vibration emission value Total vibration values (vector total of three directions) determined in accordance with EN 62841: Tightening screws and nuts of maximum permissible size a

Wear hearing protection! NOTE ► The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool. ► The specified total vibration values and the noise emission values can also be used to make a provisional load estimate. WARNING! ► Depending on the manner in which the power tool is being used, and in particular the kind of workpiece that is being worked, the vibration and noise emission values can deviate from the values given in these instruc- tions during actual use of the power tool. ► Try to keep the load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load). General power tool safety warnings WARNING! ► Read all safety warnings, instructions, illus- trations and specifications provided with this power tool. Failure to follow all instruc- tions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.PDSSA 20-Li A1 ■ 4 

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entan- gled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.PDSSA 20-Li A1

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detach- able, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically desig- nated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery termi- nals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C (265°F) may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instruc- tions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries! Protect the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.PDSSA 20-Li A1 ■ 6 

a) Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. Safety instructions specifically for impact screwdrivers ■ Wear hearing protection when impact screwing. Exposure to loud noise can lead to hearing loss. ■ Secure the workpiece! A workpiece securely held by a clamping device or vice is much safer than one held in your hand. ■ Hold the power tool firmly. High torques can occur for brief periods while tightening and loosening screws. ■ Wait until the power tool has come to a stand- still before putting it down. The tool can jam, this leading to loss of control of the appliance. ■ Always hold the tool by its insulated handles when working with power tools that may come into contact with hidden electrical cables. Fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. Original accessories/additional equipment ■ Only use the accessories and additional equipment that are specified in the operating instructions and are compatible with the appliance. WARNING! ■ Do not use any accessories which are not recommended by PARKSIDE. This can lead to an electric shock and fire. Safety guidelines for battery chargers ■ This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and know ledge, provided that they are under super- vision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks may not be carried out by chil- dren unless they are supervised. ■ To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person. The charger is suitable for indoor use only. WARNING! ■ To avoid potential risks, damaged mains cables should be replaced by the manufac- turer, their customer service department or a similarly qualified person. ATTENTION! ♦ This charger can only charge the following batteries:

PAPS204A1/PAPS208A1. ♦ A current list of battery compatibility can be found at www.lidl.de/Akku. ATTENTION! Hot surface. Risk of burns.PDSSA 20-Li A1

 7 ■ Before use Charging the battery pack (seefig.A) CAUTION! ► Always unplug the appliance before you remove the battery pack from or connect the battery pack to the charger. NOTE ► Never charge the battery pack if the ambient temperature is below 10°C or above 40°C. If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The storage climate should be cool and dry and the ambient temperature should be between 0°C and 50°C. ♦ Connect the battery pack to the rapid battery charger (see Fig. A). ♦ Insert the power plug into the socket. The control LED lights up red. ♦ The green control LED indicates that the charging process is complete and the battery pack is ready. CAUTION! ♦ If the red control LED flashes, this means that the battery pack has overheated and cannot be charged. ♦ If the red and green control LEDs both flash, this means that the battery pack is defective. ♦ Insert the battery pack back into the appliance. ♦ Switch off the charger for at least 15 minutes between successive charging sessions. Also disconnect the power plug from the mains power socket. Attaching/disconnecting the battery pack to/from the appliance Inserting the battery pack ♦ Push the rotation direction switch into the middle position (lock). Allow the battery pack to click into the handle. Removing the battery pack ♦ Press the release button and remove the battery pack. Checking the battery charge level ♦ Press the battery charge level button to check the status of the battery (see also main diagram). The status/remaining charge will be shown on the battery display LED as follows: RED/ORANGE/GREEN = maximum charge RED/ORANGE = medium charge RED = low charge – charge the battery Use Switching on and off Switching on ♦ To start the appliance, press the ON/OFF switch and keep it pressed in. The LED work light lights up when the ON/OFF switch is depressed lightly or fully. This allows for illumi- nation of the work area in low lighting. Switching off ♦ Release the ON/OFF switch to switch off the appliance. Setting the speed/tightening torque ♦ Press the ON/OFF switch lightly for a low speed/tightening torque. Increasing the pressure increases the speed/tightening torque. ■ The tightening torque depends on the selected speed and impact duration. CAUTION! ♦ The tightening torque actually attained must always be checked with a torque wrench!PDSSA 20-Li A1 ■ 8 

NOTE ► The integrated motor brake ensures rapid stoppage. Changing the direction of rotation ♦ Change the direction of rotation by pressing the rotational direction switch towards the left or right. Inserting the bits ♦ Insert the adapter or bit holder into the tool holder . ♦ To do this, pull the locking sleeve backwards and allow the adapter or bit holder to engage. Maintenance and cleaning WARNING! RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance. The appliance is maintenance-free. ■ The appliance must always be kept clean, dry and free from oil or grease. ■ Never allow liquids to get into the appliance. ■ Use a soft, dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic. ■ If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage environment is cool and dry. NOTE ► Replacement parts not listed (such as carbon brushes, switch) can be ordered via our service hotline. Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. X 12 V and X 20 V Team Series battery packs come with a 3-year warranty valid from the date of purchase. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.PDSSA 20-Li A1

 9 ■ Scope of the warranty This appliance has been manufactured in accord- ance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instruc- tions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres. The warranty period does not apply to ■ Normal reduction of the battery capacity over time ■ Commercial use of the product ■ Damage to or alteration of the product by the customer ■ Non-compliance with safety and maintenance instructions, operating errors ■ Damage caused by natural hazards Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (IAN) 380745_2110 available as proof of purchase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com. This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 380745_2110. WARNING! ► Have the power tool repaired by the service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained. ► Always ensure that the power plug or the mains cable is replaced only by the manu- facturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained.PDSSA 20-Li A1 ■ 10 

BURGSTRASSE 21 44867 BOCHUM GERMANY www.kompernass.com Disposal Do not dispose of power tools in your normal domestic waste! The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies. The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly. Your local community or municipal authorities can provide information on how to dispose of the worn-out product. Do not dispose of batteries in your normal household waste! Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Batteries/rechargeable batteries must be treated as hazardous waste and must therefore be disposed of in an environmentally sound manner by appropriate bodies (dealers, specialist dealers, public municipal bodies, com- mercial disposal companies). Batteries/recharge- able batteries may contain toxic heavy metals. For this reason, do not dispose of batteries/ rechargeable batteries in domestic waste. Take them to a specialist collection point. Only return batteries that are fully discharged. The packaging is made from environ- mentally friendly material and can be disposed of at your local recycling plant. Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The pack- aging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites. The product is recyclable, subject to extended producer responsibility and is collected separately.PDSSA 20-Li A1

 11 ■ Translation of the original Conformity Declaration We, KOMPERNASS HANDELS GMBH, docu ment officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives: Machinery Directive (2006/42/EC) EC Low Voltage Directive (charger only) (2014/35/EU) EMC (Electromagnetic Compatibility) (2014/30/EU) RoHS Directive (2011/65/EU)*

• The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances. Applied harmonised standards EN 62841-1:2015 EN 62841-2-2:2014 EN 55014-1:2017 EN 55014-2:2015 EN IEC 63000:2018 Type/appliance designation: Cordless impact driver PDSSA 20-Li A1 Year of manufacture: 01–2022 Serial number: IAN 380745_2110 Bochum, 31/01/2022 Semi Uguzlu - Quality Manager - We reserve the right to make technical changes in the context of further product development.PDSSA 20-Li A1 ■ 12 

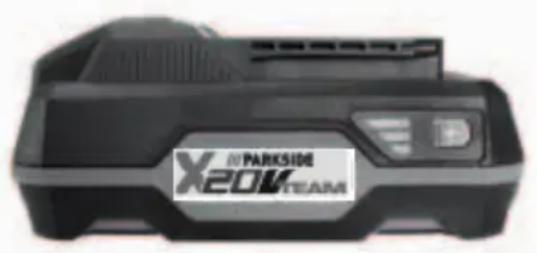

Ordering a replacement battery If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone. Due to limited stocks, this item may sell out in a relatively short time. NOTE ► Online ordering of replacement parts might not be possible in some countries. In this is the case, please contact the Service hotline. Telephone ordering Service Great Britain Tel.: 0800 404 7657 Service Ireland Tel.: 1800 101010 To ensure a fast processing of your order, have the article number of your appliance to hand (IAN380745_2110) in case of questions. The article number can be found on the type plate or the title page of these instructions.PDSSA 20-Li A1

= 83 dB (A) Negotovost K

= 94 dB (A) Negotovost K
