USER MANUAL Wireless Charging LBOXX Bay Professional BOSCH

OBJ_BUCH-2572-004.book Page 3 Friday, September 9, 2016 2:56 PM1 609 92A 33J | (9.9.16) Bosch Power Tools 4 | OBJ_BUCH-2572-004.book Page 4 Friday, September 9, 2016 2:56 PM5 | 1 609 92A 33J | (9.9.16) Bosch Power Tools OBJ_BUCH-2572-004.book Page 5 Friday, September 9, 2016 2:56 PM1 609 92A 33J | (9.9.16) Bosch Power Tools 6 | slide

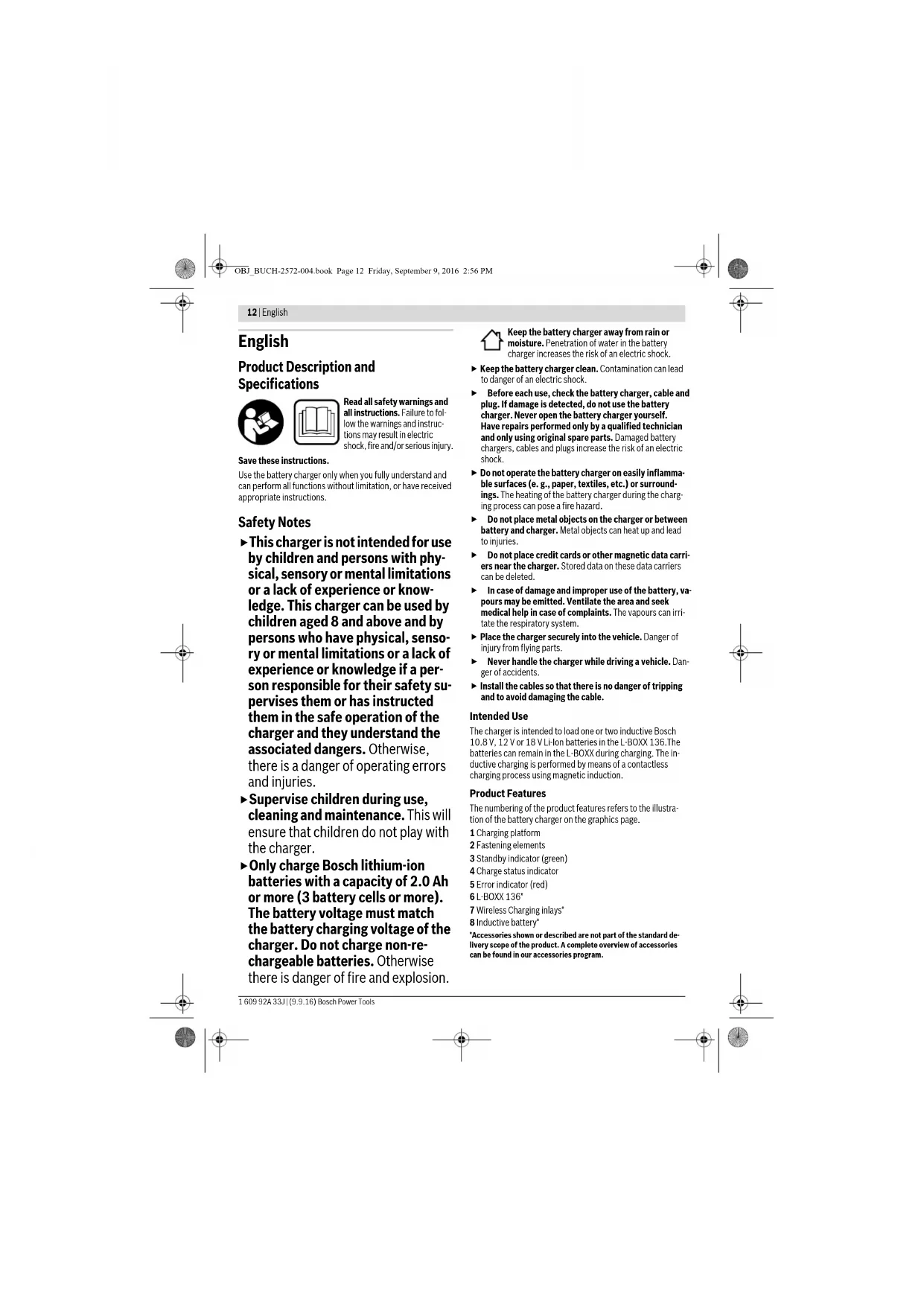

batteries can remain in the L-BOXX during charging. The in- ductive charging is performed by means of a contactless charging process using magnetic induction. Product Features The numbering of the product features refers to the illustra- tion of the battery charger on the graphics page. 1 Charging platform 2 Fastening elements 3 Standby indicator (green) 4 Charge status indicator 5 Error indicator (red) 6 L-BOXX 136* 7 Wireless Charging inlays* 8 Inductive battery* *Accessories shown or described are not part of the standard de-livery scope of the product. A complete overview of accessories can be found in our accessories program.OBJ_BUCH-2572-004.book Page 12 Friday, September 9, 2016 2:56 PMEnglish | 13 Bosch Power Tools 1 609 92A 33J | (9.9.16) Technical Data Operation Starting Operation Observe the mains voltage! The voltage of the power supply must correspond with the data given on the name- plate of the battery charger. Battery chargers marked with 230 V can also be operated with 220 V. Charging Procedure The charging process begins as soon as the mains plug of the charger is plugged into the socket outlet, and the L-BOXX with the inductive batteries is placed on the charging platform 1. The charging process only begins when the battery capacity is less than 85 – 90 %. This prolongs the life of the battery. Due to the intelligent charging method, the charging condi- tion of the battery is automatically detected and the battery is charged with the optimum charging current, depending on battery temperature and voltage. This gives longer life to the battery and always leaves it fully charged when kept in the charger for storage. Meaning of the Indication Elements Since two batteries can be charged independently of one an- other, each battery has its own indicators. Continuous Light Standby Indicator (green) 3 The continuous light of the green standby indica- tor 3 shows that input voltage is present and the charger is ready to use. Flashing Charge Status Indicator 4 The fast charging process is indicated by the flashing of the respective green LED of the charge status indicator 4. When the re- spective share of the battery is charged, the green flashing light changes to a green continuous light. The battery can be removed at any time and used. When all five LEDs indicate a green continuous light, the battery is fully charged. Continuous Light Error Indicator (red) 5 The continuous light of the red error indicator 5 shows that the temperature of the battery or charger is outside of the permitted charging tem- perature range, see section “Technical Data”. As soon as the permitted temperature range is reached, the charger auto- matically switches to fast charging. Flashing Error Indicator (red) 5 The flashing light of the red error indicator 5 sig- nals a different fault of the charger, see section “Troubleshooting – Causes and Corrective Meas- ures”. Working Advice With continuous or several repetitive charging cycles without interruption, the charger can warm up. This is not meaningful and does not indicate a technical defect of the battery charg- er. A significantly reduced working period after charging indi- cates that the battery is used and must be replaced. Troubleshooting – Causes and Corrective Measures Battery Charger Wireless Charging L-BOXX Bay Article number 2 607 226 ... 2 607 226 058* Battery charging voltage (automatic voltage detection) V 10.8 –18 10.8 –18 Charging current A2 x 3.02 x 2.2 Allowable charging temperature range °C 0–45 0–45 Number of battery cells 3 –10 3 –10 Weight according to EPTA-Procedure 01:2014 kg 3.1 3.1 Protection class / II / II *Wireless Charging L-BOXX Bay designed for installation on a 12 V socket in a car. Charging times may vary due to the installation situation in the vehicle and due to electronic battery management systems. Battery pack GBA 10,8 V …Ah OW-… Article number 1 607 A35 ... Battery pack GBA 12 V …Ah W Article number 1 607 A35 ... Battery pack GBA 18 V …Ah MW-… Article number
