USER MANUAL VitaStyle MMBM401W BOSCH

Sportsman's cocktail

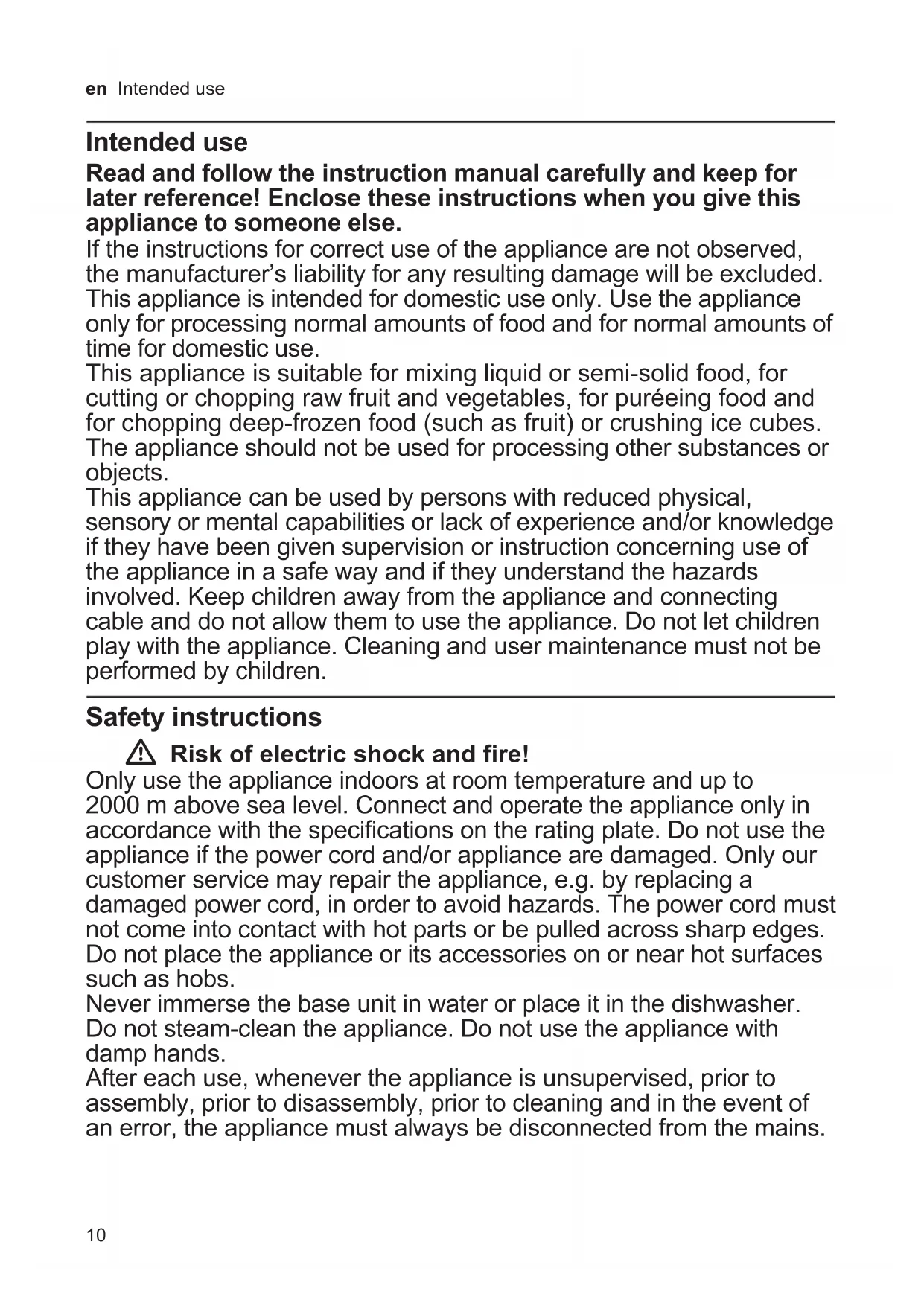

Read and follow the instruction manual carefully and keep for later reference! Enclose these instructions when you give this appliance to someone else.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded. This appliance is intended for domestic use only. Use the appliance only for processing normal amounts of food and for normal amounts of time for domestic use.

This appliance is suitable for mixing liquid or semi-solid food, for cutting or chopping raw fruit and vegetables, for puréeing food and for chopping deep-frozen food (such as fruit) or crushing ice cubes. The appliance should not be used for processing other substances or objects.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children away from the appliance and connecting cable and do not allow them to use the appliance. Do not let children play with the appliance. Cleaning and user maintenance must not be performed by children.

Safety instructions

⚠️ Risk of electric shock and fire!

Only use the appliance indoors at room temperature and up to 2000 m above sea level. Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged. Only our customer service may repair the appliance, e.g. by replacing a damaged power cord, in order to avoid hazards. The power cord must not come into contact with hot parts or be pulled across sharp edges. Do not place the appliance or its accessories on or near hot surfaces such as hobs.

Never immerse the base unit in water or place it in the dishwasher. Do not steam-clean the appliance. Do not use the appliance with damp hands.

After each use, whenever the appliance is unsupervised, prior to assembly, prior to disassembly, prior to cleaning and in the event of an error, the appliance must always be disconnected from the mains.

Risk of injury!

Never leave the appliance unattended while it is switched on! Do not operate the appliance at idle speed. Never leave the appliance switched on for longer than is necessary for processing the ingredients. Immediately after using the appliance, wait for it to stop. When the appliance has been switched off, the blade continues running for a short time. Before replacing accessories or additional parts which move during operation, the appliance must be switched off and disconnected from the power supply. Never place fingers in the attached blender jug. Only use the appliance when it is fully assembled! Use the appliance only with genuine parts and accessories. Never process food that is hotter than 50°C in the plastic blender jug. Care should be taken when handling the sharp cutting blades, emptying the container and during cleaning.

⚠️ Risk of scalding!

When you process hot ingredients in the glass blender jug, steam will escape through the filling opening in the lid. You should always use one hand to hold the lid firmly in place while you work, but don't place your hand over the filling opening! Pour no more than 0.3 litres of hot or frothing liquid into the glass blender jug.

⚠️ Important!

The blender jugs are not suitable for use in the microwave. It is essential to clean the appliance as described after each use and if it has not been used for an extended period. → “Care and daily cleaning” see page 14

Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our website.

Contents

Intended use....10

Safety instructions....10

Overview....12

Illuminated ring 12

Blender jug 12

Before using for the first time....13

Use 13

Care and daily cleaning....14

Safety systems ....15

Troubleshooting....15

Recipes....15

Disposal....16

Guarantee....16

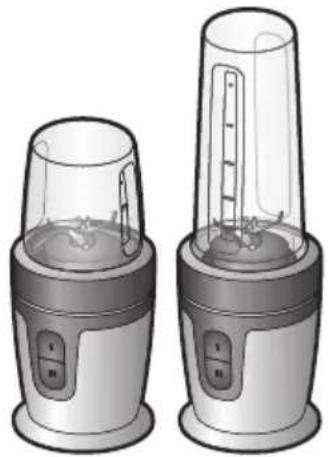

Overview

→ Fig. A

1 Base unit / Motor block

a Buttons to switch on
I = low mixing speed
II = high mixing speed
b Operation indicator (illuminated ring)*
c Drive
d Mains cable

2 Blade insert with mixing blade

3 To-Go blender jug \*

a Container made of Tritan
b Scale marked with "max" level
c Lid with opening for drinking
d Drinking cap

4 Chopper blender jug \*

a Container made of Tritan
b Scale marked with "max" level
c Lid with opening for drinking
d Screw cap

5 Glass blender jug \*

a Container made of ThermoSafe glass
b Lid with opening for filling
c Locking cap

* Depending on the model If any of the accessories is not included with the hand blender it can be ordered from customer service:

Accessories Order no.
To-Go blender jug
Black 12012850
White 12012851
dark grey 12012853
Chopper blender jug
Black 12012855
White 12012857
Glass blender jug
Black 12012847
White 12012848

With the chopper blender jug you can use the appliance at full power.

Note the maximum processing quantities and times! → Fig. ©

Illuminated ring

Depending on the model

The illuminated ring lights up when all the parts have been correctly assembled and the appliance is plugged in. The illuminated ring remains lit up while the appliance is in use.

Blender jug

Notes:

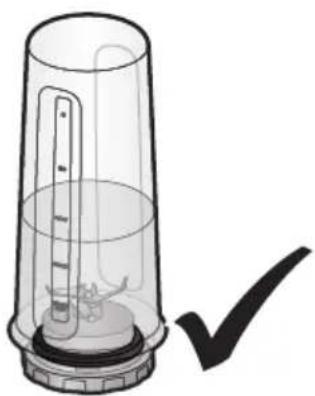

- The to-go blender jug and the chopper blender jug are made of Tritan. Tritan is an unbreakable plastic with no discernable taste or smell.

- The glass blender jug is made of heatproof ThermoSafe glass.

The blender jugs are suitable for different purposes (depending on the model):

Application Blender	jug
Blending and frothing liquids	√	√	√
Cutting and chopping herbs, raw fruit, vegetables, onions, peanuts, nuts, parmesan and chocolate	√	√	√
Crushing and blending ice cubes and frozen fruit	√	√	√
Blending fruit juice and other drinks	√	√	√
Preparing mayonnaise	X	X	√
Puréeing soups and sauces, processing hot ingredients	X	X	√
Adding ingredients during the mixing process	X	X	√
Use in the microwave	X	X	X

Important!

Note the maximum processing quantities and times! → Fig. ©

Before using for the first time

Before the new appliance can be used, it must be fully unpacked, cleaned and checked.

Caution!

Never operate a damaged appliance!

■ Remove the base unit and all accessories from the packaging.
■ Remove the packaging material that is present.
■ Check that all the parts are present and examine them for obvious damage.

→ Fig. A

■ Thoroughly clean and dry all parts before using for the first time. → “Care and daily cleaning” see page 14

Use

Risk of injury!

• Do not insert the mains plug until all preparations for working with the appliance are complete and the required attachments are assembled correctly and connected to the base unit.

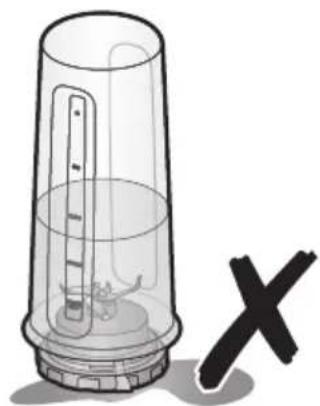

• Never process food that is hotter than 50^ in the plastic blender jug.

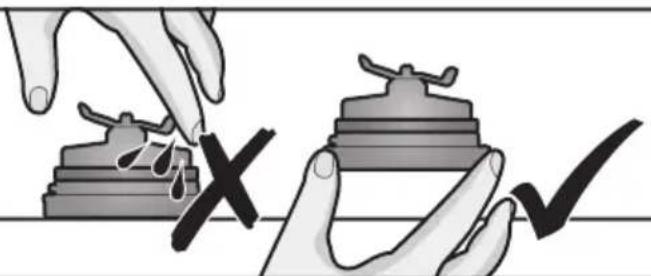

• Handle the blade insert with care, and don't put your hand between the blades.

→ Fig. B

- Never put your hand in the blender jug once it is in place, and always put the lid on before using the appliance.

Risk of scalding!

Pour no more than 0.3 litres of hot or frothing liquid into the glass blender jug.

■ Place the base unit on a stable and level work surface.
■ Completely unwind the mains cable.

Using the to-go or chopper blender jug

→ Fig. ©

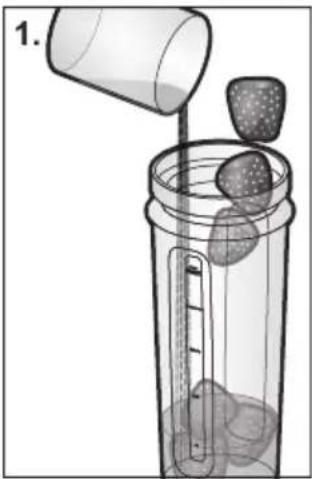

1. Put the desired ingredients into the blender jug.

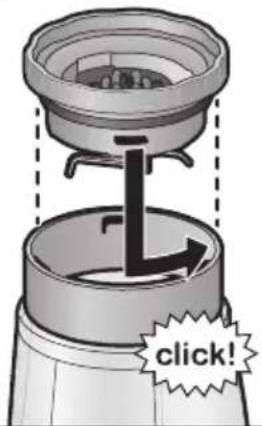

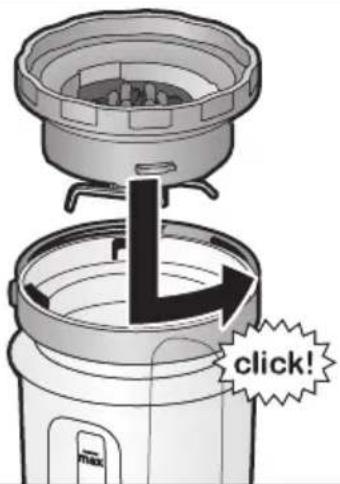

2. Hold the blade insert by the plastic ring and insert it – blade first – into the blender jug. Turn the blade insert anticlockwise until it audibly clicks into place.

3. Turn the blender jug over.

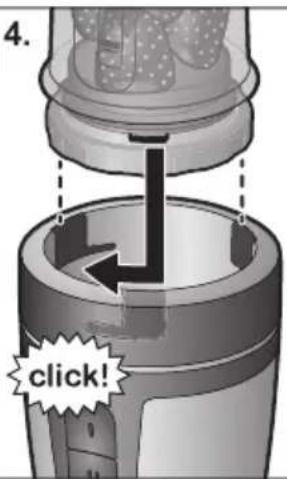

4. Insert the blender jug into its recess on the motor block and turn it clockwise until it audibly clicks into place.

5. Plug the mains plug into the mains.

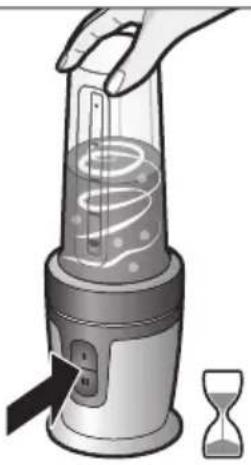

6. Hold the blender jug firmly with one hand. Hold down the I or II button until the mixture has reached the desired consistency.

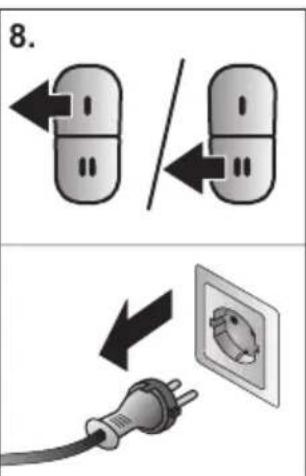

7. Release the button and wait until the appliance comes to rest. Disconnect the mains plug.

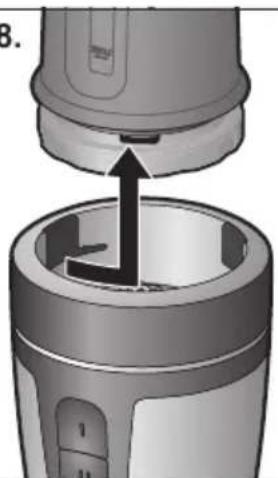

8. Turn the blender jug anti-clockwise and then remove it.

9. Turn the blender jug over.

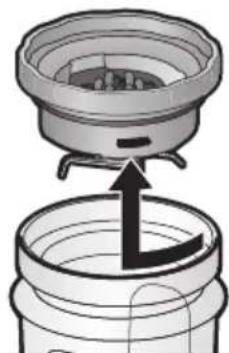

10. Turn the blade insert clockwise and then remove it.

Caution!

Never set the blade insert down with the blade underneath. This could damage the blade and scratch your work surface.

→ Fig. B

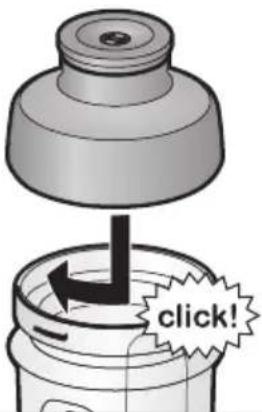

1. Close the jug with the lid.

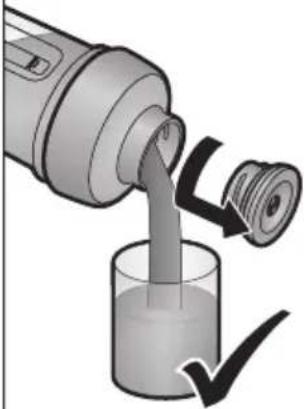

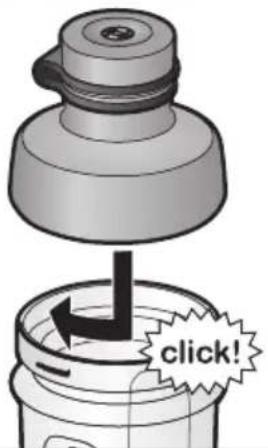

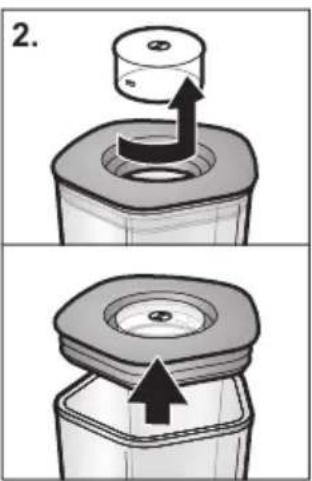

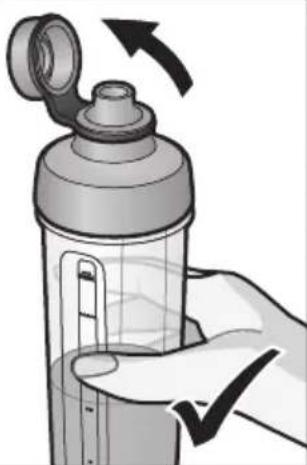

2. To pour out or drink contents, undo screw cap and remove, or lift up drinking cap.

Clean all the parts. → “Care and daily cleaning” see page 14

Working with the glass blender jug

→ Fig. D

1. Hold the blade insert by the plastic ring and insert it – blade first – into the blender jug. Turn the blade insert anti-clockwise until it audibly clicks into place.
2. Turn the blender jug over.

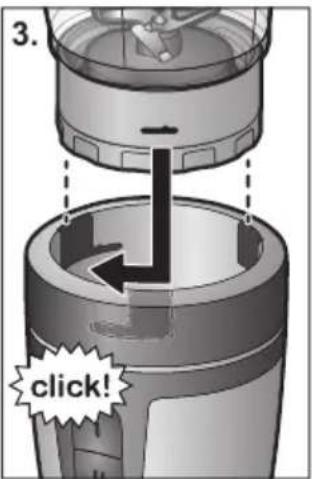

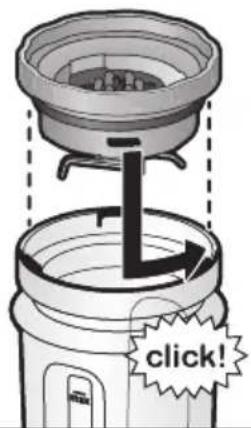

3. Insert the blender jug into its recess on the motor block and turn it clockwise until it audibly clicks into place.

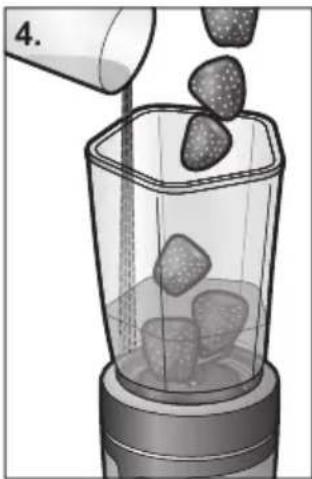

4. Put the desired ingredients into the blender jug.

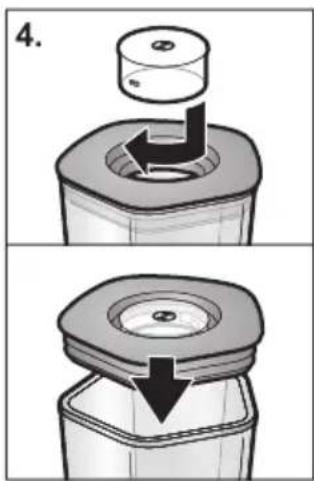

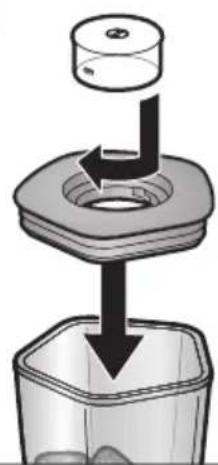

5. Put the lid and locking cap in place.

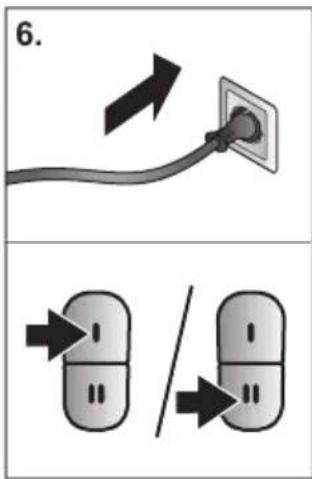

6. Plug the mains plug into the mains.

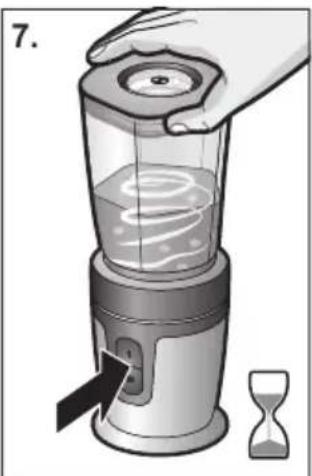

7. Hold the lid firmly with one hand, but don't place your hand over the filling opening. Hold down the I or II button until the mixture has reached the desired consistency.
8. Release the button and wait until the appliance comes to rest. Disconnect the mains plug.

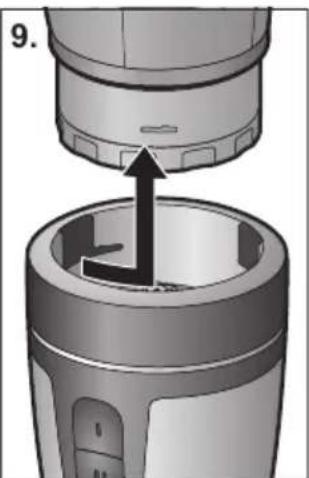

9. Turn the blender jug anti-clockwise and then remove it.

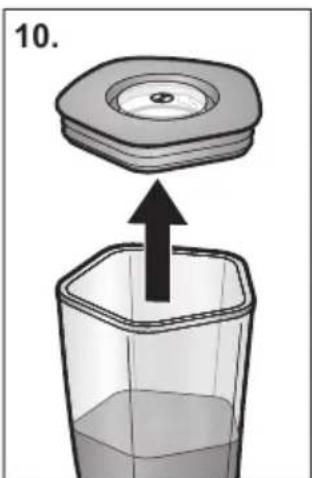

10. Remove the lid.

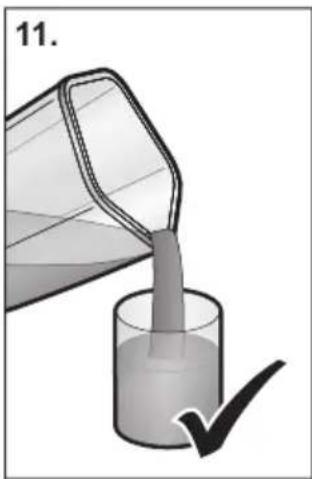

11. Pour the blended food into another container.

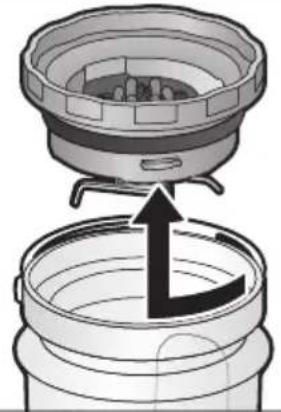

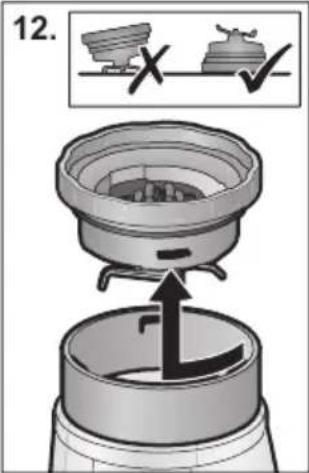

12. Turn the blade insert clockwise and then remove it.

Caution!

Never set the blade insert down with the blade underneath. This could damage the blade and scratch your work surface.

→ Fig. B

Clean all the parts. → “Care and daily cleaning” see page 14

Adding more ingredients

→ Fig. 田

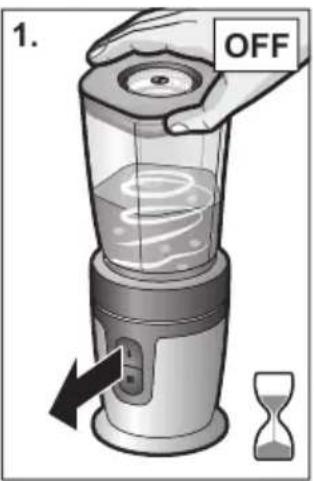

1. Release the button and wait until the appliance comes to rest.
2. Remove the locking cap or the entire lid.

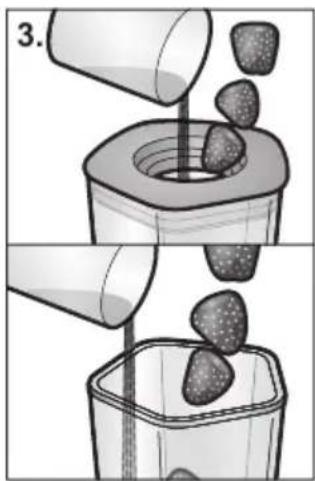

3. Add the extra ingredients.
4. Replace the lid and the locking cap, and again hold down the I or II button.

Note: you can remove the locking cap by turning it anticlockwise.

Care and daily cleaning

The appliance and all the attachments and accessories used must be thoroughly cleaned after each use.

⚠️ Risk of electric shock!

– Unplug the appliance before cleaning it.
- Never immerse the base unit in liquids and do not clean in the dishwasher.
- Do not use a steam cleaner.

Risk of injury!

Do not touch the blender blades with your bare hands.

Caution!

• Do not use any cleaning agents containing alcohol or spirits.
• Do not use any sharp, pointed or metal objects.
• Do not use abrasive cloths or cleaning agents.

Notes:

• It is best to clean the parts immediately after use. This will prevent residues from drying on and possibly attacking the plastic (e.g. essential oils in herbs).
• Pour a little water and washing-up liquid into the empty blender jug and hold down button || for a few seconds.
• The plastic parts may become dis-coloured when you process certain ingredients, such as carrots, but this can be removed with a few drops of cooking oil.

In Fig. F you will find a summary of how to clean the individual parts.

Base unit

Wipe the outside of the base unit with a soft, damp cloth and dry off.

Blade holder

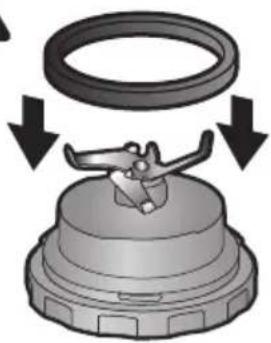

Remove the seal before cleaning. Only clean the blade holder with a brush under running water. Don't leave it soaking in water!

→ Fig. H

Blender jugs and lids

You can clean the blender jugs and other parts with a detergent solution and a soft cloth or sponge, or put them in the dishwasher.

Safety systems

Start lock-out and automatic cut-out

The appliance can be switched on only if the blender jug has been latched firmly into place. The appliance will switch off automatically if the blender jug becomes detached while it is running. "Troubleshooting" see page 15

Troubleshooting

Risk of injury!

Before dealing with any faults, unplug the mains plug.

Fault

Appliance fails to start up or switches off while in use. The illuminated ring (depending on the model) does not light up.

Possible cause

Blender jug is not correctly positioned or has become detached.

Remedy

■ Release the button. Disconnect the mains plug.
■ Position the blender jug correctly and turn it until it latches audibly into place.
- Plug the mains plug into the mains. Press the | or || button again to test the function.

Important note

If this does not resolve the problem, please contact customer service. → You will find their contact information at the end of these operating instructions

Recipes

Notes:

• First mix the solid ingredients with half the amount of liquid, then add the remainder of the liquid.
• Use the appropriate blender jug for each recipe.
• Note the maximum processing quantities and times! Fig. ©

Green smoothie

• 1 green apple (ca. 100 g)
  – Juice of one lemon (ca. 20 g)
• 20 g kale
• 10 g celery
• 10 g coriander leaves
• 10 g linseed
• 1 g ground cinnamon
• 300 g cooled water
  ■ Cut apple, celery and kale into pieces.
  ■ Put a little of the water in the blender jug.
  ■ Blend for 1 minute at speed II.
  ■ Add all the remaining ingredients to the blender jug.
  ■ Blend for 1 minute at speed ||.

Smoothie

• 1 banana (ca. 100 g)
• 4 g fresh red ginger
• 100 g yoghurt
• 30 g honey
• 100 ml milk
• Peel the banana and ginger and cut into pieces.
  ■ Place all the ingredients in the to-go blender jug.
  ■ Blend for 1 minute at speed II.

Energy drink

• 240 g low fat milk
• ½ banana (ca. 50 g)
• 30 g sugar
• 20 g cocoa powder
  ■ Cut the banana into pieces and freeze overnight.
  ■ Place all the ingredients in the blender jug.
  ■ Blend for 1 minute at speed ||.

Apples and peas

• 100 g frozen peas
• 100 g frozen soya beans
• 1 apple (ca. 100 g)
• 220 g apple juice

■ Peel and core the apple and cut it into pieces.
■ Rinse the peas and soya beans under running water.
■ Put the apple, peas and soya beans into boiling water and let them stand for 3 minutes.
■ Rinse the cooked ingredients in a sieve under running water and then place them in iced water for a further 3 minutes to cool.
■ Placed the cooked ingredients and the apple juice in the blender jug.
■ Blend the mixture at speed || until it is thick and creamy.

Avocado cream

• 1 apple or pear (ca. 100 g)
• 12 avocado (ca. 70 g)
• 100 g water
  ■ Peel and core the apple or pear and cut it into pieces.
  ■ Gently simmer the pieces in a little water on a low heat until they are soft.
• Peel the avocado, cut it into pieces and remove the stone.
  ■ Placed the cooked ingredients and the piece of avocado in the blender jug.
  ■ Blend the mixture at speed Ⅱ until it is thick and creamy.

Sportsman's cocktail

• 150 g oranges
• 50 g lemon
• 1 tsp sugar or honey
• 125 ml apple juice

• 125 ml mineral water

• Peel the oranges and lemons, cut into pieces and remove the pips.
  ■ Place all the ingredients in the blender jug.
  ■ Blend for 1 minute at speed I.

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrica and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposalfacilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

Sportsman's cocktail

Sportsman's cocktail

• 150 g sinaasappels
• 50 g citroen
• 1 theelepel suiker of honing
• 125 ml appelsap
• 125 ml mineraalwater

Sportsman's cocktail

⚠️ Fare for forbrenning!

Fare for forbrenning!

Fyll på maksimalt 0,3 liter varm eller skummende væske i miksebegeret av glass.

Sportsman's cocktail

• 150 g appelsiner
• 50 g sitron
• 1 ts sukker eller honning
• 125 ml eplejuice
• 125 ml mineralvann

Sportsman's cocktail

www.bosch-home.com/tr

www.bosch-yetkiliservisi.com

(waste electrical and electronic equipment – WEEE).

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

ELEKTRO-SERVIS sh.p.k

Rr. Shkelqim Fusha, Selite, Pallati "Matrix Konstruksion",

Kati 0 dhe +1

1023 Tirane

Tel.: [phone], -131

Fax: [phone]

mailto:[e-mail]

EXPERT SERVIS

Rruga e Kavajes,

Kulla B Nr 223/1 Kati I

1023 Tirane

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

Cel: [phone]

mailto:[e-mail]

Gate 1, 1555 Centre Road

Clayton, Victoria 3168

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.au

* Mo-Fr: 24 hours

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Tel./Fax: [phone]

mailto:[e-mail]

Business center FPI, floor 5,

Cherni vrah Blvd. 51B

1407 Sofia

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.bg

BH Bahrain

Khalafat Est.

P.O. Box 5111

Manama

Tel.: [phone]

mailto:[e-mail]

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit

www.bosch-home.co.uk

or call Tel.: [phone]*

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias & Potamou 20

14564 Kifisia

Τηλέφωνο: 181 82

Unit 1 & 2, 3rd Floor,

North Block, Skyway House,

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone] (HK)

Toll free 0800 863 (Macao)

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

M50 Business Park

Ballymount Road Upper

Walkinstown

Dublin 12

To arrange an engineer visit, to order spare parts and accessories or for product advice please call

Tel.: [phone]*

www.bosch-home.ie

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges

IL Israel

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārat, भारत

BSH Household Appliances Mfg. Pvt. Ltd.

Arena House, Main Bldg, 2nd Floor,

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 266 1880*

www.bosch-home.com/in

* Mo-Sa: 8.00am to 8.00pm

(exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

KZ Kazakhstan, Казақстан

IP Anackiy A.N. PTN-Service

Kuyshi Dina str.23/1 N3

Astana

Tel.: [phone]

mailto:[e-mail]

Technodom Service

Utegen Batira Str. 73

480096 Almaty

Tel.: [phone]

mailto:[e-mail]

www.technodom.kz

Kombitechnocentr

Zhambyl st. 117

480096 Almaty

Tel.: [phone]

mailto:[e-mail]

www.cts.kz

TOO Evrika Service

Shimkent, Riskulova 22.

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

www.evrika.com

AV SERVICE

Abulhair hana Str. 51

Uralsk 090000

Tel.: [phone]

mailto:[e-mail]

www.avservice.kz

LB Lebanon

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh, 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

UAB "AG Service"

R. Kalantos g. 32

52494 Kaunas

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.agservice.lt

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

UAB Emtoservis

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

* Mo-Fr: 8.30 am to 5.00 pm

(exclude public holidays)

PL Polska, Poland

SA Kingdom Saudi Arabia,

Abdul Latif Jameel Electronics

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.

P.O.Box 7997

Jeddah 21472

Tel.: [phone]

mailto:[e-mail]

www.aljelectronics.com.sa

SE Sverige, Sweden

BSH Home Appliances AB

Landsvägen 32

169 29 Solna

Tel.: [phone] local rate

Tel.: [phone] local rate

mailto:[e-mail]

www.bosch-home.se

SG Singapore新加坡

BSH Home Appliances Pte. Ltd.

Block 4012, Ang Mo Kio Avenue 10

01-01 Techplace 1

Singapore 569628

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.sg

* Mo-Fr: 8.30am to 7.00pm, Sa: 8.30am to 5.30pm

(exclude public holidays)

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/si

SK Slovensko, Slovakia

Ital Thai Tower, 2034/31-39, 1st floor,

New Petchburi Road

Bangkapi, Huay Kwang

Bangkok, 10310

Tel.: [phone]*

www.bosch-home.com/th

* Mo-Sa: 8.00am to 6.00pm

(exclude public holidays)

TR Türkiye, Turkey

BSH Ev Aletleri Sanayi

ve Ticaret A.S

Fatih Sultan Mehmet Mahallesi

Balkan Caddesi No: 51

34771 Ümraniye, Istanbul

Tel.: [phone]*

Fax: [phone]*

mailto:[e-mail]

www.bosch-home.com/tr

BSH Home Appliances Private Limited

台北市內湖區洲子街80號11樓

11F., No.80, Zhouzi St., Neihu Dist.

Taipei City 11493

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

Service-General SH.P.K.

rr.Magjistralja Ferizaj Prishtine

70000 Ferizaj

Tel:00381(0)290330723

Tel.: [phone]

mailto:[e-mail]

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/za

[e-mail]

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
  • Warranty extension options
  • Discounts for accessories & spare-parts
  • Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, need help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

Two grayscale icons: a stylized 'X' and a checkmark, likely representing approval or verification steps.

Illustration showing hands holding a naval ship with a checkmark, indicating cancellation or rejection.

C

Illustration of two kitchen blender units with lid and handle (no text or symbols)

Illustration of a strawberry being poured into a plastic container with liquid (no text or symbols)

1.

click!

1.

Illustration of a cylindrical container with a lid and internal structure (no text or symbols)

Illustration of a plastic container with strawberries inside, no text or symbols present

1.

4. click!

1.

Pure electrical outlet diagram showing a cable with a plug, no text or symbols present

1.

Illustration of a blender with a hand holding a spring and an hourglass nearby (no text or symbols)

1.

Two identical capsule-shaped icons with bidirectional arrows, no text or symbols present

1.

Close-up of a mechanical component with an arrow indicating a process or assembly (no visible text or symbols)

9.

Illustration of a cylindrical container with a submerged object inside, no text or symbols present

Illustration of a transparent cylindrical container with a side outlet and a submerged object inside (no text or symbols)

1.

Diagram of a mechanical component with an upward arrow, showing internal structure (no text or symbols)

1.

click!

click!

1.

Illustration of a bottle pouring liquid into a beaker with a checkmark indicating action (no text or symbols present)

Illustration of a hand holding a container with a lid and arrow indicating rotation (no text or symbols)

D

Illustration of a blender with handle and control buttons (no text or symbols)

1.

click!

2.

Illustration of two plastic containers, one with a lid and the other with a hexagonal top (no text or symbols)

3. click!

Illustration of a strawberry being poured into a glass blender (no text or symbols)

1.

Diagram of a mechanical device with a cylindrical component and a downward arrow emerging from a container (no text or symbols)

6.

Illustration of a hand using a blender to dispense liquid into a container, with an hourglass nearby (no text or symbols)

8.

Close-up of a mechanical component with an arrow indicating a process or assembly (no visible text or symbols)

10.

Illustration of pouring liquid into a beaker with a checkmark (no text or symbols)

12.

E

1. OFF

2.

Two-step illustration showing a hand pouring strawberries into a container, with no text or symbols present.

4.

	√×√√√
	×
	×

G
	√			600 ml 180 s		II
		√		200 ml 180 s		II
			√	500 ml 180 s		II
	√		√	80%40%	120 s	II
[HSAD]	√			300 ml 60 s		I / II
[BAY7]	√√√√			4 x 10 g(40 g)	20 x 1 s	I
	√√√√			50 g	8-20s/10 s	II
	√	√		50 g 2-5 x 1 s		II
		√		30 g 20 s150 g 5 s		IIII

H

Diagram showing a container being inverted with an arrow indicating rotation (no text or symbols present)

Illustration of a cylindrical device with internal components and mounting base (no text or symbols)

Illustration of a mechanical component with upward arrows indicating motion or force (no text or symbols)

Illustration of a mechanical component with a propeller and base (no text or symbols)

Mechanical component diagram showing a rotating ring and a base with arrows indicating motion (no text or symbols)

click!

Illustration of a laboratory measuring device with a checkmark indicating completion (no text or symbols present)

WARNING!

Simple diagram of a ring with four surrounding dots, no text or symbols present

click!

Illustration of a cylindrical container with a submerged object and a black X mark symbol (no text or labels)
