Product Type	Blender
Brand	Bosch
Model	MMB42G1B
Power	700 W
Bowl Capacity	1.5 L
Blade Material	Stainless Steel
Bowl Material	BPA-Free Plastic
Number of Speeds	2 speeds + pulse
Main Functions	Blend, grind, pulverize, make smoothies
Dimensions (L × W × H)	20 × 18 × 40 cm
Weight	1.8 kg
Power Supply	220-240 V, 50/60 Hz
Cable Length	1.2 m
Safety	Overload protection, non-slip base
Care and Cleaning	Bowl and lid dishwasher safe
Spare Parts and Repairability	Replacement bowl, blades, seal available
Warranty	2 years

Frequently Asked Questions - MMB42G1B BOSCH

How to use the Bosch MMB42G1B blender?

Place ingredients in the bowl, close the lid, plug in the appliance and select the desired speed using the selector. Use the pulse function for precise control.

What if the blender does not start?

Check the power connection and ensure the bowl and lid are properly locked. If the problem persists, contact Bosch service.

Can I blend hot ingredients?

It is not recommended to blend hot liquids (above 60 °C) to avoid burns and damage to the plastic bowl. Let them cool before blending.

How to clean the Bosch MMB42G1B blender?

Detach the bowl from the base. Wash the bowl, lid and cap in the dishwasher or with soapy water. Never immerse the base in water.

Can I crush ice with this blender?

Yes, the blender is designed to crush ice cubes. Use the pulse function with short presses to avoid overloading the motor.

The blender leaks, what should I do?

Check the seal under the bowl. If the seal is worn or misaligned, replace or reposition it. Make sure the bowl is screwed on tightly.

Where to find spare parts for the MMB42G1B?

Spare parts (bowl, blades, seal) are available on the Bosch Home & Garden website or from authorized dealers.

What is the warranty on the Bosch MMB42G1B blender?

The legal warranty is two years. Keep your receipt. For terms, visit the Bosch website.

Can I blend nuts or seeds?

Yes, the blender can grind nuts and seeds. Use the pulse function to achieve a powder or paste as needed.

How to avoid overflow during blending?

Do not fill the bowl beyond the maximum mark. Start at low speed, then increase gradually. For hot liquids, wait until they cool down.

USER MANUAL MMB42G1B BOSCH

SmoothieMixx Blender

MMB21...

SilentMixx Blender

MMB42...

[en] Instruction manual Blender 12

This appliance is intended for domestic use only. Use the appliance only for processing normal quantities of food and for normal amounts of time for domestic use. This appliance is suitable for mixing liquid or semi-solid food, for cutting / mincing raw fruit and vegetables, for puréeing food and for cutting deep-frozen food (e.g. fruit) or crushing ice cubes. It must not be used for processing other objects or substances. Additional applications are possible if the accessories approved by the manufacturer are used. Only use the appliance with approved genuine parts and accessories. Never use the accessory parts for other appliances. Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Important safety information

Read and follow the instruction manual carefully and keep for later reference! Enclose these instructions when you give this appliance to someone else. If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children away from the appliance and connecting cable and do not allow them to use the appliance. Do not let children play with the appliance. Cleaning and user maintenance must not be performed by children.

⚠️ Risk of electric shock and fire!

■ Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged. Only our customer service may repair the appliance, e.g. by replacing a damaged power cord, in order to avoid hazards.
■ Do not place the appliance on or near hot surfaces, e.g. hobs. The power cord must not come into contact with hot parts or be pulled across sharp edges.
■ Never immerse the base unit in water or place it in the dishwasher. Do not steam-clean the appliance. Do not use the appliance with damp hands.
■ After each use, whenever the appliance is unsupervised, prior to assembly, prior to disassembly, prior to cleaning and in the event of an error, the appliance must always be disconnected from the mains.

Risk of injury!

■ Care should be taken when handling the sharp cutting blades, emptying the container and during cleaning.
■ Before replacing accessories or additional parts which move during operation, the appliance must be switched off and dis connected from the power supply.
■ Never place fingers in the attached blender. Never operate the appliance without a completely assembled blender or attached lid! Do not remove or attach blender jug until the appliance has been switched off and the drive has come to a standstill. When the appliance has been switched off, the blade continues running for a short time.
■ If there is a power cut, the appliance remains switched on and will start up again when the power is restored.

Risk of scalding!

■ Caution when processing hot liquids.
■ If processing hot liquids, steam escapes through the funnel in the lid. Add a maximum of 0.5 litres of hot or frothing liquid.
■ While working, always hold the lid firmly with one hand. However, do not place hand over the refill opening!

Risk of suffocation!

■ Do not allow children to play with packaging material.

⚠️ Important!

■ We recommend that the appliance is never switched on for longer than is necessary to process the ingredients. Do not operate at no-load.

It is essential to clean the appliance thoroughly after each use or after it has not been used for an extended period. "Cleaning and servicing" see page 16

Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our web page.

Contents

Intended use 12
Important safety information 12
Safety systems....14
Overview 14
Operation 14
Cleaning and servicing....16
Troubleshooting 17
Recipes 17
Disposal.... 19
Guarantee 19

Safety systems

Start lock-out

The appliance cannot be switched on until the blender jug has been turned firmly into place.

Automatic disconnection

The appliance switches off automatically if the blender jug accidentally becomes detached during operation.

Overload protection

If the motor switches itself off while the appliance is being used, the overload protection feature has been activated. Possible causes:

– very large amounts of ingredients,

– appliance operated too long.

If a safety system is activated, see "Troubleshooting".

Overview

Please fold out the illustrated pages.

1 Motor block

2 Rotary switch

$$ 0 / \text { o f f } = \text { S t o p } $$

1 = Lowest operating speed

2 = Highest operating speed

Pulse = pulse circuit at maximum speed, hold down switch for required duration

3 Cord store

4 Drive

Plastic blender jug (MMB21...)

5 Blender jug with blade

Do not process deep-frozen ingredients (except ice cubes).

6 Lid with feed tube

7 Measuring cup with scale (max. 50 ml)

Glass blender jug (MMB42...)

8 Blade holder with blender blade and seal

9 Blender jug made of borosilicate glass Especially heat-resistant, even very hot ingredients can be processed.

10 Lid with feed tube

11 Measuring cup with scale (max. 50 ml)

12 Smoothie insert\*

For the preparation of fruits and other ingredients into juices and smoothies. The insert ensures that pips and other solid ingredients are filtered out and do not get into the drinks.

* Not all models.

Operation

The blender is suitable for

• blending and frothing liquids,
  – cutting and chopping raw fruit, vegetables, nuts and chocolate,
  – puréeing soups, cooked fruit and vegetables,
  – preparing mayonnaise and sauces.

Pay attention to Figure F!

Note: If the universal cutter is not included with the blender, it can be ordered from customer service (order no. 12007111).

The appliance is suitable for preparing the following quantities:

Solid food 100 g

Liquids max. 1.5 l

Hot or frothing liquids max. 0.5

⚠️ Risk of injury from sharp blades/rotating drive!

Never place fingers in the attached blender jug. Never operate the appliance without a completely assembled blender or attached lid! Do not remove or attach blender jug until the appliance has been switched off and the drive has come to a standstill. When the appliance has been switched off, the blade continues running briefly.

Risk of scalding!

If processing hot liquids, steam escapes through the funnel in the lid. Pour maximum 0.5 litres of hot or frothing liquid into the blender jug.

Warning!

Never operate an empty blender. Always work with a completely assembled appliance. Screw the blender jug fully onto the motor block.

Recommended operating speed

Hot or frothing liquids 1
Making mayonnaise 2
Soups, Smoothies 2
Cocktails, Milkshakes 2
Ice cubes	Pulse
Very hard ingredients	Pulse

Preparation

■ Before operating the appliance and accessories for the first time, clean thoroughly; see “Cleaning and servicing”.
■ Place motor block on smooth, stable and clean base.
■ Unwind the cable to the required length.

Working with the plastic blender jug (MMB21...)

Fig. B

■ Attach blender jug to the drive on the motor block. Arrow on the blender jug points towards the dot on the motor block.
■ Attach blender jug by turning it all the way clockwise.
■ Add ingredients.
■ Put lid on and press down all the way. Insert measuring cup into feed tube.
■ Insert the mains plug.
■ Turn rotary switch to the required operating speed.
■ Grip the edge of the lid while operating the blender. Do not grip the feed tube!

Add more ingredients

■ Set the rotary switch to 0/off.

Either

■ Remove lid.
■ Add more ingredients.

or

■ Take out measuring cup.
■ Add liquids and solid (fairly small) ingredients through the feed tube in the lid.
■ Switch on appliance again.

After using the appliance

■ Set the rotary switch to 0/off.
- Remove mains plug. - Remove the blender by rotating it in an anti-clockwise direction.
■ Take the lid off the blender jug.
■ Empty blender jug.
■ Clean all parts, see “Cleaning and servicing”.

Working with the glass blender jug (MMB42...)

Fig. C

■ Put blender jug down with the base face up.
■ Place seal on the blade holder. Ensure that the seal is positioned correctly.

Important information

If the seal is damaged or not correctly positioned, liquid may run out.

■ Grip blade holder by the handle and insert into the blender jug.
Note shape of the parts (Fig. C-2a)!

■ Move handle (Fig. C-2b). This locks the blade holder in the blender jug.

■ Turn blender jug over.
■ Attach blender jug to the drive on the motor block. Arrow on the blender jug points towards the dot on the motor block.
■ Attach blender jug by turning it all the way clockwise.

■ Add ingredients.

■ Put lid on and press down all the way. Insert measuring cup into feed tube.

■ Insert the mains plug.

■ Turn rotary switch to the required operating speed.

■ Grip the edge of the lid while operating the blender. Do not grip the feed tube!

Add more ingredients

■ Set the rotary switch to 0/off.

Either

■ Remove lid.
■ Add more ingredients.

or

■ Take out measuring cup.

■ Add liquids and solid (fairly small) ingredients through the feed tube in the lid.
■ Switch on appliance again.

After using the appliance

■ Set the rotary switch to 0/off.

• Remove mains plug.
• Remove the blender jug by rotating it in an anti-clockwise direction.
  ■ Take the lid off the blender jug.
  ■ Empty blender jug.
  ■ Turn blender jug over and put down with the opening face down.
  ■ Remove blade holder. To do this, fold the handle upwards and pull out the blade holder.
  ■ Clean all parts, see “Cleaning and servicing”.

Working with the smoothie insert

With this insert it is particularly easy to make smoothies made of fresh fruits, milk, soya milk, yoghurt and juices.

Fig. D

■ Prepare blender as described above.
■ After attaching and screwing on the blender jug, the smoothie insert is inserted into the blender jug.
■ Put lid on and press down all the way.
■ Insert the mains plug.
- Put ingredients through the feed tube into the blender jug; chop up fruit beforehand if required.

Warning!

Do not put large, hard ingredients in the blender jug, e.g. stones from avocados or plums.

■ Insert measuring cup into feed tube.
■ Switch on the appliance.

After using the appliance

■ Set the rotary switch to 0/off.

■ Remove mains plug.
■ Remove the blender jug by rotating it in an anti-clockwise direction.

■ Remove lid.

■ Take measuring cup out of the lid and plug into the smoothie insert. This prevents integral components from falling out of the insert into the drink.

■ Empty blender jug.
■ Clean all parts, see “Cleaning and servicing”.

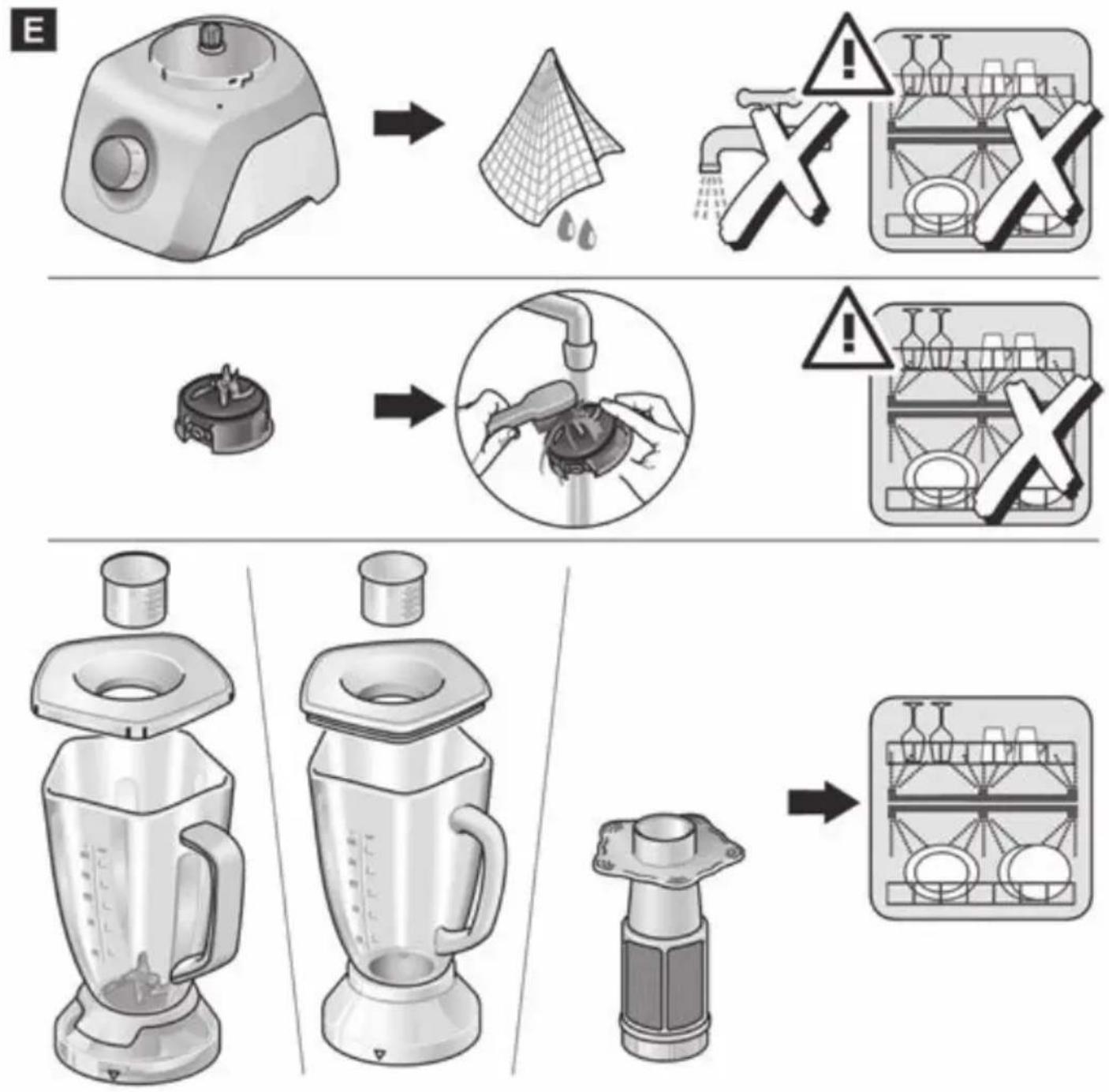

Cleaning and servicing

The appliance requires no maintenance! Thorough cleaning guarantees a long service life. An overview of cleaning the individual parts can be found in Fig. E.

Risk of electric shock!

Never immerse the motor block in water and never hold under running water and do not clean in the dishwasher.

Warning!

Do not use abrasive cleaning agents. Surfaces may be damaged.

Tips:

• Preferably clean the parts immediately after use. This will prevent residue from drying on and attacking the plastic (e.g. by essential oils in herbs).
• If processing e.g. carrots and red cabbage, the plastic parts will become discoloured by a red film which can be removed with a few drops of cooking oil.

Cleaning the motor block

■ Remove mains plug.
■ Wipe motor block with a damp cloth. If required, use a little detergent.
■ Then wipe dry.

Cleaning the blender

The blender jug, lid and measuring cup are dishwasher-safe.

Tip: Pour a little water and washing-up liquid into the attached blender. Switch to setting Pulse for several seconds. Pour out the water and rinse the blender with clean water.

Cleaning blade holder (only MMB42...)

Risk of injury from sharp blades!

Do not touch blender blades with bare hands. Clean them with a brush.

Do not clean blade holder in the dishwasher, but under running water using a brush. Do not leave in water! Remove seal for cleaning.

Troubleshooting

Risk of injury!

Before rectifying a fault, pull out the mains plug.

Fault:

Blender does not start or appliance switches off during operation.

Possible cause:

Blender jug has become detached.

Remedial action:

■ Set the rotary switch to 0/off.
■ Correctly attach the blender and rotate fully into position.
■ Switch the appliance on again.

Fault:

Appliance switches off during use.

Possible cause:

The overload protection device is activated.

Remedial action:

■ Set the rotary switch to 0/off.
■ Remove mains plug.
■ Leave the appliance to cool down for approx. 1 hour in order to deactivate the overload protection device.
■ Insert the mains plug.
■ Switch the appliance on again.
■ If the appliance does not start, leave the appliance to cool again and try it again later.

Important information

If the fault cannot be eliminated, please contact customer service (see customer service addresses at the end of this booklet).

Recipes

General notes:

First mix the solid ingredients with half the amount of liquid, then add the remainder of the liquid.

When preparing smoothies, place the mixing beaker back into position after draining it and briefly switch on the highest level in order to obtain the remaining liquid.

Mayonnaise

Note: Mayonnaise can be prepared in the blender with whole eggs only.

Basic recipe:

• 1 egg
• 15 g vinegar or lemon juice
• 1 pinch of salt
• 1 pinch of sugar
• 250 ml oil

Ingredients must be at the same temperature.

■ Switch on the blender at low speed.
■ Process the ingredients (except the oil) at low speed for several seconds.
■ Switch the blender to maximum speed, slowly pour the oil through the funnel and blend for approx. 2 minutes.

Hot chocolate

• 50-75 g frozen cooking chocolate
• 12 I hot milk
• Whipped cream and grated chocolate as required

■ Cut the cooking chocolate into pieces (approx. 1 cm) and chop up completely in the blender at maximum speed.
■ Switch off the blender and add the milk through the funnel.
■ Blend for 1 minute at maximum speed.
■ Pour the hot chocolate into glasses and serve with whipped cream and grated chocolate as required.

Banana ice shake

• 2-3 bananas (ca. 300 g)
• 2-3 heaped tbs. vanilla or lemon ice cream (80-100 g)
• 2 packets of vanilla sugar
• 12 l milk

■ Put all ingredients in the blender jug.

■ Blend for 1 minute at maximum speed.

Tip: This recipe will work even with the smoothie insert.

Fruit sundae (MMB4...)

- 250 g frozen fruit (e.g. strawberries, banana, orange, apple)

- 50-100 g sugar

- 500 ml cold water

- Ice as required

■ Peel fruit and cut into pieces

■ Freeze fresh fruits before subjecting them to further processing.

■ Put all ingredients (except the ice) in the blender jug.

■ Blend for 1 minute at maximum speed.

■ Serve with the ice cream

Sportsman's cocktail

- 2-3 oranges (ca 600 g)

- 1-2 lemons (ca 150 g)

- 1/2-1 tbs. sugar or honey

- 14 I apple juice

- 14 I mineral water

- Ice cube as required

■ Peel the oranges and apples, cut into pieces

■ Put all ingredients (except the apple juice and mineral water) in the blender jug.

■ Blend for 1 minute at maximum speed.

■ Add the apple juice and mineral water

■ Blend briefly until the drink is frothy.

■ Pour the cocktail into glasses and serve as required with ice cubes

Green smoothie

- 1 green apple (ca. 100 g)

- Juice of one lemon (approx. 20 g)

- 20 g kale

- 10 g celery

- 10 g coriander leaves

- 10 g linseeds

- 1 g ground cinnamon

- 250 ml cooled water

■ Cut apple, celery and kale into pieces.

■ Put a little of the water in the blender jug.

■ Put all solid ingredients in the smoothie insert and top up with water.

■ Blend for 1 minute at maximum speed.

Tip: This recipe will work even without the smoothie insert.

Grape smoothie (MMB4...)

- 250 g green grapes

- 25 g baby spinach

- 100 g frozen banana pieces

- 200 ml cold green tea (suitable for children)

■ Put a little of the tea in the blender jug.

■ Put grapes, spinach and banana pieces in the smoothie insert and top up with the remaining tea.

■ Blend at maximum speed until the smoothie is ready.

Red fruit pudding

- 400 g fruit (pitted sour cherries, raspberries, black/red currants, strawberries, blackberries)

- 100 ml sour cherry juice

- 100 ml red wine

- 80 g sugar

- 1 packet of vanilla sugar

- 2 tbs. lemon juice

- 1 pinch of cloves (ground)

- 1 pinch of cinnamon (ground)

- 8 gelatine leaves

■ Soak the gelatine in cold water for approx. 10 minutes

■ Bring all the ingredients (except the gelatine) to the boil

■ Dry the gelatine and melt in the microwave, but do not cook

■ Blend the hot fruit and gelatine at medium speed for approx. 1 minute.

■ Pour the red fruit pudding into small bowls rinsed out with cold water and refrigerate

Do not process more than 500 ml of hot liquid in the blender jug!

Tip: Red fruit pudding tastes good with whipped cream or vanilla sauce.

Basil pesto

- 10 g pine nuts

- 3 g garlic

- 5 g salt

- 40 g Parmesan cheese

- 10 g fresh basil

- 70 g olive oil

■ Put pine nuts, garlic, salt and Parmesan cheese in the glass container and close with the blade holder.
■ Grind for 15 seconds on setting Pulse.
■ Add basil and olive oil and mix everything for 10 seconds on setting Pulse.

Pumpkin soup

• 600 g yellow-flesh pumpkin
• 200 g potatoes
• 1 | vegetable stock
• 2 onions
• 2 garlic cloves
  – Ground pepper and salt
• 30 g butter
• 2 tablespoons of extra virgin olive oil
• 5-6 basil leaves
• 2-3 sage leaves
• 1 sprig of parsley
• 1 sprig of thyme
• 1 sprig of marjoram
• 14 teaspoon of ground cinnamon
• Grated Parmesan to taste

- Cut the pumpkin into slices and remove peel and pips. Cut pumpkin into small pieces.

• Peel the potatoes and also cut into small pieces.
  ■ Peel the onions, chop finely and fry gently in a frying pan with butter, olive oil and chopped garlic.
  ■ Add pumpkin and potato pieces and steam until soft, stirring continuously. Gradually pour in the vegetable stock and add the bouquet garni.
  ■ Leave to simmer for approx. 25-30 minutes on a low heat and add more stock if required.
  ■ Take out the bouquet garni.
  ■ Add salt and pepper to taste, finish off with a pinch of cinnamon and a dash of extra virgin olive oil.
  ■ Pour 500 ml of the soup at a time into the blender jug and puree.

Do not process more than 500 ml of hot liquid in the blender jug!

Serve with finely grated Parmesan.

Carrot soup with cumin

• 780 g carrots
• 720 ml water
• 1 tsp cumin
• Salt and pepper
  ■ Dice the carrots (approx. 15x15 mm).
  ■ Pour the carrots and the water into the blender jug.
  ■ Mix for a few seconds at maximum speed.
  ■ Pour the mixture into a saucepan and add the cumin.
  ■ Cook everything for 30 minutes. You can add water while cooking if you would like the soup to be thinner.
  ■ Season with salt and pepper.

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrica and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposalfacilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

Sécurité anti-surcharge

⚠️ Fare for skoldning!

⚠️ Fare for skoldning!

⚠️ Fare for skolding!

www.bosch-home.com/tr

www.bosch-yetkiliservisi.com

(waste electrical and electronic equipment – WEEE).

www.bosch-home.com/ae

* Sun-Thu: 8.00 am to 5.00 pm (exclude public holidays)

AL Republika e Shqiperise, Albania

ELEKTRO-SERVIS sh.p.k

Rr. Shkelqim Fusha, Selite,

Pallati "Matrix Konstruksion",

Kati 0 dhe +1

1023 Tirane

Tel.: [phone], -131

Fax: [phone]

mailto:[e-mail]

EXPERT SERVIS

Rruga e Kavajes,

Kulla B Nr 223/1 Kati I

1023 Tirane

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

Cel: [phone]

mailto:[e-mail]

Gate 1, 1555 Centre Road

Clayton, Victoria 3168

Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.com.au

* Mo-Fr: 24 hours

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Tel./Fax: [phone]

mailto:[e-mail]

Business center FPI, floor 5,

Cherni vrah Blvd. 51B

1407 Sofia

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.bg

BH Bahrain

Khalaifat Est.

BLD 898, R 533, TASHAN 405

Manama

Tel.: [phone]*

mailto:[e-mail]

* Sat-Thu: 7.00 am to 5.00 pm

(exclude public holidays)

To arrange an engineer visit, to order

spare parts and accessories or for product advice please visit

www.bosch-home.co.uk

or call Tel.: [phone]*

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias & Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor, North Block,

Skyway House, 3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone] (HK)

Toll free 0800 863 (Macao)

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

M50 Business Park

Ballymount Road Upper

Walkinstown

Dublin 12

To arrange an engineer visit, to order spare parts and accessories or for

product advice please call

Tel.: [phone]*

www.bosch-home.ie

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges

IL Israel

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārat, भारत

BSH Household Appliances Mfg. Pvt. Ltd.

Arena House, Main Bldg, 2nd Floor,

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 266 1880*

www.bosch-home.com/in

* Mo-Sa: 8.00am to 8.00pm

(exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

KR Republic Korea,

Daehan Minguk,대한민국

Dong Suh Foods Corporation

Dongsuh Bldg., 324,

Dongmak-ro, Mapo-gu

Seoul 121-730

Tel.: [phone]

KZ Kazakhstan, Казақстан

BSH Home Appliances LLP

Dostyk 117/6,

Business Center "Khan Tengri"

Almaty

Hotline: 5454*

mailto:[e-mail]

* Toll free from mobile only

LB Lebanon

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh, 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

UAB "AG Service"

R. Kalantos g. 32

52494 Kaunas

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.agservice.lt

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

UAB Emtoservis

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

MV Raajjeyge Jumhooriyyaa,

Maledives

Lintel Investments and

Management Services Pvt. Ltd.

Ma. Maadheli, Majeedhee Magu

Malé

Tel.: [phone]

mailto:[e-mail]

www.lintel.com.mv

NL Nederlande, Netherlands

Level 3, Air NZ Building, Smales Farm

74 Taharoto Road, Takapuna

Auckland 0622

Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.co.nz

* Mo-Fr: 8.30 am to 5.00 pm

(exclude public holidays)

PL Polska, Poland

SA Kingdom Saudi Arabia,

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.,

P.O. Box 7997

Jeddah 21472

Tel.: [phone]*

mailto:[e-mail]

www.aljelectronics.com.sa

* Sat-Thu: 8.00 am to 11.00 pm

(exclude public holidays)

SE Sverige, Sweden

BSH Home Appliances AB

Landsvägen 32

169 29 Solna

Tel.: [phone] local rate

Tel.: [phone] local rate

mailto:[e-mail]

www.bosch-home.se

SG Singapore新加坡

BSH Home Appliances Pte. Ltd.

Block 4012, Ang Mo Kio Avenue 10

01-01 Techplace 1

Singapore 569628

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.sg

* Mo-Fr: 8.30am to 7.00pm, Sa: 8.30am to 5.30pm (exclude public holidays)

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/si

SK Slovensko, Slovakia

Ital Thai Tower, 2034/31-39, 1st floor,

New Petchburi Road

Bangkapi, Huay Kwang

Bangkok, 10310

Tel.: [phone]*

www.bosch-home.com/th

* Mo-Sa: 8.00am to 6.00pm

(exclude public holidays)

TR Türkiye, Turkey

BSH Ev Aletleri Sanayi

ve Ticaret A.S.

Fatih Sultan Mehmet Mahallesi

Balkan Caddesi No: 51

34771 Ümraniye, Istanbul

Tel.: [phone]*

Fax: [phone]*

mailto:[e-mail]

www.bosch-home.com/tr

BSH Home Appliances Private Limited

台北市內湖區洲子街80號11樓

11F., No.80, Zhouzi St., Neihu Dist.

Taipei City 11493

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

Service-General SH.P.K.

rr.Magjistralja Ferizaj Prishtine

70000 Ferizaj

Tel.: 00381 (0) 290 330 723

Tel.: [phone]

mailto:[e-mail]

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/za

[e-mail]

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
  • Warranty extension options
  • Discounts for accessories & spare-parts
  • Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, need help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

F						MAX
		√		√	1500 ml 60-180 s 2
		√		√		60-180 s 2
		√			500 ml 60 s 1 - 2
		√			10 x 10 g (100 g)	20 x 2 s Pulse
		√	√		100 g	8-20 s 10 s	2
		√	√		75 g	6-12 x 2 s 3-6 x 2 s	Pulse
			√		50 g	3-6 x 1 s	Pulse
			√		20 x	[7283] 4-8 x 1 s	Pulse
CNSM11			√		100 g	5 s	2
CNSM10			√		20 g	5 s	2
