CCC 60N - Range hood CANDY - Free user manual and instructions

Product type	Decorative hood
Brand	Candy
Model	CCC 60N
Width	60 cm
Depth	Approximately 50 cm
Height (variable)	Depending on installation (70-80 cm above the hob)
Net weight	Approximately 12 kg
Power supply	220-240 V ~ 50 Hz
Motor power (at maximum efficiency)	86 W
Lighting power	2.5 W (LED)
Maximum airflow	423 m³/h
Noise level	70 dB
Number of speeds	3 (low, medium, high)
Exhaust type	External extraction or recirculation with charcoal filter
Grease filter	Metal, washable (monthly cleaning)
Charcoal filter	Active, annual replacement (2 provided)
Minimum distance gas/electric	70 cm
Minimum distance coal/oil	80 cm
Annual energy consumption	52 kWh/year
Energy efficiency index	81.3
Fluid dynamic efficiency	12.2
Average illumination on cooking surface	61 lux
Check valve	Yes
Accessories included	Duct, exhaust hose (150 mm), wall bracket, plates, screws, wall plugs, charcoal filters

Frequently Asked Questions - CCC 60N CANDY

What is the minimum distance between the hood and the hob?

For a gas or electric cooker, the minimum distance is 70 cm. For a coal or oil cooker, it is 80 cm.

How to clean the metal grease filter?

Clean the filter every month using household detergent or warm soapy water. Never use metal brushes or abrasive products.

How often should the charcoal filter be replaced?

The active charcoal filter must be replaced once a year, depending on the frequency of use of the hood.

What to do if the hood stops working?

First check if the LED bulb is burnt out (replace it with a 2.5 W one). If the fan does not spin, the blade may be stuck or the motor damaged. Cut off the power and contact a professional.

How to replace the hood bulb?

Cut off the power supply and wait for the bulb to cool down. Remove the grease filters, then replace the bulb with a LED 2.5 W bulb of the same type.

Can I use the hood without a charcoal filter?

Yes, if the hood is installed in external extraction mode (with duct). The charcoal filter is only necessary for recirculation mode.

How to install the hood in recirculation mode?

If you do not have an external outlet, install the provided active charcoal filters. The exhaust hose is not used. Follow the installation instructions for mounting.

Can the hood be installed above a gas cooker?

Yes, provided a minimum distance of 70 cm is maintained between the cooking surface and the bottom of the hood.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by the manufacturer, its after-sales service, or a qualified electrician to avoid any risk.

How to reduce the environmental impact of the hood?

Clean the filters regularly to avoid clogging, turn off the light and motor after cooking, and recycle the appliance at the end of its life at an approved collection point.

USER MANUAL CCC 60N CANDY

INSTALLATION AND USER'S MANUAL

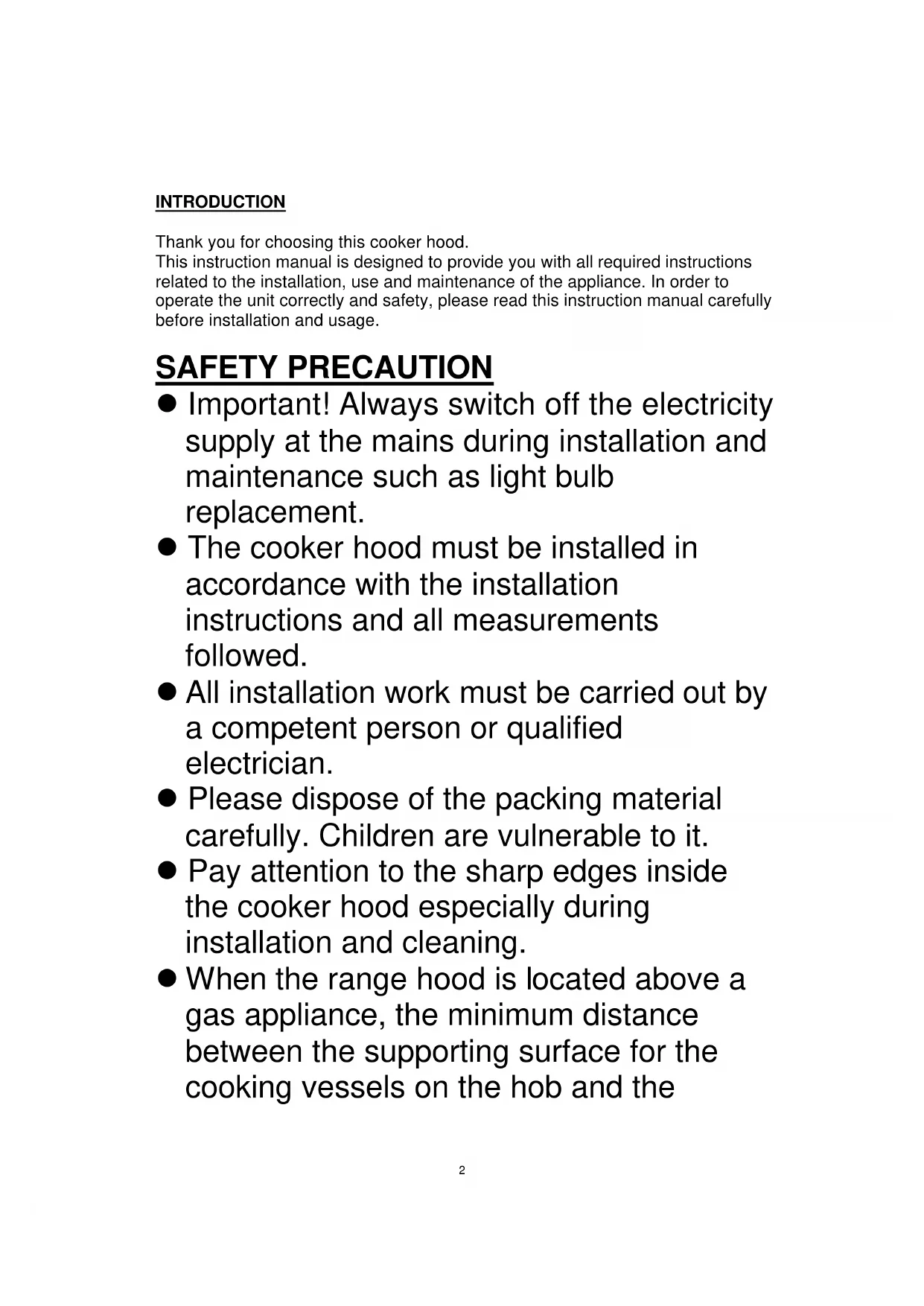

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage.

SAFETY PRECAUTION

• Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
• The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
• All installation work must be carried out by a competent person or qualified electrician.
• Please dispose of the packing material carefully. Children are vulnerable to it.
• Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
• When the range hood is located above a gas appliance, the minimum distance between the supporting surface for the cooking vessels on the hob and the

lowest part of the range hood that distance must be:

Gas cookers: 70 cm

Electric cookers: 70 cm

Coal or oil cookers: 80 cm

• Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.
• Cooker hood is for domestic use only.
• Always put lids on pots and pans when cooking on a gas cooker.
• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
• When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels
• Do not install above a cooker with a high level grill.
• Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
• Never leave naked flames under the cooker hood.
• If the cooker hood is damaged, do not attempt to use.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
• There is a fire risk if cleaning is not carried out in accordance with the instructions.
• Do not flambé under the cooker hood.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood. (When the range hood is

located above a gas appliance, this distance shall be at least 70 cm - Regulations concerning the discharge of air have to be fulfilled.

• Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
• Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Regarding the instructions for fixing the fixed appliance and how the appliance is to be fixed to its support, please refer to the section "INSTALLATION AND FIXING".
• Regarding the instructions for the bulb changing, please refer to the section "bulb changing".

PARTS SUPPLIED

Description	Illustration	Qty.
Cooker hood		1
Chimney		1
Exhaust Pipe (150mm diameter)		1
Wall bracket		1
Plate I		1
Plate II		1
Screw (4mm x 40mm)		7
Screw (4mm x 30mm)		2
Wall plug		9
Screw (4mm x 8mm)		6
Charcoal filter		2

INSTALLATION (VENT OUTSIDE)

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150 mm).

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 70~80 cm above the cooking plane for best effect.

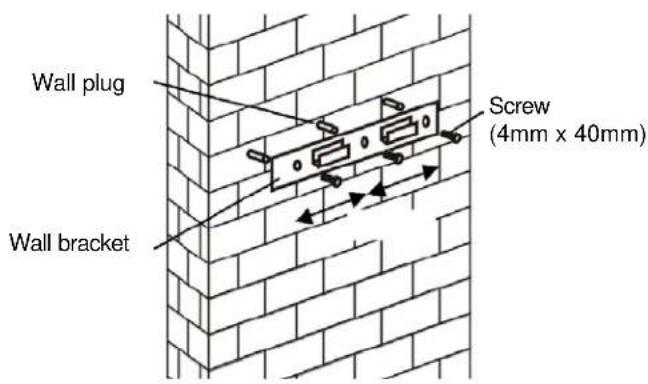

1. Drill 3 holes to accommodate the wall bracket. Screw and tighten the wall bracket onto the wall with the screws (4mm x 40 mm) and wall plugs provided.

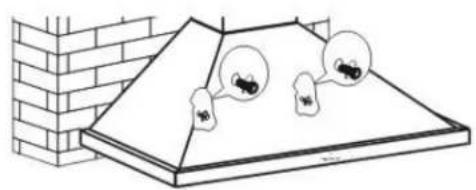

Hang the appliance onto the wall bracket hook and fix the appliance by the 2 screws (4mm x 30mm).

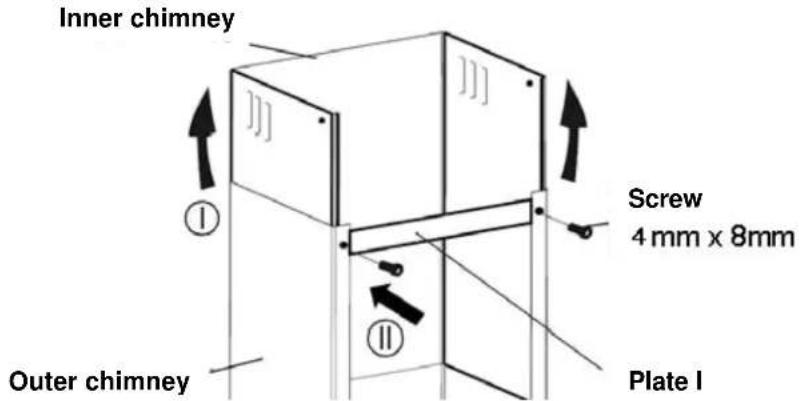

1. Plate I and II are used to fix the chimney on the wall. Put the inner chimney on the outer chimney. Then pull the inner chimney upwards. Install plate I on the chimney by two screws (4 mm x 8mm).

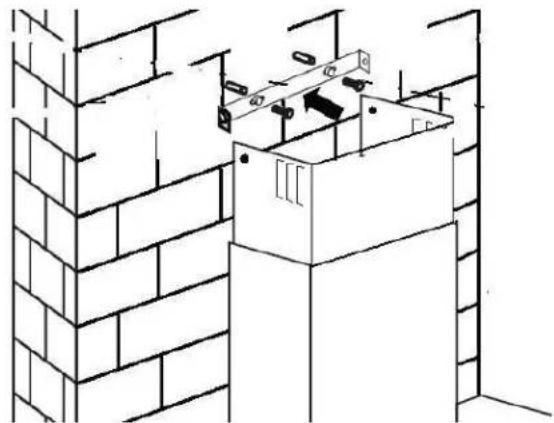

Place the chimney on the cooker hood and determine the location of plate I and II. Drill holes to accommodate plate I & II.

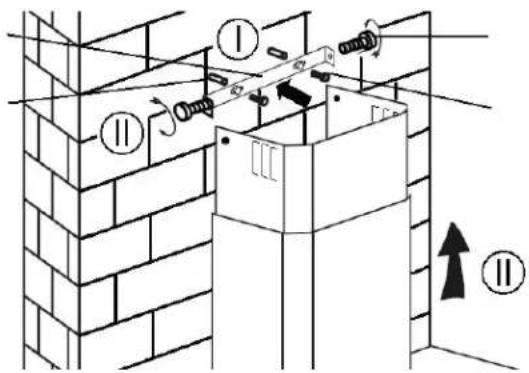

Fix plate II on the wall by two screws (4mm x 40mm) and wall plugs.

1. Take out the chimney from the cooker hood. Attach the exhaust pipe onto the one-way-valve as shown below.

1. Put the chimney back to the cooker hood. Before lifting the chimney to the desired height, fix plate I on the wall with two screws (4mm x 40mm) and wall plugs. Lift up the chimney to the desired height and fix the chimney on plate II with 2 screws (4mm x 8mm).

Fix the lower chimney on the cooker hood with 2 screws (4x8mm).

1. Before usage, read all the instructions and make sure that the power rating of the cooker hood matches the power rating of the supply.

INSTALLATION (OPTIONAL FOR VENT INSIDE)

If you do not have an outlet to the outside, the exhaust pipe is not required and the installation is similar to the one shown in the "INSTALLATION (VENT OUTSIDE)" section.

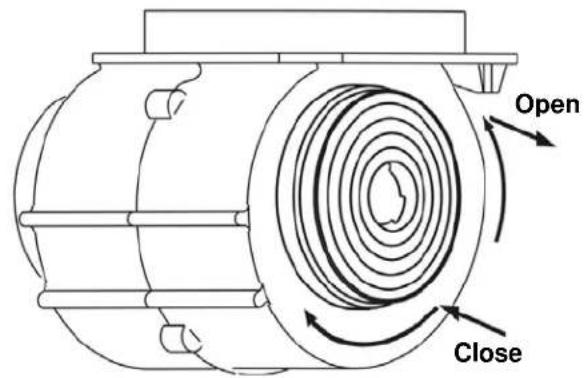

Carbon Filter

Activated carbon filter can be used to trap odors.

In order to install the activated carbon filter, the metallic anti-grease filter should be detached first. Press the lock and pull it downward.

Put the activated carbon filter into the unit, fix it by turning it.

Repeat the same on the other side.

NOTE:

Make sure the filter is securely locked. Otherwise, it could loosen and cause damage to unit.

• When activated carbon filter attached, the suction power will be lowered.

OPERATION

Switch off button for motor 0

Press this button to stop the motor operation.

Low Speed button

Press this button to operate at low speed.

Medium Speed button

Press this button to operate at medium speed.

High Speed button

Press this button to operate at high speed.

Light button

Press once, the LED light will illuminate. Press again will turn light off.

MAINTENANCE

Before cleaning, switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for metallic anti-grease filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke, and dust, so it directly affects the efficiency of the cooker hood. If not cleaned, grease residue (which is potentially flammable) will saturate the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to units installed as recirculation units (not vented to the outside). This filter traps odors and must be replaced at least once a year, depending on how frequently the cooker hood is used.

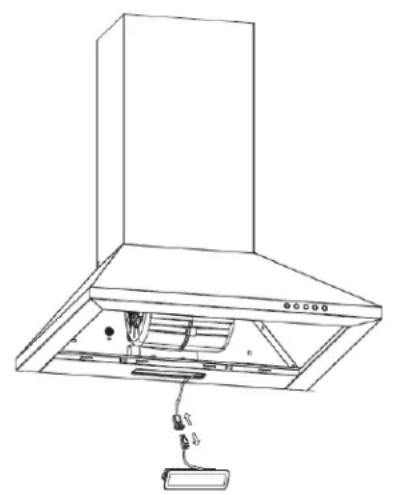

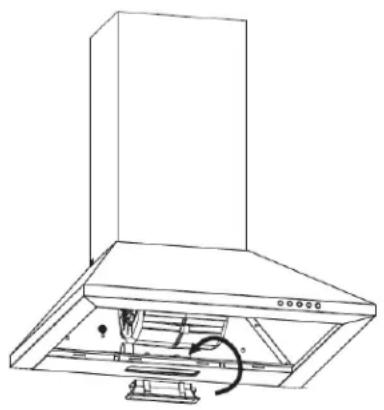

IV. Light Replacement

1. Switch the unit off and pull out the plug first.
2. Wait until the light has cooled down before replacement.
3. Remove the metal anti-grease filters.
4. Replace with the same type of bulb (2.5W LED light).

TROUBLESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit. Repair to carried out by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	LED light burn.	Replace the light with correct rating.

Information for cooker hood

	Symbol	Value	Unit
Model identification		CCC 60BA & CCC 60GH & CCC 60X & CCC 60N & CCC 60W
Annual Energy Consumption	AEChoad	52,0	kWh/a
Time increase factor	f 1,6
Fluid Dynamic Efficiency	FDEhoad2
Energy Efficiency Index	EEIhoad3
Measured airflow rate at the best efficiency	Q248,4		m³/h
Measured air pressure at best efficiency point	Pa152 Pa
Maximum airflow	Qmax	423	m³/h
Measured electric power input at best efficiency point	WBEP	86	W
Nominal power of the lighting system	WL2,5		W
Average illumination of the lighting system on the cooking surface	Emiddle	61	lux
Measured power consumption on standby mode	PS	-	W
Measured power consumption on off mode	PQ,00		W
Sound power level	LWA	70	dB

The measurement and calculation method of the above table was done in accordance with Commission Regulation (EU) No 65/2014 & 66/2014.

ENVIRONMENTAL PROTECTION:

This product is marked with the symbol for selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EC. It will

then be recycled or dismantled to minimize impacts on the environment. Electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances.

For more information, please contact your local or regional authorities.

Note:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process.

(1) Install the cooker hood in a proper place where there is efficient ventilation. (2) Clean the cooker hood regularly so as not to block the airway. (3) Remember to switch off the cooker hood light after cooking. (4) Remember to switch off the cooker hood after cooking.

Information for dismantling

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with your Local Authority or retailer for recycling advice.

CCC 60BA & CCC 60GH & CCC 60X & CCC 60N & CCC 60W

INSTALLATION (EXTERNAL VENTING)

INSTALLATION AND USE INSTRUCTIONS

INTRODUCTION

Thank you for choosing this cooker hood.

INCLUDED ACCESSORIES

Gas hobs: 70 cm

Electric hobs: 70 cm

Charcoal or non-charcoal filters: 80 cm

• Make sure that the air duct does not have bends with an angle more acute than 90 degrees, as this will reduce the efficiency of the extractor hood.
• Extractor hood intended for domestic use only.
• Always keep the pans and skillets covered when cooking on a gas hob. Do not attempt to use the extractor hood without a grease filter, or if the filter is saturated due to use.
• When operating in extraction mode, the air in the room is removed by means of the kitchen extractor. Please,

ensure compliance with the ventilation regulations. The extractor removes air from the room, but not steam.

The room must be adequately ventilated when the extractor hood is used, especially if it is used with gas or other fuels. Do not install the appliance above a high-mounted hob for cooking food. Do not leave the skillet unattended during cooking, as overheated oils and fats may ignite. - Never leave an open flame under the extractor hood. - If the extractor hood is damaged, do not attempt to use it. In case of damage to the power cord, it must be replaced by the manufacturer or its authorized service technician or a similarly qualified person, to avoid danger.

• This appliance can be used by children aged 8 and above, and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Caution: The appliance and its accessible parts may become hot during use. Be careful, do not touch the heating elements. Do not allow children under 8 years old to be near the appliance without constant supervision.

The room must be adequately ventilated when the extractor hood is used, especially if it is used with gas or other fuels.

• There is a risk of fire if cleaning is not carried out in accordance with the instructions.

— Do not cook dishes with a flame under the extractor hood.

CAUTION: Accessible parts may become hot when used with cooking appliances.

The hood must be vented to the outside, using the exhaust pipe for the removal of waste gases from appliances operating on gas or other types of fuel.

Minimum distance between the supporting surface for the cookware on the burner grate and the lower part of the exhaust hood.

"High Speed" button

Press this button to operate the appliance at high speed.

Light button

With a single press, the halogen lamp turns on. With a second press, the lamp turns off.

MAINTENANCE

Before cleaning, turn off the appliance and unplug it from the socket.

Clean the grease filters regularly with hot soapy water.

Do not attempt to use the hood without the grease filter or if the filter is excessively dirty!

• When operating in extraction mode, the air from the room is removed by means of the hood. Make sure that adequate ventilation measures are taken. The hood allows you to get rid of not vapors, but odors.
• When using the hood above a gas hob or above a hob on other types of fuel, adequate ventilation must be provided in the room. Do not install the appliance above a hob with a flame. Do not leave the pans without oil during use, as the pans may overheat. Never leave the burners uncovered by the hood. Do not attempt to use the hood if it is damaged. To avoid danger, replacement of a damaged power cord must be carried out by the manufacturer, its service center, or a similarly qualified person.
• This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities, as well as by persons without the necessary experience

Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Warning: The appliance and its accessible parts may become hot during use. Be careful and avoid touching the heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

During use of the extractor hood, the gas hob or other appliances burning fuel must be adequately ventilated.

• There is a risk of damage if the appliance is not installed in accordance with the instructions.

Do not flambé under the hood.

• Warning: Accessible parts may become hot when used with cooking appliances.
• The hood must not be connected to a flue used for exhausting fumes from appliances burning gas or other fuels.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the hood (when the hood is located above a gas appliance) must be at least 70 cm.
• The regulations concerning the discharge of air must be followed.
• Clean the appliance regularly as described in the maintenance section.
• Warning: Failure to follow the instructions for installation or fastening of the device may result in electric shock.
• Method and method of fastening the device

Repeat the same on the other side.

NOTE:

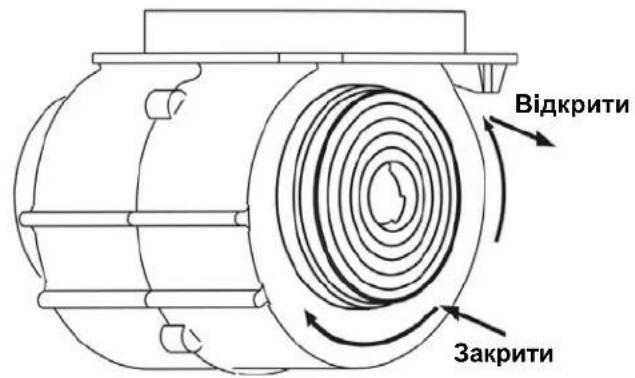

It is recommended that the filter be secured. Otherwise, it may become loose or fall off. After connection with the active plug, the power consumption will be reduced.

OPERATION

Motor on/off button

Press the button to activate the motor.

Low speed button

Press the button to operate the device at low speed.

Medium speed button

Press the button to operate the device at medium speed.

High speed button

Switch to high speed operation.

Lighting switch

Press once to turn on the lighting. Press again to turn off the lighting.

Technical maintenance

Before cleaning the device, disconnect it from the power supply.

Troubleshooting and repair
