CDG6CBP8W - Range hood CANDY - Free user manual and instructions

Brand	Candy
Model	CDG6CBP8W
Product type	Decorative wall-mounted cooker hood
Width	60 cm
Depth	50 cm
Height (without duct)	Approximately 30 cm
Net weight	Approximately 12 kg
Power supply	220-240 V ~ 50 Hz
Motor power	250 W
Energy class	A+
Maximum airflow	600 m³/h
Maximum noise level	65 dB(A)
Number of speeds	3 speeds + intensive
Lighting	LED, 2 x 3 W
Operation	Extraction or recirculation (charcoal kit included)
Grease filter	Aluminium, dishwasher safe
Activated carbon filter	Replacement recommended every 6 months
Cleaning	Exterior: damp cloth and mild detergent
Automatic shut-off	Yes, after 24 hours
Repairability index	7.4 / 10
Spare parts available	Filters, bulbs, motor, control panel
Warranty	2 years

Frequently Asked Questions - CDG6CBP8W CANDY

How to install the Candy CDG6CBP8W hood?

Installation must be carried out by a qualified professional. Fix the hood to the wall using the template provided, connect the exhaust duct or install the charcoal filter for recirculation mode, then plug the appliance into a 220-240 V socket.

How to clean the grease filters?

The aluminium filters can be washed in the dishwasher at low temperature or by hand with soapy water. Dry them well before putting them back. Cleaning every 2 months is recommended.

When to replace the charcoal filter?

The activated carbon filter should be replaced approximately every 6 months, or more often if the hood is used intensively. It cannot be cleaned and must be discarded.

How to switch to recirculation mode?

If external extraction is not possible, install the supplied charcoal filter in the hood following the manual instructions. Recirculation mode returns purified air to the kitchen.

Why is the hood noisy?

Abnormal noise may come from a blocked filter, a loose fixing, or a motor defect. First check the filters and tighten the mounting screws. If the problem persists, contact after-sales service.

How to change the LED bulb?

Unclip the light diffuser, disconnect the defective LED bulb and connect a new bulb of the same type (3 W, specific base). Replace the diffuser. Caution: unplug the hood before any intervention.

What to do if the hood does not turn on?

Check the power supply (socket, circuit breaker). If the control panel does not respond, an electronic fault is possible. Contact a Candy approved technician.

Is the hood suction poor?

Make sure the filters are clean and the exhaust duct is not blocked. Also check that the hood is at the correct height (65-75 cm above an electric hob, 75-85 cm for a gas hob).

What is the ideal installation height?

For electric or induction hobs, install the hood between 65 and 75 cm above the cooking surface. For gas hobs, allow 75 to 85 cm to avoid fire hazards.

How to obtain spare parts?

Spare parts (filters, bulbs, motor) are available from Candy customer service or authorised dealers. Use the reference CDG6CBP8W to order.

USER MANUAL CDG6CBP8W CANDY

1. Before installation, turn off the device and disconnect it from the power supply.

1. For optimal performance, the range hood should be installed at a height of 65~75 cm above the cooktop.

For tilted panel models

- drill 2 additional 8mm holes and install the mounting screws and locking screws before installation

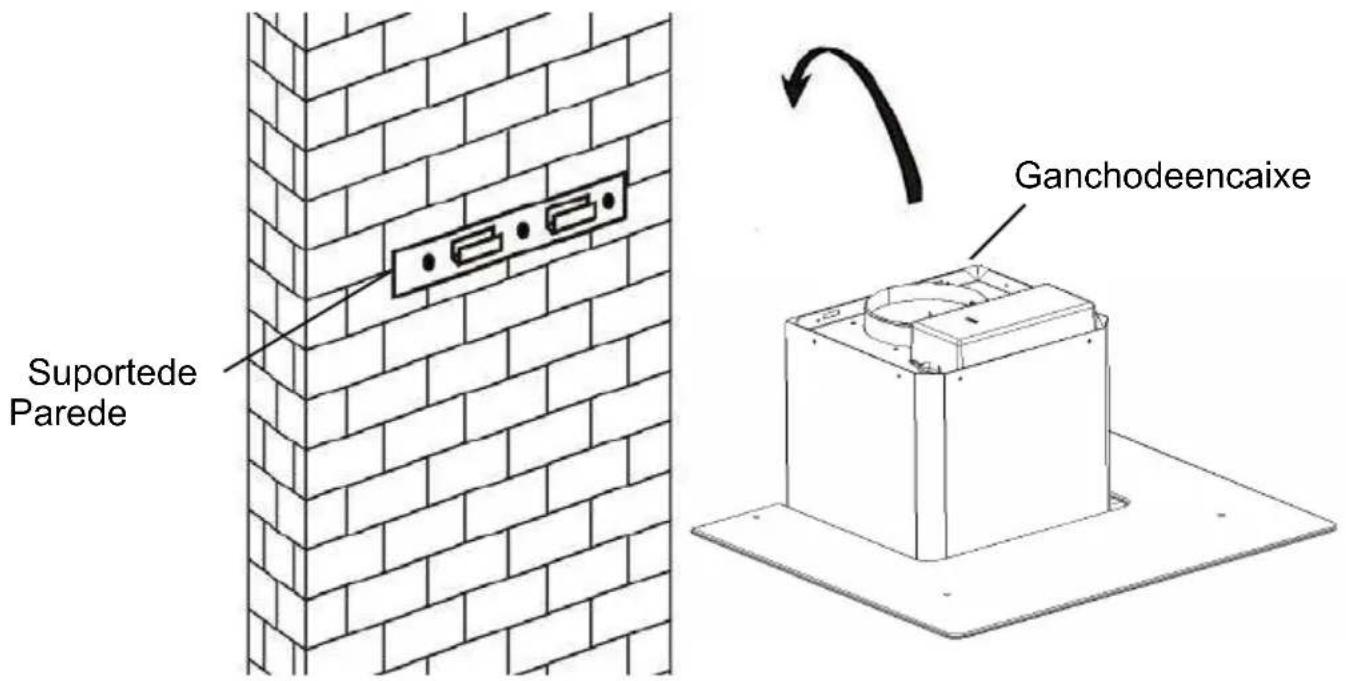

1. Lift the hood and hang it on the wall bracket using the hook.

1. Drill 2 holes for the wall plugs, then screw and attach the bracket to the wall using the provided screws (2 pieces ST4x30mm).

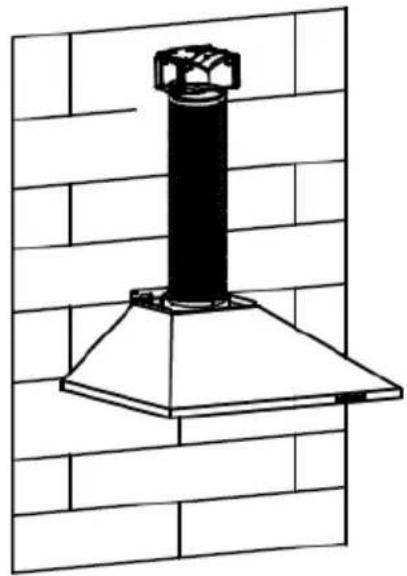

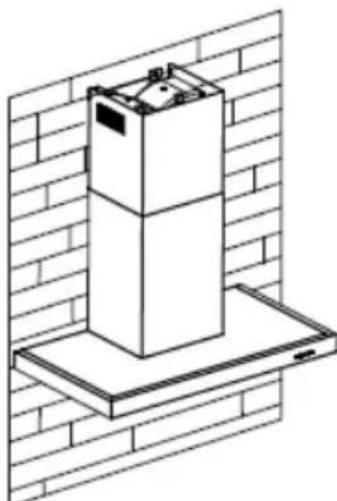

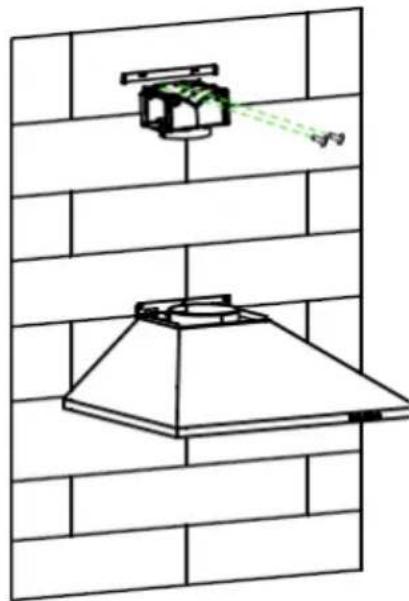

1. Install the chimney unit and secure it.

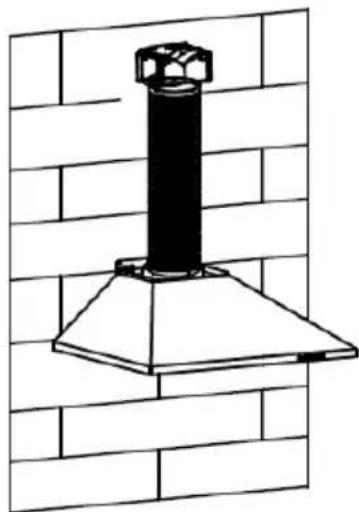

1. Install the chimney unit and secure it.

For internal ventilation, an activated carbon filter is used to filter smoke and odors. Before installing the activated carbon filter, first remove the grease filter. Press the latch and pull the filter downwards.

CLOSE

IMPORTANT NOTE:

o Make sure the activated carbon filter is securely and correctly fastened. Otherwise, it may loosen and cause a hazard. o With the activated carbon filter installed, the suction power of the range hood will be reduced.

DESCRIPTION OF RANGE HOOD PARTS

CONFIGURATION 1

CONTROL BUTTONS

Button 1

Note:

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 48

SAFETY PRECAUTION 48

SPECIFICATION 51

INSTALLATION (VENT OUTSIDE) 52

INSTALLATION (VENT INSIDE) 63

DESCRIPTION OF COMPONENTS 64

OPERATION 65

MAINTENANCE 67

TROUBLESHOOTING 68

CONFORMITY WITH DIRECTIVES 68

ENVIRONMENTAL PROTECTION 69

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with a large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

SAFETY PRECAUTION

Never let children operate the machine.

The cooker hood is for home use only, not suitable for barbecue, no shop and other commercial purpose.

The cooker hood and its filter should be cleaned regularly in order to keep in good working condition.

Clean the cooker hood according to the instruction manual and keep the unit from danger of burning.

Forbid the direct baking from the gas cooker.

Please keep the kitchen room a good convection.

Before connecting this appliance check that the power supply cord is not damaged. A damaged supply cord must be replaced by qualified service personnel only.

There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Regulations concerning the discharge of air have to be fulfilled.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not flambé under the range hood.

CAUTION: Accessible parts may become hot when used with cooking appliances.

There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

• The details concerning the method and frequency of cleaning.
• There is a fire risk if cleaning is not carried out in accordance with the instructions; do not flame under the range hood.
• CAUTION: Accessible parts may become hot when used with cooking appliances.

Electrical Shock Hazard

Only plug this unit into a properly earthed outlet. If in doubt, seek advice from a suitably qualified engineer.

Failure to follow these instructions can result in death, fire, or electrical shock.

The lamp used in this product is not suitable for use in the lighting of a room.

The purpose of this lamp is to provide illumination for using the product.

Electrical Installation

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply, ensure that the mains voltage corresponds to the voltage on the rating plate.

Direct Connection

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

WARNING: This is a Class I appliance and MUST be earthed

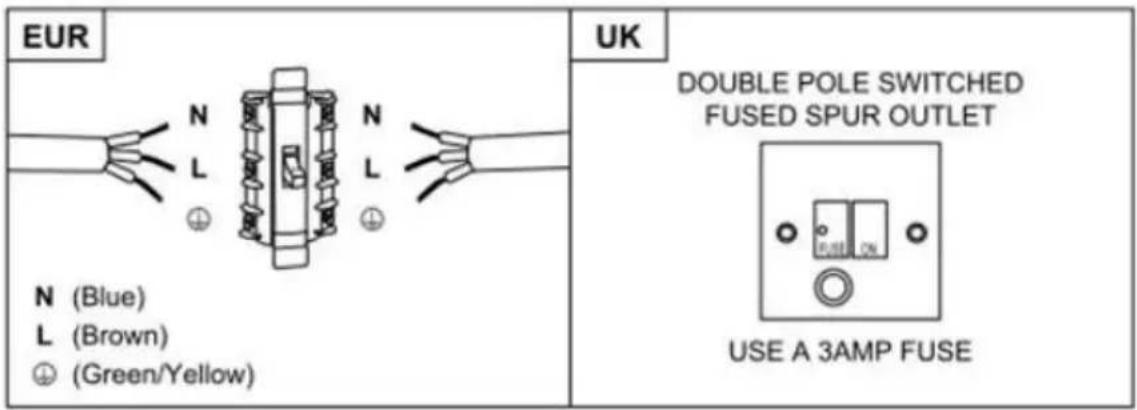

This appliance is supplied with a 3 core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

The fuse must be rated at 3 Amps.

Standard Installation Accessories List

Spec.	Illustration Picture	Qty
Casing		1
Upper Chimney		1
Lower Chimney		1
Lower chimney bracket		1
Upper chimney bracket		1
Hanging Board		1
φ8 rawl plugsφ8×φ6 white color		9
ScrewsST4.0×30		9
φ7.2screwsST4.0×8		2

If you have an outlet to the outside, your cooker hood can be connected below picture by means of an extraction duct (enamel, aluminum, flexible pi inflammable material with an interior diameter of 150mm)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65~75cm above the cooking plane for best effect.

1. Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

For inclined panel Model

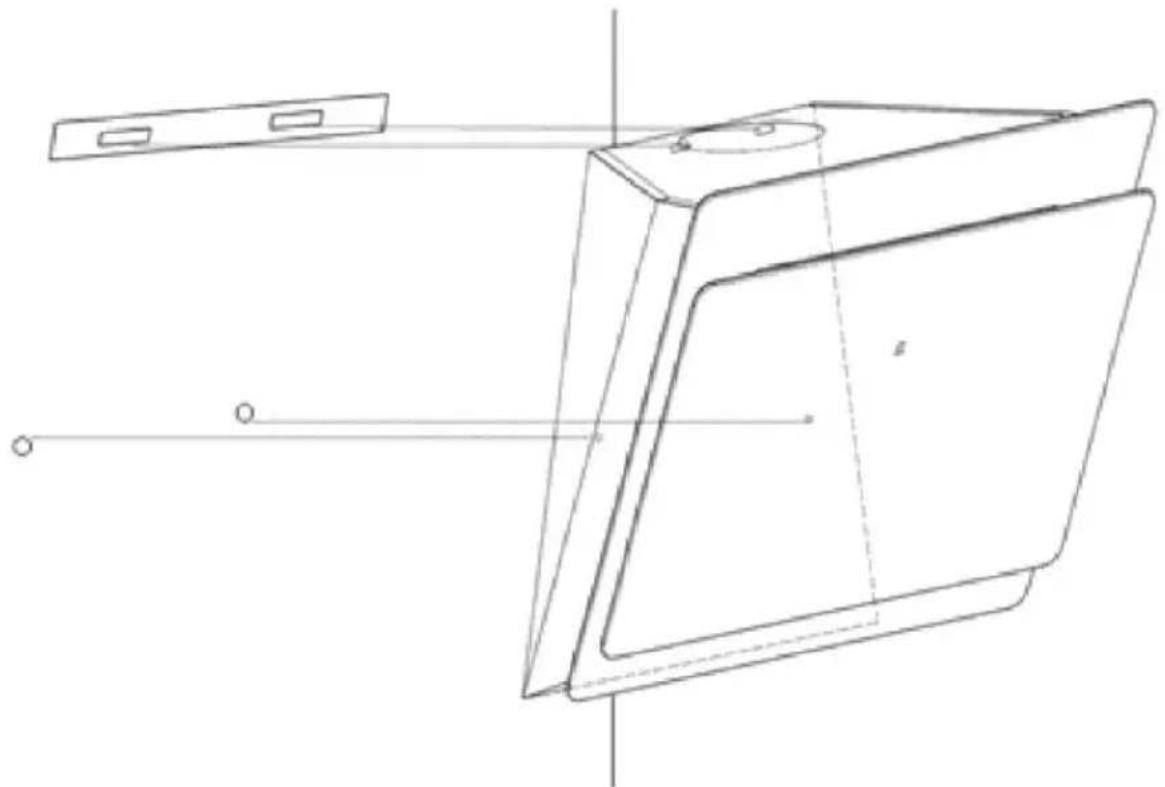

Need to drill 2x8mm extra holes & fixing screws & screw plugs before installation. For inclined models

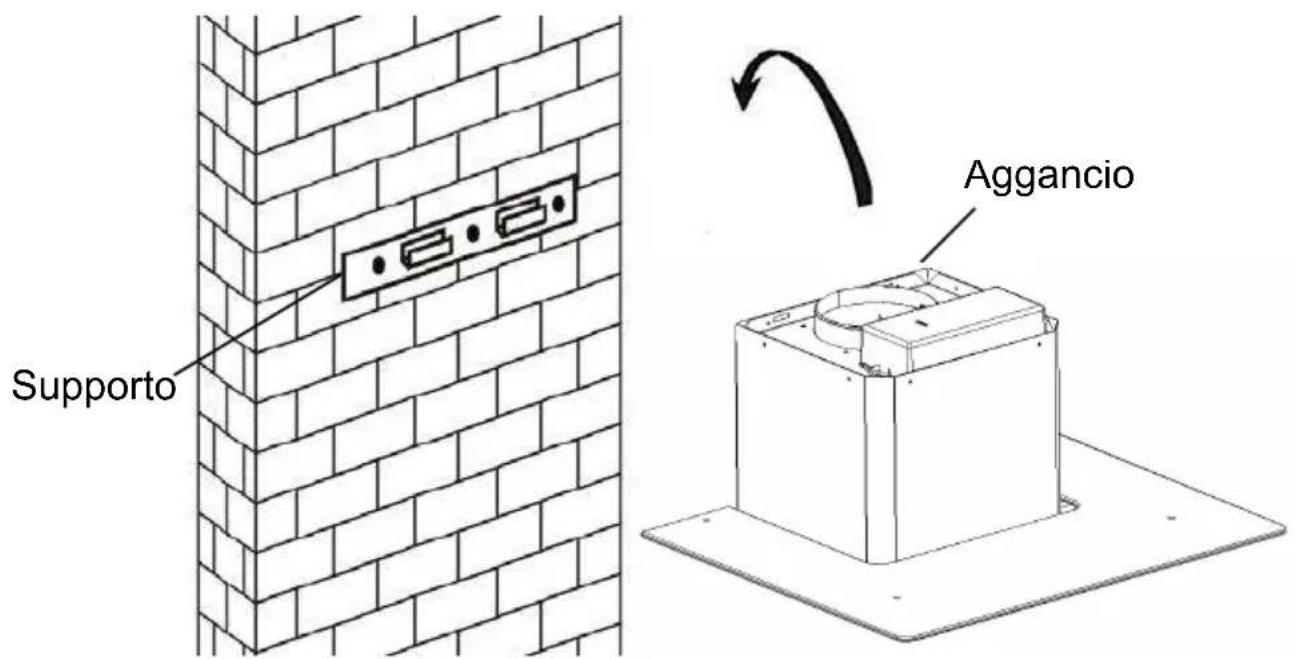

1. Lift up the cooker hood and hang onto the wall bracket hook.

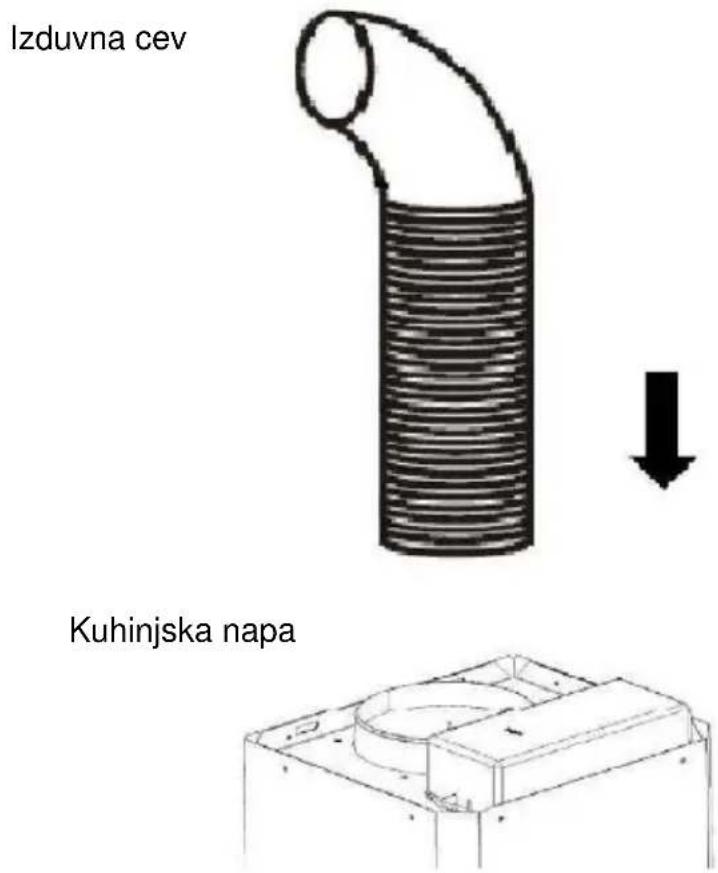

1. Fix the one-way-valve to the air outlet of the cooker hood. Then, attach the exhaust pipe onto the one-way-valve as shown below.

Exhaust pipe

Cooker hood

6.

i. Place the glass in appropriate position on the top of the cooker hood.

ii. Fix with 4 screws and washer. In order to avoid the glass cracking, please do not tighten the screws too strongly.

i. Put the inner chimney into outer chimney. Then pull out the inner chimney upwards. Adjust to reach the height required.

ii. Slide the chimney to adjust the chimney height. When the height you require is reached, then hang the fixing hole to the screws as shown in the pictures below.

8.

i. Drill 2 x 8mm holes to accommodate the plate II. Screw and tighten the plate II onto the wall with 2 screws provided. ii. Assemble the chimney onto the unit and fix it with 2 screws.

Standard Installation Accessories List

Spec.Illustration	PictureQty
AirDeflector		1
Bracket		1
φ8rawlplugsφ8×φ6 white color		2
ScrewsST4.0×30		2
ScrewsST3.5×12		2

INSTALLATION (AIR DEFLECTOR FOR T-SHAPE, CURVED GLASS, FLAT GLASS MODELS):

The air deflector is mentioned as included and not optional.

1. Before installation, curve both ends of the bracket as shown below:

2. Fix the bracket to the T-shaped plastic outlet with 2 pcs ST3.5x12mm screws provided.

1. Drill 2 holes to accommodate the wall plugs, then screw and tighten the bracket onto the wall with 2 pcs ST4x30mm screws provided.

1. Attach the exhaust pipe onto the air outlet of the cooker hood as shown below:

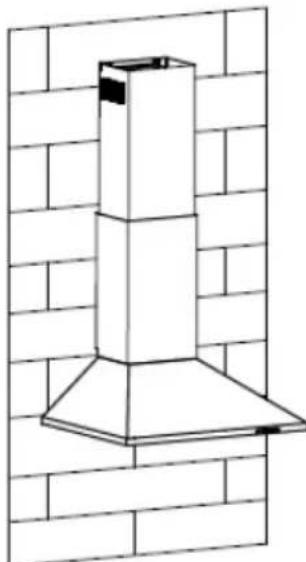

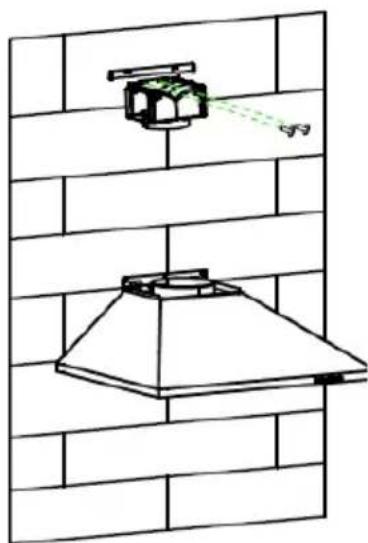

1. Install the chimney to the unit and fix it.

Please kindly be noted: T-shaped plastic outlet and v-flaps cannot be used at the same time. You can use them in two ways: 1) Add v-flap outlet; 2) Use T-shaped plastic outlet, no add v-flap.

Note: The product is provided with v-flap accessory. This accessory is not mandatory for installation, operation and use of the product.

Standard Installation Accessories List

Spec.Illustration	PictureQty
AirDeflector		1
Bracket		1
φ8 rawl plugsφ8×φ6 white color		2
ScrewsST4.0×30		2
ScrewsST3.5×12		2

The air deflector is mentioned as included and not optional.

1. Fix the bracket to the T-shaped plastic outlet with 2 pcs ST3.5x12mm screws provided as shown below:

1. Drill 2 holes on the wall to accommodate the wall plugs, then screw and tighten the bracket onto the wall with 2 pcs ST4x30mm screws provided.

1. Attach the exhaust pipe onto the air outlet of the cooker hood as shown below:

1. Install the chimney to the unit and fix it.

Please kindly be noted: T-shaped plastic outlet and v-flaps cannot be used at the same time. You can use them in two ways: 1) Add v-flap to the outlet; 2) Use T-shaped plastic outlet, no need to add v-flap.

Note: The product is provided with v-flap accessory. This accessory is not mandatory for installation, operation, and use of the product.

INSTALLATION (VENT INSIDE)

If you do not have an outlet to the outside, exhaust pipe is not required. The installation is similar to the one shown in section "INSTALLATION (VENT OUTSIDE)".

Activated carbon filter can be used to trap odors.

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

NOTE:

Make sure the filter is securely locked. Otherwise, it would loosen and cause danger. When activated carbon filter is attached, the suction power will be lower.

CONFIGURATION 1

OPERATION

Button 1

The button has a backlit indicator. When you press the button, the backlit will be turned on and the fan will be turned on at low speed. When pressed again, it will turn off the fan.

It is used for ventilation in the kitchen. It is suitable for simmering and cooking that do not produce much steam.

Button 2

The button has an indicator backlight. When you press the button, the backlight will turn on and the fan will turn on at Medium Speed. Press again to turn off the fan.

Airflow speed is ideal for ventilation in standard cooking operations.

Button 3

The button has an indicator backlight. When you press the button, the backlight will turn on and the fan will turn on at High Speed. Press again to turn off the fan.

When high density of smoke or steam is produced, press the high-speed button for the most effective ventilation.

NOTE: If Low / Medium / High speed buttons are pressed at the same time, the unit will only operate at the highest speed.

Light button

CONFIGURATION 2

OPERATION

Off button 0

It is used for turning off the fan.

Low Speed button

It is used for ventilation in the kitchen. It is suitable for simmering and cooking that do not produce much steam.

Medium Speed button

2

Airflow speed is ideally suited for ventilation during standard cooking operations.

High Speed button

3

When a high density of smoke or steam is produced, press the high-speed button for the most effective ventilation.

NOTE: If the Low, Medium, or High speed buttons are pressed simultaneously, the unit will only operate at the highest speed.

Light button

CONFIGURATION 3

①

-

⊕

① On/Off button

It is used to turn the fan on or off.

+ Speed plus button

For increasing the speed of the fan.

- Speed decrease button

For decreasing the speed of the fan.

Light button

8 Digital display

Fan speed display: "1" for Low speed, "2" for Medium speed, "3" for High speed, "4" for Booster function.

Quick timer: Press & hold for 1 second, Digital display will flash & into 5 minutes count down, after 5 minutes motor & will turn off automatic & Buzzer sound for 1 second.

Booster function

This hood has a booster function. To activate the booster, Press to speed 4, enter into highest speed while the hood is in use and it will increase speed for 5 minutes, before slowing down again.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust..... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws fully tightened.

TROUBLESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair qualified service personnel only.
	The motor is damaged
Both light and fan do not work	Halogen light bulb bur	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply ag
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair b qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair l qualified service personnel only.
	The unit is not hung properly on the bracke	Take down the unit and check whether the bracket is in prope location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75c

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

INSTALLATION AND USE NOTICE

Summary

INTRODUCTION 71

Installation (Evacuation) 75

Installation (Recycling) 86

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The cable must not be bent or compressed.

Hood

6.

List of accessories for installation

1. Drill 2 holes in the wall to insert the dowels, then screw and fix the support to the wall using the 2 screws ST4x30mm provided.

CLOSE

Engaged

52

NOTE:

For decreasing the speed of the fan.

Light button

8 Digital display

Fan speed display: "1" for Low speed, "2" for Medium speed, "3" for High speed, "4" for Booster function.

Quick timer: Press & hold for 1 second, Digital display will flash & enter 5 minutes countdown, after 5 minutes motor & light will turn off automatically & Buzzer sounds for 1 second.

Booster function

OPERATING &

Blue = N Or Neutral

Installation (Wall mounting)

NOTE:

Cap

7

6.

NOTE:

For inclined panel model

1. Lift the hood and hang it on the support

NOTE:

(Waste Electrical and Electronic Equipment - WEEE).

WARNING:

Regulations concerning the discharge of air have to be fulfilled.

1. Lift and secure the chimney to the wall support after it has been placed.

1. Fix the one-way valve to the air outlet of the hood. Then fit the air outlet pipe into the valve, as exemplified in the drawing below.

5. Install the chimney on the unit and adjust it.

4. Install the chimney on the unit and adjust it.

NOTE:

Screw (4mm x 30mm)

107.5mm

List of standard installation accessories

Spec.ImagineCant
deflectordeaer		1
paranteză		1
Bolturideφ8		2
SuruburiST4.0×30		2
SuruburiST3.5×12		2

INSTALLATION (AIR DEFLECTOR FOR T-SHAPE, CURVED GLASS, GLASS MODELS):

NOTE:

1. Before connecting the pipe, turn off the hood and unplug it from the socket.

1. Hang the hood on the support that you have fixed to the wall.

1. Place a one-way valve on the air outlet opening of the hood. Then install the air exhaust pipe on it, as shown below.

Air exhaust pipe

Kitchen hood

6.

1. Drill 2 holes for the wall plugs, then screw and fix the support to the wall with the provided screws 2 pcs ST4x30mm.

1. Install the exhaust pipe on the cooker hood's air outlet, as shown below:

1. Install the chimney on the unit and fix it.

2. Drill 2 holes on the wall to install the wall plugs, then screw and fix the support to the wall with the provided screws 2 pcs ST4x30mm.

3. Connect the exhaust pipe to the air outlet opening, as shown below:

1. Name the hood and secure it.

In this case, insert a filter with activated carbon into the hood, which retains odors. First, you must remove the grease filter, then you can insert the carbon filter. Push the latch and pull the grease filter downwards.

Insert the activated carbon filter into the hood and turn it to the right, in the direction of the clock. Repeat the procedure on the other side of the hood.

(SECURING) CLOSE

NOTE:

Disconnect the wire for the bulb and disconnect the bulb holder and wire from the hood. Important: It is not possible to replace only the bulb, but you need a kit – bulb, holder, and wire. (LED light: G4, MAX 1.5W)

Attach the new bulb with holder and wire as the burned-out bulb was attached. Then reconnect the wire.

Reinstall the glass and tighten the screws. Make sure you have tightened them fully.

TROUBLESHOOTING

6.

1. Fix the plastic outlet in the shape of a T with 2 pieces of screws ST3.5x12mm provided.

1. Drill 2 holes to accommodate the wall plugs, then screw and tighten the support on the wall with the 2 screws ST4x30mm provided.

5. Install the chimney to the unit and fix it.

1. Drill 2 holes in the wall to accommodate the wall plugs, then screw and tighten the support on the wall with the 2 screws ST4x30mm provided.

4. Install the chimney to the unit and fix it.

NOTE:

INSTALLATION (EXTERNAL VENTILATION) 283

INSTALLATION (INTERNAL VENTILATION) 294

DESCRIPTION OF COMPONENTS 295

OPERATION 296

MAINTENANCE 298

TROUBLESHOOTING 299

COMPLIANCE WITH DIRECTIVES 299

ENVIRONMENTAL PROTECTION 300

INTRODUCTION

Blue = N or Neutral

Range hood

6.

INSTALLATION (INTERNAL VENTILATION)

NOTE:

This hood has a booster function. To activate the booster, press ⊕ to speed 4, enter into highest speed while the hood is in use and it will increase speed for 5 minutes, before slowing down again.

MAINTENANCE

Cooker hood

6.

6.

NOTE:

1. Hang the hood on the wall bracket.

Note:

SULE

NOTE.

Kitchen hood

6.

CLOSING

NOTE.

CLOSE

PIEZIME.

CUSTOMER SUPPORT SERVICE

PRODUCT SERIAL NUMBER. Where can it be found?

1. Before installation, turn off the device and unplug it.

1. For best results, the hood should be placed at a distance of 65~75 cm above the cooking surface.

1. Drill 3 holes of 8 mm to accommodate the bracket. Screw and secure the bracket to the wall using the provided screws.

For inclined panel model

- you need to drill additional holes of 2 x 8 mm and secure screws and threaded bolts before installation. For inclined models

1. Lift the kitchen hood and hang it on the hook on the wall bracket.

1. Attach the non-return valve to the air outlet on the hood. Then attach the exhaust duct to the non-return valve as shown below.

6.

i. Place the glass in the appropriate position on top of the hood. ii. Secure with 4 screws and washers. To avoid cracking the glass, do not overtighten the screws.

7.

i. By placing the inner chimney inside the outer chimney. Then pull the inner chimney upwards. Adjust to reach the required height.

ii. Moving the chimney to adjust the height of the chimney. When you reach the desired height, then hang the fixing hole on the fixing screws as shown in the figures below.

8.

i. Drill 2 holes of 8 mm to accommodate plate II. Screw and secure plate II to the wall using the 2 supplied screws. ii. Mount the chimney on the unit and secure it with 2 screws.

List of standard installation accessories

Spec.	Slika ilustracije	Kol.
Usmerivač vazduha		1
Držač		1
φ8 čepoviφ8×φ6 bela boja		2
VijciST 4,0×30		2
VijciST 3,5×12		2

INSTALLATION (AIR GUIDE FOR MODELS WITH CURVED GLASS, FLAT GLASS):

1. Drill 2 holes to accommodate wall plugs, then screw and tighten the bracket to the wall using the 2 supplied screws ST4x30mm.

1. Place the chimney on the unit and secure it.

Please note: The plastic T-shaped outlet and the v-flap cannot be used simultaneously. You can use them in two ways: 1) Add the v-flap to the existing outlet; 2) Use the plastic T-shaped outlet without adding the v-flap.

Note: The product is equipped with a v-flap accessory. This accessory is not mandatory for installation, operation, and use of the product.

List of standard installation accessories

Spec.	Slika ilustracije	Kol.
Usmerivač vazduha		1
Držač		1
φ8 čepoviφ8×φ6 bela boja		2
VijciST 4,0×30		2
VijciST 3,5×12		2

INSTALLATION (AIR GUIDE FOR PYRAMIDAL MODELS AND INCLINED MODELS):

1. Drill 2 holes in the wall to place wall plugs, then screw and tighten the bracket to the wall using the 2 supplied screws ST 4 x 30 mm.

1. Place the chimney on the unit and secure it.

Please note: The plastic T-shaped outlet and the v-flap cannot be used simultaneously. You can use them in two ways: 1) Add the v-flap to the existing outlet; 2) Use the plastic T-shaped outlet without adding the v-flap.

Note: The product is equipped with a v-flap accessory. This accessory is not mandatory for installation, operation, and use of the product.

INSTALLATION (INDOOR VENTILATION)

The activated carbon filter can be used to capture unpleasant odors. To install the activated carbon filter, first separate the grease filter. Press the lock and pull it downwards.

Insert the activated carbon filter into the unit and turn it clockwise. Repeat the same on the other side.

CLOSE

NOTE:

○ Check that the filter is firmly locked. Otherwise, it could loosen and cause danger. - When the activated carbon filter is connected, the suction power will be lower.

DESCRIPTION OF COMPONENTS

CONFIGURATION 1

OPERATION

Button 1

The button is backlit; when you press the button, the backlight will turn on and the fan will turn on at low speed. When you press it again, the fan will turn off.

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It is not possible to replace the bulbs individually; you will need to obtain the bulbs, bulb holders, and wiring as a complete part.

(LED light: MAX. 1.5 W)

Install the replacement bulbs, bulb holders, and wiring in the same way as the original ones. Then reconnect the light wiring point.

Reinstall the glass on the hood and tighten the screws on the glass. Check that the screws are fully tightened.

TROUBLESHOOTING

Greška	Uzrok	Rešenje
Svetlo je uključeno, ali ventilator ne radi	Lopatica ventilatora je zaglavljena.	Isključite uređaj – samo kvalifikovano servisno osoblje treba da popravi uređaj.
	Motor je oštećen.
I svetlo i ventilator ne rade	Halogena sijalica gori.	Zamenite sijalicu onom odgovarajuće jačine.
	Kabl za napajanje se olabavio.	Ponovo priključite na napajanje.
Ozbiljne vibracije jedinice	Lopatica ventilatora je oštećena.	Isključite uređaj - samo kvalifikovano servisno osoblje treba da popravi uređaj.
	Motor ventilatora nije čvrsto pričvršćen.	Isključite uređaj – samo kvalifikovano servisno osoblje treba da popravi uređaj.
	Uređaj nije pravilno okačen na nosač.	Skinite uređaj i proverite da li je nosač na odgovarajućem mestu.
Performanse usisavanja nisu dobre	Predugo rastojanje između jedinice i ploče za kuvanje	Podesite rastojanje na 65-75 cm

CUSTOMER SUPPORT SERVICE

KAPATIN

NOTE:

Steam vacuum cleaner

6.

CLOSING

NOTE:
