USER MANUAL M.Zuiko Digital ED 300mm f4 OLYMPUS

date of issue 2015.9

WC943302

Printed in China

OLYMPUS

MICRO FOURTHIRDS

M.ZUKO DIGITAL

ED 300mm f4.0 IS PRO

04 - JP 取扱説明書
07 - EN INSTRUCTIONS
11 - ES INSTRUCCIONES
15 - FR MODE D'EMPLOI
19 - ВС ИНСТРУКЦИИ
22 - GS NÁVOD K POUŽITÍ
25 - DE BEDIENUNGSANLEITUNG
28 - DA BETJENINGSVEJLEDNING
31 - JUHISED
34 - F KÄYTTÖOHJEET
37 - ΕΙΟΛΗΠΕΣ
40 - HR UPDATE
43 - HU HASZNÁLATI ÚTMUTATÓ
46 - ISTRUZIONI
49 - INSTRUKCIJA
52 - IVNORADLIUMI
55 - AANWIJZINGEN
58 - NC INSTRUKSJONER

61 - PL INSTRUKCJA
64 - PT INSTRUÇÕES
67 - RO INSTRUCTIUNI
70 - SR UPUTSTVO ZA UPOTREBU
73 - RU ИНСТРУКЦИЯ
77 - SW BRUKSANVISNING
80 - SL NAVODILA
83 - SK NÁVOD NA POUŽITIE
86 - 13 TALMATLAR
89 - UK IHNCTPYKUIA
94 - 93
95 - ตําแนะนําการใช้งาน
98-30 휘금설명서
101- 弘 使用說明書

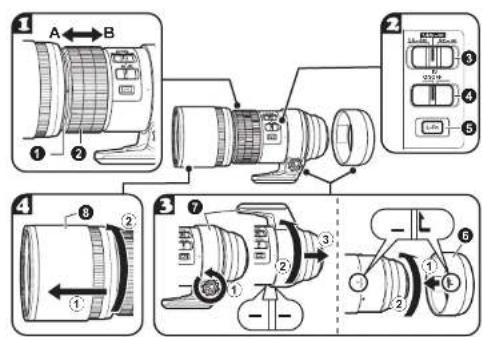

Diagram illustrating camera lens assembly steps with labeled parts and directional arrows

取扱説明言

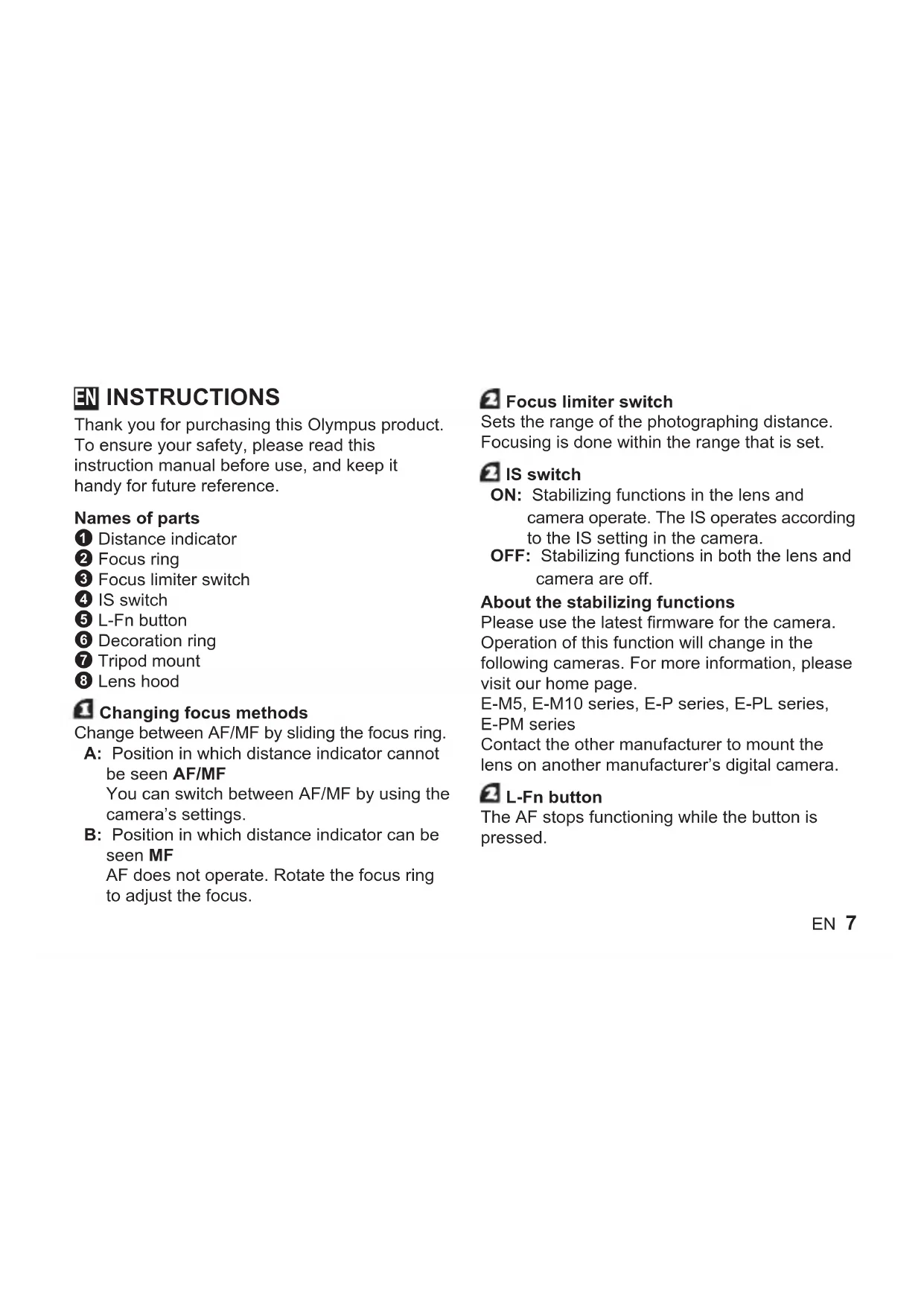

Thank you for purchasing this Olympus product. To ensure your safety, please read this instruction manual before use, and keep it handy for future reference.

Names of parts

① Distance indicator
② Focus ring
③ Focus limiter switch
④ IS switch
⑤ L-Fn button
⑥ Decoration ring
⑦ Tripod mount
8 Lens hood

Changing focus methods

Change between AF/MF by sliding the focus ring.

A: Position in which distance indicator cannot be seen AF/MF
You can switch between AF/MF by using the camera's settings.
B: Position in which distance indicator can be seen MF
AF does not operate. Rotate the focus ring to adjust the focus.

2 Focus limiter switch

Sets the range of the photographing distance. Focusing is done within the range that is set.

IS switch

ON: Stabilizing functions in the lens and camera operate. The IS operates according to the IS setting in the camera.

OFF: Stabilizing functions in both the lens and camera are off.

About the stabilizing functions

Please use the latest firmware for the camera. Operation of this function will change in the following cameras. For more information, please visit our home page.

E-M5, E-M10 series, E-P series, E-PL series, E-PM series

Contact the other manufacturer to mount the lens on another manufacturer's digital camera.

L-Fn button

The AF stops functioning while the button is pressed.

Removing the tripod mount and attaching the decoration ring

Removing the tripod mount:

Turn the knob of the tripod mount to the left to loosen it ①. Turn the tripod mount to the left, align it with the mark ②, and remove it from the lens body ③.

Attaching the decoration ring:

Align the marks and insert the decoration ring ①, then turn it to the right until it stops (until you hear it snap) ②.

4 How to use the lens hood

Pull it outward until it stops ①, and then turn it to the right ②.

The lens hood cannot be removed from the lens.

Notes on Shooting

• Edges of pictures may be cut off if more than one filter is used or if a thick filter is used.
• When using a flash, flash light may be blocked by the lens body, lens hood, etc.
• The focus distance may change when the focusing method is switched from MF to AF/MF and then back to MF. Readjust the focus distance.

• The distance indicator is intended as a guide only.

• Usage conditions may lower the number of images that can be captured.

• Do not hold only the camera body without holding the lens. The waterproofing characteristic or optical performance may not be maintained.

Main Specifications

Mount : Micro Four Thirds mount

Focal distance : 300 mm (equivalent to 600 mm on a 35 mm camera)

Max. aperture : f4.0

Image angle : 4.1°

Lens configuration : 10 groups, 17 lenses

Iris control : f4.0 to f22

Shooting range : 1.4 m (55.1 in.) to ∞ (infinite)

Focus adjustment : AF/MF switching

Weight : 1,270 g (44.8 oz.) (excluding cap, tripod mount and decoration ring)

Dimensions : Max. dia. ∅ 92.5 (length 227 mm (8.9 in.)

Lens hood : Internal

Filter mount thread diameter : ∅ 77 mm (3.0 in.)

Can be used with the MC-14

* Specifications are subject to change without any notice or obligation on the part of the manufacturer.

Precautions: Be Sure to Read the Following

Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment.
• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.
• Do not point the camera lens at the sun. Sunlight will converge in the lens and focus inside the camera, possibly causing a malfunction or fire.

Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of OLYMPUS CORPORATION.

For customers in North America, Central America, South America and the Caribbean FCC Notice

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any unauthorized changes or modifications to this equipment would void the user's authority to operate.

This Class B digital apparatus complies with Canadian ICES-003. CAN ICES-3(B)/NMB-3(B)

• Technical Support (U.S.A. / Canada)

24/7 online automated help : http://www.olympusamerica.com/support Phone customer support : Tel.[phone] (Toll-free) Our phone customer support is available from 9 am to 9 pm (Monday to Friday) ET E-Mail : [e-mail]

For customers in Europe

The “CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. CE-mark products are for sale in Europe.

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries. Please do not throw the equipment into the domestic refuse. Please use the return and collection systems available in your country for the disposal of this product.

• European Technical Customer Support

Please visit our homepage

http://www.olympus-europa.com

or call: Tel. 00800 - 67 10 83 00 (Toll-free)

+49 40 - 237 73 899 (Charged)
