| Product type | Stroller |
| Brand | Anex |
| Model | Cross |
| Recommended age range | 0 to 36 months |
| Maximum child weight | 15 kg |
| Maximum storage basket weight | 2 kg |
| Maximum handle weight | 1 kg |
| Parking brake | Yes, on rear wheels |
| Harness system | 5-point harness |
| Swivel front wheels | Yes, lockable |
| Suspension | Yes, adjustable |
| Canopy | Foldable, with ventilation |
| Mounting options | Portable bassinet, seat, car seat |
| Handle adjustment | Yes, height |
| Frame material | Metal |
| Maintenance | Clean with damp sponge and mild detergent |
| Warranty | 12 months from date of purchase |
| Safety standards | Compliant with EU standards |
| Tire pressure (if applicable) | Do not exceed 0.8 bar |
| Repairability | Replacement parts recommended by manufacturer |
Frequently Asked Questions - Cross Anex
User questions about Cross Anex
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Stroller in PDF format for free! Find your manual Cross - Anex and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Cross by Anex.
USER MANUAL Cross Anex
- Frame
- Frame-folding lever
- Lock against accidental unfolding of the frame
- Handle-adjusting button
5.Wheel's central button - Wheels fixation regulator
- Brake
- Spring shock absorption
- Adapter
- Adapter pocket
- Portable cradle's hood
- Seat unit's hood
- Adjustable handle
- Seat unit's
- Hood ventilation
Italiano
BUDKA SPACERÖWKI, POKROWIEC NA NOGI
GWARANCJA NIE OBEJMUJE
H3dJIe N erO coCTaBhIe YacTn IcnpaBbI; ecN O6hApYkeHa HEnCpapBHOCTb, To H3dJIe N He MoKet EKcIpyaTIpOBaTbcra.
IpnpeynpOBKe KOJRAckn Heo6xOJIMo 06paTb BHIMaHne Ha To, YTO6bI DBNKUeNEcR DeTaN KOJRAckn He COpPknacAINCb C TeIOM pe6EHa.
Bo Bpemr octaHOBOK HxKHO 683aTeIbHo IcNoIb3ObaTb TOPMO3a.
- MakcimalbHa Ha py3ka Ha pyky KOnIaCKN -1Kr, Kop3HbI -2Kr.
Cymka nnIIO6oIpyroTJxKeJIbI ppeMet HApUaet paBHOBeCne KOJIcKn.
CneJyETnOJIb30BaTbTOJIbKO OoOpHbIe npOn3BODInTeMe Akceccyapbl.
CneNyETNCNOb3OBaTbTObKO peKOMeHDoBaHHbIe NIOCTaBnEMeIe IPOUN3BOJNTeIeM /DnCTpN6bIOTOpOM 3aHTactn.
- PππoŋHmMite nepeHnne KOleca KOJrackn, eCπn Bam Heo6xOJIMO 3aexatb Ha 6opDIOp INI CTyneHbky.
He pekomehnyetc bce3kaTb c kOJIaCKo no CTyneHm.
He cyckaite He noDHMaTe KOJrCKy No IecTHnCe I DpyTm HAKIOHbIM NOBepXHOCTM, KOrDa BHyTPN KOJrCKn HaxoDTcpeBeHOK.
Давелень В калесх Ндлжно 6ьть сьлшо 0,8 cap.
LJACCIMOKeTNCIOJIb3OBAbCBA MecTe CIOJIbKOJ, CINDeHbEM NINABTOMO6NJIbHbIM KpeCtIOM.
XpaHnTb KONrAcky CneDyET B HeNoCTynHOM DnIeTei MeCe.

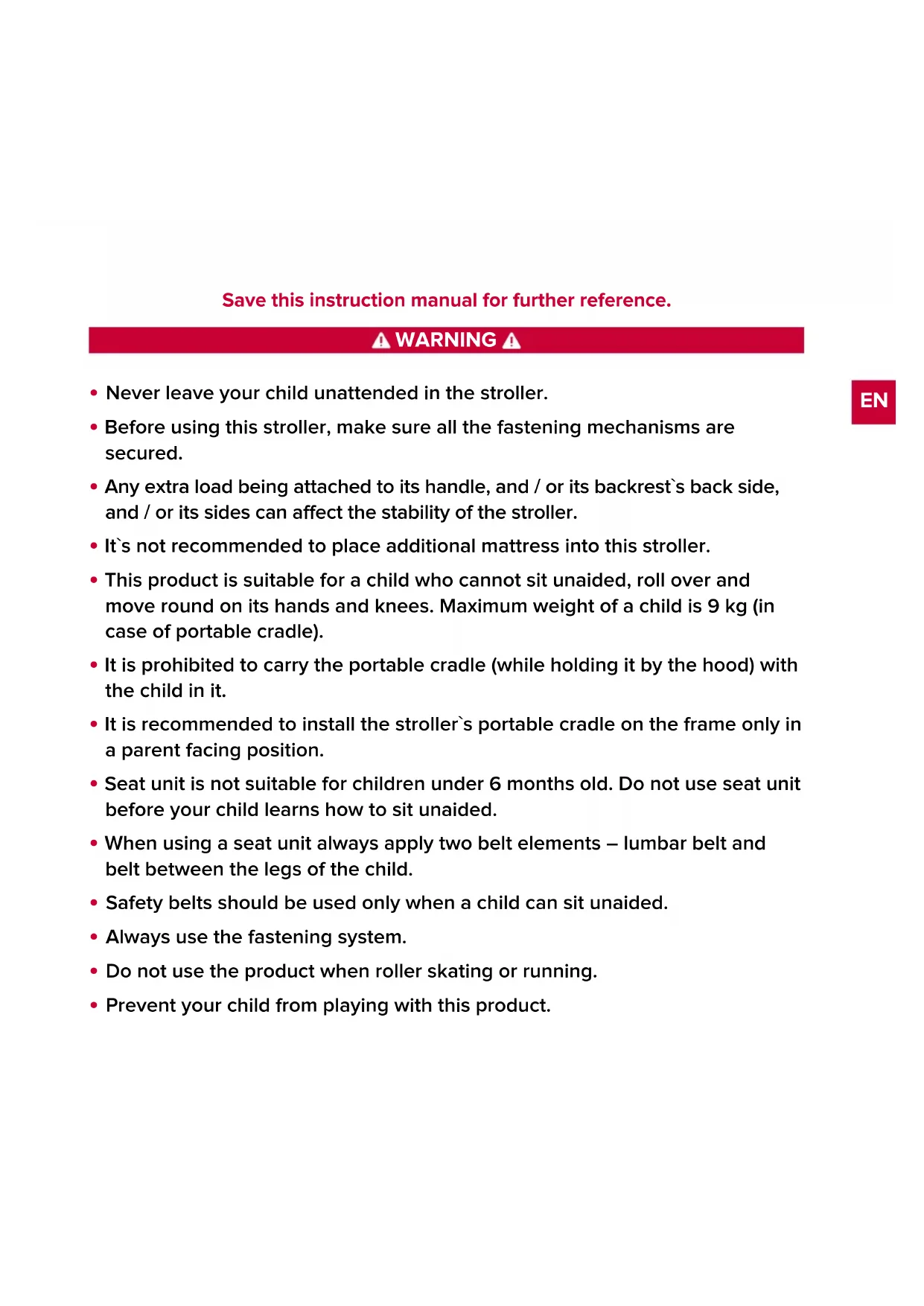

Save this instruction manual for further reference.
WARNING
- Never leave your child unattended in the stroller.
- Before using this stroller, make sure all the fastening mechanisms are secured.
- Any extra load being attached to its handle, and / or its backrest's back side, and / or its sides can affect the stability of the stroller.
It's not recommended to place additional mattress into this stroller. - This product is suitable for a child who cannot sit unaided, roll over and move round on its hands and knees. Maximum weight of a child is 9kg (in case of portable cradle).
- It is prohibited to carry the portable cradle (while holding it by the hood) with the child in it.
- It is recommended to install the stroller's portable cradle on the frame only in a parent facing position.
- Seat unit is not suitable for children under 6 months old. Do not use seat unit before your child learns how to sit unaided.
- When using a seat unit always apply two belt elements – lumbar belt and belt between the legs of the child.
- Safety belts should be used only when a child can sit unaided.
Always use the fastening system. - Do not use the product when roller skating or running.
-
Prevent your child from playing with this product.
-
When assembling and disassembling this stroller, ensure that your child is at a safe distance from it.
- Before using this product, ensure that the bumper of a seat unit is fixed.
- Before using this product, ensure the proper adjustment of fastening mechanisms for the portable cradle, the seat unit or the child safety seat.
CAUTIONS
Read this instruction manual carefully before use.
Non-compliance with this manual's requirements threatens your child's safety.
Use the stroller with one child at a time.
- The stroller is designed for children aged 0 to 36 months and weight up to 15kg .
The child safety seat can be used for children aged 0 to 6 months and weight up to 13kg It is suitable for newborns who cannot sit unaided, roll over, crawl.
- If the child safety seat is used with the chassis, it should be remembered that the stroller does not replace a cradle or a bed; if a child wants to sleep it is recommended to put a child into an appropriate cradle, crib or bed.
- Never leave a stroller unattended on a sloped surfaces even when parking brake is locked.
Always engage the brakes when your child is getting into and out of the stroller.
It is prohibited to use the stroller if any of its parts is broken.
- Before assembling this stroller, ensure that the product and its components are functioning properly; if a malfunction is detected, the product
cannot be used.
- When adjusting this stroller, ensure that its moving parts doesn't come in contact with your child's body.
Always lock the parking brake when the stroller is stopped. - The maximum load for the stroller handle is 1kg , for the storage basket is 2kg .
- A bag or any other heavy object unbalances the stroller.
- Do not use accessories other than those provided by manufacturer.
- Do not use spare parts other than those recommended by manufacturer/distributor.
- Lift the front wheel of your stroller, if there's need in crossing an edge of a pavement or a step.
- Never use a stroller on stairs.
- Do not carry the stroller up/down stairs or other inclined surfaces while the child is inside the stroller.
The pressure in the air tires should not exceed 0,8 bar. - The chassis can be used together with cradle, seat unit or safety seat.
- This stroller should be stored out of the reach of children.
PRE-USE PROCEDURES
STROLLER ASSEMBLING / DISASSEMBLING
Unbox this stroller's frame and put it horizontally on the floor (fig. 1). Disable the lock against accidental unfolding (fig. 2). While holding the handle pull upwards vigorously to fix the system (you should hear a specific sound) (fig. 3, 4). To fold the frame press and hold the red button, located on the frame's right lever. Then simultaneously pull the levers, located on both sides of the frame (fig. 5). Slightly pull the frame up to the original position (same when packed) (fig. 1).
HANDLEHEIGHTADJUSTMENT
Simultaneously press the round buttons, placed parallel on both sides of the handle. Set comfortable handle height for you (fig. 6).
WHEEL MOUNTING / DISounting
Before mounting a wheel, insert an axle, while holding the red button (fig. 7). Release the button to fix the axle (you should hear a specific sound). To mount a wheel, press its center button, then mount wheels on an axle till it stops, release button and slightly pull until it locks (fig. 8). To dismount a wheel, press at its midpoint and pull along the axle till its final removal (fig. 8). A wheel can be removed without axle, but the axle can be removed by pressing the red button (fig. 7).
FRONT SWIVEL WHEELS DISCOUNTING AND LOCKING
The stroller's frame is equipped with two front swivel wheels, which rotate 360^ on its axle. To dismount front wheel press vertically the button located above this wheel. A wheel can be dismounted together with the axle (fig.9). To secure the rotary wheels system, turn the regulator located below the dismounting button (fig.10).
BRAKE
The stroller is equipped with parking brakes, which block its rear wheels (fig. 11). To stop the stroller you need to press rear wheels blocking pedal (fig. 11). To continue moving, you need to reset the pedal (fig.11).
SHOCK ABSORPTION
The stroller has a steel-ring shock absorption system and frame shock absorption that let your child feel comfortable. (fig.12). Spring shock absorption mechanism is regulated by a special switch, which is located under the shock absorber (fig. 12). Always adjust both sides equally.
PORTABLE CRADLE MOUNTING / DISmountING
To mount the portable cradle, place the adapters into the adapter pockets, located on the frame's inner side (fig. 13). The portable cradle adapters are blocked automatically. To dismount the portable cradle, press the buttons of the portable cradle adapters, while lifting it up (fig. 13). If necessary, the portable cradle's inner part can be removed and washed (fig.14, 15). The portable cradle's backrest (covered by a coconut mattress) can be adjusted to the desired height with the help of regulator, which is located on the bottom side of the cradle (fig. 16). To adjust the cradle's backrest push the regulator and scroll to the desired height.
PORTABLE CRADLE HOOD,FEET COVER
The portable cradle is equipped with the folding hood that protects a child from natural phenomena (wind, sun, snow, rain). The stroller's hood position is adjusted with buttons at the bottom of the hood (fig.17). Cradle is equipped with the additional handle for its transportation (fig. 18). Cradle is equipped with the feet cover, which puts on at the front of the cradle and is fixed with buttons on both sides (fig. 19). In order to fix the canopy, pull it towards yourself (You will hear distinctive sound). The portable cradle's hood can be ventilated by unfastening a zipper at the bottom part of the hood and bending it down (fig. 20). The stroller has an insect protection which is suitable both for cradle and seat unit (fig. 21). The stroller has a rain protection which is suitable both for cradle and seat unit (fig. 23, 24). The cradle is ventilated (fig.22). Turn the lever counterclockwise to open the ventilation and clockwise to close it (fig. 22).
SEAT UNIT MOUNTING / DISMOUNTING
To mount the seat unit, place its adapters into the adapter pockets located on the frame's inner side (fig.25). The seat
unit adapters are blocked automatically. To dismount the seat unit, press the buttons of the seat unit adapters, while lifting it up (fig. 25). The seat unit's backrest can be adjusted to the desired height using the adjuster located on the seat backside (fig. 26).
SEAT UNIT HOOD, FEET COVER
The seat unit is equipped with the folding hood that protects a child from natural phenomena (wind, sun, snow, rain). The hood position is adjusted by pressing on its upper part with your hands (fig. 27). The seat unit is equipped with the feet cover, which is fixed with buttons on the both sides of a stroller in its front part (fig. 28). The seat unit's hood can be ventilated by unfastening a zipper at the top of the hood and pulling the top of the hood to the bumper side (fig. 28).
FOOTREST ADJUSTMENT
To adjust the desired hight simultaneously press the buttons located on both sides of the footrest (fig. 29).
SEAT UNIT'S BUMPER
Every seat unit has a bumper with a protective mechanism which prevents a child from getting out of a stroller. Simultaneously press two parallel red buttons on the both sides of a handle, adjust the desired height (fig.30). To dismount the bumper press buttons and pull the handle up slightly (fig. 31). For bumper mounting insert it into the latching mechanisms, which are situated on both sides of the seat unit (you should hear a specific sound) (fig. 31).
SAFETY BELTS
The seat unit features 5-point safety belts. To secure a
child with safety belts, insert the belt locks into the holder and tighten those belts (fig.32). To unfasten the belts, press the button and remove the locks out of the holder (fig. 32).
CHILD SAFETY SEAT
The child safety seat can be mounted on the stroller's frame as well. It must be attached to specially made adapters (fig. 33). To secure the removable child safety seat, insert the adapters into the adapter pockets on the frame (fig. 33), then secure it (fig. 34). The adapters are blocked automatically. To remove adapters press the button on the inner side (fig. 35). The child safety seat equipped with a feet cover fastened with buttons to the body of a child safety seat (fig. 34); it has child safety belts as well. To remove child safety seat from a frame press buttons on both sides of a seat simultaneously (fig. 36). Our safety seats can be mounted in a car both with a standard car seat belts or ISOFIX locking system.
MAINTENANCE AND CLEANING
Make sure this stroller always stays dry and clean (both its upholstery and its frame). There's no need to remove the stroller's upholstery. This stroller's upholstery can be cleaned with a damp sponge or a cloth using a detergent. It is necessary to control the degree of wear of the wheels and clean them from the dust and the sand. When lubricating the wheel axle drop a few drops of oil between the axle and the hub. If the stroller gets wet, it should be dried and its metal parts should be wiped with the dry cloth. The colors of this stroller materials and fabrics can undergo changes as a result of prolonged exposure to sunlight.
WARRANTY
TERMS OF WARRANTY
The warranty offered for this product shall be annulled if the product is using improperly, that is in breach of this manual rules.
Letter of guarantee is invalid without the date of sale and a shop stamp.
- Anex Co. provides warranty for the perambulator you purchased for the period of 12 months from the date of purchase, provided that it isn't used for unintended purposes.
- All the complaints about defects must be submitted to a vendor that sold you this product.
- The warranty repair is carried out by the manufacturer or a service center, reported by the seller.
- All the physical defects of this stroller, which appeared during the warranty period, will be repaired for free within 21 days starting from the day when the stroller is delivered to a repair workshop.
The warranty period is respectively extended for the period of repair.
- All the repair procedures related to this stroller are set by a company that provides warranty.
- A malfunctioning product must be cleaned before packaging for delivery to a repair workshop.
If a letter of guarantee is lost, no duplicate will be provided.
The warranty is valid only in the countries with official representatives of ANEX TM.
WARRANTY IS NOT PROVIDED
- For damages resulting from improper product use and maintenance.
For repair carried out by unauthorized persons.
Natural wear during operation, e.g.: wheels. - For damages and ruptures caused by the buyer.
For the wheels, being used, that were damaged or punctured because of mechanical actions; natural wear out or resource exhaustion. - For accidental damages caused by a customer or damages caused in a result of careless attitude or usage; damages caused by natural disasters (natural phenomena).
- For fabric discoloration caused by prolonged exposure to sunlight.
In accordance with new EU standards: a stroller (ground transport vehicle) is not subject to return. The company reserves the right to introduce design changes the product's performance without prior notice for improving.
TUTMA KOLU YUKSEKLIK AYARLAMA
CONDITIONS DE GARANTIE
LA GARANTIE N'EST PAS FOURNIE
NU SE OFERÄ GARANTIE
Mecayeb C DaTbI PPOdaXN
CepBnchbI cnyuai N°1
PINNC MaIcTaPa I WtAMMaIcTePHi
Bud noIOMkn:
Cepbichn Binaadok N° 2
Data oTpMaHHa:
20
DataBuaui:
20
P#nMa#TpaI WtAmM Ma#TeP#H
Bud noIOMKn:
Warranty card N^o
Caution! Don't forget to activate your warranty card on our website within 2 working after purchasing our stroller to enable the warranty. Warranty card is not valid without a seller's stamp and if any blank field is present.
Product model and short name
Buyer's full name (for individuals)
Purchasing company's name
Date of sale 20
Product value
The terms of servicing were noted and agreed upon
Seller's signature
The field for a seller's stamp or signature
Client's signature
The period of servicing is
months from the date of sale
Service case N°1
| Receipt date: | Issue date: |
| 20 | 20 |
| Damage type: | of a repair workshop |
Service case N^2
| Receipt date: | Issue date: |
| 20 | 20 |
| Damage type: | Bipolar relationship |
The terms of servicing were noted and agreed upon
Kopares signatur
Garantid galler
mänader after fösäljning
Servicefall nr. 1
Datum av bevis:
Utfardandedatum:
20
20
The terms of servicing were noted and agreed upon
