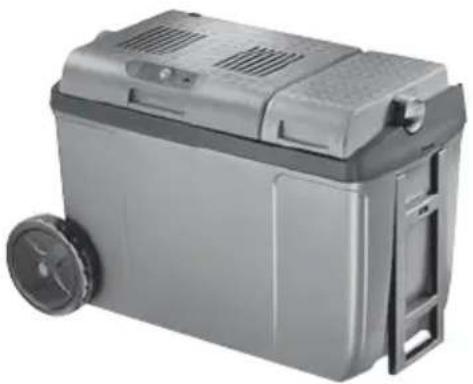

USER MANUAL SC 30 DOMETIC

WARNING! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury. CAUTION! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. NOTICE! Indicates a situation that, if not avoided, can result in property damage. SC26-SCT26-SC30-SC38_OPM_EMEA16.book Seite 6 Mittwoch, 19. Juni 2019 8:51 20EN SC26, SCT26, SC30, SC30B, SC38 Safety instructions

WARNING! Failure to obey these warnings could result in death or serious injury. Electrocution hazard

• Do not operate the cooling device if it is visibly damaged.

• If this cooling device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.

• This cooling device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards. Health hazard

• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.

• Children shall not play with the device.

• Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload cooling devices. Explosion hazard

• Do not store any explosive substances such as spray cans with a flammable propellant in the cooling device.

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Electrocution hazard

• Disconnect the cooling device from the power supply – before each cleaning and maintenance – after every use NOTE Supplementary information for operating the product. SC26-SCT26-SC30-SC38_OPM_EMEA16.book Seite 7 Mittwoch, 19. Juni 2019 8:51 20EN Safety instructions SC26, SCT26, SC30, SC30B, SC38

• Food may only be stored in its original packaging or in suitable containers.

• Check that the voltage specification on the type plate corresponds to that of the energy supply.

• Only connect the cooling device as follows: – With the DC connection cable to a DC power supply in the vehicle – Or with the AC connection cable to an AC power supply

• Never pull the plug out of the socket by the cable.

• If the cooling device is connected to a DC outlet: Disconnect the cooling device and other power consuming devices from the battery before connecting a quick charging device.

• If the cooling device is connected to a DC outlet: Disconnect the cooling device or switch it off when you turn off the engine. Otherwise you may discharge the battery.

• The cooling device is not suitable for transporting caustic materials or materials containing solvents.

2.2 Operating the cooling device safely

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Electrocution hazard

• Before starting the cooling device, ensure that the power supply line and the plug are dry. Health hazard

• Opening the door for long periods can cause significant increase of the temperature in the compartments of the device.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• Store raw meat and fish in suitable containers in the device, so that it is not in contact with or drip onto other food. SC26-SCT26-SC30-SC38_OPM_EMEA16.book Seite 8 Mittwoch, 19. Juni 2019 8:51 20EN SC26, SCT26, SC30, SC30B, SC38 Scope of delivery

• If the device is left empty for long periods: – Switch off the device. – Defrost the device. – Clean and dry the device. – Leave the door open to prevent mould developing within the device.

• Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for the purpose.

• Do not place the cooling device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).

• Risk of overheating! Ensure at all times that there is a minimum of 50 mm ventilation on all four sides of the cooling device. Keep the ventilation area free of any objects that could restrict the air flow to the cooling components. Do not place the cooling device in closed compartments or areas with none or minimal air flow.

• Ensure that the ventilation openings are not covered.

• Do not fill the inner container with ice or fluids.

• Never immerse the cooling device in water.

4 Intended use The cooling device can be used to cool (SC26, SCT26, SC30, SC30B, SC38) and keep foodstuffs warm (only SC30, SC30B, SC38). It is possible to change between the heating and cooling operation by means of a switch (only SC30, SC30B, SC38). The device can be connected as follows:

• SCT26: to 12 Vg or to 24 Vg

• SC30, SC30B, SC38: to 12 Vg or to 230 Vw The cooling device is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments

• clients in hotels, motels and other residential type environments

• bed and breakfast type environments

• catering and similar non-retail applications The appliance may also be used for camping use. The appliance shall not be exposed to rain.

5 Technical description The cooler is suitable for mobile use. You can cool products to a maximum of 18 °C under the ambient temperature (SC26, SCT26, SC30, SC30B, SC38) or warm them to a maximum of 65 °C (SC30, SC30B, SC38). Its cooling system is a non-wearing Peltier cooling, the heat is discharged by a fan. CAUTION! Health hazard! Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool. SC26-SCT26-SC30-SC38_OPM_EMEA16.book Seite 10 Mittwoch, 19. Juni 2019 8:51 20EN SC26, SCT26, SC30, SC30B, SC38 Technical description

Only SC30, SC30B, SC38 The desired mode is selected with the cold/hot switch (fig. 2 5, page 3). When the cooler is connected to an AC mains supply, it can be used in two different operating modes:

• ECO mode: the cooler consumes less energy

• MAX mode: the cooler reaches maximum cooling capacity The desired cooling capacity is selected with the cooling capacity control (fig. 2 6, page 3): ➤ To increase the cooling capacity, turn the cooling capacity control clockwise. For the maximum cooling capacity turn the cooling capacity control clockwise all the way to the stop (MAX position). ➤ To decrease the cooling capacity, turn the cooling capacity control counter- clockwise. To turn off the cooler, turn the cooling capacity control counterclockwise all the way to the stop (OFF position). When the cooler is connected to the DC socket, the cooling capacity cannot be adjusted. No. in fig. 2, page 3 Description 1 USB port for power supply 2 Connection cable for DC connection 3 Connection cable for AC connection 4 Ventilation slots 5Cold/hot switch 6 Cooling capacity control 7 Handle SC26-SCT26-SC30-SC38_OPM_EMEA16.book Seite 11 Mittwoch, 19. Juni 2019 8:51 20EN Operation SC26, SCT26, SC30, SC30B, SC38

• When positioning the device, ensure the supply cord is not trapped or damaged.

• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the device. CAUTION! Health hazard! Food may only be stored in its original packaging or in suitable containers. NOTICE! Risk of damage

• Ensure that the objects placed in the cooler are suitable for cooling to the selected temperature.

• Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy the glass containers.

• Ensure that your cooler is well ventilated so that any heat created can dissipate. Otherwise proper functioning cannot be ensured. It is especially important not to cover the air vents. NOTE

• Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 15).

• A few water drops may form inside the cooler if it has been cooling for a lengthy period. This is normal because the moisture in the air condenses to water when the temperature in the cooler falls. The cooler is not defective. Wipe it out with a dry cloth if necessary.

• If the handle is folded back of if the cooler is being carried, the lid is locked. You can only open the lid when the handle is folded forwards. SC26-SCT26-SC30-SC38_OPM_EMEA16.book Seite 12 Mittwoch, 19. Juni 2019 8:51 20EN SC26, SCT26, SC30, SC30B, SC38 Operation

• Choose a well ventilated location which is protected from direct sunlight.

• If you want to set an increased energy efficiency and a limited cooling capacity for the cooler device, use the device’s ECO mode.

• Allow warm food to cool down first before placing it in the cooling device to keep cool.

• Do not open the cooling device more often than necessary.

• Do not leave the cooling device open for longer than necessary.

6.2 Mounting the wheels (only SC38)

➤ Mount the wheels as shown to the cooling device (fig. 3, page 4).

6.3 Using the cooler in DC mode

➤ Place the device on a firm base. ➤ Connect the DC connection cable to the cigarette lighter or the DC socket in the vehicle. ✓ The device starts cooling/heating the interior. ➤ To switch off the cooling device, disconnect the DC connection cable. NOTE If you connect the cooler to the cigarette lighter of your vehicle, remember that the ignition must be turned on to supply it with power. SC26-SCT26-SC30-SC38_OPM_EMEA16.book Seite 13 Mittwoch, 19. Juni 2019 8:51 20EN Operation SC26, SCT26, SC30, SC30B, SC38

6.4 Using the cooler in AC mode

(only SC30, SC30B, SC38) ➤ Place the device on a firm base. ➤ Connect the AC cable to the AC mains supply. ➤ Turn the cooling capacity control (fig. 2 6, page 3) to the desired position. ➤ Push the cold/hot switch (fig. 2 5, page 3) to the position “Cold” (cooling) or “Hot” (heating) to switch the device on. ✓ The device starts cooling/heating the interior.

6.5 Devide the interior (only SC38)

You can devide the interior of the refrigerator as follows (fig. 4, page 4):

• No partition grille (A): Both coolers are actively cooled or heated.

• Open partition grille (B): The large cooling compartment is actively cooled or heated. The small cooling compartment is less cooled or heated.

• Closed partition grille (C): The big cooling compartment is actively cooled or heated. The small refrigerator compartment is passively cooled or heated.

6.6 USB port for power supply

The USB port (fig. 2 1, page 3) allows you to charge small devices like mobile phones and mp3-players. Using the USB port does not affect the cooling performance.

Proceed as follows (fig. 2, page 3): ➤ Connect the DC connection cable (2) or the AC connection cable (3) of the cooling device with the power supply. ➤ SC30, SC30B, SC38: Turn the cooling capacity control (6) to the “MAX” position. ➤ Connect your device to the USB port (1). 7 Cleaning and maintenance

➤ Occasionally clean the device interior and exterior with a damp cloth. ➤ Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged. NOTICE! Ensure that any device connected to the USB port is compatible with 5 V/500 mA operation. WARNING! Electrocution hazard Always disconnect the device from the power supply before you clean and service it. NOTICE! Risk of damage

• Never clean the cooler under running water or in dish water.

• Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler. SC26-SCT26-SC30-SC38_OPM_EMEA16.book Seite 15 Mittwoch, 19. Juni 2019 8:51 20EN Guarantee SC26, SCT26, SC30, SC30B, SC38

8Guarantee The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer. For repair and warranty processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date

• A reason for the claim or description of the fault 9 Troubleshooting Problem Possible cause Suggested remedy Your device is not work- ing (plug is inserted). There is no voltage flowing in the DC socket in your vehicle. The ignition must be switched on in most vehicles to apply current to the DC socket. No voltage present in the AC voltage socket. Try using another plug socket. The inner fan or the cooling element is defective. This can only be repaired by an authorised repair centre. When operating from the DC socket: The ignition is on and the cooler is not working. The fuse of the DC plug is dirty. This results in a poor electrical contact. If the plug of your cooler becomes very warm in the DC socket fitting, either the fitting must be cleaned or the plug has not been assembled correctly. The fuse of the DC plug has blown. Replace the fuse (fig. 6 1, page 5) of the DC plug with one of the same rating. The vehicle fuse has blown. Replace the vehicle's DC socket fuse (usually 15 A). Please refer to the operating manual of your vehicle. SC26-SCT26-SC30-SC38_OPM_EMEA16.book Seite 16 Mittwoch, 19. Juni 2019 8:51 20EN SC26, SCT26, SC30, SC30B, SC38 Disposal

10 Disposal ➤ Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. 11 Technical data CoolFun SC26 CoolFun SCT26Ref. number: 9600000484 9600000485 Connection voltage: 12 Vg 12/24 V Power consumption: 47 W 47 W (12 Vg) 55 W (24 Vg) Cooling capacity: max. 18 °C under ambient temperature Gross capacity: 25 l 26 l Usable capacity: 24 l 25 l Climate class: N Ambient temperature: +16 °C – +32 °C Dimensions(W x H x D) in mm: 396 x 296 x 395 396 x 296 x 395 Weight: ca. 3.7 kg ca. 4.0 kg Testing/certification:

CoolFun SC30 CoolFun SC30B CoolFun SC38 Ref. number: 9600000486 9600024482 9600000487 Connection voltage: 12 Vg 220 – 240 Vw, 50/60 Hz Power consumption 12 Vg, cold mode: 12 Vg, hot mode: 47 W 39 W 230 Vw, cold mode: 230 Vw, hot mode: max. 55 W 39 W Cooling capacity: max. 18 °C under ambient temperature Thermal energy: 65 °C Category: Pantry Energy efficiency class: A++ Energy consumption: 66 kWh/annum Gross capacity: 30 l 38 l Usable capacity: 29 l 37 l Climate class: ST Ambient tempera- ture: +16 °C – +38 °C Noise emission: 39 dB Dimensions (W x H x D) in mm: 396 x 296 x 445 565 x 391 x 295 Weight: ca. 4.3 kg 5.4 kg Testing/certification:
