| Product type | Garden shredder |
| Brand | Bosch |
| Model | AXT 1600 HP |
| Power consumption (S1) | 1600 W |
| Power consumption (S6) | 2000 W |
| No-load speed | 260 rpm |
| Maximum throughput | 100 kg/h |
| Maximum branch diameter | 33 mm |
| Weight | 21 kg |
| Supply voltage | 230 V |
| Circuit protection | 10 A minimum |
| Protection class | I |
| Motor type | Electric |
| Main functions | Shredding garden waste, forward/reverse, restart protection |
| Maintenance and cleaning | Clean regularly, do not use pressure washer, treat rotor with Bosch spray |
| Safety | Overload protection device, rotation direction switch, power failure shutdown |
| Spare parts and repairability | Repair by authorized Bosch service station, exploded views on bosch-pt.com |
| General information | Quiet shredder compliant with EN 60 and prEN 13683 standards |
Frequently Asked Questions - AXT 1600 HP BOSCH
User questions about AXT 1600 HP BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Meat Grinder in PDF format for free! Find your manual AXT 1600 HP - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AXT 1600 HP by BOSCH.
USER MANUAL AXT 1600 HP BOSCH
Senior Vice President Head of Product
Engineering Certification
ppa1b1c1 = i.v. NO2 时
Robert Bosch GmbH, Power Tools Division

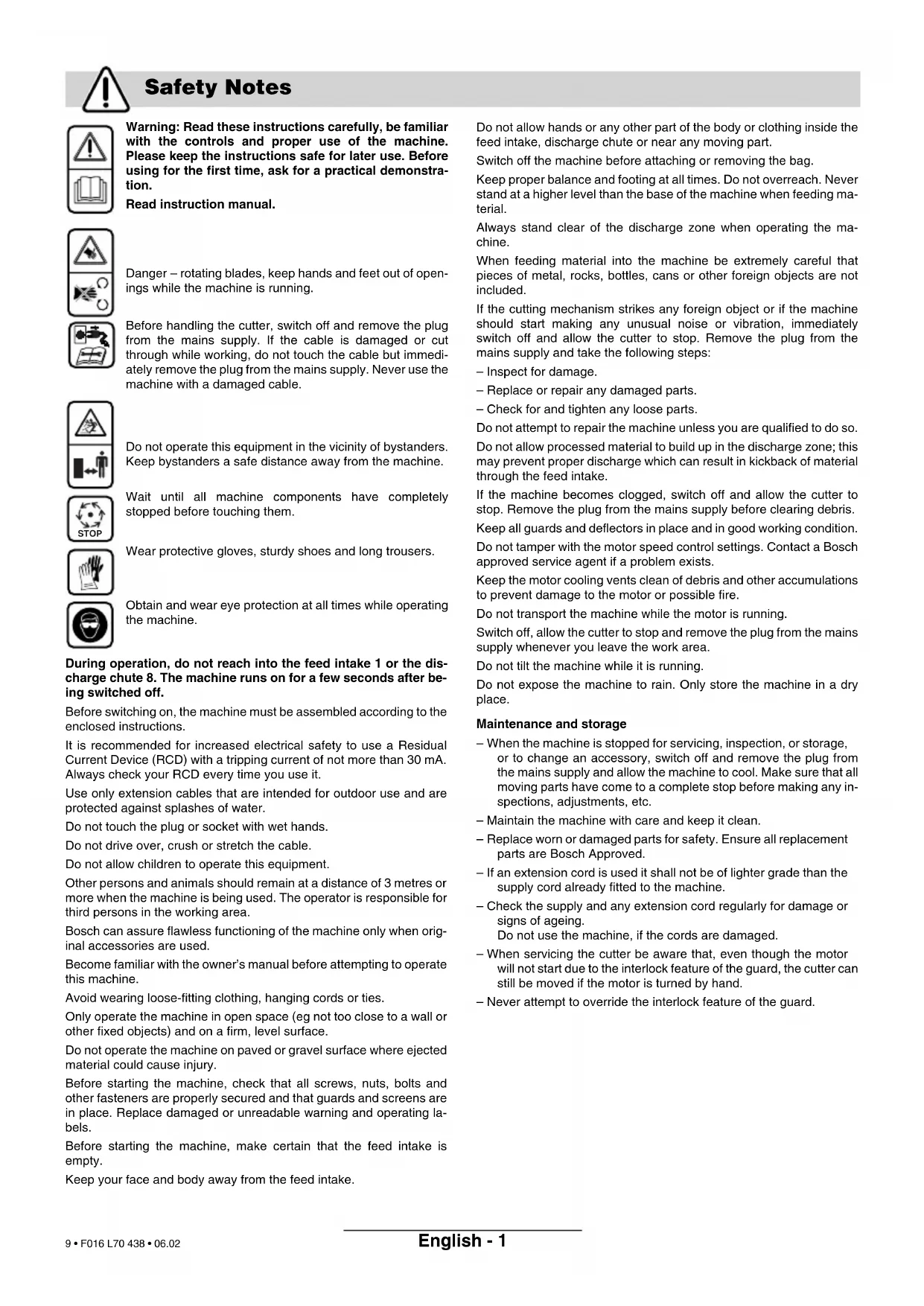

Warning: Read these instructions carefully, be familiar with the controls and proper use of the machine. Please keep the instructions safe for later use. Before using for the first time, ask for a practical demonstration.
Read instruction manual.
Danger - rotating blades, keep hands and feet out of openings while the machine is running.
Before handling the cutter, switch off and remove the plug from the mains supply. If the cable is damaged or cut through while working, do not touch the cable but immediately remove the plug from the mains supply. Never use the machine with a damaged cable.
Do not operate this equipment in the vicinity of bystanders. Keep bystanders a safe distance away from the machine.
Wait until all machine components have completely stopped before touching them.
Wear protective gloves, sturdy shoes and long trousers.
Obtain and wear eye protection at all times while operating the machine.
During operation, do not reach into the feed intake 1 or the discharge chute 8. The machine runs on for a few seconds after being switched off.
Before switching on, the machine must be assembled according to the enclosed instructions.
It is recommended for increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30mA . Always check your RCD every time you use it.
Use only extension cables that are intended for outdoor use and are protected against splashes of water.
Do not touch the plug or socket with wet hands.
Do not drive over, crush or stretch the cable.
Do not allow children to operate this equipment.
Other persons and animals should remain at a distance of 3 metres or more when the machine is being used. The operator is responsible for third persons in the working area.
Bosch can assure flawless functioning of the machine only when original accessories are used.
Become familiar with the owner's manual before attempting to operate this machine.
Avoid wearing loose-fitting clothing, hanging cords or ties.
Only operate the machine in open space (eg not too close to a wall or other fixed objects) and on a firm, level surface.
Do not operate the machine on paved or gravel surface where ejected material could cause injury.
Before starting the machine, check that all screws, nuts, bolts and other fasteners are properly secured and that guards and screens are in place. Replace damaged or unreadable warning and operating labels.
Before starting the machine, make certain that the feed intake is empty.
Keep your face and body away from the feed intake.
Do not allow hands or any other part of the body or clothing inside the feed intake, discharge chute or near any moving part.
Switch off the machine before attaching or removing the bag.
Keep proper balance and footing at all times. Do not overreach. Never stand at a higher level than the base of the machine when feeding material.
Always stand clear of the discharge zone when operating the machine.
When feeding material into the machine be extremely careful that pieces of metal, rocks, bottles, cans or other foreign objects are not included.
If the cutting mechanism strikes any foreign object or if the machine should start making any unusual noise or vibration, immediately switch off and allow the cutter to stop. Remove the plug from the mains supply and take the following steps:
-Inspect for damage.
-
Replace or repair any damaged parts.
-
Check for and tighten any loose parts.
Do not attempt to repair the machine unless you are qualified to do so. Do not allow processed material to build up in the discharge zone; this may prevent proper discharge which can result in kickback of material through the feed intake.
If the machine becomes clogged, switch off and allow the cutter to stop. Remove the plug from the mains supply before clearing debris.
Keep all guards and deflectors in place and in good working condition.
Do not tamper with the motor speed control settings. Contact a Bosch approved service agent if a problem exists.
Keep the motor cooling vents clean of debris and other accumulations to prevent damage to the motor or possible fire.
Do not transport the machine while the motor is running.
Switch off, allow the cutter to stop and remove the plug from the mains supply whenever you leave the work area.
Do not tilt the machine while it is running.
Do not expose the machine to rain. Only store the machine in a dry place.
Maintenance and storage
- When the machine is stopped for servicing, inspection, or storage, or to change an accessory, switch off and remove the plug from the mains supply and allow the machine to cool. Make sure that all moving parts have come to a complete stop before making any inspections, adjustments, etc.
- Maintain the machine with care and keep it clean.
- Replace worn or damaged parts for safety. Ensure all replacement parts are Bosch Approved.
- If an extension cord is used it shall not be of lighter grade than the supply cord already fitted to the machine.
- Check the supply and any extension cord regularly for damage or signs of ageing.
Do not use the machine, if the cords are damaged.
- When servicing the cutter be aware that, even though the motor will not start due to the interlock feature of the guard, the cutter can still be moved if the motor is turned by hand.
- Never attempt to override the interlock feature of the guard.
Product Specification
Quiet shredder AXT 1600 HP AXT 2000 HP
Part number 0 600 851 2.. 0 600 851 4..
Power consumption S 6 (4/6 min) ^1 [W] - 2000
Power consumption S 1 [W] 1600 1800
No-load speed [rpm] 260 260
Capacity max. [kg/h] 100 2) 115 2)
Branch diameter max. [mm] 332) 382
Collecting bag not included, Accessories
Weight.approx. [kg] 21 22
Protection class / I / I
1) The S 6 operating mode (40%) indicates a load profile of 4 min load and 6 min idle time. For practical application, continuous operation is permitted.
2) Depending on the hardness of the wood.
Operating Controls
1 Feed intake
2 On/Off switch
3 Rotational direction switch
4 Mains plug**
5 Pusher/clearing hook
6 Undercarriage
7 Collecting bag/cover *
8 Discharge chute
9 Hooks for collecting bag
10 Serial Number
*Accessories
**Country specific
*Not all of the accessories illustrated or described are included as standard delivery.
Intended Use
The product is intended for cutting of fibrous and woody garden waste for composting.
Assembly
Remove the machine from the package
(see figure A
Mount the wheels and the undercarriage
(see figure B
Before Use
Always use the correct supply voltage! The voltage of the power source must agree with the value given on the nameplate of the machine. Machines designated for 230V can also be operated with 220V .
The circuit must be protected by fuse with at least 10 A.
When operating the machine with a generator, a unit with a power rating of 3.5kVA / 2800W is necessary. (e.g. Bosch generator units G-3600-series).
An extension cable with a cross section that is too small causes a distinct reduction in the performance capabilities of the machine. For cables to 25m in length, a cross section of at least 3× 1,5mm^2 is required, for cables more than 25m in length, the cross section must be at least 2,5mm^2 .
Always completely unwind cable reels.
Always place the machine on firm level ground. During operation, do not tilt or move.
Remove any soil from root balls. Foreign bodies like stones, glass, metals, fabrics, or plastics must not enter the feed intake since this could damage the spiral cutting knives.

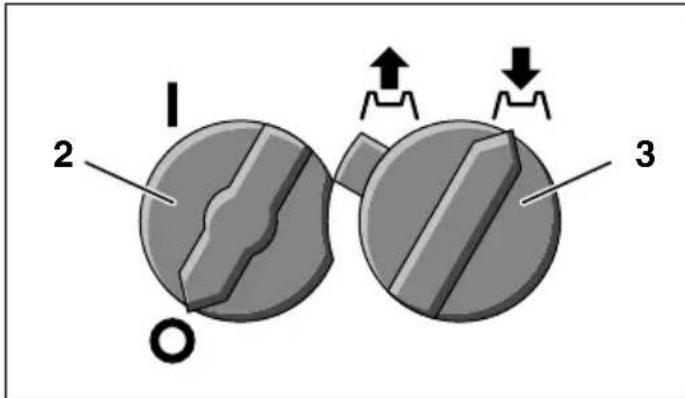

Starting and Stopping
The rotational direction switch 3 must be turned to the right. The feed intake 1 must be empty.
Starting:
Set the on/off switch 2 to "I".
Stopping:
Set the on/off switch 2 to "O".
The motor will coast after switching off!
Rotational direction switch
The rotational direction switch 3 can only be operated when the machine is switched off. Always wait for the machine to stop before switching it on again.
Right position (↓) :
The spiral cutting knives pull in the material and shreds it.
Left position (↑) :
The spiral cutting knives are operating in reverse direction and jammed material is released.
Longer material standing out from the machine could lash out when being pulled in by the knives! Please keep at safe distance!
Overload Protection
Overloading (e. g. blocking up of the spiral cutting knives) causes the machine to stop after a few seconds. After a short period, the machine can be switched on again. If the machine blocks turn off. Set the On/Off switch 2 to "O", then wait a few seconds and turn it back to "I".
If the blockage does not clear, turn the rotational direction switch 3 to the left position ( and switch the machine on to release the blockage. If the blockage does not clear, repeat.
After the blockage has released, turn the On/Off switch 2 to "O" and the rotational direction switch 3 to the right position ( before switching the machine on again.
Restart Protection
After a mains failure the machine cannot restart on it own when the power returns.
Working Instructions
Always wear eye protection and wear gloves during use.
In order to collect the shredded material, fasten the carrying straps of the collecting bag 7 (accessory) to the two hooks 9.

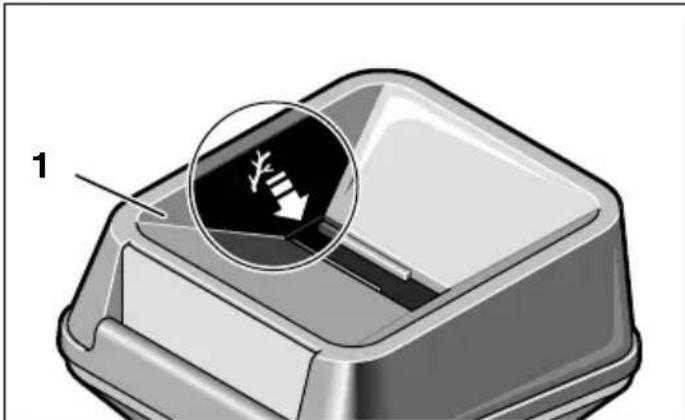

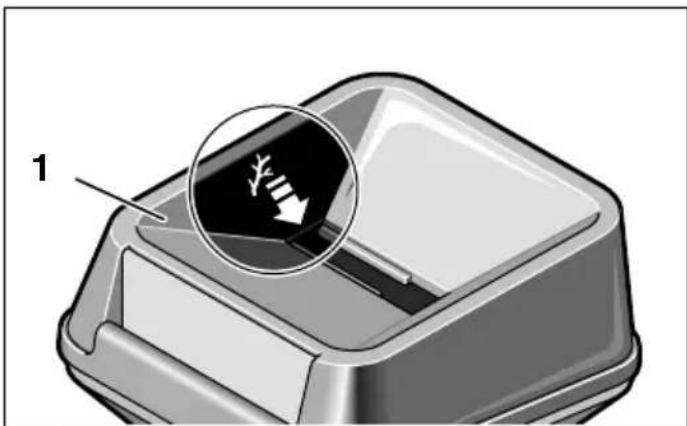

Feed the material to be shredded. The material is pulled in by the spiral cutting knives.
Longer material standing out from the machine could lash out when being pulled in by the knives! Please keep at safe distance!
Only insert as much material so that the feed intake 1 will not be blocked up.
Shred withered, moist material and garden waste which has been stored for some days alternately with branches. This prevents the cutter from clogging and helps to mix the material for composting.
Do not fill soft waste such as kitchen rubbish into the shredder but compost directly.
Always feed the material to be shredded from the corner of the feed intake 1 marked with the arrow.
Take care that the shredded material can fall freely from the discharge chute 8 - danger of backing up!
The ventilation slots 5 must not be covered by the collecting bag or the shredded material.
Advice on Shredding
Branches become harder to shred depending on the type, age and dryness of the wood.
For best results, shred fresh branches soon after they have been cut.
Soft garden waste should be shredded in smaller loads, particularly when wet. Any blockages can be avoided by intermittently shredding branches.
Malfunctions Maintenance and storage
The motor does not run:
The overload protection has responded.
Switch off and wait for a few seconds.
Turn the rotational direction switch 3 to the left position (backwards) and switch the machine back on after a short period. After the blocking has been removed, turn the rotational direction switch 3 back to the right position.
■Check the power supply cord, the plug and the house fuse.
The material to be chopped is not pulled in:
The spiral cutting knives are running backwards:
Switch off and change direction of rotation.
The material to be shredded is jammed in the feed intake 1: Turn the rotational direction switch 3 to the left position (backwards) and switch the machine back on. Remove the material from the feed intake. After the blocking has been removed turn the rotational direction switch 3 back to the right position.
■Re-feed thick branches such that the knives do not immediately grasp the pre-cut notches again.
The spiral cutting knives are blocked:
Turn the rotational direction switch 3 to the left position and switch the machine on. The spiral cutting knives will now run backwards to release the blocked up material (or the foreign body). After the blocking has been removed turn the rotational direction switch 3 back to the right position.
Longer material standing out from the machine could lash out when being pulled in by the knives! Please keep at safe distance!
Direction of rotation remains unchanged after switch-over:
Change the direction of rotation to the desired position after the machine has come to a complete standstill.
■Stop and remove plug from the power supply.
For safe and proper working, always keep the machine and the ventilation slots clean.
The shredder must not be cleaned with high-pressure cleaners or running water.
The tightness of the fastening screws of the undercarriage should be checked from time to time.
To protect the machine from corrosion when storing for a longer period, treat the spiral cutting knives with Bosch preservation spray (accessory, order no. 1609 200 399). This spray is harmless to the environment and decomposable.
If the machine should fail despite the rigorous manufacturing and testing procedures, repair should be carried out by an authorised customer service centre for Bosch power tools.
For all correspondence and spare parts orders, always include the 10-digit part number (typ) from the nameplate of the machine!
Environmental Protection
Environmental label "Blue Angel". Awarded for extra quiet operation.
Disposal
Power tools, accessories and packaging should be sorted for environmental-friendly recycling.
Only for EC countries:
Do not dispose of power tools into household waste!
According to the European Directive 2002/96/EC on waste electrical and electronic equipment and its incorporation into national law, power tools
that are no longer suitable for use must be separately collected and sent for recovery in an environmental-friendly manner.
Service Declaration of Conformity
Exploded views and information on spare parts can be found under: www.bosch-pt.com
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O.Box 98
Broadwater Park
North Orbital Road
Denham-Uxbridge
Middlesex UB 95HJ
Service. +44 (0) 18 95 / 83 87 82
Fax Service +44 (0) 18 95 / 83 87 89
Advice line. +44 (0) 1895/838791
Fax Advice. +44 (0) 18 95 / 83 87 93
Ireland
Beaver Distribution Ltd.
Greenhills Road
Tallaght-Dublin 24
Service +353 (0)1 / 45 15 211
Fax +353 (0)1 / 45 17 127
Malaysia
Robert Bosch (SEA.) Pte. Ltd.
No. 8a, Jalan 13/6
Selangor Darul Ehsan
Petaling Jaya 46200
Malaysia
60379583000
Fax (EW Dept.) +60 3 79 58 38 38
www.bosch.com.sg
Australia
Robert Bosch Australia Ltd.
RBAU/SPT2
1555 Centre Road
P.O. Box 66 Clayton
3168 Clayton/Victoria
+61 (0)1 / 800 804 777
Fax +61 (0)1 / 800 819 520
www.bosch.com.au
E-Mail: CustomerSupportSPT@au.bosch.com
New Zealand
Robert Bosch Limited
14-16 Constellation Drive
Mairangi Bay
Auckland
New Zealand
6 64 (0)9 / 47 86 158
Fax +64 (0)9 / 47 82 914
Measured values determined according to 2000/14/EC (1.60 m height, 1 m distance away).
Typically the A-weighted noise level of the product is: sound pressure level 78 dB (A); sound power level 89 dB (A).
We declare under our sole responsibility that this product is in conformity with the following standards or standardization documents: EN 60 335 pr EN 13683 according to the provisions of the directives 89/336/EEC, 98/37/EC, 2000/14/EC.
2000/14/EC: The guaranteed sound power level L_WA is lower than 92 dB (A). Conformity assessment procedure according to Annex V.
Leinfelden, 09.2003.
Dr. Egbert Schneider Dr. Eckerhard Strotgen Senior Vice President Head of Product Engineering Certification
ppa1b1c1 i.v. NO2 通
Robert Bosch GmbH, Power Tools Division
Subject to change without notice
Protection de surcharge
Robert Bosch France S.A.
Senior Vice President Head of Product
Engineering Certification
ppa. Maee i.v. Noo
Robert Bosch GmbH, Power Tools Division
Senior Vice President Head of Product
Engineering Certification
ppa1b1c1 i.v. M1O_2
Robert Bosch GmbH, Power Tools Division
Leia a instrucao de service.
Senior Vice President Head of Product
Engineering Certification
ppa1b1 = 12 · p^2 + 14 · b^2
Robert Bosch GmbH, Power Tools Division
Senior Vice President Head of Product Engineering Certification
ppa1b1c1 = i.v. NO2 时
Robert Bosch GmbH, Power Tools Division
Dr. Egbert Schneider Dr. Eckerhard Strotgen Senior Vice President Head of Product Engineering Certification
Robert Bosch GmbH, Power Tools Division
Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification
Ppaa / 135 i.v. nuo7ycu
Robert Bosch GmbH, Power Tools Division
Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification
ppa.
Robert Bosch GmbH, Power Tools Division
Ändringar forbehalles
Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification
ppa. Ma
Robert Bosch GmbH, Power Tools Division
Senior Vice President Head of Product
Engineering Certification
ppa.
Robert Bosch GmbH, Power Tools Division
Ynoeicic yia Tnv kTeAeon epyaoiow
'Orav xεipiεσθε To μnxavμa φopate navtoε npootateutiká yuaia kai npootatetuká yavia.
Tia Tny NepiauAloyn Tou KOpEvou Ulikou Kpeaote Tc 0nAie c avaptnonc Tou aKou unOoxns 7 (EApntma) oTa duoy aykiotpa 9.
EiayeTo uo KonuUko (Otn xoavn nnpwnc). To eayoevo uiko Tpaietau autouata npoc ta eoa ano tov kuivdo konnc.
YnO konu uIKO eVaalou nKouc nou npoeEeXeI ano To unxavna μnpoei va ekTivaxTe i e opun «an' Eow KI an' EKei YI auto npenla va kpatate enapkn anoTaon aphialeiaac ano To unxavna.
EoayeTc naVt aoo uAiko, ooo dEv odnyei otnv emupaen Tnc xoavnc n npwns 1.
Ko3eTc npaeva, upa kai knnoupiKa anoppima, ta onoi nav nav noaee c epes c uooepueva, eK nepitponnc e Klaia. AuTo
PooataeUeI Tov KlaOkoTTn aNo Eva
EvOxOuvo *muouKwma" Kal EITpEneI Tnv
avaiN tou uno anoovthetaon ulikou.
Maaká anoppiμata xwpi cσερεa ouotatika, π. x. anoppiμata ano tny kouζiva, δεν κοβovtau aλλa iinaoμatonoiouvtai kat' εuθεiav.
EioayeTo uno konn uliko navta ano Tyn ywia Tns xoaVns nnpwnc 1 nou eival onmaedevn ^ eva bEloC.
000x, TO k v o u i o va i va nEΦTEI EλεUθερa ano to φρεaɪto εκβολης 8 - Kivδuνος κλωτοήματος.
O1 oxioeC eepoou 6v enipentetai va kaunovta ano to ako unodoxn to kouvo uiko.
Ynoeixic yia Tov taiao
H oklnpotnta twv klaobw v nou tepaxicovta
Eapatai ano to eiooc touc, tnv nAikia touc
kai to baOo pavons.
Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification
ppa1b1c1 i.v. NO3
Robert Bosch GmbH, Power Tools Division
Tnpoue to 6ikaiwa aalayaw
Bosch San. ve Tic. A.S.
Ahi Evran Cad. No:1 Kat:22
Polaris Plaza
80670 Maslak/Istanbul
Müsteri Danismani +90 (0)212 / 335 06 66
Müsteri Servis Hatti+90 (0)212 / 335 07 52
Dr. Egbert Schneider Dr. Eckerhard Strotgen Senior Vice President Head of Product Engineering Certification
Robert Bosch GmbH, Power Tools Division
Power Tools Division
70745 Leinfelden-Echterdingen
www.bosch-pt.com
F016 L70 438 (06.02) O/69
