USER MANUAL ES5800P Edimax

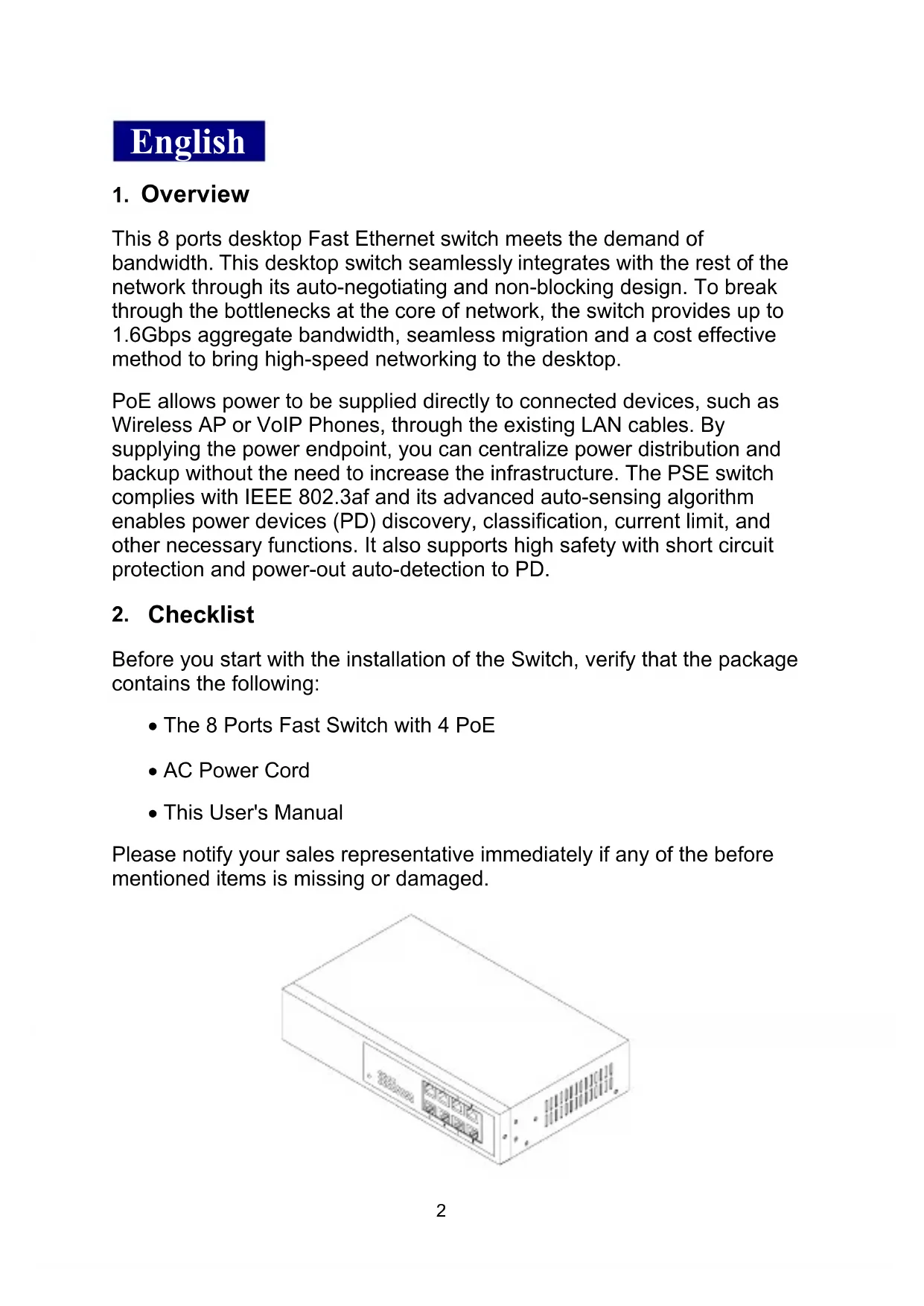

This 8 ports desktop Fast Ethernet switch meets the demand of bandwidth. This desktop switch seamlessly integrates with the rest of the network through its auto-negotiating and non-blocking design. To break through the bottlenecks at the core of network, the switch provides up to 1.6Gbps aggregate bandwidth, seamless migration and a cost effective method to bring high-speed networking to the desktop. PoE allows power to be supplied directly to connected devices, such as Wireless AP or VoIP Phones, through the existing LAN cables. By supplying the power endpoint, you can centralize power distribution and backup without the need to increase the infrastructure. The PSE switch complies with IEEE 802.3af and its advanced auto-sensing algorithm enables power devices (PD) discovery, classification, current limit, and other necessary functions. It also supports high safety with short circuit protection and power-out auto-detection to PD.

Checklist Before you start with the installation of the Switch, verify that the package contains the following:

• The 8 Ports Fast Switch with 4 PoE

• This User's Manual Please notify your sales representative immediately if any of the before mentioned items is missing or damaged.

With the Plug-and-Play design, the Fast switch is easy to install and use. The network and port status can be easily monitored and also trouble-shooting van be done via diagnostic LEDs. Wiring auto crossover on all ports of the switch also allows the connection to the server or PC to free from cabling problems.

• In the switch, TP port supports MDI/MDI-X auto-crossover, so both types of cable, straight-through (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 1, 2, 3, 6 in 10/100M TP) and crossed-over (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 3, 6, 1, 2) can be used.

• Use Cat. 5 grade RJ-45 TP cable to connect to a TP port of the switch and the other end is connected to a network-aware device such as a workstation or a server.

• Repeat the above steps, as needed, for each RJ-45 port to be connected to a Fast 10/100 TP device.

• For Fast Ethernet TP network connection ⎯ The grade of the cable must be Cat. 5 or Cat. 5e with a maximum length of 100 meters.

• Insert the power cord. The embedded internal power unit using different AC power cord is available for different areas. PSE TP Switch with Powered Device (PD)

• Connect the PSE switch to an AC power source.

• Install the TP media cable to the IEEE 802.3af PD for port 1 to 4. Note: The switch can work as a pure switch that connects to non-PoE devices.

• Install the media cable for network connection.

• Port 5 to 8 are pure TP ports for non-PoE devices.

LED Color Function Power Green Lit when DC power is coming up Fast Switch TP Port 1 to 8 PoE Act (Port 1 to 4) Green Lit when PoE feeding power is active Link/Act Green Lit when TP connection is good Blinks when any traffic is present 10/100Mbps Green Lit green when 100Mbps speed is active Off when 10Mbps speed is active

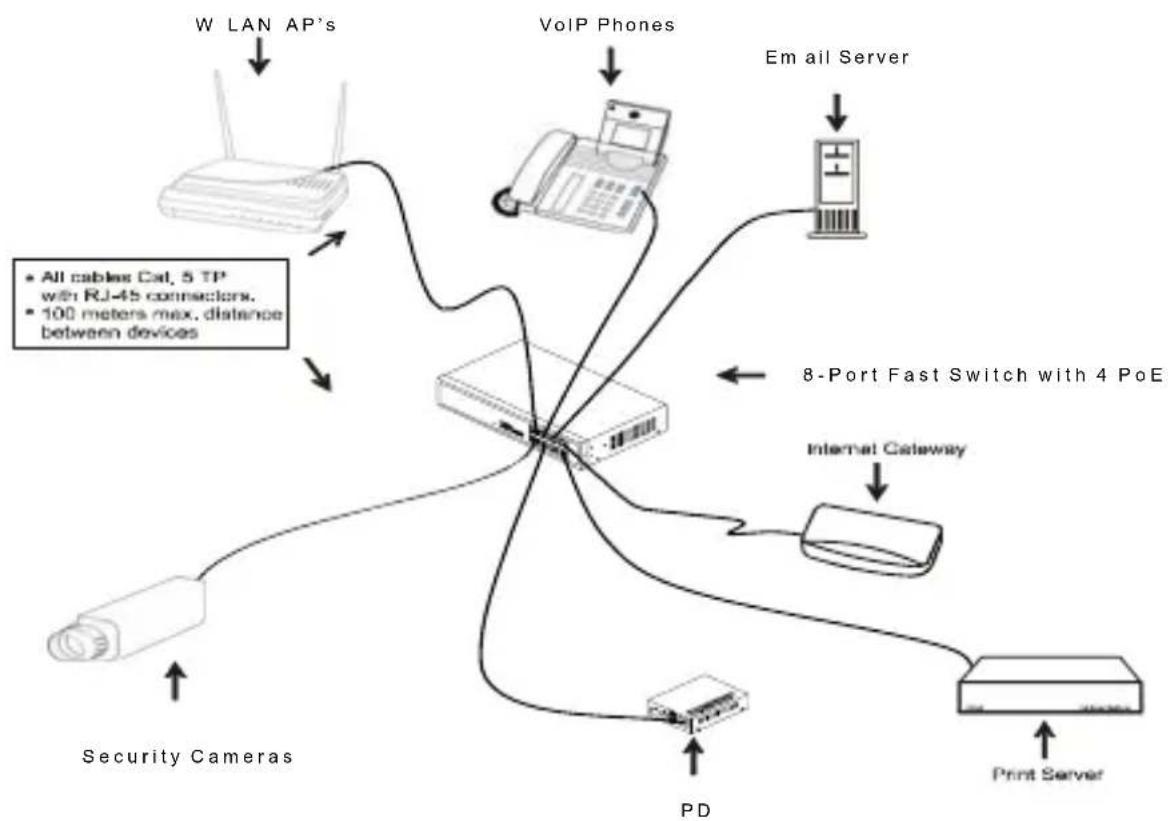

5. Connecting to 10/100Mbps Device and PD

• Transmission : 10/100Mbps supports full or half duplex

• Data Transfer Rate : PPS (packets per second) Speed Forwarding Rate 100Mbps 148,800 PPS 10Mbps 14,880 PPS

• MAC Address and Self-learning : up to 1K

• Buffer Memory : 96Kbyte on chip frame buffer

• Flow Control : IEEE802.3x compliant for full-duplex, Backpressure flow control for half-duplex

• PSE Power Feeding Supports : (Port 1 to 4) “Endpoint” via TP pin 1, 2, 3, 6

• Diagnostic LEDs : System LED – Power PoE LED – PoE Act (Port 1 to 4) Per Port LED – Link / Act, 10/100Mbps

• Power Requirement : AC Line Voltage / Frequency 100-240V / 50-60Hz Consumption Max. 4W (in case no PD device connected) or Max. 65W (with 4 x 15.4W PoE devices connected)

• Operation Temperature : 0° to 40°C

• Operation Humidity : 10% to 90%

• Complies with FCC Part 15 Class A, CE Mark Approval Note : To connect this device to a Router, Bridge or Switch, please refer to the corresponding device's technical manual. 5Český

8-Port Fast Switch with 4 PoE VoIP Phones Security Cam eras PD WLAN AP’s Em ail S erver

8-Port Fast Switch with 4 PoE VoIP Phones Security Cameras PD W LAN AP’s Em ail S erver
