USER MANUAL Sportline BabyGO

BabyGO • www.babygo.eu ASSEMBLY INSTRUCTION Motion | Sportline FreeMove | GoSafe Child car seat ASSEMBLY INSTRUCTION FreeMove – child car seatASSEMBLY INSTRUCTION ENRead carefully before installing your car seat

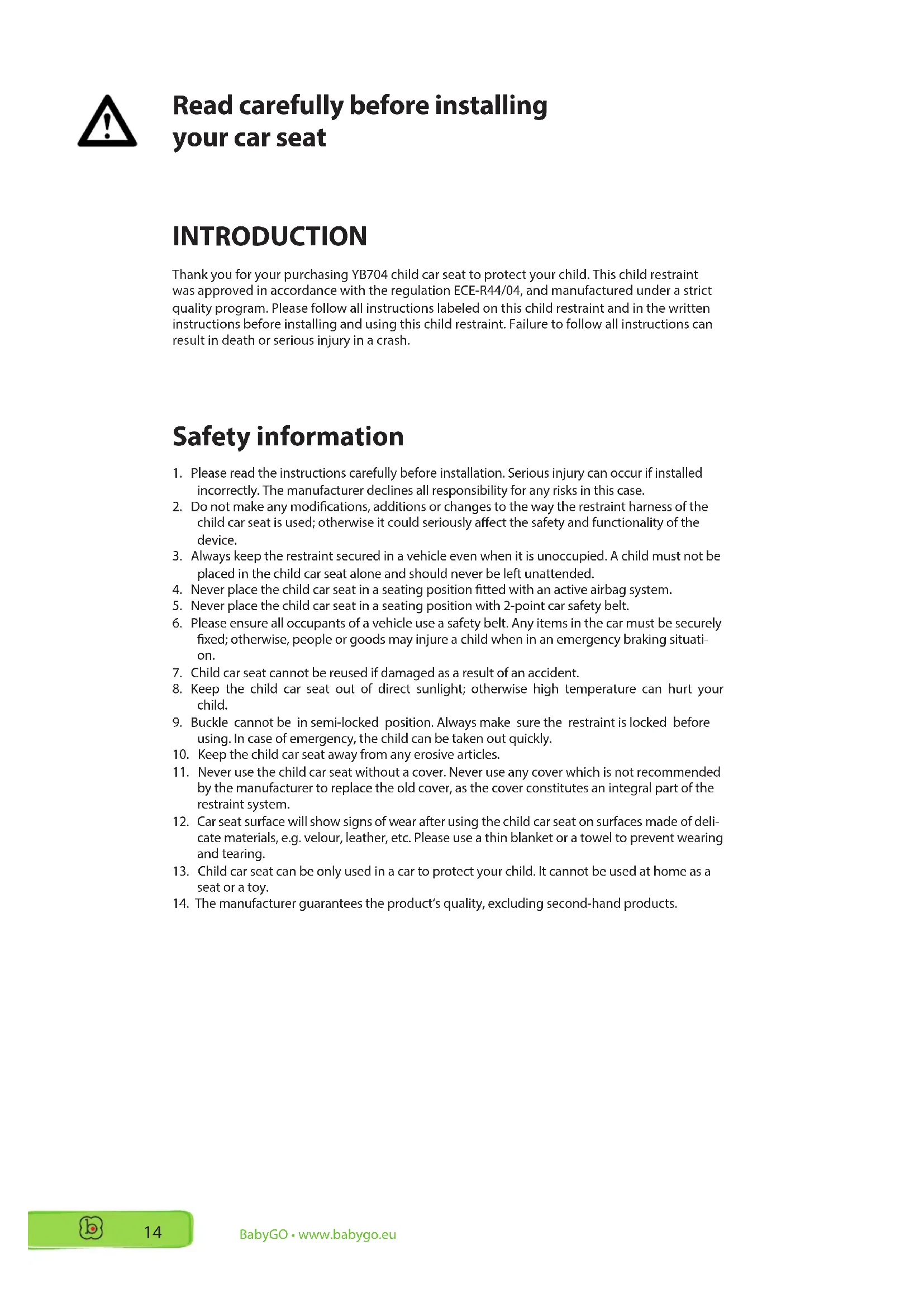

BabyGO • www.babygo.eu INTRODUCTION Thank you for your purchasing YB704 child car seat to protect your child. This child restraint was approved in accordance with the regulation ECE-R44/04, and manufactured under a strict quality program. Please follow all instructions labeled on this child restraint and in the written instructions before installing and using this child restraint. Failure to follow all instructions can result in death or serious injury in a crash. Safety information

1. Please read the instructions carefully before installation. Serious injury can occur if installed

incorrectly. The manufacturer declines all responsibility for any risks in this case.

2. Do not make any modications, additions or changes to the way the restraint harness of the

child car seat is used; otherwise it could seriously aect the safety and functionality of the device.

3. Always keep the restraint secured in a vehicle even when it is unoccupied. A child must not be

placed in the child car seat alone and should never be left unattended.

4. Never place the child car seat in a seating position tted with an active airbag system.

5. Never place the child car seat in a seating position with 2-point car safety belt.

6. Please ensure all occupants of a vehicle use a safety belt. Any items in the car must be securely

xed; otherwise, people or goods may injure a child when in an emergency braking situati- on.

7. Child car seat cannot be reused if damaged as a result of an accident.

8. Keep the child car seat out of direct sunlight; otherwise high temperature can hurt your

9. Buckle cannot be in semi-locked position. Always make sure the restraint is locked before

using. In case of emergency, the child can be taken out quickly.

10. Keep the child car seat away from any erosive articles.

11. Never use the child car seat without a cover. Never use any cover which is not recommended

by the manufacturer to replace the old cover, as the cover constitutes an integral part of the restraint system.

12. Car seat surface will show signs of wear after using the child car seat on surfaces made of deli-

cate materials, e.g. velour, leather, etc. Please use a thin blanket or a towel to prevent wearing and tearing.

13. Child car seat can be only used in a car to protect your child. It cannot be used at home as a

14. The manufacturer guarantees the product‘s quality, excluding second-hand products.BabyGO

ASSEMBLY INSTRUCTION Motion | Sportline FreeMove | GoSafe Application Approved by ECE R44/04 safety standard, the child car seat is suitable for children from 9kg to 36kg (group I+II+III). To protect your child better, there are two ways to install the car seat, depending on the group for child restraint system:Group I: forward facing installation (suitable for a child weighing from 9kg to 18kg)Group II+III: forward facing installation (suitable for a child weighing from 22kg to 36kg)

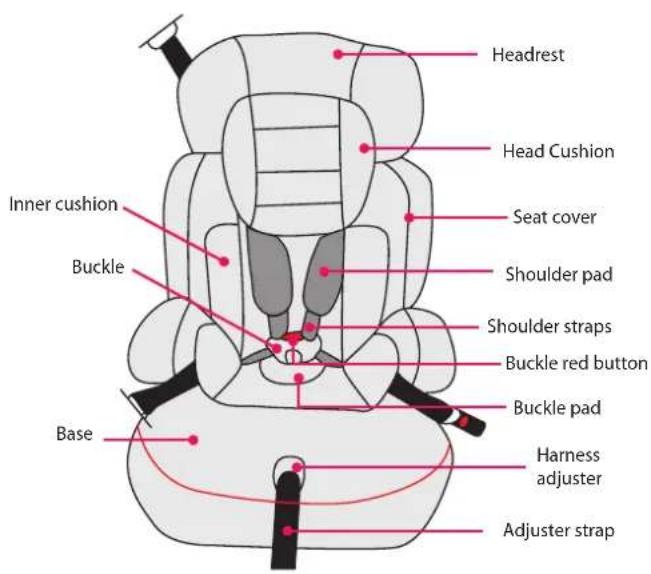

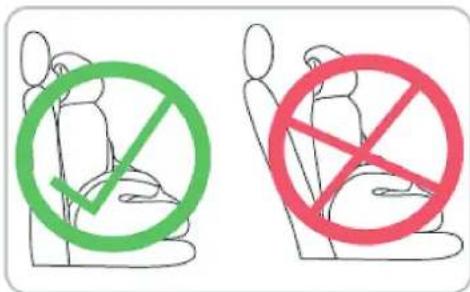

BabyGO • www.babygo.eu Notes to vehicle application Only suitable if the approved vehicles are tted with 3 point safety-belts, approved by UN/ECE Regulation No. 16 or other equivalent standards.Important: The child car seat is only suitable for vehicles equipped with 3 point safety belts.Please read the instructions carefully to learn how to use the child car seat.16 BabyGO • www.babygo.eu BabyGO ASSEMBLY INSTRUCTION Motion | Sportline FreeMove | GoSafe The following vehicle seating positions can be used with the child car seat.Placed in the driving direction CorrectPlaced back to the driving direction Incorrect2 point safety-belts Incorrect3 point safety-belts CorrectFront seat IncorrectBoth sides of the back seat CorrectBack middle seat (2 point safety belts) IncorrectPlaced in the transverse seat IncorrectPlaced in the postpositive seat Incorrect Features of the child car seat Inner cushionBuckle Base HeadrestHead CushionSeat coverShoulder padShoulder strapsBuckle red buttonBuckle padHarness adjusterAdjuster strapHeadrest red buttonHeadrest beltShoulder strap slotShoulder strapBelt guide slotMetal yokeBackrest17 BabyGO • www.babygo.eu BabyGO ASSEMBLY INSTRUCTION Motion | Sportline FreeMove | GoSafe User Instructions: Adjustment of harness strapsCheck the harness straps height; it must t your child’s height. If not, please adjust harness straps height.1. Press the harness adjuster lever with one hand, then pull the shoulder belt harness forward using the other hand to loosen it (g.1).2. Remove the shoulder belt harness from the metal yoke on the back of the restrain system (g. 2).3. From the back of the restraint, pull the shoulder belt harness out of the harness slot, then push through the desired slot according to the height of your child (g. 3/4).4. At the back of the restraint, re-attach the shoulder belt harness onto the metal harness yoke (g. 5).5. Pulling the end of the harness adjust the strap towards you to tighten the shoulder belt har-ness (g. 6).Group I (for children 9 – 18kg)Place the child car seat on a vehicle seat wit-hout any inclination, ensuring that its backrest is rmly placed against the vehicle seat (g.1).HINWEISE: a. Before placing the restraint, please make sure that the vehicle seat back is fully up-right.b. The harness strap cannot be twisted.c. The restraint backrest must be placed rmly against the vehicle seat, without any gap. Use dierent installing modes for dierent groups18 BabyGO • www.babygo.eu BabyGO ASSEMBLY INSTRUCTION Motion | Sportline FreeMove | GoSafe

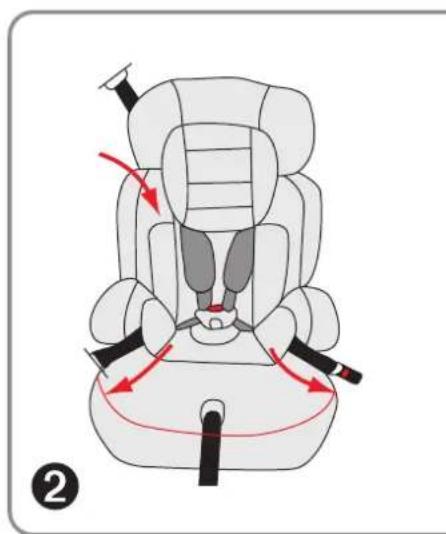

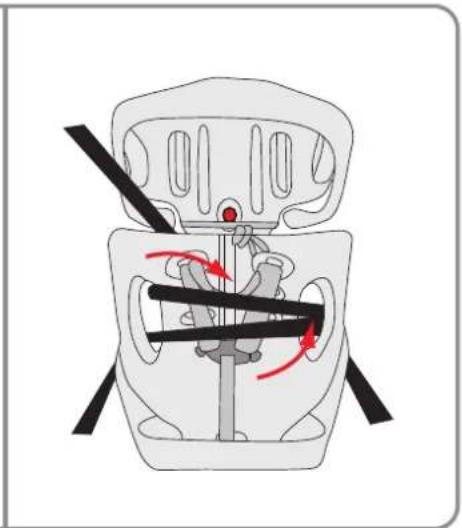

2. Pull the 3-point belt (lap and shoulder belt) through belt guide slot at the back part of the car

seat. Please make sure that the seat belt lays at and is not twisted. Force the car seat against the back of the vehicle seat while pulling the shoulder portion of the vehicle belt to remove slack and tighten the lap portion of the vehicle belt, and then buckle it until you hear a noticeable “click” (g.2).

3. Press the harness adjuster lever with one hand, then pull the shoulder belt

harness forward with the other hand to loosen it (g.3).

4. To unfasten the harness, release the buckle by sliding the red button towards.

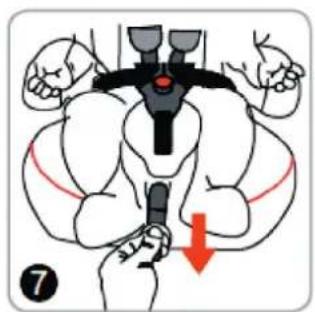

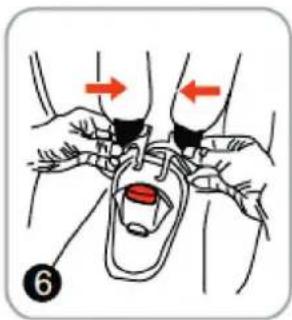

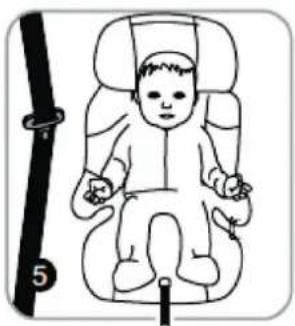

Then pull the harness clips and put the harness straps aside (g.4).19 BabyGO • www.babygo.eu BabyGO ASSEMBLY INSTRUCTION Motion | Sportline FreeMove | GoSafe 5. Place the child in the restraint (g.5).6. Slide each harness strap over the child’s shoulders. Insert the buckle tongues into the buckle until you hear a noticeable “click”. Pull up on the harness strap to ensure the buckle tongues are engaged (g.6).7. Gently pull the harness adjust straps towards you to tighten the harness for a comfortable and snug t around the child (g.7).8. The harness straps must be snug against the child. A snug strap should not allow any slack. It lies in a relatively straight line without sagging and it does not press on the child’s esh or push the child’s body into an unnatural position. Check the harness straps near the shoulders for slack and adjust as needed (g.8). Press the red buckle release and remove the buckle, then take out the child. Group II+III (for children 15 – 25 kg) with a backrest20 BabyGO • www.babygo.eu BabyGO ASSEMBLY INSTRUCTION Motion | Sportline FreeMove | GoSafe

1. Pull out the metal yoke from the back of the restraint (g.9).

2. Remove the shoulder pad from the metal yoke (g.10/11).

3. From the front of the car seat, pull the shoulder straps through the harness slot (g.12).

4. Lift the base cover, then take o the “E” style buckle from the link buckle strap (g.13).

5. Remove the buckle from the base (g.14).

6. Remove the metal yoke from the adjuster strap (g.15).

7. Remove the adjuster strap from the base (g.16). Adjust the head rest to the proper height

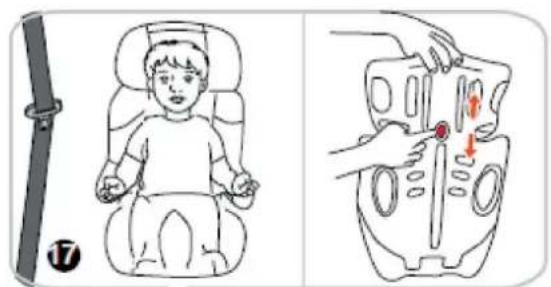

8. Place the seat on a forward-facing vehicle seat and adjust the headrest to the suitable positi-

on, then place the child in the car seat (g.17).

9. Pull the 3-point belt (lap and shoulder belt) through the belt guide slot at the car seat base

and back part of the car seat. Please make sure that the seat belt lays at and is not twisted. Choose proper height of the shoulder belt slot at the back part of the car seat to t the child’s body. Put the two buckle clips together, then fasten buckle and harness clips until you hear a noticeable “click” (g.18). Group II+III (for children 15 – 25 kg) without a backrest

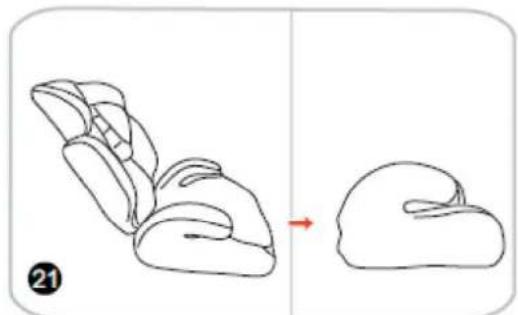

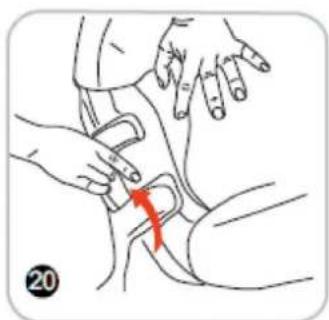

2. Press the base with your hand, and pull the backrest out from base with your other hand

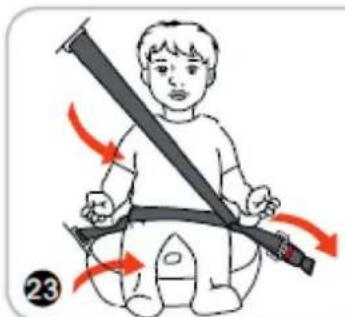

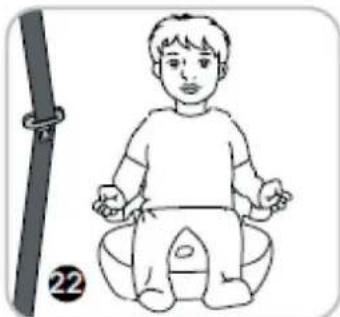

(g.20/21).21 BabyGO • www.babygo.eu BabyGO ASSEMBLY INSTRUCTION Motion | Sportline FreeMove | GoSafe 3. Place the child car seat on the passenger seat ensuring that it is rmly pressed against the vehicle seat (g.22).4. Sit your child in the car seat with their back against the backrest. Place the seat belt around your child positioning the lap section of the safety belt under both armrests, then harness clips until you hear a noticeable “click” (g.23). Cleaning and maintenance of the cover Remove the shoulder belt harness from the metal yoke. From the front of the car seat, pull the shoulder straps out of the harness slot. Remove the cover the car seat (g.24/25). Important The cover is a safety feature. Never use the child seat without it. Do not put your child’s safety at risk by using any other replacement covers, as they could prevent the child seat from protecting your child as well as the origi- nal cover should. Washing instructions The cover is removable and washable at 30 °C, line dry only. The cradle safety belts and plastic components can be washed with soft scour and warm wa- ter. Do not use any chemical scour, bleachers or corrosives. Machine wash, cold Do not bleach Dry clean, any solvent except trichloroe- thylene Do not tumble dry Do not ironBabyGO
