Product Type	Immersion blender with accessories
Brand	Braun
Model	MQ 5020 WH Pasta
Power Supply	Mains, power cord
Speeds	2 speeds: I (normal) and II (turbo)
Main Functions	Blend, chop, whisk
Included Accessories	Blending shaft, whisk, chopper bowl 'hc', bowl 'ca'
Chopper Bowl Capacity	Bowl 'hc': approx. 350 ml, Bowl 'ca': approx. 500 ml (estimate)
Blade Material	Stainless steel
Safety	Unlock buttons, very sharp blades
Use	Household use only
Maintenance	Motor unit and whisk drive system: damp cloth. Other parts: dishwasher safe
Spare Parts (optional)	Whisk MQ10, choppers MQ20, MQ40, food processor MQ70
Repairability	Damaged cord to be replaced by qualified professional
Country of Origin	Not specified

Frequently Asked Questions - MQ 5020 WH Pasta BRAUN

How to use the immersion blender?

Attach the motor unit to the blending shaft, then immerse the assembly into the food. Press the speed I or II button. After use, press the unlock buttons to detach the shaft.

Can I blend hot liquids directly in a pot?

Yes, but first remove the pot from the heat to avoid splashing boiling liquid. Risk of burns.

How to clean the motor unit?

Clean the motor unit and whisk drive system with a damp cloth only. Do not immerse them in water.

Which accessories can I buy separately?

You can purchase the whisk MQ10, the compact chopper MQ20 (350 ml), the chopper MQ40 (1250 ml), and the food processor MQ70.

Is the chopper bowl dishwasher safe?

Yes, all parts except the motor unit, whisk drive system, and lid of the 'ca' bowl (clean only with water).

What is the maximum capacity for whipping cream?

Up to 400 ml of fresh cream (min 30% fat, between 4 and 8°C). Use speed I.

Can I chop hard foods like Parmesan?

Yes, use speed II (turbo) to chop hard foods. Do not chop ice, nutmeg, or coffee beans.

How to safely remove the chopper blades?

Always hold the upper plastic part of the blade. To remove, turn gently and pull upward.

Can I use the appliance if the cord is damaged?

No. The cord must be replaced by the manufacturer, an authorized technician, or a qualified person to avoid any danger.

How to prepare mayonnaise with this blender?

Put 250 g of oil, 1 egg + 1 yolk, 1-2 tsp vinegar, salt and pepper in a bowl. Place the blender at the bottom, turn on at maximum speed, hold until emulsified, then slowly raise the blender to incorporate the rest.

USER MANUAL MQ 5020 WH Pasta BRAUN

Type 4165

www.braunhousehold.com

Hand blender

Deutsch	6
English	9
Français	13
Español	17
Português	21
Italiano	25
Nederlands	28
Dansk	31
Norsk	34
Svenska	37
Suomi	40
Polski	43
Český	47
Slovenský	50
Magyar	53
Hrvatski	56
Slovenski	59
Türkçe	62
Română (RO/MD) 65
Еллэнкá	69
Български	73
Қазақ	77
Русский	81
Українська	85
عری	93

De'Longhi Braun Household GmbH

A

B

			Parmesan
		1cm	1cm
	speed	II				I
	max.	100g	100g	10g		50g	7	80g	80g	100g90g+
	sec.	10	15	6x1		6x1	5x1	12x1	8x1	12x145
	max.	300g	200g	150g	20 150g	300g	300g
	sec.	20-30	20-30	8x120	15			10 20 30

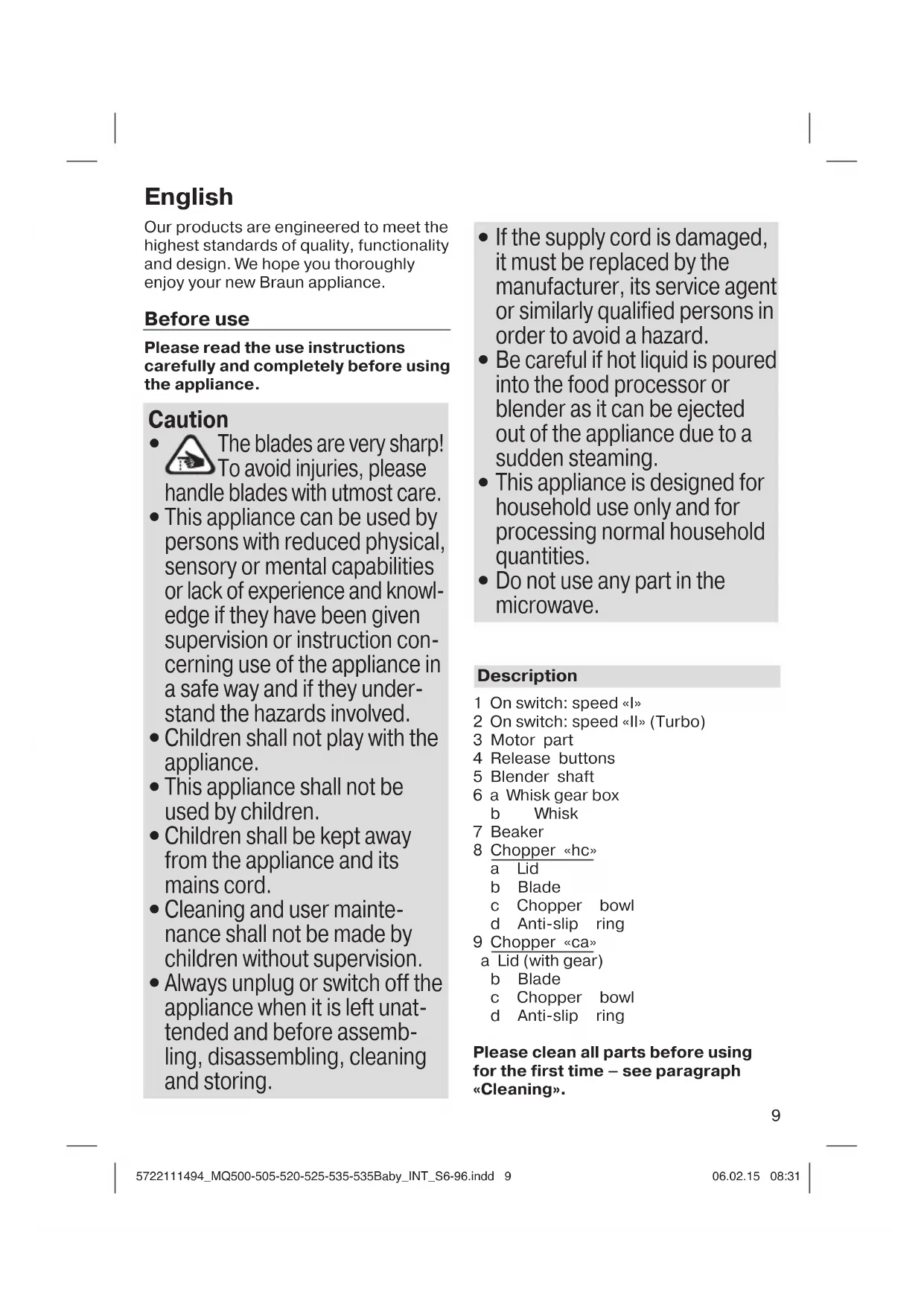

Deutsch

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy your new Braun appliance.

Before use

Please read the use instructions carefully and completely before using the appliance.

Caution

• The blades are very sharp! To avoid injuries, please handle blades with utmost care. - This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. - Children shall not play with the appliance. - This appliance shall not be used by children. • Children shall be kept away from the appliance and its mains cord. - Cleaning and user maintenance shall not be made by children without supervision. - Always unplug or switch off the appliance when it is left unattended and before assembling, disassembling, cleaning and storing.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.
• This appliance is designed for household use only and for processing normal household quantities.
• Do not use any part in the microwave.

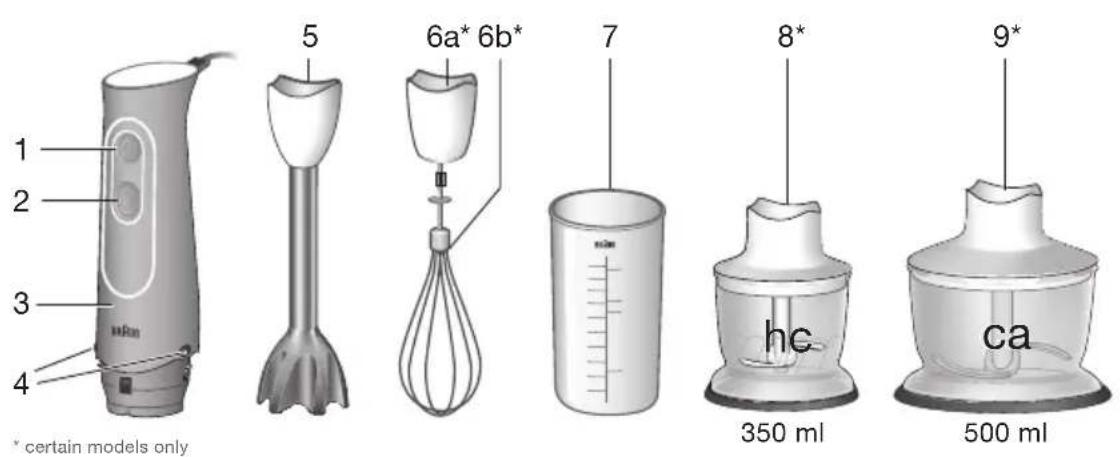

Description

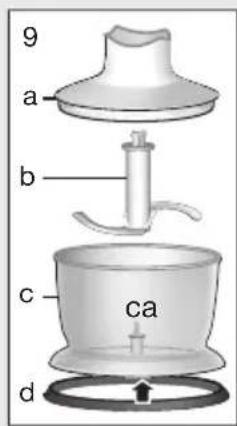

1 On switch: speed «I» 2 On switch: speed «II» (Turbo) 3 Motor part 4 Release buttons 5 Blender shaft 6 a Whisk gear box b Whisk 7 Beaker 8 Chopper «hc» a Lid b Blade c Chopper bowl d Anti-slip ring 9 Chopper «ca» a Lid (with gear) b Blade c Chopper bowl d Anti-slip ring

Please clean all parts before using for the first time – see paragraph «Cleaning».

How to use the appliance

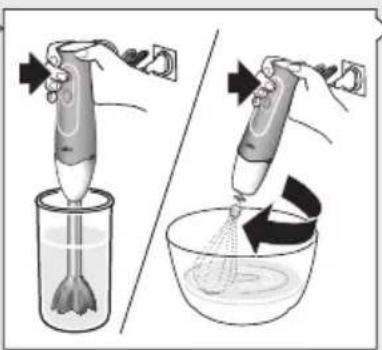

Hand blender (see A)

The hand blender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing drinks, smoothies or milk shakes.

• Click the motor part (3) onto the blender shaft (5).
• Position the hand blender deep in a bowl or beaker. Only then, press switch (1) or (2) to operate. For best blending results use speed «II». • After use, press the release buttons (4) to detach the motor part.

When blending directly in a saucepan while cooking, remove the pan from the stove first to avoid splashing of the boiling liquid (risk of scalding).

Recipe example: Mayonnaise 250 g oil (e.g. sunflower oil), 1 egg and 1 extra egg yolk 1–2 tbsp. vinegar (approx. 15 g), salt and pepper to taste Place all ingredients (at room temperature) into the beaker in the order as above. Place the hand blender on the bottom of the beaker. Operate the hand blender at maximum speed, keep it in this position until the oil starts emulsifying. Then without switching off slowly raise the shaft to the top of the mixture and back down to incorporate the rest of the oil. Processing time: from 1 minute (for salad) up to 2 minutes for more stiffness (e.g. for dip).

Whisk (see A)

Use the whisk only for whipping cream, beating egg whites and mixing sponges and ready-mix desserts.

• Insert the whisk (6b) into the whisk gear box (6a), then click the motor part (3) onto the gear box.
• Place the whisk deep in a bowl. Only then, press switch (1) to operate.

- After use, press the release buttons to detach the motor part. Then pull the whisk out of the gear box.

For best results

• Use a medium-sized bowl. - Only use speed «I» to operate the whisk. - Move the whisk clockwise holding it slightly inclined. - Only whip up to 400 ml chilled cream (min. 30 % fat content, 4–8 °C). - Only whip up to 4 egg whites.

Choppers (see B)

The choppers (8) and (9) are perfectly suited for chopping meat, hard cheese, onions, herbs, garlic, carrots, nuts, almonds etc. Always chop hard food (e.g. Parmesan, chocolate) at speed «II». For best results, see the processing table C.

Maximum operation time for the «hc» chopper: 2 minutes.

Do not chop extremely hard food, such as ice cubes, nutmeg, coffee beans or grains.

Before chopping ...

• Pre-cut meat, cheese, onions, carrots. - Remove stems from herbs, shell nuts. - Remove bones, tendons and gristle from meat. - Always make sure that the anti-slip ring (8d, 9d) is attached to the chopper bowl.

Caution: The blade is very sharp! Always hold it by the upper plastic part and handle it carefully.

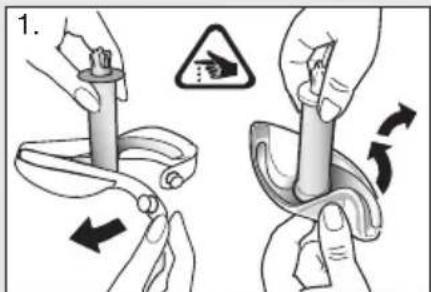

1. Carefully remove the protective cover from the blade (b).
2. Place the blade on the centre pin of the chopper bowl, press it down and give it a turn until it locks.
3. Fill the chopper bowl with food and put on the lid.

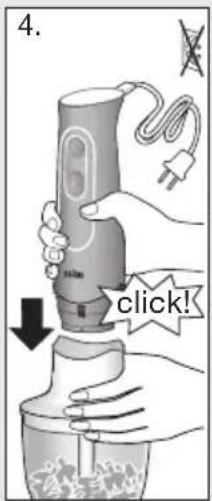

4. Click the motor part onto the lid.
5. Press switch (1) or (2) to operate the chopper. During processing, hold the motor part with one hand and the chopper bowl with the other.

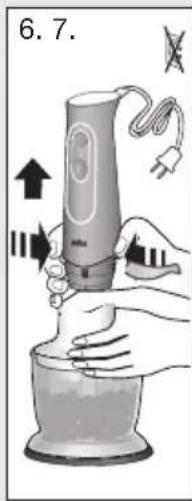

6. After use, unplug and press the release buttons (4) to detach the motor part.

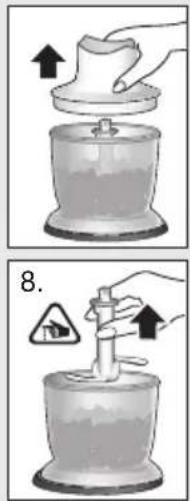

7. Remove the lid.
8. Carefully take out the blade before you remove the processed food. To remove the blade, slightly turn and pull it off.

Recipe example: Vanilla-Honey-Prunes (as pancake stuffing or spread) Place 40 g prunes and 40 g creamy honey in the «hc» chopper bowl.

Operate 4 seconds using speed «II». Then add 10 ml water (vanilla-flavoured) and resume chopping for another second.

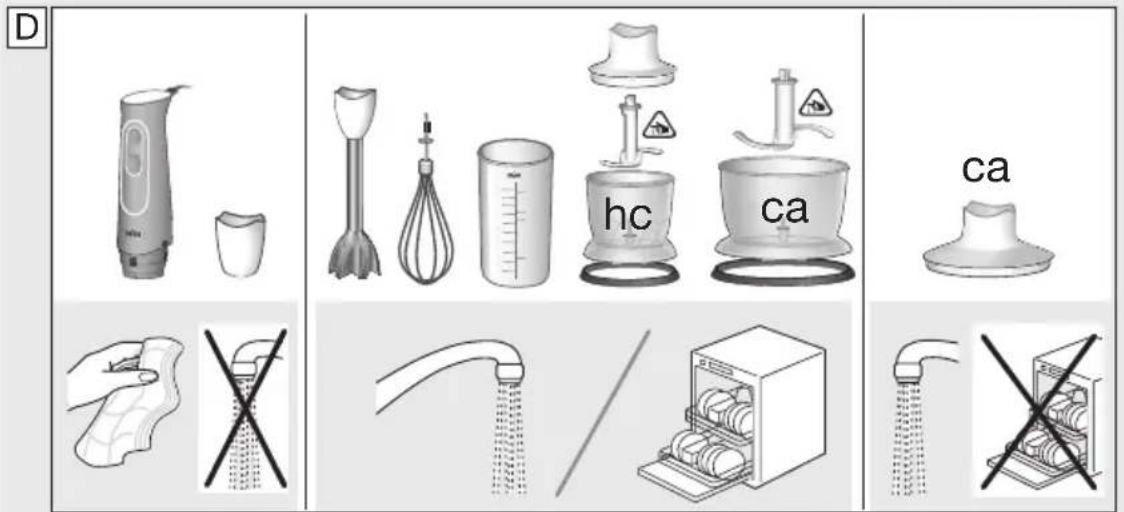

Cleaning (see D)

Clean the motor part (3) and the whisk gear box (6a) with a damp cloth only.

Clean the «ca» chopper lid (9a) only under running water. Do not place it in the dishwasher.

All other parts can be cleaned in a dishwasher.

You may remove the anti-slip rings from the chopper bowls for extra thorough cleaning.

When processing foods with high pigment content (e.g. carrots), the accessories may become discoloured.

Wipe these parts with vegetable oil before cleaning them.

Accessories

(can be bought individually, not available in every country)

MQ 10: Whisk for beating cream, egg-whites, ready-mix desserts.

MQ 20: 350 ml compact chopper to chop herbs, onions, garlic, chillies, nuts etc.

MQ 40: 1250 ml chopper to chop, mix, blend and crush ice.

MQ 70: Compact kitchen machine accessory to chop, mix, slice and shred. Kneading function not available with Multiquick 5.

Subject to change without notice.

Please do not dispose of the product in the household waste at the end of its useful life.

Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

For UK Only

Guarantee Information

All Braun Household products carry a minimum guarantee period of two years. The rights and benefits under this guarantee are additional to your statutory rights which are not affected.

Please keep your receipt as this will form the basis of your guarantee.

In the unlikely event of a breakdown you have access to professional help from our team simply by calling:

02392 392333

For service in the Republic of Ireland please call:

Braun Household undertakes within the specified period to repair or replace any part of the appliance, free of charge (with the exception of any glass or porcelain-ware incorporated in the product) found to be defective provided that;

• We are promptly informed of the defect. - The product is used and maintained in accordance with the User Instructions. - The appliance has not been altered in any way or subjected to misuse or repair by a person other than an authorised service agent for Braun Household. - No rights are given under this guarantee to a person acquiring the appliance second hand or for commercial or communal use. - Any repaired or replaced appliance will be guaranteed on these terms for the unexpired portion of the guarantee. - The need for repair has not been caused by insufficient aftercare or cleaning: or damage caused by the chemical or electrochemical effects of water.

Under no circumstances shall the application of this guarantee give rise to the complete replacement of the appliance or entitle the consumer to damages.

Braun Household, New Lane, Havant, Hampshire PO9 2NH

www.braunhousehold.co.uk

French

Non-slip base

Country of origin: Poland

Year of manufacture

To determine the year of manufacture, refer to the 5-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next 2 digits refer to the calendar week in the year of manufacture. And the last 2 digits show the print date automatically calculated since 1992.

Example : 30421 - The product was manufactured in week 4 of 2013.

Country of origin: Poland

Year of manufacture:
