USER MANUAL Vapo 360 LANAFORM

Vapo 360° INSTRUCTION MANUAL May we take this opportunity to thank you for the interest you have shown in the VAPO 360° by LANAFORM ®. This humidifier uses a high-frequency oscillator to produce ultrasonic waves and break up the water into minute droplets having a diameter of approximately 1 to 5 µm. The ventilation system diffuses water in the form of a cold vapour and thus ensures the desired level of humidity. This vapour may be seen as a fine mist issuing from the diffuser. If so required, the humidifier can diffuse mist through 360° via the automatic, rotating mist diffuser. PLEASE READ THE INSTRUCTIONS FULLY BEFORE USING YOUR HUMIDIFIER, ESPECIALLY THESE BRIEF, FUNDAMENTAL SAFETY INSTRUCTIONS:

• Check that the mains power supply voltage corresponds to that shown on the unit.

• This unit is not intended to be used by any persons, including children, with reduced physical, sensorial or mental capacities, or by persons lacking experience or knowledge unless they have been provided, by a person in charge of safety, with supervision or prior instructions concerning the use of the unit. Children should be supervised to ensure that they do not play with the unit.

• Do not connect or disconnect the plug if your hands are wet.

• Never operate the unit with a damaged cable or plug, or after any damage or failure has occurred. In these cases, return the unit to the nearest, approved supplier/repair shop for inspection, repair or adjustment as the case may be.

• Never add any substances to the reservoir except demineralised tap water or distilled water.

• Never dismantle the base unit.

• Never switch on the humidifier when there is no water in the tank.

• Do not shake the unit. This may cause the water to overflow inside the base unit and prevent it from operating correctly.

• Never touch the water or immersed components when the unit is operating.

• To avoid any damage to components, never allow any water to splash inside the base unit.

• If any unusual smell is detected during normal use, switch off the unit, disconnect it and have it checked by a qualified person.

• Disconnect the unit before cleaning or removing the water reservoir.

• Never wash the whole unit in water and do not immerse it.

• The ultrasonic humidifier must be cleaned regularly. To do this, refer to the cleaning instructions in this manual and observe them fully.

• Do not leave the humidifier in the sun for long periods.

• Do not use the humidifier if the air in the room is already sufficiently humid (at least 50% relative humidity). Excess humidity is indicated by condensation on cold surfaces or cold walls in the room. To determine the relative humidity of the room correctly, use a hygrometer available in most large stores and equipment dealers.4

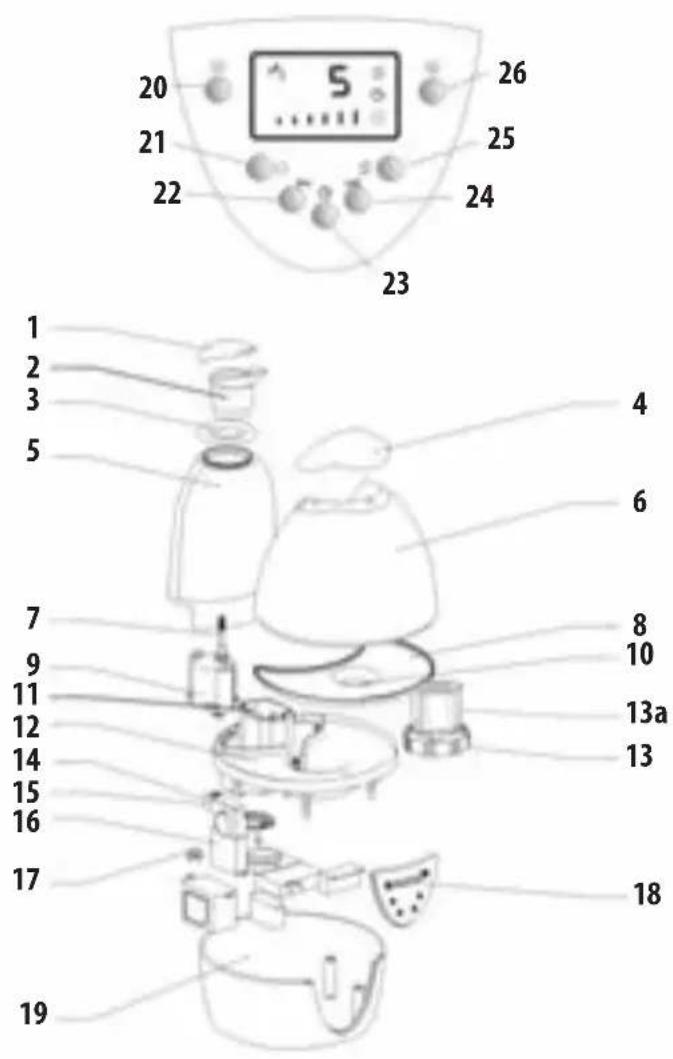

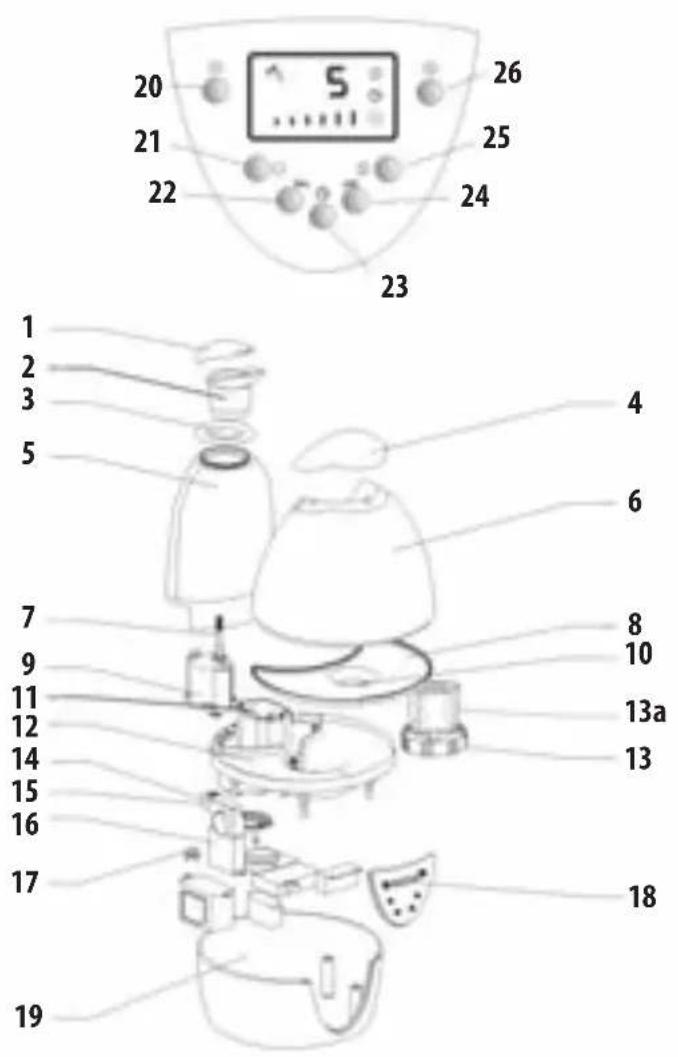

1. Upper steam nozzle broadcaster

2. Lower steam nozzle broadcaster

12. Intermediate bearing

20. Remote control receiver

22. Reduce steam quantity

REMOTE CONTROL The remote control takes 2 LR03 AAA 1.5V batteries (not included)

2. Vapour intensity reduction

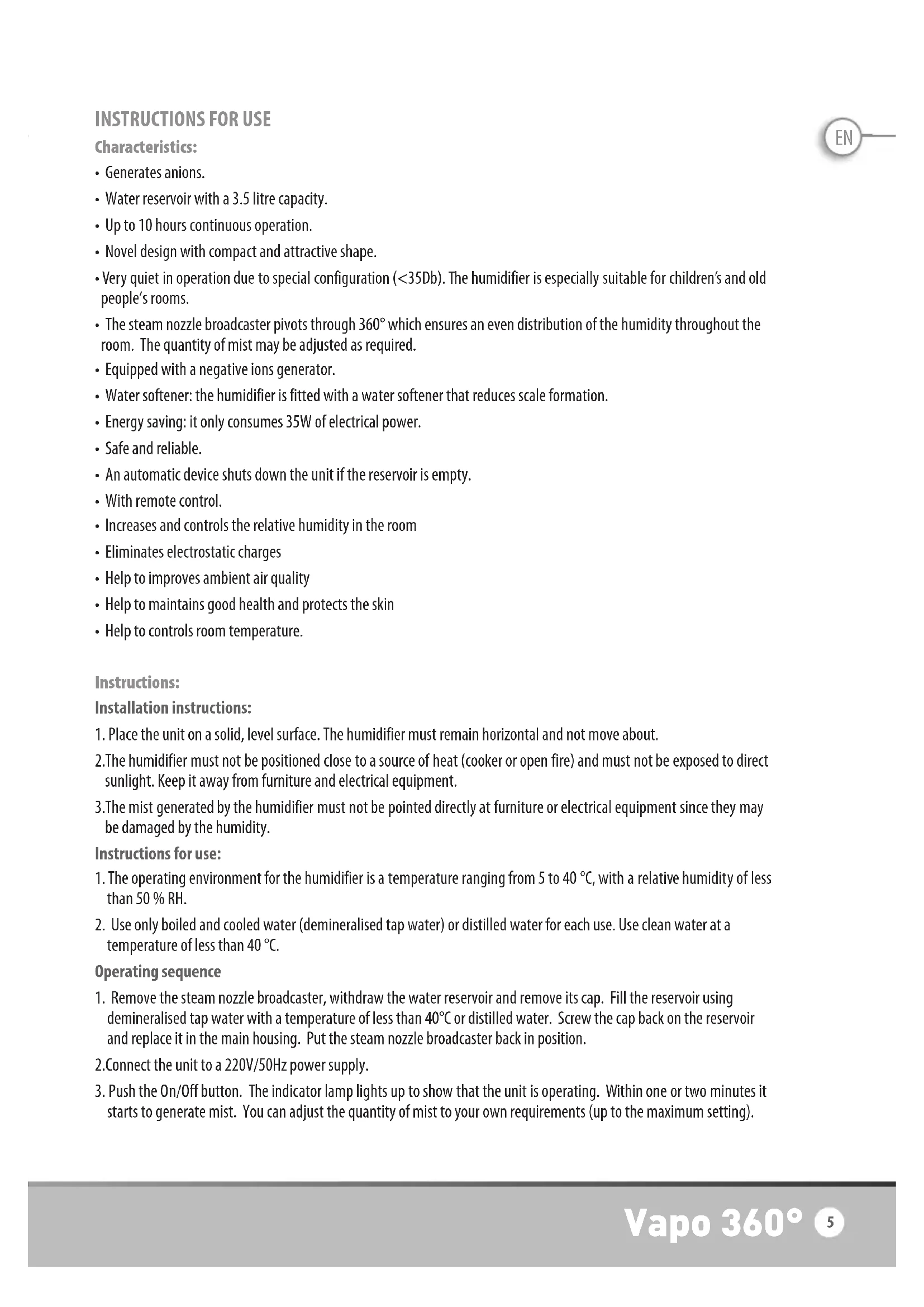

• Water reservoir with a 3.5 litre capacity.

• Up to 10 hours continuous operation.

• Novel design with compact and attractive shape.

• Very quiet in operation due to special configuration (<35Db). The humidifier is especially suitable for children’s and old people’s rooms.

• The steam nozzle broadcaster pivots through 360° which ensures an even distribution of the humidity throughout the room. The quantity of mist may be adjusted as required.

• Equipped with a negative ions generator.

• Water softener: the humidifier is fitted with a water softener that reduces scale formation.

• Energy saving: it only consumes 35W of electrical power.

• An automatic device shuts down the unit if the reservoir is empty.

• With remote control.

• Increases and controls the relative humidity in the room

• Eliminates electrostatic charges

• Help to improves ambient air quality

• Help to maintains good health and protects the skin

• Help to controls room temperature. Instructions: Installation instructions:

1. Place the unit on a solid, level surface. The humidifier must remain horizontal and not move about.

2. The humidifier must not be positioned close to a source of heat (cooker or open fire) and must not be exposed to direct sunlight. Keep it away from furniture and electrical equipment.

3. The mist generated by the humidifier must not be pointed directly at furniture or electrical equipment since they may

be damaged by the humidity. Instructions for use: 1. The operating environment for the humidifier is a temperature ranging from 5 to 40 °C, with a relative humidity of less than 50 % RH.

2. Use only boiled and cooled water (demineralised tap water) or distilled water for each use. Use clean water at a

temperature of less than 40 °C. Operating sequence

1. Remove the steam nozzle broadcaster, withdraw the water reservoir and remove its cap. Fill the reservoir using

demineralised tap water with a temperature of less than 40°C or distilled water. Screw the cap back on the reservoir and replace it in the main housing. Put the steam nozzle broadcaster back in position. 2.Connect the unit to a 220V/50Hz power supply.

3. Push the On/Off button. The indicator lamp lights up to show that the unit is operating. Within one or two minutes it

starts to generate mist. You can adjust the quantity of mist to your own requirements (up to the maximum setting).6

4. Once the reservoir is empty, the corresponding warning lamp lights up and the unit shuts down. If your want the unit

to continue to operate, add more water. VAPO 360° FUNCTIONS

1. Rotary Function of VAPO 360° :

If you want the vapour diffuser tip to rotate, press the rotation control button on the control panel or remote control. The vapour diffuser tip will begin to turn through 360°. After 10 hours of rotating operation, please stop the appliance for at least 2 hours to prolong its working life.

Once started, the Vapo 360° humidifier is set in the factory to run until the tank is empty. However, you can set the Vapo 360° operating time. This can vary from 1 to 10 hours. To do this, press the "Timer" control button on the control panel or the remote control and select your chosen duration by pressing on the key to increase the duration or to reduce it.

Press the corresponding key on the control panel or the remote control so that the appliance releases negative ions or not.

4. Vapour emission intensity

It is possible to adjust the intensity of the vapour emitted by the appliance. On the control panel or remote control, select the level of your choice by pressing the key to increase the intensity or the key to reduce it. Position 1: steam quantity : 80ml/h Position 2 : steam quantity : 100ml/h Position 3 : steam quantity : 160 ml/h Position 4 : steam quantity : 180 ml/h Position 5 : steam quantity : 260 ml/h ATTENTION: ALTHOUGH THE UNIT IS FITTED WITH SAFETY MECHANISMS THAT CUT OFF TRANSDUCER OPERATION, TURN THE UNIT OFF WHENEVER POSSIBLE. MAINTENANCE AND STORAGE: If the water is hard, that is to say it contains too much calcium or magnesium, it may deposit a “white powder” inside the unit and cause a heavy scale on the surface of the reservoir, on the transducer (metallic button producing the ultrasound) and on the internal walls of the water reservoir. The presence of any scale on the surface of the transducer will greatly reduce mist production. We strongly advise you to:

1) Clean the reservoir every 3 days, and to clean the transducer every week;

2) Change the water in the reservoir every two days so that it remains fresh.

3) Clean the unit completely to avoid any risk of bacteria and check that it has completely dried when it is not being

4) Clean regularly the filter.

To clean the transducer:

1) Place 2 to 5 drops of vinegar on the surface and leave for 2 to 5 minutes.

2) Brush away any deposit from the surface using a soft brush. Do not use a hard tool to scrape the surface.

3) Rinse the transducer with clean water.

4) Do not use soap or any other alkaline substances to clean the transducer.Vapo 360°

To clean the reservoir:

1) Clean the reservoir using a soft cloth, together with some vinegar if there is any scale or calcium deposits inside;

2) If the scale covers the safety switch, place a few drops of vinegar on it and clean it with a soft brush;

3) Rinse out the reservoir with fresh water.

1) Clean and dry the ultrasonic humidifier carefully.

2) Allow it to dry completely before putting the unit away. Do not store the unit with water still remaining in the base

3) Store the unit in a cool, dry place, out of the reach of children.

Faults and corrective actions Should a fault occur during normal use, please consult the table below: Fault Possible causes Corrective action Unit does not blow, no mist No power. The device is not plugged in correctly or your power supply is defective Main power switch off. Switch on the main power switch. The water level is too high. Remove some water. Leak from water reservoir Close the lid correctly. Unit blows, but no mist No water in the reservoir. Fill the reservoir. The water level detector is not in the right position. Position the water level detector correctly. The temperature of the unit is too low. Place the unit in a room at ambient temperature for half an hour before use. Mist has a strange smell The water has been standing too long in the reservoir. Clean out the reservoir and add fresh water. The unit is new. Open the water reservoir and ventilate for 12 hours in a cool room. Low power The mist power level is set to minimum. Adjust the control button to the correct setting. Deposits on the transducer. Clean the transducer. The water is too cold. Use water at a normal temperature. The water is not clean. Clean out the reservoir and add fresh water. The mist does not rise The mist power level is set to minimum. Adjust the control button. The reservoir and the base unit are not perfectly seated. Check for correct seating The fan unit is not functioning correctly. Ask a specialist to check the fan in the base unit.8

Noise Resonance caused by the water level in the reservoir being too low. Add water to the reservoir. Resonance caused by an unstable surface. Place the unit on a stable surface. There is resonance with the table Position the unit on a solid table or on the floor. The mist issues from all around the diffuser nozzle. There is a gap between the diffuser nozzle and the water reservoir. The problem will disappear automatically after prolonged use. If not, plunge the diffuser nozzle into the water before use. LIMITED GUARANTEE: LANAFORM® guarantees that this product is free of all manufacturing and material defects for a period of two years from the date of purchase, except under the following circumstances: this guarantee for a LANAFORM® product does not cover damage resulting from incorrect or improper use, accidental damage, the addition of an unapproved accessory, any modification to the product or any other situation outside the control of LANAFORM®. LANAFORM® is not liable for any accidental, consequential or special damage. All implicit guarantees covering product suitability are limited to a period of two years from the date of initial purchase. On reception, LANAFORM® will, as it deems fit, repair or replace your ultrasonic humidifier and will return it to you carriage paid. This guarantee is only valid through the LANAFORM® Service Centre. In the event that this unit is repaired by any person other than the LANAFORM® Service Centre, the guarantee is null and void.
