USER MANUAL Body Balance Pacific SOEHNLE

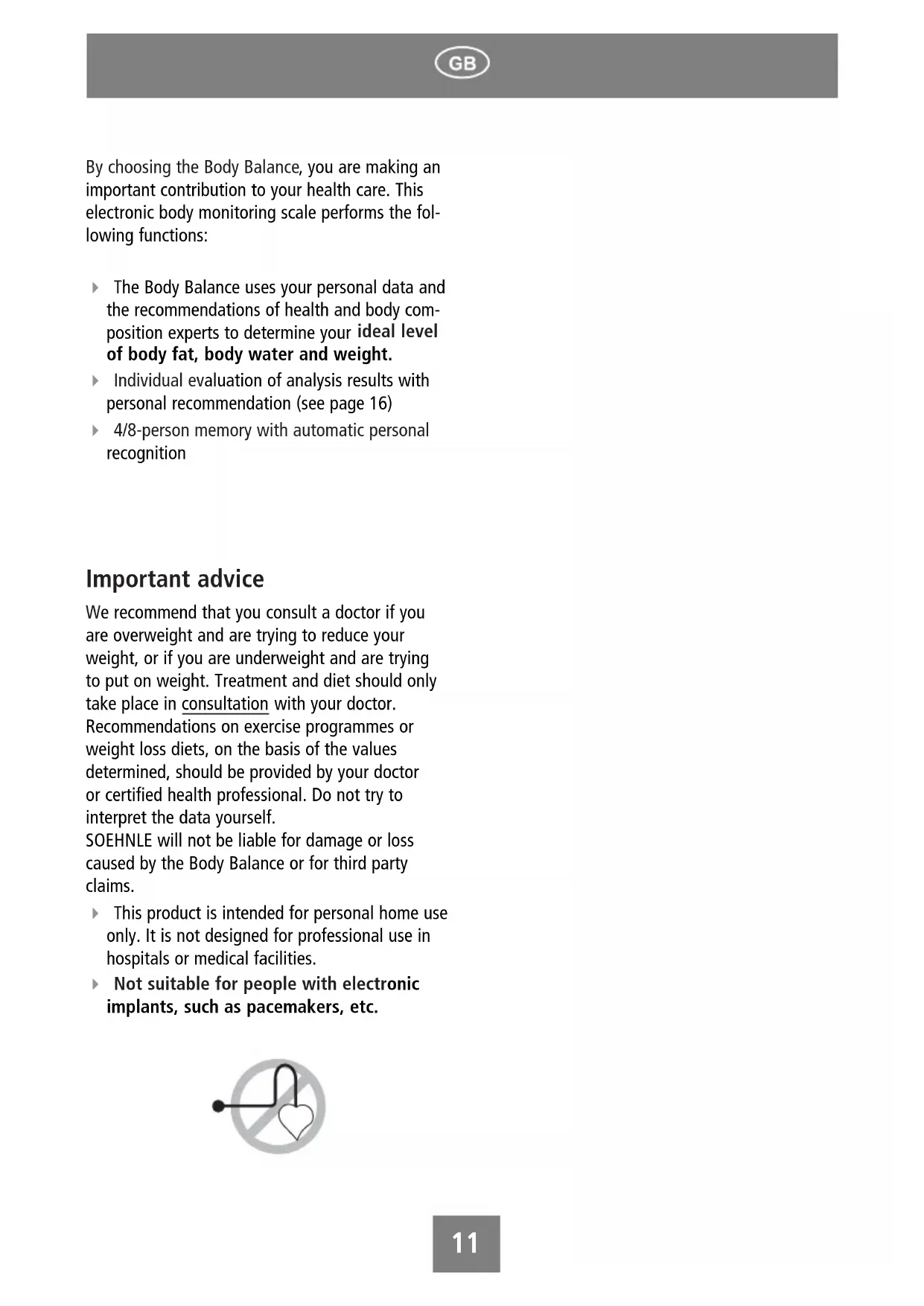

By choosing the Body Balance, you are making an important contribution to your health care. This electronic body monitoring scale performs the following functions:

The Body Balance uses your personal data and the recommendations of health and body composition experts to determine your ideal level of body fat, body water and weight.
Individual evaluation of analysis results with personal recommendation (see page 16)
4/8-person memory with automatic personal recognition

Important advice

We recommend that you consult a doctor if you are overweight and are trying to reduce your weight, or if you are underweight and are trying to put on weight. Treatment and diet should only take place in consultation with your doctor.

Recommendations on exercise programmes or weight loss diets, on the basis of the values determined, should be provided by your doctor or certified health professional. Do not try to interpret the data yourself.

SOEHNLE will not be liable for damage or loss caused by the Body Balance or for third party claims.

This product is intended for personal home use only. It is not designed for professional use in hospitals or medical facilities.
Not suitable for people with electronic implants, such as pacemakers, etc.

Preparation for use

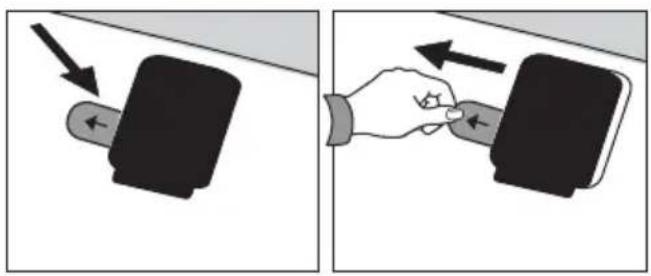

① Remove the battery fixing strips.

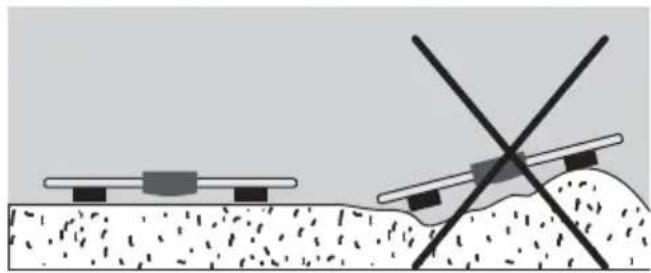

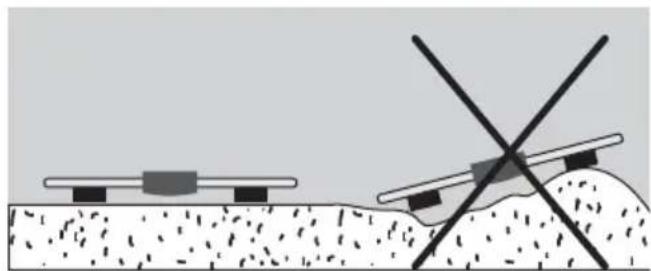

② Always place the scale on a level, firm surface for measurements.

③ Caution: danger of slipping on wet surface.

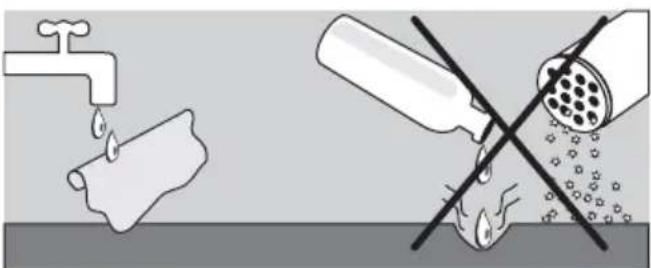

④ Cleaning and care: clean only with a damp cloth. Never use solvents or abrasives. Do not immerse the scale in water.

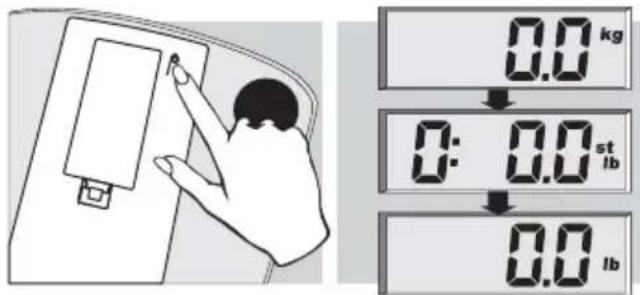

⑤ Country-specific settings: the scale can be switched from kg/cm to lb/in or st/in (applies to the English-language versions only).

For glass scales:

For plastic scales:

Programming

① Place scale on a table for programming.
② Start programming () .

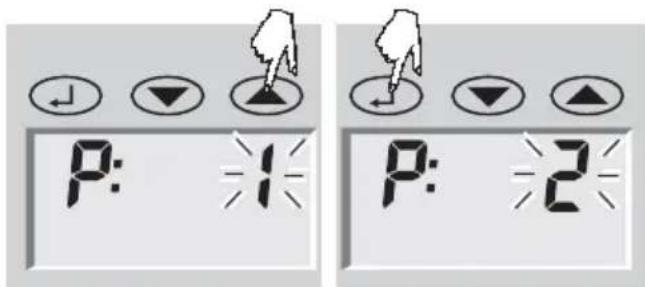

③ Memory location (P1 ... P4/8) select ( = minus, = plus) and confirm ( = ) .

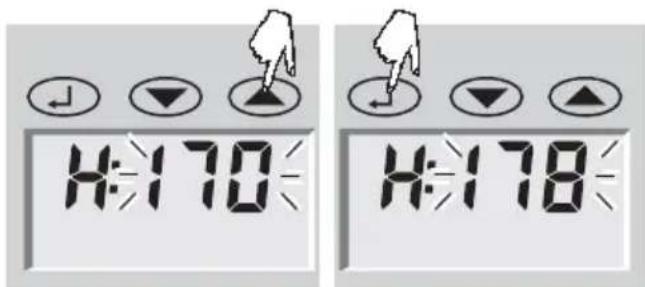

④ Enter your height (▼ = minus, ▲ = plus) and confirm ( )

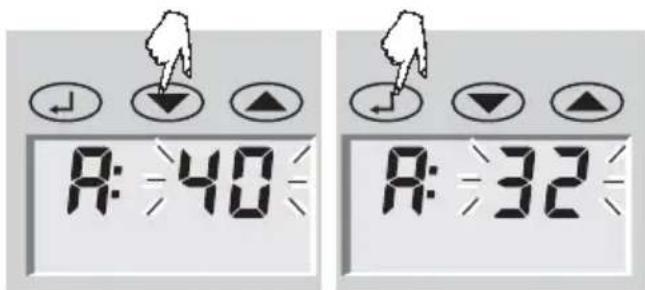

⑤ Enter your age (▼= minus, ▲ = plus) and confirm ( )

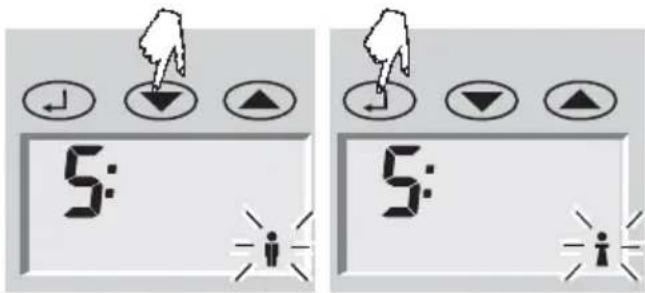

⑥ Input your gender (▼ = male or ▲ = female) ...

...and press for 3 sec. to confirm () until 0.0 appears in display.

Now place the scale on the floor immediately and stand on it barefoot.

The initial measurement reading is vital for the memorizing of data and for subsequent automatic personal recognition.

Note

The scale has an energy-saving mode that switches it off automatically if no keys are pressed for approximately 1 minute.

Body monitoring

Always measure in bare feet. Personal data must be programmed first (page 13).

① Step on to the scale.

Your weight is indicated, with a bar display while analysis is taking place (25-30 seconds).

Stand still until analysis is complete.

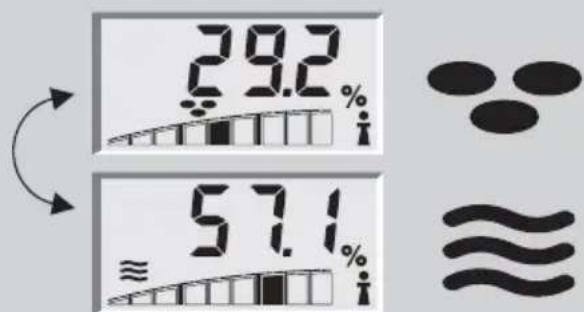

② As soon as automatic personal recognition has taken place, the screen switches over to alternate display of body-fat percentage (and body water proportion Interpretation of results (page 16).

③ Step off the scale. The scale switches off automatically when the person steps off.

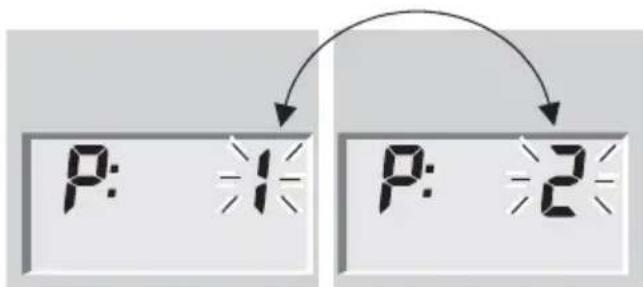

In a few cases, it may not be possible to organize automatically the results of analysis. The scale will then display alternately the memory locations of the next persons for whom analysis is to take place.

As the measurement operation is now over, you can step off the scale and save your personal data by pressing the button above. The display will now show your body-fat, body-water and muscle-proportion data.

Note that you will only obtain a weight reading - and no body monitoring data - if you step on the scale with your shoes or socks on!

Factors influencing measurement readings

Analysis is based on the measurement of the body's electrical resistance. Eating and drinking habits during the course of the day and individual lifestyle affect the water balance. This is noticeable by the fluctuations in the display.

In order to ensure that the results of analysis are a accurate and consistent as possible, keep the measurement conditions constant, as only in this way will you be able to observe changes over an extended period.

Other factors can affect water balance:

After a bath, the body fat reading may be too low and the body water reading too high.
After a meal, readings can be higher.
Women may experience fluctuations due to the menstrual cycle.

Due to loss of water caused by illness or after physical activity (sport). After taking exercise, wait for 6 to 8 hours before carrying out the next measurement.

Varying or implausible results can occur in the case of:

Persons with a high temperature, symptoms of oedema or osteoporosis
Persons undergoing dialysis treatment
Persons taking cardiovascular medicine
Pregnant women
Athletes who undertake more than 10 hours of intensive training per week and have a resting pulse rate of under 60 / min
Competitive athletes and body builders
Persons under the age of 17.

Health experts recommend the following percentages :

Men Women						i
Age	Body fat				Body water	Body fat				Body water
	low normal high			very high	normal low normal	high		very high	normal
10-12	<8	8-18	18-24	>24	>64	<12	12-23	23-30	>30	>60
12-18	<8	8-18	18-24	>24	>63,5	<15	15-25	25-33	>33	>58,5
18-30	<8	8-18	18-24	>24	>62,5	<20	20-29	29-36	>36	>56
30-40	<11	11-20	20-26	>26	>61	<22	22-31	31-38	>38	>53
40-50	<13	13-22	22-28	>28	>60	<24	24-33	33-40	>40	>52
50-60	<15	15-24	24-30	>30	>59	<26	26-35	35-42	>42	>51
60+	<17	17-26	26-34	>34	>58	<28	28-37	37-47	>47	>50

Individual recommendation

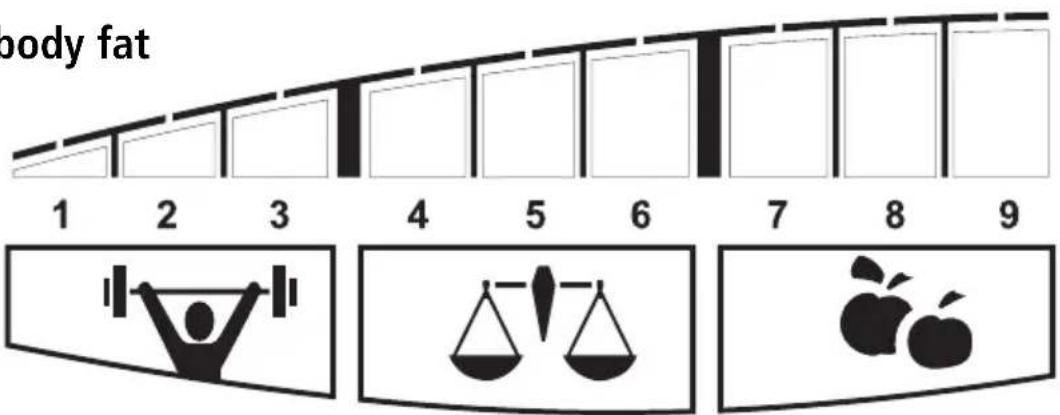

Percentage of body fat

	≈	≈ ~
	Specific training recommended	Specific training recommended - make sure you drink plenty of fluid
	Everything OK fat/muscle mass and weight in balance	Body fat and weight are OK, but you are not drinking enough
	Change of diet recommended	A change of diet is recommended - make sure you drink plenty of fluid

1 Very low muscle mass - excessively underweight
2 Very low muscle mass - underweight
3 Low muscle mass - weight OK
4 Athletic, slim

5 Ideal

6 Athletic muscular
7 High fat level - weight OK
8 Very high fat level - overweight
9 Very high fat level - highly overweight

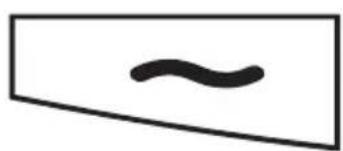

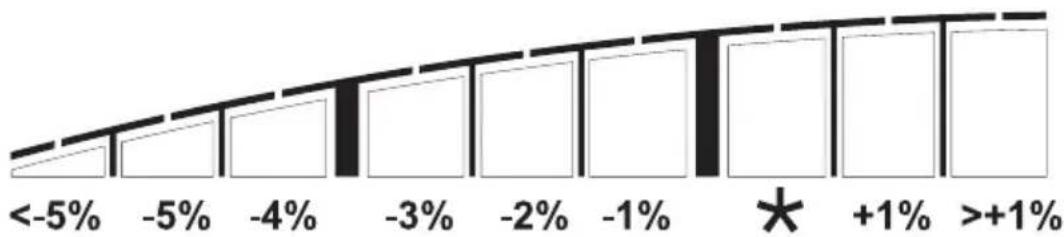

Percentage of body water

*normal

Technical data

Weighing capacity x graduation = max. 150kg x 100g
Display resolution: Body-fat proportion: 0.1%
Display resolution: Body-water proportion: 0,1%
Height: 100 -250 cm
Age: 10-99 years
4/8-person individual memory locations
Size of LCD screen
Measuring circuit: 0.035 mA RMS, 50 kHz
Batteries: 2 x 3 V CR 2430

Batteries supplied with unit.

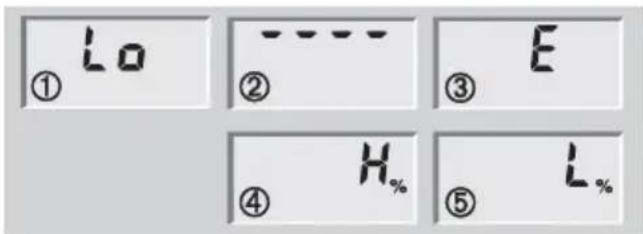

Symbols

① Batteries spent.
② Overload: From 150kg
③ Implausible analysis result - check individual programming
④ Bad foot-contact:
+ clean scale or feet or check for sufficient skin moisture.
⑤ If skin is too dry - moisten feet or carry out measurement after taking a bath or shower.

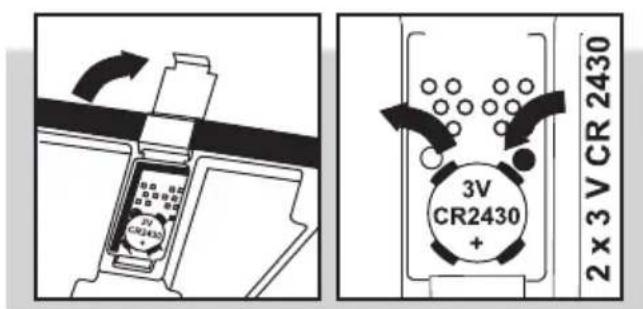

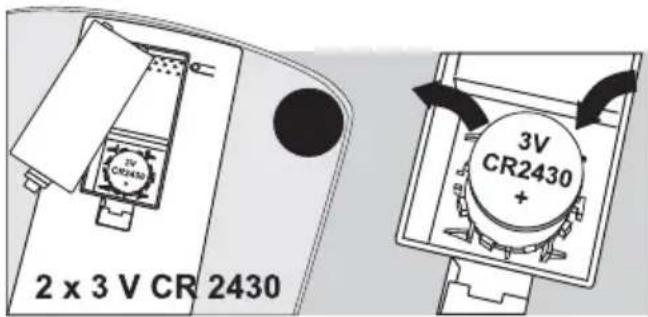

Change batteries

Warranty

SOEHNLE guarantees that all defects due to materials or manufacturing faults will be remedied by replacement or repair, free of charge, for a period of 3 years from the date of purchase. Please keep your purchase receipt and the guarantee card in a safe place. If you have any complaints, please return the scale to your dealer with the guarantee card and receipt.

This device is screened in accordance with the applicable EC Directive 89/336/EEC.

Note: the display value may be affected by extreme electromagnetic influences, e.g. when a radio is operated in the immediate vicinity of the device. The product can be used for its intended purpose again when the interference disappears (a reset may be required)

Disposal of spent batteries: Batteries must not be disposed of as normal household waste. Note that you are legally obliged to dispose of used batteries in a correct way. You can return spent batteries either to public collection points in your town or to any outlet selling batteries of the same kind.

Pb = Battery contains lead

Cd = Battery contains cadmium

Hg = Battery contains mercury

Guarantee card

If you have any complaints, p lease return the scale to your dealer with the guarantee card and your receipt.

Sender

Reason for complaint

SOEHNLE He HeceT OTBeTCTBHeHOctn 3a yUeP6 Nnn y6bITKN, Bbl3BaHHbIe BecAMN Body Balance, B TOM YNCJIe ITO Tpe6oBaHnM TpeTbNX JnC.

TOT npOdyKT npEHa3HaueH TOJbKO dIy DOMaUHeRo IcNoJIb3OBaHH NpTpe6NteJIeM. OH He npEHa3HaueH dIy npOphiCCnHOHaJIbHOJ 3KcPlyatauB B 6oJIbHnCx INI MeDnIHCKNX yUpeXDeHnx.
He npedHa3HaeHo dIy IuC 3JIeKtpOHbIMn mPnlaHTaTM (3aDaTeN pITMa cepua n T.d.)

PojroTOBka

① YdaJIITb IpeOxpaHHTeIbHyIO nIoCKy 6aTapeN.

②ДЯ BCexИЗМepeHи BEcbldoJxHbI 6bITb yCTaHOBJIeHbI Ha pOBHyIO, TBepDyIO NOBepXHOCTb.

③ BHIMAHne!Bcnyae MOKPOI NOBepxHOCTN eCTb ONaCHOCTb NCKOJIb3HHTbcR.

④ YnCTKa n yXoI; OuNtA Tb TOnbKO CJIerKa BnaXHOr TpIaKo. He NcNoB3OBA Tb paCTBOpHTeN n 6pa3NBbl, He ONyCKaTb BEcbI B BODY.

⑤ Bo3MOxHOCb 3MeHeHHaPerNoHaJIbHbIX yCTaHOBOK C Kf/CM Ha ΦyHTbl/DIOIMbl (TOJbKO IJIa BEcOB, PpOdaIouxxCBaHrIOn3bIuHbIX CTpaHax).

ΦaKTopbI, BnnaIOuIne Ha pe3yNbTaTbI n3MepeHn

AHaJIIN3 OCHOBbIBAeTcH Ha N3MepeHn
3JIeKTPnueCKO CoPOTnBJIeHn TcHa. PpNBbIuKn
EdbI N IITbB TeUeHne DnH N INDnBnDyAlbHbI
OBpa3 Xn3HN BnIaOT Ha CoOpJXaHne BOdbl.
3TO MOxHO 3AmETNb IO KOne6aHnM
pe3yIbTaTOB. YTo6bl NOJYHTb HAn6oJIee ToUHbIe
N BOCPON3BOIDMbIe 3HaueHnpe3yIbTaTOB
aHaJIIN3a, ObecneYte OOnHaKOBbIe YCIOBn
N3MepeHn, TOJIbKO TaK Bbl CMOXKeTe ToUHO
Ha6JIIODaTb N3MeHeHn Ha IpoTJAxHeHn
DNlNTeJIbHO BPeMeHn.

Kpome 3Toro Ha codepaHne BObl MoryT BnraTb n npyrne kaTOpbl:

Pocne BaHHbIMoXeT NOKa3bIBaTbcra CINUKOM Hn3Koe CoepKaHHe Xnpa I CNIuKOM BbICOKoe COepKaHHe BObl.
Iocne eBbI 3Ta BeINuHa MoXeT 6bITb Bblie.
YXeHnH NMeIOTcKoJIe6aHnA,ObycIOBHeHHbIe UNKJaMn.

IpnnoTepe BObbl B opraHn3Me,
obycIOBLeHHoJ 3a6OJIeBAHNem nnn
nocne pN3uYeCKo Harpy3Kn (cnpT).
Pocne cNoptNBbIX ynpaxHeHn CneDyUoee
n3MepEnHe DOJXHO IpOn3BOIDtbc He paHee
Yem YpeEz 6-8 YacOB.

OTKIOHOUHneCn HHeIOCTOBepHbIe pe3yNbTaTbIMORYT NMeTb MeTo y:

JIIODeI C NOBbIeHHOJ TeMnepaTpyoI, OTeuHbIMCmITOMaMn IIN OCTeONOp03OM
JIu,IOBepraUOxxCJeueHIO DaJIN3OM
LInu, npHnMaIOx cepdeUHO-Cocyndtble CpeDCTBa
6epemehhblX XeHlHH
CnOpTCMeHOB, IMeIOUx B HeJeIIO 6OJIe 10 YacOB INTeHCINBbIX TpeHnpOBOK IN IMeIOUx Nylbc B COCTOAHIN NOKO Nylbc HNKe 60/MnH
IpoΦeCCNoHaJIbHbIX CnOpTCMeHOB I 6oIbIepOB
PnoDpoCTKOBdo17JeT.

3Kcneptb pekomehnyot cneyuouee coepkaHne Knpa/BoNbI B opraHn3Me B %

Мужшины Женины						i
Возразец	Жир в ораганзme				Вoda в ораганзme	Жир в ораганзme				Вoda в ораганзme
	MaIo	Hорmaльно	Mного	Очев MHOrо	Hорmaльно	MaIo	Hорmaльно	Mного	Очев MHOrо	Hорmaльно
10-12	<8	8-18	18-24	>24	>64	<12	12-23	23-30	>30	>60
12-18	<8	8-18	18-24	>24	>63,5	<15	15-25	25-33	>33	>58,5
18-30	<8	8-18	18-24	>24	>62,5	<20	20-29	29-36	>36	>56
30-40	<11	11-20	20-26	>26	>61	<22	22-31	31-38	>38	>53
40-50	<13	13-22	22-28	>28	>60	<24	24-33	33-40	>40	>52
50-60	<15	15-24	24-30	>30	>59	<26	26-35	35-42	>42	>51
60+ <1	7 17-26	26-34 >34	>58 <28	28-37	37-47 >47	>50
