| Product type | Single-unit mobile air conditioner |
| Brand | Suntec |
| Model | Impress 20+ |
| Power supply | 220-240 V AC, 50 Hz |
| Refrigerant | R410A (GWP 1975) |
| Operating modes | Cooling, Dehumidification, Fan only |
| Temperature range | 16 °C to 31 °C |
| Fan speeds | Low and High |
| Programmable timer | Yes (1 to 24 h, delayed on/off) |
| Water tank | Automatic evaporation; manual drain if full (W.F. display) |
| Remote control | Yes, included |
| Air exhaust hose | Yes, with adapter and window slider |
| Air filter | Washable; cleaning recommended every 14 days |
| Compressor protection | 3-minute delay at startup |
| Warranty | 24 months (under conditions, see manual) |
| Included accessories | Remote control, exhaust air hose, adapter, window slider |
| Spare parts available | Air-Block Klima-Sail, Air-Extension-Kit, Window-Kit, IMPRESS Wall-Kit |
| Safety | Do not use near a water source; do not block air inlets/outlets; unplug before cleaning |
| Storage | Drain water, run in fan mode for 12 h to dry, store in a dry place |
Frequently Asked Questions - Impress 20+ SUNTEC
User questions about Impress 20+ SUNTEC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Air Conditioning in PDF format for free! Find your manual Impress 20+ - SUNTEC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Impress 20+ by SUNTEC.
USER MANUAL Impress 20+ SUNTEC
Please do not install or use your mobile local air conditioner before you have carefully read this manual.
Please keep this instruction manual for an eventual product warranty and for future reference.
Safety instruction
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.
. Do not use the unit outdoor.
. Do not use the unit if the power cord was damaged, if it seems to be defective.
- The unit may not be connected to a defective outlet. Please make sure before using that the unit has been properly installed.
. Do not use the unit near open fire sources.
. Do not expose the unit to direct sunlight.
- Please turn off the power before you unplug the power cord.
- Before cleaning the unit, turn it off and unplug the power cord.
- Before replacing the unit please make sure that the power cord is not plugged in and move it slowly.
. Please clean the unit only on the way as described in this manual.
- Connect the unit to a properly grounded electrical outlet (220-240V, 50 Hz).
. Do not let your children play with the unit.
The unit should not be used without supervision. Please turn off the unit even if you leave the room for
only a short time.
. Unplug the unit from the socket when you do not use it. Please do not pull on the cord.
. Do not use the unit on a place where it could be splashed with an oil or water.
. Do not use the unit near bath, shower or swimming pool.
- Never insert fingers, pencils or other objects into the unit if the power cord is plugged, and especially not during operation.
- This local air conditioner must be stored and transported upright, otherwise you may cause irreparable compressor damage. In case of doubt let the unit rest for at least 24 hours before you start it.
- Do not cover the unit and make sure that the air inlet and outlet are not blocked.
. Please make sure that the unit stands upright.
. Please use only the spare parts and accessories offered by the manufacturer to avoid damage to the device.
- You should never repair your local air conditioner by yourself. Please contact your dealer if the unit needs to be repaired.
- In case of breakdown turn off the unit (only by the Power button located on the control panel) and contact your dealer.
- In case of power cord damage please turn off the unit and unplug it to avoid fire hazard.

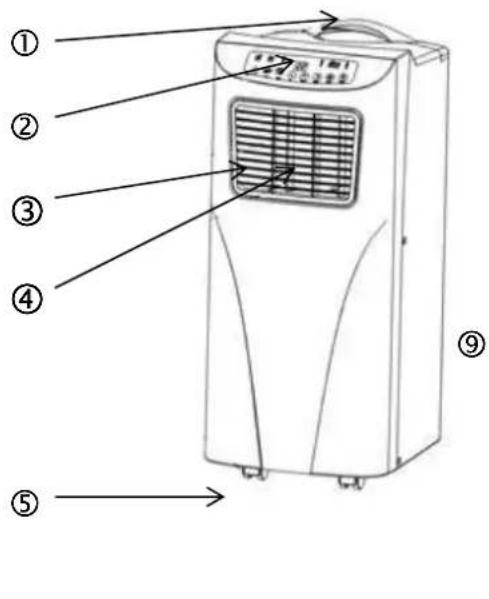

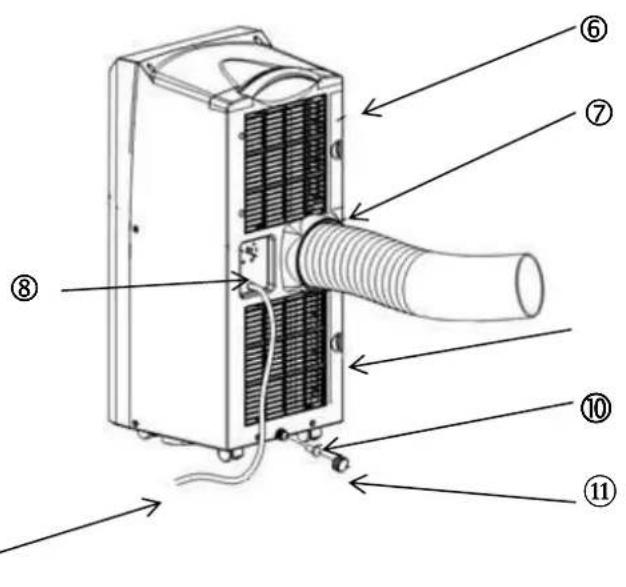

Components
1 Handle
6 Upper air filter grille
2 Control panel
7 Exhaust hose opening
3 Air outlet
Power cord mount
4 Fan
5 Castor
9 Lower filter grille
11 Rubber stopper cover
10 Rubber stopper
12 Power cord
14 Exhaust hose adapter
13 Exhaust hose
15 remote control
Installation

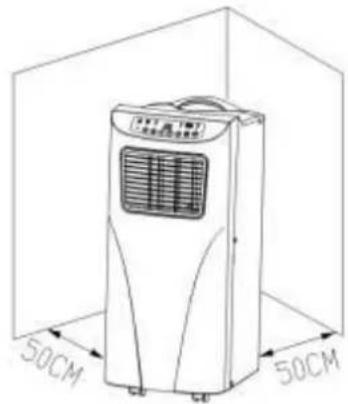

The unit should stand 50~cm away from other objects because they can strongly influence performance of the device (Fig. 1).
Warning: Before using this unit, you should let it stand straight for at least 24 hours.
The unit can be easily moved between rooms, but please note the following:

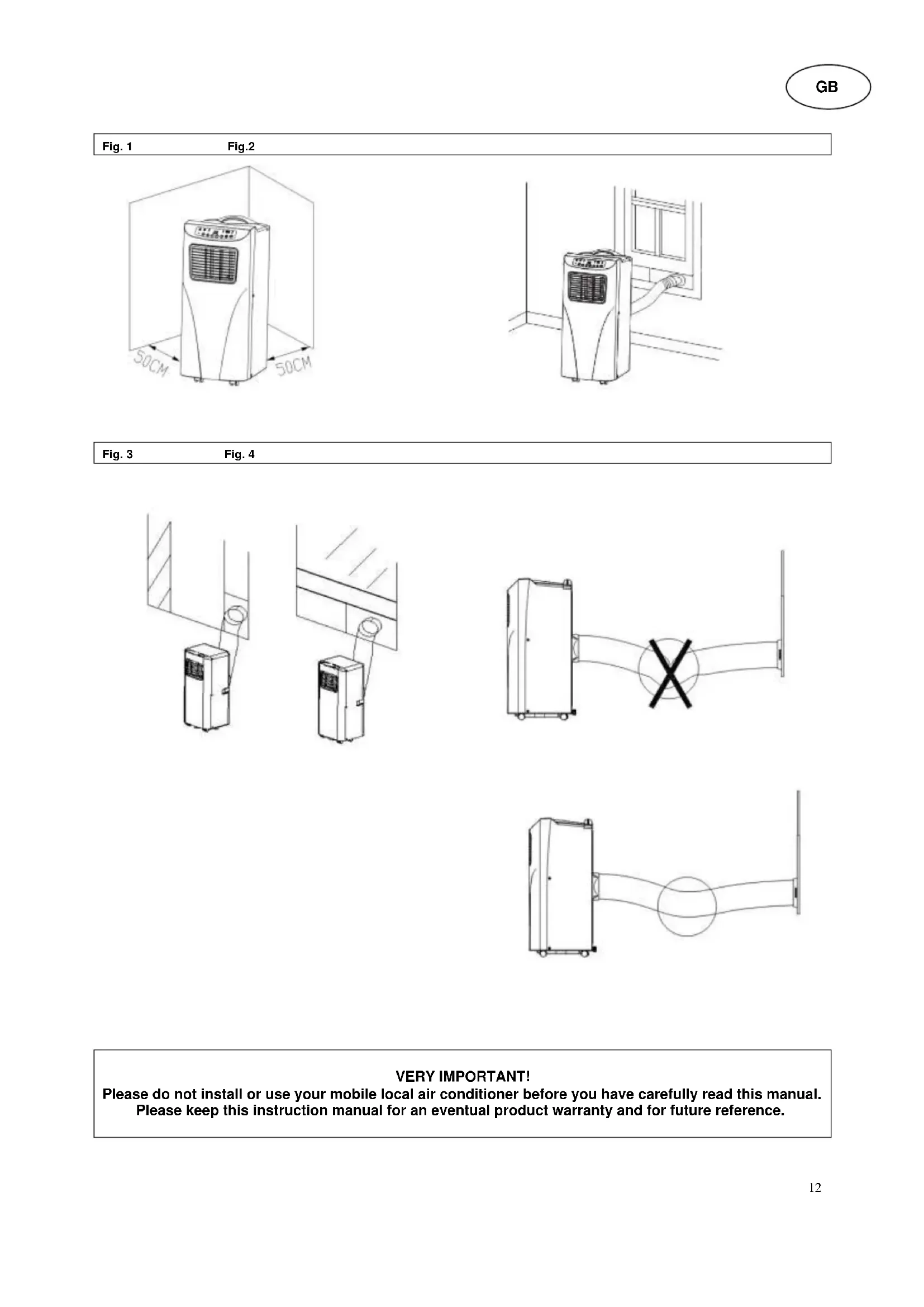

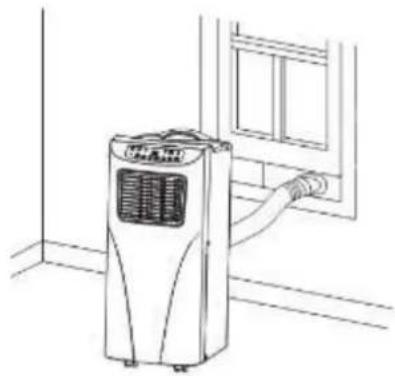

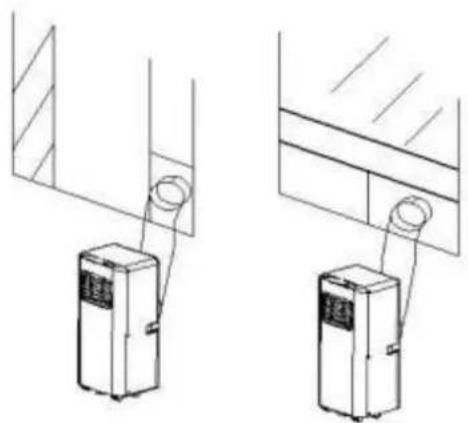

Installation of the exhaust hose, Fig. 2 und 3
1) Place the unit near a power outlet.
2) Attach the adapter at the one side of the exhaust hose.
3) Attach the other end of the exhaust hose into the appropriate hole on the back of the unit.
4) Fix the slide bar at the window. Plug the adapter into the opening on the scroll bar.
5) Plug the power cord into the outlet (220-240VAC, 50 Hz).
Possible installation errors
- Make sure that the outlet is not blocked to prevent damage to the unit.
The exhaust hose should not be bent (Fig. 4).

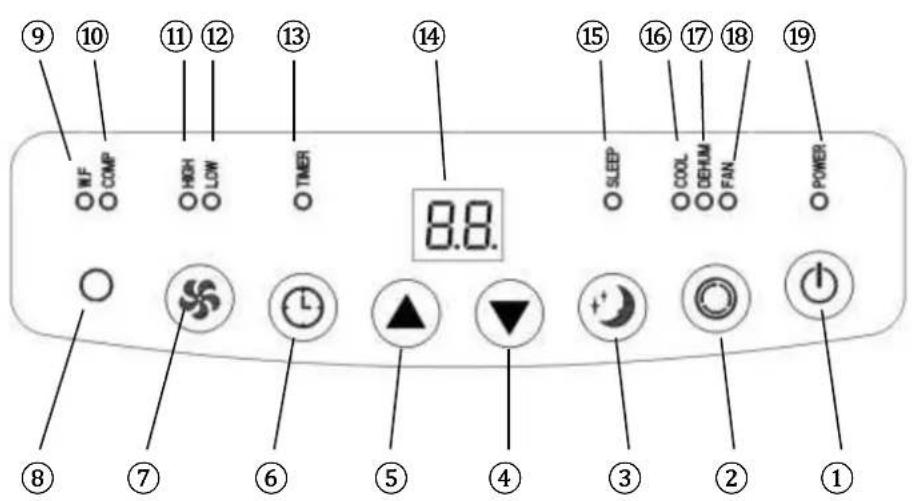

Control panel
1 Power 11 Indicator for high fan speed
2 Mode 12 Indicator for low fan speed
3 Sleep mode 13 Timer indicator
4 Temperature - 14 Display
5 Temperature + 15 Sleep mode indicator
6 Timer 16 Cooling mode indicator
7 Fan 17 Dehumidifying mode indicator
8 Remote control receiver 18 Fan mode indicator
9 Water tank indicator 19 Power indicator
10 Compressor indicator
- POWER: Press the button to turn the unit on or off. The unit automatically starts in cooling mode with low fan speed.
- MODE: Press the Mode button after starting the unit to select between cooling, dehumidifying or fan mode.
- FAN: Press the Fan button after starting the unit and adjust the desired fan speed.
- TEMPERATURE - / TEMPERATURE +: Switch the unit into the cooling mode and use these buttons to adjust desired room temperature (16-31°C).
- SLEEP MODE: Switch the unit into the cooling mode and press this button to de- or activate the sleep mode.
- TIMER: Turn the unit on and leave it in standby mode, then press this button to set the timer. You can set the desired on or off time using the and keys (1h-24h).

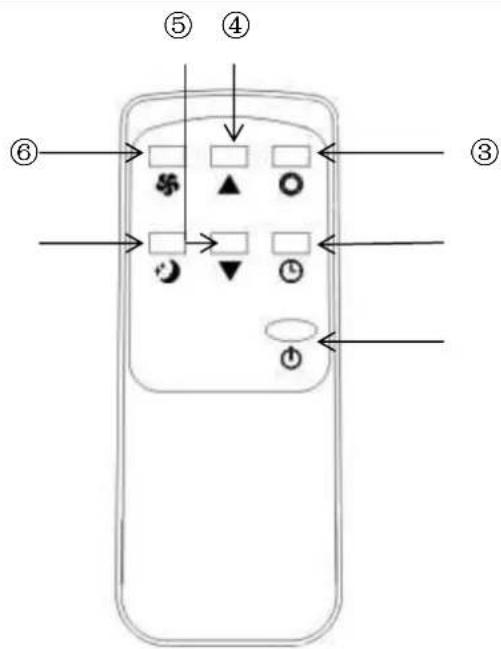

Remote control
- Power
- Timer
3.Mode - Temperature +
- Temperature -
- Fan
- Sleep mode ⑦ ②
①
Functions
Cooling mode
After starting the unit it will automatically start with default settings: cooling mode, 22^ C, low fan speed.
- Press the MODE button to set the cooling mode, the cooling mode indicator lights.
- Press the or to adjust to the temperature (16^ - 31^) .
- Press the FAN button to adjust the fan speed (high or low).
Fan mode
- Press MODE button to turn on the fan mode, the fan mode indicator lights.
- Press the FAN button to adjust the fan speed (high or low).
- Temperature setting and sleep mode cannot be set.
Timer
- In standby mode, press the TIMER button to set the on-time. The timer indicator lights up.
After starting the unit press the TIMER button to set the off-time. The timer indicator goes off.
Dehumidifying mode
- Press the SLEEP MODE button, the fan speed will be automatically adjusted on the low level.
- If the sleep mode will be activated during operation in the cooling mode, the temperature will rise an hour later by 1^ , two hours later by another 1^ and then remains constant.
- Sleep mode is not adjustable during dehumidifying and fan mode. If the water tank is full, the standby mode will switch on, settings will be deleted and the sleep mode will be disable.
Compressor protection
The compressor requires a start-up phase and will start three minutes later on after turning on / reboot the device.
Important:
Emptying of the water tank
The unit has an automatic water evaporation system. Condensed water will be used to cool the condenser. Thus the cooling performance will be increased and the energy will be saved.
- As soon as the water tank is full, the "WF" blinks on the display, the standby mode automatically turns on, it will sound the warning alarm and all the buttons will be locked until the tank is emptied.
- To empty of the water tank you need to remove the rubber stopper on the bottom of the unit and let the water leak into a container.
- Turn off the power and unplug the power cord. Once you reboot the device, it will work normally.
Cleaning
Before starting cleaning or maintenance, turn the power off by pressing the POWER button, wait a few minutes and then unplug the power cord from the outlet.
Surface cleaning
Clean the unit using a damp cloth, and then wipe it using a dry cloth. Do not use chemical solvents (such as gasoline, alcohol). The surface and the entire housing could be damaged.
Air filter cleaning
Clean the air filter regularly. If the air filter is clogged with dust, the efficiency of the device could be reduced.
1) Open the air outlet and remove the filter.
2) Wash the air filter by submersion into warm water (about 40^ ) with neutral detergent, rinse it under running water and dry it with a soft cloth.
3) Install air filter carefully after cleaning and drying.
Storage
- Pull the power plug and empty the water tank. Then set the device into the operating mode. Press the fan button and hold it for a 5 seconds until the device switches to low fan speed. Let the unit run in this mode for half a day until the inner construction has dried. Thus, it will not become mouldy.
- Turn off the unit and unplug the power cord.
- Coil the cord and attach it to the holder.
- Disconnect the exhaust tubing from the device and keep it safe.
- Put the unit into a box and bring it to a dry place.
- Remove the batteries from the remote control and keep them safe as well.
Troubleshooting
Don't repair or disassemble the unit by yourself, unsuitable repair may make the quality-protected card in vain, and even cause damage to the user or his/her possession.
| Problems | Cause | Solution |
| 1. The unit does not turn on when you press the Power button. | Power cord is not plugged. | Insert the plug into the socket and turn on the unit. |
| Water full indicator lamp blinks. | Empty the water tank. | |
| 2. The unit restarts again and again | Windows and doors are open, other heat sources in the room (leading to temperature variation) | Close doors and windows, remove the heat source. |
| Direct sunlight | Put the unit to the shade or draw the curtains. | |
| Exhaust hose is disconnected or blocked. | Connect or clean exhaust hose. | |
| Air inlet is blocked by smth. | Clean the blocked place. | |
| 3. Noise | The unit does not stand on a flat surface. | Place the unit on a hard flat surface (reduces noise). |
| 4. Compressor does not start | Thermal protection function is activated. | Please turn off the device and restart it 30 minutes later. |
Spare parts and accessories supply (fast convenient supply)
You can obtain spare parts and accessories for your IMPRESS unit from your local dealer. And at our website
www.suntec-wellness.de
you will find further information on individual accessory products as well as information on obtaining our spare parts quickly and conveniently. You will also find other information (e.g. FAQ, lists of spare parts, document download, etc) about your MOVE unit.
| Name EAN | Description | Drawing |
| Air-Block Klima-Sail 4250058312099 | Sail which can be used for all types of windows and doors. As for an external fly screen, it is fixed with Velcro and operated via a zip. The window or door can be closed at any time. | |
| Air-Extension-Kit 4250058312105 | A World First with which you can air-condition almost every corner of your house, and it doesn't matter where the local air conditioner is located. You can extend the extract air hose by 5 meters via a special propeller. For IMPRESS this also applies for the air supply and extraction. | |
| IMPRESS Wall-Kit 4250058312471 | Clean closing of a wall or wall boring from inside and outside with connection element for the air hose. |
In the case of complaints
Would you like to complain about the device, you can do it within 24 months from the date of purchase (receipt).
- A free replacement or repair will be excluded from the prior improper product manipulation.
Defects on parts and consumables, as well as cleaning, maintenance or replacement of said parts are therefore chargeable.
If you want to make a claim, so please bring the whole unit in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website also www.suntec-wellness.de and learn more.
- No proof of purchase will generally not free repair or replacement.
In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing faults by repair or, at our option, by replacement of the device.
The damage of accessories does not automatically lead to a free replacement of the entire unit. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts is always a charge.
- The dealer or repair after the warranty service can carry out repairs with costs.
EC-Declaration of Conformity
The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit.
With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun logo are registered trademarks. © 2016/01 SUNTEC WELLNESS GMBH
ERP Regulation
This high-quality single-channel portable air conditioning unit is in accordance with the rules and regulations of the European Union, in particular the new ERP Regulation 626/2011 to a "local air conditioner."
Refrigerant
(CE) N 842/2006: This local air conditioner contains the refrigerant R410A. The amount of refrigerant is less than 1kg , and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore only trained technicians with refrigerant certificate make a filling or emptying. Your local Suntec air conditioner does not have to use if used properly and undamaged coolant circuit can be refilled with refrigerant.
GWP: R410A (R32/125: 50:50): 1975
Note concerning protection of environment
This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicate such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment. Please ask your local council where your nearest disposal station is located.
© 2016 KLIMATRONIC® IMPRESS plus
SUNTEC WELLNESS GMBH / HOLZSTRASSE 2 / 40221 DUSSELDORF / DEUTSCHLAND
Dib. 1
Dib.2
Dib. 3
Dib. 4
Muy importante!
EC-Declaration of Conformity
The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit.
With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun logo are registered trademarks. © 2016/01 SUNTEC WELLNESS GMBH
ERP Regulation
This high-quality single-channel portable air conditioning unit is in accordance with the rules and regulations of the European Union, in particular the new ERP Regulation 626/2011 to a "local air conditioner."
Refrigerant
(CE) N 842/2006: This air conditioner contains the refrigerant R410A. The amount of refrigerant is less than 1kg , and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore only trained technicians with refrigerant certificate make a filling or emptying. Suntec your air conditioner does not have to use if used properly and undamaged coolant circuit can be refilled with refrigerant.
GWP: R410A (R32/125: 50:50): 1975
10 Compressor-indicator
In the case of complaints
Would you like to complain about the device, you can do it within 24 months from the date of purchase (receipt).
- A free replacement or repair will be excluded from the prior improper product manipulation.
Defects on parts and consumables, as well as cleaning, maintenance or replacement of said parts are therefore chargeable.
If you want to make a claim, so please bring the whole unit in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website also www.suntec-wellness.de and learn more.
- No proof of purchase will generally not free repair or replacement.
In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing faults by repair or, at our option, by replacement of the device.
The damage of accessories does not automatically lead to a free replacement of the entire unit. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts is always a charge.
- The dealer or repair after the warranty service can carry out repairs with costs.
EC-Declaration of Conformity
The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit.
With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun logo are registered trademarks. © 2016/01 SUNTEC WELLNESS GMBH
Smernice ERP
In the case of complaints
Would you like to complain about the device, you can do it within 24 months from the date of purchase (receipt).
- A free replacement or repair will be excluded from the prior improper product manipulation.
Defects on parts and consumables, as well as cleaning, maintenance or replacement of said parts are therefore chargeable.
If you want to make a claim, so please bring the whole unit in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website also www.suntec-wellness.de and learn more.
- No proof of purchase will generally not free repair or replacement.
In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing faults by repair or, at our option, by replacement of the device.
The damage of accessories does not automatically lead to a free replacement of the entire unit. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts is always a charge.
- The dealer or repair after the warranty service can carry out repairs with costs.
EC-Declaration of Conformity
The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit.
With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun logo are registered trademarks. © 2016/01 SUNTEC WELLNESS GMBH
In the case of complaints
Would you like to complain about the device, you can do it within 24 months from the date of purchase (receipt).
- A free replacement or repair will be excluded from the prior improper product manipulation.
Defects on parts and consumables, as well as cleaning, maintenance or replacement of said parts are therefore chargeable.
If you want to make a claim, so please bring the whole unit in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website also www.suntec-wellness.de and learn more.
- No proof of purchase will generally not free repair or replacement.
In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing faults by repair or, at our option, by replacement of the device.
The damage of accessories does not automatically lead to a free replacement of the entire unit. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts is always a charge.
- The dealer or repair after the warranty service can carry out repairs with costs.
EC-Declaration of Conformity
The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit.
With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun logo are registered trademarks. © 2016/01 SUNTEC WELLNESS GMBH
ERP regulation
This high-quality single-channel portable air conditioning unit is in accordance with the rules and regulations of the European Union, in particular the new ERP Regulation 626/2011 to a "local air conditioner."
Refrigerant
(CE) N 842/2006: This air conditioner contains the refrigerant R410A. The amount of refrigerant is less than 1kg , and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore only trained technicians with refrigerant certificate make a filling or emptying. Suntec your air conditioner does not have to use if used properly and undamaged coolant circuit can be refilled with refrigerant.
GWP: R410A (R32/125: 50:50): 1975
Miljöskddsanvisningar
EC-Declaration of Conformity
The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit.
With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun logo are registered trademarks. © 2016/01 SUNTEC WELLNESS GMBH
ERP Regulation
This high-quality single-channel portable air conditioning unit is in accordance with the rules and regulations of the European Union, in particular the new ERP Regulation 626/2011 to a "local air conditioner."
Hütöközeg
In the case of complaints
Would you like to complain about the device, you can do it within 24 months from the date of purchase (receipt).
- A free replacement or repair will be excluded from the prior improper product manipulation.
Defects on parts and consumables, as well as cleaning, maintenance or replacement of said parts are therefore chargeable.
If you want to make a claim, so please bring the whole unit in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website also www.suntec-wellness.de and learn more.
- No proof of purchase will generally not free repair or replacement.
In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing faults by repair or, at our option, by replacement of the device.
The damage of accessories does not automatically lead to a free replacement of the entire unit. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts is always a charge.
- The dealer or repair after the warranty service can carry out repairs with costs.
EC-Declaration of Conformity
The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit.
With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun logo are registered trademarks. © 2016/01 SUNTEC WELLNESS GMBH
ERP regulation
This high-quality single-channel portable air conditioning unit is in accordance with the rules and regulations of the European Union, in particular the new ERP Regulation 626/2011 to a "local air conditioner."
Refrigerant
(CE) N 842/2006: This air conditioner contains the refrigerant R410A. The amount of refrigerant is less than 1kg , and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore only trained technicians with refrigerant certificate make a filling or emptying. Suntec your air conditioner does not have to use if used properly and undamaged coolant circuit can be refilled with refrigerant.
GWP: R410A (R32/125: 50:50): 1975
EC-Declaration of Conformity
The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit.
With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun logo are registered trademarks. © 2016/01 SUNTEC WELLNESS GMBH
ERP regulation
This high-quality single-channel portable air conditioning unit is in accordance with the rules and regulations of the European Union, in particular the new ERP Regulation 626/2011 to a "local air conditioner."
Refrigerant
(CE) N 842/2006: This air conditioner contains the refrigerant R410A. The amount of refrigerant is less than 1kg , and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore only trained technicians with refrigerant certificate make a filling or emptying. Suntec your air conditioner does not have to use if used properly and undamaged coolant circuit can be refilled with refrigerant.
GWP: R410A (R32/125: 50:50): 1975
