KMF 240 - Milk frother Koenic - Free user manual and instructions

Product Type	Milk Frother
Brand	Koenic
Model	KMF 240
Power Supply	220-240 V ~ 50/60 Hz, 500 W
Tank Capacity	Between MIN and MAX marks (approx. 300 ml max)
Main Functions	Hot frothing, cold frothing, milk warming
Body Material	Plastic and stainless steel
Package Contents	Base, lid, milk frother, agitator, manual
Control Elements	2 buttons (heating and cold), indicator lights
Automatic Shut-off	Yes, when temperature is reached
Thermal Protection	Yes, thermostat prevents use when hot
Safety	Do not open lid during operation, do not immerse base
Cleaning	Hand wash with warm water and mild detergent, do not put in dishwasher
Maintenance	Unplug and let cool before cleaning, do not use abrasives
Repairability	Spare parts available through authorized after-sales service

Frequently Asked Questions - KMF 240 Koenic

How to prepare hot milk foam?

Attach the frother to the rotating shaft, fill milk between the MIN and MAX marks, close the lid, place on the base, then press the heating button (red indicator) to start. The appliance stops automatically when the milk is hot.

How to prepare cold milk foam?

Use the frother and press the button without heating (blue indicator). The appliance froths cold. Stop manually when the foam is sufficient.

How to warm milk without foam?

Attach the agitator instead of the frother, fill with milk, close the lid, place on the base and press the heating button (red indicator). The appliance heats without frothing.

Can I use plant-based milk?

Yes, but the foam may be less firm. For best results, use whole milk with a fat content of at least 3.5%.

How to clean the appliance?

Unplug and let cool. Clean the reservoir, lid, and accessories with warm water and a little detergent. Never immerse the base in water. Do not put in the dishwasher.

What if the appliance does not turn on?

Check that the base is plugged in and the reservoir is correctly positioned on the base. If the indicator does not light up, wait for the thermostat to cool down (the appliance may still be hot). If the problem persists, contact after-sales service.

Does the appliance stop automatically?

Yes, for warming and hot frothing, the appliance automatically shuts off when the optimal temperature is reached. For cold frothing, you must stop manually.

Can I open the lid during operation?

No, never open the lid during preparation. Hot milk could overflow and cause burns. Wait for the appliance to stop completely.

How much milk should I use?

The milk level should be between the MIN and MAX marks inside the reservoir. Do not exceed MAX to avoid overflow.

How to maintain the frother?

After each use, clean the frother and agitator with warm soapy water. Dry thoroughly. Store the accessories on the lid support to avoid losing them.

USER MANUAL KMF 240 Koenic

Milk Frother KMF 240

The image contains only horizontal lines, which are stylistic or background elements and not text content. According to the correction guidelines, such lines must be ignored. There is no actual text, punctuation, or superscript to extract.

Therefore, the corrected OCR output is:

[Empty String]
85
8 -14 5-20 -26 -32 -38 -44 -50 -56 -62 -68 -74 -80 -81
ch 3 kà 9 sh 15 jia 21 bis 27 ar 33 ro 39 ds 45 ski 51 és 57 s x 63 ka 69 çe 75 话
Deuts Аэгч Engl Spain França Magy Lélie Ierlan Pol rtugu ий язы Svens Türk 汉

Exterior view of a modern stainless steel coffee maker with black handle and digital display (no visible text or symbols)

DE Gebrauchsanweisung EL Odnyix, xohang EN User manual ES Manual de instrucciones FR Mode d'emploi HU Használi lehás IT Manuale dell'utente NL Gebruksaanwijzing PL Instrukdja obsług PT Manual de utilização RU Руксвоздство пользователя SV Användamandtuck TR Kullanım Klavuzu ZH 用户手册

KM1240.13.03.22(1.7)

Imtron GmbH
Wankelstrasse 5 D.85046 Ingolstadt
Imtron GmbH
Wankelstrasse 5 D.85046 Ingolstadt

KMF240 A5 130822.indb 122315 3:15 PM
KMF240 A5 130822.indb 122315 3:15 PM
KMF240 A5 130822.indb 122315 3:15 PM
Imtron GmbH Wankelstrasse 5 D.85046 Ingolstadt

KMF240 A5 130822,Indb. 122/3/18 3:15 PM
KMF240 A5 130822.indb 122315 3:15 PM
Imtron GmbH Wankelstrasse 5 D.85046 Ingolstadt

KMF240 A5 130822,Indb. 122/3/18 3:15 PM
KMF240 A5 130822.indb 122315 3:15 PM
Imtron GmbH Wankelstrasse 5 D.85046 Ingolstadt

KMF240 A5 130822,Indb. 122/3/18 3:15 PM
KMF240 A5 130822.indb 122315 3:15 PM
lmtron GmbH Wankelstrasse 5 D. 85046 Ingolstadt 0 A5 130822,Indb 1:22/9/18 3:15 PM
KMF240 A5 130822.indb 122315 3:15 PM
Imtron GmbH Wankelstrasse 5 D.85046 Ingolstadt

KMF240 A5 130822,Indb. 122/3/18 3:15 PM
KMF240 A5 130822.indb 122315 3:15 PM
lmtron GmbH Wankelstrasse 5 D. 85046 Ingolstadt 0 A5 130822,Indb 1:22/9/18 3:15 PM
KMF240 A5 130822.indb 122315 3:15 PM
lmtron GmbH Wankelstrasse 5 D. 85046 Ingolstadt 0 A5 130822,Indb 1:22/9/18 3:15 PM
KMF240 A5 130822.indb 122315 3:15 PM
lmtron GmbH Wankelstrasse 5 D. 85046 Ingolstadt 0 A5 130822,Indb 1:22/9/18 3:15 PM
KMF240 A5 130822.indb 122315 3:15 PM
Imtron GmbH Wankelstrasse 5 D.85046 Ingolstadt

KMF240 A5 130822,Indb. 122/3/18 3:15 PM
KMF240 A5 130822.indb 122315 3:15 PM

Exploded view diagram of a water heater with numbered parts labeled for identification.

KAF240 AS 13062JADP 222895 315PM

Sicherheitshinweise

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a metallic cylindrical object with a small dark spot and a red arrow pointing to it, no visible text or symbols.

Close-up of a dark surface with two red arrows pointing to features, no visible text or symbols.

Close-up of a metallic container with a lid and red arrow pointing downward (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a white electrical plug with a black socket, showing a red arrow pointing to the plug (no text or symbols visible)

Close-up of a kitchen appliance with a black base and red arrow pointing to a button (no visible text or symbols)

Vorsicht

Close-up of a metallic circular component with a central hole and a small diamond-shaped indentation (no text or symbols visible)

Close-up of a white electrical socket with a black plug inserted, showing a red arrow pointing to the socket (no text or symbols visible)

Close-up of a metallic cylindrical component with a red arrow pointing to a small circular feature (no text or symbols visible)

Microscopic image showing a curved surface with two red arrows pointing to features, no visible text or symbols.

Close-up of a metallic container with a lid and red arrow indicating downward motion (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a black plug with a red arrow pointing to its side (no text or symbols visible)

Close-up of a kitchen electric oven with a black control panel and red arrow indicator (no text or symbols)

Close-up of a black mechanical component with red directional arrows indicating movement or force (no text or symbols)

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a cylindrical container with a small dark object and a red arrow pointing downward (no text or symbols)

Close-up of a dark, curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metallic container with a lid and red arrow pointing downward (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a plug with a red arrow pointing to the socket (no text or symbols visible)

Close-up of a kitchen blender with a red arrow pointing to the button (no text or symbols visible)

Προσοχή

Close-up of a metallic cylindrical object with a central hole and a small protrusion (no visible text or symbols)

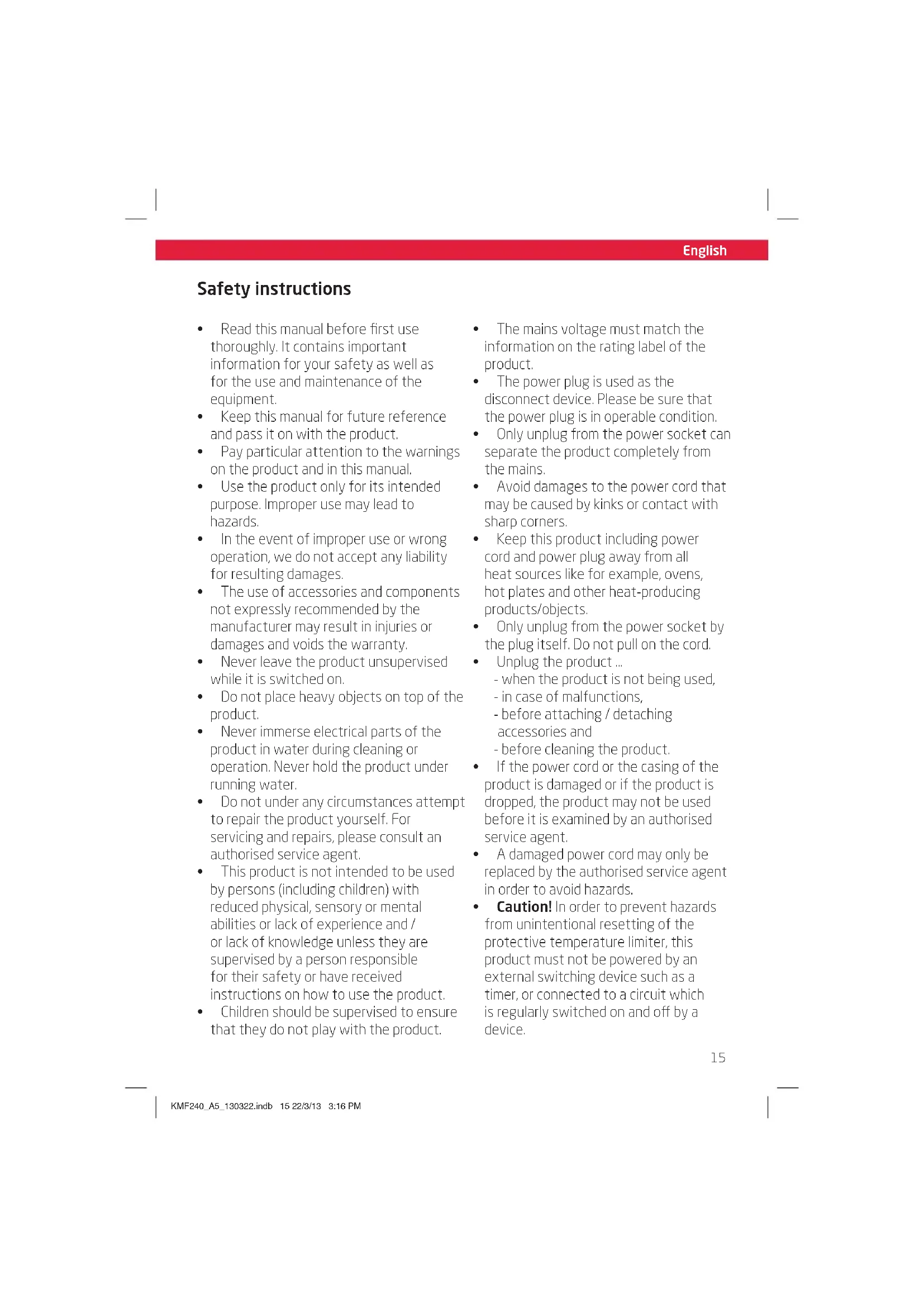

• Read this manual before first use thoroughly. It contains important information for your safety as well as for the use and maintenance of the equipment.
• Keep this manual for future reference and pass it on with the product.
• Pay particular attention to the warnings on the product and in this manual.
• Use the product only for its intended purpose. Improper use may lead to hazards.
• In the event of improper use or wrong operation, we do not accept any liability for resulting damages.
• The use of accessories and components not expressly recommended by the manufacturer may result in injuries or damages and voids the warranty.
• Never leave the product unsupervised while it is switched on.
• Do not place heavy objects on top of the product.
• Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

• This product is not intended to be used by persons (including children) with reduced physical, sensory or mental abilities or lack of experience and / or lack of knowledge unless they are supervised by a person responsible for their safety or have received instructions on how to use the product.
  • Children should be supervised to ensure that they do not play with the product.

• The mains voltage must match the information on the rating label of the product.

• The power plug is used as the disconnect device. Please be sure that the power plug is in operable condition.
• Only unplug from the power socket can separate the product completely from the mains.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.
• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.
• If the power cord or the casing of the product is damaged or if the product is dropped, the product may not be used before it is examined by an authorised service agent.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
• Caution! In order to prevent hazards from unintentional resetting of the protective temperature limiter, this product must not be powered by an external switching device such as a timer, or connected to a circuit which is regularly switched on and off by a device.

English

- Use this product in dry indoor areas only and never outdoors.

- Place the product on a flat, sturdy and slip-resistant surface.

- Protect this product from extreme heat and cold as well as from direct sunlight and dust.

- In order to reduce the risk of fire and electric shock, do not expose the product to fire (fireplace, grill, candles, cigarettes and so on) or water (water drops, water splashes, vases, tubs, ponds and so on).

- Warning! Do not use this product near water or heavy moisture; e.g. in a damp basement or beside a swimming pool or bathtub.

• This product is not intended for commercial use.

- It is designed for household use and similar applications only, such as for example:

- in employee cafeterias, in stores, offices and other commercial areas; - by customers in hotels, motels and other residential facilities; - in Bed and Breakfast establishments; - in farm houses.

- Do not fill with milk past the maximum filling capacity. Hot milk may spray out.

- Warning! Never open the lid during the frothing or heating process.

• Warning! Never open the lid during use.

- Use the product only with the base provided.

- Risk of burns! Avoid contact with hot surfaces and escaping steam. Hold the product only by the handle.

- Keep a sufficient safety clearance around the product. Hot milk can cause severe scalding.

16

- Do not move or transport the product during use or while there is hot milk in the thermos can. Spraying hot milk poses a risk of burning.

- Operate the product only when it is filled with milk.

- Close the lid when frothing or heating.

- Parts of the product become very hot. Unplug the product and let it cool down sufficiently ...

- when the product is not in use, - in case of malfunctions, - before attaching / detaching accessories and - before cleaning the product.

- Switch off the product and disconnect from supply before changing accessories or approaching parts that move in use.

- Clean the product and all other accessories after each use.

- Follow the instructions in the chapter Cleaning and care.

English

Congratulations!

Thanks for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is suitable for heating and frothing milk only. Any other use may result in damage to product or injuries.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Content

1 x Base

1 × Lid

1 x Frothing attachment

1 x Stirring attachment

1 x User manual

Technical Data

Rated voltage: 220-240 V\~

Rated input power: 500 W

Rated frequency: 50/60 Hz

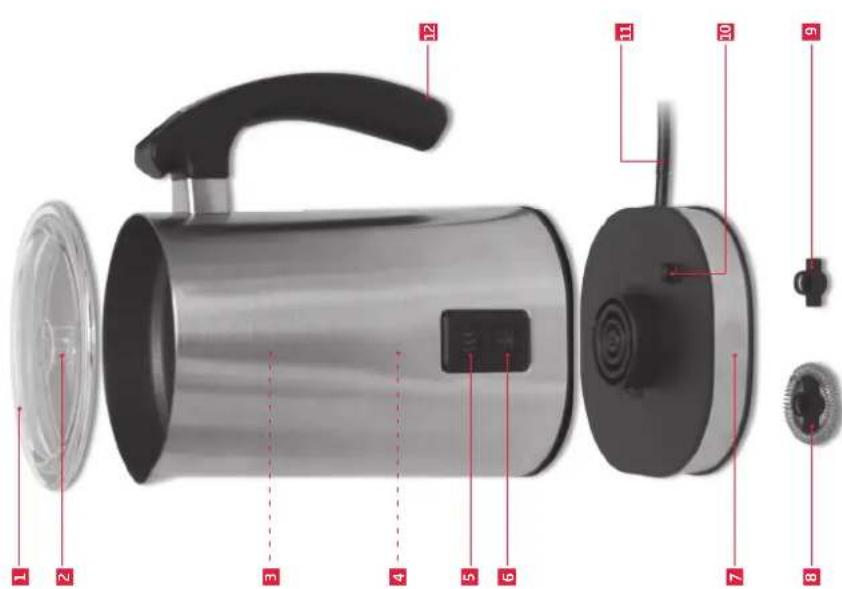

Control elements

1 Lid

2 Attachment fixture

3 MAX level mark with stirring attachment

© MAX level mark

with frothing attachment

MIN level mark for both attachments

4 Rotating shaft

5 Switch button

(operate with heater ON)

6 Switch button

(operate with heater OFF)

7 Base

8 Frothing attachment

9 Stirring attachment

10 Positioning stud

11 Power cord with plug

12 Handle

English

Frothing milk

1. Connect the power plug to a suitable power outlet.
2. Open the lid and attach the frothing attachment onto the rotating shaft
3. Fill it with milk. The milk level must be between the upper (MAX) and lower marking (MIN).
4. Put the lid on firmly by pushing it down slightly.
5. Align the milk frother to the positioning stub at the base.
6. Begin frothing:

Frothing with heater ON:

Press the 📄 button. The button lights up red.

Frothing with heater OFF:

Press the 🎨 button. The button lights up blue.

1. The product will turn off automatically when the milk is heated up or if you think froth is ready, you could also press switch button to turn off the product, then unplug the power plug from the power outlet.
2. Remove the milk frother from the base and open the lid

Note

You can pour or spoon the milk from the milk frother.

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a metallic cylindrical component with a red arrow pointing to a small circular feature (no text or symbols visible)

Microscopic view of a curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metallic pot with a lid and red arrow indicating downward motion (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no text or symbols visible)

6 3 2 1

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

Caution

Never open the lid during frothing. Do not remove the milk frother from the base during frothing.

Close-up of a black mechanical component with red directional arrows indicating movement or force (no text or symbols)

The milk frother must be correctly positioned on the base before operating.

English

Heating milk

1. Connect the power plug to a suitable power outlet.
2. Open the lid and attach the stirring attachment onto the rotating shaft.
3. Fill it with milk. The milk level must be between the upper (MAX) and lower marking (MIN).
4. Put the lid on firmly by pushing it down slightly.
5. Align the milk frother to the positioning stub at the base.
6. To begin heating, press the 📄 button. The button lights up red.
7. When the hot milk is ready, the product turns off automatically. Unplug the power plug from the power outlet.
8. Remove the milk frother from the base and open the lid

Note

If you wish to prepare more hot milk froth or more hot milk, let the milk frother cool down for a few minutes before further use. As long as the milk frother is hot, the thermostat prevents its being used. You can rinse the inside of the milk frother with cold water to accelerate cooling.

Close-up of a white electrical outlet plug with a black socket, showing a red arrow pointing to the socket (no text or symbols visible)

Top-down view of a circular container with a small dark object and a red arrow pointing downward (no text or symbols)

Close-up of a smooth, curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metallic container with a lid and red arrow pointing downward (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no text or symbols visible)

6

Close-up of a white electrical plug with a black socket, showing a red arrow pointing to the plug (no text or symbols visible)

Close-up of a kitchen appliance with a black button and red arrow indicator (no text or symbols)

Caution

Take care that the hot milk can cause severe scalding.

Caution

Exercise caution if you have prepared hot milk froth, as it is hot and could scald you.

Caution

Before exchanging accessory parts, the milk frother must be turned off and removed from its base.

English

Cleaning and care

1. Warning! Unplug the product and let it cool down completely before cleaning. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
2. Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
3. Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly.
4. Make sure that no water enters the product interior (for example, through the switch) or the base.
5. Clean the lid and the milk frother with hot water and a little dishwashing detergent immediately after use. Do not clean in the dishwasher.

Caution

Not suitable for cleaning in the dishwasher.

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Close-up of a metallic cylindrical object with a central hole and a small circular feature, possibly a dial or knob (no text or symbols visible)

Place frothing or stirring attachment to the lid fixture while the other to the rotating shaft.

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a metallic cylindrical component with a red arrow pointing to a small circular feature (no text or symbols visible)

Microscopic image showing a curved surface with two red arrows pointing to features (no text or symbols present)

Close-up of a metallic pot with a lid and red arrow indicating downward motion (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a plug with a black socket and red arrow pointing to the socket (no text or symbols)

Close-up of a kitchen blender with a red arrow pointing to the button (no text or symbols visible)

Precaución

Close-up of a black mechanical component with red directional arrows indicating movement or force (no text or symbols)

Close-up of a white electrical outlet plug with a black socket, showing a red arrow pointing to the plug (no text or symbols visible)

Close-up of a circular metallic object with a small dark spot and a red arrow pointing downward (no text or symbols)

Close-up of a smooth, curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metallic container with a lid and red arrow pointing downward (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a black plug with a red arrow pointing to its side (no text or symbols visible)

Close-up of a kitchen blender with a red arrow pointing to the button (no text or symbols visible)

Precaución

Close-up of a metallic circular object with a central hole and radial rim (no visible text or symbols)

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a metallic cylindrical component with a red arrow pointing to a small circular feature (no text or symbols visible)

Microscopic view of a curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metallic pot with a lid and red arrow indicating downward motion (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a plug with a red arrow pointing to the socket (no text or symbols visible)

Close-up of a kitchen blender with a red arrow pointing to the button (no text or symbols visible)

Attention

Close-up of a black mechanical component with red directional arrows indicating movement or force (no text or symbols)

Close-up of a white electrical outlet plug with a black socket, showing a red arrow pointing to the socket (no text or symbols visible)

Top-down view of a circular container with a small dark object and a red arrow pointing downward (no text or symbols)

Close-up of a smooth, curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metallic container with a lid and red arrow pointing downward (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a plug with a red arrow pointing to the socket (no text or symbols visible)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

Attention

Close-up of a metallic cylindrical object with a central hole and a small circular feature, possibly a lid or dial (no text or symbols visible)

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a metallic cylindrical component with a red arrow pointing to a small circular feature (no text or symbols visible)

Microscopic view of a curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metallic container with a lid and red arrow indicating downward motion (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a black plug with a red arrow pointing to its side (no text or symbols visible)

Close-up of a kitchen blender with a red arrow pointing to the button (no text or symbols visible)

Vigyázat

Close-up of a black mechanical component with red directional arrows indicating movement or force (no text or symbols)

Close-up of a white electrical outlet plug with a black socket, showing a red arrow pointing to the plug (no text or symbols visible)

Top-down view of a circular container with a small dark object and a red arrow pointing downward (no text or symbols)

Close-up of a smooth, curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metallic container with a lid and red arrow indicating downward motion (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a white electrical plug with a black cable inserted, showing a red arrow pointing to the plug (no text or symbols visible)

Close-up of a kitchen appliance with a black button and red arrow indicator (no text or symbols)

Vigyázat

Close-up of a metallic circular component with a central hole and a small diamond-shaped feature (no text or symbols visible)

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a metallic cylindrical component with a red arrow pointing to a small circular feature (no text or symbols visible)

Microscopic view of a curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metal pot with a lid and red arrow indicating downward motion (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a white electrical plug with a black socket, showing a red arrow pointing to the socket (no text or symbols visible)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

Close-up of a black mechanical component with red directional arrows indicating movement or force (no text or symbols)

Close-up of a white electrical outlet plug with a black socket, showing a red arrow pointing to the socket (no text or symbols visible)

Close-up of a circular metallic object with a small dark spot and a red arrow pointing downward (no text or symbols)

Close-up of a smooth, curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metallic container with a lid and red arrow pointing downward (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a black plug with a red arrow pointing to its side (no text or symbols visible)

Close-up of a kitchen appliance with a black button and red arrow indicator (no text or symbols)

Attenzione

Close-up of a metallic circular object with a central hole and radial rim (no visible text or symbols)

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a metallic cylindrical component with a red arrow pointing to a small circular feature (no text or symbols visible)

Microscopic view of a curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metallic container with a lid and red arrow indicating downward motion (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a white electrical plug with a black socket, showing a red arrow pointing to the socket (no text or symbols visible)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

Let op

Close-up of a black mechanical component with red directional arrows indicating movement or force (no text or symbols)

Close-up of a white electrical outlet plug with a black socket, showing a red arrow pointing to the socket (no text or symbols visible)

Close-up of a circular metallic object with a small dark spot and a red arrow pointing downward (no text or symbols)

Close-up of a smooth, curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metallic container with a lid and red arrow pointing downward (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a plug with a red arrow pointing to the socket (no text or symbols visible)

Close-up of a kitchen appliance with a black button and red arrow indicator (no text or symbols)

Let op

Close-up of a metallic cylindrical object with a central hole and a small circular feature, possibly a lid or dial (no text or symbols visible)

Close-up of a white electrical outlet plug with a black plug inserted, showing a red arrow pointing to the plug (no text or symbols visible)

Close-up of a metallic cylindrical component with a red arrow pointing to a small circular feature (no text or symbols visible)

Microscopic view of a curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metal container with a lid and red arrow indicating downward motion (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a white electrical plug with a black socket, showing a red arrow pointing to the socket (no text or symbols visible)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

Przestroga

Close-up of a black mechanical component with red directional arrows indicating movement or force (no text or symbols)

Close-up of a white electrical outlet plug with a black socket, showing a red arrow pointing to the socket (no text or symbols visible)

Close-up of a circular metallic object with a small dark spot and a red arrow pointing downward (no text or symbols)

Close-up of a smooth, curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metallic pot with a lid and red arrow indicating downward motion (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a plug with a black socket and red arrow pointing to the socket (no text or symbols)

Close-up of a kitchen appliance with a black base and red arrow indicator (no text or symbols)

Przestroga

Close-up of a metallic cylindrical object with a central hole and a small protrusion (no visible text or symbols)

Close-up of a metallic bowl with a red arrow pointing to a small circular object on the interior (no text or symbols visible)

3

Close-up of a metallic container with a lid and red arrow pointing downward (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

Close-up of a black mechanical component with red directional arrows indicating movement or force (no text or symbols)

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a cylindrical container with a small dark object and a red arrow pointing downward (no text or symbols)

Close-up of a dark surface with two red arrows pointing to features, no visible text or symbols.

Close-up of a metallic container with a lid and red arrow pointing downward (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no text or symbols visible)

6

Close-up of a plug with a black socket and red arrow pointing to the socket (no text or symbols)

Close-up of a kitchen blender with a red arrow pointing to the base (no text or symbols visible)

Atenção

Close-up of a metallic cylindrical object with a central hole and a small circular feature (no text or symbols visible)

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a metallic cylindrical component with a red arrow pointing to a small circular feature (no text or symbols visible)

Microscopic image showing a curved surface with two red arrows pointing to features (no text or symbols present)

Close-up of a metal pot with a lid and red arrow indicating downward motion (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no text or symbols visible)

6

Close-up of a white electrical plug with a black socket, showing a red arrow pointing to the socket (no text or symbols visible)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

Close-up of a black octagonal mechanical component with red directional arrows indicating movement or force (no text or symbols)

Close-up of a white electrical outlet plug with a black socket, showing a red arrow pointing to the socket (no text or symbols visible)

Top-down view of a circular container with a small dark object and a red arrow pointing downward (no text or symbols)

Close-up of a smooth, curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metallic container with a lid and red arrow indicating downward motion (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a kitchen appliance with a black button and red arrow indicator (no text or symbols)

Осторожно

Close-up of a metallic circular component with a central hole and a small diamond-shaped feature (no text or symbols visible)

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a metallic cylindrical component with a red arrow pointing to a small circular feature (no text or symbols visible)

Microscopic view of a curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metal pot with a lid and red arrow indicating downward motion (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a black plug with a red arrow pointing to its side (no text or symbols visible)

Close-up of a kitchen blender with a red arrow pointing to the base (no text or symbols visible)

Varning

Close-up of a black mechanical component with red directional arrows indicating movement or force (no text or symbols)

Close-up of a white electrical outlet plug with a black socket, showing a red arrow pointing to the plug (no text or symbols visible)

Top-down view of a circular container with a small dark object and a red arrow pointing downward (no text or symbols)

Close-up of a smooth, curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metallic pot with a lid and red arrow indicating downward motion (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a kitchen blender with a red arrow pointing to the button (no text or symbols visible)

Varning

Close-up of a metallic circular component with a central hole and a small diamond-shaped feature (no text or symbols visible)

Placera

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a metallic cylindrical component with a red arrow pointing to a small circular feature (no text or symbols visible)

Microscopic view of a curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metal pot with a lid and red arrow indicating downward motion (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a plug with a black socket and red arrow pointing to the socket (no text or symbols)

Close-up of a kitchen appliance with a black button and red arrow pointing to a button (no text or symbols visible)

Dikkat

Close-up of a black mechanical component with red directional arrows indicating movement or force (no text or symbols)

Close-up of a white electrical outlet plug with a black socket, showing a red arrow pointing to the socket (no text or symbols visible)

Close-up of a circular metallic object with a small dark spot and a red arrow pointing downward (no text or symbols)

Close-up of a smooth, curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metal container with a lid and red arrow pointing downward (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a white electrical plug with a black socket, showing a red arrow pointing to the socket (no text or symbols visible)

Close-up of a kitchen appliance with a black base and red arrow pointing to a button (no visible text or symbols)

Dikkat

Close-up of a metallic circular component with a central hole and a small diamond-shaped feature (no text or symbols visible)

Köpürtme veya

Close-up of a white electrical outlet plug with a black plug inserted, showing a red arrow pointing to the plug (no text or symbols visible)

Close-up of a metallic cylindrical component with a red arrow pointing to a small circular feature (no text or symbols visible)

Microscopic view of a curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metallic pot with a lid and red arrow indicating downward motion (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a black plug with a red arrow pointing to its side (no text or symbols visible)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

注意

发泡过程中切勿打开容器盖。发泡时切勿将牛奶发泡器底座上取下。

Close-up of a black mechanical component with red directional arrows indicating rotation or movement (no text or symbols)

Close-up of a metallic cylindrical container with a small red arrow pointing to its interior (no text or symbols visible)

Close-up of a dark, curved surface with two red arrows pointing to features (no text or symbols)

Close-up of a metallic pot with a lid and red arrow indicating downward motion (no text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a button (no visible text or symbols)

6

Close-up of a white electrical plug with a black socket, showing a red arrow pointing to the socket (no text or symbols visible)

Close-up of a kitchen appliance with a black button and red arrow pointing to the base (no visible text or symbols)

注意

当心热奶会造成严重烫伤。

注意

Close-up of a metallic circular component with a central hole and radial edge (no visible text or symbols)
