USER MANUAL X5 KETTLER

Training and Operating Instructions

HRC1-Count-Up 11
HRC2-Count-Down 11

Programme: Count up / Count down

• (PROGRAM) "Count Up"
• (PROGRAM) "Count Down"

b)Leistungsprofile

PROGRAM "1"-"6"

• (PROGRAM) "HRC1 Count Up"
• (PROGRAM) "HRC2 Count Down"

(PROGRAM) "Count Up"

(PROGRAM) "Count Down"

(PROGRAM) "HRC1" Count Up

(PROGRAM) "HRC2" Count Down

Training and Operating Instructions

Table of contents

Notes on safety 18

Service 18
- Your safety 18

Short description 19

• Function section / Keys 19
• Display section / Display 20
  Display values 21-23

Quick-start (to become acquainted) 23

• Start of training 23
  End of training 23
• Snooze mode 23

Training 24

... by load defaults

• Count-Up 24
• Count-Down 24
• Default section 24
  Time 24
  Energy 24
  Distance 24
  Age 25
  Maximum pulse 25

Target pulse selection (FAT/FIT/Man.)

• Readiness for training 25
  Power profiles 1-6 26
• Switchover Time/Distance 26

... by pulse defaults

HRC1 - Count-Up 27
HRC2-Count-Down 27

Training functions 27

• Display switchover 27
• Profile selection 28
• Speed-dependent/-independent 28
• Interruption / End of training 28
• Restart of training 28
• Recovery (recovery pulse measurement) 29

Entries and functions 29

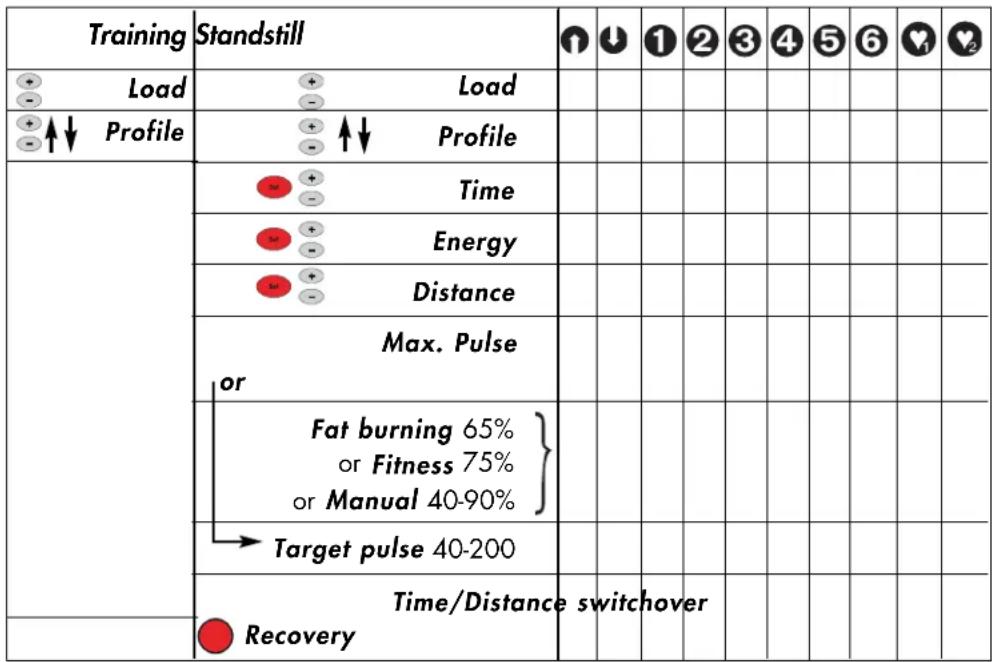

Table: Entries/Functions 29

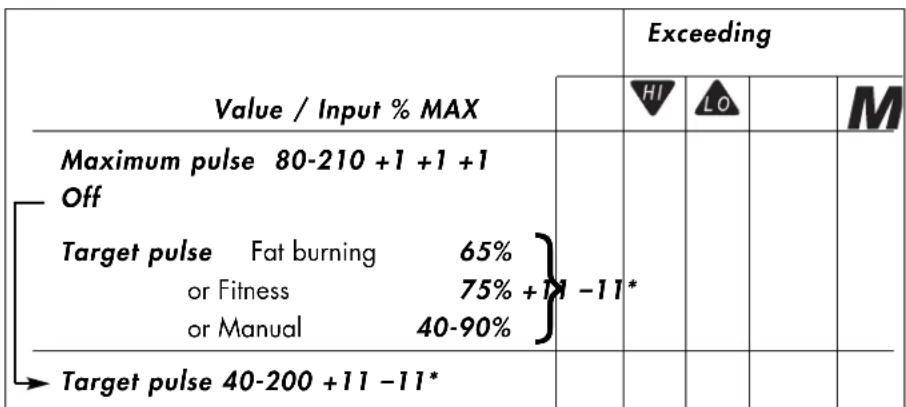

Table: Pulse events 29

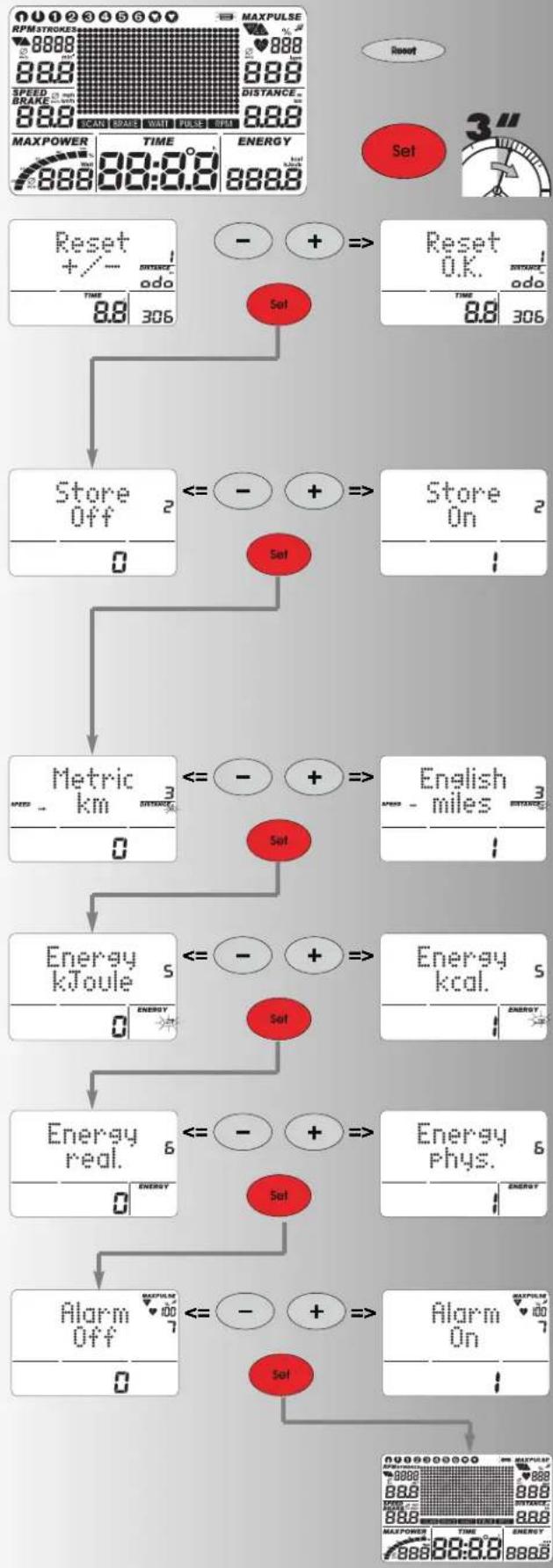

Individual settings 30

• Deletion of the total kilometers 30
  Saving of defaults 30
  Selection: KM/mile display 30
  Selection: kjoule/kcal display 30
  Selection: Energy display real/phys. 30

• Alarm sound ON/OFF 30

General notes 31

• System sounds 31
  Recovery 31
• Profile display during training 31
• Speed-independent operation 31
• Arrows up / down 31
• Speed-dependent operation 31
  Average value calculation 31

Notes on pulse measurement 31

With ear clip 31

With hand pulse 31

With chest strap 31

Interferences at the computer 31
Notes on the interface 31

Training instructions 32

Stamina training 32
- Load intensity 32
- Scope of load 32

Glossary 32

In the instruction, this sign refers to the glossary. There the respective term is explained.

Target pulse input 25

Safety Instructions

Note the following points for your own safety:

• The training apparatus must be set up on a suitable, stable surface.
  Before the first use and also after approx. 6 operating days, the joints are to be checked for firmness.
• In order to avoid injuries as a result of incorrect loading or excessive loading, the training apparatus must only be used in accordance with the instructions.
• It is not recommended that the apparatus be set up in damp spaces, because this will in time lead to rusting.
• At regular intervals, check that the training apparatus is in correct working order and that it is in proper condition.

• The safety / technical checks are among the duties of the operator and must be carried out regularly and properly.
  Defective and damaged parts are to be replaced immediately. Only use original KETTLER replacement parts.
  The apparatus must not be used until it has been repaired.

• The safety level of the apparatus can only be maintained if it is regularly checked for damage and wear.

For your safety:

• Before taking up training, have your family doctor advise you on whether or not you are in suitable health for training with this apparatus. The medical findings should be the basis for the structuring of your training programme. Incorrect or excessive training can lead to damage to health.

Short description

The ergometer has a function section with keys and a display section (display) with variable symbols and graphics.

Training and Operating Instructions

Reset

Program

Recovery

Short instruction

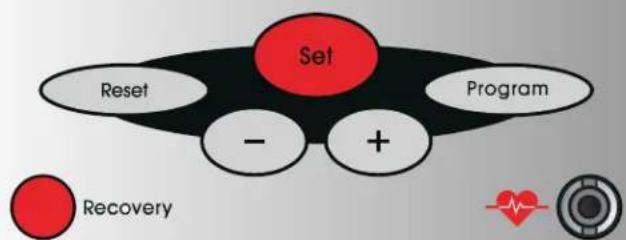

Function section

The six keys are shortly explained in the following.

The more exact application is explained in the individual chapters. In these descriptions the names of the function keys are also used like here.

SET (press shortly)

With this function key, entries are called up.

The set data are accepted.

Ergoracer: During training change from speed-independent to speed-dependent operating mode.

SET (press longer)

For display of all segments: call "Individual settings"

Reset

With this function key, the current display is deleted for a restart.

Program

With this function key, the various programs are selected.

Pressing again > next program

Pressing longer > program sequence

Minus - / Plus + keys

With these function keys, values are changed in the various menus before the training and power is changed during the training.

To continue "Plus"
- Or return "Minus"
- Pressing longer > fast change
- Pressing "Plus" and "Minus" together:
Power jumps to 25 Watt
- Programs switch to origin
- Value entry jumps to Off

RECOVERY

With this function key, the recovery pulse function is started.

Comment:

Further functions of the keys are explained in the respective chapters of the operating instructions.

Pulse measurement

Pulse measuring can be carried out in two ways:

1. Ear clip (included in delivery)

The plug is put into the female connector.

1. Chest strap without plug-in. In this electronic unit, the receiver is built in behind the display. A plugged-in ear clip must be removed.

(Chest straps are not always included in delivery)

The Polar chest strap is available as an accessory (item no. 67002000).

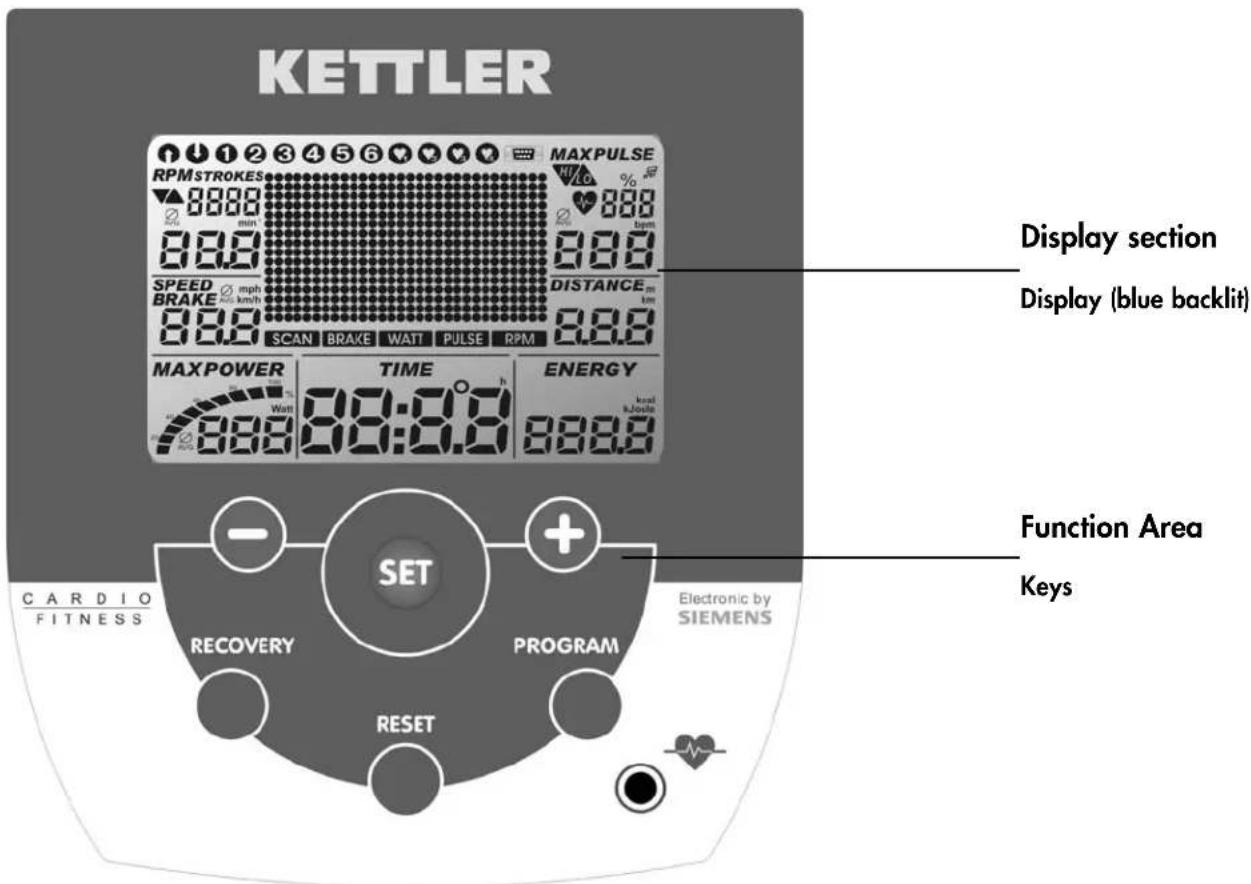

Display section / display

The display section informs about the various functions and respectively selected setting modes.

Programs: Count up / Count down

The programs are distinguished by their counting mode.

Programs

Power via time or distance

Default profiles 1-6

Pulse-controlled programs: HRC1/HRC2

Target pulse via time

Two programs, which control power by default pulse value.

Interface

The display of this symbol indicates that there is a data connection to a PC.

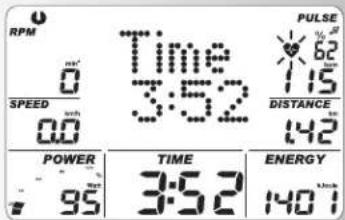

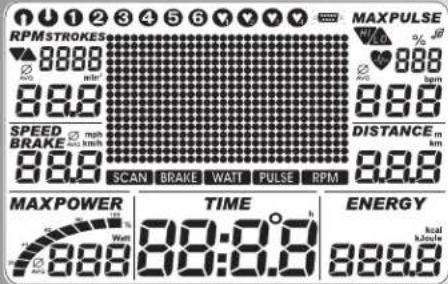

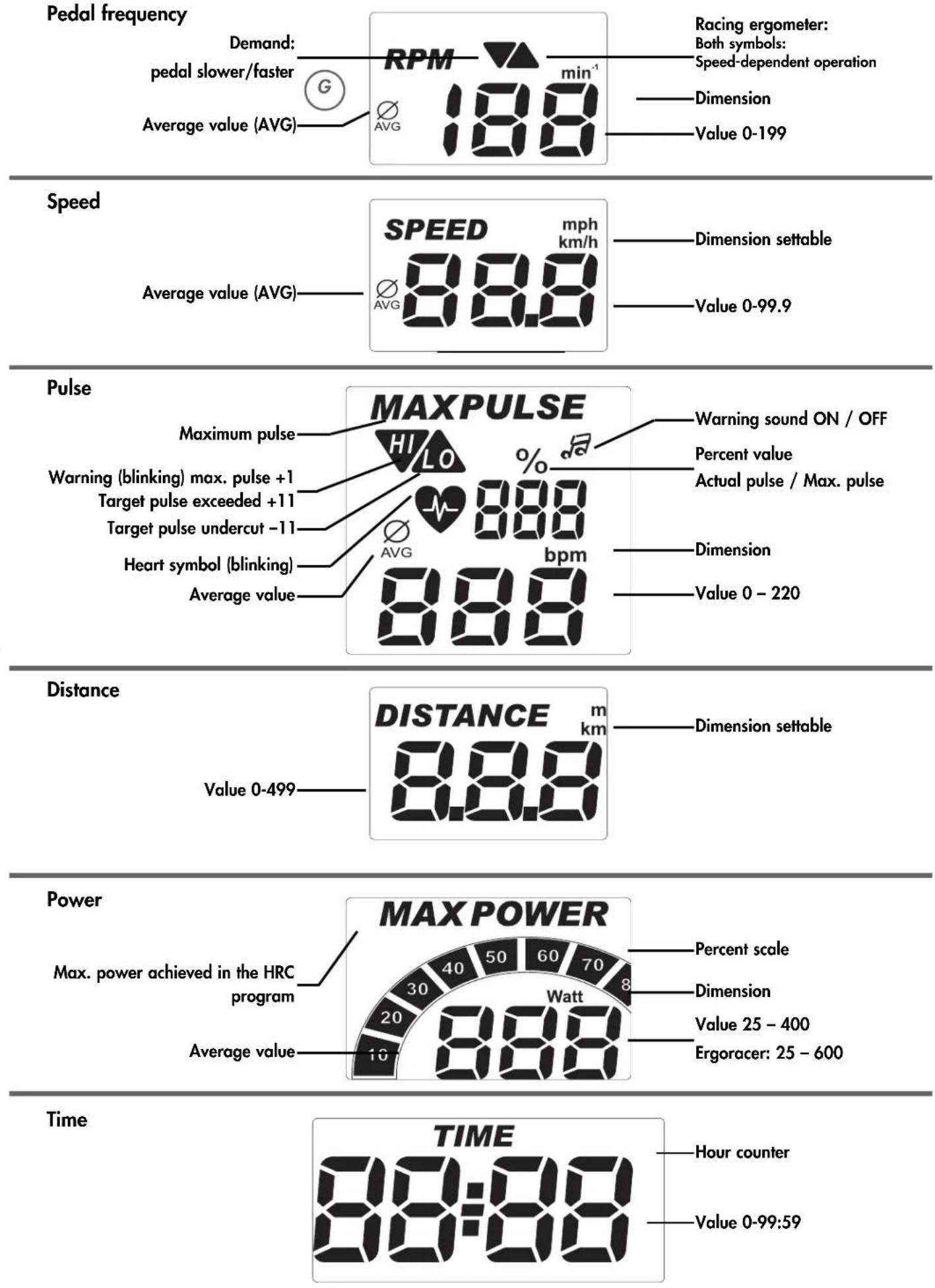

Display values

The sample displays show operation as ergometer bicycle. With corresponding speed with the sample displays, the values for speed and distance are lower for cross trainer ergometers and higher for running ergometers.

For 60 min ^-1 (RPM)

Ergometer bicycle = 21.3km / h

Cross trainer ergometer = 9.5km / h

Running ergometer = 25.5km / h

Training and Operating Instructions Pedal frequency

Quick start (to become acquainted)

Start of training:

without special settings

Greeting display on switching on Display of total kilometers and total training time

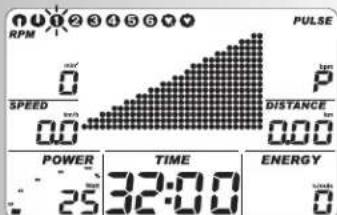

After 3 seconds: display "Count Up"; all values indicate 0; Power indicates 25 Watts
- Start of training

• Display
• Speed, distance, energy, time, revolutions and power Alteration of power during the training:
• "Plus": display of value in the window "Power" is increased in steps of 5.
• "Minus" reduces in steps of 5 Continuation of training with these settings. In the meantime power alterations are possible any time.

End of training

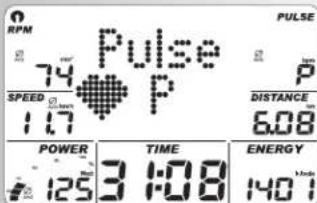

Average values ()
display Speed, revolutions, power and pulse (if pulse recording active)
Total values Distance, energy and time

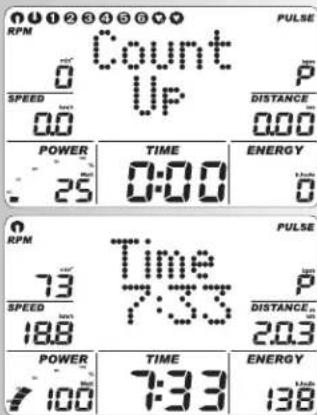

Snoopze mode

The device switches into the snooze mode 4 minutes after the end of training. Press any key and the display starts with "Count Up" again.

Training and Operating Instructions

Training

The computer is equipped with 10 training programs. They clearly distinguish in load intensity and duration.

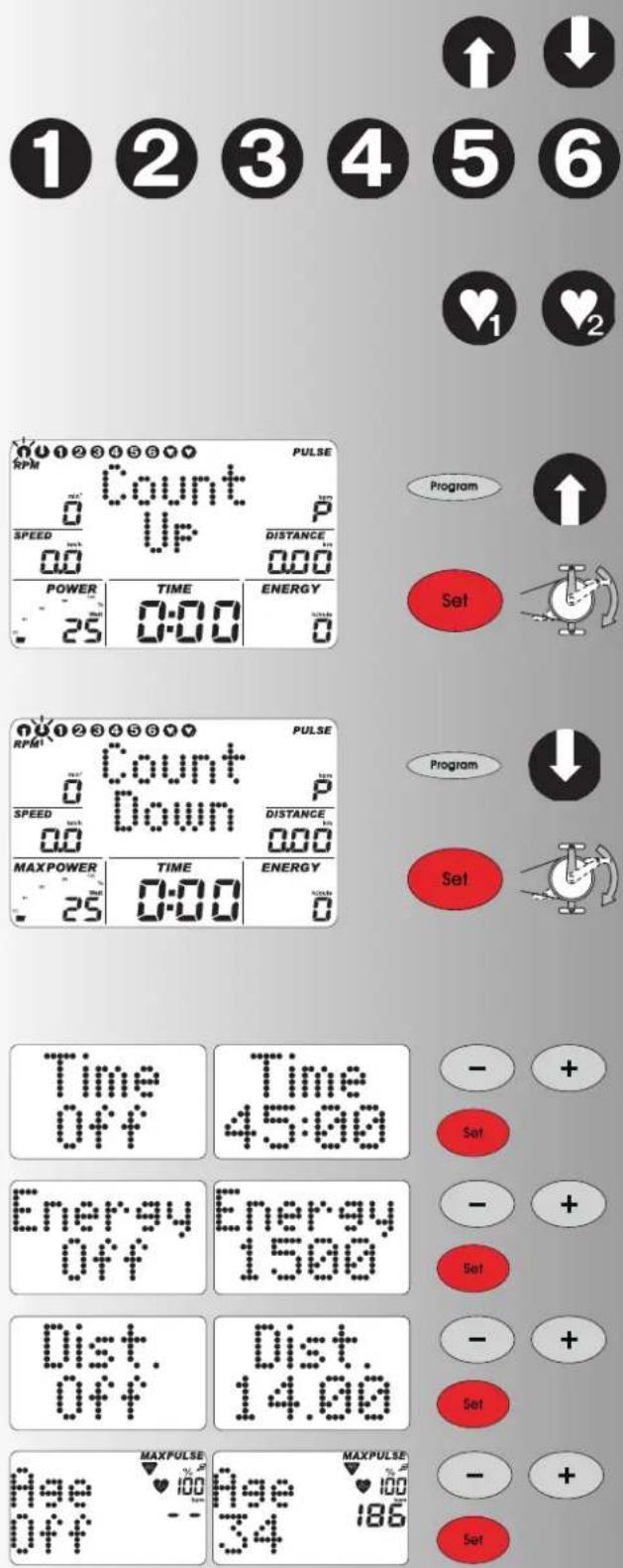

1. Training by power defaults

a)Manual power inputs

• (PROGRAM) "Count Up"
• (PROGRAM) "Count Down"

b)Power profiles

• (PROGRAM) "1" - "6"

2. Training by pulse defaults

Manual pulse defaults

• (PROGRAM) "HRC1 Count Up"
• (PROGRAM) "HRC2 Count Down"

Training by power defaults

a)Manual power inputs

(PROGRAM) "Count Up^

• Press "PROGRAM" until: display: "Count Up" Start training, all values count up.

or

• Press "SET": default section
• "Plus" or "Minus": change power.

Start of training all values count up.

(PROGRAM) "Count Down"

• Press "PROGRAM" until: display: "Count Down" The program counts from an entered value down >0 . If there is no entry, the training starts in program "Count Up".

For starting the program, at least one entry for time, energy or distance is required.

• Press "SET": default section

Default section

Display: time default "Time"

Time default

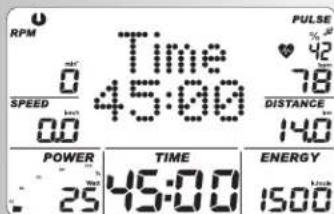

• Enter values with "Plus" or "Minus" (e.g. 45:00) Confirm with "SET".

Display: next menu energy default "Energy"

Energy default

• Enter values with "Plus" or "Minus" (e.g. 1500)
  Confirm with "SET".

Display: next menu distance default "Dist."

Distance default

• Enter values with "Plus" or "Minus" (e.g. 14.00)
  Confirm with "SET".

Display: next menu age input "Age"

Age entry

The age entry serves determination and monitoring the maximum pulse (symbol HI, warning sound, if activated

• Enter values with "Plus" or "Minus" (e.g. 34). From this, a maximum pulse of 186 is calculated according to the relation (220 - age).

Confirm with "SET". Display: next menu maximum pulse input "Max"

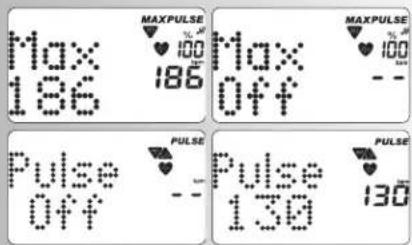

Maximum pulse entry

• Enter values with "Minus"

Max Pulse can only be reduced!

Confirm with "SET".

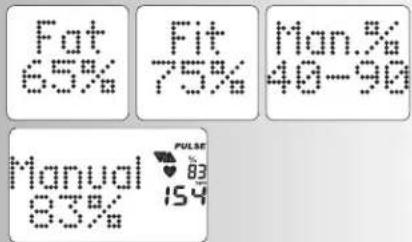

Display: next menu target pulse selection "Fat 65%

Target pulse selection

Make selection with "Plus" or "Minus"
- Fat burning 65%, Fitness 75%, Manual 40 - 90% Confirm with "SET" (e.g. Manual 40 - 90%)
- Enter values with "Plus" or "Minus" (e.g. Manual 83) Confirm with "SET" (end of default mode)

Display: Readiness for training with all defaults

or

Target pulse entry

The entry 40 - 200 serves determination and monitoring of an age-independent training pulse (symbol HI, warning sound, if activated, no maximum pulse monitoring). For that, the maximum pulse entry must be "Off".

• Deselect maximum pulse monitoring with "Plus" or "Minus". Display: "Max Off" Confirm with "SET".

Display: next default "Pulse" (target pulse)

• Enter value with "Plus" or "Minus" (e.g. 130)
  Confirm with "SET" (end of default mode)

Display: Readiness for training with all defaults

Comment:

• An overview over all setting possibilities in the programs is compiled in the tables (see page 13).
• The defaults are lost on "Reset". If for individual settings "Saving of defaults" is activated (page 14), pulse defaults and the set initial power remain stored. With the next selection of Count Up / Count Down, the data is taken over.

Readiness for training

Power

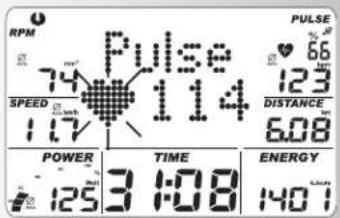

• Alter power with "Plus" or "Minus". Start of training by pedaling. The power set before the training is stored.

b) Power profiles (PROGRAM) "1" - "6"

All profiles are selected by pressing "PROGRAM"

e.g. display: "1" fitness test according to WHO standard Automatically controlled increase in power by 25 Watts every 2 minutes, starting with 25 Watts. The recommended pedal revolution is 60 - 80 RPM.

Only persons without any cardiovascular problems are allowed to do this test without medical supervision.

Press "SET": default section,

Note:

Default overview, see table on page 13

Training and Operating Instructions

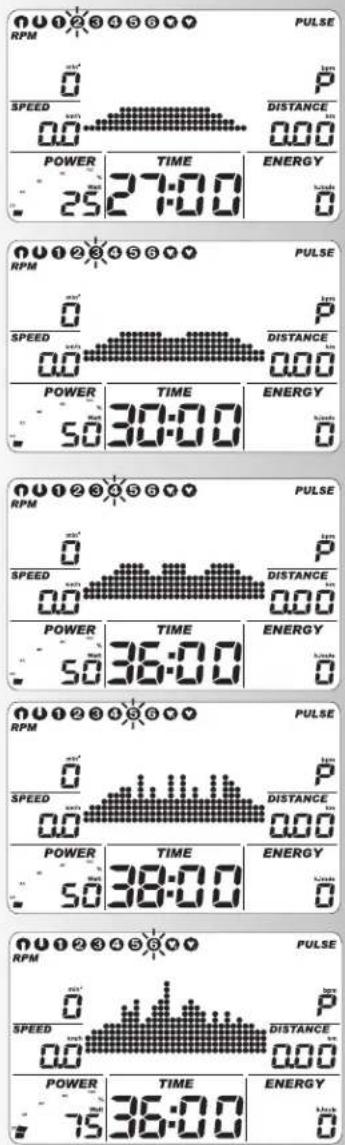

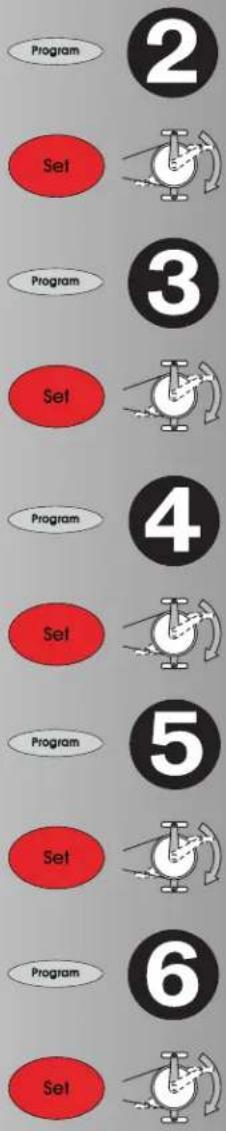

Press "PROGRAM" until: display:"2" Fitness beginner I; load 25-100 Watt, 27 min Press "SET": default section, defaults see table p. 13
Press "PROGRAM" until: display: "3" Fitness beginner II; load 50-125 Watt, 30 min Press "SET": default section, defaults see table p. 13
- Press "PROGRAM" until: display "4" Advanced I; load 50-150 Watt, 36 min Press "SET": default section, defaults see table p. 13
Press "PROGRAM" until: display "5"
Advanced II; load 50-200 Watt, 38 min
Press "SET": default section, defaults see table p. 12
Press "PROGRAM" until: display "6" Pro1; load 75-300 Watt, 36 min Press "SET": default section

Comment:

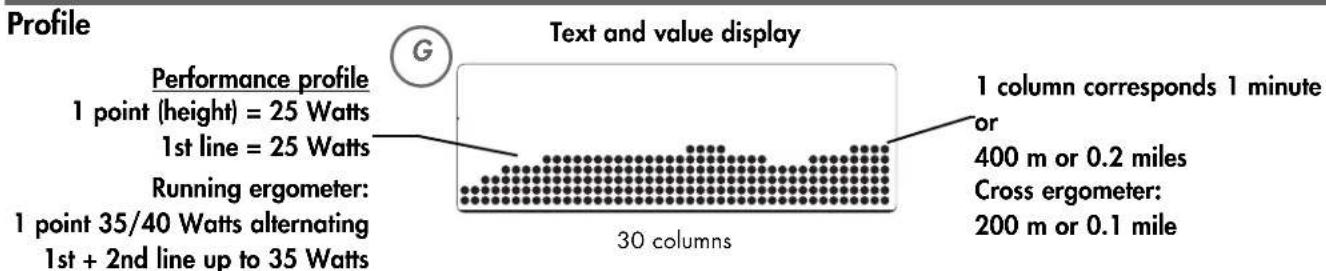

For times over 30 min, the profile is compressed to 30 columns on the program displays.

Program switchover time / distance

In the programs 1-6, switchover from time to distance mode is possible in the default section.

• Set mode with "Minus" or "Plus" Confirm with "SET". Display: Readiness for training

The distance per column is 0.4km (0.2 miles). Cross trainer ergometer: 0.2km (0.1 miles)

2. Training by pulse defaults

Manual pulse defaults

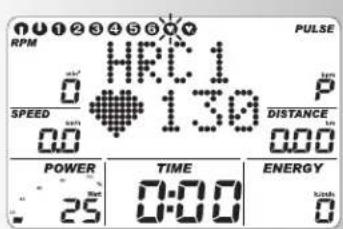

(PROGRAM) "HRC1 Count Up"

• Press "PROGRAM" until: display: HRC1
• Press "SET": default section

or

Start training, all values count up.

Power is increased automatically until the target pulse is achieved (e.g. 130)

(PROGRAM) "HRC2 Count Down"

• Press "PROGRAM" until: display : HRC2
• Press "SET": default section

The entries and setting possibilities are analogue to program point "Count Down".

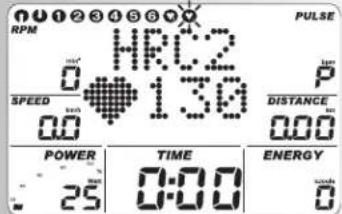

• Start of training

Power is automatically increased until the target pulse is achieved (e.g. 130)

01

Start training

Note:

Initial power

In HRC programs determination of the initial power of 25-100 Watts is possible in the default section.

• Enter values with "Plus" or "Minus" (e.g., 100)

The power is then automatically increased from 100 Watts on, until the target pulse is achieved (e.g. 130

Pulse

• With "Plus" or "Minus" the pulse value can still be changed at this point or during training, e.g. from 130 to 135.

Start of training by pedaling.

Default possibilities: see table page 13

Comment:

• For HRC programs, KETTLER recommends pulse measurement with chest strap.
• Power adjustment in the HCR programs takes place in case of deviations of + / - 6 heartbeats.

Training functions

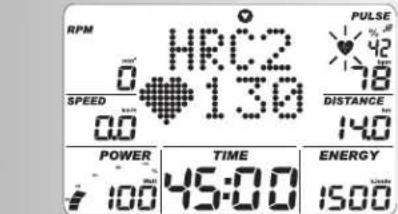

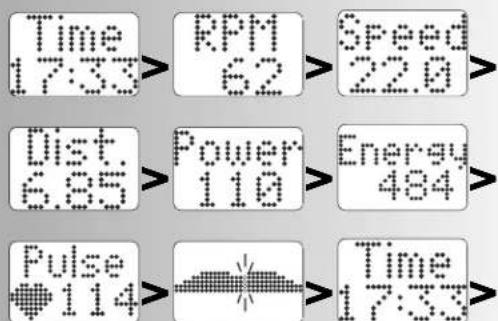

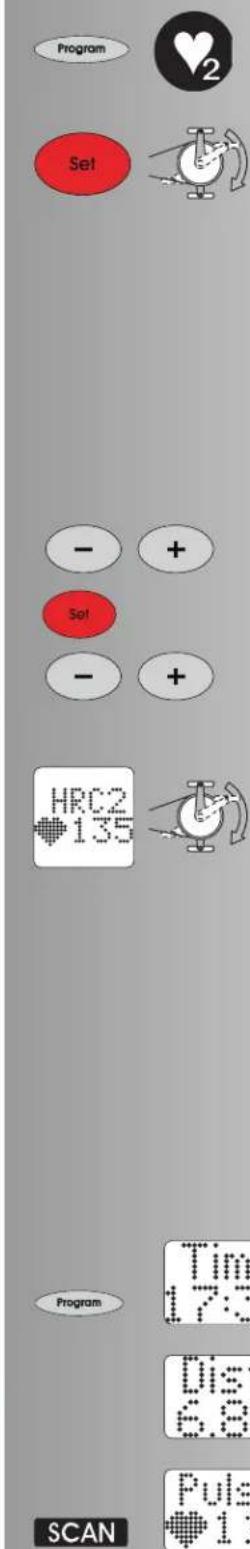

Display switchover during the training

Setting: manual

With "PROGRAM", the display changes in the points field in the following order: Time / RPM / Speed / Dist. / Power / Energy / Pulse / (Profile) / Time ...

Setting: automatically (SCAN)

Press the "PROGRAM" key longer until the "SCAN" symbol appears in the display. Change of the displays every 5 seconds. The SCAN function is terminated by renewed pressing of the "PROGRAM" key, the recovery function or interruption of training.

Training and Operating Instructions

Change of power profiles

If the power is changed during program run, the change becomes effective to the right of the blinking column. The columns to the left of it show the rendered performance values and remain unchanged.

Change from speed-independent to speed-dependent operation

(only running ergometer)

During training press "SET". A change from speed-dependent to speed-independent operation takes place.

Display: both arrows under RPM

Pressing "SET" again switches operation back to speed-independent.

Note:

The change from speed-dependent to speed-independent operation is only possible in the programs "Count Up" and "Count Down". The running ergometer always starts speed-independently. If training is interrupted, operation switches back to speed-independent.

Interruption or end of training

For less than 10 pedal revolutions/min or pressing "RECOVERY", the electronic equipment recognizes an interruption of the training. The training data achieved are displayed. Speed, power, revolutions and pulse are represented as average values with the symbol.

With "Plus" or "Minus" you can change into the current display.

The training data are displayed for 4 minutes. If during this period no key is pressed and no training takes place, the electronic equipment switches into the snooze mode.

Resumption of training

When continuing the training within 4 minutes, the last values are further counted or counted down.

RECOVERY - Function

Recovery pulse measurement

At the end of training press "RECOVERY".

The electronic equipment measures your pulse reversing for 60 seconds.

If you press "RECOVERY", the current pulse value is stored under "RPM"; under "SPEED", the pulse value after 60 seconds is stored. Under "Power", the difference of both values is displayed. From this, a fitness grade is calculated (for example F 1.1). The display is ended after 20 seconds.

"RECOVERY" or "RESET" interrupts the function. If at the beginning or end of the time rewind no pulse is recorded, an error message is displayed.

Recovery

Entries and functions

Display for pulse events

For undercutting the entered target pulse (-11 beats), the symbol "LO" is displayed.

For exceeding (+11 beats), the symbol "HI" is displayed.

For exceeding the maximum pulse, the "HI" arrow is blinking and the lettering "MAX" is displayed.

Training and Operating Instructions

Individual settings

Proceed according to the scheme: press "Reset"

Display: all segments now press "SET" longer: menu: Individual Settings

Display: Reset +/- total kilometers and training time

1. Delete total kilometers and training time

Jointly press "Plus" + "Minus"

Function: Delete display: "Reset O.K."

Press "Set": switchover to next setting

Display: Store

Or: Skip deletion of total values by just pressing "SET" Display: Store

2. Storage of defaults

Press "Plus" or "Minus"

Defaults time, energy, distance, age, target pulse are permanently stored

Function:

ON = Storage also after "Reset"

Off = Storage until next "Reset"

Press "Set":

Switchover to next setting

Display: Metric or English

3. Display of the unit in kilometers / miles

Press "Plus" or "Minus"

Function: selection of kilometer or miles display

Press "Set": selected unit is accepted and switchover to the next setting

Display: Energy

4. Display of energy consumption kjoule / kcal

Press "Plus" or "Minus"

Function: Selection of the energy consumption display Press "Set": selected unit is accepted and switchover to the next setting

Display: Energy

5. Display of mechanical / human energy turnover

Press "Plus" or "Minus"

Function: selection of the energy turnover display

real.: the energy turnover of the training person with 25% efficiency.

phys.: the energy turnover of the device, calculated purely physically.

Press "Set": selected unit is accepted and switchover to the next setting

Display: Alarm sound ON/OFF

6. Alarm sound for exceeding maximum

Press "Plus" or "Minus"

Function: switch on or off alarm sound.

Press "Set": selected setting is accepted and "New Start" of display

General notes

System sounds

Switching on

On switching on, a short sound is emitted during the segment test.

End of program

An end of program (profile programs, countdown) is signaled by a short sound.

Maximum pulse exceeding

If the set maximum pulse is exceeded by one pulse beat, 2 short sounds are emitted every 5 seconds.

Error output

For errors, e.g. recovery not executable without pulse signal, 3 short sounds are emitted.

Automatic scan function switching on and off

On activation and deactivation of the automatic scan function, a short sound is emitted.

Recovery

In the function the centrifugal mass is slowed down automatically. Further training is unsuitable.

Calculation of the fitness grade (F):

$$ \text {G r a d e} (F) = 6. 0 - \left(\frac {1 0 \times (P 1 - P 2)}{P 1}\right) ^ {2} $$

P1 = load pulse, P2 = recovery pulse

F1.0 = very good, F6.0 = insufficient

Switchover time/distance

For the programs 1-6, the profile per column can be switched over from the time mode (1 minute) to the distance mode (400 meters or 0.2 miles) in the defaults section. Cross trainer ergometer: (200 meters or 0.1 miles)

Profile display during training

At the beginning, the first column is blinking. After completion, it moves on to the right.

For profiles over 30 minutes up to the middle (column 15), then the profile is shifted from the right to the left. If the profile end appears in the last column (column 30), the blinking column moves further to the right until program end.

Speed-independent operation

(constant power)

The electromagnetic eddy-current brake regulates the braking torque for changing pedal speed to the set power.

Arrows up/down (Speed-independent operation)

If a power rate cannot be achieved with speed (e.g. 400 Watts with 50 pedal revolutions), the up or down arrow prompts faster or slower pedaling.

Speed-dependent operation (running ergometer)

(constant braking torque)

The electromagnetic eddy-current brake sets a constant braking torque.

Average value calculation

The average value calculation takes place per training unit.

Notes on pulse measurement

Pulse calculation starts, when the heart in the display is blinking simultaneously to your pulse beat.

With ear clip

The pulse sensor works with infrared light and measures the alterations of the translucency of your skin, which are caused by your pulse beat. Before you clamp the pulse sensor to your earlobe, rub it well 10 times to increase circulation.

Avoid disturbing pulses.

• Attach the ear clip carefully to your earlobe and search for the most suitable point for measuring (heart symbol blinking without interruption).
• Do not execute your training directly under strong incidence of light e.g. neon light, halogen light, spot, sun light.
• Completely exclude vibrations and wobbling of the ear sensor including the cable. Always fix the cable to your clothing by means of the clip or even better to a headband.

With chest strap (accessory)

Not always included in delivery, available from authorised dealers.

The Cardio-Pulse-Set with Polar chest strap is available as an accessory (item no. 67002000).

With hand pulse

An extra-low voltage generated by contraction of the heart is recorded by the hand sensors and analyzed by the electronic equipment

Always grip the contact surfaces with both hands
- Avoid jerky gripping
- Keep your hands still and avoid contractions and rubbing on the contact surfaces.

Interferences at the training computer

Press the reset key

Information on the interface

The training programs "TourConcept", item no. 7926-700, which is available at your specialist dealer, makes possible to control this KETTLER device by means of a PC /notebook via the interface. For further information and for information on software updates (firmware) of this device, go to

http://www.kettler-sport.net/sport/service/software-fuer-trainingsgeraete.html.

Training instructions

Sports medicine and training science use bicycle ergometry, among others, for examination of the functionality of the cardiovascular and respiratory system.

Whether your training achieved the desired effects after some weeks you can determine as follows:

1. You achieve a certain stamina with lower cardiovascular performance than before
2. You keep a certain stamina with the same cardiovascular

Training and Operating Instructions

performance over a longer period.

1. After a certain cardiovascular performance you recover faster than before.

Guide values for the stamina training

Maximum pulse: maximum load means the achievement of the individual maximum pulse. The maximally achievable heart rate depends on the age.

To that applies the empirical formula: the maximum heart rate per minute corresponds 220 pulse beats minus years of age.

Example: age 50 years >220 - 50 = 170 pulse/min.

Weight: a further criterion for determination of the optimal training data is the weight. The nominal default for maximum load is 3 Watts/kg body weight for men and 2.5 for women. Furthermore, it must be observed, that from age 30 on capability decreases: for men approx. 1% and for women 0.8% per year of age.

Example: man; 50 years; weight 75kg

>220 - 50 = 170 pulse/min. maximum pulse
>3Watts× 75kg=225Watts

Minus "age discount" (20% of 225 = 45 Watts)
>225 - 45 = 180 Watt (nominal default for maximum load)

Load intensity

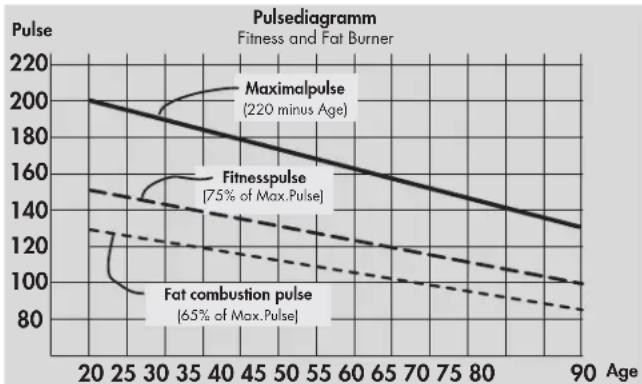

Load pulse: the optimal load intensity is achieved at 65 - 75% (comp. diagram) of the individual cardiovascular performance.

This value changes depending on the age.

Scope of load

Duration of a training unit and its frequency per week:

The optimum scope of load is given, when over a longer period 65 - 75% of the individual cardiovascular performance is achieved.

Empirical rule:

Either 10 min / training unit for daily training

or approx. 30min / training unit for 2-3 times/week

or approx. 60min / training unit for 1-2 times/week

You should choose the Watts power such that you are able to stand the muscle load over a longer period.

Higher powers (Watt) should be yielded in connection with an increased pedaling frequency. A too low pedaling frequency of less than 60 rpm results in a pointedly static load of the musculature and thus to early exhaustion.

Warm-up

At the beginning of each ergometer training unit, you should for 3-5 minutes pedal with a slowly increasing load to warm and to get your heart/circulation and your musculature moving.

Cool-down

The same importance has the so-called "cooling down". After each training unit you should continue pedaling against a slight resistance for approx. 2-3 minutes.

The load for your further stamina training should basically be increased over the scope of load, e.g. instead of 10 minutes your training is 20 minutes or instead of 2 times a week 3 times a week. Beside individual planning of your cardio training you can fall back on the training programs integrated in the training computer (comp. page 9 cont.).

Glossary

Age

Entry for calculation of the maximum pulse.

Dimension

Units for display of km/h or mph, kjoule or kcal, hours (h) and power (Watt)

Speed-independent/speed-dependent operation (running ergometer)

Speed-independent operation

Initially, the running ergometer always works speed-independent. Only during the training the user can select between speed-independent and speed-dependent operation with the "SET" key. If both direction arrows are displayed, speed-dependent operation is selected. Pressing the "SET" key again switches operation back to speed-independent. If the training is interrupted, the display computer automatically switches back to speed-independent operation.

For speed-dependent operation, power has no upper or lower limit. If with a power of over 600W , operation is switched back to speed-independent, the power display is set to 600W and the braking torque is changed respectively. If with a power display of below 25W , operation is switched back to speed-independent, power is set to 25W , and the braking torque is changed.

Speed-dependent operation (Count Up, Count Down)

Speed-dependent operation is available during training only. If there is a switchover to speed-dependent operation, the braking torque is kept constant. The displayed power is not changed, until the pedaling speed is changed. With a change in speed, the current power is calculated from the (constant) braking torque and the current pedal speed, and displayed respectively. If the power displayed in speed-independent operation is not settable (arrow symbols are shown), the actual power value is displayed in the moment of switchover. The power can be changed by means of the "+" and "-" keys or by means of speed.

During training, the displayed power is increased or decreased in 5 W (or 25 W, respectively) steps with the "+" or "-" keys, respectively. For that, the current power is taken as standard.

The new braking torque is calculated and set. Then the braking torque is kept constant, and the power display is calculated anew for changing pedal speed like described above.

A change of the ergometer power by means of the "+" and "-" keys is only possible in the range from 25 W to 600 W. If a key outside this range is pressed, the display jumps to the next possible value within the determined limits and the braking torque is changed respectively.

Energy (real.)

Calculates the energy turnover of the body with an efficiency of 25% to provide the mechanical power. The remaining 75% does the body convert to heat.

Energy (phys.)

Calculates the energy turnover of the device, physical

Fat burning pulse

Calculated value of: 65% MaxPuls

Fitness pulse

Calculated value of: 75% MaxPuls

Glossary

A collection of attempts for explanation.

HI symbol

With "HI" displayed, a target pulse is too high by 11 beats.

With HI blinking, the maximum pulse is exceeded.

LO symbol

With "LO" displayed, a target pulse is too low by 11 beats.

Manual -

Calculated value of: 40 - 90% MaxPuls

MaxPulse(s)

Calculated value of 220 minus years of age

Menu

Display in which values are to be entered or selected.

Power

Current value of the mechanical (braking) power in Watts, which the ergometer converts into heat.

Profile

Change of performance over time or distance represented in the points field.

Programs

Training possibilities requiring manual or program-determined performances or target pulses.

Percent scale

Comparison display between current power and maximum power (400/600W).

Points field

Display area with 30 × 16 points for representing performance profiles as well as text and value displays.

Pulse

Recording of the heartbeat per minute

Recovery

Recovery pulse measurement at the end of training. From start and end pulse of one minute the deviation and a fitness grade are determined. For the same training, the improvement of this grade is a measure for increase in fitness.

Reset

Deletion of display contents and restart of display.

Interface

For data exchange with a PC with KETTLER software.

Control

The electronic equipment controls the power or the pulse for manually entered or default values.

Target pulse

Manual or program-determined pulse value, which is to be achieved.

HRC1 - Count-Up 42
HRC2-Count-Down 42

Programmes : Count up / Count down

• (PROGRAM) "Count Up"
• (PROGRAM) "Count Down"

b) Profils de performance
- (PROGRAM) "1" - "6"

PROGRAM"HRC1CountUp
- (PROGRAM) "HRC2 Count Down"

(PROGRAM) "Count Up"

(PROGRAM) "Count Down"

(PROGRAM) "HRC1 Count Up"

(PROGRAM) "HRC2 Count Down"

HRC1-Countup 59
HRC2-Countdown 59

Snelstart (ter kennismaking)

Trainingsbegin:

• (PROGRAM) "count up"
• (PROGRAM) "countdown"

b. Vermogenprofiel

• IPROGRAMJ"1"-6"

PROGRAM "HRC 1 count up"
- (PROGRAM) "HRC 2 countdown"

(PROGRAM) "count up"

"PROGRAM" indrukken tot weergave: "count up". Training beginnen, alle waards tellen op.

of

(PROGRAM) "countdown"

(PROGRAM) "HRC 1 count up"

(PROGRAM) "HRC 2 countdown"

(constant remmoment)

Count-Up
- Count-Down

HRC1 - Count-Up 75
HRC2-Count-Down 75

Programas: Count up / Count down

• (PROGRAM) "Count Up"
• (PROGRAM) "Count Down"

• (PROGRAM) "HRC1 Count Up"
• (PROGRAM) "HRC2 Count Down"

(PROGRAM) "Count Up"

(PROGRAM) "Count Down"

(PROGRAM) "HRC1 Count Up"

(PROGRAM) "HRC2 Count Down"

HRC1-Count-Up 91
HRC2 - Count-Down 91

Programmi: Count up / Count down

PROGRAM"CountUp
- (PROGRAM) "Count Down"

• (PROGRAM) "HRC1 Count Up"
• (PROGRAM) "HRC2 Count Down"

(PROGRAM) "Count Up"

(PROGRAM) "Count Down"

(PROGRAM) "HRC1 Count Up"

(PROGRAM) "HRC2 Count Down"

Programy: Count up / Count down

PROGRAMHRC1CountUp
- (PROGRAM) „HRC2 Count Down"

(PROGRAM) "Count Up"

(PROGRAM) ,HRC1 Count Up"

(PROGRAM) „HRC2 Count Down"

Nacisnac "plus" lub "minus"

Nacisnac "plus" lub "minus"

Programme: Count up / Count down

• (PROGRAM) "Count Up"
• (PROGRAM) "Count Down"

• (PROGRAM) "HRC1 Count Up"
• (PROGRAM) "HRC2 Count Down"

(PROGRAM) "Count Up"

(PROGRAM) "HRC1" Count Up

(PROGRAM) "HRC2" Count Down

General information. 143

• System signal 143
  Restitution 143
  Profildisplayundertraening 143
• Hastigheds uafhaengig Funktion 143
  Pil op /ned 143
• Hastigheds afhaengig Funktion 143
  Beregning of gennemsnits vaerdier143
  Bemaerkninger om pulsmåling 143

Med 4reclips 143

Med handpuls saet 143
Med brystbeltte 143

PROGRAM: COUNT UP / COUNT DOWN

Differentieres ved telle fonctionen.

Programmer:

Modstand via tid aller distance.

Forudindtastede profiler 1-6

Pulskontrolerede programmer: HRC1 / HRC2

Targetpuls via tid.

• (Program) "Count Up"
• (Program) "Count Down"

b) Modstands profiler

• (Program) "1" - "6"

• (Program) "HRC1 Count Up"
• (Program) "HRC2 Cout Down"

(Program) "Count Up"

Tryk (Program) indtil displayet viser "Count Up" Start traingen, vaerdier taeller op.

Eller

Tryk "SET": indstillinger
"Plus" aller "Minus": aendre modstand Start traingen, alle vaerdier taeller op.

(Program) "Count Down"

Indstilling for older.

(Program) "HRC1 Count Up"

Tryk "Program" til: display: HRC1
Tryk "SET": indstlinger

Eller

Start traeningen, alle vaerdier taeler op.
Modtanden oges automatisk til target-pulsen opnas (f.eks. 130)
(Program) HRC2 Count Down" Tryk (Program) til: display HRC2 Tryk "SET": indstlinger Alle indstellingsmuligheder er svarende til program

punkt "Count Down".

• Start traingen Modstanden øges automatisk til target pulsen opnas (f.eks. 130)

Eller

Start traeningen

NOTE:

Startmodstand.

Displayskift under training

Indstilling: manuel

General information.

System signal.

Tende

När du aktivere maskinen, udsendes et signal under segment testen.

Programslut

Et program slutter (profilprogram, count down) og et kort signal lyder.

Overskridelse of Max Puls.

Beregning of fitnesskarakter (F):

$$ \text {K a r a k t e r} (F) = 6. 0 - \left(\frac {1 0 \times (P 1 - P 2)}{P 1}\right) ^ {2} $$

P1 belastningspuls P2 = Restitutionspuls

F1.0 = Meget god F6.0 = utilstraekkelig

Skift mellem Tid / Distance.

Iprogrammerne1-6,erdetmuligt at skiffe fraTid(1 minut)til Distance (400 meter ell 0,2 miles),i indstillingerne.

Crosstrainer: 0,2 km (0,1 miles)

Display profil under traingen.

Ved start blinker den feste kolonne. Derefter flytter den mod hore.

(Vaeddelobsergometer)

Fedtforbraendings puls.

HRC1-Count-Up 155
HRC2-Count-Down 155

Funcoes de treino 155

Programas: Count up/Count down

• (PROGRAM) "Count Up"
• (PROGRAM) "Count Down"

• (PROGRAM) "HRC1 Count Up"
• (PROGRAM) "HRC2 Count Down"

(PROGRAM) "Count Down"
