Arabia - Iron TAURUS - Free user manual and instructions

Product type	Iron with internal steam generator
Brand	Taurus
Model	Arabia
Soleplate	Stainless steel (estimated)
Power supply	220-240 V ~ 50/60 Hz
Power	2000 W (estimated)
Temperature setting	Yes, positions for synthetics, silk/wool, cotton, linen
Steam function	Yes, continuous steam with button lock
Vertical ironing	Yes
Self-cleaning function	Yes, to be done once a month
Thermal safety protection	Yes
Water tank	Fill to MAX level, capacity not specified
Maintenance	Clean with a damp cloth, do not immerse
Descaling	Recommended with Taurus Decal product, every 6 to 12 weeks depending on water hardness
Cable length	Not specified
Weight	Not specified
Dimensions	Not specified
Included accessories	User manual
Safety	Use on a flat surface, do not cover, do not use near water
Repairability	To be entrusted to an authorized technical service

Frequently Asked Questions - Arabia TAURUS

How to fill the water tank?

Open the filling spout cap, pour cold water up to the MAX level, then close the cap. Always unplug the appliance before filling the tank.

Which temperature to choose for ironing cotton?

Set the temperature selector to the cotton position. This temperature is also the minimum temperature for steam ironing.

How to use the steam function?

Make sure the tank is full and the selected temperature is adequate. Press the steam button (1) to get steam. You can lock the button for continuous steam.

How to use vertical ironing?

Select the maximum temperature, then move the iron up and down while pressing the steam button. For delicate fabrics, keep the iron a few centimeters away.

How to clean the iron?

Unplug the appliance and let it cool down. Clean the soleplate and housing with a damp cloth. Do not use solvents, abrasive or acidic products. Do not immerse the iron.

How to descale?

Use the Taurus Decal product following the instructions. Fill the water tank, set the maximum temperature, then trigger the self-cleaning function. Perform this operation every 6 to 12 weeks depending on water hardness.

What to do if the iron does not heat up?

Check that the appliance is plugged in and the outlet works. Make sure the temperature selector is not on the MIN position. If the problem persists, contact an authorized technical service.

Can I use tap water?

Yes, but if the water is hard (limescale), it is recommended to use distilled water or to descale regularly to avoid buildup.

How to store the iron after use?

Set the selector to MIN, unplug the appliance, empty the water tank, and let it cool in an upright position before storing.

The iron smokes on first use, is that normal?

Yes, it is normal. Some parts are slightly greased for protection. The smoke will disappear after a few minutes of use.

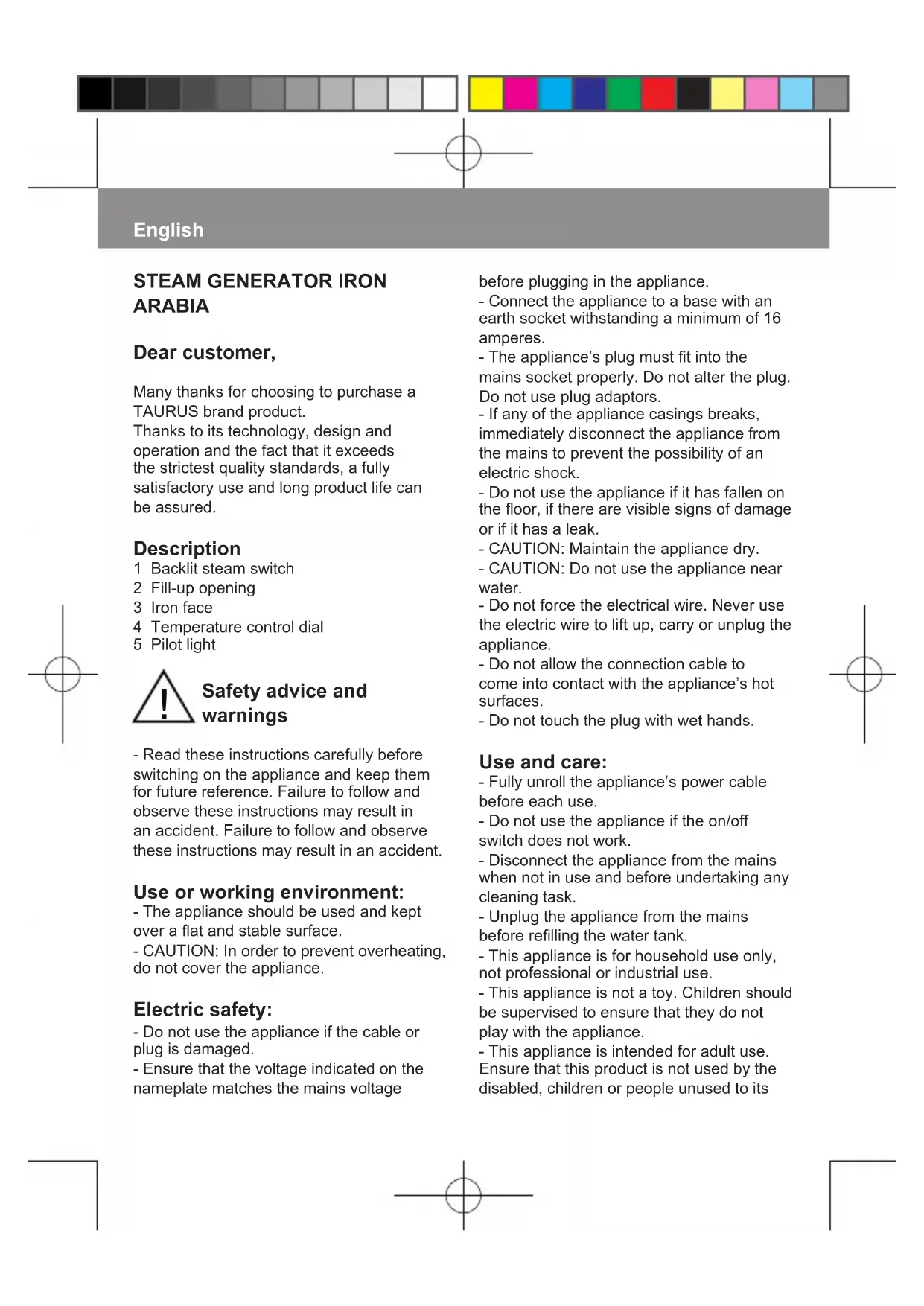

USER MANUAL Arabia TAURUS

Steam generator iron

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Description

1 Backlit steam switch 2 Fill-up opening 3 Iron face 4 Temperature control dial 5 Pilot light

Safety advice and warnings

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident.

Use or working environment:

• The appliance should be used and kept over a flat and stable surface.
• CAUTION: In order to prevent overheating, do not cover the appliance.

Electric safety:

• Do not use the appliance if the cable or plug is damaged.
• Ensure that the voltage indicated on the nameplate matches the mains voltage

before plugging in the appliance.

• Connect the appliance to a base with an earth socket withstanding a minimum of 16 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• CAUTION: Maintain the appliance dry.
• CAUTION: Do not use the appliance near water.
• Do not force the electrical wire. Never use the electric wire to lift up, carry or unplug the appliance.
• Do not allow the connection cable to come into contact with the appliance's hot surfaces.
• Do not touch the plug with wet hands.

Use and care:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if the on/off switch does not work.
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
• Unplug the appliance from the mains before refilling the water tank.
• This appliance is for household use only, not professional or industrial use.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• This appliance is intended for adult use. Ensure that this product is not used by the disabled, children or people unused to its

handling.

• This appliance should be stored out of reach of children and/or the disabled.
• Do not put the appliance away if it is still hot.
• To ensure that the iron functions correctly, keep the iron face smooth and do not hit it against metallic objects (for example, the ironing board, buttons, zips...)
• Only use water with the appliance.
• The use of distilled water is recommended, especially if the water in your area contains any type of grit or is "hard" (contains calcium or magnesium).
• Never leave the appliance unattended while in use.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• Do not use the appliance on any part of the body of a person or animal.
• Turn the thermostat control to the minimum (MIN) setting. This does not mean that the iron is switched off permanently.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Instructions for use

Before use:

• Remove the appliance's protective film.
• Some parts of the appliance have been lightly greased. Consequently, the first time the appliance is used a light smoke may be detected. After a short time, this smoke will disappear.

Filling with water:

• It is essential to have filled the deposit with water to be able to work with steam.
• Open the lid of the filling mouth.
• Fill the compartment with cold water.
• Fill the deposit taking care to observe the MAX level (Fig. 1).
• Close the lid of the filling mouth.

Use:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
• The pilot light (5) comes on.
• Turn the thermostat control to the desired temperature position.
• Do not use temperatures higher than those indicated on the garments to be treated.
• Temperature for synthetic fibres (Polyester, Nylon...).
• Temperature for silk, wool.
• Temperature for cotton. (Minimum temperature for ironing with steam) Max Temperature for linen.
• If garment has various kinds of fibres, select the temperature for the fibre that requires the lowest temperature. (For example, select the temperature for polyester for an article made out of 60% polyester and 40% cotton).
• Wait until the pilot light (5) has gone out which will indicate that the appliance has reached an adequate temperature.

Steam Ironing:

• It is possible to iron with steam whenever the deposit is filled with water and the adequate temperature is selected.
• The appliance has a (1) control that permits lo lock the steam knob and get continuous steam flow.

Vertical steaming

It is possible to iron hanging curtains, items of clothing on his hanger, etc. To do so,

follow the instructions:

• Select the maximum temperature of the iron, while turning the temperature regulator of the iron in a clockwise direction.
• Move the iron in a top to bottom direction while pressing the steam control (1). Important: for cotton and linen, its recommended to put the iron base in contact with the material. For other more delicate fibres, it's recommended to keep the iron base at some centimetres of distance.

Once you have finished using the appliance:

• Select the minimum position (MIN) using the thermostat control.
• Unplug the appliance from the mains.
• Remove the water from the water tank.

Safety thermal protector:

• The appliance has a safety device that protects it from overheating.

Cleaning

• Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.

Self-cleaning function:

• It is important to self-clean the appliance at least once a month to remove calcium and any other built-up minerals inside the iron.
• Fill the depository to its maximum level, as indicated in the "water fill" section.
• Place the iron in a vertical position, plug it into the mains and select the maximum temperature.
• Leave the appliance to heat up until the pilot light indicates that it has reached its set temperature.
• Unplug the appliance and place it in the sink.
• Press the self-clean button and keep it pressed down.
• Let the water flow out through the steam vents in the base, while lightly shaking the appliance.
• Release the button after a minute or when the tank becomes empty.
• Leave the iron in the vertical position until it has cooled.

How to deal with lime scale incrustations:

• For the appliance to work correctly, it should be kept free of lime scale or magnesium incrustations caused by the use of hard water.
• To prevent this kind of problem, we recommend the use of water with low lime or magnesium mineralization.
• However, if it is not possible to use the kind of water recommended above, you should periodically remove the lime scale from the appliance:
• Every 6 weeks if the water is "very hard".
• Every 12 weeks if the water is "hard".
• To do so, we recommend the use of the specific product Taurus Decal, which can be found in specialised shops and authorised technical services.
• A specific anti-lime scale product should be used on this kind of product.
• Homemade solutions are not recommended in the de-scaling of this

appliance, such as the use of vinegar.

Anomalies and repair

• Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.
• If the connection to the mains has been damaged, it must be replaced and you should proceed as you would in the case of damage.

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and

electronic equipment (WEEE). This appliance complies with Directive 2006/95/EC on Low Voltage and Directive 2004/108/EC on Electromagnetic Compatibility.

Steam generator

Dear customer,

Thank you for choosing the TAURUS brand iron for home use. The use of advanced technology, modern design, functionality, as well as compliance with strict quality requirements guarantee you long-term operation of the device.

Description

1 Power button with indicator light 2 Water filling opening 3 Soleplate 4 Thermostat 5 Indicator

Safety recommendations

• Before using the iron, carefully read this instruction and keep it for the entire service life of the device. Failure to comply with safety standards may cause an accident.

Installation recommendations:

• Place the device on a flat and stable surface.
• IMPORTANT: To avoid overheating, do not cover the device.

Electrical safety recommendations:

- Do not use the device if the power cord or plug is damaged.

Electrical supply.

• Before connecting the device to the electrical network, make sure that the voltage in it corresponds to the voltage indicated on the housing. - Before connecting the device to the electrical network, make sure that the socket is rated at least 16A. - The power plug must comply with the socket standard used in your region. It is not recommended to use adapters and change the plug contact.
• If you notice any damage to the appliance body or malfunctions in its operation, immediately disconnect the appliance from the power supply to avoid electric shock and fire. -Do not turn on the appliance if there are visible traces of damage on it.
• IMPORTANT: Store the appliance in a dry place.
• IMPORTANT: Do not use the appliance near water.
• When unplugging the appliance from the outlet, do not pull on the cord. Grasp the plug with your hand and carefully pull it out, holding the outlet with the other hand. Do not lift or move the appliance by the power cord. -Do not allow the power cord to touch the heated parts of the appliance. -Do not touch the plug with wet hands.

Safety recommendations for life and health:

• Before connecting, make sure that the power cord is fully unwound. -Do not use the appliance if its

plug or cord is damaged.

-Unplug the iron from the outlet. Wait until it has completely cooled down before cleaning. -Before filling the water tank, do not forget to disconnect the appliance from the power supply. -This appliance is intended exclusively for household use. It is not allowed to use the iron for industrial or commercial purposes. -This appliance is not a toy. Do not leave the appliance unattended in places accessible to children. -This appliance is intended exclusively for use by adults. Do not allow incapacitated persons or children to use the appliance on their own. -Store the appliance in places inaccessible to children and incapacitated persons. -Before storing the appliance, it must be allowed to cool down. -For proper operation of the appliance, keep the soleplate of the iron in good condition, do not use it on metal objects (for example, on a ironing board, buttons, zippers...). -Do not use the appliance without water. -It is recommended to use distilled water, especially in cases where the water is contaminated or hard (containing lime or minerals). -Do not leave the appliance unattended. -Never leave the appliance plugged into the outlet unattended. In addition to observing safety standards, this will lead to energy savings and extend the service life of the appliance. -Do not use the appliance on parts of the body of living beings.

-To turn off the iron, it is not enough to set the thermostat to the minimum position. It is necessary to unplug the appliance from the outlet. -Any improper use of the appliance or failure to follow the operating instructions releases the manufacturer from warranty obligations for repairs, and also removes responsibility from the manufacturer.

Operating instructions

Before first

use:

• Remove the protective packaging of the appliance.
• Some parts of the appliance may contain residues of insulating material, so after the first switching on, the appliance may smoke. After some time, the smoke will disappear.

Filling with water:

• Before using the steam function, empty the water reservoir. -Open the water filler cap. -Fill the reservoir with cold water.
• Fill the reservoir up to the MAX level (Fig. 1). -Close the cap.

Operation:

-Fully unwind the power cord. -Before switching on the appliance, fully straighten the power cord. -The indicator light (5) will come on.

-Turn the thermostat knob to the required temperature. -For different types of fabric, use only the temperatures indicated on the appliance. Synthetic materials (polyester, nylon...). Silk, wool. Cotton (minimum temperature for ironing).

Max.

• If the garment is made of several types of fabric, select the lowest temperature of these components. (For example, if the garment is made of 60% synthetic and 40% cotton, the setting for synthetic fabrics should be chosen). -Wait until the indicator light (5) goes out. This means that the optimal temperature has been reached.

Steam ironing:

• You can iron with steam if the reservoir is filled and the required temperature is selected. -The appliance is equipped with a handle (1) that allows you to lock the steam button. Thanks to this, continuous steam is provided, and you do not need to press the button all the time.

Vertical ironing

You can iron hanging curtains, clothes directly on the hanger, etc. To do this, follow these steps:

• Select the maximum temperature by turning the thermostat knob clockwise (Fig. x).
• Move the iron from top to bottom with the steam function activated (1).

IMPORTANT: if the iron is used on cotton or linen, it is recommended that the soleplate be in contact with the fabric. For more delicate fabrics, keep the soleplate at a distance of a few centimeters.

After each use:

• Set the minimum temperature (MIN) using the adjustment knob. Disconnect the device from the power supply.
• Drain the water from the reservoir.

Thermal fuse:

Malfunctions and how to fix them

• If you notice a malfunction in the device, contact an authorized service center. Do not attempt to repair the device yourself, as this may be dangerous. - In case of damage to the power cord, do not attempt to replace it yourself; contact an authorized service center.

For products manufactured in the European Union and/or in cases where the country of production has relevant regulations:

Environmental protection

• In accordance with environmental protection requirements, the packaging is made of materials that can be recycled. If you want to dispose of it, you can use special containers intended for each type of material.
• Neither the device itself nor its packaging contains materials that pose a danger to the environment.

This symbol indicates that at the end of the device's useful life, it must not be disposed of in a regular household waste container. Use

special containers or hand it over to a representative of an organization for recycling and processing of electrical and electronic devices (WEEE) (contact your local social center for advice).

This device is manufactured in accordance with the requirements of Directive 2006/95/EC on low voltage and Directive 2004/108/EC on electromagnetic compatibility of electrical devices.

STEAM IRON WITH INTERNAL STEAM GENERATOR ARABIA

Dear customer,

Thank you for choosing a TAURUS brand household appliance. The design, performance and technology of this appliance, as well as the strict quality controls during the manufacturing process, will provide you with complete satisfaction for many years.

Description

1 Illuminated steam button 2 Filling opening 3 Soleplate 4 Temperature control dial 5 Indicator light

Safety tips and warnings

(Maximum temperature for

steam pressure)

Maximum temperature for ironing. - Since the soleplate is made of different fabrics, the temperature corresponding to the fabric must be selected. (For example, for a fabric that is 60% polyester and 40% cotton, the temperature corresponding to polyester must be selected). - Wait until the indicator light (5) turns off, which indicates that the soleplate has reached the appropriate temperature.

Steam ironing:

• Steam ironing is possible when the water tank has water and the selected temperature is adequate.
• The device has a button (1) that allows locking the button for continuous steam without the need to constantly press the steam button.

Vertical steam

With this function you can iron hanging garments, curtains, etc. To do this, proceed as follows:

- Select the maximum temperature of the soleplate by turning the temperature control device clockwise. - Press the steam button (1). NOTE: when ironing with steam, it is recommended to place the soleplate in contact with the fabric; when ironing with other types of fabrics, it is recommended to keep the soleplate at a distance of a few centimeters.

Set the thermostat to minimum (MIN).

• Disconnect it from the power supply. -Drain the water from the reservoir.

Mechanism for automatic shutdown in case of interruption:

• The device is equipped with a protective mechanism that prevents it from any type of interruption.

Cleaning

-Disconnect the device from the power supply before cleaning. -Clean the device with a damp cloth, apply a few drops of detergent, and then dry it. -Do not use solvents or products with acidic or basic pH, such as bleach or abrasive products. -Do not immerse the device in water or other liquids, nor place it under a tap.

2006/95/EC 2004/108/EC 2006/95/EC

-12

Taurus Decal. - 1uJgIeUgIuueuauuua uuuu -11 2345678901234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890

1

• 1s Jb0g E b. 1oJ U2ol j U s p Jp J Jtpo Ujgs. JcJU CgJ G uJ L cJ OJ S

J 1

• 4c0s Uc01 Jc0s 360 4c0s 000

1s jss s uus

J

• jis 1

Eg Ege LpUus.

1JU

• 5g

-1234567890

1

-ε+1.00000000000000000000000000000

-

-（）

1

• 1

1s p 111 111 111 111 111

p^a = ( u₁ - u) ² + 1 .

(1)

Max 1

E

U

-1

16

• 1

Product weight (approximate)

Arabia: N.W.: 1.2 Kgs

G.W.: 1.35 Kgs
