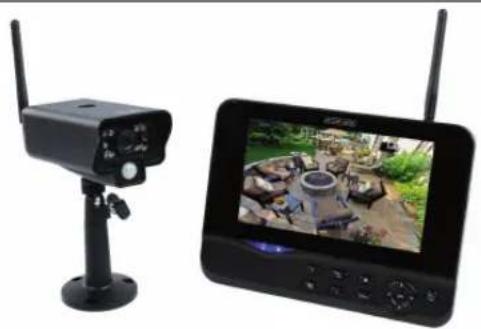

Product Type	Wireless surveillance camera with 7" LCD monitor
Brand	Konig
Model	SECTRCAM40
Camera Dimensions	132 × 64 × 57 mm (without bracket)
Monitor Dimensions	214 × 157 × 26 mm
Camera Weight	287 g (with cable)
Monitor Weight	488 g
Camera Power Supply	5 V DC / 400 mA
Monitor Power Supply	5 V DC / 650 mA
Transmission Frequency	2.4 to 2.4835 GHz (digital)
Range	Indoor ± 50 m, outdoor ± 150 m
Viewing Angle	73°
Night Vision	Yes, infrared LED
Video Resolution	CIF / VGA (max. 800 × 480 pixels)
Storage	SD card up to 32 GB (not included) or USB hard drive
Number of Supported Cameras	Up to 4
PIR Motion Detection	Yes, range 5 m
Microphone	Built-in mono
Protection Rating	IP54
Maintenance	Clean with a dry cloth. Do not use solvents.
Safety	Do not open. Unplug if problems occur. Do not expose to water or moisture.
Spare Parts	Not available separately. Contact a qualified technician.
General Information	Design and features subject to change. Warranty invalid in case of misuse.

Frequently Asked Questions - SECTRCAM40 KONIG

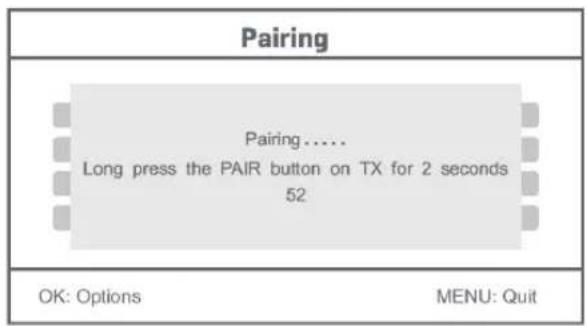

How to pair a new camera with the monitor?

To add a camera, go to the main menu, select Camera then Pairing. Choose a location (C1 to C4) and press and hold the Pairing button on the back of the camera for 2 seconds within 60 seconds. The screen shows PAIRING OK if pairing succeeds. Ensure the camera is within 2 meters of the monitor during the procedure.

What is the maximum range of the system?

The range is approximately 50 meters indoors and 150 meters outdoors under ideal conditions. Obstacles (walls, metal) and interference can reduce this range.

How does PIR motion detection work?

The camera is equipped with a PIR (passive infrared) sensor that detects human movement up to 5 meters. You can activate it in the Alarm or PIR Recording menu to trigger recording or an alarm upon detection.

What type of SD card to use and how to format it?

Use an SD card up to 32 GB (not included). The system requires formatting in FAT32. You can format the card via the menu System > Format SD/USB. It is recommended to format periodically after prolonged use.

How to set the date and time?

In the main menu, go to System then Date and Time. Use the navigation keys to change the values and confirm with OK. This ensures proper timestamps on recordings.

Can I connect an external hard drive?

Yes, you can connect an external hard drive via the USB port of the monitor. Ensure it is formatted in FAT32. The hard drive can be used as the primary storage medium in the Recording Storage menu.

How to activate night vision?

Night vision is automatic: the camera switches to infrared mode when ambient light is low. The IR LEDs turn on to illuminate the scene. No manual adjustment is needed.

What to do if the screen displays 'No Signal'?

Check that the camera is powered (power LED on) and within range. Ensure the camera is paired with the monitor. If the problem persists, bring the camera closer to the monitor and try pairing again.

How to set up scheduled recording?

Go to the main menu, select Recording then Scheduled Recording. Set the start and end times for each day. Recording starts and stops automatically according to this schedule.

How to delete recorded videos?

In Playback mode, select the file or folder to delete using the navigation keys, then press the Delete file (trash) key on the monitor. Note that only empty folders can be deleted.

USER MANUAL SECTRCAM40 KONIG

SEC-TRANS60 SEC-TRCAM40

MANUAL (p. 2)

Wireless Camera System

MODE D'EMPLOI (p. 24)

MANUAL DE USO (p. 57)

Sistema de camaras inalambricas

KÄYTTOOHJE (s. 79)

Langaton kamerajärestelma

NAVOD KPOUZITI(s.100)

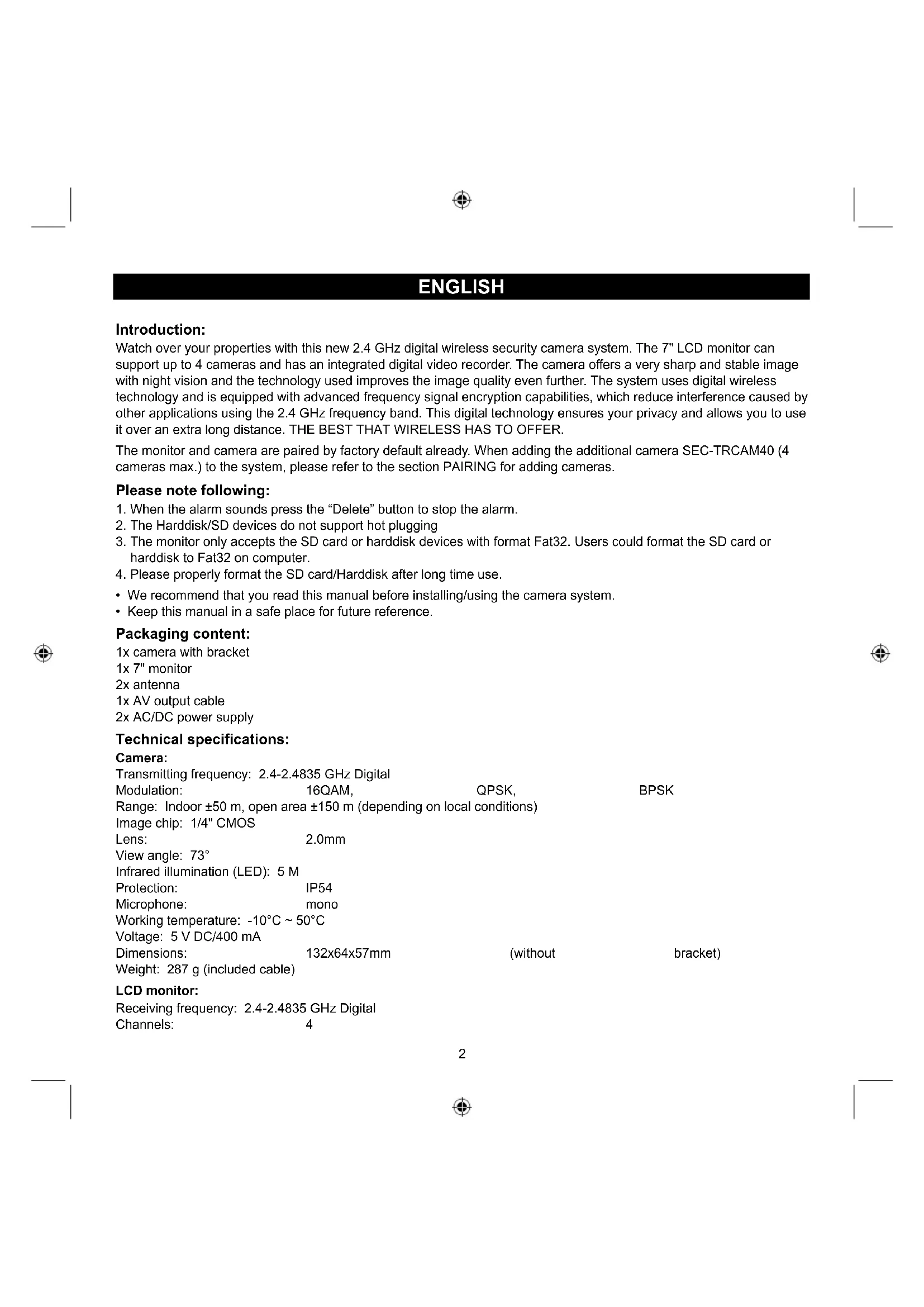

Watch over your properties with this new 2.4 GHz digital wireless security camera system. The 7" LCD monitor can support up to 4 cameras and has an integrated digital video recorder. The camera offers a very sharp and stable image with night vision and the technology used improves the image quality even further. The system uses digital wireless technology and is equipped with advanced frequency signal encryption capabilities, which reduce interference caused by other applications using the 2.4 GHz frequency band. This digital technology ensures your privacy and allows you to use it over an extra long distance. THE BEST THAT WIRELESS HAS TO OFFER.

The monitor and camera are paired by factory default already. When adding the additional camera SEC-TRCAM40 (4 cameras max.) to the system, please refer to the section PAIRING for adding cameras.

Please note following:

1. When the alarm sounds press the "Delete" button to stop the alarm.
2. The Harddisk/SD devices do not support hot plugging
3. The monitor only accepts the SD card or harddisk devices with format Fat32. Users could format the SD card or harddisk to Fat32 on computer.
4. Please properly format the SD card/Harddisk after long time use.
5. We recommend that you read this manual before installing/using the camera system.
6. Keep this manual in a safe place for future reference.

Packaging content:

1x camera with bracket
1x7" monitor
2x antenna
1x AV output cable
2x AC/DC power supply

Technical specifications:

Camera:

Transmitting frequency: 2.4-2.4835 GHz Digital

Modulation: 16QAM,

QPSK,

BPSK

Range: Indoor ± 50m open area ± 150m (depending on local conditions)

Image chip: 1/4" CMOS

Lens: 2.0mm

View angle: 73^

Infrared illumination (LED): 5 M

Protection: IP54

Microphone: mono

Working temperature: -10^ 50^

Voltage: 5 V DC/400 mA

Dimensions: 132x64x57mm

(without

bracket)

Weight: 287 g (included cable)

LCD monitor:

Receiving frequency: 2.4-2.4835 GHz Digital

Channels: 4

Size: 7"

Max. resolution: 800 RGB (H)^*480 (V) pixels

SD card: up to 32 GB (not included)

Video frame rate: 25 fps (max.) 10 fps (4x cameras)

Recording frame rate: 25 fps per channel

Video resolution: CIF/VGA

Video format: AVI

USB: 2.0

Menu language: English, German, French and Dutch

Video output level: 1 Vp-p/75 Ohm

Audio output level: 2Vrms@600ohm mono

Audio/video output connector: 2.5mm jack (2.5mm cable to 3 x RCA included)

Range: Indoor ± 50m open area ± 150m (depending on local conditions)

Operating temperature: 0^ to +40^

Voltage: 5 V DC/650 mA

Dimensions: 214x157x26

Weight: 488g

TFT/LCD

Safety precautions:

• Do not open the camera or monitor in the event of a malfunction. These products should only be opened by a qualified engineer.
• Do not submerge the camera in liquid.
• Do not expose the monitor to water or humidity.
• Do not expose the monitor or camera to high temperatures (see technical specifications).
• Do not install the system close to strong magnetic fields, such as a speaker. This may affect the quality.

Product description:

Camera:

1. Infrared LEDs
2. Lens
3. PIR infrared sensor
4. Microphone
5. Bracket
6. Antenna
7. Pair Button
8. Power Input
9. Antenna Socket
10. Link Indicator
11. Power Indicator

Monitor:

1. Speaker
2. Bracket
3. USB Port
4. SD Card Slot
5. AV Output
6. Power Port
7. Link Indicator
8. Power Indicator
9. Record/stop Video
10. Quarter Display Button
11. Delete file/LCD, TV Switch
12. Menu
13. Antenna
    14.7" TFT-LCD
14. Display Mode
15. Playback Video
16. Power on/off
17. OK Button
18. Navigate Button

Installation instructions:

Camera:

The camera can be mounted in different ways. For ceiling mounting use the screw thread on top of the camera. After mounting the camera connect the AC/DC power supply to the camera and a wall outlet.

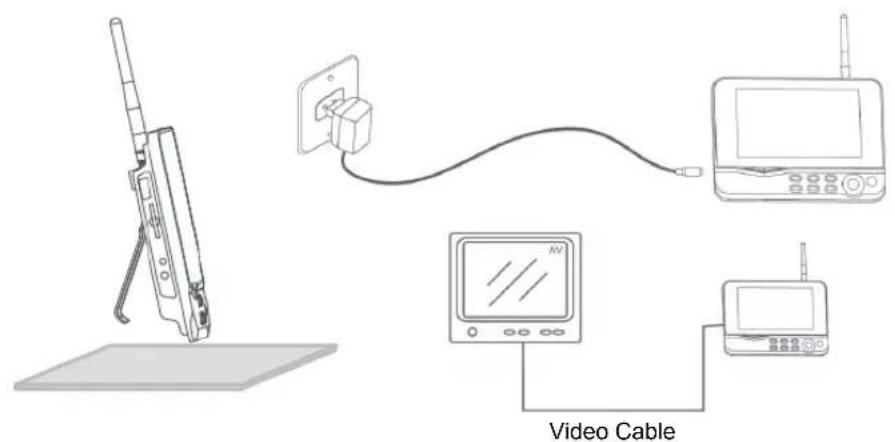

Monitor:

The monitor can be placed on a flat surface or mounted to the wall. After placing the monitor connect the AC/DC power supply to the monitor and a wall outlet. The camera is powered on automatically after connecting the AC/DC power supply. Optional: the monitor can be connected to a monitor with the video output of the monitor.

User instructions:

1. Insert an SD card in the SD card slot of the monitor. Or connect an external hard disk drive to the USB port of the monitor.

1. Press the power on/off button for about 2 seconds to power on the monitor. The power indicator should light up and the picture appear.
2. For systems settings press the menu button to open the main menu. The following screen should appear. Use the navigate, OK and menu buttons to navigate through the menu.

System

1. Press OK to enter the system settings. The system offers the following options:

Date / Time Set the time and date.

Language Set the language.

Record Mode Set to stop recording or overwrite the first video record when the storage medium is full.

Format SD/USB Set to format the storage medium.

Storage for Recording Set the storage medium.

Display Items Set to display RSSI, Time, SD/USB status and camera on the screen and the recorded video.

TV System Select a TV system (PAL for Europe).

System Information Shows the system information.

Scan Mode Period Set the cyclic display interval of the monitoring picture on the camera.

Mute Turns on/off the speaker on the monitor.

Load Default Reset the factory default settings.

Record Date/Time Set to display the current recording time and date on the recorded video.

Brightness Adjust brightness of the picture.

Volume Adjust the volume.

1. Select date/time with the navigate button and press OK to enter the date/time setting.

2. Press the left or right arrow button to select.

3. Press the up or down arrow button to adjust.
4. Press the OK button to confirm.

5. Press the MENU button to exit.

6. Select language with the navigate button and press OK to enter the language setting.

7. Press the down or up arrow button to select language.

8. Press the OK button to confirm and exit.

9. Select record mode with the navigate button and press OK to enter the record mode setting.

10. Press the up or down arrow button to select "Normal" or "Overwrite".

11. Press the OK button to confirm and exit.

Remarks:

Normal: When the SD card or the mobile hard disk is full, the system stops recording automatically.

Overwrite: When the SD card or the mobile hard disk is full, the system automatically deletes the first video and reserves sufficient storage space to guarantee latest recording.

1. Select format SD/USB with the navigate button and press OK to enter the format SD/USB setting.

2. Press the up or down arrow button to select "Cancel", "SD Card" or "USB Device";

3. Cancel: cancels formatting.

4. SD Card: formats the SD card.

5. USB Device: formats the external hard disk drive (if connected)

6. Press the OK button to format:

7. After formatting, the system shows "Format Successfully", indicating that formatting succeeds.

8. Press the OK button to confirm and exit.

9. Select storage for recording with the navigate button and press OK to enter the storage for recording setting.

10. Press the up or down button to select "SD Card" or "USB Device"

11. Press the OK button to confirm and exit.

12. Select display items with the navigate button and press OK to enter the display items setting.

• Press the up or down arrow button to select.

• Click the OK button to confirm the display items in the picture.

• RSSI: Signal intensity icon

• SD USB status: Whether the SD card or mobile hard disk is inserted
• Camera: Camera name icons

After setting, press the MENU button to confirm and exit.

1. Select TV system with the navigate button and press OK to enter the TV system setting.

2. Press the up or down button to select NTSC or PAL (PAL for Europe).

3. Press OK button to confirm and exit.

4. Select system information with the navigate button and press OK to enter the system information setting.

5. Press OK to see the information about the system.

6. Press the menu button to exit.

7. Select system upgrade with the navigate button and press OK to enter the system upgrade setting.

8. Press the up or down arrow button to select.
   Press OK.

9. Press the record/stop video button to confirm.

10. Select scan mode period with the navigate button and press OK to enter the scan mode period setting.

11. Press the up or down arrow button to select the period for scanning the connected cameras.

12. Press the OK button again to confirm and exit.

13. Select mute with the navigate button and press OK to enter the mute setting.

14. Press the up or down arrow button to select "On" or "Off".

15. Press the OK button again to confirm and exit.

16. Select load default with the navigate button and press OK to enter the load default setting.

17. Press the up or down button to select "Cancel" or "OK".

18. Cancel: Cancels option default settings.
19. OK: Resets default settings.

20. Press the OK button to confirm and exit.

21. Select brightness with the navigate button and press OK to enter the brightness setting.

22. Press the left or right arrow button to adjust the brightness.

23. Press the OK button to confirm and exit.

24. Select volume with the navigate button and press OK to enter the volume setting.

25. Press the left or right arrow button to adjust the volume.

26. Press the OK button to confirm and exit.

Note: The volume can also be adjusted with the up or down arrow in live view monitoring.
16. Press menu to return to the main menu.

Record

Press the right arrow button in the main menu to select the record settings and press OK.

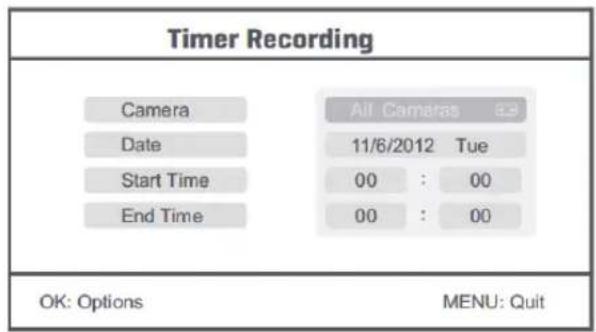

Timer Recording:

Set the recording start/stop time through the "Timer Recording" menu. The device automatically records according to the set start/stop time.

1. Select timer recording with the navigate button and press OK to enter a new schedule setting.

2. Press OK to enter the timer recording menu.

• Press the up or down arrow button to select;
• Press the left or right button to adjust;

• Press the OK button to confirm and exit.

• After setting, the device automatically records according to the set start/stop time.

• If you press the record/stop video button on the device during the recording process, set by timer recording, the recording stops.

Manual Recording:

1. In live view monitoring, press the left and right arrow buttons to select the camera for video recording.
2. Press the record/stop video button on the device. The recording icon is displayed on the screen, indicating that recording is starting.
3. Press the button on the device again to stop recording.

PIR Recording:

PIR Recording: If there is human motion detected by any accessed camera, recording can be triggered.

1. Select PIR recording with the navigate button and press OK to enter the PIR recording setting.

2. Press the up or down button to select the camera.

3. Press the left or right arrow button to select "On".
4. Press the OK button to confirm and exit.

Note: when "Off" is set, the motion detection function is turned off. The infrared sensing distance of PIR is 5m. If the distance exceeds 5m, sensing may fail.

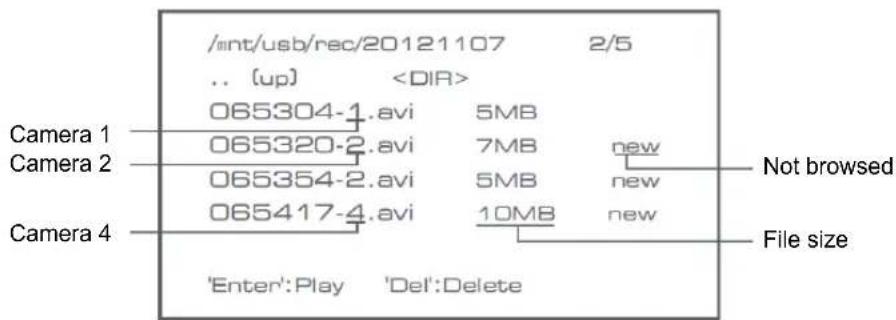

Playback

Press the right arrow button in the main menu to select the playback settings and press OK.

Note: for playback functions it's necessary that an SD card is inserted or an external hard disk drive is connected.

The playback function can also be accessed in live view monitoring by pressing the playback video button.

1. Press the up or down arrow button to select the folder.
2. Press the OK button to confirm and enter.

1. Press the up or down arrow button to select the video file.
2. Press the OK button for playback.

1. Press the left or right arrow button to go backward/forward in fastforward.
2. Press the OK button again to pause.
3. Press the MENU button to quit the playback.

Delete video

In video playback mode, press the up or down arrow button to select the video or video folder to be deleted.

• Press the delete file/LCD button on the monitor to delete it.

Note: only an empty folder can be deleted as folder.

Camera

When adding the additional camera SEC-CAMTR40 (max. 4) the camera needs to be paired to the system for the system to recognize the camera.

Press the right arrow button in the main menu to select the camera settings and press OK.

Pairing:

1. Press OK to enter the pairing menu.
2. Select the camera with the up and down arrow buttons.
3. Press OK, and the following screen will appear.

1. Press the pair button within 60 seconds for 2 seconds on the backside of the camera.
2. After the successful pairing of the camera and the monitor, the monitor shows PAIRING OK.
3. Press the menu button to return to the camera menu.

Note: if pairing fails, retry the above steps and be sure that the monitor and camera are not further away than 2 metres for pairing procedure.

Active:

1. Select active with the down arrow button and press OK.
2. Press the up or down arrow button to select the camera.
3. Press the left or right arrow button to select "On" or "Off".
4. Press the OK button to confirm and exit.

Note: only paired cameras can be set to active or not active. When a camera is set to off, it cannot be seen in live view, recorded, etc.

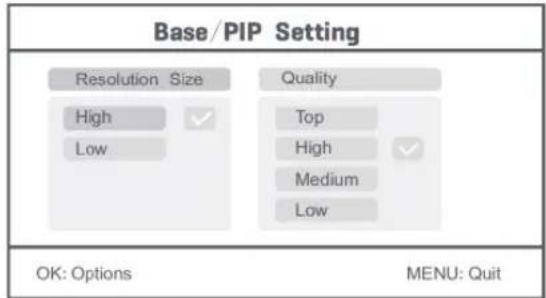

PIP setting:

Set the picture resolution size and recording quality.

1. Select PIP setting with the up and down arrow buttons and press OK.
2. Select the camera with the up and down arrow buttons and press OK. The following screen appears.

1. Press the left or right arrow button to select "Resolution Size" or "Quality".
2. Press the up or down arrow button to select "Top", "High", "Medium" or "Low".
3. Press the OK button to adjust.
4. Press the MENU button to confirm and exit.

Note: the high resolution size is VGA and low is CIF.

Alarm

When PIR detection is set to on, the system will give an alarm when motion is detected.

1. Select alarm in the main menu and press OK.
2. The screen shows PIR detection, press OK.
3. Press "On" or "Off" with the up and down arrow button.
4. Press OK to confirm and exit.

Live view:

Press the quarter display button to select the type of view.

Picture in picture view

Quad view Full screen view

Note: use the left and right arrow button to select a camera

Press the display mode button to enter cyclic mode view. Five cyclic intervals are available: 5s, 10s, 15s, 20s, and 30s and can be set under "System" > Scan Mode Period in the mean menu.

USB	Mobile hard disk inserted successfully
SD	SD card inserted successfully
C1 C2 C3 C4	Camera name
V	Current camera
	Recording status
	Signal intensity

Maintenance:

Clean the camera and the monitor with a dry cloth.

Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

Disclaimer:

Designs and specifications are subject to change without notice. All logos, brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognised as such.

Attention:

• This product is designated for separate collection at an appropriate collection point. Do not dispose of this product with household waste.
• For more information, contact the retailer or the local authority responsible for waste management.

DEUTSCH

Einleitung:

Empfangsfrequency:2,4-2,4835GHz digital

Kanäle: 4

Grosse: 18cm (7")

Specifications techniques :

Camera :

Poids: 287 g (cable inclus)

Ecran LCD :

Delete video (Felvetel(ek) törlese)

PIP setting (Puθμiαn PIP):

Ptei e Tnv avauon Tns EIOvac Kai Tnv TioIOTnEyypaipns.

Spending: 5 V DC/400 mA

Mäl: 132x64x57 mm (uden monteringsbøjle)

Spenning: 5 V DC/650 mA

Dimensjoner: 214 × 157 × 26 ~mm

Vekt: 488g

Forholdsregler for sikkerhet:
