USER MANUAL PCSJ 1043 PROFICOOK

Thank you for selecting our product. We hope that you will enjoy use of the appliance.

Symbols in this user manual

Important notes for your safety are marked distinctively. Pay absolute attention to them to avoid accidents and damage to the device:

WARNING:

Wards of dangers for your health and indicates potential risks of injury.

CAUTION:

Indicates potential dangers for the device or other objects.

NOTE:

Highlights tips and information for you.

Contents

Location of Controls 3
General Notes 36
Special Safety Instructions for this Machine 37
Designated use 37
Supplied parts 38
Unpacking the appliance 38
Description of the Parts 38
Preparations 38
Electric Connection 39
Operation 39
Cleaning 39
Storage 40
Troubleshooting 40
Noise development 40
Technical Data 40
Disposal 41

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
  Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Don't let small children play with foils for danger of suffocation!

Special Safety Instructions for this Machine

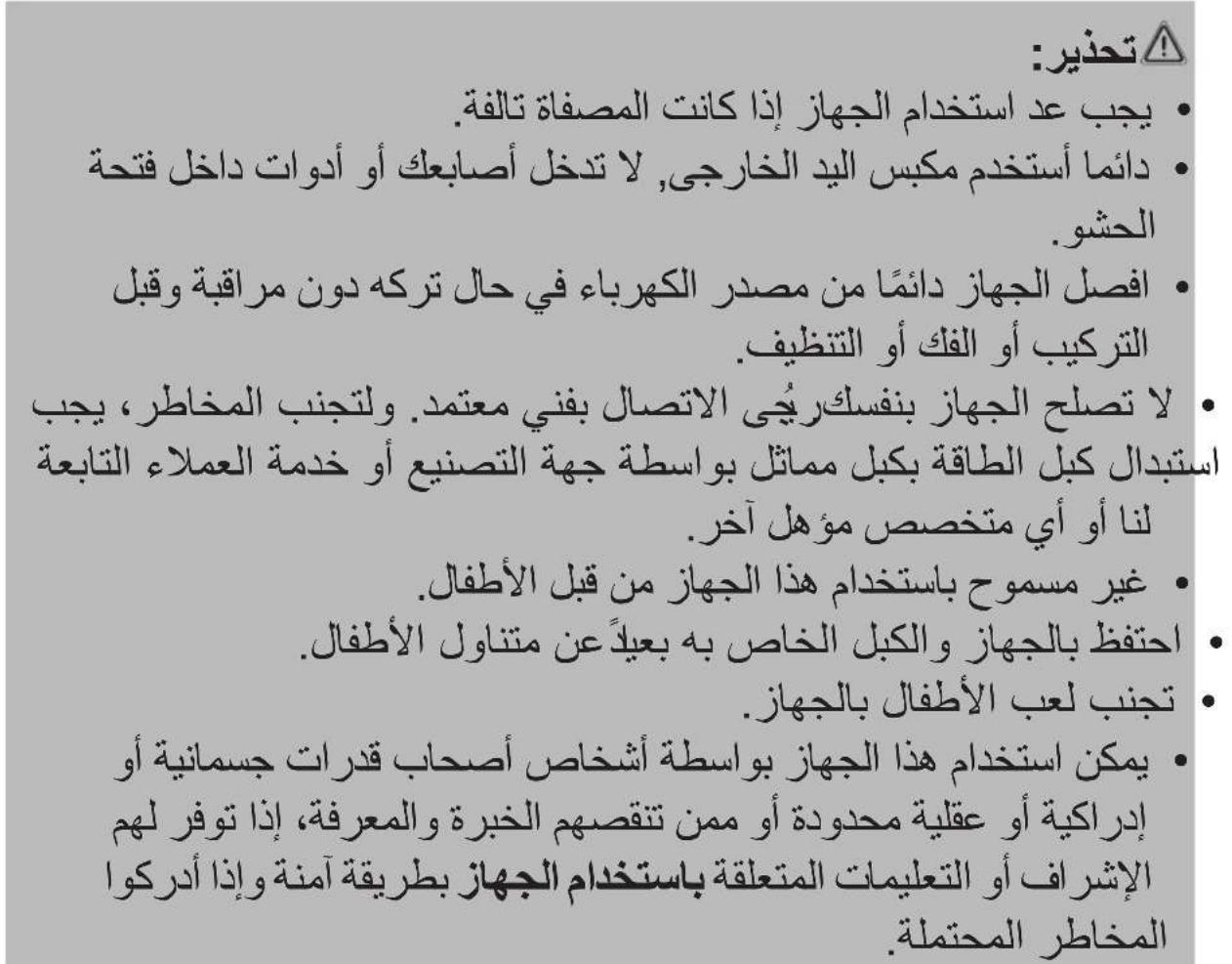

WARNING:

• If the sieve is damaged, the device must not be used.
• Always use the supplied tamper. Do not insert your fingers or tools into the filler opening.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Do not repair the device by yourself. Please contact authorized personnel. In order to avoid hazards, a damaged mains cable must be replaced with an equivalent cable by the manufacturer, our customer service or any other qualified specialist.
• This appliance shall not be used by children.
• Keep the appliance and its cord out of reach of children.
  Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Do not touch any moving parts of the machine and always wait for it to stop.
• Do not manipulate any of the safety switches.
• Do not remove the lid during operation.

Designated use

This devices is used for extracting juice from fresh fruit and vegetables like pineapples, red beet, celery, apples, cucumbers, carrots, spinach, melons, tomatoes, pomegranates, and grapes.

As long as peelings are edible, they also can be processed.

Do not use the device for processing starchy, particularly fibrous and hard foods (such as sugar cane, nuts, ice cubes). The device is not suitable for processing frozen fruits or vegetables.

Any other use shall be considered as not intended use and can lead to material damage or even personal injury.

The manufacturer shall not be liable for damages caused by not intended use.

Supplied parts

1 base device with motor
1 feeder tray
1 screw press
1 sieve
1 rotary scraper
1 transparent container
1 pomace container
1 juice container
1 cleaning brush

Unpacking the appliance

1. Remove the device from its packaging.
2. Remove all packaging materials like foils, filling materials, cable holders, and carton packaging.
3. Check the scope of deliveries for completeness.
4. If there are missing parts or obvious damage, do not use the device. Return it to your retailer immediately.

NOTE:

There may still be dust or production remains on the device. We recommend that you clean the device as described under "Cleaning". Disassemble the device in reverse order as described in the chapter "Preparations".

Description of the Parts

1 Tamper
2 Feeder tray
3 Screw press
4 Sieve
5 Rotary scraper
6 Transparent container
7 Gearwheel
8 Switch
9 Mains cord with mains plug
10 Juice container
11 Base device with motor
12 Pomace container
13 Drive shaft

No illustration: Cleaning brush

Preparations

For assembly, also refer to the illustrations on page 3.

1. Position the device in such a way that the switch is on the right.
2. Attach the container (6) to the base unit and secure the container with a short turn clockwise.

CAUTION:

Make sure the rubber plug is attached to the pulp container outlet (see fig. A). Otherwise the pulp could get into the motor housing and damage the device.

NOTE:

The container can only be fitted according to the illustration on page 3.

1. Place the rotary scraper (5) in the container. Make sure the guide lugs engage into the gearwheel (7).

i NOTE:

During disassembly, the rubber strips might fall off the scraper. Make sure to re-attach them correctly before reassembling the device.

1. Place the sieve (4) in the container. Make sure to align the guide lug of the sieve with the recess in the container. The recess is located opposite the cogwheel.
2. Then attach the screw press (3). Make sure the guide lugs engage into the gearwheel.
3. Put the feeder tray (2) on the container with the marking "▲" on the container and the marking "▼" on the tray being aligned on top of each other. (See left side.)
4. Turn the feeder tray clockwise until it locks.
5. Put the juice container (10) under the juice outlet on the right.
6. Put the pulp container (12) under the pulp outlet on the left.

Electric Connection

• Before inserting the power plug into the outlet, check that the mains voltage to be used matches that of the device. You can find the required information on the nameplate.
• Connect the device only to a correctly installed safety socket.

Operation

Switch settings

ON = Operation

O = Off

R = Reverse operation to eliminate jams

Notes on application

• For best results, use fresh and ripe fruits only.
• Cut the foods into small pieces in order to avoid clogging.
• If the device jams during operation, press and hold the switch (8) at "R" position for approx. 3-5 seconds. If necessary, repeat 2 or 3 times.
• For better efficiency, do not feed the fruits in too fast.
• When squeezing leaf vegetables or wheat-grass, we recommend adding some water at the same time.
• Before juicing, remove inedible skin or pith, such as that of oranges. Also remove the skin of citrus fruits.
• When juicing foods containing hard seeds or stones, these must be removed beforehand.
• When juicing bananas, we recommend to first squeeze some juicy foods or to add some water. The liquid will support the juicing of the bananas.
• When juicing foods of different hardness, always start with the softest food.

Juice extraction

NOTE:

• The device has a safety switch. The motor will not turn on if the feeder tray (2) is not fitted correctly.

NOTE:

• Do not operate the device for more than 10 minutes at a time.

• Clean the fruits or vegetables. Remove hard skin and seeds if present. Then cut the food into small pieces.

• Set the switch to "ON" position. The motor starts.
• Place the fruit into the filler opening and push with the tamper.
• The juice now flows into the juice container. The pulp is collected in the pomace container.

NOTE:

• The juice container has a capacity of 1 liter. Stop the operation in time.
• Empty the pomace container periodically. In order not to impair the performance of the device, do not let it become too full.

Cleaning

WARNING:

• Before cleaning, switch the device off and pull the power plug.
• Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.

For cleaning the outside of the machine use only a damp washing-up cloth. Dry the device afterwards with a cloth.

Tamper, feeder tray, sieve, rotary scraper, container, juice / pulp container

• Clean these components in a rinsing bath.
• There is a rubber plug at the bottom of the container (6) sealing the pulp outlet to the motor housing. You may remove this plug to better clean the pulp outlet.

CAUTION: Do not tear away!

Make sure to securely attach the rubber plug before assembling the device (see fig. A).

• The rubber strips of the scraper can be removed. Slide each end of the rubber strip to the center of the base. Make sure to securely re-attach the strips before reassembling the device.
• Use the cleaning brush to clean the sieve.

CAUTION:

The parts of the device are not dishwasher safe. They could warp or discolor due to the heat and aggressive cleaning agents.

Storage

• Clean the device as described. Let the accessories dry completely.
  We recommend that you store the device in its original packaging when it is not to be used for a longer period.
• Always store the device at a well ventilated and dry place outside the reach of children.

Troubleshooting

Malfunction Possible	cause Remedy
The device does not function.	The device is not supplied with power.	Check the outlet with a different device.
		Insert the power plug correctly.
		Check the mains fuse.
	The feeder tray is not fitted cor-rectly.	Check that all components have been installed correctly.
	The device is defective. Contact	our Service or a specialist.
The juice quantity is small	Wrong fruit type. Select a fruit type producing more juice.
	Too much residue in the sieve.	Clean the sieve.
Loud noise or an unbalance during operation.	Bad assembly. Check that all components have been installed correctly.
	Too much residue in the sieve.	Clean the sieve.
The device jams or cannot be dis-as-sembled.	Some foods are too bulky and became clogged.	Press and hold the switch (8) at “R” position for approx. 3-5 seconds. If necessary, repeat 2 or 3 times.

Noise development

The sound pressure level in the ear of an operator (LpA) was measured according to DIN EN ISO 3744.

Sound pressure level detected: approx. 78 dB(A) (no limit)

Technical Data

Model: PC-SJ 1043

Power supply: 220-240 V~50/60 Hz

Nominal Power consumption: 400 W

Max. power consumption: 500 W

Protection class:

Net weight: approx. 5.40 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations.

Disposal

Meaning of the "Wheelie Bin" Symbol

Take care of our environment, do not dispose of electrical appliances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.
