USER MANUAL MLP61 KENWOOD

HEAD OFFICE: Westwood Limited, 1-3 Westwood Creek Park, New Lane, Harbor, Harbor Rd 709241

kenwoodworklayer

KENWOOD

CREATE MORE

[Unreadable]

BLEND

CLASS

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑰BLP61/BLM61

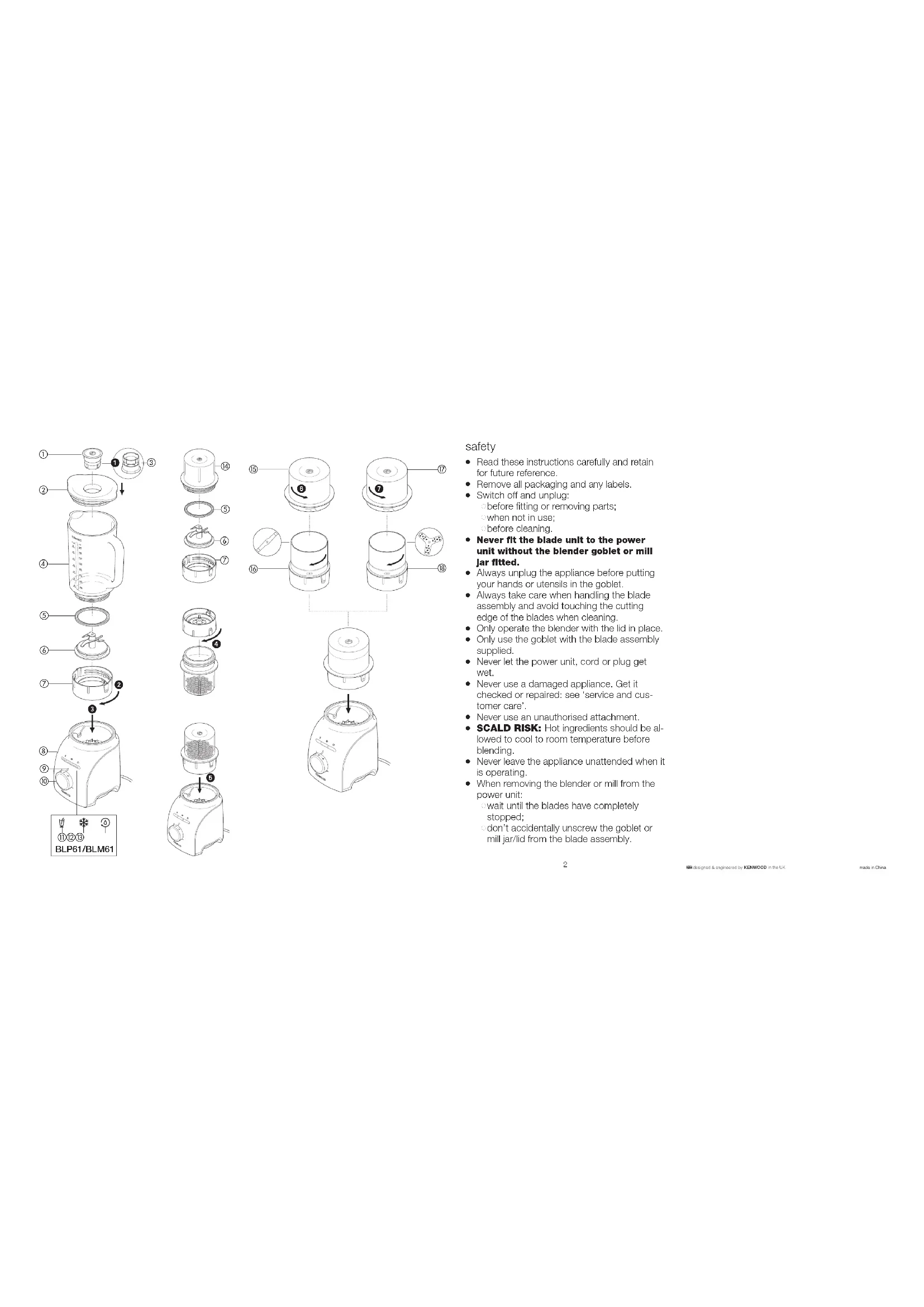

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram showing a multi-step cooking process with labeled components and directional arrows indicating rotation or movement.

safety

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.
• Switch off and unplug:
• before fitting or removing parts;
• when not in use;
• Never fit the blade unit to the power unit without the blender goblet or mill jar fitted.
• Always unplug the appliance before putting your hands or utensils in the goblet.
• Always take care when handling the blade assembly and avoid touching the cutting edge of the blades when cleaning.
• Only operate the blender with the lid in place.
• Only use the goblet with the blade assembly supplied.
• Never let the power unit, cord or plug get wet.
• Never use a damaged appliance. Get it checked or repaired: see 'service and customer care'.
• Never use an unauthorised attachment.
• SCALD RISK: Hot ingredients should be allowed to cool to room temperature before blending.
• Never leave the appliance unattended when it is operating.
• When removing the blender or mill from the power unit:

wait until the blades have completely stopped;

don't accidentally unscrew the goblet or mill jar/lid from the blade assembly.

- Never run the blender empty.

- Never blend more than the maximum capacity stated in the recommended usage chart.

- To ensure long life of your blender or do not run it continuously for longer t 60 seconds.

- Smoothie recipes - never blend frozen ingredients that have formed a solid m during freezing, break it up before addi to the goblet.

- Do not process hard spices such as Nutmeg or Turmeric root as they may damage the blade.

- Do not use the blender as a storage container. Keep it empty before and af use.

- Always use the blender on a secure, level surface.

- Never place this appliance on or near gas or electric burner or where it cou touch a heated appliance.

- This appliance shall not be used by children. Keep the appliance and its co out of reach of children.

- Misuse of your blender can result in ir

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if understand the hazards involved.

- Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject improper use, or failure to comply with these instructions.

- The maximum rating is based on the attachment that draws the greatest load. Other attachments may draw less power

safety

IMPORTANT: HOT BLENDING INSTRUCTIONS

To minimise the possibility of scalding when blending hot ingredients keep hands and other exposed skin away for the lid to prevent possible burns. The following precautions must be observed:

- CAUTION: Blending very hot ingredients may result in hot liquid and steam being forced suddenly past the lid or filler cap ①.

• We recommend that hot ingredients are allowed to cool before blending.

- NEVER exceed 1200ml / 5 cups capacity if processing hot liquids, such soups (refer to the markings on the goblet).

- ALWAYS commence blending at a low speed and gradually increase the speed NEVER blend hot liquids by using the pulse setting.

• Liquids which tend to foam such as should be limited to a maximum capacity of 1000ml/4 cups.
• Take care when handling the blender the goblet and its contents will be ve hot.
• Take particular care when removing the lid. The lid is designed to be a tight prevent leakage. If necessary protect you hands with a cloth or oven gloves which handling.
• Ensure the goblet is securely attached the base and when removing from the appliance, guide the base and ensure removed together with the goblet.
• Ensure that the lid and filler cap are securely in place before every blending operation.
• Always ensure that the vents in the first cap are clear before every blending operation ③.
• When fitting the lid to the goblet always ensure that the lid and goblet rim are clean and dry to ensure a good seal prevent spillage.

before plugging in

● Make sure your electricity supply the same as the one shown on underside of the appliance.
- This appliance conforms to EC directive 2004/108/EC on Electromagnetic Compatibility and EC regulation no. 1935/2004 of 27/10/2004 on materials intended for contact with food.

Use your blender for soups, isdrinks, pâtés, mayonnaise, treadcrumbs, biscuit crumbs, chopping nuts and crushing ice. Use your multi mill (if supplied) for milling herbs, nuts, coffee beans and purées.

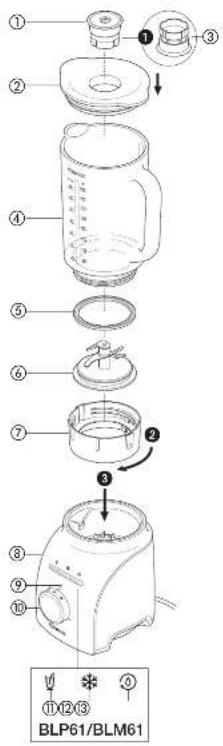

key

①filler cap

②lid

③ vents

④goblet

⑤sealing ring

⑥ blade unit

⑦blade base

⑧power unit

⑨Power On indicator

⑩speed + pulse control

TYPE BLM61 & BLP61 only

Programme buttons

⑪drinks

⑫ice crush

⑬rinse

Multi mill (if supplied)

⑭multi mill jar

grinding mill (if supplied)

⑮mill lid

⑯grinding mill blade assembly

grating mill (if supplied)

⑰mill lid

⑱grating mill blade assembly

to use your blender

1 Fit the sealing ring ⑤ into the blade unit ⑥- ensuring the seal located correctly in the grooved area.

- Leaking will occur if the seal is damaged or incorrectly fitted.

2 Clip the blade unit ⑥ into the ⑦.

3 Screw the blade assembly onto the goblet - ensuring the blade assembly is fully tightened ②. Refer to the graphics on the underside of the blade unit as follows:

- unlocked position

- locked position

4 Put your ingredients into the goblet.

5 Fit the filler cap to the lid and push down to secure.

6 Fit the lid by pushing down until secure.

7 Place the blender onto the power unit ③.

- The appliance will not work if the blender is incorrectly fitted.

8 Plug in and the indicator light will remain unlit whilst in the "O" OFF position.

TYPE BLM60 & BLP60 - Turn the speed control to select a speed (refer to the recommended usage chart).

- Select a speed between 'Min' to 'Max' by turning the speed control. At the end of blending return the speed control to "O" OFF before removing the blender.

- Do not remove the goblet until the blades have stopped rotating and the speed control is in the "O" position.

- (P) Pulse – operates the motor in start/stop action. The pulse will operate for as long as it is held position.

Note: If the blender is removed from the power unit whilst a spec is selected the Indicator light will go out and the blender will stop. The blender will restart immediately if refitted.

TYPE BLM61 & BLP61 only - Turn to the "on" position and the Power On indicator ⑨and the 3 pre-programmed buttons will light up.

Note: In the "on" position the Power On indicator will flash if the goblet is not fitted to the power unit.

In the "O" OFF position all the indicator lights will remain off.

9 Select a speed (refer to the recommended usage chart). Choose one of the following options:

• Select one of the 3 pre-programmed buttons. When the required programme button is pressed the light on the other button will go out. The blender will switch off automatically at the end of the pre-set time. If you wish to stop before the pre-set time, press the selected programme button again.
• Select a speed between 'Min' to 'Max' by turning the speed control. At the end of blending return the speed control to "O" OFF before removing the blender.
• Do not remove the goblet until the blades have stopped rotating and the speed control is in the "O" OFF position.
• (P) Pulse – operates the motor in a start/stop action. The pulse will operate for as long as it is held in position.

Refer to the troubleshooting section if you experience any problems with the operation of the blender.

hints

• To blend dry ingredients - cut into pieces, remove the filler cap, then with the machine running, drop the pieces down one by one. Keep your hand over the opening. For best results empty regularly.
• The processing of spices is not recommended as they may damage the plastic parts.
• When making mayonnaise, put all the ingredients, except the oil, into the blender. Remove the filler cap. Then, with the appliance running, add the oil slowly through the hole in the lid.
• Thick mixtures, e.g. pâtés and dips, may need scraping down. If the mixture is difficult to process, add more liquid.

Recommended Usage Chart (Programme buttons)
Programme Button Items		Usage/Food Max. Programme Recommended Time	Quantity
	Drinks	Cold Liquids Max 1.6 Drinks & Cocktails	litres 60 secs
		Milkshakes and milk Max 1.2 litres based drinks
		Smoothies 1 litre Liquid Place the fresh fruit and liquid ingredients in first (includes yoghurt, milk and fruit juices). Then add ice or frozen ingredients (includes frozen fruit, ice or ice cream)
	Ice A crush	Ice crushing- Automatic 10 ice cubes Pulsing action (200g) change in speed will be noted - this is normal. Freeze fruit juice in ice trays for Slushie type drinks	be 45 secs
	Rinse	A change in speed will be Max 500 mls 30 secs noted - this is normal. warm water Use to rinse the goblet before taking apart for cleaning. For best results always take the blender apart for cleaning and dry thoroughly before re-assembling.

Processing times stated are for guidance only and will vary depending exact recipe used, ingredients being processed and personal preference. Stop the processing when the desired result has been achieved.

Recommended Usage Chart (Manual control)
Usage/Food Recommended Items Quantity		Speed Time
Soups	Stock based soups	1.2 litres Min	Max 30	secs
	Soups using milk 1	litre
	We recommend that hot ingredients are allowed to cool before blending. However should you wish to process hot ingredients please read the Hot Blending Safety instructions.
Drinks	Cold Liquids Drinks & Cocktails	Max 1.6 litres	Max	15 - 30 secs
	Milkshakes and milk based drinks	Max 1.2 litres	Max	15 - 30 secs
	Smoothies Place the fresh fruit and liquid ingredients in first (includes yoghurt, milk and fruit juices). Then add ice or frozen ingredients (includes frozen fruit, ice or ice cream)	1 litre Liquid	Max	30 - 60 secs
Ice	Ice crushing - operate in short bursts until (200g) crushed to the desired consistency	10 ice cubes	Pulse	15 - 20 secs
Mayonnaise		Max 3 egg	mix Max	60 secs
Batter Mix		Max 1 litre	Mid - Max	15 secs
Vegetable Purees/Baby food		300g	Min - Mid	30 - 60 secs
Fruit Purees		200 - 500g	Max	30 secs

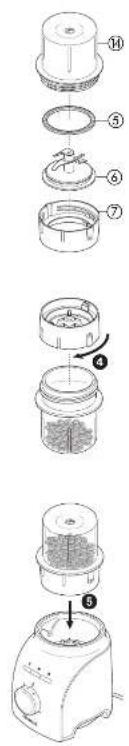

to use your multi mill

(if supplied)

Use your multi mill for milling herbs, nuts, coffee beans and purees.

5 Place the mill onto the power un

6 Select a speed or use the pulse control.

1 Put your ingredients into the Fill it no more than half full.

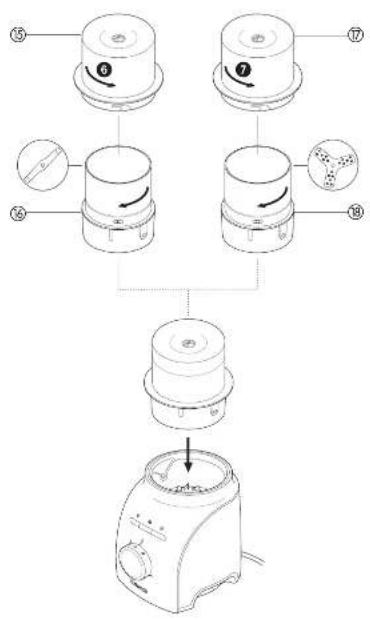

to use your grinding

2 Fit the blender sealing ring (the blender blade unit ⑥-ensuring the seal is located correctly in the grooved area.

mill (if supplied)

- Ensure that the seal is fitted correctly.

Suitable for grinding spices, coffee beans and processing ginger, garlic and chillies.

3 Clip the blade ⑥ into the base ⑦.

1 Place your ingredients into the blade assembly ^16 .

4 Turn the blade ⑥nipside down. Lower it into the jar, blades down and turn to lock - ensuring the blade assembly is fully tightened ④. Refer to the graphics

Fit the ⑬ and turn to lock ⑥. Place the mill onto the power un Select a speed or use the pulse P) control.

on the underside of the blade unit as follows:

to use your grating mill

(if supplied)

Suitable for grating parmesan cheese, nutmeg, coconut and dried fruit.

1 Place your ingredients into the blade assembly ^18 .
2 Fit the land turn to lock
3 Place the mill onto the power unit.
4 Select a speed or use the pulse (P) control.

mill recommended speed chart
ingredients mill max	qty speed operating			time
Herbs - best chopped when clean and dry	Multi 15g MAX 5 -		10 secs
Nuts Multi or Grinding	50g MAX 10	- 15 secs
Coffee Beans Multi or	Grinding 50g	MAX	30 secs
Baby Foods & Purees	Multi 50g MAX 30 secs
Lean beef, cut into 2.5 cm cubes	Multi 70g MAX 5 secs
Spices - such as black peppercorns, cardamom seeds, cumin seeds, coriander seeds, fennel seeds, whole cloves etc.		50g MAX		30 - 60
Chillies	Grinding	30g MAX		10 secs
Fresh Root Ginger	Grinding	30g MAX		10 secs
Garlic	Grinding	4 cloves MAX		10 secs
Parmesan Cheese - cut Grating 60g into 1cm cubes		MAX	10 secs
Dried Fruit	Grating 50g MAX 10 secs
Coconut	Grating 50g MAX 20 secs
Nutmeg	Grating	2	MAX	40 secs

secs

hints

care and cleaning

- For optimum performance when processing spices we recommend that you do not process more 50g at a time in the mill.

● Whole spices retain their flavour for a much longer time than ground spices so it is best to a small quantity fresh at a tim retain the flavour.

● Always switch off, unplug and that dismantle before cleaning.
● Empty the goblet before unscrewing it from the blade unit.
- Do not immerse the blade unit in greater.
● The goblet can be washed in you dishwasher.

● To release the maximum flavour and essential oils whole spices best roasted prior to milling.

power unit

are Wipe with a damp cloth, then dry
- Do not immerse the power unit in water.

- Baby food/purees - allow cooked food to cool to room temperature before processing in the mill.

blade assemblies blender and multi mill

- Remove the blade unit from the goblet or mill by turning to the unlock position to release.

grinding and grating mills

- Remove the lid from the blade assembly.

1 blender/multi mill: remove and wash the sealing ring.

2 Don't touch the sharp blades - brush them clean using hot soap water, then rinse thoroughly under the tap. Don't immerse the blade unit in water.

3 Leave to dry upside down.

other parts

Wash by hand, then dry.

service and customer care

- If the cord is damaged it must safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste.

It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent

materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

If you experience any problems with the operation of the blender, before calling for assistance refer to the troubleshooting guide.

If you need help with:

• using your appliance or

• servicing or repairs

- Contact the shop where you bought your appliance.

- Designed and engineered by Kenwood in the UK.

• Made in China.

troubleshooting guide

Problem Cause Solution
The Blender will not No Power/Power On Check blender operate. Light not illuminated. plugged in. Blender not assembled correctly. fully tightened	Check blender to the goblet.
Power On Light flashing slowly. been left plugged (BLP61/BLM61 only)	The blender has Turn the speed in and control to the in the ‘on’ position for “O” OFF position, more than 15 minutes and has gone into standby mode.	wait 5 seconds and then turn to “on” to reset.
BLP61/BLM61 Blender not operating but Power On and programme button lights on.	Goblet fitted and speed control turned to “on” but speed or programme not selected.	Either select a speed manually or press one of the programme buttons.
Power on light flashing rapidly (BLP61/BLM61 only)	The goblet is removed from the power unit without turning the speed control to “O” OFF.	Turn the speed control to “O” OFF and reselect a speed.
Programme buttons not operating	Programme buttons will not operate unless the speed control is turned to the “on” position first.	Turn the speed control to “on” select the required programme.
Blender leaking from blade assembly.	Seal missing.Seal incorrectly fitted.Seal damaged.	Check seal is fitted correctly and not damaged. To obtain a replacement seal see “service & customer care”.
Blender seal missing from blade unit when removed from packaging.	The seal is packed pre-fitted to the blade unit.	Unscrew goblet and check that seal is fitted to blade unit. To obtain a replacement seal see “service & customer care”.
If none of the above solve the problem see “Service & Customer Care
