Product Type	Stand Blender
Model Number	kMix BLX51
Brand	Kenwood
Power Consumption	800 W
Voltage	220-240 V
Frequency	50/60 Hz
Jug Capacity	1.5 L
Jug Material	Glass
Blade Material	Stainless Steel
Speed Settings	2 Speed + Pulse
Functions	Blending, Crushing Ice, Smoothies, Soups
Safety Features	Safety Lock Lid, Non-Slip Feet
Dimensions (H x W x D)	40 x 18 x 18 cm
Weight	3.2 kg
Cord Length	1.0 m
Dishwasher Safe Parts	Jug, Lid, Blade Assembly (top rack)
Spare Parts Availability	Jug, Lid, Blade Assembly, Seals
Repairability Index	7.0 / 10

Frequently Asked Questions - kMix BLX51 KENWOOD

How do I clean the Kenwood kMix BLX51 blender?

After use, rinse the jug with warm soapy water. The jug, lid, and blade assembly can be washed on the top rack of the dishwasher. Wipe the motor base with a damp cloth. Do not immerse the base in water.

Can I crush ice with this blender?

Yes, the kMix BLX51 is designed for crushing ice. Use the pulse function for best results. Always ensure the jug is not overloaded.

What is the maximum capacity for blending hot liquids?

When blending hot liquids, do not fill the jug beyond the 1 L mark to avoid pressure build-up. Always start at low speed and gradually increase.

Why does the blender stop working mid-use?

The blender may stop due to overheating protection. Let it cool for 15 minutes before resuming. Also check that the lid is properly locked.

Can I use the blender to make dough?

No, this blender is not suitable for dough mixing. Use only for blending liquids and soft ingredients.

How do I replace the blade assembly?

To replace the blade assembly, unscrew the sealing ring from the jug base. Remove the old blade assembly and insert a new one, then tighten the sealing ring. Ensure the seal is properly seated to avoid leaks.

Is the blender jar microwave-safe?

No, the glass jar is not microwave-safe. Do not place the jar in a microwave oven.

What should I do if the lid leaks while blending?

Check that the lid is securely locked and the seal is not worn. If the seal is damaged, replace it with a spare part. Avoid overfilling.

Can I blend frozen fruit without liquid?

It is recommended to add some liquid (milk, juice, or water) when blending frozen fruit to help the blades move. Pure frozen fruit may cause the blender to stall.

Where can I find spare parts for the kMix BLX51?

Spare parts are available from Kenwood authorized dealers or online. Refer to the spare parts list in the manual for part numbers.

USER MANUAL kMix BLX51 KENWOOD

BLX50 series, BLX60 series TYPE BLX5

instructions

istruzioni

instrucciones

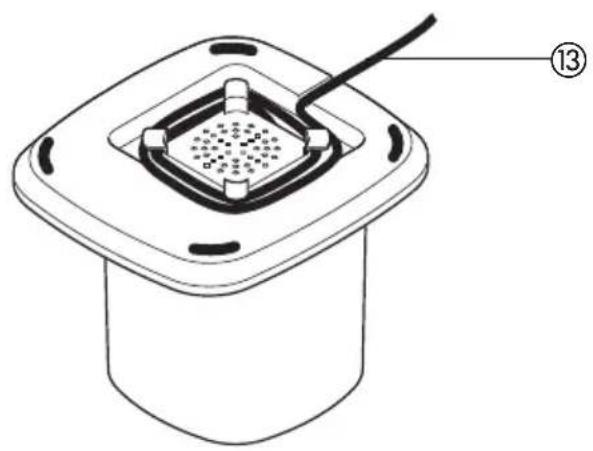

Technical line drawing of a mechanical component with a base and mounting base, showing internal structure and a labeled section (13), no text or symbols present.

safety

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.
• Switch off and unplug:

- before fitting or removing parts;

○when not in use;

○ before cleaning.

• Always unplug the appliance before putting your hands or utensils in the goblet.
• Always take care when handling the blade assembly and avoid touching the cutting edge of the blades when cleaning.
• Only operate the blender with the lid in place.
• Only use the goblet with the blade assembly supplied.
• Never let the power unit, cord or plug get wet.
• Never use a damaged appliance. Get it checked or repaired: see ‘service and customer care’.
• Never use an unauthorised attachment.
• Never fit the blade unit to the power unit without the blender goblet fitted.
• SCALD RISK: Hot ingredients should be allowed to cool to room temperature before blending.
• Never leave the appliance unattended when it is operating.
• When removing the blender from the power unit:

- wait until the blades have completely stopped;

- don't accidentally unscrew the goblet from the blade assembly.

• Never run the blender empty.
• Never blend more than the maximum capacity stated in the recommended function selector chart.
• To ensure long life of your blender, do not run it for longer than 60 seconds.

• Smoothie recipes - never blend frozen ingredients that have formed a solid mass during freezing, break it up before adding to the goblet.

• Don't use the blender as a storage container. Keep it empty before and after use.
  • Always use the blender on a secure, dry level surface.

• Never place this appliance on or near a hot gas or electric burner or where it could touch a heated appliance.
• Misuse of your blender can result in injury.
  • Always unplug your appliance after use.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

before plugging in

• Make sure your electricity supply is the same as the one shown on the underside of the appliance.
• This appliance conforms to EC directive 2004/108/EC on Electromagnetic Compatibility and EC regulation no. 1935/2004 of 27/10/2004 on materials intended for contact with food.

before using for the first time

- Wash the parts: see ‘care and cleaning’.

Use your blender for soups, drinks, pâtés, mayonnaise, breadcrumbs, biscuit crumbs, chopping nuts and crushing ice.

key

①filler cap
②lid
③lid seal
④goblet
⑤sealing ring
⑥blade unit
⑦base
⑧power unit
⑨“ready to use” indicator light
⑩function selector
⑪pulse button
⑫on/off button
⑬cord storage

to use your blender

1 Fit the sealing ring ⑤ into the blade unit ⑥ - ensuring the seal is located correctly.

- Leaking will occur if the seal is damaged or incorrectly fitted.

2 Clip the blade unit ⑥ into the base ⑦.

3 Screw the goblet onto the blade assembly in a clockwise direction - ensuring that the blade assembly is fully tightened.

4 Put your ingredients into the goblet.

5 Clip the lid seal onto the underside of the lid.

6 Fit the filler cap to the lid.

7 Fit the lid by pushing down until secure.

8 Place the blender onto the power unit.

- The appliance won't work if the blender is incorrectly fitted.

9 Plug in and the “ready to use” light ⑨ will come on to indicate that the blender is interlocked correctly and ready to use. If the “ready to use” light is off the blender is either not fitted or not interlocked correctly to the power unit.

10Select a speed (refer to the function selector chart).

hints

- To blend dry ingredients - cut into pieces, remove the filler cap, then with the machine running, drop the pieces down one by one. Keep your hand over the opening. For best results empty regularly.

- The processing of spices is not recommended as they may damage the plastic parts.

- When making mayonnaise, put all the ingredients, except the oil, into the blender. Remove the filler cap. Then, with the appliance running, add the oil slowly through the hole in the lid.

- Thick mixtures, e.g. pâtés and dips, may need scraping down. If the mixture is difficult to process, add more liquid.

function selector chart
pre-program setting	usage max qty
	Drinks and thick mixes ie pâtés 1.6 litres
	Frothing milk 800 mls
	Smoothie drinks 1 litre liquidPlace the fresh fruit and liquid ingredients in first (includes yoghurt, milk and fruit juices).Then add ice or frozen ingredients (includes frozen fruit, ice or ice cream)
	All types of soup mixes 1.6 litresLiquids should be allowed to cool to room temperature before blending.
	Dips, fruit and vegetable purées (add liquid if difficult to process).Chopping e.g. nuts, breadcrumbs and biscuit crumbs etc.
	Mayonnaise 3 eggs	450 mls oil
	Ice Crushing 12 cubesAutomatic pulsing action

care and cleaning

● Always switch off, unplug and dismantle before cleaning.
● Empty the goblet before unscrewing it from the blade unit.

power unit

• Wipe with a damp cloth, then dry.
• Don't immerse the power unit in water.
• Wrap excess cord around the bottom of the power unit ⑬.

blade assembly

1 Unscrew the base from the goblet in an anticlockwise direction.
2 Remove the blade unit from out of the base by pushing up from underneath.

- Care should be taken when removing the blade unit from the base.

3 Remove and wash the sealing ring.
4 Don't touch the sharp blades – brush them clean using hot soapy water, then rinse thoroughly under the tap. Don't immerse the blade unit in water.

5 Leave to dry upside down.

lid

• Remove the lid by pushing the tab up ③.
• Unclip the seal before cleaning the lid ①.
• Wash both parts by hand, then dry.

other parts

Wash by hand, then dry.

service and customer care

- If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.

If you need help with:

• using your appliance or
• servicing, spare parts or repairs
- Contact the shop where you bought your appliance.

- Designed and engineered by Kenwood in the UK.

- Made in China.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste.

It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
