Product type	Dehumidifier
Brand	Qlima
Model	D 109
Dimensions (W x D x H)	340 x 245 x 575 mm
Net weight	9 kg
Power supply	220-240 V ~ 50 Hz, 0.18 kW
Dehumidification capacity (32°C, 80% RH)	10 L/24h
Dehumidification capacity (27°C, 60% RH)	5.2 L/24h
Water tank capacity	2.4 L
Refrigerant	R134a, 130 g
Operating temperature range	5 °C to 32 °C
Automatic defrost	Yes
Integrated hygrostat	Yes, adjustable
Compressor type	Rotary
Noise level	40 dB(A)
Recommended room area	40 to 60 m³ (volume)
Continuous drainage	Yes (hose Ø 13 mm, not included)
Air filter	Washable, clean every 2 weeks
Auto shut-off when tank full	Yes, with indicator light
Carrying handle	Yes
Warranty	2 years

Frequently Asked Questions - D 109 QLIMA

How to set the desired humidity level?

Turn the hygrostat knob to the desired position. The 'NORMAL' position corresponds to about 50% relative humidity. For continuous operation, set it to 'MAX'.

What to do if the tank full indicator lights up?

The water tank is full. Empty it and place it back correctly into the appliance. The dehumidifier will restart automatically.

How to use continuous water drainage?

Unscrew the cap at the back, remove the rubber plug, connect a drainage hose Ø 13 mm (not included) to the connector. Make sure the hose slopes downwards to a drain.

How often should I clean the air filter?

Every two weeks. Remove the filter, clean it with a vacuum cleaner or water, dry it thoroughly and put it back. Never use the appliance without a filter.

Why won't the appliance turn on?

Check that the appliance is plugged in, the water tank is properly placed, and the set humidity level is not already reached. If the tank full indicator is on, empty the tank.

The dehumidifier doesn't dehumidify enough, what to do?

Check that the filter is clean, the ambient temperature is between 5 and 32 °C, and the room is not too large. Close windows and doors to limit ventilation.

What is the noise level of the appliance?

The sound pressure level is 40 dB(A), which corresponds to quiet operation comparable to a low conversation.

Where to place the dehumidifier?

Place it on a flat, stable surface, away from radiators and heat sources, in a closed room. Do not use in a bathroom or near water splashes.

Can I use an extension cord?

No, never plug the appliance into an extension cord. Use a grounded power outlet.

What to do if the appliance freezes?

The appliance is equipped with automatic defrost. If frost appears, it will start automatically to defrost. Otherwise, turn off the appliance and let it thaw at room temperature.

USER MANUAL D 109 QLIMA

Congratulations with the purchase of your dehumidifier. You have acquired a high quality product which will give you many years of pleasure, if you use it responsibly. Please read the user's manual first in order to ensure the optimum life span of your dehumidifier. On behalf of the manufacturer, we provide a two-year warranty on material- or manufacturing defects.

Enjoy your dehumidifier.

Yours sincerely,

PVG Holding B.V.

Customer Service Department

1 PLEASE READ THE USER'S MANUAL FIRST.

2 IF YOU HAVE ANY DOUBTS, CONSULT YOUR DEALER.

GB

54

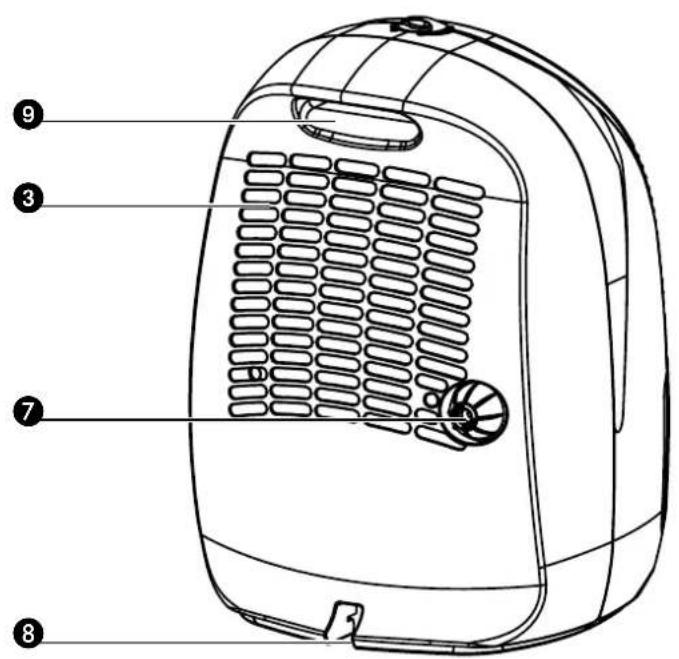

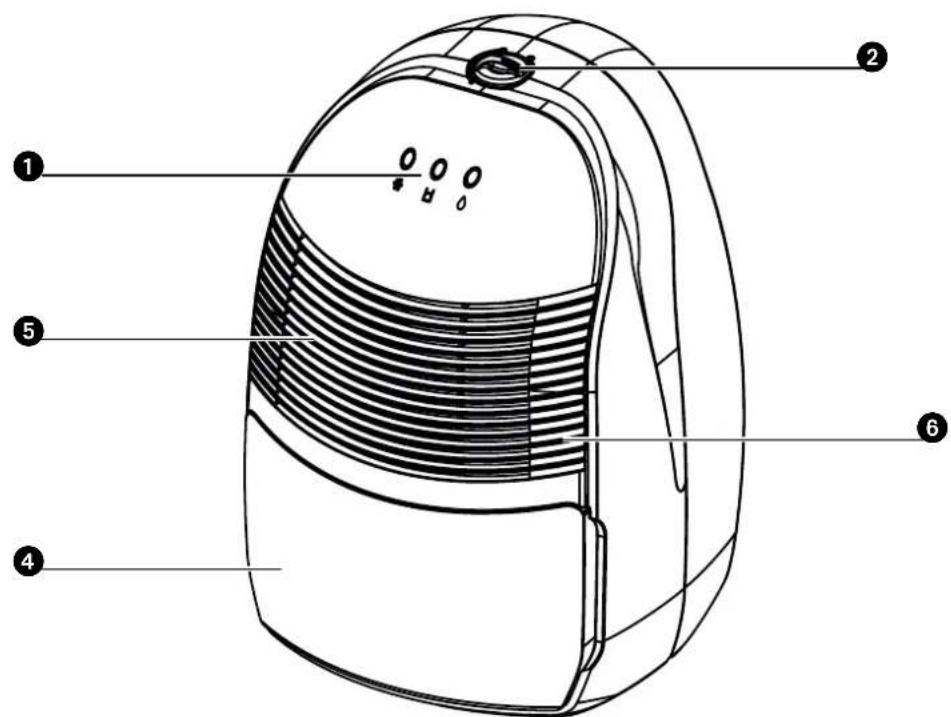

IMPORTANT COMPONENTS

Control panel, adjustment button/hygrostat, dry air outlet, removable water container, humid air inlet, air filter, drain spout (Ø13 mm) with cap, plug and cord, handle.

SAFETY INSTRUCTIONS

Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards. This product is intended to be used as a dehumidifier in residential houses and is only suitable for use in dry locations, in normal household conditions, indoors in living room, kitchen and garage. This unit is only suitable for earthed sockets, connection voltage 220-240 V. / ~50 Hz.

GENERAL

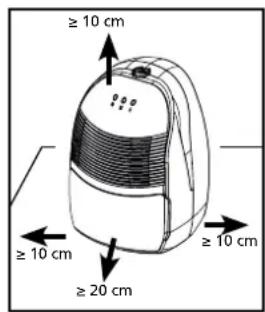

• To obtain optimum performance from your dehumidifier, do not place it near a radiator or any other heat source.
• Ensure that all windows are closed in order to achieve maximum efficiency.
• The capacity of the dehumidifier depends on the temperature and humidity in the room. At lower temperatures, less moisture will be removed.
• Ensure that the screen filter is kept clean. This prevents unnecessary power consumption and guarantees optimum efficiency.
• If the power supply has been interrupted, the dehumidifier will restart after three minutes. The automatic delay protects the compressor.

IMPORTANT

The device MUST always have an earthed connection. If the power supply is not earthed, you may not connect the unit. The plug must always be easily accessible when the unit is connected. Read these instructions carefully and follow the instructions.

Before connecting the unit, check the following:

• The voltage supply must correspond with the mains voltage stated on the rating label.
• The socket and power supply must be suitable for the current stated on the rating label.
• The plug on the cable of the device must fit into the wall socket.
• The device must be placed on a flat and stable surface.

The electricity supply to the device must be checked by a recognised professional if you have any doubts regarding the compatibility.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This device is manufactured according to CE safety standards. Nevertheless, you must take care, as with any other electrical device.
• Do not cover the air inlet and outlet grill.
• Empty the water reservoir before moving the unit.
• Never allow the device to come into contact with chemicals.
• Never submerge the unit in water.
• Do not insert objects into the openings of the unit.
• Always remove the plug from the electric power supply before cleaning or replacing the unit or components of the unit.
• Never use an extension cable to connect the

device to the electric power supply. If there is no suitable, earthed wall socket available, have one installed by a recognised electrician.

• Children should be supervised to ensure that they do not play with the appliance.
• Have any repairs only carried out by a recognised service engineer or your supplier. Follow the instructions for use and maintenance as indicated in the user manual of this device.
• Always remove the plug of the unit from the wall socket when it is not in use.
• If the power cable is damaged it must be replaced by the manufacturer, its customer service department or persons with comparable qualifications in order to prevent danger.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

ATTENTION!

• Never use the device with a damaged power cord, plug, cabinet or control panel. Never trap the power cord or allow it to come into contact with sharp edges.
• Failing to follow the instructions may lead to nullification of the guarantee on this device.
• Do not place the dehumidifier in bathrooms or in other places where it is likely that water could be sprayed on the dehumidifier.

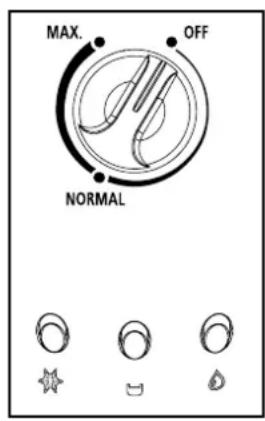

CONTROL LIGHTS ON THE CONTROL PANEL

This light indicates that the defrost function has been activated. This is necessary to prevent excessive formation of ice in the device.

This light indicates that the water container is full. The device switches off automatically.

The device is in operation when this light is on.

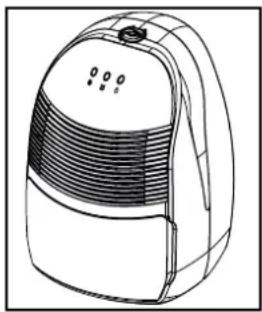

OPERATION

1. Ensure that the hygrostat is in the OFF position before inserting the plug into the wall outlet. 2. Ensure that the water container has been positioned correctly. If the light switches on when you use the device for the first time, remove the water container from the device and replace it in the correct position. 3. Turn the hygrostat to the desired position. The hygrostat is continuously adjustable. Set the hygrostat to 'NORMAL', which produces a relative humidity of approximately 50% and provides a comfortable living environment.

The device starts to dehumidify when the relative humidity in the room is higher than the set value.

The device switches off automatically when the set value is reached, and restarts when the humidity in the room rises again.

Setting the hygrostat to the 'MAX.' position keeps the device in continuous operation.

Turn the adjustment button to the 'OFF' position to turn the device off.

WATER DRAINAGE

When the water container is full, the light switches on and the dehumidifier switches off automatically. Empty the container and replace it in the correct position. The device will restart.

If desired, it is possible to connect a drainage hose to the device for permanent water drainage. Follow these steps:

1 Unscrew the cap on the back. 2 Remove the rubber stop from the drainage spout.

3 Connect the drainage hose and ensure that the end of the hose is lower than the spout, otherwise the water will not drain and flooding may occur. Place the end of the drainage hose in a water outlet.

When you no longer wish to use the permanent water drainage, disconnect the drainage hose from the device. Push the rubber stop back into the drainage spout and replace the cap. Ensure that the water container is positioned correctly.

CLEANING

Switch the dehumidifier off and remove the plug from the socket before cleaning.

THE EXTERIOR

Clean the exterior with a soft, dry cloth. If the device is extremely dirty, use a mild cleaning agent. Wipe the device with a slightly damp cloth. Never spray the device with water.

THE AIR FILTER

When used regularly, the filter may become clogged with dust and particles. Therefore the filter should be cleaned every two weeks. Follow these steps:

1 Remove the water container from the device. Tilt the device backwards a little and remove the filter. 2 Clean the filter with a vacuum cleaner or with water. Dry the filter and replace it. Ensure that the filter is completely dry. Replace the water container.

Never use the device without the air filter.

STORAGE

If the machine will not be used for a long period of time, take the following steps:

1 Remove the plug from the socket and empty the container. Allow the container and the dehumidifier to dry completely. 2 Clean the air filter. 3 Store the device in a dust-free location, preferably covered with a sheet of plastic.

TROUBLESHOOTING

Check the following before contacting technical support:

Problem Cause Solution
The unit does not work.	The powercord is not connect- ed.	Insert the plug into the wall outlet.
	The required humidity setting is too high.	Turn the required humidity to a lower desired setting.
	The water container is full. Remove the water from the container.
	The water container has not been replaced correctly.	Place the water container in the correct position.
The device does not dehumidify.	The air filter is clogged. Clean the air filter.
	The temperature or relative humidity in the room where the device is operating is too low.	It is normal that the device does not dehumidify in these conditions.
The dehumidifier works, but reduces the relative humidity insufficiently.	The room is too large. We recommend using a dehumidifier with a greater capacity.
	There are too many sources of humidity.	We recommend using a dehumidifier with a greater capacity.
	There is too much ventilation. Reduce ventilation (e.g. close curtains and shut doors).

CONDITIONS OF WARRANTY

There is a two-year warranty on your dehumidifier from the date of purchase. All material or manufacturing defects will be repaired free of charge.

The following applies:

• All claims for compensation, including consequential damage, will not be entertained.
• Any repairs or replacement of components during the warranty period will not result in an extension of the warranty period.
• The warranty will expire if any alterations have been made, not genuine components have been fitted or if the dehumidifier has been repaired by a third party.
• Components subject to normal wear and tear, such as the air filter, are not covered by the warranty.
• The warranty is only valid on presentation of the original, unaltered, and date-stamped purchase receipt.
• The warranty does not cover damage caused by actions that deviate from those as described in the user's manual or by neglect.
• Transportation costs and the risks involved during the transportation of the dehumidifier or components shall always be for the account of the purchaser.

To prevent unnecessary expenses, we recommend that you always carefully read the user's manual first. If this does not provide a solution, take the dehumidifier to your distributor for repair.

TECHNICAL SPECIFICATIONS

Model D 109
Power consumption kW 0.18
Power supply V / Hz / Ph 220-240 / ~ 50 / 1
Current (nom.) A 0.8
Dehumidifying capacity (Moisture removal at 32oC, 80%RH L / 24h 10
Dehumidifying capacity (moisture removal at 27°C, 60%RH) L / 24h 5.2
Capacity water container L 2.4
Air flow (nom.)*	m³/h	90
For rooms up to*	m³	40 - 60
Operating range	°C	5 - 32
Automatic defrost		Yes
Hygrostat		Yes
Compressor type		rotary
Refrigerant type / charge r / gr R134a / 130 gr
Pressure suction / discharge (max.)	bar	12 / 24 (25)
Dimensions (w x d x h)	mm	340 x 245 x 575
Net weight	kg 9
Gross weight	kg	10.5
Sound pressure level *	dB(A)	40
Unit Protection	IP	X0
Fuse rating		250V, T3.15AL

• To be used as indication

Subject to change without prior notice.

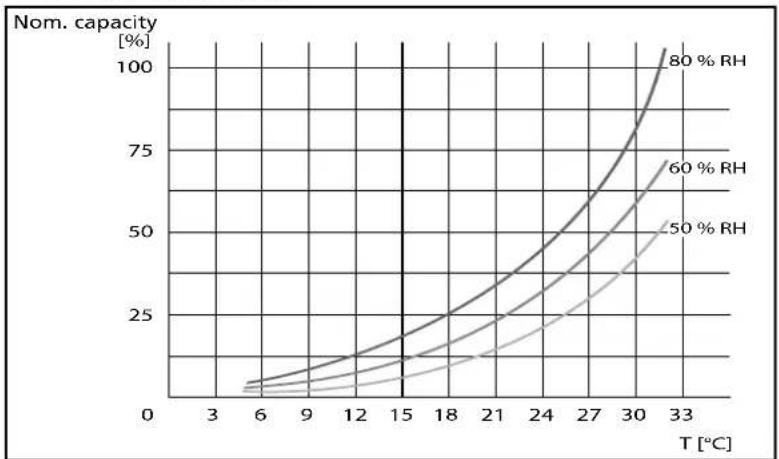

PERFORMANCE GRAPH (to be used as indication only)

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and wellbeing. When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge.

This equipment contains fluorinated greenhouse gases covered by the Kyoto Protocol. It should only be serviced or dismantled by professional trained personnel.

This equipment contains R134a refrigerant in the amount as stated in the table above. Do not vent R134a into atmosphere: R134a, is a fluorinated greenhouse gas with a Global Warming Potential (GWP) = 1300

Dear Sir or Madam,

Environmental information: This equipment contains fluorinated greenhouse gases covered by the Kyoto Protocol. It should only be serviced or dismantled by professional trained personnel.

This equipment contains R134a refrigerant in the amount as stated in the table above. Do not vent R134a into atmosphere: R134a, is a fluorinated greenhouse gas with a Global Warming Potential (GWP) = 1300
