Product type	Multifunction appliance (grill, barbecue)
Brand	AEG
Model	BQS 5515
Net weight	6.65 kg
Power supply	230 V ~ 50 Hz
Maximum power	2000 W
Protection class	I
Main functions	Grill, barbecue with water system to reduce heat
Water tank capacity	1.5 liters (MIN/MAX marks)
Plate material	Non-stick grill plate
Included accessories	Base, 4 legs, tray, reflector plate, heating element with thermostat, grill plate, plastic mount, cover with wind guard, handle, screws and nuts
Assembly	On legs or tabletop version (without legs)
Temperature adjustment	Rotary control with indicator light
Safety	Safety switch on the thermostat preventing operation outside the base
Maintenance and cleaning	Non-stick plate hand washable; base and heating element wiped with damp cloth; do not immerse heating element
Reparability	Call a qualified professional; use only original parts
Environmental instructions	Do not discard with household waste; recycle at collection center

Frequently Asked Questions - BQS 5515 AEG

Can I use the appliance without legs?

Yes, you can use the appliance as a table grill by omitting the legs. Make sure to place it on a flat, heat-resistant surface.

How much water should I put in the base?

Pour 1.5 liters of cold water up to the MAX level indicated under the plastic mount. The water must cover the reflector plate to avoid overheating.

How to clean the non-stick grill plate?

Wipe hot food residues with a damp cloth or paper towel. Once cooled, wash it by hand in a rinse bath. Do not use metal brushes or abrasive products.

What to do if the heater does not turn on?

Check that the thermostat is properly installed on the grill base. The safety switch prevents operation if the heating element is not in place. Also check the electrical connection.

Can I use the appliance outdoors?

Yes, but only in dry weather. Protect it from moisture and do not leave it outside after use. Keep a distance of at least 15 cm from walls and flammable objects.

How to install the wind guard cover?

Attach the handle to the cover with the provided screws, then place the plate and hook inside. The cover can be hung on the plastic mount of the base to serve as a wind guard.

What to do if the water level drops during use?

First unplug the appliance, then add cold water up to the MAX level. Never pour hot water on the still hot heating element.

Is the appliance compatible with a timer or remote control?

No, do not connect the appliance to a timer or remote control system. Use it only with a standard power outlet.

How to maintain the reflector plate?

Wash the reflector plate by hand in a rinse bath. For stubborn marks, use a nylon brush. Dry it before replacing.

Can I use charcoal with this appliance?

No, never use charcoal or similar fuels. The appliance is electric and designed only for cooking with a heating element.

USER MANUAL BQS 5515 AEG

Black and silver photo of a modern flying saucer with a dome-shaped top, mounted on a stand (no text or symbols visible)

PERFECT IN FORM AND FUNCTION AEG

Deutsch

Inhalt

Location of Controls...... page 3

User manual ...... page 29

Technical Specifications ...... page 32

JEZYK POLSKI

Spis treści

Location of Controls

Close-up of a mechanical component with labeled section A, showing internal structure and no visible text or symbols.

Close-up of a mechanical component with labeled section A, showing internal structure and no visible text or symbols.

Close-up of a mechanical component with labeled section A, showing internal structure and no visible text or symbols.

Attention aux Surcharges:

Close-up of a mechanical component with labeled section A, showing internal structure and no visible text or symbols.

Close-up of a mechanical component with labeled section A, showing internal structure and no readable text or symbols.

Close-up of a mechanical component with labeled section A, showing internal structure and no visible text or symbols.

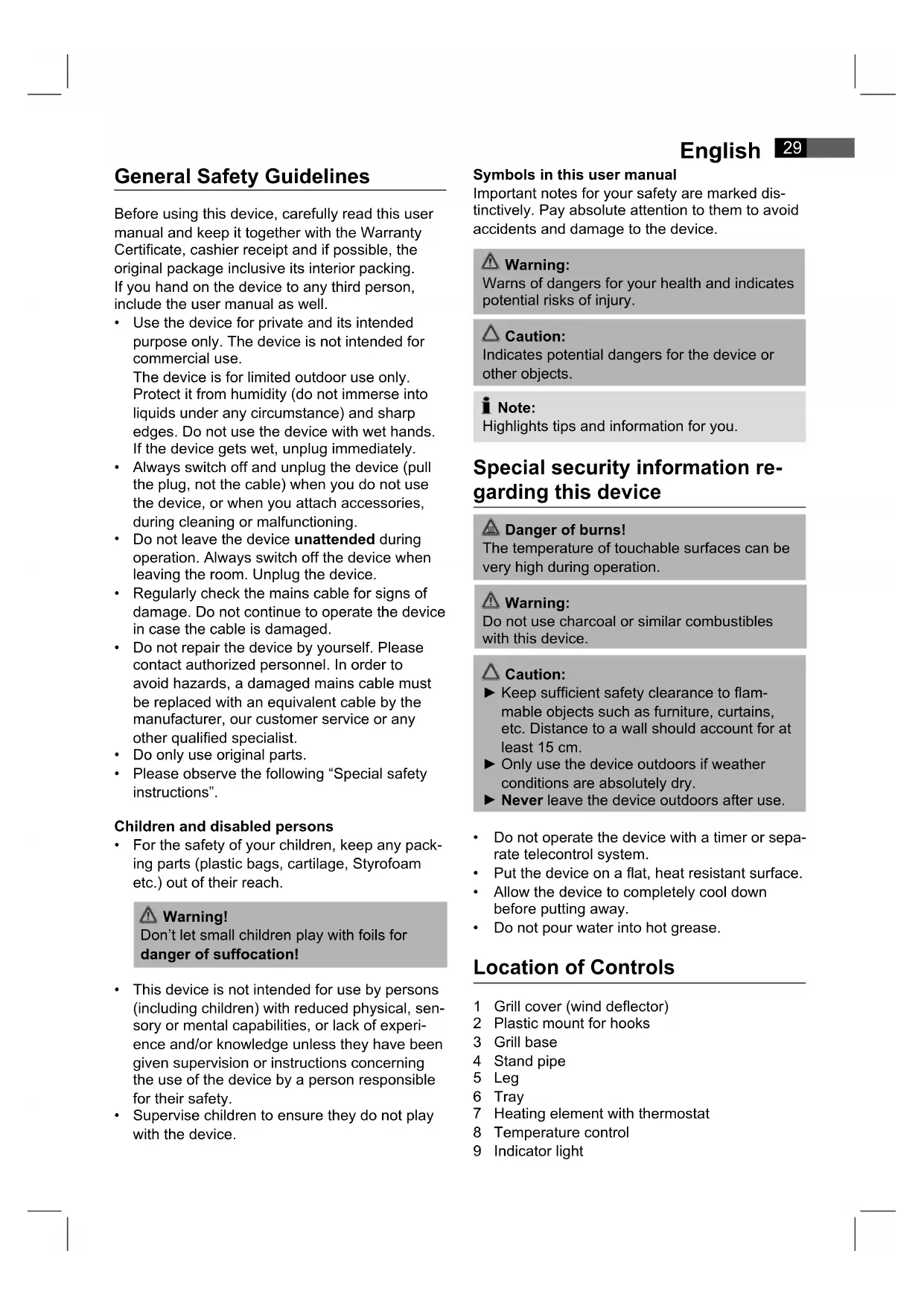

General Safety Guidelines

Before using this device, carefully read this user manual and keep it together with the Warranty Certificate, cashier receipt and if possible, the original package inclusive its interior packing. If you hand on the device to any third person, include the user manual as well.

• Use the device for private and its intended purpose only. The device is not intended for commercial use.
  The device is for limited outdoor use only. Protect it from humidity (do not immerse into liquids under any circumstance) and sharp edges. Do not use the device with wet hands. If the device gets wet, unplug immediately.
• Always switch off and unplug the device (pull the plug, not the cable) when you do not use the device, or when you attach accessories, during cleaning or malfunctioning.
• Do not leave the device unattended during operation. Always switch off the device when leaving the room. Unplug the device.
• Regularly check the mains cable for signs of damage. Do not continue to operate the device in case the cable is damaged.
• Do not repair the device by yourself. Please contact authorized personnel. In order to avoid hazards, a damaged mains cable must be replaced with an equivalent cable by the manufacturer, our customer service or any other qualified specialist.
• Do only use original parts.
• Please observe the following "Special safety instructions".

Children and disabled persons

- For the safety of your children, keep any packing parts (plastic bags, cartilage, Styrofoam etc.) out of their reach.

Warning!

Don't let small children play with foils for danger of suffocation!

• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge unless they have been given supervision or instructions concerning the use of the device by a person responsible for their safety.
• Supervise children to ensure they do not play with the device.

Symbols in this user manual

Important notes for your safety are marked distinctively. Pay absolute attention to them to avoid accidents and damage to the device.

Warning:

Warns of dangers for your health and indicates potential risks of injury.

Caution:

Indicates potential dangers for the device or other objects.

Note:

Highlights tips and information for you.

Special security information regarding this device

Danger of burns!

The temperature of touchable surfaces can be very high during operation.

Warning:

Do not use charcoal or similar combustibles with this device.

Caution:

▶ Keep sufficient safety clearance to flammable objects such as furniture, curtains, etc. Distance to a wall should account for at least 15 cm.
▶ Only use the device outdoors if weather conditions are absolutely dry.
▶ Never leave the device outdoors after use.

• Do not operate the device with a timer or separate telecontrol system.
• Put the device on a flat, heat resistant surface.
• Allow the device to completely cool down before putting away.
• Do not pour water into hot grease.

Location of Controls

1 Grill cover (wind deflector)
2 Plastic mount for hooks
3 Grill base
4 Stand pipe
5 Leg
6 Tray
7 Heating element with thermostat
8 Temperature control
9 Indicator light

30

English

10 Grill plate

11 Cover handle

12 Handle notch

13 Sheet

14 Hook

Without image: Reflector plate

Scope of delivery

1x Grill base

4x Legs

4x Carriage bolds M5

4x Wingnuts

1x Tray

1x Reflector plate

1x Heating element with thermostat

1x Grill plate

1x Plastic mount for hook

1x Cover

1x Cover handle

2x Sheet metal screws ∅ 3mm, length 9mm

1x Sheet

1x Hook

1x Screw M4, length 20 mm

Unpacking the device

• Unpack the device.
• Remove all packaging materials such as foils, filling material, cable ties and cardboard packaging.
• Check the scope of delivery.

Note:

There might be particles or production remains on the device. We recommend you wipe the enclosure with a damp cloth.

Installation

You may assemble the grill with legs (5) using it as pedestal grill or without legs using it as table top grill. Please observe figure a.

Pedestal grill

• Take the gill plate (10), heating element with thermostat (7) and the reflector plate (without image) from the grill base (3).
• Turn the grill base upside down.
- Attach the legs (5) with the open end to the stand pipes (4) of the grill base.

Note:

There are boreholes in the middle of the stand pipes.

• Use the included screws and nuts to fit the tray (6) here.
• Put the device on the stand pipes.
• Check all stand pipes are securely attached to the legs.

Cover (wind deflector)

1. Attach the handle (11) to the cover. Please mind the notch (12).
2. Turn the cover over.
3. Use the two sheet metal screws, ∅ 3mm, to fasten the handle inside the cover (see figure b).
4. Put the sheet (13) into the cover as shown in the figure.
5. Use the M4 screw, length 20 mm, to attach the hook (14) and the sheet to the cover.
   Do you want to use the assembled cover as wind deflector?
   You may hook the cover into the plastic mount (2).

Grill base

1. Put the plastic mount (2) into the notch of the grill base.
2. Put the reflector plate into the grill base.
3. Pour 1.5 l of cold water into the grill base, as to cover the plate. You will find a "MIN"/ "MAX" marking inside the grill base underneath the plastic mount.

Caution:

▶ Fill with water until above the reflector plate. The water bath and the plate will prevent excessive radiated heat near the base of the device. Therefore always barbecue using water and the fitted reflector plate.

1. Put the heating element with thermostat onto the grill base.

Note:

The thermostat is equipped with a safety switch (A). It prevents the operation of the heating element outside of the grill base.

Check the correct fitting of the thermostat in the grill base.

Close-up of a mechanical component with labeled section A, showing internal structure and no visible text or symbols.

Electric installation

• Be sure the voltage of the device (rating plate) is in accordance with the mains voltage.
• Connect the mains plug to a properly installed shockproof socket (230V\~ 50Hz) only.

Connected load

The device is intended for a maximum power intake of 2000 W. This connected load recommends a separate input lead secured with a 16 amp protected switch.

Caution Overload:

▶ When using extension cords, these should have a cable cross-section of at least 1.5 mm ^4 .
▶ Do not use gang plugs, because the device is too powerful.

The device must be supplied by a residual-current-operated protective device (RCD) with a release current of maximum 30mA.

Please consult a qualified electrician.

Prior first-time operation

• Slightly grease the anti-stick grill plate and put it onto the heating coil.
• Operate the device without barbecue for 15 minutes whilst grill base is filled with water.
• Turn the temperature control (8) to the highest position.
• The protective foils on the heating element and grill plate will be removed.

i Note:

Slight formation of smoke is thereby normal. Ensure sufficient ventilation.

- Clean the grill plate during a rinsing bath after it has cooled down.

Your device is now ready for use.

English

Operating your device

• Pour 1.5 l of cold water into the grill base until reaching the "MAX" level.
• Preheat the operable device for about 10 minutes prior use.
• Set the temperature control according to the intended use:
  Low or middle settings for keeping warm or cooking, highest setting for fast cooking or barbecuing. The indicator light (9) indicates the operation of the heating.
• Put the barbecue onto the grill plate. Turn the barbecue from time to time.

Caution:

If the water level falls below the "MIN" marking after long time of barbecuing, please first unplug the device and then add more water, until reaching the "MAX" level.

Do not pour cold water over the hot heating element. It might get damaged.

Switch off:

Turn the temperature control anti-clockwise as far as it will go and unplug the device.

Troubleshooting

The thermostat is equipped with a safety switch (A). It prevents the operation of the heating element outside of the grill base.

If the heating cannot be switched on, please check the mains connection and the correct fitting of the thermostat in the grill base.

Cleaning

Warning:

▶ Always unplug the device and allow the device to cool down before cleaning.
▶ Do not under any circumstances immerse the heating element into water for cleaning. Danger of electric shock or fire!

Caution:

▶ Do not use a wire brush or other scratching objects.
▶ Do not use acrid or abrasive cleaning agents.

Remove the grill plate and the heating element, and take the reflector plate from the grill base.

Pour the water of the grill base away.

32 English

Anti-stick grill plate

• Use a wet cloth or paper towel to remove food residue whilst it is still warm.
• You may clean the grill plate manually during a rinsing bath.

Reflector plate and cover

• Clean the reflector plate and cover manually during a rinsing bath.
• Use a nylon brush to remove heavy staining.

Grill base and heating element

• Wipe the grill base and heating element using a slightly damp dish towel.
  Attach all parts again.

Technical Specifications

Model: ......BQS 5515

Voltage supply: 230 V, 50 Hz

Power input: 2000 W

Protection class: .... I

Net weight: 6.65 kg

Specifications are subject to change!

This device complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations.

Meaning of the "Wheelie Bin" Symbol

Take care of our environment, do not dispose of electrical appliances via the household waste. Dispose of obsolete or defective electrical appliances via municipal collection points. Please help to avoid potential environmental and health impacts through improper waste disposal. You contribute to recycling and other forms of utilization of old electric and electronic appliances. Your municipality provides you with information about collecting points.

Close-up of a mechanical component with labeled section A, showing internal structure and no visible text or symbols.

Close-up of a mechanical component with labeled section A, showing internal structure and no visible text or symbols.

Close-up of a mechanical component with labeled section A, showing internal structure and no visible text or symbols.

Elektromos szerelés

Close-up of a mechanical component with labeled section A, showing internal structure and no visible text or symbols.

Close-up of a mechanical component with labeled section A, showing internal structure and no readable text or symbols.

Электроподключение
