Product type	Fondue, raclette and wok appliance
Brand	AEG
Model	FD 5574
Power supply	230 V, 50/60 Hz
Power	1200 W
Net weight	1.76 kg
Protection class	I
Package contents	Stainless steel fondue pot with stand, carousel with 6 sauce dishes (50 ml), 8 fondue forks, heating base with adjustable thermostat and indicator light
Temperature control	Adjustable thermostat from MIN to MAX
Maximum oil/fat capacity	1.0 L
Minimum oil/fat capacity	0.5 L
Functions	Fondue, raclette, wok
Maintenance of heating base	Wipe with a damp cloth and dry
Maintenance of pot and accessories	Hand wash, do not put in dishwasher
Important safety instructions	Hot surface, do not immerse, do not repair yourself, keep out of reach of children
Spare parts and repairability	Use only original accessories; contact after-sales service for any repairs
Intended use	Household use only
Warranty	Keep the receipt and warranty card

Frequently Asked Questions - FD 5574 AEG

What is the power of the AEG FD 5574 appliance?

The appliance has a power of 1200 W and operates on a 230 V, 50/60 Hz power supply.

What is the maximum oil or fat capacity for fondue?

The maximum capacity is 1.0 liter and the minimum is 0.5 liter. Do not exceed the MAX mark to avoid overflow.

How to adjust the temperature on the FD 5574?

The temperature is adjusted using the adjustable thermostat from MIN to MAX. The indicator light turns on and off to indicate temperature maintenance.

Can I clean the fondue pot in the dishwasher?

No, the pot and accessories should not be washed in the dishwasher. Wash them by hand with soapy water and dry thoroughly.

What to do if the oil catches fire during use?

Never extinguish with water. Cover the flames with a damp cloth and unplug the appliance.

Can I use olive oil or butter for fondue?

It is not recommended to use margarine, olive oil or butter as they smoke at low temperatures. Prefer good quality liquid frying oils.

How to install the carousel with the sauce dishes?

Flip the supports down to horizontal position. Place the carousel on the heating base with the movable tab facing up. Then hang the sauce dishes.

Is the appliance suitable for professional use?

No, this appliance is designed for household use only. It is not suitable for professional kitchens or communal use.

What to do if the power cord is damaged?

Do not repair yourself. Have the cord replaced by the manufacturer, after-sales service or a qualified person to avoid any danger.

How to dispose of the appliance at the end of its life?

Do not dispose of the appliance with household waste. Take it to a designated collection point for electrical appliances to contribute to recycling.

USER MANUAL FD 5574 AEG

A.E.G. hotpot with cutlery and a mounted AEG (electrolysis) appliance, no visible text or symbols on the pot itself.

AEG

Technical Specifications Page 24

Disposal - Meaning of the "Dustbin" Symbol ......Page 24

Język polski

Spis treści

D-47906 Kempen/Germany

WAARSCHUWING: Brandgevaar!

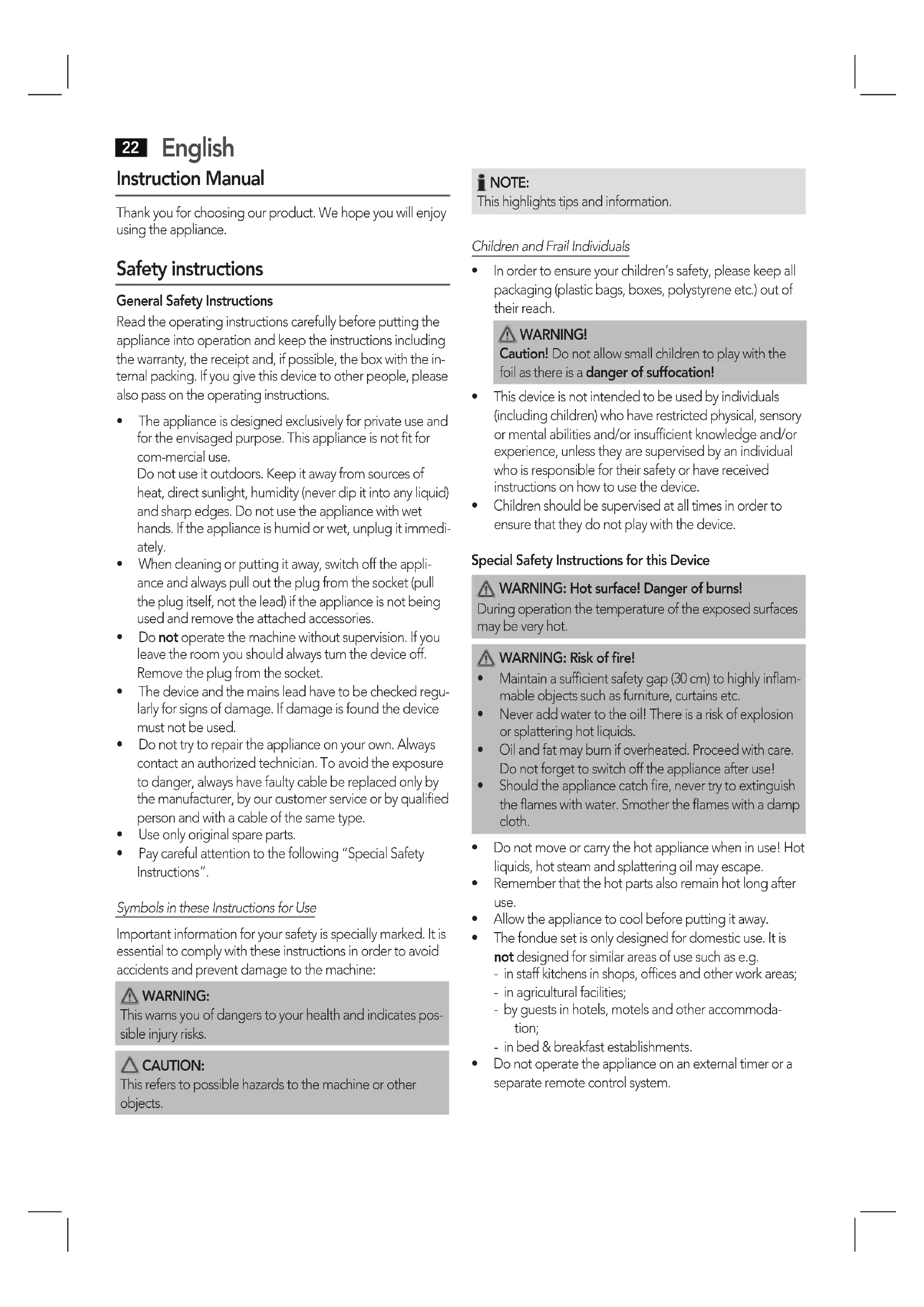

Thank you for choosing our product. We hope you will enjoy using the appliance.

Safety instructions

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
  Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
  • Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

i NOTE:

This highlights tips and information.

Children and Frail Individuals

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

- This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.

- Children should be supervised at all times in order to ensure that they do not play with the device.

Special Safety Instructions for this Device

WARNING: Hot surface! Danger of burns!

During operation the temperature of the exposed surfaces may be very hot.

WARNING: Risk of fire!

• Maintain a sufficient safety gap (30 cm) to highly inflammable objects such as furniture, curtains etc.
• Never add water to the oil! There is a risk of explosion or splattering hot liquids.
• Oil and fat may burn if overheated. Proceed with care. Do not forget to switch off the appliance after use!

• Should the appliance catch fire, never try to extinguish the flames with water. Smother the flames with a damp cloth.

• Do not move or carry the hot appliance when in use! Hot liquids, hot steam and splattering oil may escape.

• Remember that the hot parts also remain hot long after use.
• Allow the appliance to cool before putting it away.
• The fondue set is only designed for domestic use. It is not designed for similar areas of use such as e.g.
• in staff kitchens in shops, offices and other work areas;
• in agricultural facilities;
• by guests in hotels, motels and other accommodation;
• in bed & breakfast establishments.
• Do not operate the appliance on an external timer or a separate remote control system.

Scope of Supply and Equipment

• Fondue pot made of stainless steel with attachment holder for forks
  • Rotating base with 6 sauce vessels of 50 ml each
  • 8 fondue forks
• Separate stable heating base with robust hotplate and continuously adjustable thermostat
• Control lamp

Switching on/off

The appliance is operated by a thermostat.

The appliance is switched off when the thermostat is in the MIN position.

Before Initial Use

• Before using the wok for the first time, please clean it as described under "Cleaning and Care".
• To remove the protective coating on the hotplate, operate the appliance for 5 minutes without the fondue pot. Set the thermostat to MAX.

NOTE:

A small amount of smoke is normal. Please ensure that there is adequate ventilation.

Useful hints for use

• Oil and fat must be heatable to very high temperatures. Use high quality frying oil or frying grease. Do not use margarine, olive oil or butter: they are not fit for frying, because they start to smoke already at low temperatures.
  • We recommend the use of liquid frying oil.

CAUTION:

... if you would like to use fat!

• If you use fat, please divide it up into small pieces.
- Turn the thermostat to a low temperature and add the pieces slowly.
- If the fat has melted and the required oil level is reached, you can set the desired temperature on the thermostat. Do not exceed the MAX mark!

CAUTION:

Heavy build up of foam!

• Never mix oils and fats. The liquid may overflow.
- Rub wet food dry with a cloth. Damp food causes a heavy build up of foam which is serious cases may cause the oil/fat to overflow.

WARNING:

Contaminated oil/fat can be highly inflammable!

• Always remove any food which may remain in the oil/fat.
- Replace the oil/fat regularly.

Rotating Base

1. Fold out the individual holders so that they are horizontal. The round distance pieces face downwards and subsequently lie on the heating stand.

2. Position the holder with the movable "lug" vertical. Clamp the fixed "lug" on the rotating base (see Fig.) to one side under the hotplate.

3. Pull the rotating base over the hot-plate. Clamp the holder with the movable "lug" facing outwards.

After use you can save space when you store the rotating basis by folding the holders back inwards.

Operation

Please select a suitable non-slip base on which to place your fondue.

1. Insert the rotating base as described above. Then insert the sauce vessels into the holders.
2. Place the fondue equipment on the heating stand.
3. Fill the pot with fat or oil (min. 0.5 l to max. 1.0 l). Place the equipment onto the fondue pot.
4. Turn the thermostat to MIN.
5. Only connect the machine to a properly installed 230 V\~, 50 Hz safety socket.
6. Turn the device to the medium temperature range and heat up the oil for some time.

NOTE:

The control lamp indicates that the hotplate is warming up. During use it switches on and off. This is normal and indicates that the temperature is thermostatically controlled and maintained.

1. With a wooden stick (e.g. shashlik spit or wooden cooking spoon) you can test whether the correct temperature has been reached. When this is inserted into the oil, small air bubbles should rise up along the wooden stick. Alternatively, you can place a piece of the food to be fried into the hot oil.
2. Place the pieces of meat on the fondue forks and then dip them into the oil. Depending on the size of the meat pieces, the cooking process takes between 4 and 7 minutes, i.e. the smaller the pieces of meat or other food are, the faster they are cooked.
3. Adjust the temperature with the regulator such that the oil simmers.

24 English

Switching Off

If you would like to stop the cooking process, turn the temperature control to the minimum setting (MIN) and remove the mains plug from the socket.

- Allow the frying oil a considerable time to cool down. Before continuing to use the full frying pot, please ensure that it is no longer at a dangerous temperature.

Cleaning and care

WARNING:

• Always remove the mains plug before cleaning the device.
• Never immerse the heating base in water to clean it. This could lead to fire or electric shock.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.

Heating base

- Wipe the heating base with a damp cloth and dry with a dry cloth.

Fondue pot and all accessories

CAUTION:

Do not clean these parts in the dishwasher. The surfaces might become dull.

• These parts can be cleaned by hand in soapy water.
- Then rinse off with clean water and dry the parts off.

Technical Specifications

Model: FD 5574
Power supply: 230 V, 50/60 Hz
Power consumption: 1200 W
Protection class: ....I
Net weight: 1.76 kg

Subject to technical changes without prior notice!

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal- Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
