USER MANUAL Gustivio ACFE MOULINEX

1A 1/2 plaque gril (selon modele)

NELJAN JUUSTON RACLETTE

• 5-8 minutter for at lave raclette
• 15 minutter for Pierrade® aller grill
• 10 minutter for pandekager

For at lave Pierrade:

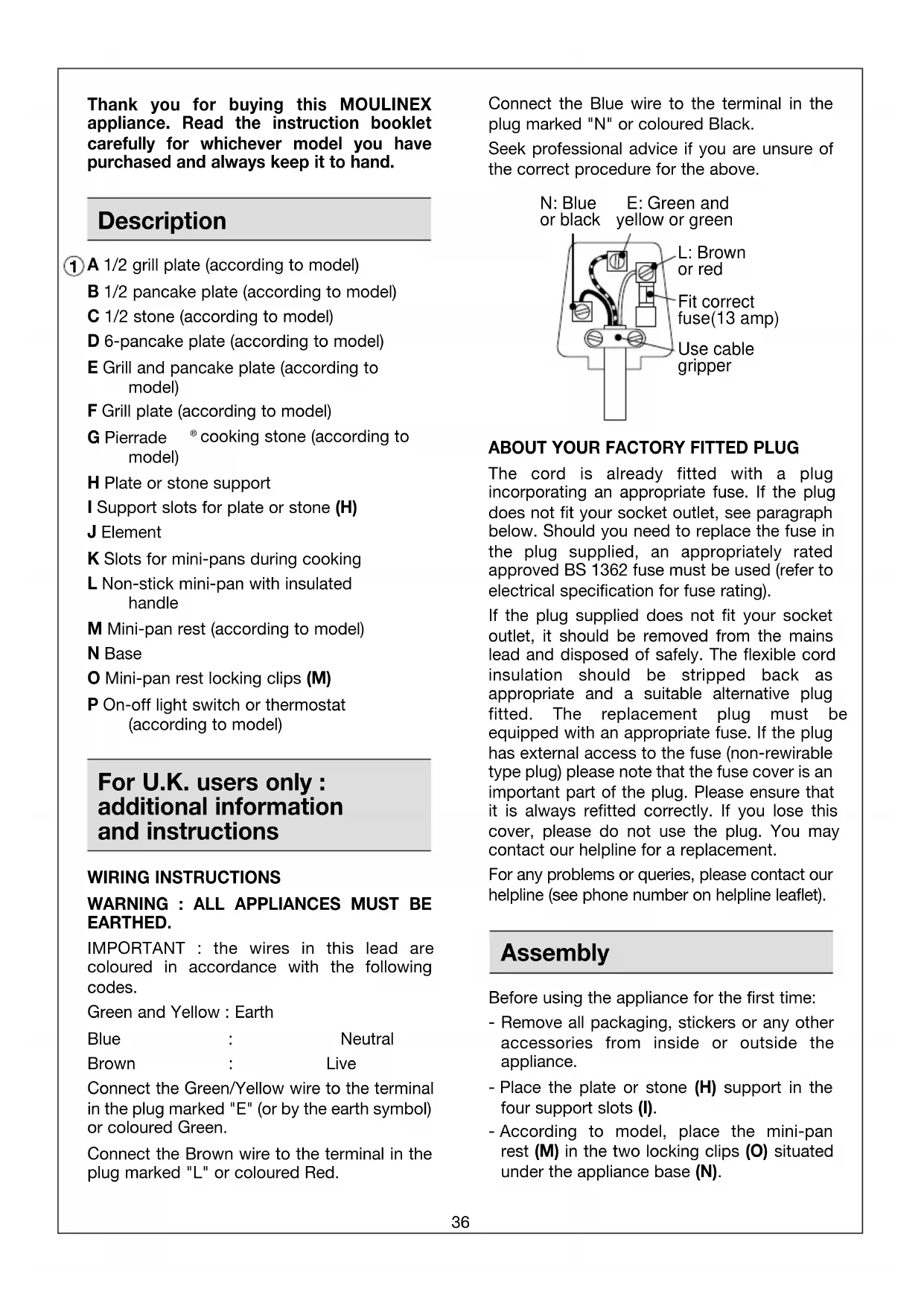

Thank you for buying this MOULINEX appliance. Read the instruction booklet carefully for whichever model you have purchased and always keep it to hand.

Description

① A 1/2 grill plate (according to model)

B 1/2 pancake plate (according to model)
C 1/2 stone (according to model)
D 6-pancake plate (according to model)
E Grill and pancake plate (according to model)
F Grill plate (according to model)
G Pierrade ® cooking stone (according to model)
H Plate or stone support
I Support slots for plate or stone (H)
J Element
K Slots for mini-pans during cooking
L Non-stick mini-pan with insulated handle
M Mini-pan rest (according to model)
N Base
O Mini-pan rest locking clips (M)
P On-off light switch or thermostat (according to model)

For U.K. users only : additional information and instructions

WIRING INSTRUCTIONS

WARNING : ALL APPLIANCES MUST BE EARTHED.

IMPORTANT : the wires in this lead are coloured in accordance with the following codes.

Green and Yellow : Earth

Blue Neutral

Brown : Live

Connect the Green/Yellow wire to the terminal in the plug marked "E" (or by the earth symbol) or coloured Green.

Connect the Brown wire to the terminal in the plug marked "L" or coloured Red.

Connect the Blue wire to the terminal in the plug marked "N" or coloured Black.

Seek professional advice if you are unsure of the correct procedure for the above.

N: Blue E: Green and or black yellow or green

ABOUT YOUR FACTORY FITTED PLUG

The cord is already fitted with a plug incorporating an appropriate fuse. If the plug does not fit your socket outlet, see paragraph below. Should you need to replace the fuse in the plug supplied, an appropriately rated approved BS 1362 fuse must be used (refer to electrical specification for fuse rating).

If the plug supplied does not fit your socket outlet, it should be removed from the mains lead and disposed of safely. The flexible cord insulation should be stripped back as appropriate and a suitable alternative plug fitted. The replacement plug must be equipped with an appropriate fuse. If the plug has external access to the fuse (non-rewirable type plug) please note that the fuse cover is an important part of the plug. Please ensure that it is always refitted correctly. If you lose this cover, please do not use the plug. You may contact our helpline for a replacement.

For any problems or queries, please contact our helpline (see phone number on helpline leaflet).

Assembly

Before using the appliance for the first time:

• Remove all packaging, stickers or any other accessories from inside or outside the appliance.
• Place the plate or stone (H) support in the four support slots (I).
• According to model, place the mini-pan rest (M) in the two locking clips (O) situated under the appliance base (N).

2- According to model, pour a little oil on the plates (A, B, D, E and F) and wipe off with a soft cloth.

Remove mini-pans.

According to model :

• Place the Pierrade® cooking stone (C or G) on the element, polished (bevelled) side up.

Never place the Pierrade® cooking stone on a hot element.

Only use the Pierrade® cooking stone that comes with the appliance or that has been purchased from an authorised dealer and only on the support for which it was designed.

• Place the plate (A, B, D, E or F) on the element.

Never place aluminium foil or any other object under the Pierrade® cooking stone or between the element and reflector.

Place the appliance in the centre of the table, out of children's reach.

Place the appliance on a firm surface, avoid using on soft surfaces i.e. table felt.

Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished furniture...).

This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

Plugging and preheating

Completely unwind the cord.

Check the electricity supply is compatible with the power and voltage indicated underneath the appliance.

Only plug in the appliance on an earthed socket.

Model with fixed cord: if the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Any error in connecting the appliance invalidates the guarantee.

Plug the cord into the appliance (according to model) and then into the mains socket.

Check that the cable does not get in the way of guests sitting at the table.

Never leave the appliance plugged in when not in use.

When in use, never leave the appliance unattended.

• Model with switch:

Press switch (P): the light comes on

• Model with thermostat:

Place the thermostat (P) on position 6.

Leave the appliance to preheat:

• 5 to 8 minutes for the raclette function.
• 15 minutes for the Pierrade® cooking stone or grill functions
• 10 minutes for the pancake plate

For the first ten uses put a little cooking oil on the Pierrade® cooking stone after preheating and wipe off with a soft cloth. This prevents the food sticking too much to the stone (according to model).

Cooking (according to model)

After preheating, the appliance is ready for use.

Raclette function:

Each person places a slice of cheese in their mini-pan (L) before placing it in the appliance.

Leave the cheese to melt, 3 to 5 minutes, thermostat (according to model) on position 6.

When the cheese has melted, slide it onto a plate.

According to model, a mini-pan rest (M) allows the empty mini-pans (L) to be stored during the meal.

Never leave the mini-pan to heat if empty.

Pierrade® cooking stone function:

Set the thermostat (according to model) to the position of your choice.

Whilst in use, because of its composition, it takes 5 to 10 minutes for the Pierrade® cooking stone to respond to a change in thermostat.

Each person places slices of meat, fish, vegetables or fruit on the stone to cook to their taste.

Season to taste on your plate, accompanied with cold sauces, a salad and potatoes.

Never place frozen or heavy food on the hot stone.

Never let the stone come into contact with acid foods i.e. vinegar, mustard, gherkins, pickles, etc.

Never place objects on the stone.

Never leave the appliance on for more the 30 minutes whilst empty, the stone will become too hot for cooking on.

Small cracks caused by the expansion of the stone are natural and of no importance to the appliance's performance. They are therefore not a reason for replacement.

After several uses the stone will become darker in appearance.

During first use the appliance may give off a slight odour and smoke.

Grill function:

The grill plate is suitable for cooking small pieces of meat or raclette accompaniments (bacon pieces, mushrooms, onions, small sausages...).

Set the thermostat (according to model) to the position of your choice.

Cook according to the recipe or to taste.

To preserve the non-stick coating of the grill plate use only thermoplastic or wooden utensils.

Pancake function:

Set the thermostat (according to model) to position 6.

Spread batter on the plate and leave to cook for 1 to 2 minutes on each side.

During first use the appliance may give off a slight odour and smoke, this is normal..

Do not touch hot surfaces of the appliance.

After use

• Models with switch:

Press switch (P): light goes out.

• Models with thermostat:

Put the thermostat () on position min.

Unplug cable from the mains supply, then, according to model, disconnect the appliance.

Leave the appliance to cool completely (for models with stones wait at least 1 hour without touching).

During the cooling period make sure the appliance is out of children's reach.

The plates (A, B, D, E and F), mini-pan (L) and appliance body (K and N) should be washed with a soft cloth, hot water and washing up liquid.

The plate (A, B, D, E and F) and the mini-pan (L) can be washed in a dishwasher.

Do not use scouring pads or scouring powder.

Never immerse the appliance or the cable in water.

Stone washing precautions (C or G):

Each stone (C or G) is a unique natural element. More or less permeable according to its porosity, if a stone is submerged in water during cleaning it can split or shatter after being heated in the appliance.

Wash the stone under slow running water rubbing with an abrasive sponge and wipe dry. Avoid detergents.

Never plunge or soak the hot or cold stone in water.

Never put the stone in the dishwasher.

Recipes

Raclette function:

RACLETTE SAVOYARDE

For 8 people: 1.5kg to 2kg raclette cheese, 2.5kg potatoes, 16 slices of Savoie ham, a few peppers, some button mushrooms, 1 jar gherkins, 1 jar pickled onions, some tinned mini corn-on-the-cob

Cook the potatoes in their jackets. Slice the cheese, cut the peppers in quarters and thinly slice the mushrooms. Place the gherkins, onions, mushrooms, corn and peppers in individual serving dishes.

Place a slice of cheese on each mini-pan and leave to melt. Eat the raclette with the ham, potatoes and accompanying garnishes.

AGEN PRUNE RACLETTE

For 6 people: 500g raclette cheese, 24 Agen prunes, 12 small cocktail sausages, 18 slices smoked streaky bacon, 12 potatoes, baked in their jackets, 400g crème fraîche, 1 lemon, 1 bunch of chives, mixed salad, salt and pepper, 36 cocktail sticks

Mix the crème fraîche, with the lemon juice, chopped chives, salt and pepper. Put in a bowl

and place in the fridge. Roll half a slice of bacon around each prune and each sausage, holding in place with a cocktail stick.

Place the hot, cooked potatoes on the table with the bowl of prepared crème fraîche and raclette cheese.

Plug in the appliance and slide in the mini-pan with a slice of cheese. Use the upper cooking plate to cook the prunes and sausages.

Ham or other cooked meats can be added to accompany this dish.

FOUR CHEESE RACLETTE

For 4 people: 200 g Gorgonzola, 200 g Mozarella, 200 g Emmenthal, 200 g raclette cheese, 2 bunches spring onions, 400 g broccoli, 4 tomatoes, 100 g Parma ham, 100 g salami, 200 g Dublin Bay prawns, 1 cup artichoke hearts, 1 cup mini corn-on-the-cob, 1 cup sliced peppers, lightly toasted white bread

Slice the cheese.

Wash the spring onions and cut into small pieces, Separate the broccoli florets, then cook the onions and broccoli in boiling water for 10 minutes. Keep hot. Cut the tomatoes in half and place on the grill. Slice the ham and salami finely and serve. Cook the prawns in a court-bouillon or in a frying pan. Serve with the cheese.

Place the ingredients on the table with the artichoke hearts, mini corn-on-the-cob, peppers and toast. According to taste, melt the cheese of your choice with the raclette appliance and eat with the accompanying garnishes.

Pierrade® cooking stone function:

Turn off the appliance before the end of the meal: the stone will remain hot for at least 10 minutes, the last pieces of food will continue to cook.

BASICPIERRADE

Beef (rumpsteak, fillet steak), chicken or turkey breast, veal fillet

FARMER'S PIERRADE

Thinly sliced beef, cushion of veal, lamb fillet, poultry (duck or turkey)

SEAFOOD PIERRADE

Monkfish or sea bass fillets, prawns or salmon, scallops, crayfish medallions

GOURMET PIERRADE

Prawns, scallops, salmon or sea bass fillets, beef fillet, pork fillet mignon, duck breast fillet

FRUIT PIERRADE

Oranges, apples, bananas, apricots

Cook slices of fruit on the stone. Drizzle melted chocolate, fruit coulis and whipped cream over the fruit on your plate.

Grill function:

SOLE AND PRAWNS GRILLED WITH CHIVE BUTTER

For 4 people: 4 small skinned sole, plaice or dab fillets, prawns or large shrimps, fines herbs (thyme, parsley...), chives, oil, salt, pepper

Wash the fish and drain. Arrange on a large plate and sprinkle with salt, pepper, herbs and chives. Keep chilled in the fridge.

Prepare the chive butter: using a fork, mix the softened butter with the juice of 1/2 a lemon, finely chopped chives, salt and pepper. Roll the butter by hand to form a sausage shape, wrap in cling-film and place in fridge for 1 hour to firm up.

Preheat the appliance and cook the lightly oiled prawns and fish.

Place the chive butter in a dish on the table.

Serve with potatoes or rice.

MIXED GRILL

Per person: 1 lamb chop, 1 lamb's kidney, 1/2 slice lamb's liver, 1 chipolata sausage, 1 slice smoked bacon, 1 tomato, 1/2 onion, oil, ground coriander et cumin, salt, pepper

Preheat the appliance and cook the meat and vegetables. Serve with chips, crisps or a salad.

PRAWNS AND SHRIMPS WITH MAURESQUE SAUCE

For 4 people: 8 to 12 prawns, 16 large shrimps, lemons or limes.

Mauresque sauce: 2 egg yolks, 2 glasses of olive oil, 1 teaspoon mustard, 1 shallot, 1 clove of garlic, 1 lime, 1 tablespoon crème fraîche, 1 teaspoon paprika, 1 tablespoon tomato puree, 1/2 teaspoon harissa, salt, pepper

Prepare the mauresque sauce: crush the shallot and the garlic well. Place in a large bowl with the salt, pepper, mustard and egg yolks. Mix well and then add the oil a little at a time to make a mayonnaise. Blend in the lime juice, crème fraîche, paprika, tomato puree and harissa. Keep in the fridge.

Preheat the appliance. Cut the shells of the prawns and shrimps and open out. Grill. Decorate with lemon or herbs and serve with the mauresque sauce.

Pancake function:

BUCKWHEAT PANCAKE BATTER

For 6 people: 125g buckwheat flour, 25g plain flour, 1 teaspoon salt, 400ml water, 1 egg Mix all the ingredients to a smooth creamy batter (use an electric mixer, whisk or food processor: this will make it easier and the batter will be lump free). Place the batter in a bowl and allow to rest in the fridge for an hour. Place 2 tablespoons of batter in each pan and cook for approximately 1 1/2 minutes on each side.

PANCAKE BATTER

For 6 people: 1/2 I milk, 3 eggs, 2 tablespoons oil, 250 g plain flour, 2 tablespoons sugar and orange flower water (if the pancakes are to be sweet)

Mix all the ingredients to a smooth creamy batter (use an electric mixer, whisk or food processor: this will make it easier and the batter will be lump free). Place the batter in a bowl and allow to rest in the fridge for an hour. Place 2 tablespoons of batter in each pan and cook for approximately 1 1/2 minutes on each side.
