Compacteo MO 1545 - With vacuum bag MOULINEX - Free user manual and instructions

Product type	Vacuum cleaner with bag
Brand	Moulinex
Model	Compacted MO 1545
Dust bag	Dust bag (paper or textile)
Filtration type	Microfilter (ref. MT0005 01) or HEPA filter cassette (ref. MT0007 01 or MT0008 01)
Power adjustment	Electronic power control on the body and mechanical control on the handle
Cord length	Not specified (integrated cord rewinder)
Operating radius	Approximately 8 m (estimation)
Included accessories	Hose, telescopic tube, all-floor nozzle, convertible crevice tool, upholstery nozzle, shoulder strap
Accessory options	Parquet nozzle, turbo brush, mini turbo brush
Approximate weight	4.5 kg (estimation)
Dimensions (L x W x H)	Not specified
Type	Sledge with transport handle and shoulder strap
Bag full indicator	Red light on the body
Safety	Motor overheat protection, automatic shut-off in case of blockage
Maintenance	Emptying the bag, cleaning or replacing the filter depending on type
Repairability	Spare parts available at Moulinex authorized service centers
Warranty	Standard manufacturer's warranty (not specified)
Use	Household use only

Frequently Asked Questions - Compacteo MO 1545 MOULINEX

What type of bag should I use for the Compacteo MO 1545?

Use only Moulinex original bags: paper bag ref. MT0005 01/MT0007 01 or textile bag ref. MT0008 01. Never use non-compatible generic bags.

How do I change the vacuum cleaner bag?

Unplug the appliance, remove the hose, open the lid, take out the bag holder, remove the full bag. For a paper bag, discard it; for a textile bag, empty it and wash it with clean water, then let it dry for 24 hours. Replace the holder with a new or dry bag and close the lid.

What should I do if the vacuum cleaner no longer sucks or sucks less efficiently?

Check that the bag is not full (replace it if necessary) and that the filters are not saturated. Also check that the hose and accessories are not blocked. Set the power to maximum and check that the manual control on the handle is closed.

How do I clean or replace the HEPA filter?

Depending on your model: for the HEPA cassette ref. MT0007 01, replace it every 6 months. For the HEPA cassette ref. MT0008 01, clean it by tapping it then rinsing it with clean water, and let it dry for 24 hours before putting it back.

What does the red bag full indicator mean?

The red light indicates that the bag is full or saturated. If the light remains red after changing the bag, check that the bag is correctly positioned and that the presence detector works. If the problem persists, also replace the filter.

The vacuum cleaner stops during use, what should I do?

The thermal safety has been triggered. Unplug the appliance, check that the tube, hose, bag and filters are not blocked. Let the vacuum cooler cool down for at least 30 minutes before turning it on again.

How do I adjust the suction power?

Use the electronic control on the vacuum body (turn the knob) or the mechanical control on the handle (open or close the flap). Max position for hard floors, min position for delicate fabrics.

Can I use the vacuum cleaner without a bag?

No, the vacuum must never be operated without a bag or without a filter (microfilter or HEPA cassette). This could damage the motor and void the warranty.

How do I store the cord after use?

Press the cord rewinder pedal on the vacuum body. If the cord does not retract completely, pull it out and press the pedal again.

Where can I find accessories and spare parts?

Contact a Moulinex Authorized Service Center or consumer service. Use only Moulinex original accessories (ref. MT0005 01, MT0007 01, MT0008 01, etc.).

USER MANUAL Compacteo MO 1545 MOULINEX

Line drawing of a vacuum cleaner with control knobs and a handle (no text or symbols)

Two technical diagrams showing a square component and a coiled spring-like structure (no text or symbols)

Line drawing of a mechanical component with two ends and a central spring-like extension (no text or symbols)

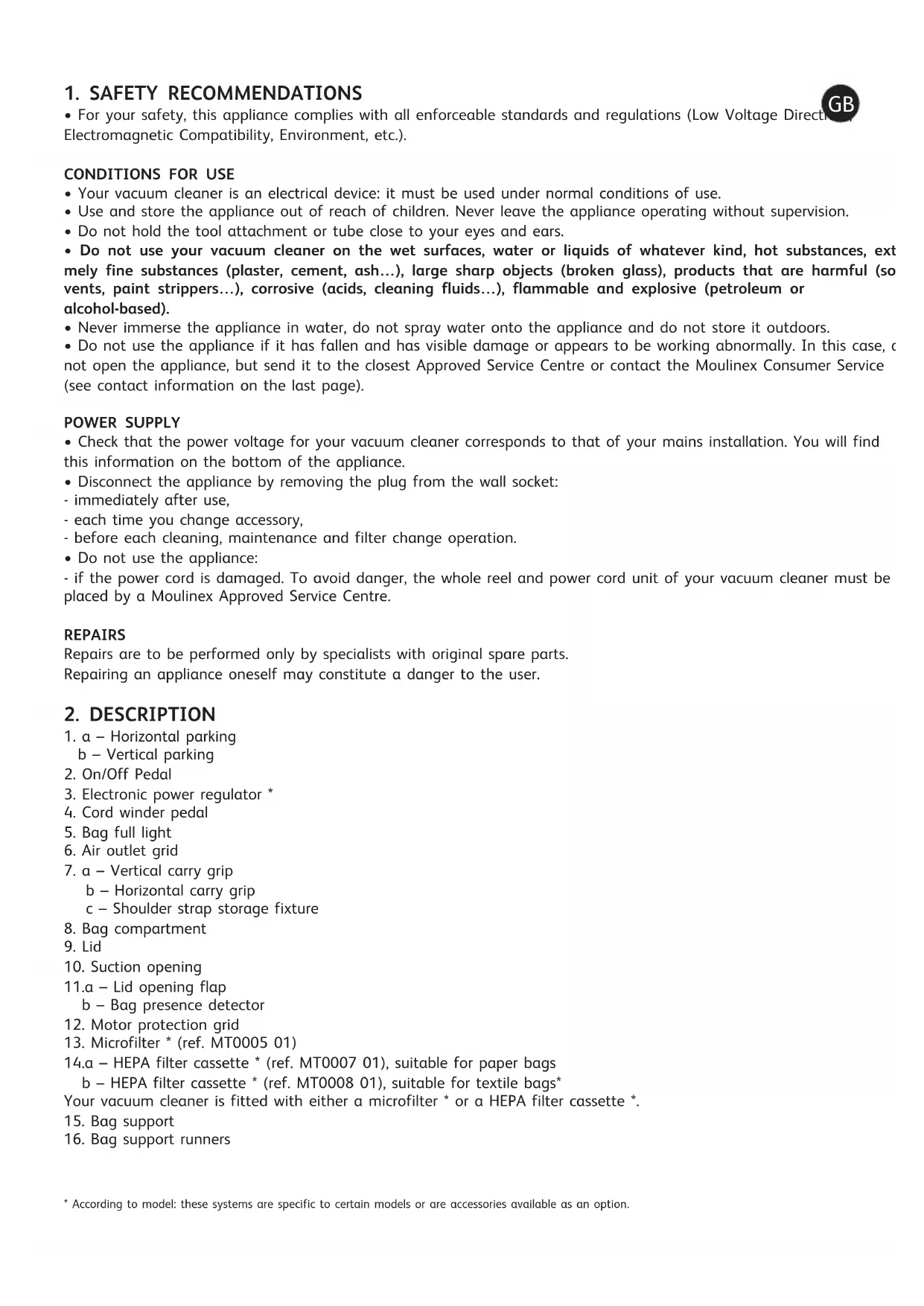

- For your safety, this appliance complies with all enforceable standards and regulations (Low Voltage Direct Electromagnetic Compatibility, Environment, etc.).

CONDITIONS FOR USE

• Your vacuum cleaner is an electrical device: it must be used under normal conditions of use.
• Use and store the appliance out of reach of children. Never leave the appliance operating without supervision.
• Do not hold the tool attachment or tube close to your eyes and ears.
• Do not use your vacuum cleaner on the wet surfaces, water or liquids of whatever kind, hot substances, extremely fine substances (plaster, cement, ash...), large sharp objects (broken glass), products that are harmful (so vents, paint strippers...), corrosive (acids, cleaning fluids...), flammable and explosive (petroleum or alcohol-based).
• Never immerse the appliance in water, do not spray water onto the appliance and do not store it outdoors.
• Do not use the appliance if it has fallen and has visible damage or appears to be working abnormally. In this case, it is not open the appliance, but send it to the closest Approved Service Centre or contact the Moulinex Consumer Service (see contact information on the last page).

POWER SUPPLY

• Check that the power voltage for your vacuum cleaner corresponds to that of your mains installation. You will find this information on the bottom of the appliance.

• Disconnect the appliance by removing the plug from the wall socket:

• immediately after use,

• each time you change accessory,
• before each cleaning, maintenance and filter change operation.
• Do not use the appliance:
• if the power cord is damaged. To avoid danger, the whole reel and power cord unit of your vacuum cleaner must be placed by a Moulinex Approved Service Centre.

REPAIRS

Repairs are to be performed only by specialists with original spare parts.

Repairing an appliance oneself may constitute a danger to the user.

2. DESCRIPTION

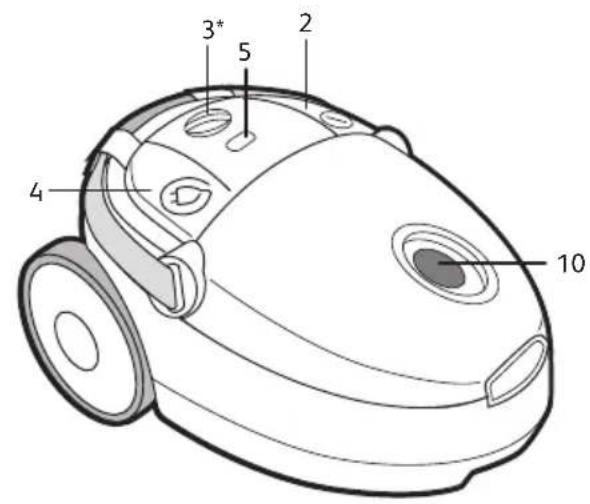

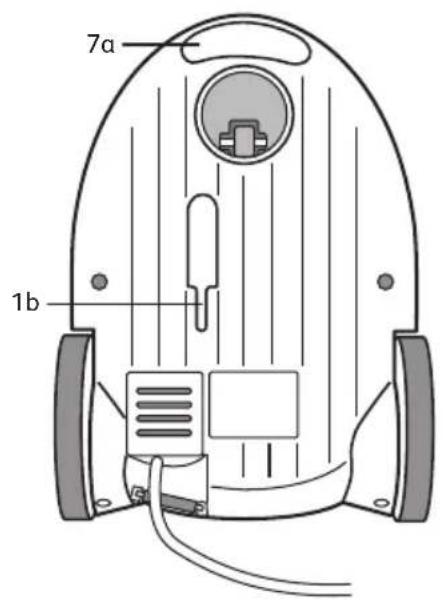

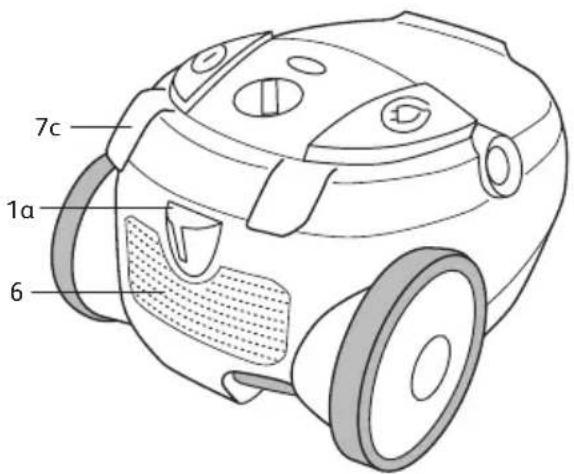

1. a - Horizontal parking
   b - Vertical parking
2. On/Off Pedal
3. Electronic power regulator *
4. Cord winder pedal
5. Bag full light
6. Air outlet grid
7. a - Vertical carry grip

b - Horizontal carry grip

c - Shoulder strap storage fixture

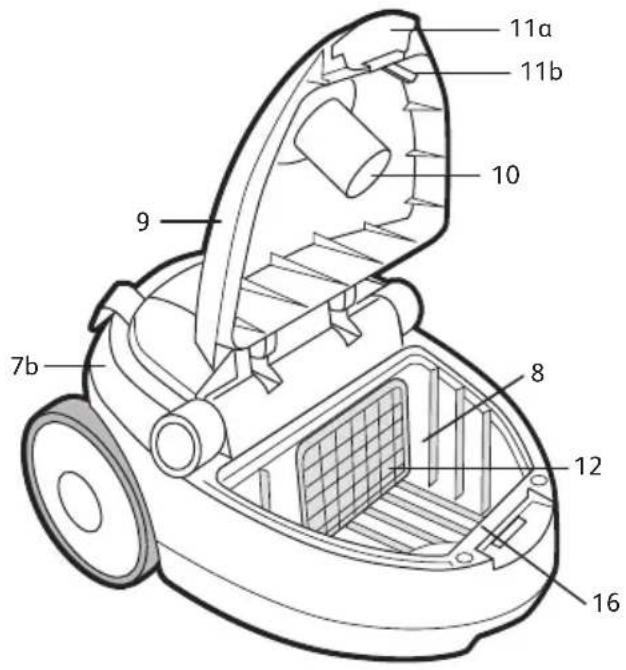

1. Bag compartment
2. Lid
3. Suction opening
   11.a - Lid opening flap

b - Bag presence detector

1. Motor protection grid
2. Microfilter * (ref. MT0005 01)
   14.a - HEPA filter cassette * (ref. MT0007 01), suitable for paper bags

b – HEPA filter cassette * (ref. MT0008 01), suitable for textile bags*

Your vacuum cleaner is fitted with either a microfilter * or a HEPA filter cassette *.

1. Bag support
2. Bag support runners

Standard accessories:

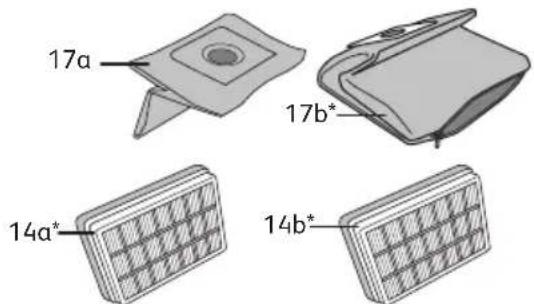

1. Bags
   a - Paper bag (ref. MT0005 01/MT0007 01)
   b - Textile bag* (ref: MT0008 01)

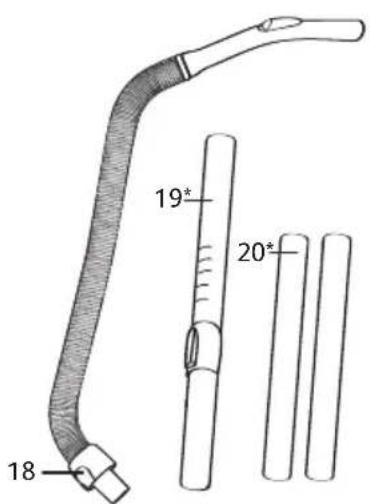

2. Flexible hose with grip and mechanical power regulator
3. Telescopic tube*
4. Tubes*
5. Hardfloor tool*
6. All floor tool
7. Furniture tool*
8. Slot tool attachment convertible into a brush*
9. Turbobrush *
10. Mini turbobrush*
11. Shoulder strap*
12. Shoulder strap cover*

3. BEFORE USING FOR THE FIRST TIME

UNPACKING

- Unpack your appliance, keep your warranty card and read the instructions for use carefully before using your appliance for the first time.

TIPS AND PRECAUTIONS

• Before each use, the cord should be unwound completely.
• Make sure that it does not get stuck or go against sharp ribs.
• If you are using an extension cord, make sure it is in perfect condition and that it suitable for the power of your vacuum cleaner.
• Your vacuum cleaner is fitted with a device to protect against the motor overheating. In certain cases, (using the power nozzle on chairs, etc.) the device is triggered and the appliance may make an unusual noise. This is of no consequence.
• Do not move the vacuum cleaner by pulling on the cord, the appliance must be moved by its carrying handle.
• Do not use the cord to lift the appliance.
• Never unplug the appliance by pulling on the cable.
• Never operate without a vacuum bag and without a filtration system: microfilter * or HEPA filter cassette*.
• Ensure that the filter (13 or 14a and 14b) is firmly in place.
• Use only original Moulinex bags and filters.
• Use only original Moulinex accessories.
• In the event that you find it difficult to obtain accessories and filters for this vacuum cleaner, contact the Moulinex customer service (see contact information on the last page).
• Stop and disconnect your vacuum cleaner after each use.
  • Always stop and unplug your vacuum cleaner before maintenance or cleaning.
• This appliance is not intended for use by people (including children) with impaired physical, sensory or mental capacities, or by people with no experience or familiarity with such devices, unless they are supervised by a person who is responsible for their security or have received instructions as to how to use the appliance. Children must be supervised to ensure that they do not play with the appliance.

4. USE

ASSEMBLAGE OF THE PARTS OF THE APPLIANCE

• Push the flexible hose (18) into the suction opening (10) until it clicks – fig. 1.
• To remove it, press the clips on the hose nozzle and pull – fig. 2.
• If your vacuum cleaner is equipped with the telescopic tube * (19): push the adjustment knob forward, pull the desired tube length out then release the button to lock – fig. 3a. Otherwise, assemble the two tubes* (20), turning them slightly – fig. 3b.
• Fit the desired accessory to the end of the tube:

- For rugs and carpets: Use the all floor tool attachment (22) in retracted brush position – fig. 4.

- For parquets and smooth floors: Use the all floor attachment (22) in brush position – fig. 4. or use the hardfloor tool* (21) directly.

- For corners and areas which are difficult to reach: use the slot tool attachment convertible into a brush* the flat tool attachment position.

• For furniture: use the slot tool attachment convertible into a brush* (24) or the furniture nozzle* (23).
• Your appliance is equipped with a strap * (27), which allows you to carry it on your shoulder.
• To unlock the strap, remove the covers on either side of the handle by giving them a quarter turn in the direction op posite to the arrow – fig. 5a.
• To replace it, do the reverse: replace the covers on either side of the handle by giving them a quarter turn in the direction of the arrow – fig. 5b, until they click, and then place the shoulder strap in its storage housing (7b).

Please note!

Be sure to observe the assembly direction ( ) indicated close to the on/off pedal (2).

Always stop and unplug your vacuum cleaner before changing accessories.

CONNECTING THE CORD AND STARTING THE APPLIANCE

• Unwind the power cord completely, plug your vacuum cleaner in – fig. 6 and press the On/Off pedal (2) – fig. 7.
• Set the suction power:
• using the electronic power regulator* (3): turn the switch on the electronic regulator* to set the suction power: towards maximum position for floors and minimum position for furniture and fragile fabrics – fig. 8.
• with the mechanical power regulator on the grip: open the slider on the grip to manually reduce suction power, e.g.: on fragile surfaces... – fig. 9.

STORING AND TRANSPORTING THE APPLIANCE

• After use, stop your vacuum cleaner by pressing the On/Off pedal (2) and unplug it – fig. 10. Wind the power cord b pressing the cord winder pedal (4) – fig. 11.
• Upright, place the tool attachment (22) in its housing under the appliance (1b) – fig. 12.
• Horizontal, place the tool attachment (22) in its housing at the back of the appliance (1a) – fig. 13.
• Carry your vacuum cleaner easily thanks to its carry handles (7a or 7b) or its shoulder strap* (27).

5. CLEANING AND MAINTENANCE

Important: Always stop and unplug your vacuum cleaner before maintenance or cleaning.

CHANGING BAG

• The bag full light (5) indicates that the bag is full or saturated. If you notice that your appliance is becoming less efficient, set it to maximum power and hold the nozzle up above the ground. If the light stays red, replace the bag.
• Remove the flexible hose (18) from the suction opening (10) – fig. 2
• Open the lid (9) of your vacuum cleaner – fig. 14.

a) If your vacuum is fitted with a paper bag (ref. MT0005 01/MT0007 01):

• Remove the bag support (15) from the bag compartment (8) – fig. 15a, then remove the paper bag (17a) from its support (15) by sliding it along its runners – fig. 15b.
• Throw the bag into the dustbin – fig. 15c.
• Place a new bag on the bag support (15) – fig. 15d, then using the bag support runners (16), put it in the bag compartment – fig. 15e.
• Make sure the bag is properly in position before closing the lid (9).

b) If your vacuum is fitted with a textile bag* (ref. MT0008 01):

• Remove the bag support (15) from the bag compartment (8) – fig. 16a, then remove the textile bag (17b) from its support (15) by sliding it along its runners – fig. 16b.
• Open the bag with the zip – fig. 16c, then empty it over a dustbin – fig. 16d.
• Clean the bag under running water – fig. 16e.
• Allow to dry for at least 24 hours (only put the bag back into position when it is completely dry) – fig. 16f.
• Ensure that the zip is properly closed – fig. 16g before putting it back in position.

CHANGE THE MICROFILTER* (ref: MT0005 01) OR THE HEPA FILTER CASSETTE* (ref: MT0007 01) Microfilter * (ref: MT0005 01)

Important: Change the MT0005 01 microfilter every 6th bag change.

• Open the lid (9) of your vacuum cleaner – fig. 14.
  * According to model: these systems are specific to certain models or are accessories available as an option.

• Open the motor protection grid (12) – fig. 17a.

• Remove the microfilter * (13) – fig. 17b.
• Discard the microfilter * (13) into a dustbin – fig. 17c and replace it with a new microfilter (ref. MT0005 01).
• Place the pins in the notches – fig. 17d.
• Lock the microfilter * behind the engine protection grid (12) – fig. 17e.
• Make sure the microfilter* (13) is properly in position before closing the lid (9).

HEPA FILTER CASSETTE\* (REF: MT0007 01)

Important: Replacethe HEPA filtercassette\* MT0007 01 every 6 months (depending on the frequency of use).

• Open the lid (9) of your vacuum cleaner – fig. 14.
• Remove the HEPA filter cassette* (14a) – fig. 18a – 18b.
• Throw the cassette into the dustbin – fig. 18c.
• Place the pins in the notches – fig. 18d.
• Lock the new HEPA filter cassette* (14a) (ref. MT0007 01) in its housing – fig. 18e.
• Make sure the HEPA filter cassette* (14a) is properly in position before closing the lid (9).

CLEANING THE HEPA FILTER CASSETTE\* (ref: MT0008 01)

Please note! This cleaning operation is reserved exclusively for the HEPA filter cassette \* ref: MT0008 01

• Open the lid (9) of your vacuum cleaner – fig. 14.
• Remove the HEPA filter cassette* (14b) – fig. 19a – 19b.
• Tap the HEPA filter cassette* (14b) over a dustbin – fig. 19c.
• Then hold it under running water – fig. 19d, and allow to dry at least 24 hours – fig 19e.
• Ensure that the HEPA filter cassette * (14b) is completely dry before replacing it.
• Place the pins in the notches – fig. 19f.
• Lock the HEPA filter cassette* (14b) (Ref: MT0008 01) in its housing – fig. 19g.
• Make sure the HEPA filter cassette* (14b) is properly in position before closing the lid (9).

CLEANING THE VACUUM CLEANER

• Wipe the body of the vacuum cleaner and accessories with a soft damp cloth, then dry.
• Wipe the lid with a dry cloth – fig. 20.
• Do not use detergents or any corrosive or abrasive products.

6. TROUBLESHOOTING

Important: As soon as your vacuum cleaner stops performing efficiently, and before making any checks, stop it by sing on the On/Off pedal

IF YOUR VACUUM CLEANER DOES NOT START

- The appliance is not powered: make sure the appliance is properly connected.

IF YOUR VACUUM CLEANER DOES NOT SUCK

• An accessory or the hose is blocked: unblock the accessory or hose.
• The lid is not properly closed: check that the bag is properly in position and close the lid.

IF YOUR VACUUM CLEANER IS NOT SUCKING PROPERLY OR IS MAKING A WHISTLING NOISE

• An accessory or the hose is partially blocked: unblock the accessory or hose.
• The bag is full or saturated by fine dust: replace the paper bag (17a), or empty the textile bag * (17b).
• The bag full light is red: the filtration system is saturated.

• HEPA cassette*: change the HEPA cassette * (14a) (ref. MT0007 01) and replace it in its housing or wash the HEPA filter cassette* (14b) (ref. MT0008 01) according to the procedure.

• Microfilter *: Remove the microfilter* and replace it with a new one (ref. MT0005 01).

• The electronic power regulator* is in the minimum position: increase the power using the electronic power regulator* (unless you are cleaning fragile fabrics).
• The mechanical power regulator on the grip is open: close the mechanical power regulator.

- The bag is saturated: replace the paper bag (17a), or empty the textile bag* (17b).

IF THE LID DOES NOT CLOSE

- Check the presence of the bag (11b) or that it is in the correct position.

IF THE TOOL ATTACHMENT IS DIFFICULT TO MOVE

- Open the regulator slot on the grip or decrease power.

IF THE POWER CORD DOES NOT WIND UP COMPLETELY

- The cord slowed down as it was winding up: bring the cord back out and press the cord winder pedal again.

- The overheating protective device has been triggered. Check that the tube and the pipe are not blocked or that the bag or filter are not full. Leave to cool down for 30 minutes before using the vacuum cleaner again.

If the problem persists, take your vacuum cleaner to the nearest Moulinex Approved Service Centre.

See the list of Moulinex Approved Service Centres or contact the Moulinex Consumer Service (see contact information on the last page).

WARRANTY

• This appliance is for domestic use only; in the event of inappropriate use that does not comply with the instructions, the company shall take no liability and the warranty shall be null and void.

• Read the instructions for use carefully before using your appliance for the first time: in the event of any use that does not comply with the instructions, Moulinex shall accept no liability.

• THE ACCESSORIES*

ACCESSORIES*	USE	FITTING OF THE ACCESSORY	WHERE TO BUY IT
Furniture tool	To clean furniture	Fit the furniture tool to the end of the tube.	Moulinex Approved Service Centres (see list of addresses attached).
Slot tool attachment convertible into a brush	For corners and areas which are difficult to reach	Fit the slot tool attachment convertible into a brush to the end of the grip or the tube.	Moulinex Approved Service Centres (see list of addresses attached).
Hardfloor tool	For fragile floors.	Fit the hardfloor tool to the end of the tube.	Moulinex Approved Service Centres (see list of addresses attached).
Mini turbobrush	For deep cleaning of uphols-Fit the mini turbobrush to the end of the tery fabrics.	the turbobrush tube.	Moulinex Approved Service Centres (see list of addresses attached).
Turbobrush	To remove threads and anim hair embedded in rugs and carpets.	The turbobrush to the end of the tube.	Moulinex Approved Service Centres (see list of addresses attached).

8. ENVIRONMENT

• In accordance with existing regulations, any appliance that is out of service must be rendered permanently inoperable: disconnect and cut the power cord before discarding the appliance.
  • Environment: Directive 2002/95/EC.

Environmental protection first!

①Your appliance contains valuable materials which can be recovered or recycled.
Take it to a collection point or an approved service centre so that it can be recycled.

1. VEILIGHEIDSTIPS
