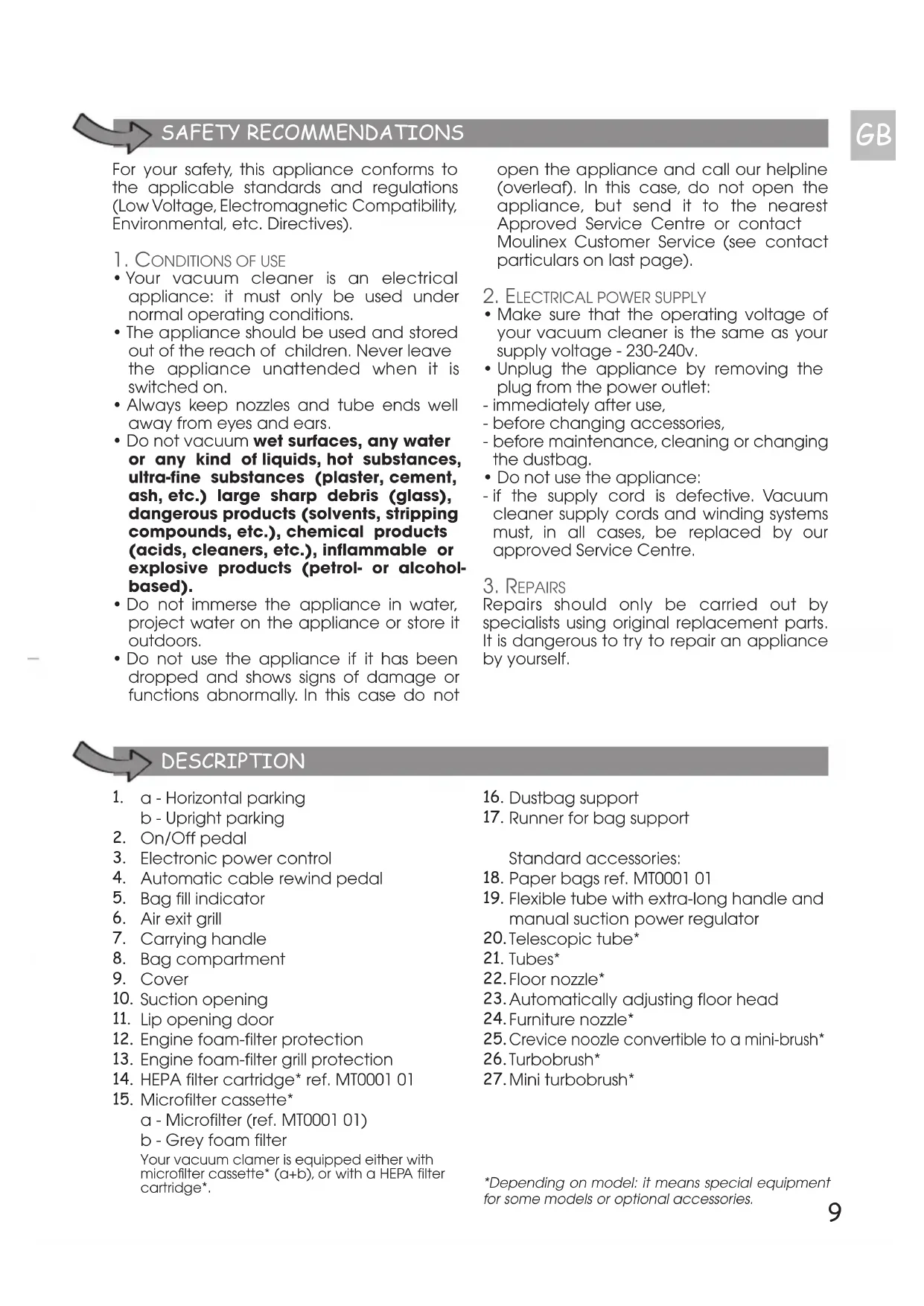

For your safety, this appliance conforms to the applicable standards and regulations (Low Voltage, Electromagnetic Compatibility, Environmental, etc. Directives).

1. CONDITIONS OF USE

• Your vacuum cleaner is an electrical appliance; it must only be used under normal operating conditions.
• The appliance should be used and stored out of the reach of children. Never leave the appliance unattended when it is switched on.
  Always keep nozzles and tube ends well away from eyes and ears.
• Do not vacuum wet surfaces, any water or any kind of liquids, hot substances, ultra-fine substances (plaster, cement, ash, etc.) large sharp debris (glass), dangerous products (solvents, stripping compounds, etc.), chemical products (acids, cleaners, etc.), inflammable or explosive products (petrol- or alcohol-based).
• Do not immerse the appliance in water, project water on the appliance or store it outdoors.
• Do not use the appliance if it has been dropped and shows signs of damage or functions abnormally. In this case do not

open the appliance and call our helpline (overleaf). In this case, do not open the appliance, but send it to the nearest Approved Service Centre or contact Moulinex Customer Service (see contact particulars on last page).

2. ELECTRICAL POWER SUPPLY

Make sure that the operating voltage of your vacuum cleaner is the same as your supply voltage - 230-240v.
- Unplug the appliance by removing the plug from the power outlet:
-immediately after use,
- before changing accessories,
- before maintenance, cleaning or changing the dustbag.
- Do not use the appliance:
- if the supply cord is defective. Vacuum cleaner supply cords and winding systems must, in all cases, be replaced by our approved Service Centre.

3. REPAIRS

Repairs should only be carried out by specialists using original replacement parts. It is dangerous to try to repair an appliance by yourself.

DESCRIPTION

1. a - Horizontal parking b - Upright parking
2. On/Off pedal
3. Electronic power control
4. Automatic cable rewind pedal
5. Bag fill indicator
6. Air exit grill
7. Carrying handle
8. Bag compartment
9. Cover
10. Suction opening
11. Lip opening door
12. Engine foam-filter protection
13. Engine foam-filter grill protection
14. HEPA filter cartridge* ref. MT0001 01
15. Microfilter cassette* a-Microfilter(ref.MT0001 01) b-Grey foam filter

Your vacuum clamer is equipped either with microfilter cassette* (a + b) or with a HEPA filter cartridge*.

1. Dustbag support
2. Runner for bag support

Standard accessories:

1. Paper bags ref. MT0001 01
2. Flexible tube with extra-long handle and manual suction power regulator
   20.Telescopic tube*
3. Tubes*
4. Floor nozzle*
5. Automatically adjusting floor head
6. Furniture nozzle*
7. Crevice noodle convertible to a mini-brush*
   26.Turbobrush*
8. Mini turbobrush*

*Depending on model: it means special equipment for some models or optional accessories.

BEFORE USING FOR THE FIRST TIME

1. REMOVE PACKAGING

• Take your appliance out of its packaging. Keep your warranty card and carefully read the operating instructions before using your appliance for the first time.

2. HINTS AND PRECAUTIONS

• Before each use, the supply cord should be completely unwound.
• Do not allow it to become trapped or pulled over sharp edges.
• If you use an electric extension cord, make sure that it is in perfect condition and appropriate to the power rating of your appliance.

• Never unplug the appliance by pulling on the cord.

• Never operate the vacuum cleaner without a bag and without a filtration system (cassettes).

• Do not use the vacuum cleaner without a foam filter for protection of the motor.
• Only use Moulinex bags and filters.
• Always stop and unplug your appliance before maintenance or cleaning.
• This appliance is not designed to be used by people (including children) with a physical, sensory or mental impairment, or people without knowledge or experience, unless they are supervised or given prior instructions concerning the use of the appliance by someone responsible for their safety.
  Children must be supervised to ensure that they do not play with the appliance.

USING THE APPLIANCE

1. ASSEMBLING THE ELEMENTS OF THE APPLIANCE

2. Push the flexible hose (19) in the opening (10) until your hear a clicking sound - fig.1. To remove it, press the button of the hose connector and pull - fig.2.

3. Assemble the telescopic tube* (20). Adjust it to the desired length - fig.3.
4. Fit the appropriate accessory to the end of the tube:
5. For rugs and wall-to-wall carpeting: use the head (23) with brushes lifted - fig.4.
6. For parquets and smooth flooring: use the nozzle (23) with the brush extended - fig.4. or use the parquet nozzle* (22).
7. For nooks and difficult-to-reach areas: use the mini-brush convertible slotted attachment* (25) in flat nozzle position.

8. For furniture: use the mini-brush on the convertible slotted attachment (25) or the furniture attachment (24).

9. PLugging in THE ELECTRICAL POWER CORD AND USING THE VACUUM CLEANER

10. Completely unwind the power cord, plug in your vacuum cleaner - fig.5 and push the on/off pedal (2) - fig.6.

11. Adjust the suction power:

12. With the electronic power selector (3): Turn the button of the electronic power regulator to adjust the suction power: to the max position for floors and to the min position for furniture and delicate fabrics - fig. 7.

13. With the electronic power regulator on the power nozzle: open the selector switch flap to manually reduce suction power regulator, ex: fragile surfaces... - fig. 8.

14. STORING AND TRANSPORTING THE APPLIANCE

After use, stop your appliance by pressing on the on/off pedal (2) and unplug it - fig. 9.Replace the cable by pressing the automatic cable rewind pedal (4) - fig. 10.
- In an upright position, hook the telescopic tube* (20) onto its storage position on the back of the appliance (1b) - fig. 11.
- You can transport your vacuum cleaner easily using its carrying handle (7).
- In the horizontal position, hook the floor nozzle (23) onto its storage position at the rear of the appliance (1a) - fig. 12.

1. CHANGING THE BAG

• The bag capacity indicator (5) tells you when the bag is full or saturated. If you notice that your vacuum cleaner is less efficient, select the maximum power and by lifting the floor head off the floor. If the indicator remains red, replace the bag.
• Open the lid (9) of your vacuum cleaner - fig. 13.
• Withdraw the bag support (16) - fig. 14; Unclip the bag (18) by pressing the lever - fig. 15, and dispose of the bag in a waste bin - fig. 16.
• Fit a fresh bag, position it using the tongue provided and clip it onto the bag support - fig. 17. Slide the bag support back onto the runners - fig. 18 place the bag inside the compartment - fig. 19.
• Make sure that the bag is in the correct position before closing the lid (9).

2. CLEANING THE FOAM FILTER FOR PROTECTION OF THE MOTOR

• The motor foam-filter protection (12) must always be in place when in use.
• Open the lid (9). The grid (13) - fig. 20 then remove the foam-filter (12) - fig. 21.
• Shake it and clean it, every ten dustbag changes, with tepid soapy water.
• Rinse, dry and put it back in place.
• Let the foam-filter dry (12) completely before putting back in place.

Caution: N.B. Make sure that the foam filter is completely dry before fitting it again.

3.CHANGE THE HEPA\* FILTER CASSETTE OR THE MICROFILTER\* ON EVERY TENTH CHANGE OFBAG

3.1- The Hepa* filter cassette

• Open the lid (9) of your vacuum cleaner - fig. 13.
• Remove the Hepa* filter cassette (14) - fig. 22 and dispose of the cassette in a waste bin.
• Fit the new Hepa* filter cassette (ref. MT0001 01) (14) in its compartment - fig. 23.
• Check that the Hepa* filter cassette (14) is fitted correctly before re-closing the lid (9).

3.2- The microfilter cassette*

• Open the lid (9) of your vacuum cleaner - fig. 13.
• Withdraw the microfilter cassette* (15) - fig. 22.
• Separate the grey foam filter (15b) from the microfilter (15a).
• Dispose of the microfilter (15a) in a waste bin and replace it with a new Microfilter (ref. MT0001 01).
• Wash the grey foam filter (15b) with warm soapy water (mild detergent). Squeeze it out and leave it to dry for at least 12 hours. Caution: Make sure that the grey foam filter is completely dry before putting it back in place.
• Re-fit the grey foam filter (15b) to the microfilter (15a).
• Re-fit the microfilter cassette* in its compartment (15) - fig. 23.
• Check that the microfilter cassette* (15) is fitted correctly before re-closing the lid (9).

4. CLEAN THE VACUUM CLEANER

• Clean the housing of the vacuum cleaner with a soft and humid rag and let dry.
• Clean the cover with a dry rag - fig. 24.
• Do not use abrasive or aggressive products.

TROUBLESHOOTING

1 . IF YOUR VACUUM CLEANER DOES NOT START

• The appliance is not plugged-in, check that the appliance is correctly plugged in.

• IF THERE IS NO SUCTION

• An accessory or the tube is clogged. Unclog the accessory tube or flexible hose.

• The lid was not closed properly: check that the bag is properly installed and close the lid again.

• IF THE SUCTION OF YOUR VACUUM CLEANER HAS DROPPED , IT MAKES A NOISE AND WHISTLES

• An accessory or the flexible hose is partially clogged. Unclog the accessory tube or flexible hose.

The bag is full or saturated with fine dust. Put a new bag in or empty the fabric dust bag.

• The foam-filter is saturated. Clean the foam-filter.

• If the bag fill indicator is red, the filtration system is saturated.

• The HEPA cassette: change the Hepa cassette (ref. MT0001 01) and put it back in its housing.

• The microfilter cassette*: withdraw the microfilter from the cassette, and change it (ref. MT0001 01). Wash the grey foam filter, squeeze it out and leave it to dry for at least 12 hours. Then re-fit the cassette in its housing.

• The electronic variable suction power selector is in the minimum position. Increase the power with the help of the electronic variable suction power selector (except if you are vacuuming delicate fabrics).

• If the mechanical power regulator on the power nozzle is open, close the mechanical power regulator.

• IF THE BAG FILL INDICATOR REMAINS RED

The bag is full. Put a new one.

1. IF THE FLOOR HEAD IS HARD TO MOVE AROUND

2. Open the suction regulator on the handle or reduce power.

3. IF THE POWER CABLE DOES NOT REWIND COMPLETELY

4. The power cable is slow in reentering its housing. Pull the cable back out and press on the automatic cable rewind pedal.

If you have any product problems or queries, please contact our customer Relations Team first for expert help and advice (see the contact details on the last page).

WARRANTY

• This product has been designed for domestic use only. Any professional use, innappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• Read the instructions for use carefully before using your appliance for the first time: any use which does not conform to these instructions will absolve Moulinex from any liability.

ACCESSIONS* VACUUMING PURCHASE	FITTING AN ACCESSORY	LOCATION
Floor nozzle	For hard and smooth floors.	Fit the hardfloor tool to the end of the tube.	Moulinex Approved Service Centres (see the attached address list).
Mini turbobrush	To clean upholstery fabrics in depth.	Fit the mini turbobrush to the end of the tube.	Moulinex Approved Service Centres (see the attached address list).
Turbobrush	To remove threads and animal hairs ingrained into mats and carpets.	Fit the turbobrush to the end of the tube.	Moulinex Approved Service Centres (see the attached address list).

ENVIRONMENT

In accordance with current regulations, before disposing of an appliance no longer needed, the appliance should be made non-operational (by unplugging it and cutting off the electricity supply cord).

• Environment: Directive 2002/95/EC.

Environment protection first!

i Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.
