USER MANUAL WirelessG WAG54G2 LINKSYS

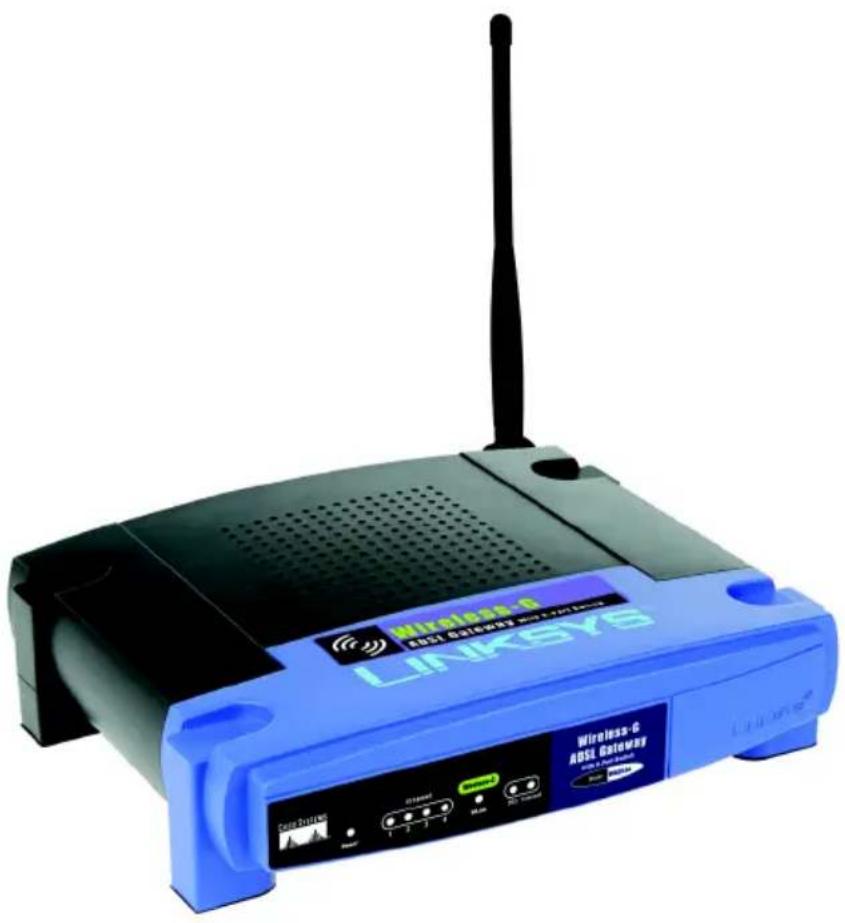

• Wireless-G ADSL Gateway
• User Guide on CD-ROM
• Ethernet Network Cable
• Phone Cable
  Power Adapter
• Microfilter or splitter (not supplied with all models)
• Quick Installation

2,4GHz

Wireless-G

ADSL Gateway

Quick Installation Guide

Wireless

1

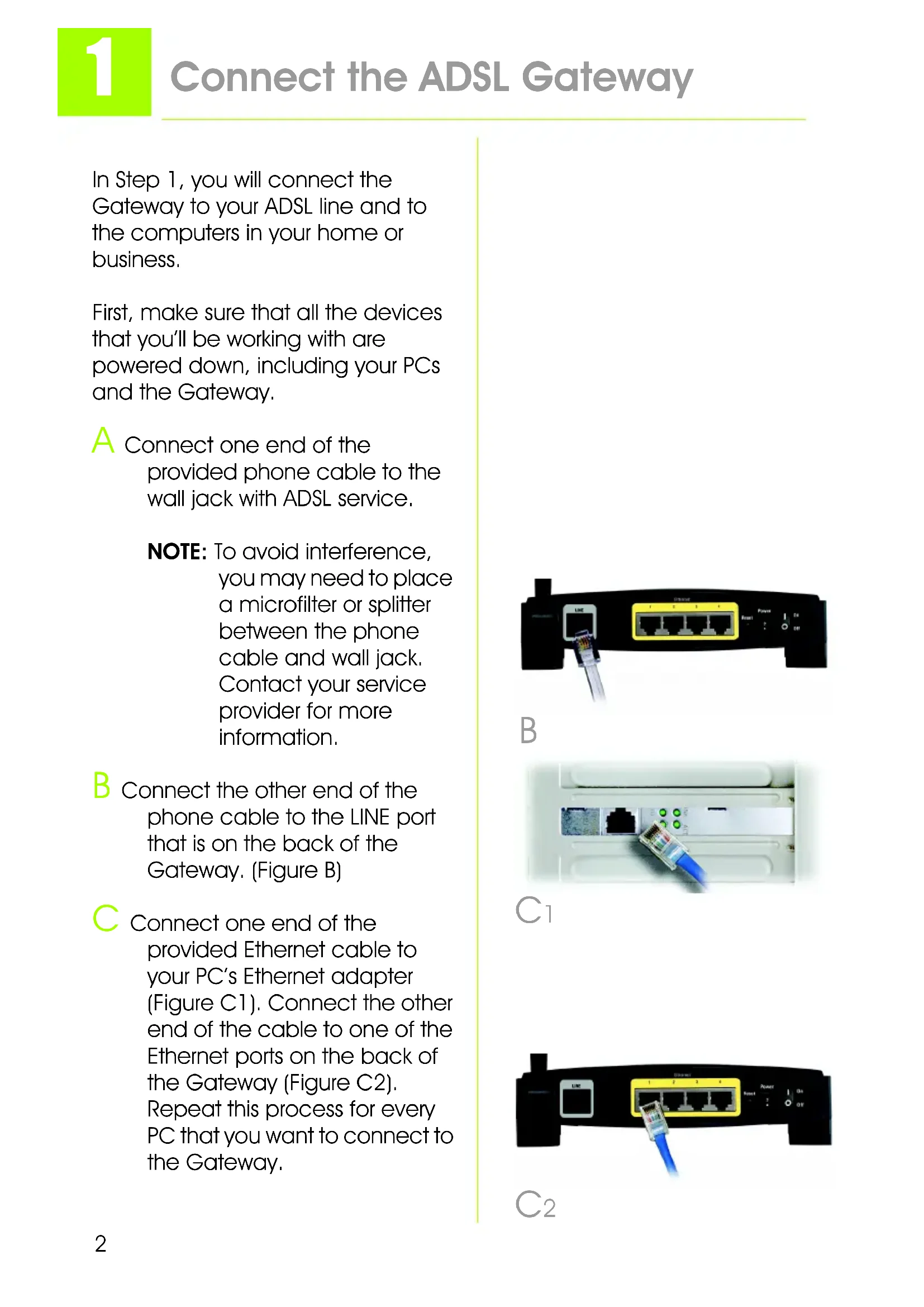

Connect the ADSL Gateway

In Step 1, you will connect the Gateway to your ADSL line and to the computers in your home or business.

First, make sure that all the devices that you'll be working with are powered down, including your PCs and the Gateway.

Connect one end of the provided phone cable to the wall jack with ADSL service.

NOTE: To avoid interference, you may need to place a microfilter or splitter between the phone cable and wall jack. Contact your service provider for more information.

Connect the other end of the phone cable to the LINE port that is on the back of the Gateway. (Figure B)

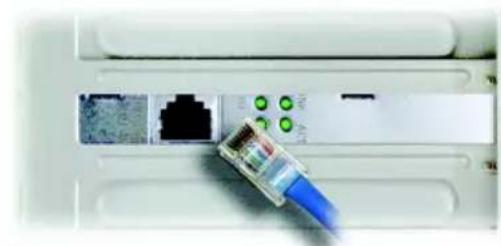

Connect one end of the provided Ethernet cable to your PC's Ethernet adapter (Figure C1). Connect the other end of the cable to one of the Ethernet ports on the back of the Gateway (Figure C2). Repeat this process for every PC that you want to connect to the Gateway.

B

C1

C2

If you are connecting more than four PCs to the Gateway, you will also need to connect a hub or switch to the Gateway.

NOTE: If your PC's Ethernet adapter is not set up, refer to the Ethernet adapter's user guide for more information.

Connect the power adapter to the Gateway. Connect the power adapter to the electrical outlet. (Figure D)

Turn on the Gateway. Then, turn on the first PC that you want to use to configure the Gateway.

IMPORTANT: Make sure you only place the microfilter or splitter between the phone and the wall jack and not between the Gateway and the wall jack. Otherwise your ADSL will not connect.

Proceed to Step 2: Configure the ADSL Gateway.

2 Configure the ADSL Gateway

In Step 2, you will configure your Linksys Wireless-G ADSL Gateway to be able to gain access to the Internet through your Internet Service Provider (ISP). You will need the setup information provided by your ADSL ISP. If you do not have this information, please contact them before proceeding.

The instructions from your ISP tell you how to set up your PC for Internet access. Because you are now using the Gateway to share Internet access among several computers, you will use the setup information to configure the Gateway instead of your PC.

NOTE: You only need to configure the Gateway once using the first computer you set up.

A Open your web browser. (You may get an error message at this point. Continue following these directions.) Enter http:// 192.168.1.1 in the web browser's Address field. Press the Enter key.

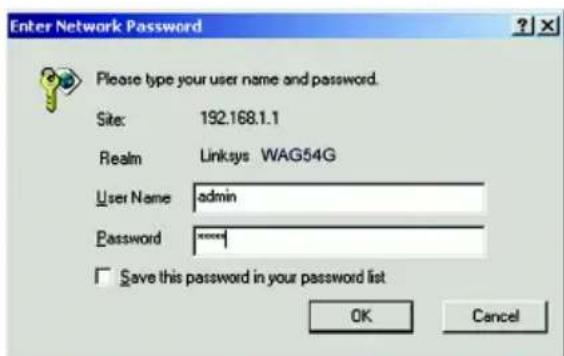

B An Enter Network Password window, shown in Figure B, will appear (Windows XP users will see a Connect to 192.168.1.1 window). Enter admin in lowercase letters in the User Name field, and enter admin

B

in lowercase letters in the Password field (admin is the default user name and password.) Then, click the OK button.

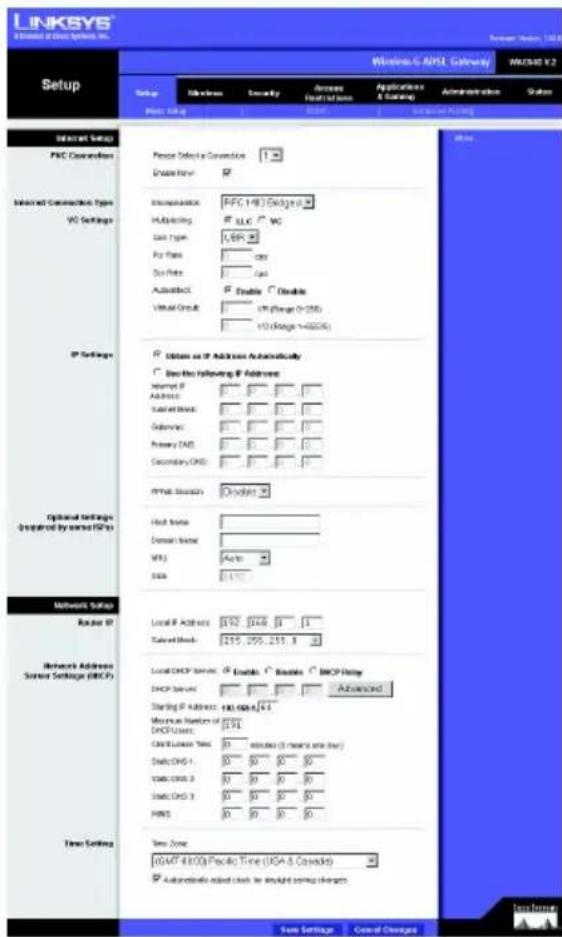

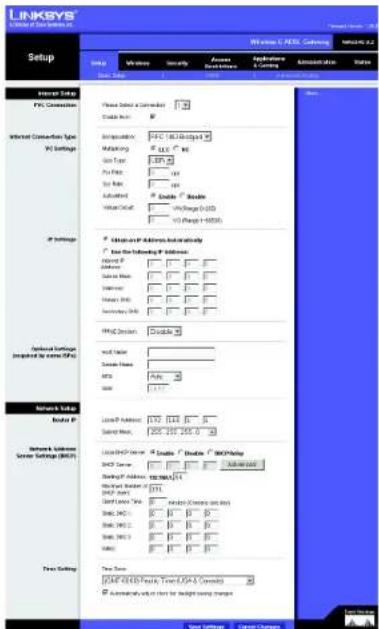

The Basic Setup screen will appear with the Setup tab selected. (Figure C) Based on the setup instructions from your ISP, you may need to provide the following information.

Virtual Circuit (VPI and VCI): These fields consist of two items: VPI (Virtual Path Identifier) and VCI (Virtual Channel Identifier). Your ISP will provide the correct settings for each field.

D Encapsulation: This Gateway supports multiple settings for the Encapsulation. The most common Encapsulation methods are described below. All methods are included in the User Guide (English only) on the CD-ROM.

The settings required will depend on the Encapsulation chosen here. Your ISP will provide the correct settings.

C

1 RFC 1483 Bridged

Dynamic IP Address

If your ISP says that you are connecting through a dynamic IP address (Figure D1), perform these steps:

Select RFC 1483 Bridged for the Encapsulation.

Select Obtain an IP Address Automatically for the IP Setting.

Click the Save Settings button to save the settings.

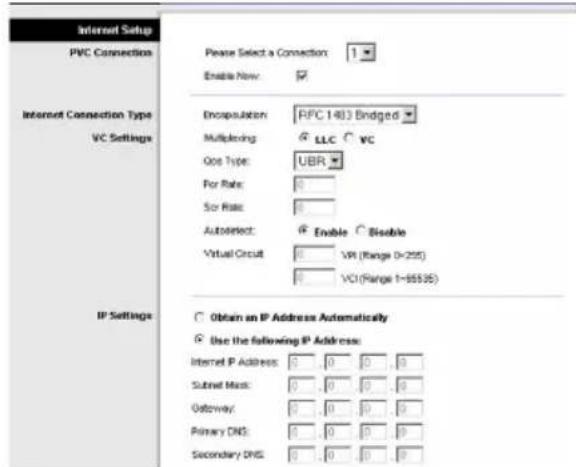

Static IP Address

If your ISP says that you are connecting through a static or fixed IP address (Figure D2), perform these steps:

Select RFC 1483 Bridged for the Encapsulation.

Select Use the following IP Address as the IP Setting.

Enter the IP Address and the Subnet Mask.

Enter the Default Gateway address.

D1
Dynamic

D2
Static

e

Enter the DNS in the Primary and/or Secondary fields. You need to enter at least one DNS address.

f

Click the Save Settings button to save the settings.

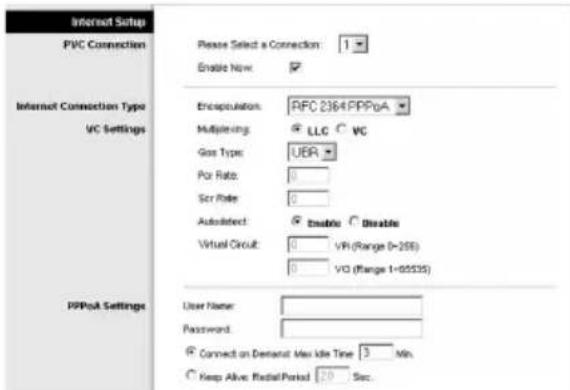

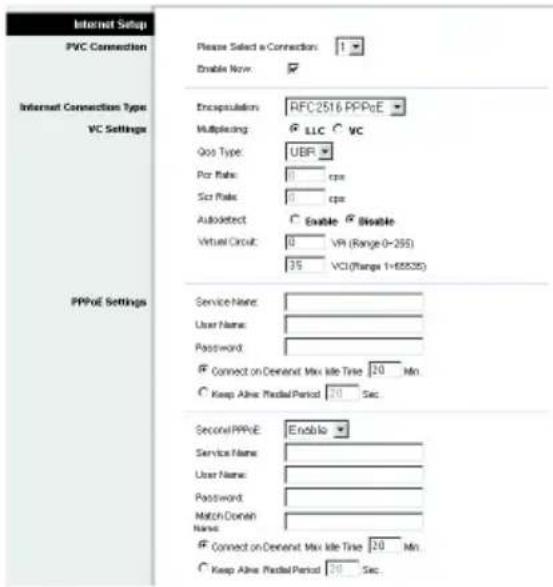

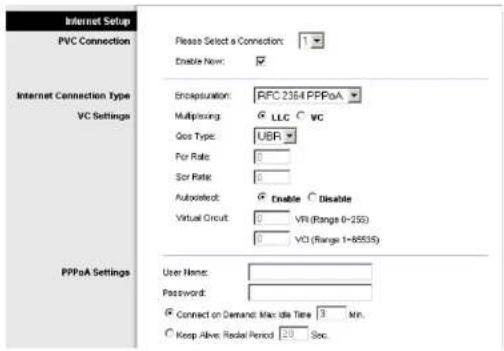

2 RFC 2516 PPPoE or RFC 2364 PPPoA

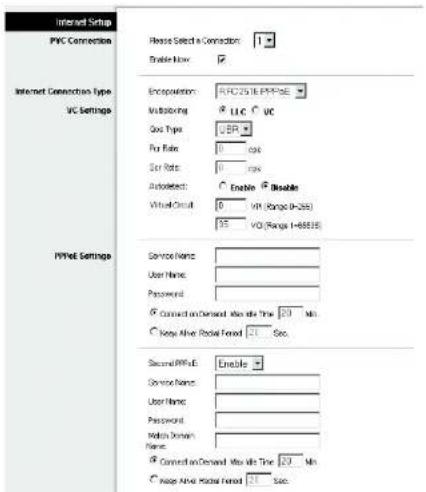

If your ISP says that you are connecting through PPPoE (Figure D3) or PPPoA (Figure D4), or if you normally enter a user name and password to access the Internet, perform these steps:

a

Select PPPoE or PPPoA as appropriate for the Encapsulation.

b

If you selected PPPoE, enter the Service Name (if required).

C

Enter the User Name.

d

Enter the Password.

e

Select Keep Alive if you always want to be connected to your ISP, or select Connect on Demand if you are charged for the time that you are connected to your ISP.

f

Click the Save Settings button to save the settings.

D3

PPPoE

PPPOA

D4

E If you haven't already done so, click the Save Settings button to save your Setup settings. Close the web browser.
F For Wireless Configuration: Refer to the User Guide (English only) for detailed instructions on how to configure your Gateway for your wireless network. Linksys recommends changing your wireless settings from the defaults and enabling the appropriate security options.
G Congratulations! You've successfully configured the Gateway. Test the setup by opening your web browser from any computer and entering: www.linksys.com/ registration
H If you are unable to reach our website, you may want to review the installation and configuration sections in this Quick Installation or refer to the Troubleshooting section of the User Guide.

LINKSYS

A Division of Cisco Systems, Inc.

For additional information or troubleshooting help, refer to the User Guide on the CD-ROM or the Technical Support Insert. You can also e-mail for further support.

Website

http://www.linksys.com/international

Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All rights reserved.

WAG54G-EU/LA-V2-QIG-41001NC BW

Lieferumfang

A Division of Cisco Systems, Inc.

Tilslutning of ADSL-gateway

Konfiguration of ADSL-gateway

A Division of Cisco Systems, Inc.

WAG54G-DK-V2-QIG-41004NCBW

A Division of Cisco Systems, Inc.

A Division of Cisco Systems, Inc.

WAG54G-FR-V2-QIG-40928NC BW

Incapsulamento: Anything supports a few important steps to use this technique.
1. Incomplete: If the user is not able to complete the task, the user must first complete it by using the same method as the user does.
2. Complete: If the user is able to complete the task, the user must first complete it by using the same method as the user does.
3. Complete incomplete: If the user is able to complete the task, the user must first complete it by using the same method as the user does.
4. Complete incomplete incomplete: If the user is able to complete the task, the user must first complete it by using the same method as the user does.
5. Complete incomplete incomplete incomplete: If the user is able to complete the task, the user must first complete it by using the same method as the user does.

A Division of Cisco Systems, Inc.

WAG54G-IT-V2-QIG-41001NC BW

A Division of Cisco Systems, Inc.

Para obter informacoes adiconais ou ajuda para resolution de problemas, consulte o Manual do Utilizador no CD-ROM, ou para contactar o Suporte专业技术e, consulte a Folha de suporte专业技术e.

Web site http://www.linksys.com/international

WAG54G-PT-V2-QIG-40928NC BW

Völj Obtain an IP Address

Välj Use the following IP Address

A Division of Cisco Systems, Inc.

WAG54G-SE-V2-QIG-40928NC BW

LINKSYS

A Division of Cisco Systems, Inc.

2,4GHz 802.11g

Wireless-G

User Guide

WIRELESS

Model No. WAG54G (EU)

CISCO SYSTEMS

Wireless-G ADSL Gateway

Copyright and Trademarks

Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.

How to Use this Guide

Your Guide to the Wireless-G ADSL Gateway has been designed to make understanding networking with the Gateway easier than ever. Look for the following items when reading this User Guide:

This checkmark means there is a Note of interest and is something you should pay special attention to while using the Gateway.

This exclamation point means there is a Caution or Warning and is something that could damage your property or the Gateway.

Figure 0-1: Sample Figure Description

This question mark provides you with a reminder about something you might need to do while using the Gateway.

In addition to these symbols, there are definitions for technical terms that are presented like this:

word: definition.

Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this:

Figure numbers and descriptions can also be found in the "List of Figures" section in the "Table of Contents".

WAG54G-EU_V2-UG-41025NC BW

Wireless-G ADSL Gateway

Table of Contents

Chapter 1: Introduction 1

Welcome 1

What's in this Guide? 2

Chapter 2: Planning Your Network 4

The Gateway's Functions 4

IP Addresses 4

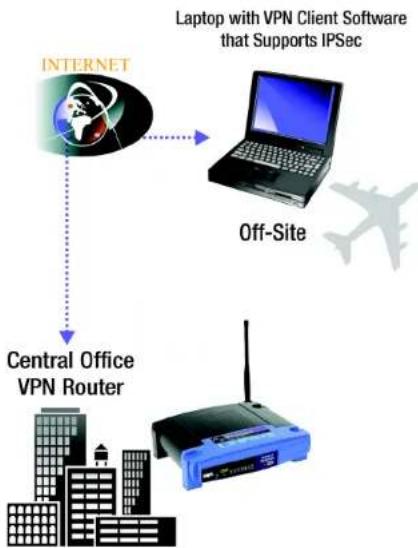

Why do I need a VPN? 5

What is a VPN? 6

Chapter 3: Getting to Know the Wireless-G ADSL Gateway 8

The Back Panel 8

The Front Panel 9

Chapter 4: Connecting the Wireless-G Broadband Gateway 10

Overview 10

Wired Connection to a Computer 11

Wireless Connection to a Computer 11

Chapter 5: Configuring the Gateway 13

Overview 13

How to Access the Web-based Utility 15

The Setup Tab 15

The Wireless Tab 23

The Security Tab 26

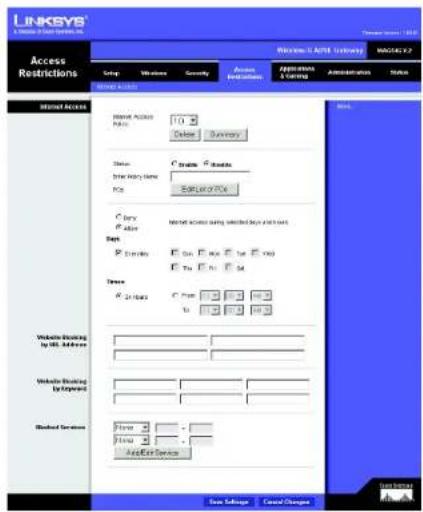

The Access Restrictions Tab 31

The Applications and Gaming Tab 33

The Administration Tab 36

The Status Tab 41

Appendix A: Troubleshooting 45

Common Problems and Solutions 45

Frequently Asked Questions 53

Appendix B: Wireless Security 59

Appendix C: Configuring IPSec between a

Windows 2000 or XP Computer and the Gateway 62

Introduction 62

Wireless-G ADSL Gateway

Environment

62

How to Establish a Secure IPSec Tunnel 63

Appendix D: Finding the MAC Address and IP Address for Your Ethernet Adapter 73

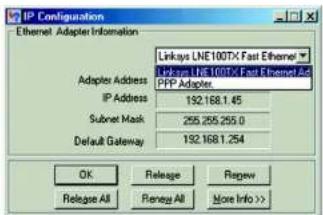

Windows 98 or Me Instructions 73

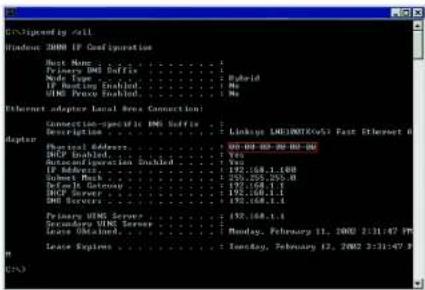

Windows 2000 or XP Instructions 74

Appendix E: Upgrading Firmware 75

Appendix F: Glossary 76

Appendix G: Specifications 82

Appendix H: Regulatory Information 84

Appendix I: Warranty Information 87

Appendix J: Contact Information 88

List of Figures

Figure 2-1: Network 4

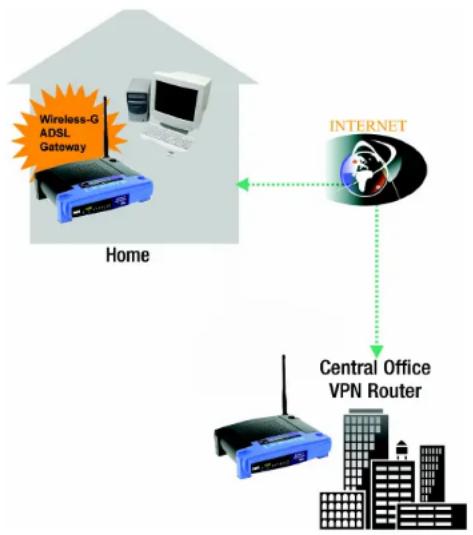

Figure 2-2: Computer-to-VPN Gateway 6
Figure 2-3: VPN Gateway-to-VPN Gateway 7

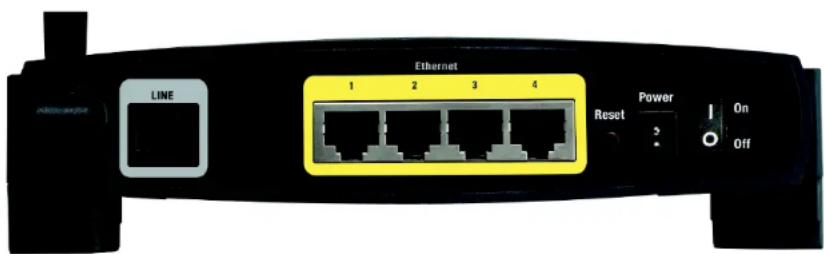

Figure 3-1: Back Panel 8

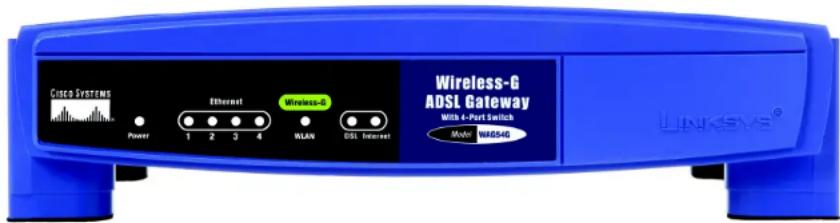

Figure 3-2: Front Panel 9
Figure 4-1: Ethernet Connection 11
Figure 4-2: ADSL Connection 11
Figure 4-3: Power Connection 11
Figure 5-1: Password Screen 15
Figure 5-2: Basic Setup Tab 15
Figure 5-3: Dynamic IP 16
Figure 5-4: Static IP 16

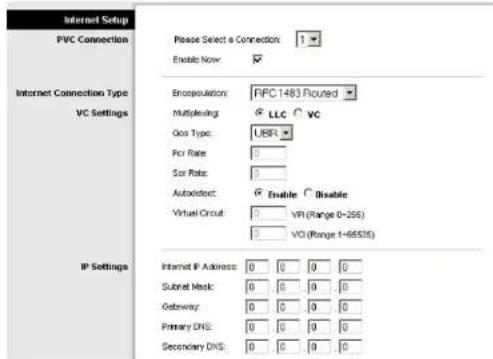

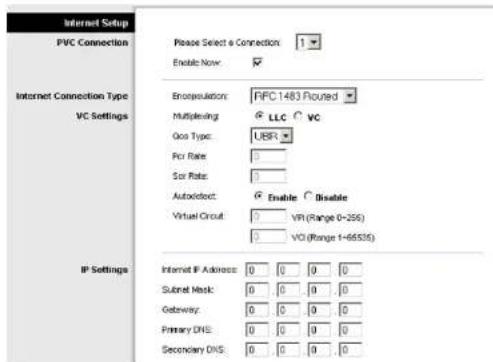

Figure 5-5: RFC 1483 Routed 17
Figure 5-6: RFC 2516 PPPoE 17
Figure 5-7: RFC 2364 PPPoA 18

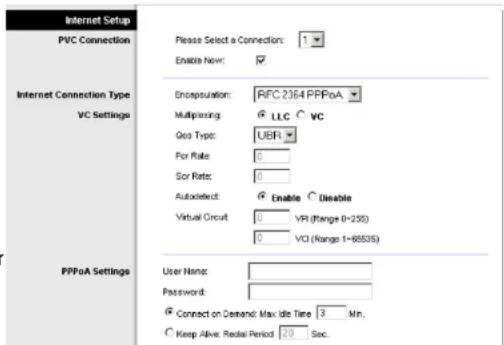

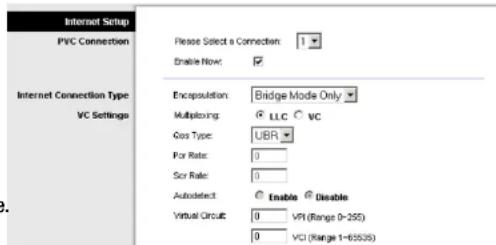

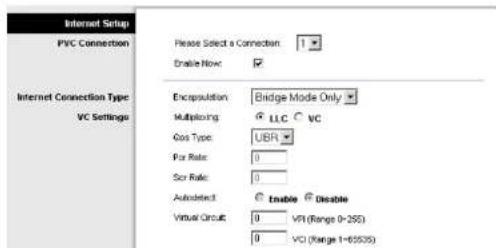

Figure 5-8: Bridged Mode Only 18

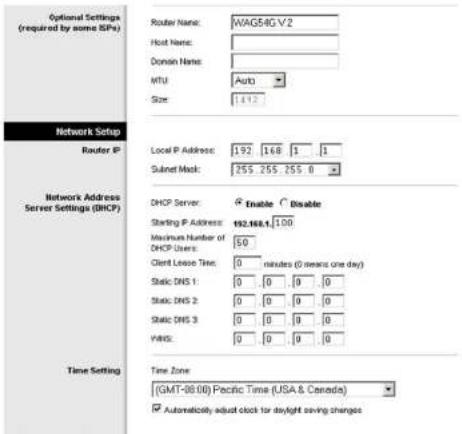

Figure 5-9: Optional Settings 19
Figure 5-10: DynDNS.org 20

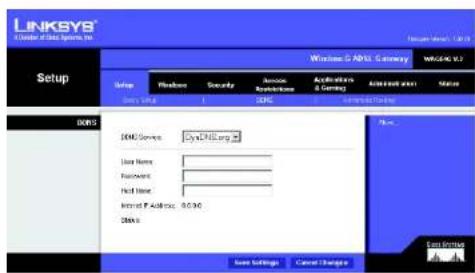

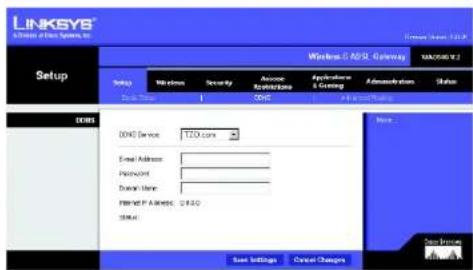

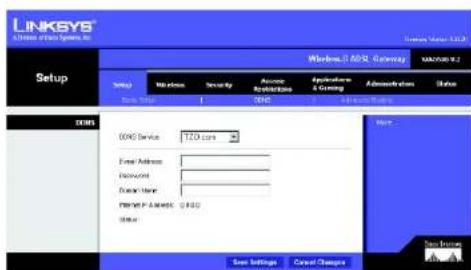

Figure 5-11: TZ0.com 20

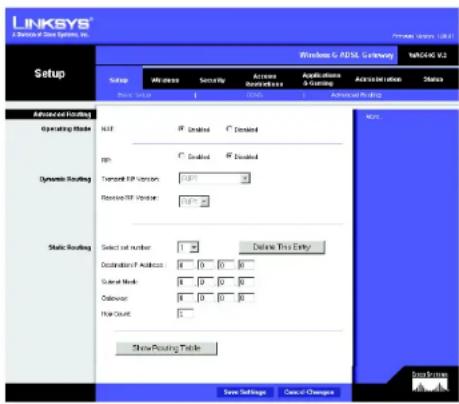

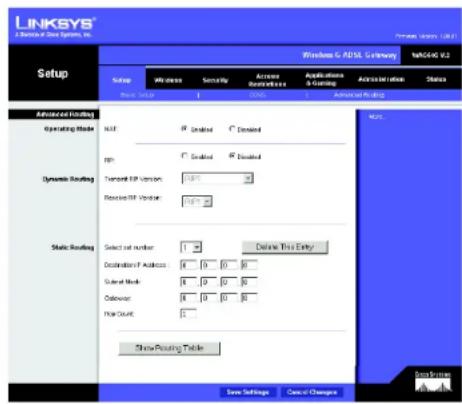

Figure 5-12: Advanced Routing 21
Figure 5-13: Routing Table 22

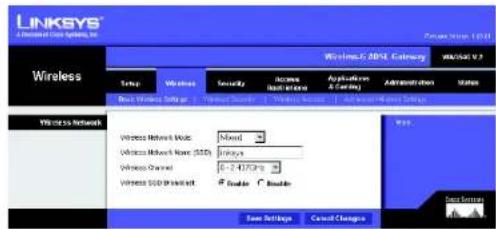

Figure 5-14: Wireless Network Mode 23

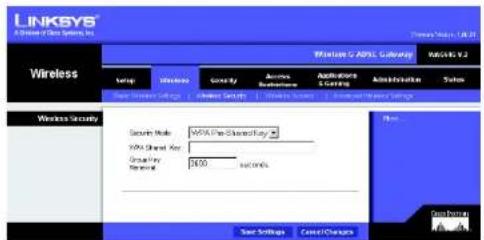

Figure 5-15: WPA Pre-Shared Key 24

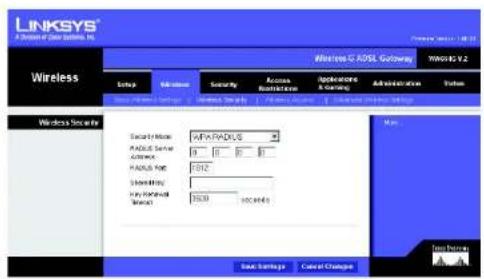

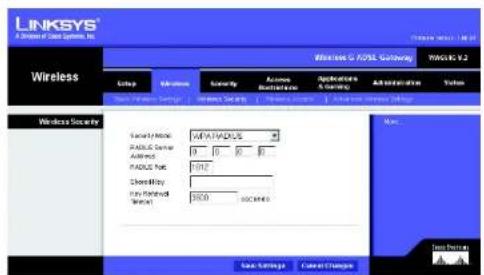

Figure 5-16: WPA RADIUS 24

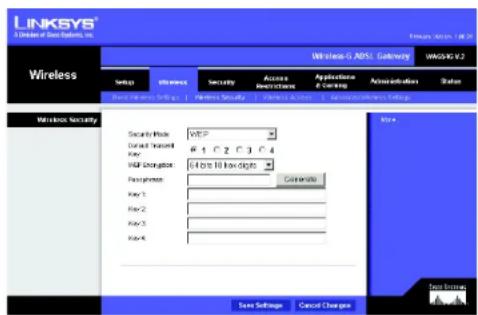

Figure 5-17: WEP 25

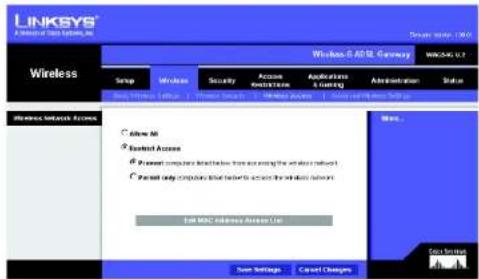

Figure 5-18: Wireless Network Access 26

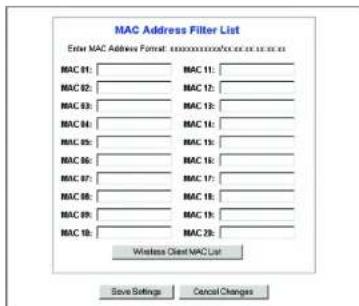

Figure 5-19: MAC Address Access List 26

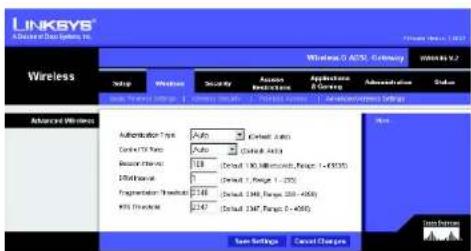

Figure 5-20: Advanced Wireless Settings 27

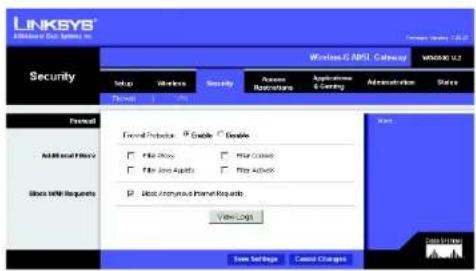

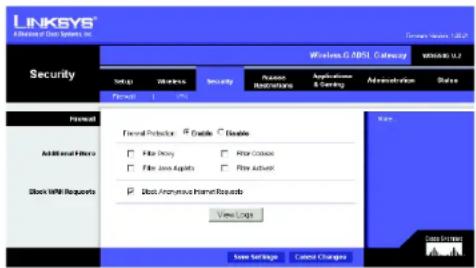

Figure 5-21: Firewall 28

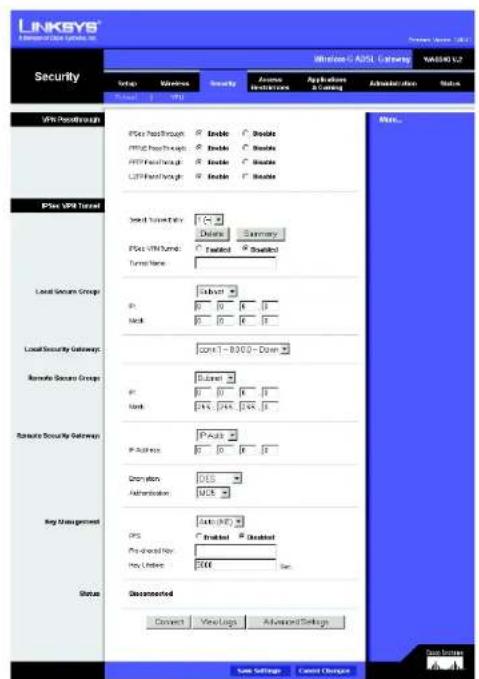

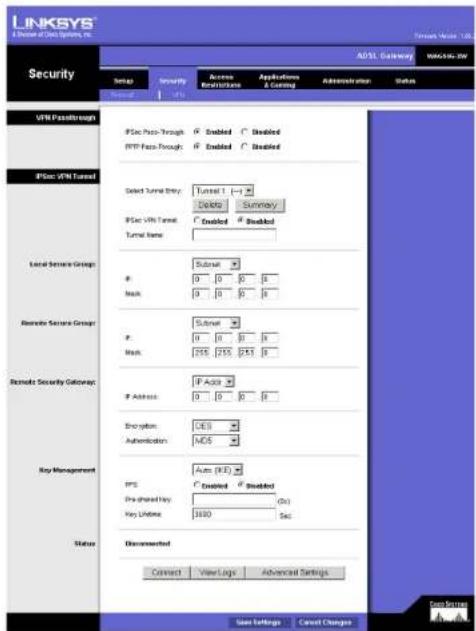

Figure 5-22:VPN 29

Wireless-G ADSL Gateway

Figure 5-23:VPN Settings Summary 29

Figure 5-24: Manual Key Management 30

Figure 5-25: System Log 30

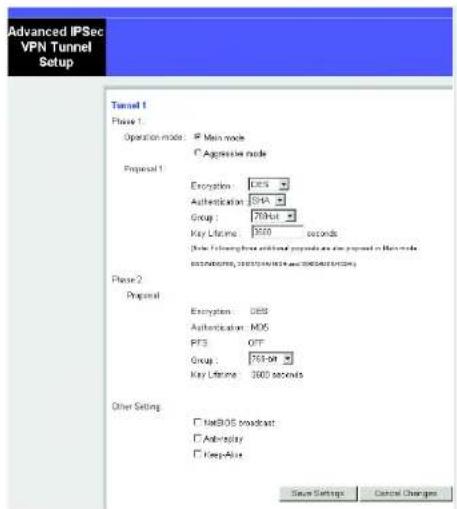

Figure 5-26: Advanced VPN Tunnel Setup 31

Figure 5-27: Internet Access 33

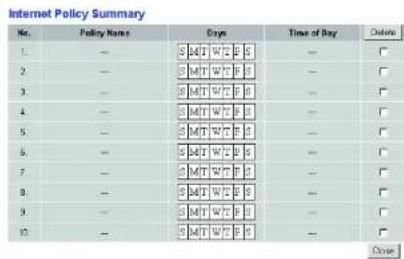

Figure 5-28: Internet Policy Summary 33

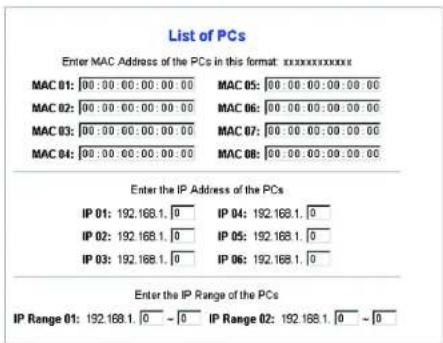

Figure 5-29: List of PCs 34

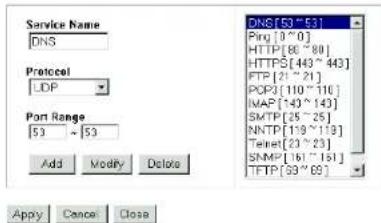

Figure 5-30: Port Services 34

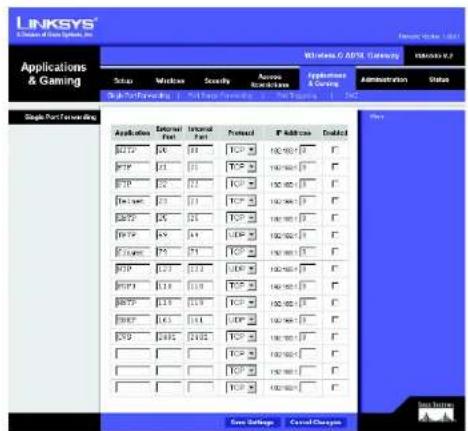

Figure 5-31: Single Port Forwarding 35

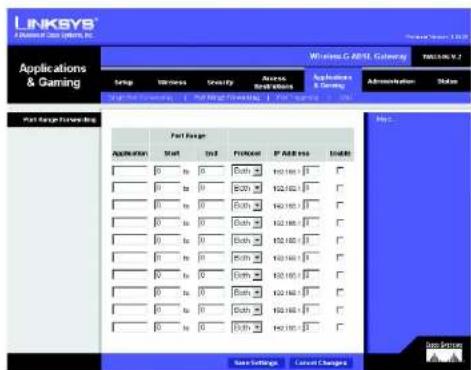

Figure 5-32: Port Range Forwarding 35

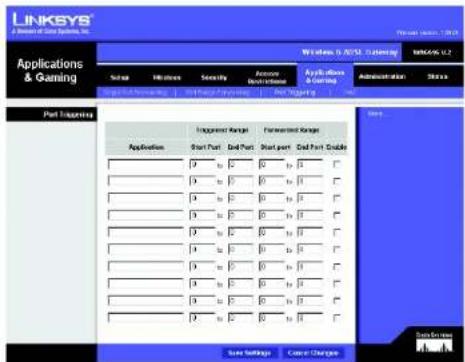

Figure 5-33: Port Triggering 36

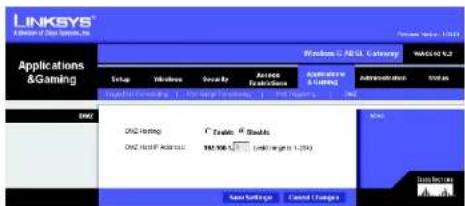

Figure 5-34: DMZ 36

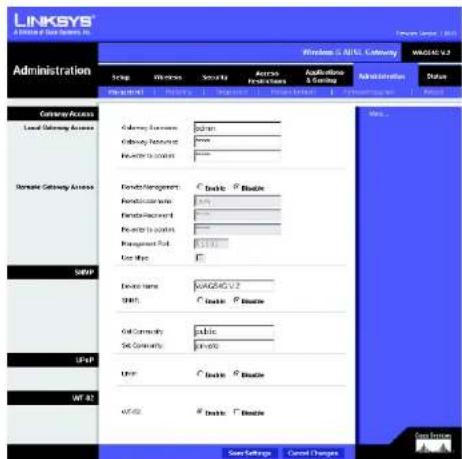

Figure 5-35: Management 37

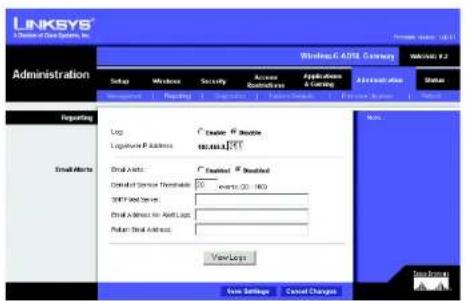

Figure 5-36: Reporting 38

Figure 5-37: System Log 38

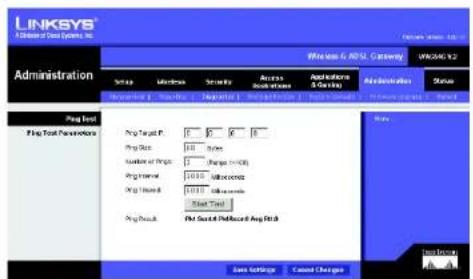

Figure 5-38: Ping Test 39

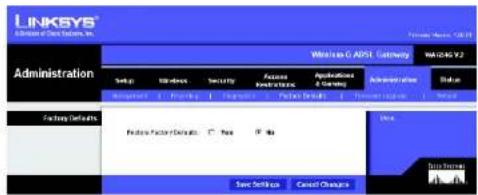

Figure 5-39:Factory Defaults 39

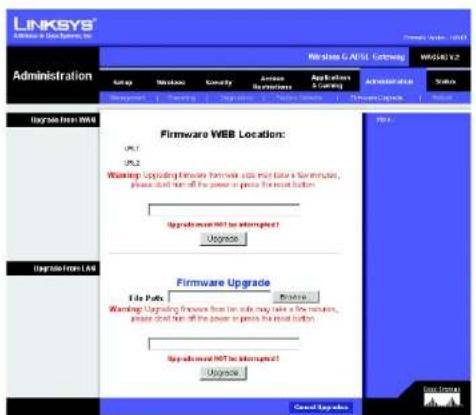

Figure 5-40: Firmware Upgrade 40

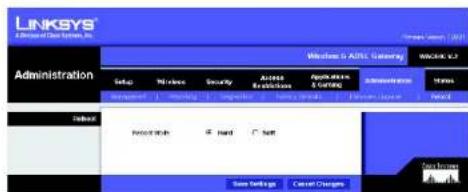

Figure 5-41:Reboot ADSL Gateway 40

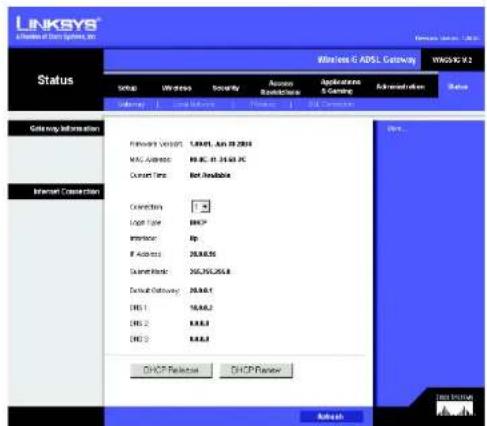

Figure 5-42: Status 41

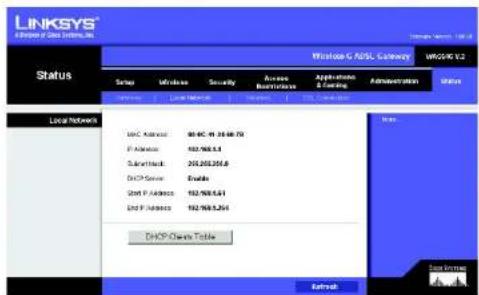

Figure 5-43: Local Network 42

Figure 5-44: DHCP Clients Table 42

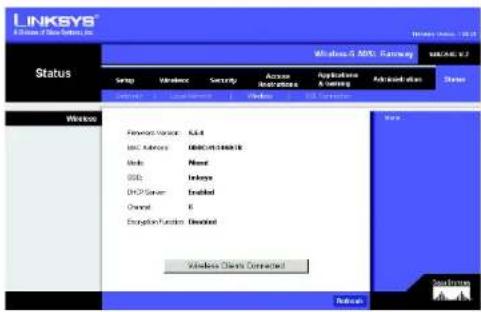

Figure 5-45: Wireless 43

Figure 5-46: Wireless Clients 43

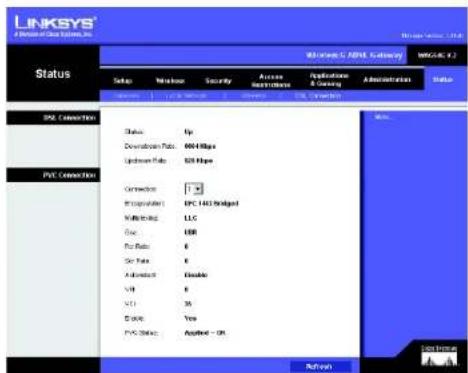

Figure 5-47:DSL Connection 44

Figure C-1: IP Password Screen 63

Figure C-2: IP Setup Tab 63

Figure C-3: Filter List Tab 63

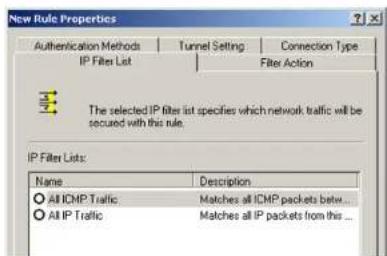

Figure C-4: IP Filter List 64

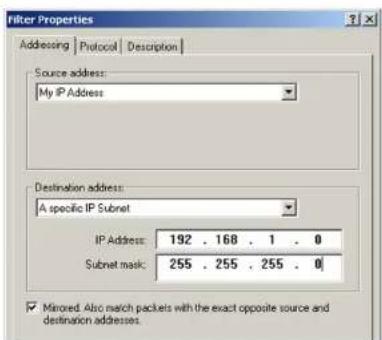

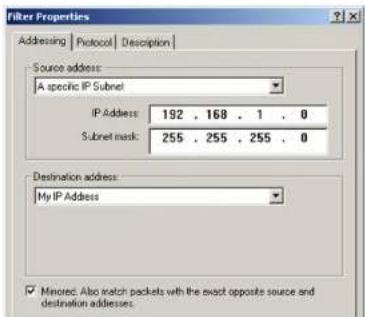

Figure C-5: Filters Properties 64

Figure C-6: New Rule Properties 64

Figure C-7: IP Filter List 65

Figure C-8: Filters Properties 65

Wireless-G ADSL Gateway

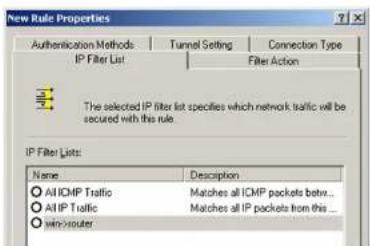

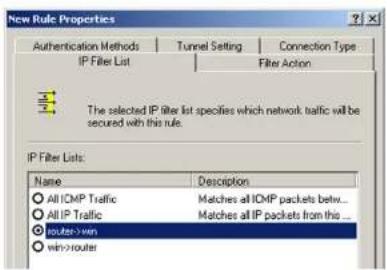

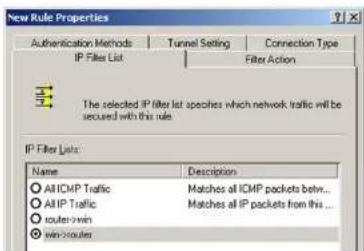

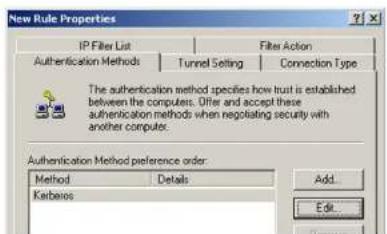

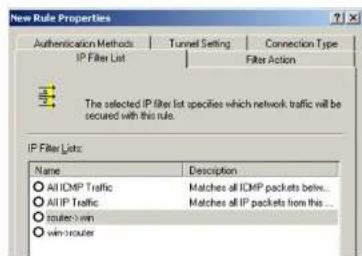

Figure C-9: New Rule Properties 65

Figure C-10: IP Filter List Tab 66

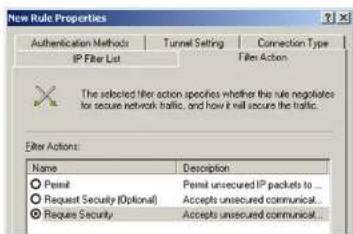

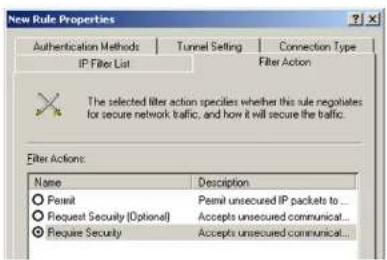

Figure C-11: Filter Acton Tab 66

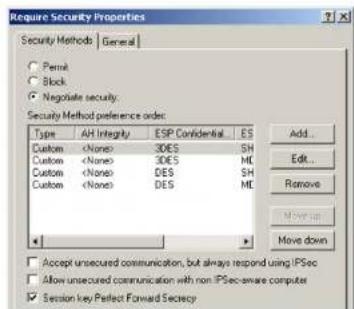

Figure C-12: Security Methods Tab 66

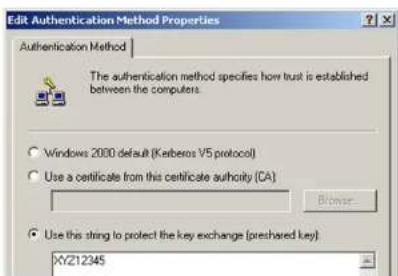

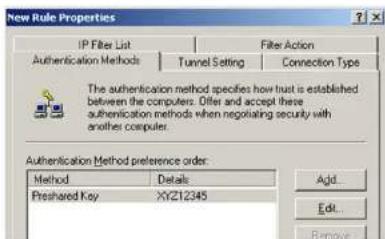

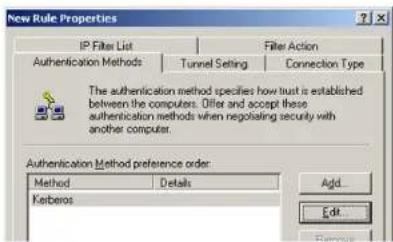

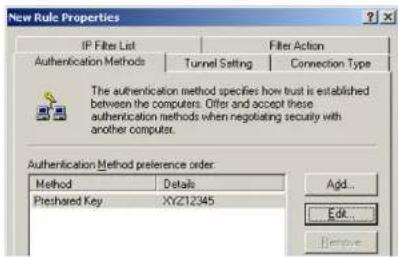

Figure C-13:Authentication Methods 67

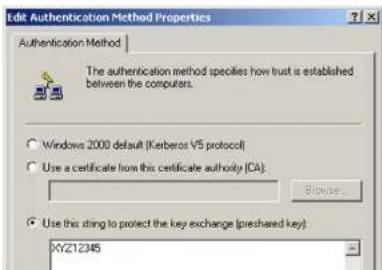

Figure C-14: Preshared Key 67

Figure C-15: New Preshared Key 67

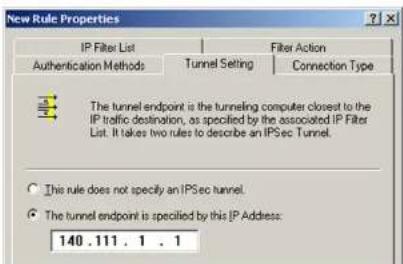

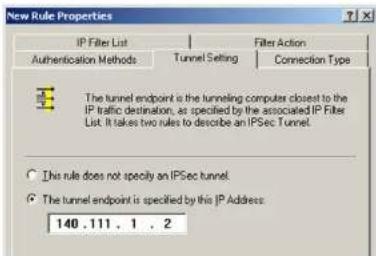

Figure C-16: Tunnel Setting Tab 68

Figure C-17: Connection Type Tab 68

Figure C-18: Properties Screen 68

Figure C-19: IP Filter List Tab 69

Figure C-20: Filter Action Tab 69

Figure C-21: Authentication Methods Tab 69

Figure C-22: Preshared Key 70

Figure C-23: New Preshared Key 70

Figure C-24: Tunnel Setting Tab 70

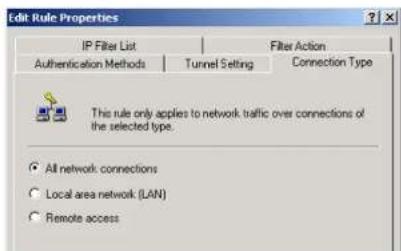

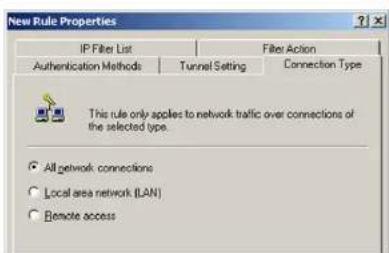

Figure C-25: Connection Type 71

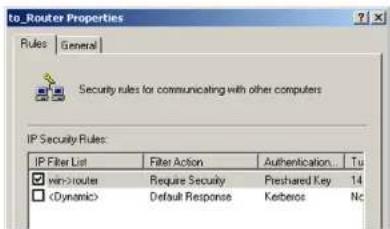

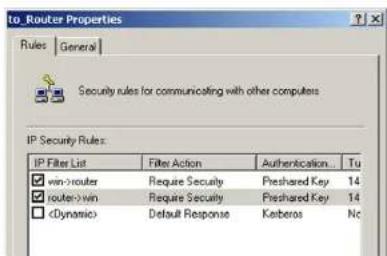

Figure C-26: Rules 71

Figure C-27: Local Computer 71

Figure C-28:VPN Tab 72

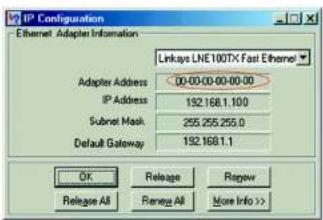

Figure D-1: IP Configuration Screen 73

Figure D-2: MAC Address/Adapter Address 73

Figure D-3: MAC Address/Physical Address 74

Figure D-4: MAC Address Filter 74

Figure D-5: MAC Address Clone 74

Figure E-1: Upgrade Firmware 75

Wireless-G ADSL Gateway

Chapter 1: Introduction

Welcome

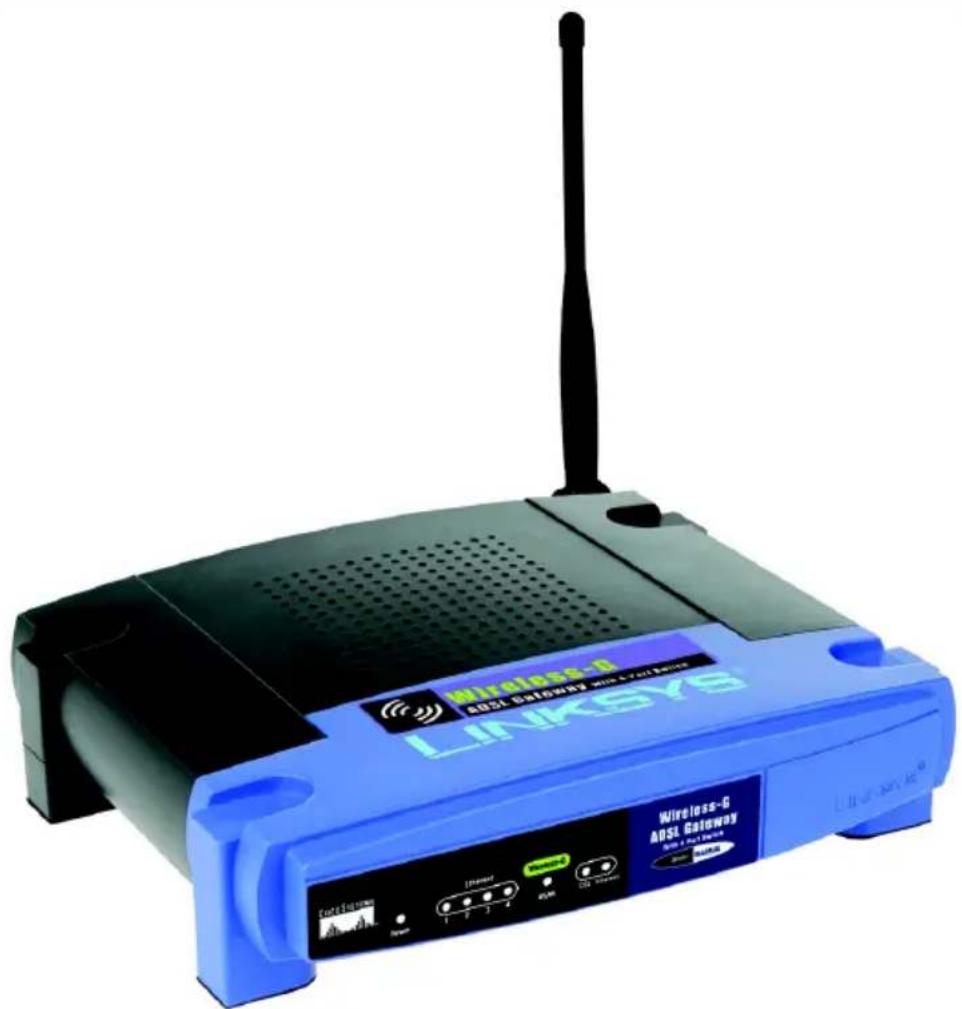

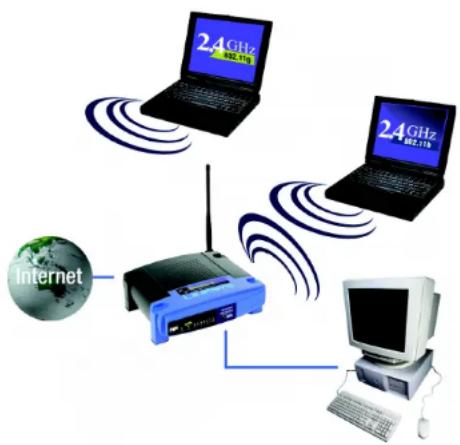

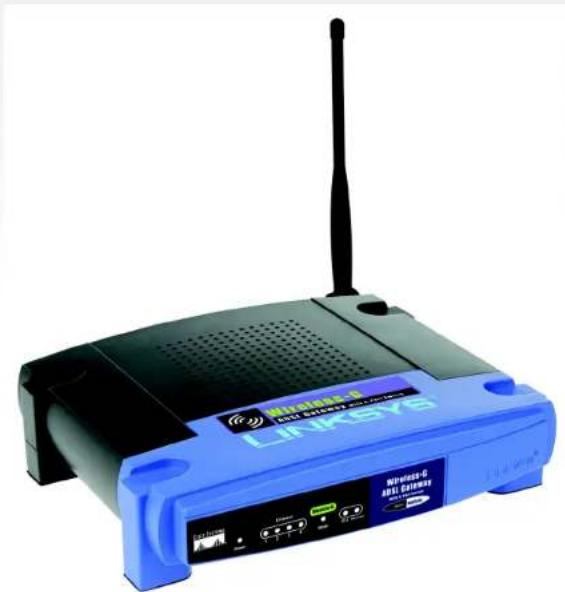

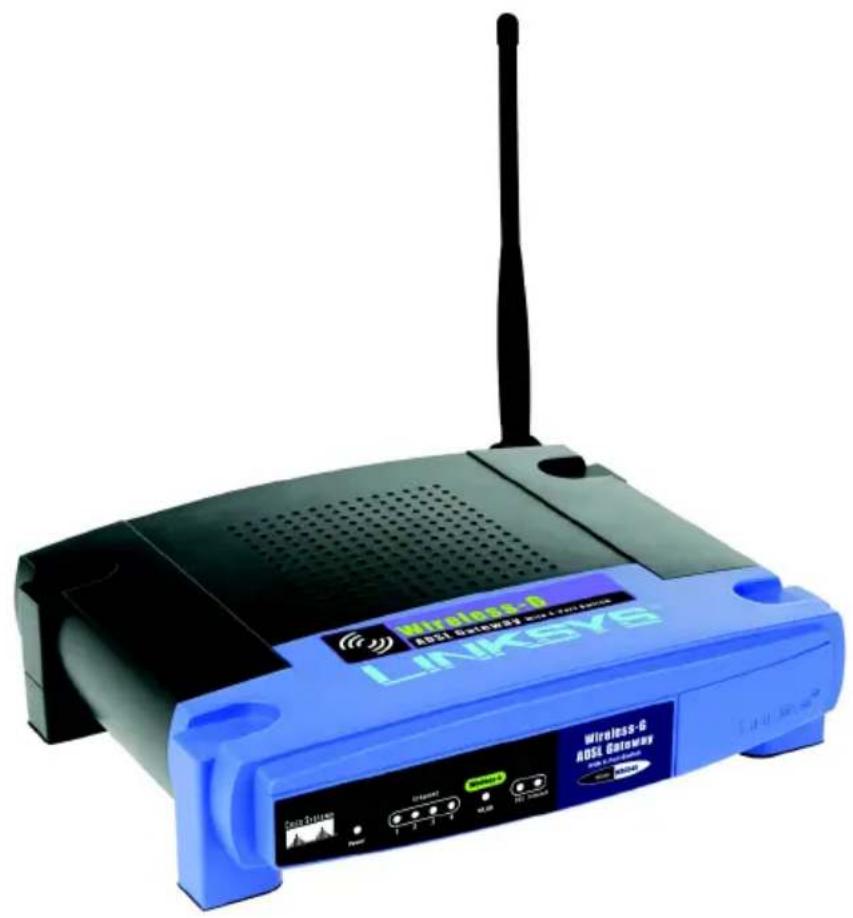

The Linksys Wireless-G ADSL Gateway is the all-In-one solution for Internet connectivity in your home. The ADSL Modem function gives you a blazing fast connection to the Internet, far faster than a dial-up, and without tying up your phone line.

Connect your computers to the Gateway via the built-in 4-port 10/100 Ethernet Switch to jump start your home network. You can share files, printers, hard drive space and other resources, or play head-to-head computer games. Attach four computers directly, or connect more hubs and switches to create as big a network as you need. The built-in Wireless-G (802.11g) Access Point allows up to 32 wireless devices to connect to your network at data rates up to 54Mbps, without running cables through the house. It's also compatible with Wireless-B (802.11b) devices, at 11Mbps. The Gateway ties it all together and lets your whole network share that high-speed Internet connection.

To protect your data and privacy, the Wireless-G ADSL Gateway features an advanced firewall to keep Internet intruders and attackers out. Wireless transmissions can be protected by powerful data encryption. Safeguard your family with Parental Control features like Internet Access Time Limits and Key Word Blocking. Configuration is a snap with any web browser.

With the Linksys Wireless-G ADSL Gateway at the heart of your home network, you're connected to the future.

Chapter 1: Introduction Welcome

Wireless-G ADSL Gateway

What's in this Guide?

This user guide covers the steps for setting up and using the Wireless-G ADSL Gateway.

Chapter 1: Introduction

This chapter describes the Wireless-G ADSL Gateway Wireless-G ADSL Gateway applications and this User Guide.

Chapter 2: Planning Your Network

This chapter describes the basics of networking.

Chapter 3: Getting to Know the Wireless-G ADSL Gateway

This chapter describes the physical features of the Gateway.

Chapter 4: Connecting the Wireless-G ADSL Gateway

This chapter instructs you on how to connect the Gateway to your network.

Chapter 5: Configuring the Gateway

This chapter explains how to use the Web-Based Utility to configure the settings on the Gateway.

• Appendix A: Troubleshooting

This appendix describes some problems and solutions, as well as frequently asked questions, regarding installation and use of the Wireless-G ADSL Gateway.

• Appendix B: Wireless Security

This appendix explains the risks of wireless networking and some solutions to reduce the risks.

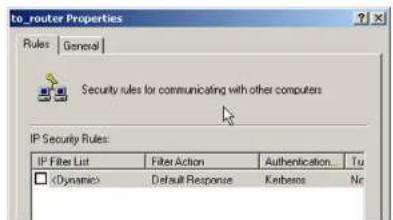

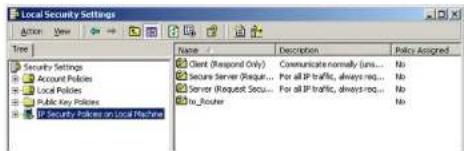

• Appendix C: Configuring IPSec between a Windows 2000 Computer and the Gateway

This appendix instructs you on how to establish a secure IPSec tunnel using preshared keys to join a private network inside the VPN Gateway and a Windows 2000 or XP computer.

• Appendix D: Upgrading Firmware

This appendix instructs you on how to upgrade the firmware on your Gateway if you should need to do so.

• Appendix E: Finding the MAC Address and IP Address for your Ethernet Adapter.

This appendix describes how to find the MAC address for your computer's Ethernet adapter so you can use the MAC filtering and/or MAC address cloning feature of the Gateway.

• Appendix F: Glossary

This appendix gives a brief glossary of terms frequently used in networking.

Chapter 1: Introduction

What's in this Guide?

Wireless-G ADSL Gateway

• Appendix G: Specifications

This appendix provides the technical specifications for the Gateway.

• Appendix H: Warranty Information

This appendix supplies the warranty information for the Gateway.

• Appendix I: Regulatory Information

This appendix supplies the regulatory information regarding the Gateway.

• Appendix J: Contact Information

This appendix provides contact information for a variety of Linksys resources, including Technical Support.

Wireless-G ADSL Gateway

Chapter 2: Planning Your Network

The Gateway's Functions

A Gateway is a network device that connects two networks together.

In this instance, the Gateway connects your Local Area Network (LAN), or the group of computers in your home or office, to the Internet. The Gateway processes and regulates the data that travels between these two networks.

The Gateway's NAT feature protects your network of computers so users on the public, Internet side cannot "see" your computers. This is how your network remains private. The Gateway protects your network by inspecting every packet coming in through the Internet port before delivery to the appropriate computer on your network. The Gateway inspects Internet port services like the web server, ftp server, or other Internet applications, and, if allowed, it will forward the packet to the appropriate computer on the LAN side.

Remember that the Gateway's ports connect to two sides. The LAN ports connect to the LAN, and the ADSL port connects to the Internet. The LAN ports transmit data at 10/100Mbps.

IP Addresses

What's an IP Address?

IP stands for Internet Protocol. Every device on an IP-based network, including computers, print servers, and Gateways, requires an IP address to identify its "location," or address, on the network. This applies to both the Internet and LAN connections. There are two ways of assigning an IP address to your network devices. You can assign static IP addresses or use the Gateway to assign IP addresses dynamically.

Static IP Addresses

A static IP address is a fixed IP address that you assign manually to a computer or other device on the network. Since a static IP address remains valid until you disable it, static IP addressing ensures that the device assigned it will always have that same IP address until you change it. Static IP addresses must be unique and are commonly used with network devices such as server computers or print servers.

Figure 2-1: Network

LAN: the computers and networking products that make up your local network

NOTE: Since the Gateway is a device that connects two networks, it needs two IP addresses—one for the LAN, and one for the Internet. In this User Guide, you'll see references to the "Internet IP address" and the "LAN IP address."

Since the Gateway uses NAT technology, the only IP address that can be seen from the Internet for your network is the Gateway's Internet IP address. However, even this Internet IP address can be blocked, so that the Gateway and network seem invisible to the Internet—see the Block WAN Requests description under Security in "Chapter 5: Configuring the Gateway."

Wireless-G ADSL Gateway

Since you use the Gateway to share your DSL Internet connection, contact your ISP to find out if they have assigned a static IP address to your account. If so, you will need that static IP address when configuring the Gateway. You can get that information from your ISP.

Dynamic IP Addresses

A dynamic IP address is automatically assigned to a device on the network, such as computers and print servers. These IP addresses are called "dynamic" because they are only temporarily assigned to the computer or device. After a certain time period, they expire and may change. If a computer logs onto the network (or the Internet) and its dynamic IP address has expired, the DHCP server will automatically assign it a new dynamic IP address.

DHCP (Dynamic Host Configuration Protocol) Servers

Computers and other network devices using dynamic IP addressing are assigned a new IP address by a DHCP server. The computer or network device obtaining an IP address is called the DHCP client. DHCP frees you from having to assign IP addresses manually every time a new user is added to your network.

A DHCP server can either be a designated computer on the network or another network device, such as the Gateway. By default, the Gateway's DHCP Server function is enabled.

If you already have a DHCP server running on your network, you must disable one of the two DHCP servers. If you run more than one DHCP server on your network, you will experience network errors, such as conflicting IP addresses. To disable DHCP on the Gateway, see the DHCP section in "Chapter 5: Configuring the Gateway."

What is a VPN?

A VPN, or Virtual Private Network, is a connection between two endpoints - a VPN Gateway, for instance - in different networks that allows private data to be sent securely over a shared or public network, such as the Internet. This establishes a private network that can send data securely between these two locations or networks.

This is done by creating a "tunnel". A VPN tunnel connects the two computers or networks and allows data to be transmitted over the Internet as if it were still within those networks. Not a literal tunnel, it is a connection secured by encrypting the data sent between the two networks.

VPN was created as a cost-effective alternative to using a private, dedicated, leased line for a private network. Using industry standard encryption and authentication techniques - IPSec, short for IP Security - the VPN creates a secure connection that, in effect, operates as if you were directly connected to your local network. Virtual Private Networking can be used to create secure networks linking a central office with branch offices,

Chapter 2: Planning Your Network What is a VPN?

Wireless-G ADSL Gateway

telecommuters, and/or professionals on the road (travelers can connect to a VPN Gateway using any computer with VPN client software that supports IPSec, such as SSH Sentinel.)

There are two basic ways to create a VPN connection:

• VPN Gateway to VPN Gateway

• Computer (using VPN client software that supports IPSec) to VPN Gateway

The VPN Gateway creates a "tunnel" or channel between two endpoints, so that data transmissions between them are secure. A computer with VPN client software that supports IPSec can be one of the two endpoints. Any computer with the built-in IPSec Security Manager (Microsoft 2000 and XP) allows the VPN Gateway to create a VPN tunnel using IPSec (refer to "Appendix C: Configuring IPSec between a Windows 2000 or XP computer and the VPN Gateway"). Other versions of Microsoft operating systems require additional, third-party VPN client software applications that support IPSec to be installed.

Computer (using VPN client software that supports IPSec) to VPN Gateway

The following is an example of a computer-to-VPN Gateway VPN. (See Figure 2-2.) In her hotel room, a travelling businesswoman dials up her ISP. Her notebook computer has VPN client software that is configured with her office's VPN settings. She accesses the VPN client software that supports IPSec and connects to the VPN Gateway at the central office. As VPNs utilize the Internet, distance is not a factor. Using the VPN, the businesswoman now has a secure connection to the central office's network, as if she were physically connected.

VPN Gateway to VPN Gateway

An example of a VPN Gateway-to-VPN Gateway VPN would be as follows. (See Figure 2-3.) At home, a telecommuter uses his VPN Gateway for his always-on Internet connection. His Gateway is configured with his office's VPN settings. When he connects to his office's Gateway, the two Gateways create a VPN tunnel, encrypting and decrypting data. As VPNs utilize the Internet, distance is not a factor. Using the VPN, the telecommuter now has a secure connection to the central office's network, as if he were physically connected.

For additional information and instructions about creating your own VPN, please visit Linksys's international website at www.linksys.com/international or refer to "Appendix C: Configuring IPSec between a Windows 2000 or XP computer and the VPN Gateway."

Why do I need a VPN?

Computer networking provides a flexibility not available when using a paper-based system. With this flexibility, however, comes an increased risk in security. This is why firewalls were first introduced. Firewalls help to

Chapter 2: Planning Your Network Why do I need a VPN?

Figure 2-2: Computer-to-VPN Gateway

IMPORTANT: You must have at least one VPN Gateway on one end of the VPN tunnel. At the other end of the VPN tunnel, you must have a second VPN Gateway or a computer with VPN client software that supports IPSec.

Wireless-G ADSL Gateway

protect data inside of a local network. But what do you do once information is sent outside of your local network, when emails are sent to their destination, or when you have to connect to your company's network when you are out on the road? How is your data protected?

That is when a VPN can help. VPNs secure data moving outside of your network as if it were still within that network.

When data is sent out across the Internet from your computer, it is always open to attacks. You may already have a firewall, which will help protect data moving around or held within your network from being corrupted or intercepted by entities outside of your network, but once data moves outside of your network - when you send data to someone via email or communicate with an individual over the Internet - the firewall will no longer protect that data.

At this point, your data becomes open to hackers using a variety of methods to steal not only the data you are transmitting but also your network login and security data. Some of the most common methods are as follows:

1) MAC Address Spoofing

Packets transmitted over a network, either your local network or the Internet, are preceded by a packet header. These packet headers contain both the source and destination information for that packet to transmit efficiently. A hacker can use this information to spoof (or fake) a MAC address allowed on the network. With this spoofed MAC address, the hacker can also intercept information meant for another user.

2) Data Sniffing

Data "sniffing" is a method used by hackers to obtain network data as it travels through unsecured networks, such as the Internet. Tools for just this kind of activity, such as protocol analyzers and network diagnostic tools, are often built into operating systems and allow the data to be viewed in clear text.

3) Man in the Middle Attacks

Once the hacker has either sniffed or spoofed enough information, he can now perform a "man in the middle" attack. This attack is performed, when data is being transmitted from one network to another, by rerouting the data to a new destination. Even though the data is not received by its intended recipient, it appears that way to the person sending the data.

These are only a few of the methods hackers use and they are always developing more. Without the security of your VPN, your data is constantly open to such attacks as it travels over the Internet. Data travelling over the Internet will often pass through many different servers around the world before reaching its final destination. That's a long way to go for unsecured data and this is when a VPN serves its purpose.

Figure 2-3: VPN Gateway-to-VPN Gateway

Wireless-G ADSL Gateway

Chapter 3: Getting to Know the Wireless-G ADSL Gateway

The Back Panel

Figure 3-1: Back Panel

The Gateway's ports, where a network cable is connected, are located on the back panel. The Gateway's buttons are also located on the back panel.

LINE The LINE port connects to the ADSL line.

Ethernet (1-4) The Ethernet ports connect to your computer and other network devices.

Power The Power port is where you will connect the power adapter.

Reset Button There are two ways to Reset the Gateway's factory defaults. Either press the Reset Button, for approximately ten seconds, or restore the defaults from the Factory Defaults screen of the Administration tab in the Gateway's Web-Based Utility.

On/Off This switch is used to turn the Gateway on or off.

With these, and many other, Linksys products, your networking options are limitless. Go to the Linksys international website at www.linksys.com/international for more information about products that work with the Gateway.

Chapter 3: Getting to Know the Wireless-G ADSL Gateway The Back Panel

Important: Resetting the Gateway to factory defaults will erase all of your settings (WEP Encryption, Wireless and LAN settings, etc.) and replace them with the factory defaults. Do not reset the Gateway if you want to retain these settings.

Wireless-G ADSL Gateway

The Front Panel

The Gateway's LEDs, where information about network activity is displayed, are located on the front panel.

Figure 3-2: Front Panel

Power Green. The Power LED lights up when the Gateway is powered on.
Ethernet (1-4) Green. The LAN LED serves two purposes. If the LED is continuously lit, the Gateway is successfully connected to a device through the LAN port. If the LED is blinking, it is an indication of any network activity.
WLAN Green. The WLAN LED lights up whenever there is a successful wireless connection. If the LED is blinking, the Gateway is actively sending or receiving data to or from one of the devices on the network.
DSL Green. The DSL LED lights up whenever there is a successful DSL connection. The LED blinks while establishing the ADSL connection.
Internet Green. The Internet LED lights up green when an Internet connection to the Internet Service Provider (ISP) session is established. The Internet LED lights up red when the connection to the ISP fails.

Wireless-G ADSL Gateway

Chapter 4: Connecting the Wireless-G ADSL Gateway

Overview

The Gateway's setup consists of more than simply plugging hardware together. You will have to configure your networked computers to accept the IP addresses that the Gateway assigns them (if applicable), and you will also have to configure the Gateway with setting(s) provided by your Internet Service Provider (ISP).

The installation technician from your ISP should have left the setup information for your modem with you after installing your broadband connection. If not, you can call your ISP to request that data.

After you have the setup information you need for your specific type of Internet connection, you can begin installation and setup of the Gateway.

If you want to use a computer with an Ethernet adapter to configure the Gateway, continue to "Wired Connection to a computer." If you want to use a computer with a wireless adapter to configure the Gateway, continue to "Wireless Connection to a Computer."

Chapter 4: Connecting the Wireless-G ADSL Gateway Overview

Wireless-G ADSL Gateway

Wired Connection to a Computer

1. Before you begin, make sure that all of your network's hardware is powered off, including the Gateway and all computers.
2. Connect one end of an Ethernet network cable to one of the Ethernet ports (labeled 1-4) on the back of the Gateway (see Figure 4-1), and the other end to an Ethernet port on a computer.
3. Repeat this step to connect more computers, a switch, or other network devices to the Gateway.

NOTE: A small device called a microfilter (not included) may be necessary between each phone and wall jack to prevent interference. Contact your ISP if you have any questions.

IMPORTANT: For countries that have phone jacks with RJ-11 connectors, make sure to only place the microfilters between the phone and the wall jack and not between the Modem and the wall jack or your ADSL will not connect.

For countries that do not have phone jacks with RJ-11 connectors (e.g. France, Sweden, Switzerland, United Kingdom, etc.), except for ISDN users, the microfilter has to be used between the modem and the wall jack, because the microfilter will have the RJ-11 connector.

Annex B users (E1 and DE versions of the Gateway) must use the included special cable to connect the gateway to the wall jack (RJ-45 to RJ-12). If you require splitters or special jacks, please contact your service provider.

Figure 4-1: Ethernet Connection
Figure 4-2: ADSL Connection

NOTE: You should always plug the Gateway's power adapter into a power strip with surge protection.

1. Connect a phone cable from the Line port on the Gateway's back panel (see Figure 4-2) to the wall jack of the ADSL line. A small device called a microfilter may be necessary between each phone and wall jack to prevent interference. Contact your ISP if you have any questions.

2. Connect the power adapter to the Gateway's Power port (see Figure 4-3), and then plug the power adapter into a power outlet. Turn the On/Off switch to On.

3. The Power LED on the front panel will light up green as soon as the power adapter is connected properly and the switch is turned on. The Power LED will flash for a few seconds, then it will light up steady when the self-test is complete. If the LED flashes for one minute or longer, see "Appendix A: Troubleshooting."

4. Power on one of your computers that is connected to the Gateway.

Chapter 4: Connecting the Wireless-G ADSL Gateway

Wired Connection to a Computer

Figure 4-3: Power Connection

Wireless-G ADSL Gateway

Wireless Connection to a Computer

If you want to use a wireless connection to access the Gateway, follow these instructions:

1. Before you begin, make sure that all of your network's hardware is powered off, including the Gateway and all computers.

NOTE: A small device called a microfilter (not included) may be necessary between each phone and wall jack to prevent interference. Contact your ISP if you have any questions.

IMPORTANT: For countries that have phone jacks with RJ-11 connectors, make sure to only place the microfilters between the phone and the wall jack and not between the Modem and the wall jack or your ADSL will not connect.

NOTE: You should always change the SSID from its default, linksys, and enable WEP encryption.

For countries that do not have phone jacks with RJ-11 connectors (e.g. France, Sweden, Switzerland, United Kingdom, etc.), except for ISDN users, the microfilter has to be used between the modem and the wall jack, because the microfilter will have the RJ-11 connector.

Annex B users (E1 and DE versions of the Gateway) must use the included special cable to connect the gateway to the wall jack (RJ-45 to RJ-12). If you require splitters or special jacks, please contact your service provider.

1. Connect a phone cable from the Line port on the Gateway's back panel to the wall jack of the ADSL line. A small device called a microfilter may be necessary between each phone and wall jack to prevent interference. Contact your ISP if you have any questions.

2. Connect the power adapter to the Power port, and then plug the power adapter into a power outlet. Turn the On/Off switch to On.

3. The Power LED on the front panel will light up green as soon as the power adapter is connected properly and the switch is turned on. The Power LED will flash for a few seconds, then light up steady when the self-test is complete. If the LED flashes for one minute or longer, see "Appendix A: Troubleshooting."

4. Power on one of the computers on your wireless network(s).

5. For initial access to the Gateway through a wireless connection, make sure the computer's wireless adapter has its SSID set to linksys (the Gateway's default setting), and its Wireless Security is disabled. After you have accessed the Gateway, you can change the Gateway and this computer's adapter settings to match the your usual network settings.

The Gateway's hardware installation is now complete.

Go to "Chapter 5: Configuring the Gateway."

Chapter 4: Connecting the Wireless-G ADSL Gateway

Wireless Connection to a Computer

Wireless-G ADSL Gateway

Chapter 5: Configuring the Gateway

Overview

Follow the steps in this chapter and use the Gateway's web-based utility to configure the Gateway. This chapter will describe each web page in the Utility and each page's key functions. The utility can be accessed via your web browser through use of a computer connected to the Gateway. For a basic network setup, most users only have to use the following screens of the Utility:

• Basic Setup. On the Basic Setup screen, enter the settings provided by your ISP.
• Management. Click the Administration tab and then the Management tab. The Gateway's default username and password is admin. To secure the Gateway, change the Password from its default.

There are seven main tabs: Setup, Wireless, Security, Access Restrictions, Applications & Gaming, Administration, and Status. Additional tabs will be available after you click one of the main tabs.

Setup

• Basic Setup. Enter the Internet connection and network settings on this screen.
• DDNS. To enable the Gateway's Dynamic Domain Name System (DDNS) feature, complete the fields on this screen.
• Advanced Routing. On this screen, you can alter Dynamic Routing, and Static Routing configurations.

Wireless

• Basic Wireless Settings. You can choose your Wireless Network Mode and Wireless Security on this screen.
• Wireless Network Access. This screen displays your wireless network access list.
• Advanced Wireless Settings. On this screen you can access the Advanced Wireless features.

Security

• Firewall. This screen contains Filters and Block WAN Requests. Filters block specific internal users from accessing the Internet and block anonymous Internet requests.

Chapter 5: Configuring the Gateway Overview

Have You: Enabled TCP/IP on your computers? computers communicate over the network with this protocol. Refer to Windows Help for more Information on TCP/IP.

Note: For added security, you should change the password through the Administration tab.

Wireless-G ADSL Gateway

• VPN. To enable or disable IPSec and/or PPTP Pass-through, and set up VPN tunnels, use this screen.

Access Restrictions

• Internet Access. This screen allows you to prevent or permit only certain users from attaching to your network.

Applications & Gaming

• Single Port Forwarding. Use this screen to set up common services or applications on your network.
• Port Range Forwarding. To set up public services or other specialized Internet applications on your network, click this tab.
• Port Triggering. To set up triggered ranges and forwarded ranges for Internet applications, click this tab.
• DMZ. To allow one local user to be exposed to the Internet for use of special-purpose services, use this screen.

Administration

• Management. On this screen, alter Gateway access privileges, SNMP, UPnP, and WT-82 settings.
• Reporting. If you want to view or save activity logs, click this tab.
• Diagnostics. Use this screen to do a Ping Test.
• Factory Defaults. If you want to restore the Gateway's factory defaults, use this screen.
• Firmware Upgrade. Click this tab if you want to upgrade the Gateway's firmware.

Status

• Gateway. This screen provides status information about the Gateway.
• Local Network. This provides status information about the local network.
• Wireless. This screen provides status information about the wireless network.
• DSL Connection. This screen provides status information about the DSL connection.

Chapter 5: Configuring the Gateway

Overview

Wireless-G ADSL Gateway

How to Access the Web-based Utility

To access the web-based utility, launch Internet Explorer or Netscape Navigator, and enter the Gateway's default IP address, 192.168.1.1, in the Address field. Then press Enter.

A password request page, shown in Figure 5-1 will appear. (non-Windows XP users will see a similar screen.) Enter admin (the default user name) in the User Name field, and enter admin (the default password) in the Password field. Then click the OK button.

The Setup Tab

The Basic Setup Tab

The first screen that appears is the Basic Setup tab. This tab allows you to change the Gateway's general settings. Change these settings as described here and click the Save Settings button to save your changes or Cancel Changes to cancel your changes.

Internet Setup

• PVC Connection. Select a PVC connection number from the drop-down menu. Then, select the Enable Now to enable the connection.

• VC Settings. Virtual Circuits (VPI and VCI): These fields consist of two items: VPI (Virtual Path Identifier) and VCI (Virtual Channel Identifier). Your ISP will provide the correct settings for these fields.

• Multiplexing: Select LLC or VC, depending on your ISP.
  QOS Type: Select from the drop-down menu: CBR, Continuous Bit Rate to specify fixed bandwidth for voice or data traffic; UBR, Unspecific Bit Rate for application that are none-time sensitive, such as email; or VBR, Variable Bite Rate for Bursty traffic and bandwidth sharing with other application.

• Pcr Rate: Peak Cell Rate, divide the DSL line rate by 424 to find the PCR to get the maximum rate the sender can send cells. Enter the rate in the field.
• Scr Rate: Sustain Cell Rate, sets the average cell rate that can be transmitted SCR normally less than PCREnter the rate in the field.
• Autodetect: Select Enable to have the settings automatically entered or Disable to enter the values manually.

Chapter 5: Configuring the Gateway How to Access the Web-based Utility

Figure 5-1: Password Screen

Figure 5-2: Basic Setup Tab

Wireless-G ADSL Gateway

• Virtual Circuit: Enter the VPI and VCI ranges in the fields.
• Internet Connection Type. The Gateway supports five Encapsulation: RFC 1483 Bridged, RFC 1483 Routed, RFC 2516 PPPoE, RFC 2364 PPPoA, and Bridged Mode Only. Each Basic Setup screen and available features will differ depending on what type of encapsulation you select.

RFC 1483 Bridged

Dynamic IP

IP Settings. Select Obtain an IP Address Automatically if your ISP says you are connecting through a dynamic IP address.

Static IP

If you are required to use a permanent (static) IP address to connect to the Internet, then select Use the following IP Address.

• Internet IP Address. This is the Gateway's IP address, when seen from the WAN, or the Internet. Your ISP will provide you with the IP Address you need to specify here.
• Subnet Mask. This is the Gateway's Subnet Mask. Your ISP will provide you with the Subnet Mask.
• Gateway. Your ISP will provide you with the default Gateway Address, which is the ISP server's IP address.
• Primary DNS. (Required) and Secondary DNS (Optional). Your ISP will provide you with at least one DNS (Domain Name System) Server IP Address.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes.

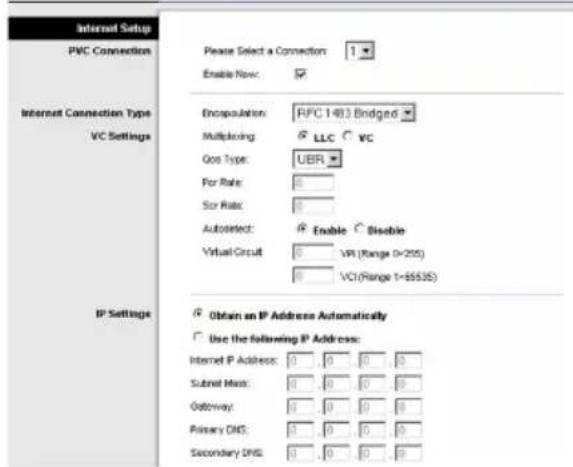

Figure 5-3: Dynamic IP

Figure 5-4: Static IP

Wireless-G ADSL Gateway

RFC 1483 Routed

If you are required to use RFC 1483 Routed, then select RFC 1483 Routed.

• IP Address. This is the Gateway's IP address, when seen from the WAN, or the Internet. Your ISP will provide you with the IP Address you need to specify here.
• Subnet Mask. This is the Gateway's Subnet Mask. Your ISP will provide you with the Subnet Mask.
• Default Gateway. Your ISP will provide you with the Default Gateway Address, which is the ISP server's IP address.
  Primary DNS. (Required) and Secondary DNS (Optional). Your ISP will provide you with at least one DNS (Domain Name System) Server IP Address.

RFC 2516 PPPoE

Some DSL-based ISPs use PPPoE (Point-to-Point Protocol over Ethernet) to establish Internet connections. If you are connected to the Internet through a DSL line, check with your ISP to see if they use PPPoE. If they do, you will have to enable PPPoE.

• Service Name. Enter the name of your PPPoE service in the field.
• User Name and Password. Enter the User Name and Password provided by your ISP.
• Connect on Demand: Max Idle Time. You can configure the Gateway to disconnect the Internet connection after it has been inactive for a specified period of time (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the Gateway to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio button. In the Max Idle Time field, enter the number of minutes you want to have elapsed before your Internet connection terminates.
• Keep Alive: Redial Period. If you select this option, the Gateway will periodically check your Internet connection. If you are disconnected, then the Gateway will automatically re-establish your connection. To use this option, click the radio button next to Keep Alive. In the Redial Period field, you specify how often you want the Gateway to check the Internet connection. The default Redial Period is 30 seconds.

To use a second PPPoE, enable Second PPPoE from the drop-down menu. Enter the Service Name, User Name, Password, Connect on Demand, and Keep Alive. Enter the domain name in the Match Domain Name field.

Figure 5-5: RFC 1483 Routed

Figure 5-6: RFC 2516 PPPoE

Wireless-G ADSL Gateway

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes.

RFC 2364 PPPoA

Some DSL-based ISPs use PPPoA (Point-to-Point Protocol over ATM) to establish Internet connections. If you are connected to the Internet through a DSL line, check with your ISP to see if they use PPPoA. If they do, you will have to enable PPPoA.

• User Name and Password. Enter the User Name and Password provided by your ISP.
• Connect on Demand: Max Idle Time. You can configure the Gateway to cut the Internet connection after it has been inactive for a specified period of time (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the Gateway to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio button. In the Max Idle Time field, enter the number of minutes you want to have elapsed before your Internet connection terminates.
• Keep Alive Option: Redial Period. If you select this option, the Gateway will periodically check your Internet connection. If you are disconnected, then the Gateway will automatically re-establish your connection. To use this option, click the radio button next to Keep Alive. In the Redial Period field, you specify how often you want the Gateway to check the Internet connection. The default Redial Period is 30 seconds.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes.

Bridged Mode Only

If you are using your Gateway as a bridge, which makes the Gateway act like a standalone modem, select Bridged Mode Only. All NAT and routing is disabled in this mode.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes.

Figure 5-7: RFC 2364 PPPoA

Figure 5-8: Bridged Mode Only

Wireless-G ADSL Gateway

Optional Settings (Required by some ISPs)

• Host Name and Domain Name. These fields allow you to supply a host and domain name for the Gateway. Some ISPs require these names as identification. You may have to check with your ISP to see if your broadband Internet service has been configured with a host and domain name. In most cases, leaving these fields blank will work.
• MTU. The MTU (Maximum Transmission Unit) setting specifies the largest packet size permitted for network transmission. Select Manual and enter the value desired. It is recommended that you leave this value in the 1200 to 1500 range. By default, MTU is configured automatically.

Network Setup

• Router IP. The values for the Gateway's Local IP Address and Subnet Mask are shown here. In most cases, keeping the default values will work.
• Local IP Address. The default value is 192.168.1.1.

• Subnet Mask. The default value is 255.255.255.0.
  Network Address Server Settings (DHCP). A Dynamic Host Configuration Protocol (DHCP) server automatically assigns an IP address to each computer on your network for you. Unless you already have one, it is highly recommended that you leave the Gateway enabled as a DHCP server.

• DHCP Server. If you enable the DHCP Server or DHCP Relay for the Local DHCP server, enter the IP adresss for the DHCP server in the fields.

• Starting IP Address. Enter a value for the DHCP server to start with when issuing IP addresses. This value must be 192.168.1.2 or greater, because the default IP address for the Gateway is 192.168.1.1.
• Number of Address. Enter the maximum number of computers that you want the DHCP server to assign IP addresses to. This number cannot be greater than 253. By default, as shown in Figure 5-9, the range is 192.168.1.100 to 192.168.1.149.
• DHCP Address Range. The range of DHCP addresses is displayed here.

• Client Lease Time. Enter the minutes in the field.

• Time Setting. This is where you set the time zone for your Gateway.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes.

Chapter 5: Configuring the Gateway

The Setup Tab

Figure 5-9: Optional Settings

Wireless-G ADSL Gateway

The DDNS Tab

The Gateway offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP address. It is useful when you are hosting your own website, FTP server, or other server behind the Gateway.

Before you can use this feature, you need to sign up for DDNS service at DynDNS.org.

DDNS

DDNS Service. If your DDNS service is provided by DynDNS.org, then select DynDNS.org in the drop-down menu. (See Figure 5-10.) To disable DDNS Service, select Disabled.

DynDNS.org

• User Name, Password, and Host Name. Enter the User Name, Password, and Host Name of the account you set up with DynDNS.org.
• Internet IP Address. The Gateway's current Internet IP Address is displayed here. Because it is dynamic, it will change.
• Status. The status of the DDNS service connection is displayed here.

TZ0.com

• Email Address, Password, and Domain Name. Enter the Email Address, TZO Password Key, and Domain Name of the service you set up with TZO.
• Internet IP Address. The Router's current Internet IP Address is displayed here. Because it is dynamic, this will change.
• Status. The status of the DDNS service connection is displayed here.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes.

Figure 5-10: DynDNS.org

Figure 5-11: TZ0.com

Wireless-G ADSL Gateway

Advanced Routing Tab

The Advanced Routing screen allows you to configure the dynamic routing and static routing settings.

Advanced Routing

• Operating Mode. NAT is a security feature that is enabled by default. It enables the Gateway to translate IP addresses of your local area network to a different IP address for the Internet. To disable NAT, click the Disabled radio button.

• Dynamic Routing. With Dynamic Routing you can enable the Gateway to automatically adjust to physical changes in the network's layout. The Gateway, using the RIP protocol, determines the network packets' route based on the fewest number of hops between the source and the destination. The RIP protocol regularly broadcasts routing information to other Gateways on the network. To enable RIP, click Enabled. To disable RIP, click Disabled.

• Transmit RIP Version. To transmit RIP messages, select the protocol you want: RIP1, RIP1-Compatible, or RIP2. If you don't want to transmit RIP messages, select None.

• Receive RIP Version. To receive RIP messages, select the protocol you want: RIP1 or RIP2. If you don't want to receive RIP messages, select None.

• Static Routing. If the Gateway is connected to more than one network, it may be necessary to set up a static route between them. A static route is a pre-determined pathway that network information must travel to reach a specific host or network. To create a static route, change the following settings:

• Select set number. Select the number of the static route from the drop-down menu. The Gateway supports up to 20 static route entries. If you need to delete a route, after selecting the entry, click the Delete This Entry button.

• Destination LAN IP Address. The Destination IP Address is the address of the remote network or host to which you want to assign a static route. Enter the IP address of the host for which you wish to create a static route. If you are building a route to an entire network, be sure that the network portion of the IP address is set to 0.
• Subnet Mask. The Subnet Mask (also known as the Network Mask) determines which portion of an IP address is the network portion, and which portion is the host portion.
• Default Gateway. This IP address should be the IP address of the gateway device that allows for contact between the Gateway and the remote network or host.

Figure 5-12: Advanced Routing

Wireless-G ADSL Gateway

• Interface. Select LAN & Wireless or Internet, depending on the location of the static route's final destination.
• Show Routing Table. Click the Show Routing Table button to open a screen displaying how data is routed through your LAN. For each route, the Destination IP address, Subnet Mask, Gateway, and Interface are displayed. Click the Refresh button to update the information. Click the Close button to return to the previous screen.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes.

Figure 5-13: Routing Table

Wireless-G ADSL Gateway

The Wireless Tab

Basic Wireless Settings Tab

This screen allows you to choose your wireless network mode and wireless security.

Wireless Network

• Wireless Network Mode. If you have 802.11g and 802.11b devices in your network, then keep the default setting, Mixed. If you have only 802.11g devices, select 802.11g. If you have only 802.11b devices, select 802.11b. If you want to disable wireless networking, select Disabled.
• Wireless Network Name (SSID). Enter the name for your wireless network into the field. TheSSID is the network name shared among all devices in a wireless network. TheSSID must be identical for all devices in the wireless network. It is case-sensitive and must not exceed 32 alphanumeric characters, which may be any keyboard character. Linksys recommends that you change the defaultSSID (linksys) to a unique name of your choice.
• Wireless Channel. Select the appropriate channel from the list provided to correspond with your network settings, between 1 and 11 (in North America). All devices in your wireless network must use the same channel in order to function correctly. Linksys wireless clients will automatically detect the wireless channel of the Gateway.
• Wireless SSID Broadcast. When wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the Router. To broadcast the Router's SSID, keep the default setting, Enable. If you do not want to broadcast the Router's SSID, then select Disable.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes.

Figure 5-14: Wireless Network Mode

Wireless-G ADSL Gateway

Wireless Security Tab

The Wireless Security settings configure the security of your wireless network. There are three wireless security mode options supported by the Router: WPA Pre-Shared Key, WPA RADIUS, and WEP. (WPA stands for Wi-Fi Protected Access, which is a security standard stronger than WEP encryption. WEP stands for Wired Equivalent Privacy, while RADIUS stands for Remote Authentication Dial-In User Service.) These are briefly discussed here. For detailed instructions on configuring wireless security for the Router, turn to "Appendix B: Wireless Security." If you want to disable wireless security, select Disable from the drop-down menu for Security Mode.

WPA Pre-Shared Key. Enter a WPA Shared Key of 8-32 characters. Then enter a Group Key Renewal period, which instructs the Router how often it should change the encryption keys.

Figure 5-15: WPA Pre-Shared Key

WPA RADIUS. This option features WPA used in coordination with a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.) Enter the RADIUS server's IP Address and port number, along with a key shared between the Router and the server. Then, enter a Key Renewal Timeout, which instructs the Router how often it should change the encryption keys.

Figure 5-16: WPA RADIUS

Chapter 5: Configuring the Gateway The Wireless Tab

Wireless-G ADSL Gateway

WEP. WEP is a basic encryption method, which is not as secure as WPA. To use WEP, select a Default Key (choose which Key to use), and a level of WEP encryption, 64 bits 10 hex digits or 128 bits 26 hex digits. Then either generate a WEP key using a Passphrase or enter the WEP key manually.

• WEP Encryption. An acronym for Wired Equivalent Privacy, WEP is an encryption method used to protect your wireless data communications. WEP uses 64-bit or 128-bit keys to provide access control to your network and encryption security for every data transmission. To decode data transmissions, all devices in a network must use an identical WEP key. Higher encryption levels offer higher levels of security, but due to the complexity of the encryption, they may decrease network performance. To enable WEP, select 64 bits (10 hex digits) or 128 bits (26 hex digits).
• Default Transmit Key Select which WEP key (1-4) will be used when the Gateway sends data. Make sure that the receiving device (wireless client) is using the same key.
• Passphrase. Instead of manually entering WEP keys, you can enter a passphrase. This passphrase is used to generate one or more WEP keys. It is case-sensitive and should not be longer than 32 alphanumeric characters. (This Passphrase function is compatible with Linksys wireless products only and cannot be used with Windows XP Zero Configuration. If you want to communicate with non-Linksys wireless products or Windows XP Zero Configuration, make a note of the WEP key generated in the Key 1 field, and enter it manually in the wireless client.) After you enter the Passphrase, click the Generate button to create WEP keys.
• WEP Keys 1-4. WEP keys enable you to create an encryption scheme for wireless network transmissions. If you are not using a Passphrase, then manually enter a set of values. (Do not leave a key field blank, and do not enter all zeroes; they are not valid key values.) If you are using 64-bit WEP encryption, the key must be exactly 10 hexadecimal characters in length. If you are using 128-bit WEP encryption, the key must be exactly 26 hexadecimal characters in length. Valid hexadecimal characters are "0"-"9" and "A"-"F".

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. For detailed instructions on configuring wireless security for the Router, turn to "Appendix B: Wireless Security."

Figure 5-17: WEP

Wireless-G ADSL Gateway

Wireless Access Tab

Wireless Network Access

Wireless Network Access. If you select Allow All, all computers will be allowed access to the wireless network. To restrict access to the network, select Restrict Access, then select Prevent to prevent access or Permit only to permit access. Click the Edit MAC Address Access List button, and the screen will appear.

Select the MAC Address from the list and click Wireless Client MAC List..

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Advanced Wireless Settings Tab

On this screen you can access the Advanced Wireless features, including Authentication Type, Basic Data Rates, Control Tx Rates, Beacon Interval, DTIM Interval, RTS Threshold, and Fragmentation Threshold.

• Authentication Type. The default is set to Auto (default), which allows either Open System or Shared Key authentication to be used. For Open System authentication, the sender and the recipient do not use a WEP key for authentication but can use WEP for data encryption. If you want to allow on Open System authentication, then select Open System. For Shared Key authentication, the sender and recipient use a WEP key for both authentication and data encryption. If you want to use only Shared Key authentication, then select Shared Key. It is recommended that this option be left in the default (Auto) mode, because some clients cannot be configured for Shared Key.
• Control Tx Rates. The default transmission rate is Auto. The range is from 1 to 54Mbps. The rate of data transmission should be set depending on the speed of your wireless network. You can select from a range of transmission speeds, or keep the default setting, Auto, to have the Gateway automatically use the fastest possible data rate and enable the Auto-Fallback feature. Auto-Fallback will negotiate the best possible connection speed between the Gateway and a wireless client.
• Beacon Interval. The default value is 100. Enter a value between 1 and 65,535 milliseconds. The Beacon Interval value indicates the frequency interval of the beacon. A beacon is a packet broadcast by the Gateway to synchronize the wireless network.
• DTIM Interval. The default value is 3. This value, between 1 and 255, indicates the interval of the Delivery Traffic Indication Message (DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and multicast messages. When the Gateway has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. Its clients hear the beacons and awaken to receive the broadcast and multicast messages.

Figure 5-18: Wireless Network Access

Figure 5-19: MAC Address Access List

Wireless-G ADSL Gateway

• Fragmentation Threshold. This value should remain at its default setting of 2346. The range is 256-2346 bytes. It specifies the maximum size for a packet before data is fragmented into multiple packets. If you experience a high packet error rate, you may slightly increase the Fragmentation Threshold. Setting the Fragmentation Threshold too low may result in poor network performance. Only minor modifications of this value are recommended.
• RTS Threshold. This value should remain at its default setting of 2347. The range is 0-2347 bytes. Should you encounter inconsistent data flow, only minor modifications are recommended. If a network packet is smaller than the preset RTS threshold size, the RTS/CTS mechanism will not be enabled. The Gateway sends Request to Send (RTS) frames to a particular receiving station and negotiates the sending of a data frame. After receiving an RTS, the wireless station responds with a Clear to Send (CTS) frame to acknowledge the right to begin transmission.

Figure 5-20: Advanced Wireless Settings

Wireless-G ADSL Gateway

The Security Tab

Firewall

When you click the Security tab, you will see the Firewall screen. This screen contains Filters and the option to Block WAN Requests. Filters block specific Internet data types and block anonymous Internet requests. To add Firewall Protection, click Enable. If you do not want Firewall Protection, click Disable.

Additional Filters

• Filter Proxy. Use of WAN proxy servers may compromise the Gateway's security. Denying Filter Proxy will disable access to any WAN proxy servers. To enable proxy filtering, click Enabled.
  Filter Cookies. A cookie is data stored on your computer and used by Internet sites when you interact with them. To enable cookie filtering, click Enabled.
• Filter Java Applets. Java is a programming language for websites. If you deny Java Applets, you run the risk of not having access to Internet sites created using this programming language. To enable Java Applet filtering, click Enabled.
• Filter ActiveX. ActiveX is a programming language for websites. If you deny ActiveX, you run the risk of not having access to Internet sites created using this programming language. To enable ActiveX filtering, click Enabled.

Block WAN requests

• Block Anonymous Internet Requests. This keeps your network from being "pinged" or detected and reinforces your network security by hiding your network ports, so it is more difficult for intruders to discover your network. Select Block Anonymous Internet Requests to block anonymous Internet requests or deselect it to allow anonymous Internet requests.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes.

Figure 5-21: Firewall

Wireless-G ADSL Gateway

VPN

Virtual Private Networking (VPN) is a security measure that basically creates a secure connection between two remote locations. The VPN screen allows you to configure your VPN settings to make your network more secure.

VPN Passthrough

• IPSec Passthrough. Internet Protocol Security (IPSec) is a suite of protocols used to implement secure exchange of packets at the IP layer. To allow IPsec Passthrough, click the Enable button. To disable IPSec Passthrough, click the Disable button.
• PPTP Passthrough. Point-to-Point Tunneling Protocol Passthrough is the method used to enable VPN sessions to a Windows NT 4.0 or 2000 server. To allow PPTP Passthrough, click the Enable button. To disable PPTP Passthrough, click the Disable button.
• L2TP Passthrough. Layering 2 Tunneling Protocol Passthrough is an extension of the Point-to-Point Tunneling Protocol (PPTP) used to enable the operation of a VPN over the Internet. To allow L2TP Passthrough, click the Enable button. To disable L2TP Passthrough, click the Disable button.

IPSec VPN Tunnel

The VPN Gateway creates a tunnel or channel between two endpoints, so that the data or information between these endpoints is secure.

• To establish this tunnel, select the tunnel you wish to create in the Select Tunnel Entry drop-down box. It is possible to create up to five simultaneous tunnels. Then click Enabled to enable the IPSec VPN tunnel. Once the tunnel is enabled, enter the name of the tunnel in the Tunnel Name field. This is to allow you to identify multiple tunnels and does not have to match the name used at the other end of the tunnel. To delete a tunnel entry, select the tunnel, then click Delete. To view a summary of the settings, click Summary.
• Local Secure Group and Remote Secure Group. The Local Secure Group is the computer(s) on your LAN that can access the tunnel. The Remote Secure Group is the computer(s) on the remote end of the tunnel that can access the tunnel. These computers can be specified by a Subnet, specific IP address, or range.
• Local Security Gateway.
• Remote Security Gateway. The Remote Security Gateway is the VPN device, such as a second VPN Gateway, on the remote end of the VPN tunnel. Enter the IP Address or Domain of the VPN device at the other end of the tunnel. The remote VPN device can be another VPN Gateway, a VPN Server, or a computer with VPN client software that supports IPSec. The IP Address may either be static (permanent) or dynamic (changing), depending on the settings of the remote VPN device. Make sure that you have entered the IP Address

Figure 5-22:VPN

Figure 5-23:VPN Settings Summary

Wireless-G ADSL Gateway

correctly, or the connection cannot be made. Remember, this is NOT the IP Address of the local VPN Gateway, but the IP Address of the remote VPN Gateway or device with which you wish to communicate. If you enter an IP address, only the specific IP Address will be able to access the tunnel. If you select Any, any IP Address can access the tunnel.

• Encryption. Using Encryption also helps make your connection more secure. There are two different types of encryption: DES or 3DES (3DES is recommended because it is more secure). You may choose either of these, but it must be the same type of encryption that is being used by the VPN device at the other end of the tunnel. Or, you may choose not to encrypt by selecting Disable. In Figure 5-19, DES (which is the default) has been selected.
• Authentication. Authentication acts as another level of security. There are two types of authentication: MD5 and SHA (SHA is recommended because it is more secure). As with encryption, either of these may be selected, if the VPN device at the other end of the tunnel is using the same type of authentication. Or, both ends of the tunnel may choose to Disable authentication. In the Manual Key Management screen, MD5 (the default) has been selected.
  Key Management. Select Auto (IKE) or Manual from the drop-down menu. The two methods are described below. Auto (IKE)

Select Auto (IKE) and enter a series of numbers or letters in the Pre-shared Key field. Based on this word, which MUST be entered at both ends of the tunnel if this method is used, a key is generated to scramble (encrypt) the data being transmitted over the tunnel, where it is unscrambled (decrypted). You may use any combination of up to 24 numbers or letters in this field. No special characters or spaces are allowed. In the Key Lifetime field, you may select to have the key expire at the end of a time period. Enter the number of seconds you'd like the key to be useful, or leave it blank for the key to last indefinitely. Check the box next to PFS (Perfect Forward Secrecy) to ensure that the initial key exchange and IKE proposals are secure.

Manual

Select Manual, then select the Encryption Algorithm from the drop-down menu. Enter the Encryption Key in the field (if you chose DES for your Encryption Algorithm, enter 16 hexadecimal characters, if you chose 3DES, enter 48 hexadecimal characters). Select the Authentication Algorithm from the drop-down menu. Enter the Authentication Key in the field (if you chose MD5 for your Authentication Algorithm, enter 32 hexadecimal characters, if you chose SHA1, enter 40 hexadecimal characters). Enter the Inbound and Outbound SPls in the respective fields.

• Status. The status of the connection is shown.

Click the Connect button to connect your VPN tunnel. Click View Logs to view system, UPnP, VPN, firewall, access, or all logs.Click the Advanced Settings button and the Advanced IPSec VPN Tunnel Setup screen will appear.

Chapter 5: Configuring the Gateway

The Security Tab

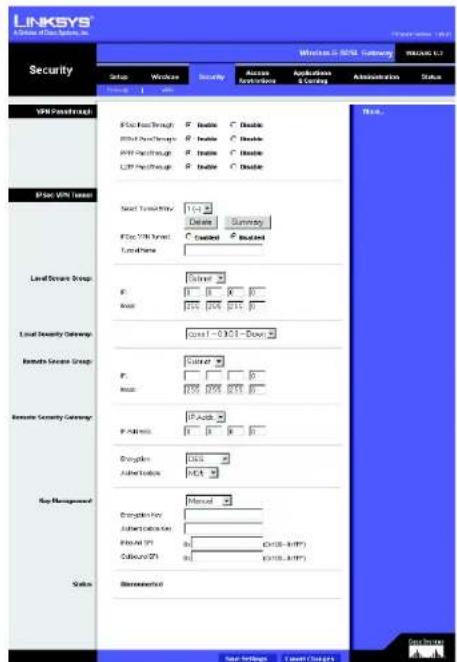

Figure 5-24: Manual Key Management

Figure 5-25: System Log

Wireless-G ADSL Gateway

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes.

Advanced VPN Tunnel Setup

From the Advanced IPSec VPN Tunnel Setup screen you can adjust the settings for specific VPN tunnels.

Phase 1

• Phase 1 is used to create a security association (SA), often called the IKE SA. After Phase 1 is completed, Phase 2 is used to create one or more IPSec SAs, which are then used to key IPSec sessions.
• Operation Mode. There are two modes: Main and Aggressive, and they exchange the same IKE payloads in different sequences. Main mode is more common; however, some people prefer Aggressive mode because it is faster. Main mode is for normal usage and includes more authentication requirements than Aggressive mode. Main mode is recommended because it is more secure. No matter which mode is selected, the VPN Gateway will accept both Main and Aggressive requests from the remote VPN device.
• Encryption. Select the length of the key used to encrypt/decrypt ESP packets. There are two choices: DES and 3DES. 3DES is recommended because it is more secure.
• Authentication. Select the method used to authenticate ESP packets. There are two choices: MD5 and SHA.
  SHA is recommended because it is more secure.
• Group. There are two Diffie-Hellman Groups to choose from: 768-bit and 1024-bit. Diffie-Hellman refers to a cryptographic technique that uses public and private keys for encryption and decryption.
  Key Life Time. In the Key Lifetime field, you may optionally select to have the key expire at the end of a time period of your choosing. Enter the number of seconds you'd like the key to be used until a re-key negotiation between each endpoint is completed.

Phase 2

• Encryption. The encryption method selected in Phase 1 will be displayed.
• Authentication. The authentication method selected in Phase 1 will be displayed.
• PFS. The status of PFS will be displayed.
• Group. There are two Diffie-Hellman Groups to choose from: 768-bit and 1024-bit. Diffie-Hellman refers to a cryptographic technique that uses public and private keys for encryption and decryption.

Chapter 5: Configuring the Gateway The Security Tab

Figure 5-26: Advanced VPN Tunnel Setup

Wireless-G ADSL Gateway

• Key Life Time. In the Key Lifetime field, you may select to have the key expire at the end of a time period of your choosing. Enter the number of seconds you'd like the key to be used until a re-key negotiation between each endpoint is completed.

Other Setting

• NetBIOS broadcast. Check the box next to NetBIOS broadcast to enable NetBIOS traffic to pass through the VPN tunnel.
• Anti-replay. Check the box next to Anti-replay to enable the Anti-replay protection. This feature keeps track of sequence numbers as packets arrive, ensuring security at the IP packet-level.
• Keep-Alive. If you select this option, the Gateway will periodically check your Internet connection. If you are disconnected, then the Gateway will automatically re-establish your connection.
• Check this box to block unauthorized IP addresses. Enter in the field to specify how many times IKE must fail before blocking that unauthorized IP address. Enter the length of time that you specify (in seconds) in the field.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. For further help on this tab, click the Help button.

Wireless-G ADSL Gateway

The Access Restrictions Tab

Internet Access

The Access Restrictions tab allows you to block or allow specific kinds of Internet usage. You can set up Internet access policies for specific computers and set up filters by using network port numbers.

• Internet Access Policy. Multiple Filters can be saved as Internet Access Policies. When you wish to edit one, select the number of the Policy from the drop-down menu. The tab will change to reflect the settings of this Policy. If you wish to delete this Policy, click the Delete button. To see a summary of all Policies, click the Summary button.

The summaries are listed on this screen with their name and settings. To return to the Filters tab, click the Close button.

• Enter Policy Name. Policies are created from the fields presented here.

To create an Internet Access policy:

1. Enter a Policy Name in the field provided. Select Internet Access as the Policy Type.

2. Click the Edit List of PCs button. This will open the List of PCs screen. From this screen, you can enter the IP address or MAC address of any computer to which this policy will apply. You can even enter ranges of computers by IP address. Click the Save Settings button to save your settings, the Cancel Changes button to undo any changes and return to the Filters tab.

Chapter 5: Configuring the Gateway The Access Restrictions Tab

Figure 5-27: Internet Access

Figure 5-28: Internet Policy Summary

Wireless-G ADSL Gateway

1. If you wish to Deny or Allow Internet access for those computers you listed on the List of PCs screen, click the option.
2. You can filter access to various services accessed over the Internet, such as FTP or Telnet, by selecting a service from the drop-down menus next to Linked Services. If a service isn't listed, you can click the Add/ Edit Service button to open the Port Services screen and add a service to the list. You will need to enter a Service name, as well as the Protocol and Port Range used by the service.
3. By selecting the appropriate setting next to Days and Time, choose when Internet access will be filtered.
4. Click the Save Settings button to activate the policy.

Internet Access can also be filtered by URL Address, the address entered to access Internet sites, by entering the address in one of the Website Blocking by URL Address fields. If you do not know the URL Address, filtering can be done by Keyword by entering a keyword in one of the Website Blocking by Keyword fields.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes.

Figure 5-29: List of PCs

Figure 5-30: Port Services

Wireless-G ADSL Gateway

The Applications and Gaming Tab

Single Port Forwarding

The Single Port Forwarding screen provides options for customization of port services for common applications.

When users send this type of request to your network via the Internet, the Gateway will forward those requests to the appropriate computer. Any computer whose port is being forwarded should have its DHCP client function disabled and should have a new static IP address assigned to it because its IP address may change when using the DHCP function.

Choose or enter the Application in the field. Then, enter the External and Internal Port numbers in the fields. Select the type of protocol you wish to use for each application: TCP or UDP. Enter the IP Address in the field. Click Enabled to enable Forwarding for the chosen application.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes.

Port Range Forwarding

The Port Forwarding screen sets up public services on your network, such as web servers, ftp servers, e-mail servers, or other specialized Internet applications. (Specialized Internet applications are any applications that use Internet access to perform functions such as videoconferencing or online gaming. Some Internet applications may not require any forwarding.)

When users send this type of request to your network via the Internet, the Gateway will forward those requests to the appropriate computer. Any computer whose port is being forwarded should have its DHCP client function disabled and should have a new static IP address assigned to it because its IP address may change when using the DHCP function.

• Application. Enter the name you wish to give each application.
• Start and End. Enter the starting and ending numbers of the port you wish to forward.
• TCP UDP. Select the type of protocol you wish to use for each application: TCP, UDP, or Both.
• IP Address. Enter the IP Address and Click Enabled.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes.

Figure 5-31: Single Port Forwarding

Figure 5-32: Port Range Forwarding

Wireless-G ADSL Gateway

Port Triggering

Port Triggering is used for special applications that can request a port to be opened on demand. For this feature, the Gateway will watch outgoing data for specific port numbers. The Gateway will remember the IP address of the computer that sends a transmission requesting data, so that when the requested data returns through the Gateway, the data is pulled back to the proper computer by way of IP address and port mapping rules.

• Application. Enter the name you wish to give each application.
• Start Port and End Port. Enter the starting and ending Triggered Range numbers and the Incoming Forwarded Range numbers of the port you wish to forward.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes.

Figure 5-33: Port Triggering

DMZ

The DMZ screen allows one local user to be exposed to the Internet for use of a special-purpose service such as Internet gaming and videoconferencing through DMZ Hosting. DMZ hosting forwards all the ports for one computer at the same time, which differs from Port Range Forwarding, which can only forward a maximum of 10 ranges of ports.

• DMZ Hosting. This feature allows one local user to be exposed to the Internet for use of a special-purpose service such as Internet gaming and videoconferencing. To use this feature, select Enabled. To disable DMZ, select Disabled.
• DMZ Host IP Address. To expose one computer, enter the computer's IP address. To get the IP address of a computer, refer to "Appendix D: Finding the MAC Address and IP Address for Your Ethernet Adapter."

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes.

Figure 5-34:DMZ

Wireless-G ADSL Gateway

The Administration Tab

Management

The Management screen allows you to change the Gateway's access settings as well as configure the SNMP (Simple Network Management Protocol) and UPnP (Universal Plug and Play) features.

Gateway Access

Local Gateway Access. To ensure the Gateway's security, you will be asked for your password when you access the Gateway's Web-based Utility. The default username and password is admin.

• Gateway username. Enter the default admin. It is recommended that you change the default username to one of your choice.
• Gateway Password. It is recommended that you change the default password to one of your choice.
• Re-enter to confirm. Re-enter the Gateway's new Password to confirm it.
• Remote Gateway Access. This feature allows you to access the Gateway from a remote location, via the Internet.

IMPORTANT: Enabling remote Administration allows anyone with access to your password to configure the Gateway from somewhere else on the Internet.

• Remote Administration. This feature allows you to manage the Gateway from a remote location via the Internet. To enable Remote Administration, click Enabled.
• Administration Port. Enter the port number you will use to remotely access the Gateway.

SNMP

SNMP is a popular network monitoring and management protocol.

Identification. To enable SNMP, click Enabled. To disable SNMP, click Disabled.

UPnP

UPnP allows Windows XP to automatically configure the Gateway for various Internet applications, such as gaming and videoconferencing.

Chapter 5: Configuring the Gateway The Administration Tab

Figure 5-35: Management

Wireless-G ADSL Gateway

UPnp. To enable UPnP, click Enabled.

WT-82 (TR-064)

WT-82 is a method for configuring your ADSL Gateway through software on your PC inside the LAN. Enable WT-82 to use WT-82 to configure your network.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes.

Reporting

The Reporting tab provides you with a log of all incoming and outgoing URLs or IP addresses for your Internet connection. It also provides logs for VPN and firewall events.

• Log. To enable log reporting, click Enabled.
• Logviewer IP Address. Enter the IP Address that will receive logs into the field.

Email Alerts

E-Mail Alerts. To enable E-Mail Alerts, click Enabled.

Denial of Service Thresholds. Enter the thresholds of events you want to receive.
- SMTP Mail Server. Enter the IP Address of the SMTP server in the field.
- E-Mail Address for Alert Logs. Enter the e-mail address for alert logs in the field.
- Return E-Mail address. Enter the address for the return e-mail.

To view the logs, click the View Logs button.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes.

Figure 5-36: Reporting

Figure 5-37: System Log

Wireless-G ADSL Gateway

Diagnostics

Ping Test

Ping Test Parameters

• Ping Target IP. Enter the IP Address that you want to ping in the field. This can be either a local (LAN) IP or an Internet (WAN) IP address.
• Ping Size. Enter the size of the ping packets.
• Number of Pings. Enter the number of times that you want to ping.
• Ping Interval. Enter the ping interval in milliseconds.
• Ping Timeout. Enter the time in milliseconds.
• Ping Result. The results of the ping test will be shown here.

Click the Start Test button to start the Ping Test.

Figure 5-38: Ping Test

Factory Defaults

Restore Factory Defaults. If you wish to restore the Gateway to its factory default settings and lose all your settings, click Yes.

To begin the restore process, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes.

Figure 5-39:Factory Defaults

Wireless-G ADSL Gateway

Firmware Upgrade

The ADSL Gateway allows you to upgrade firmware for the WAN (Internet) side of the Gateway and the LAN (network) side of the Gateway.

Upgrade from WAN

To upgrade the Gateway's firmware from the WAN: Enter the URL for the firmware in the URL field, then click the Upgrade button, and follow the instructions there.

Upgrade from LAN

To upgrade the Gateway's firmware from the LAN:

1. Click the Browse button to find the firmware upgrade file that you downloaded from the Linksys website and then extracted.
2. Double-click the firmware file you downloaded and extracted. Click the Upgrade button, and follow the instructions there.

Figure 5-40: Firmware Upgrade

Reboot

This tab allows you to do a soft or hard reboot of your Gateway.

Reboot Mode. To reboot your Gateway, select Hard or Soft. Choose hard to power cycle the Gateway or soft to restart it without a power cycle.

To begin the reboot process, click the Save Settings button. When a screen appears asking you if you really want to reboot the device. Click OK.

Click the Cancel Changes button if you want to undo your changes.

Figure 5-41:Reboot ADSL Gateway

Wireless-G ADSL Gateway

The Status Tab

Gateway

This screen displays information about your Gateway and its WAN (Internet) Connections.

Gateway Information

Gateway Information displays the Software Version, MAC Address, and Current Time.

Internet Connections

The Internet Connections will be displayed after selecting the Internet connection number from the drop-down menu. They are the Login Type, interface, IP Address, Subnet Mask, Default Gateway, and DNS 1 and 2 servers.

DHCP Renew. Click the DHCP Renew button to replace your Gateway's current IP address with a new IP address.

DHCP Release. Click the DHCP Release button to delete your Gateway's current IP address.

Click the Refresh button If you want to Refresh your screen.

Figure 5-42: Status

Wireless-G ADSL Gateway

Local Network

The Local Network information that is displayed is the local Mac Address, IP Address, Subnet Mask, and DHCP Server, Start IP Address, and End IP Address. To view the DHCP Clients Table, click the DHCP Clients Table button.

DHCP Clients Table. Click the DHCP Clients Table button to show the current DHCP Client data. You will see the MAC address, computer name, and IP address of the network clients using the DHCP server. (This data is stored in temporary memory and changes periodically.) To delete a client from the DHCP server, select the client, then click the Delete button.

Click the Refresh button if you want to Refresh your screen. Click the Close button to close the screen.

Figure 5-43: Local Network

Figure 5-44: DHCP Clients Table

Wireless-G ADSL Gateway

Wireless

The Wireless network information that is displayed is the Wireless Firmware Version, MAC Address, Mode, SSID, DHCP Server, Channel, and Encryption Function.

Click the Wireless Clients Connected button to view the wireless clients connected to the Gateway.

Click the Refresh button if you want to Refresh your screen. Click the Close button to close the screen.

Figure 5-45: Wireless

Figure 5-46: Wireless Clients

Wireless-G ADSL Gateway

DSL Connection

The DSL Connection information that is displayed is the Status, Downstream Rate, Upstream Rate,

The PVC Connection Information that is displayed Is Encapsulation, Multiplexing, QoS, Pcr Rate, Scr Rate, Autodetect, VPI, VCI, and PVC Status.

Click the Refresh button if you want to Refresh your screen.

Figure 5-47:DSL Connection

Wireless-G ADSL Gateway

Appendix A: Troubleshooting

This appendix consists of two parts: "Common Problems and Solutions" and "Frequently Asked Questions." Provided are possible solutions to problems that may occur during the installation and operation of the Gateway. Read the descriptions below to help you solve your problems. If you can't find an answer here, check the Linksys international website at www.linksys.com/international.

Common Problems and Solutions

1. I need to set a static IP address on a computer.

You can assign a static IP address to a computer by performing the following steps:

For Windows 98 and Me:

1. Click Start, Settings, and Control Panel. Double-click Network.
2. In the following network components are Installed box, select the TCP/IP-> associated with your Ethernet adapter. If you only have one Ethernet adapter installed, you will only see one TCP/IP line with no association to an Ethernet adapter. Highlight it and click the Properties button.
3. In the TCP/IP properties window, select the IP address tab, and select Specify an IP address. Enter a unique IP address that is not used by any other computer on the network connected to the Gateway. Make sure that each IP address is unique for each computer or network device.
4. Click the Gateway tab, and in the New Gateway prompt, enter 192.168.1.1, which is the default IP address of the Gateway. Click the Add button to accept the entry.
5. Click the DNS tab, and make sure the DNS Enabled option is selected. Enter the Host and Domain names (e.g., John for Host and home for Domain). Enter the DNS entry provided by your ISP. If your ISP has not provided the DNS IP address, contact your ISP to get that information or go to its website for the information.
6. Click the OK button in the TCP/IP properties window, and click Close or the OK button for the Network window.
7. Restart the computer when asked.

For Windows 2000:

1. Click Start, Settings, and Control Panel. Double-click Network and Dial-Up Connections.
2. Right-click the Local Area Connection that is associated with the Ethernet adapter you are using, and select the Properties option.
3. In the Components checked are used by this connection box, highlight Internet Protocol (TCP/IP), and click the Properties button. Select Use the following IP address option.
4. Enter a unique IP address that is not used by any other computer on the network connected to the Gateway.
5. Enter the Subnet Mask, 255.255.255.0.
6. Enter the Default Gateway, 192.168.1.1 (Gateway's default IP address).

Appendix A: Troubleshooting

Common Problems and Solutions

Wireless-G ADSL Gateway

1. Toward the bottom of the window, select Use the following DNS server addresses, and enter the Preferred DNS server and Alternative DNS server (provided by your ISP). Contact your ISP or go on its website to find the information.
2. Click the OK button in the Internet Protocol (TCP/IP) Properties window, and click the OK button in the Local Area Connection Properties window.
3. Restart the computer if asked.

For Windows XP:

The following instructions assume you are running Windows XP with the default interface. If you are using the Classic interface (where the icons and menus look like previous Windows versions), please follow the Instructions for Windows 2000.

1. Click Start and Control Panel.
2. Click the Network and Internet Connections icon and then the Network Connections icon.
3. Right-click the Local Area Connection that is associated with the Ethernet adapter you are using, and select the Properties option.
4. In the This connection uses the following items box, highlight Internet Protocol (TCP/IP). Click the Properties button.
5. Enter a unique IP address that is not used by any other computer on the network connected to the Gateway.
6. Enter the Subnet Mask, 255.255.255.0.
7. Enter the Default Gateway, 192.168.1.1 (Gateway's default IP address).
8. Toward the bottom of the window, select Use the following DNS server addresses, and enter the Preferred DNS server and Alternative DNS server (provided by your ISP). Contact your ISP or go on its website to find the information.

9. Click the OK button in the Internet Protocol (TCP/IP) Properties window. Click the OK button in the Local Area Connection Properties window.

10. I want to test my Internet connection.

A. Check your TCP/IP settings.
For Windows 98, Me, 2000, and XP:
- Refer to Windows Help for details. Make sure Obtain IP address automatically is selected in the settings. For Windows NT 4.0:
- Click Start, Settings, and Control Panel. Double-click the Network icon.
- Click the Protocol tab, and double-click on TCP/IP Protocol.
- When the window appears, make sure you have selected the correct Adapter for your Ethernet adapter and set it for Obtain an IP address from a DHCP server.
- Click the OK button in the TCP/IP Protocol Properties window, and click the Close button in the Network window.
- Restart the computer if asked.

B. Open a command prompt.

Appendix A: Troubleshooting

Common Problems and Solutions

Wireless-G ADSL Gateway

For Windows 98 and Me:

• Click Start and Run. In the Open field, type in command. Press the Enter key or click the OK button.
  For Windows NT, 2000, and XP:
• Click Start and Run. In the Open field, type cmd. Press the Enter key or click the OK button. In the command prompt, type ping 192.168.1.1 and press the Enter key.
• If you get a reply, the computer is communicating with the Gateway.
• If you do NOT get a reply, please check the cable, and make sure Obtain an IP address automatically is selected in the TCP/IP settings for your Ethernet adapter.
  C. In the command prompt, type ping followed by your Internet or WAN IP address and press the Enter key. The Internet or WAN IP Address can be found on the Status screen of the Gateway's web-based utility. For example, if your Internet or WAN IP address is 1.2.3.4, you would enter ping 1.2.3.4 and press the Enter key.
• If you get a reply, the computer is connected to the Gateway.
• If you do NOT get a reply, try the ping command from a different computer to verify that your original computer is not the cause of the problem.
  D. In the command prompt, type ping www.yahoo.com and press the Enter key.
• If you get a reply, the computer is connected to the Internet. If you cannot open a webpage, try the ping command from a different computer to verify that your original computer is not the cause of the problem.
• If you do NOT get a reply, there may be a problem with the connection. Try the ping command from a different computer to verify that your original computer is not the cause of the problem.

3. I am not getting an IP address on the Internet with my Internet connection.

Refer to "Problem #2, I want to test my Internet connection" to verify that you have connectivity.

1. Make sure you are using the right Internet connection settings. Contact your ISP to see if your Internet connection type is RFC 1483 Bridged, RFC 1483 Routed, RFC 2516 PPPoE, or RFC 2364 PPPoA. Please refer to the Setup section of "Chapter 5: Configuring the Gateway" for details on Internet connection settings.
2. Make sure you have the right cable. Check to see if the Gateway column has a solidly lit ADSL LED.
3. Make sure the cable connecting from your Gateway's ADSL port is connected to the wall jack of the ADSL service line. Verify that the Status page of the Gateway's web-based utility shows a valid IP address from your ISP.
4. Turn off the computer and Gateway. Wait 30 seconds, and then turn on the Gateway, and computer. Check the Status tab of the Gateway's web-based utility to see if you get an IP address.

4. I am not able to access the Setup page of the Gateway's web-based utility.

Refer to "Problem #2, I want to test my Internet connection" to verify that your computer is properly connected to the Gateway.

1. Refer to "Appendix D: Finding the MAC Address and IP address for Your Ethernet Adapter" to verify that your computer has an IP Address, Subnet Mask, Gateway, and DNS.
2. Set a static IP address on your system; refer to "Problem #1: I need to set a static IP address."

Appendix A: Troubleshooting

Common Problems and Solutions

Wireless-G ADSL Gateway

1. Refer to "Problem #10: I need to remove the proxy settings or the dial-up pop-up window (for PPPoE users)."

5. I can't get my Virtual Private Network (VPN) working through the Gateway.

Access the Gateway's web interface by going to http://192.168.1.1 or the IP address of the Gateway, and go to the Security tab. Make sure you have IPsec passthrough and/or PPTP pass-through enabled.

• VPNs that use IPSec with the ESP (Encapsulation Security Payload known as protocol 50) authentication will work fine. At least one IPSec session will work through the Gateway; however, simultaneous IPSec sessions may be possible, depending on the specifics of your VPNs.
• VPNs that use IPSec and AH (Authentication Header known as protocol 51) are incompatible with the Gateway. AH has limitations due to occasional incompatibility with the NAT standard.
• Change the IP address for the Gateway to another subnet to avoid a conflict between the VPN IP address and your local IP address. For example, if your VPN server assigns an IP address 192.168.1.X (X is a number from 1 to 254) and your local LAN IP address is 192.168.1.X (X is the same number used in the VPN IP address), the Gateway will have difficulties routing information to the right location. If you change the Gateway's IP address to 192.168.2.1, that should solve the problem. Change the Gateway's IP address through the Setup tab of the web interface.
• If you assigned a static IP address to any computer or network device on the network, you need to change its IP address accordingly to 192.168.2.Y (Y being any number from 1 to 254). Note that each IP address must be unique within the network.
• Your VPN may require port 500/UDP packets to be passed to the computer that is connecting to the IPSec server. Refer to "Problem #7, I need to set up online game hosting or use other Internet applications" for details.
• Check the Linksys international website for more information at www.linksys.com/international.

6. I need to set up a server behind my Gateway and make it available to the public.

To use a server like a web, ftp, or mail server, you need to know the respective port numbers they are using. For example, port 80 (HTTP) is used for web; port 21 (FTP) is used for FTP, and port 25 (SMTP outgoing) and port 110 (POP3 incoming) are used for the mail server. You can get more information by viewing the documentation provided with the server you installed.

• Follow these steps to set up port forwarding through the Gateway's web-based utility. We will be setting up web, ftp, and mail servers.

• Access the Gateway's web-based utility by going to http://192.168.1.1 or the IP address of the Gateway. Go to the Applications and Gaming Port Range Forwarding tab.

• Enter any name you want to use for the Customized Application.
• Enter the External Port range of the service you are using. For example, if you have a web server, you would enter the range 80 to 80.
• Check the protocol you will be using, TCP and/or UDP.
• Enter the IP address of the computer or network device that you want the port server to go to. For example, if the web server's Ethernet adapter IP address is 192.168.1.100, you would enter 100 in the

Appendix A: Troubleshooting

Common Problems and Solutions

Wireless-G ADSL Gateway

field provided. Check "Appendix D: Finding the MAC Address and IP Address for Your Ethernet Adapter" for details on getting an IP address.

1. Check the Enable option for the port services you want to use. Consider the example below:

Customized Application External Port TCP UDP IP Address Enable

Web server 80 to 80 X 192.168.1.100 X

FTP server 21 to 21 X 192.168.1.101 X

SMTP (outgoing) 25 to 25 X 192.168.1.102 X

POP3 (incoming) 110 to 110 X 192.168.1.102 X

When you have completed the configuration, click the Save Settings button.

7. I need to set up online game hosting or use other Internet applications.

If you want to play online games or use Internet applications, most will work without doing any port forwarding or DMZ hosting. There may be cases when you want to host an online game or Internet application. This would require you to set up the Gateway to deliver incoming packets or data to a specific computer. This also applies to the Internet applications you are using. The best way to get the information on what port services to use is to go to the website of the online game or application you want to use. Follow these steps to set up online game hosting or use a certain Internet application:

1. Access the Gateway's web interface by going to http://192.168.1.1 or the IP address of the Gateway. Go to the Applications and Gaming => Port Range Forwarding tab.
2. Enter any name you want to use for the Customized Application.
3. Enter the External Port range of the service you are using. For example, if you want to host Unreal Tournament (UT), you would enter the range 7777 to 27900.
4. Check the protocol you will be using, TCP and/or UDP.
5. Enter the IP address of the computer or network device that you want the port server to go to. For example, if the web server's Ethernet adapter IP address is 192.168.1.100, you would enter 100 in the field provided. Check "Appendix D: Finding the MAC Address and IP Address for Your Ethernet Adapter" for details on getting an IP address.
6. Check the Enable option for the port services you want to use. Consider the example below:

Customized Application	External Port	TCP	UDP	IP Address	Enable
UT	7777 to 27900	X	X	192.168.1.100	X
Halflife	27015 to 27015	X	X	192.168.1.105	X
PC Anywhere	5631 to 5631		X	192.168.1.102	X
VPN IPSEC	500 to 500		X	192.168.1.100	X

When you have completed the configuration, click the Save Settings button.

Appendix A: Troubleshooting

Common Problems and Solutions

Wireless-G ADSL Gateway

8. I can't get the Internet game, server, or application to work.

If you are having difficulties getting any Internet game, server, or application to function properly, consider exposing one computer to the Internet using DeMilitarized Zone (DMZ) hosting. This option is available when an application requires too many ports or when you are not sure which port services to use. Make sure you disable all the forwarding entries if you want to successfully use DMZ hosting, since forwarding has priority over DMZ hosting. (In other words, data that enters the Gateway will be checked first by the forwarding settings. If the port number that the data enters from does not have port forwarding, then the Gateway will send the data to whichever computer or network device you set for DMZ hosting.)

• Follow these steps to set DMZ hosting:

• Access the Gateway's web-based utility by going to http://192.168.1.1 or the IP address of the Gateway. Go to the Applications and Gaming DMZ tab. Click Enabled and enter the IP of the computer.

• Check the Port Forwarding pages and disable or remove the entries you have entered for forwarding. Keep this information in case you want to use it at a later time.

• Once completed with the configuration, click the Save Settings button.

9. I forgot my password, or the password prompt always appears when I am saving settings to the Gateway.

• Reset the Gateway to factory default by pressing the Reset button for 10 seconds and then releasing it. If you are still getting prompted for a password when saving settings, then perform the following steps:

• Access the Gateway's web-based utility by going to http://192.168.1.1 or the IP address of the Gateway. Enter the default username and password admin, and click the Administrations => Management tab.

• Enter a different password in the Gateway Password field, and enter the same password in the second field to confirm the password.
• Click the Save Settings button.

10. I am a PPPoE user, and I need to remove the proxy settings or the dial-up pop-up window.

If you have proxy settings, you need to disable these on your computer. Because the Gateway is the gateway for the Internet connection, the computer does not need any proxy settings to gain access. Please follow these directions to verify that you do not have any proxy settings and that the browser you use is set to connect directly to the LAN.

• For Microsoft Internet Explorer 5.0 or higher:

• Click Start, Settings, and Control Panel. Double-click Internet Options.

• Click the Connections tab.
• Click the LAN settings button and remove anything that is checked.
• Click the OK button to go back to the previous screen.
• Click the option Never dial a connection. This will remove any dial-up pop-ups for PPPoE users.

Appendix A: Troubleshooting

Common Problems and Solutions

Wireless-G ADSL Gateway

For Netscape 4.7 or higher:

1. Start Netscape Navigator, and click Edit, Preferences, Advanced, and Proxies.
2. Make sure you have Direct connection to the Internet selected on this screen.

3. Close all the windows to finish.

4. To start over, I need to set the Gateway to factory default.

Hold the Reset button for 10 seconds and then release it. This will return the Internet settings, password, forwarding, and other settings on the Gateway to the factory default settings. In other words, the Gateway will revert to its original factory configuration.

1. I need to upgrade the firmware.

In order to upgrade the firmware with the latest features, you need to go to the Linksys international website and download the latest firmware at www.linksys.com/international.

• Follow these steps:

• Go to the Linksys international website at http://www.linksys.com/international and select your region or country.

• Click the Products tab and select the Gateway.
• On the Gateway's webpage, click Firmware, and then download the latest firmware for the Gateway.

• To upgrade the firmware, follow the steps in the Administration section found in "Chapter 5: Configuring the Gateway."

• The firmware upgrade failed, and/or the Power LED is flashing.

The upgrade could have failed for a number of reasons. Follow these steps to upgrade the firmware and/or make the Power LED stop flashing:

• If the firmware upgrade failed, use the TFTP program (it was downloaded along with the firmware). Open the pdf that was downloaded along with the firmware and TFTP program, and follow the pdf's instructions.
• Set a static IP address on the computer; refer to "Problem #1, I need to set a static IP address." Use the following IP address settings for the computer you are using:

IP Address: 192.168.1.50

Subnet Mask: 255.255.255.0

Gateway: 192.168.1.1

• Perform the upgrade using the TFTP program or the Gateway's web-based utility through its Administration tab.

• My DSL service's PPPoE is always disconnecting.

PPPoE is not actually a dedicated or always-on connection. The DSL ISP can disconnect the service after a period of inactivity, just like a normal phone dial-up connection to the Internet.

• There is a setup option to "keep alive" the connection. This may not always work, so you may need to re-establish connection periodically.

Appendix A: Troubleshooting

Common Problems and Solutions

Wireless-G ADSL Gateway

1. To connect to the Gateway, go to the web browser, and enter http://192.168.1.1 or the IP address of the Gateway.
2. Enter the username and password, if asked. (The default username and password is admin.)
3. On the Setup screen, select the option Keep Alive, and set the Redial Period option at 20 (seconds).
4. Click the Save Settings button. Click the Status tab, and click the Connect button.
5. You may see the login status display as Connecting. Press the F5 key to refresh the screen, until you see the login status display as Connected.

6. Click the Save Settings button to continue.

7. If the connection is lost again, follow steps 1-6 to re-establish connection.

15. I can't access my e-mail, web, or VPN, or I am getting corrupted data from the Internet.

The Maximum Transmission Unit (MTU) setting may need to be adjusted. By default, the MTU is set automatically.

• If you are having some difficulties, perform the following steps:

• To connect to the Gateway, go to the web browser, and enter http://192.168.1.1 or the IP address of the Gateway.

• Enter the username and password, if asked. (The default username and password is admin.)
• Look for the MTU option, and select Manual. In the Size field, enter 1492.

• Click the Save Settings button to continue.

• If your difficulties continue, change the Size to different values. Try this list of values, one value at a time, in this order, until your problem is solved:

1462
1400
1362
1300

16. The Power LED flashes continuously.

The Power LED lights up when the device is first powered up. In the meantime, the system will boot up itself and check for proper operation. After finishing the checking procedure, the LED remains steady to show that the system is working fine. If the LED continues to flash after this time, the device is not working properly. Try to flash the firmware by assigning a static IP address to the computer, and then upgrade the firmware. Try using the following settings, IP Address: 192.168.1.50 and Subnet Mask: 255.255.255.0.

17. When I enter a URL or IP address, I get a time-out error or am prompted to retry.

• Check if other computers work. If they do, ensure that your computer's IP settings are correct (IP Address, Subnet Mask, Default Gateway, and DNS). Restart the computer that is having a problem.
• If the computers are configured correctly, but still not working, check the Gateway. Ensure that it is connected and powered on. Connect to it and check its settings. (If you cannot connect to it, check the LAN and power connections.)

Appendix A: Troubleshooting

Common Problems and Solutions

Wireless-G ADSL Gateway

• If the Gateway is configured correctly, check your Internet connection (DSL/cable modem, etc.) to see if it is working correctly. You can remove the Gateway to verify a direct connection.
• Manually configure the TCP/IP settings with a DNS address provided by your ISP.
• Make sure that your browser is set to connect directly and that any dial-up is disabled. For Internet Explorer, click Tools, Internet Options, and then the Connection tab. Make sure that Internet Explorer is set to Never dial a connection. For Netscape Navigator, click Edit, Preferences, Advanced, and Proxy. Make sure that Netscape Navigator is set to Direct connection to the Internet.

Frequently Asked Questions

What is the maximum number of IP addresses that the Gateway will support?

The Gateway will support up to 253 IP addresses.

Is IPSec Passthrough supported by the Gateway?

Yes, it is a built-in feature that is enabled by default.

Where is the Gateway installed on the network?

In a typical environment, the Gateway is installed between the ADSL wall jack and the LAN.

Does the Gateway support IPX or AppleTalk?

No. TCP/IP is the only protocol standard for the Internet and has become the global standard for communications. IPX, a NetWare communications protocol used only to route messages from one node to another, and AppleTalk, a communications protocol used on Apple and Macintosh networks, can be used for LAN to LAN connections, but those protocols cannot connect from the Internet to a LAN.

Does the LAN connection of the Gateway support 100Mbps Ethernet?

The Gateway supports 100Mbps over the auto-sensing Fast Ethernet 10/100 switch on the LAN side of the Gateway.

What is Network Address Translation and what is it used for?

Network Address Translation (NAT) translates multiple IP addresses on the private LAN to one public address that is sent out to the Internet. This adds a level of security since the address of a computer connected to the private LAN is never transmitted on the Internet. Furthermore, NAT allows the Gateway to be used with low cost Internet accounts when only one TCP/IP address is provided by the ISP. The user may have many private addresses behind this single address provided by the ISP.

Does the Gateway support any operating system other than Windows 98SE, Windows Millennium, Windows 2000, or Windows XP?

Yes, but Linksys does not, at this time, provide technical support for setup, configuration or troubleshooting of any non-Windows operating systems.

Appendix A: Troubleshooting

Frequently Asked Questions

Wireless-G ADSL Gateway

Does the Gateway support ICQ send file?

Yes, with the following fix: click ICQ menu -> preference -> connections tab->, and check I am behind a firewall or proxy. Then set the firewall time-out to 80 seconds in the firewall setting. The Internet user can then send a file to a user behind the Gateway.

I set up an Unreal Tournament Server, but others on the LAN cannot join. What do I need to do?

If you have a dedicated Unreal Tournament server running, you need to create a static IP for each of the LAN computers and forward ports 7777, 7778, 7779, 7780, 7781, and 27900 to the IP address of the server. You can also use a port forwarding range of 7777 27900 . If you want to use the UT Server Admin, forward another port. (Port 8080 usually works well but is used for remote admin. You may have to disable this.) Then in the [UWeb.WebServer] section of the server.ini file, set the ListenPort to 8080 (to match the mapped port above) and ServerName to the IP assigned to the Gateway from your ISP.

Can multiple gamers on the LAN get on one game server and play simultaneously with just one public IP address?

It depends on which network game or what kind of game server you are using. For example, Unreal Tournament supports multi-login with one public IP.

How do I get Half-Life: Team Fortress to work with the Gateway?

The default client port for Half-Life is 27005. The computers on your LAN need to have "+"clientport 2700x added to the HL shortcut command line; the x would be 6, 7, 8, and on up. This lets multiple computers connect to the same server. One problem: Version 1.0.1.6 won't let multiple computers with the same CD key connect at the same time, even if on the same LAN (not a problem with 1.0.1.3). As far as hosting games, the HL server does not need to be in the DMZ. Just forward port 27015 to the local IP address of the server computer.

The web page hangs; downloads are corrupt, or nothing but junk characters are being displayed on the screen. What do I need to do?

Force your Ethernet adapter to 10Mbps or half duplex mode, and turn off the "Auto-negotiate" feature of your Ethernet adapter as a temporary measure. (Please look at the Network Control Panel in your Ethernet adapter's Advanced Properties tab.) Make sure that your proxy setting is disabled in the browser. Check our website at www.linksys.com/international for more information.

If all else fails in the installation, what can I do?

Reset the Gateway by holding down the reset button until the Power LED fully turns on and off. Reset your DSL modem by powering the unit off and then on. Obtain and flash the latest firmware release that is readily available on the Linksys international website, www.linksys.com/international.

How will I be notified of new Gateway firmware upgrades?

All Linksys firmware upgrades are posted on the Linksys international website at www.linksys.com/international, where they can be downloaded for free. To upgrade the Gateway's firmware, use the Administration tab of the

Appendix A: Troubleshooting

Frequently Asked Questions

Wireless-G ADSL Gateway

Gateway's web-based utility. If the Gateway's Internet connection is working well, there is no need to download a newer firmware version, unless that version contains new features that you would like to use.

Will the Gateway function in a Macintosh environment?

Yes, but the Gateway's setup pages are accessible only through Internet Explorer 4.0 or Netscape Navigator 4.0 or higher for Macintosh.

I am not able to get the web configuration screen for the Gateway. What can I do?

You may have to remove the proxy settings on your Internet browser, e.g., Netscape Navigator or Internet Explorer. Check with your browser documentation, and make sure that your browser is set to connect directly and that any dial-up is disabled. For Internet Explorer, click Tools, Internet Options, and then the Connection tab. Make sure that Internet Explorer is set to Never dial a connection. For Netscape Navigator, click Edit, Preferences, Advanced, and Proxy. Make sure that Netscape Navigator is set to Direct connection to the Internet.

What is DMZ Hosting?

Demilitarized Zone (DMZ) allows one IP address (computer) to be exposed to the Internet. Some applications require multiple TCP/IP ports to be open. It is recommended that you set your computer with a static IP if you want to use DMZ Hosting. To get the LAN IP address, see "Appendix D: Finding the MAC Address and IP Address for Your Ethernet Adapter."

If DMZ Hosting is used, does the exposed user share the public IP with the Gateway?

No.

Does the Gateway pass PPTP packets or actively route PPTP sessions?

The Gateway allows PPTP packets to pass through.

Is the Gateway cross-platform compatible?

Any platform that supports Ethernet and TCP/IP is compatible with the Gateway.

How many ports can be simultaneously forwarded?

Theoretically, the Gateway can establish 520 sessions at the same time, but you can only forward 10 ranges of ports.

What are the advanced features of the Gateway?

The Gateway's advanced features include Advanced Wireless settings, Filters, Port Forwarding, Routing, and DDNS.

What is the maximum number of VPN sessions allowed by the Gateway?

The maximum number depends on many factors. At least one IPSec session will work through the Gateway; however, simultaneous IPSec sessions may be possible, depending on the specifics of your VPNs.

Appendix A: Troubleshooting

Frequently Asked Questions

Wireless-G ADSL Gateway

How can I check whether I have static or DHCP IP Addresses?

Consult your ISP to obtain this information.

How do I get mIRC to work with the Gateway?

Under the Port Forwarding tab, set port forwarding to 113 for the computer on which you are using mIRC.

Can the Gateway act as my DHCP server?

Yes. The Gateway has DHCP server software built-in.

Can I run an application from a remote computer over the wireless network?

This will depend on whether or not the application is designed to be used over a network. Consult the application's documentation to determine if it supports operation over a network.

What Is the IEEE 802.11g standard?

It is one of the IEEE standards for wireless networks. The 802.11g standard allows wireless networking hardware from different manufacturers to communicate, provided that the hardware complies with the 802.11g standard. The 802.11g standard states a maximum data transfer rate of 54Mbps and an operating frequency of 2.4GHz.

What IEEE 802.11b and 802.11g features are supported?

The product supports the following IEEE 802.11b and IEEE 802.11g functions:

CSMA/CA plus Acknowledge protocol
- Multi-Channel Roaming
Automatic Rate Selection
RTS/CTS feature
- Fragmentation
Power Management

What is ad-hoc mode?

When a wireless network is set to ad-hoc mode, the wireless-equipped computers are configured to communicate directly with each other, peer-to-peer without the use of an access point.

What is infrastructure mode?

When a wireless network is set to infrastructure mode, the wireless network is configured to communicate with a network through a wireless access point.

What is roaming?

Roaming is the ability of a portable computer user to communicate continuously while moving freely throughout an area greater than that covered by a single access point. Before using the roaming function, the computer must make sure that it is the same channel number with the access point of dedicated coverage area.

Appendix A: Troubleshooting

Frequently Asked Questions

Wireless-G ADSL Gateway

To achieve true seamless connectivity, the wireless LAN must incorporate a number of different functions. Each node and access point, for example, must always acknowledge receipt of each message. Each node must maintain contact with the wireless network even when not actually transmitting data. Achieving these functions simultaneously requires a dynamic RF networking technology that links access points and nodes. In such a system, the user's end node undertakes a search for the best possible access to the system. First, it evaluates such factors as signal strength and quality, as well as the message load currently being carried by each access point and the distance of each access point to the wired backbone. Based on that information, the node next selects the right access point and registers its address. Communications between end node and host computer can then be transmitted up and down the backbone.

As the user moves on, the end node's RF transmitter regularly checks the system to determine whether it is in touch with the original access point or whether it should seek a new one. When a node no longer receives acknowledgment from its original access point, it undertakes a new search. Upon finding a new access point, it then re-registers, and the communication process continues.

What is the ISM band?

The FCC and their counterparts outside of the U.S. have set aside bandwidth for unlicensed use in the ISM (Industrial, Scientific and Medical) band. Spectrum in the vicinity of 2.4 GHz, in particular, is being made available worldwide. This presents a truly revolutionary opportunity to place convenient high-speed wireless capabilities in the hands of users around the globe.

What is Spread Spectrum?

Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband transmission, but the trade-off produces a signal that is, in effect, louder and thus easier to detect, provided that the receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is not tuned to the right frequency, a spread-spectrum signal looks like background noise. There are two main alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS).

What is DSSS? What is FHSS? And what are their differences?

Frequency-Hopping Spread-Spectrum (FHSS) uses a narrowband carrier that changes frequency in a pattern that is known to both transmitter and receiver. Properly synchronized, the net effect is to maintain a single logical channel. To an unintended receiver, FHSS appears to be short-duration impulse noise. Direct-Sequence Spread-Spectrum (DSSS) generates a redundant bit pattern for each bit to be transmitted. This bit pattern is called a chip (or chipping code). The longer the chip, the greater the probability that the original data can be recovered. Even if one or more bits in the chip are damaged during transmission, statistical techniques embedded in the radio can recover the original data without the need for retransmission. To an unintended receiver, DSSS appears as low power wideband noise and is rejected (ignored) by most narrowband receivers.

Appendix A: Troubleshooting

Frequently Asked Questions

Wireless-G ADSL Gateway

Will the information be intercepted while it is being transmitted through the air?

WLAN features two-fold protection in security. On the hardware side, as with Direct Sequence Spread Spectrum technology, it has the inherent security feature of scrambling. On the software side, WLAN offers the encryption function (WEP) to enhance security and access control.

What is WEP?

WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 64-bit or 128-bit shared key algorithm, as described in the IEEE 802.11 standard.

What is a MAC Address?

The Media Access Control (MAC) address is a unique number assigned by the manufacturer to any Ethernet networking device, such as a network adapter, that allows the network to identify it at the hardware level. For all practical purposes, this number is usually permanent. Unlike IP addresses, which can change every time a computer logs onto the network, the MAC address of a device stays the same, making it a valuable identifier for the network.

How do I reset the Gateway?

Press the Reset button on the back panel for about ten seconds. This will reset the Gateway to its default settings.

How do I resolve issues with signal loss?

There is no way to know the exact range of your wireless network without testing. Every obstacle placed between the Gateway and a wireless computer will create signal loss. Lead glass, metal, concrete floors, water and walls will inhibit the signal and reduce range. Start with the Gateway and your wireless computer in the same room and move it away in small increments to determine the maximum range in your environment.

You may also try using different channels, as this may eliminate interference affecting only one channel.

I have excellent signal strength, but I cannot see my network.

WEP is probably enabled on the Gateway, but not on your wireless adapter (or vice versa). Verify that the same WEP keys and levels (64 or 128) are being used on all nodes of your wireless network.

How many channels/frequencies are available with the Gateway?

There are eleven available channels, ranging from 1 to 11 (in North America).

If your questions are not addressed here, refer to the Linksys international website, www.linksys.com/international.

Appendix A: Troubleshooting

Frequently Asked Questions

Wireless-G ADSL Gateway

Appendix B: Wireless Security

Important Information for Wireless Products

Linksys wants to make wireless networking as safe and easy for you as possible. So, please keep the following points in mind whenever setting up or using your wireless network.

1. Performance.

The actual performance of your wireless network depends on a number of factors, including:

In an Infrastructure environment, your distance from the access point. As you get farther away, the transmission speed will decrease.

Structural interference. The shape of your building or structure, the type of construction, and the building materials used may have an adverse impact on signal quality and speed.

The placement and orientation of the wireless devices.

2. Interference.

Any device operating in the 2.4 GHz spectrum may cause network interference with a 802.11b wireless device. Some devices that may prove troublesome include 2.4 GHz cordless phones, microwave ovens, adjacent public hotspots, and neighboring 802.11b wireless LANs.

3. Security.

The current generation of Linksys products provide several network security features, but they require specific action on your part for implementation.

While the following is a complete list, steps A through E should, at least, be followed:

A. Change the default SSID.
B. Disable SSID Broadcasts.
C. Change the default password for the Administrator account.
D. Enable MAC Address Filtering.

Appendix B:

Important Information for Wireless Products

Wireless-G ADSL Gateway

E. Change the SSD periodically.

F. Enable WEP 128-bit Encryption. Please note that this will reduce your network performance.

G. Change the WEP encryption keys periodically.

For information on implementing these security features, please refer to the User Guide.

4. Security Threats Facing Wireless Networks

Wireless networks are easy to find. Hackers know that in order to join a wireless network, wireless networking products first listen for "beacon messages". These messages are decrypted and contain much of the network's information, such as the network's SSID (Service Set Identifier) and the IP Address of the network PC or access point. Here are the steps you can take:

Change the administrator's password regularly. With every wireless networking device you use, keep in mind that network settings (SSID, WEP keys, etc.) are stored in its firmware. Your network administrator is the only person who can change network settings. If a hacker gets a hold of the administrator's password, he, too, can change those settings. So, make it harder for a hacker to get that information. Change the administrator's password regularly.

SSID. There are several things to keep in mind about the SSID:

A. Disable Broadcast

B. Make it unique

C. Change it often

Most wireless networking devices will give you the option of broadcasting the SSID. While this option may be more convenient, it allows anyone to log into your wireless network. This includes hackers. So, don't broadcast the SSID.

Wireless networking products come with a default SSID set by the factory. (The Linksys default SSID is "linksys".) Hackers know these defaults and can check these against your network. Change your SSID to something unique and not something related to your company or the networking products you use.

Change your SSID regularly so that any hackers who have gained access to your wireless network will have start from the beginning in trying to break in.

Appendix B:

Important Information for Wireless Products

Wireless-G ADSL Gateway

MAC Addresses. Enable MAC Address filtering. MAC Address filtering will allow you to provide access to only those wireless nodes with certain MAC Addresses. This makes it harder for a hacker to access your network with a random MAC Address.

WEP Encryption. Wired Equivalent Privacy (WEP) is often looked upon as a panacea for wireless security concerns. This is overstating WEP's ability. Again, this can only provide enough security to make a hacker's job more difficult.

There are several ways that WEP can be maximized:

A. Use the highest level of encryption possible
B. Use a "Shared" Key
C. Use multiple WEP keys
D. Change your WEP key regularly

Implementing encryption will have a negative impact on your network's performance. If you are transmitting sensitive data over your network, encryption should be used.

These security recommendations should help keep your mind at ease while you are enjoying the most flexible and convenient technology Linksys has to offer.

Wireless-G ADSL Gateway

Appendix C: Configuring IPSec between a Windows 2000 or XP Computer and the Gateway

Introduction

This document demonstrates how to establish a secure IPSec tunnel using preshared keys to join a private network inside the Gateway and a Windows 2000 or XP computer. You can find detailed information on configuring the Windows 2000 server at the Microsoft website:

Microsoft KB Q252735 - How to Configure IPSec Tunneling in Windows 2000
http://support.microsoft.com/support/kb/articles/Q252/7/35.asp

Microsoft KB Q257225 - Basic IPSec Troubleshooting in Windows 2000 http://support.microsoft.com/support/kb/articles/Q257/2/25.asp

Environment

The IP addresses and other specifics mentioned in this appendix are for illustration purposes only.

Windows 2000 or Windows XP
IP Address: 140.111.1.2 <= User ISP provides IP Address; this is only an example.

Subnet Mask: 255.255.255.0

WAG54G

WAN IP Address: 140.111.1.1 <= User ISP provides IP Address; this is only an example.

Subnet Mask: 255.255.255.0
LAN IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0

NOTE: Keep a record of any changes you make. Those changes will be identical in the Windows "sepol" application and the Router's Web-Based Utility.

NOTE: This section's instructions and figures refer to the Router. Substitute "Gateway" for "Router". Also, the text on your screen may differ from the text in your Instructions for "OK or Close"; click the appropriate button on your screen.

Wireless-G ADSL Gateway

How to Establish a Secure IPSec Tunnel

Step 1: Create an IPSec Policy

1. Click the Start button, select Run, and type secpol.msc in the Open field. The Local Security Setting screen will appear as shown in Figure C-1.
2. Right-click IP Security Policies on Local Computer (Win XP) or IP Security Policies on Local Machine (Win 2000), and click Create IP Security Policy.
3. Click the Next button, and then enter a name for your policy (for example, to_Router). Then, click Next.
4. Deselect the Activate the default response rule check box, and then click the Next button.
5. Click the Finish button, making sure the Edit check box is checked.

Step 2: Build Filter Lists

Filter List 1: win->Router

1. In the new policy's properties screen, verify that the Rules tab is selected, as shown in Figure C-2. Deselect the Use Add Wizard check box, and click the Add button to create a new rule.
2. Make sure the IP Filter List tab is selected, and click the Add button. (See Figure C-3.) The IP Filter List screen should appear, as shown in Figure C-4. Enter an appropriate name, such as win->Router, for the filter list, and de-select the Use Add Wizard check box. Then, click the Add button.

Figure C-1: Local Security Screen

NOTE: The references in this section to "win" are references to Windows 2000 and XP. Substitute the references to "Router" with "Gateway". Also, the text on your screen may differ from the text in your instructions for "OK or Close", click the appropriate button on your screen.

Figure C-2: Rules Tab

Figure C-3: IP Filter List Tab

Wireless-G ADSL Gateway

1. The Filters Properties screen will appear, as shown in Figure C-5. Select the Addressing tab. In the Source address field, select My IP Address. In the Destination address field, select A specific IP Subnet, and fill in the IP Address: 192.168.1.0 and Subnet mask: 255.255.255.0. (These are the Router's default settings. If you have changed these settings, enter your new values.)
2. If you want to enter a description for your filter, click the Description tab and enter the description there.
3. Click the OK button. Then, click the OK or Close button on the IP Filter List window.

Filter List 2:Router->win

1. The New Rule Properties screen will appear, as shown in Figure C-6. Select the IP Filter List tab, and make sure that win -> Router is highlighted. Then, click the Add button.

Figure C-4: IP Filter List

Figure C-5: Filters Properties

Figure C-6: New Rule Properties

Wireless-G ADSL Gateway

1. The IP Filter List screen should appear, as shown in Figure C-7. Enter an appropriate name, such as Router>win for the filter list, and de-select the Use Add Wizard check box. Click the Add button.
2. The Filters Properties screen will appear, as shown in Figure C-8. Select the Addressing tab. In the Source address field, select A specific IP Subnet, and enter the IP Address: 192.168.1.0 and Subnet mask: 255.255.255.0. (Enter your new values if you have changed the default settings.) In the Destination address field, select My IP Address.
3. If you want to enter a description for your filter, click the Description tab and enter the description there.
4. Click the OK or Close button and the New Rule Properties screen should appear with the IP Filer List tab selected, as shown in Figure C-9. There should now be a listing for "Router -> win" and "win -> Router". Click the OK (for WinXP) or Close (for Win2000) button on the IP Filter List window.

Figure C-7: IP Filter List

Figure G-8: Filters Properties

Figure C-9: New Rule Properties

Wireless-G ADSL Gateway

Step 3: Configure Individual Tunnel Rules

Tunnel 1: win->Router

1. From the IP Filter List tab, shown in Figure C-10, click the filter list win->Router.
2. Click the Filter Action tab (as in Figure C-11), and click the filter action Require Security radio button. Then, click the Edit button.
3. From the Security Methods tab, shown in Figure C-12, verify that the Negotiate security option is enabled, and deselect the Accept unsecured communication, but always respond using IPSec check box. Select Session key Perfect Forward Secrecy, and click the OK button.

Figure C-10: IP Filter List Tab

Figure C-11: Filter Acton Tab

Figure C-12: Security Methods Tab

Wireless-G ADSL Gateway

1. Select the Authentication Methods tab, shown in Figure C-13, and click the Edit button.
2. Change the authentication method to Use this string to protect the key exchange (preshared key), as shown in Figure C-14, and enter the preshared key string, such as XYZ12345. Click the OK button.
3. This new Preshared key will be displayed in Figure C-15. Click the Apply button to continue, if it appears on your screen, otherwise proceed to the next step.

Figure C-13: Authentication Methods

Figure C-14: Preshared Key

Figure C-15: New Preshared Key

Wireless-G ADSL Gateway

1. Select the Tunnel Setting tab, shown in Figure C-16, and click The tunnel endpoint is specified by this IP Address radio button. Then, enter the Router's WAN IP Address.
2. Select the Connection Type tab, as shown in Figure C-17, and click All network connections. Then, click the OK or Close button to finish this rule.

Tunnel 2:Router->win
9. In the new policy's properties screen, shown in Figure C-18, make sure that "win -> Router" is selected and deselect the Use Add Wizard check box. Then, click the Add button to create the second IP filter.

Figure C-16: Tunnel Setting Tab

Figure C-17: Connection Type Tab

Figure C-18: Properties Screen

Wireless-G ADSL Gateway

1. Go to the IP Filter List tab, and click the filter list Router->win, as shown in Figure C-19.
2. Click the Filter Action tab, and select the filter action Require Security, as shown in Figure C-20. Then, click the Edit button. From the Security Methods tab, shown previously in Figure C-12, verify that the Negotiate security option is enabled, and deselect the Accept unsecured communication, but always respond using IPSec check box. Select Session key Perfect Forward Secrecy, and click the OK button.
3. Click the Authentication Methods tab, and verify that the authentication method Kerberos is selected, as shown in Figure C-21. Then, click the Edit button.

Figure C-19: IP Filter List Tab

Figure C-20: Filter Action Tab

Figure C-21: Authentication Methods Tab

Wireless-G ADSL Gateway

1. Change the authentication method to Use this string to protect the key exchange (preshared key), and enter the preshared key string, such as XYZ12345, as shown in Figure C-22. (This is a sample key string. Yours should be a key that is unique but easy to remember.) Then click the OK button.
2. This new Preshared key will be displayed in Figure C-23. Click the Apply button to continue, if it appears on your screen, otherwise proceed to the next step.
3. Click the Tunnel Setting tab, shown in Figure C-24, click the radio button for The tunnel endpoint is specified by this IP Address, and enter the Windows 2000/XP computer's IP Address.

Figure C-22: Preshared Key

Figure C-23: New Preshared Key

Figure C-24: Tunnel Setting Tab

Wireless-G ADSL Gateway

1. Click the Connection Type tab, shown in Figure C-25, and select All network connections. Then click the OK or Close button to finish.

2. From the Rules tab, shown in Figure C-26, click the OK or Close button to return to the secpol screen.

Step 4: Assign New IPSec Policy

In the IP Security Policies on Local Computer window, shown in Figure C-27, right-click the policy named to_Router, and click Assign. A green arrow appears in the folder Icon.

Figure C-25: Connection Type

Figure C-26: Rules

Figure C-27: Local Computer

Wireless-G ADSL Gateway

Step 5: Create a Tunnel Through the Web-Based Utility

1. Open your web browser, and enter 192.168.1.1 in the Address field. Press the Enter key.
2. When the User name and Password field appears, enter the default user name and password admin. Press the Enter key.
3. From the Setup tab, click the VPN tab.
4. From the VPN tab, shown in Figure C-28, select the tunnel you wish to create in the Select Tunnel Entry drop-down box. Then click Enabled. Enter the name of the tunnel in the Tunnel Name field. This is to allow you to identify multiple tunnels and does not have to match the name used at the other end of the tunnel.
5. Enter the IP Address and Subnet Mask of the local VPN Router In the Local Secure Group fields. To allow access to the entire IP subnet, enter 0 for the last set of IP Addresses. (e.g. 192.168.1.0).
6. Enter the IP Address and Subnet Mask of the VPN device at the other end of the tunnel (the remote VPN Router or device with which you wish to communicate) in the Remote Security Router fields.
7. Select from two different types of encryption: DES or 3DES (3DES is recommended because it is more secure). You may choose either of these, but it must be the same type of encryption that is being used by the VPN device at the other end of the tunnel. Or, you may choose not to encrypt by selecting Disable.
8. Select from two types of authentication: MD5 and SHA (SHA is recommended because it is more secure). As with encryption, either of these may be selected, provided that the VPN device at the other end of the tunnel is using the same type of authentication. Or, both ends of the tunnel may choose to Disable authentication.
9. Select the Key Management. Select Auto (IKE) and enter a series of numbers or letters in the Pre-shared Key field. Check the box next to PFS (Perfect Forward Secrecy) to ensure that the initial key exchange and IKE proposals are secure. You may use any combination of up to 24 numbers or letters in this field. No special characters or spaces are allowed. In the Key Lifetime field, you may optionally select to have the key expire at the end of a time period of your choosing. Enter the number of seconds you'd like the key to be useful, or leave it blank for the key to last indefinitely.
10. Click the Save Settings button to save these changes.

Your tunnel should now be established.

Figure C-28:VPN Tab

Wireless-G ADSL Gateway

Appendix D: Finding the MAC Address and IP Address for Your Ethernet Adapter

This section describes how to find the MAC address for your computer's Ethernet adapter so you can use the MAC filtering feature of the Gateway. You can also find the IP address of your computer's Ethernet adapter. This IP address is used for the Gateway's filtering, forwarding, and/or DMZ features. Follow the steps in this appendix to find the adapter's MAC or IP address in Windows 98, Me, 2000, or XP.

Windows 98 or Me Instructions

1. Click Start and Run. In the Open field, enter winipcfg. Then press the Enter key or the OK button.
2. When the IP Configuration screen appears, select the Ethernet adapter you have connected to the Gateway via a CAT 5 Ethernet network cable. See Figure D-1.
3. Write down the Adapter Address as shown on your computer screen (see Figure D-2). This is the MAC address for your Ethernet adapter and is shown in hexadecimal as a series of numbers and letters.

The MAC address/Adapter Address is what you will use for MAC filtering. The example in Figure D-2 shows the Ethernet adapters's MAC address as 00-00-00-00-00-00. Your computer will show something different.

The example in Figure D-2 shows the Ethernet adapter's IP address as 192.168.1.100. Your computer may show something different.

Note: The MAC address is also called the Adapter Address.

Figure D-1: IP Configuration Screen

Figure D-2: MAC Address/Adapter Address

Wireless-G ADSL Gateway

Windows 2000 or XP Instructions

1. Click Start and Run. In the Open field, enter cmd. Press the Enter key or click the OK button.

Note: The MAC address is also called the Physical Address.

1. At the command prompt, enter ipconfig /all. Then press the Enter key.
2. Write down the Physical Address as shown on your computer screen (Figure D-3); it is the MAC address for your Ethernet adapter. This appears as a series of numbers and letters.

The MAC address/Physical Address is what you will use for MAC filtering. The example in Figure D-3 shows the Ethernet adapters's MAC address as 00-00-00-00-00-00. Your computer will show something different.

The example in Figure E-3 shows the Ethernet adapter's IP address as 192.168.1.100. Your computer may show something different.

Figure D-3: MAC Address/Physical Address

Wireless-G ADSL Gateway

Appendix E: Upgrading Firmware

The ADSL Gateway allows you to upgrade firmware for the WAN (Internet) side of the Gateway and the LAN (network) side of the Gateway through the Web-Utility's Firmware Upgrade tab from the Administration tab. Follow these instructions:

Upgrade from WAN

To upgrade the Gateway's firmware from the WAN : Enter the URL for the firmware in the URL field, then click the Upgrade button, and follow the instructions there.

Upgrade from LAN

To upgrade the Gateway's firmware from the LAN:

1. Click the Browse button to find the firmware upgrade file that you downloaded from the Linksys website and then extracted.
2. Double-click the firmware file you downloaded and extracted. Click the Upgrade button, and follow the instructions there.

Figure E-1: Upgrade Firmware

Wireless-G ADSL Gateway

Appendix F: Glossary

802.11a - An IEEE wireless networking standard that specifies a maximum data transfer rate of 54Mbps and an operating frequency of 5GHz.

802.11b - An IEEE wireless networking standard that specifies a maximum data transfer rate of 11Mbps and an operating frequency of 2.4GHz.

802.11g - An IEEE wireless networking standard that specifies a maximum data transfer rate of 54Mbps, an operating frequency of 2.4GHz, and backward compatibility with 802.11b devices.

Access Point - Device that allows wireless-equipped computers and other devices to communicate with a wired network. Also used to expand the range of a wireless network.

Adapter - This is a device that adds network functionality to your computer.

Ad-hoc - A group of wireless devices communicating directly with each other (peer-to-peer) without the use of an access point.

Backbone - The part of a network that connects most of the systems and networks together, and handles the most data.

Bandwidth - The transmission capacity of a given device or network.

Beacon Interval - The frequency interval of the beacon, which is a packet broadcast by a Gateway to synchronize a wireless network.

Bit - A binary digit.

Boot - To start a device and cause it to start executing instructions.

Bridge - A device that connects two different kinds of local networks, such as a wireless network to a wired Ethernet network.

Broadband - An always-on, fast Internet connection.

Browser - A browser is an application program that provides a way to look at and interact with all the information on the World Wide Web.

Wireless-G ADSL Gateway

Buffer - A block of memory that temporarily holds data to be worked on later when a device is currently too busy to accept the data.

Cable Modem - A device that connects a computer to the cable television network, which in turn connects to the Internet.

CSMA/CA (Carrier Sense Multiple Access/Glssion Avoidance) - A method of data transfer that is used to prevent data loss in a network.

CTS (Clear To Send) - A signal sent by a device to indicate that it is ready to receive data.

Daisy Chain - A method used to connect devices in a series, one after the other.

Database - A collection of data that is organized so that its contents can easily be accessed, managed, and updated.

DDNS (Dynamic Domain Name System) - The capability of having a website, FTP, or e-mail server-with a dynamic IP address-use a fixed domain name.

Default Gateway - A device that forwards Internet traffic from your local area network.

DHCP (Dynamic Host Configuration Protocol) - A protocol that lets one device on a local network, known as a DHCP server, assign temporary IP addresses to the other network devices, typically computers.

DMZ (Demilitarized Zone) - Removes the Gateway's firewall protection from one computer, allowing it to be "seen" from the Internet.

DNS (Domain Name Server) - The IP address of your ISP's server, which translates the names of websites into IP addresses.

Domain - A specific name for a network of computers.

Download - To receive a file transmitted over a network.

DSL (Digital Subscriber Line) - An always-on broadband connection over traditional phone lines.

DSSS (Direct-Sequence Spread-Spectrum) - A type of radio transmission technology that includes a redundant bit pattern to lessen the probability of data lost during transmission. Used in 802.11b networking.

DTIM (Delivery Traffic Indication Message) - A message included in data packets that can increase wireless efficiency.

Wireless-G ADSL Gateway

Dynamic IP Address - A temporary IP address assigned by a DHCP server.

Encryption - Encoding data to prevent it from being read by unauthorized people.

Ethernet - An IEEE standard network protocol that specifies how data is placed on and retrieved from a common transmission medium.

Finger - A program that tells you the name associated with an e-mail address.

Firewall - Security measures that protect the resources of a local network from intruders.

Firmware - 1. In network devices, the programming that runs the device. 2. Programming loaded into read-only memory (ROM) or programmable read-only memory (PROM) that cannot be altered by end-users.

Fragmentation - Breaking a packet into smaller units when transmitting over a network medium that cannot support the original size of the packet.

FTP (File Transfer Protocol) - A standard protocol for sending files between computers over a TCP/IP network and the Internet.

Full Duplex - The ability of a networking device to receive and transmit data simultaneously.

Gateway - A system that interconnects networks.

Half Duplex - Data transmission that can occur in two directions over a single line, but only one direction at a time.

Hardware - The physical aspect of computers, telecommunications, and other information technology devices.

HTTP (HyperText Transport Protocol) - The communications protocol used to connect to servers on the World Wide Web.

IEEE (The Institute of Electrical and Electronics Engineers) - An independent institute that develops networking standards.

Infrastructure - Currently installed computing and networking equipment.

Infrastructure Mode - Configuration in which a wireless network is bridged to a wired network via an access point.

IP (Internet Protocol) - A protocol used to send data over a network.

IP Address - The address used to identify a computer or device on a network.

Wireless-G ADSL Gateway

IPCONFIG - A Windows 2000 and XP utility that displays the IP address for a particular networking device.

IPSec (Internet Protocol Security) - A VPN protocol used to implement secure exchange of packets at the IP layer.

ISM band - Radio band used in wireless networking transmissions.

ISP (Internet Service Provider) - A company that provides access to the Internet.

LAN (Local Area Network) - The computers and networking products that make up the network in your home or office.

MAC (Media Access Control) Address - The unique address that a manufacturer assigns to each networking device.

Mbps (Megabits Per Second) - One million bits per second; a unit of measurement for data transmission.

Multicasting - Sending data to a group of destinations at once.

NAT (Network Address Translation) - NAT technology translates IP addresses of a local area network to a different IP address for the Internet.

Network - A series of computers or devices connected for the purpose of data sharing, storage, and/or transmission between users.

NNTP (Network News Transfer Protocol) - The protocol used to connect to Usenet groups on the Internet.

Node - A network junction or connection point, typically a computer or work station.

OFDM (Orthogonal Frequency Division Multiplexing) - A type of modulation technology that separates the data stream into a number of lower-speed data streams, which are then transmitted in parallel. Used in 802.11a, 802.11g, and powerline networking.

Packet - A unit of data sent over a network.

Passphrase - Used much like a password, a passphrase simplifies the WEP encryption process by automatically generating the WEP encryption keys for Linksys products.

Ping (Packet Internet Groper) - An Internet utility used to determine whether a particular IP address is online.

POP3 (Post Office Protocol 3) - A standard protocol used to retrieve e-mail stored on a mail server.

Port - 1. The connection point on a computer or networking device used for plugging in a cable or an adapter. 2. The virtual connection point through which a computer uses a specific application on a server.

Wireless-G ADSL Gateway

PPPoE (Point to Point Protocol over Ethernet) - A type of broadband connection that provides authentication (username and password) in addition to data transport.

PPTP (Point-to-Point Tunneling Protocol) - A VPN protocol that allows the Point to Point Protocol (PPP) to be tunneled through an IP network. This protocol is also used as a type of broadband connection in Europe.

Preamble - Part of the wireless signal that synchronizes network traffic.

RJ-45 (Registered Jack-45) - An Ethernet connector that holds up to eight wires.

Roaming - The ability to take a wireless device from one access point's range to another without losing the connection.

Router - A networking device that connects multiple networks together, such as a local network and the Internet.

RTS (Request To Send) - A packet sent when a computer has data to transmit. The computer will wait for a CTS (Clear To Send) message before sending data.

Server - Any computer whose function in a network is to provide user access to files, printing, communications, and other services.

SMTP (Simple Mail Transfer Protocol) - The standard e-mail protocol on the Internet.

SNMP (Simple Network Management Protocol) - A widely used network monitoring and control protocol.

Software - Instructions for the computer. A series of instructions that performs a particular task is called a "program".

Spread Spectrum - Wideband radio frequency technique used for more reliable and secure data transmission.

SSID (Service Set Identifier) - Your wireless network's name.

Static IP Address - A fixed address assigned to a computer or device that is connected to a network.

Static Routing - Forwarding data in a network via a fixed path.

Subnet Mask - An address code that determines the size of the network.

Switch - 1. Device that is the central point of connection for computers and other devices in a network, so data can be shared at full transmission speeds. 2. A device for making, breaking, or changing the connections in an electrical circuit.

Wireless-G ADSL Gateway

TCP/IP (Transmission Control Protocol/Internet Protocol) - A network protocol for transmitting data that requires acknowledgement from the recipient of data sent.

Telnet - A user command and TCP/IP protocol used for accessing remote computers.

TFTP (Trivial File Transfer Protocol) - A version of the TCP/IP FTP protocol that uses UDP and has no directory or password capability.

Throughput - The amount of data moved successfully from one node to another in a given time period.

Topology - The physical layout of a network.

TX Rate - Transmission Rate.

UDP (User Datagram Protocol) - A network protocol for transmitting data that does not require acknowledgement from the recipient of the data that is sent.

Upgrade - To replace existing software or firmware with a newer version.

Upload - To transmit a file over a network.

URL (Uniform Resource Locator) - The address of a file located on the Internet.

VPN (Virtual Private Network) - A security measure to protect data as it leaves one network and goes to another over the Internet.

WAN (Wide Area Network) - The Internet.

WEP (Wired Equivalent Privacy) - A method of encrypting data transmitted on a wireless network for greater security.

WINPCFG - A Windows 98 and Millennium utility that displays the IP address for a particular networking device.

WLAN (Wireless Local Area Network) - A group of computers and associated devices that communicate with each other wirelessly.

Wireless-G ADSL Gateway

Appendix G: Specifications

Standards IEEE 802.11g, IEEE 802.11b, IEEE 802.3u, IEEE 802.3, G.992.1 (G.dmt),

G.992.2 (G.lite), ITU G.992.3, ITU G.992.5, ANSI T1.413i2, WAG54G-E1:

Annex-B, WAG54G-DE: UR-2

Ports Power, LINE (ADSL), Ethernet (1-4)

Buttons One Reset Button, One On/Off Switch

Cabling Type UTP CAT 5 or better, Phone Cable (POTS)

Data Rate Up to 54Mbps (wireless)

Up to 8Mbps downstream ADSL

Up to 800kbps upstream ADSL

Transmit Power 18 dBm on 802.11b and 15dBm on 802.11g

LEDs Power, Ethernet (1-4), Wireless-G (WLAN), DSL Internet

Security Features WEP, WPA, RADIUS

WEP Key Bits 64, 128

Dimensions 186mm× 48mm× 188mm

Unit Weight 0.48 kg

Power External, 12V DC, 1A

Certifications FCC Part 15B Class B, FCC Part 15C Class B, FCC Part 68, UL 1950, CSA, CE

Operating Temp. 0^ to 40^

Wireless-G ADSL Gateway

Storage Temp. -20^ to 70^

Operating Humidity 10% to 85% Non-Condensing

Storage Humidity 5% to 90% Non-Condensing

Wireless-G ADSL Gateway

Appendix H: Regulatory Information

FCC Statement

This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna
- Increase the separation between the equipment or devices
- Connect the equipment to an outlet other than the receiver's
- Consult a dealer or an experienced radio/TV technician for assistance

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Industry Canada (Canada)

This Class B digital apparatus complies with Canadian ICES-003, RSS210.

The use of this device in a system operating either partially or completely outdoors may require the user to obtain a license for the system according to the Canadian regulations.

Wireless-G ADSL Gateway

Compliance Information for 2.4-GHz Wireless Products Relevant to the EU and Other Countries Following the EU Directive 1999/5/EC (R&TTE Directive)

Declaration of Conformity with Regard to the EU Directive 1995/5/EC (R&TTE Directive)

Çesky[Czech]	Toto zafrizeni je v souladu se zlokladnimi pozadavyk o ostatnimi odpovidajicimi ustanovenimi Šměince 1999/5/EC.
Dansk[Danish]	Dette udstyr er i overensstennelme med de vasantlige krav og andrelevante bestemmelser i Direktiv 1999/5/EF.
Deutsch[German]	Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren entsprechenden Vorgaben der Richtlinie 1999/5/EU.
Eesti[Estonian]	See seende vastab direktiivi 1999/5/EU olulistele nõuutele ja teistele asjakohastele sõtele.
English:	This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Espanol[Spanish]	Este equipo cumple con los requisitos esenciales asi como conoras disposiciones de la Directa 1999/5/CE.
Élánaynić[Greek]	Auróg o ευλαρούς ενινον συμμρροση με πε οσουπόδας απατηραίς κα ἀλες σεγικίς έντόλας Μς Εθημας 1999/5/EC.
Français[French]	Cet apparéil est conforme aux exigencies essentielles et aux autres dispositions pertinentes de la Directa 1999/5/EC.
Íslenska[Icelandic]	Petta tekei er samkvaent grunnkröfum og ðörum videigandi ákveðum Tilskipunar 1999/5/EC.
Italiano[Italian]	Questo apparato é conforme ai requisiti essenziali edagli和其他 principi sanctiti alla Diretta 1999/5/CE.
Latviski[Latvian]	Śi ekárta atbilst Direktivas 1999/5/EK böttiskajm prasfbam un citien ar to aïsttilajem noteikumium.
Lietuviq[Lithuanian]	Sis jenginys tenkina 1999/5/EB Direktyvos esminius rekalavirus un kitas sios direktiyvos nuostatas.
Nederlands[Dutch]	Dit apparat voldoet aan de essenteile eisen en andere van toepassing zijnde bepalingen van de Richtlija 1999/5/EC.
Maiti[Maltese]	Dan l-apparat huvu konformi mal-itätiget essenjali u l-provedimenti l-ohra rilevanti tad-Diretta 1999/5/EC.
Margyar[Hungarian]	Ez a keszüllek teljesitzi az alapvető kõvételményeket és mais 1999/5/EK irányelvenb meghatározott voratkzo rendelkezesket.

Appendix H: Regulatory Information

Wireless-G ADSL Gateway

Norsk [Norwegian]:	Dette utstyret er i samvar med de grunleggende krav og andere relevante bestemmelse i EU-directiv 1999/5/EF.
Polski [Polish]:	Urzadzenie jest zgodne z ogólnym wymaganiem;i oraz szcęgólnym warunkami okreslonym Dyrekriwyq UE: 1999/5/EC.
Portugues [Portuguese]:	Esteequipamento está em conformidade com os requisitos essenciais e outras provisos relevantes da Direiva 1999/5/EC.
Slovensko [Slovenian]:	Ta naprava je skladna z bistvenimi zahévevmi in ostalimi relevantnimi pogoji Directive 1999/5/EC.
Slovensky [Slovak]:	Toto zariadenie je v zhode so základnými požádevkami a mymi prisólnuymi nariadieniami direktiv: 1999/5/EC.
Suomi [Finnish]:	Tama latte taytua direktivin 1999/5/EE olennaiset vaatmuksenet ja on sinala asettujen muiden latetta koskevien márítlyn stukainen.
Svenska [Swedish]:	Denna utrustning年起overensstammelse med de vändentliga kraven och andere relevanta bestemmelse i Direktiv 1999/5/EC.

NOTE: If you need any technical documentation, see the "How to Access Technical Documents on wwwlinksys.com/international" section for more information.

The following standards were applied during the assessment of the product against the requirements of the Directive 1999/5/EC:

Radio: EN 300 328
EMC: EN 301 489-1, EN 301 489-17
Safety: EN 60950

CE Marking

For the Linksys Wireless-B and Wireless-G products, the following CE mark, notified body number (where applicable), and class 2 identifier are added to the equipment.

C∈0560①

or or

C€0678①

C E ①

Check the CE label on the product to find out which notified body was involved during the assessment.

Wireless-G ADSL Gateway

National Restrictions

This product may be used in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

The Belgian Institute for Postal Services and Telecommunications (BIPT) must be notified of any outdoor wireless link having a range exceeding 300 meters. Please check http://www.bipt.be for more details.

In case the product is used outdoors, the output power is restricted in some parts of the band. See Table 1 or check http://www.artelecom.fr/ for more details.

Table 1: Applicable Power Levels in France

Location Frequency	Range (MHz) Power (EIRP)
Indoor (No restrictions)	2400-2483.5 100 mW (20 dBm)
Outdoor 2400-2454	2454-2483.5	100 mW (20 dBm) 10 mW (10 dBm)

Wireless-G ADSL Gateway

Italy

This product meets the National Radio Interface and the requirements specified in the National Frequency Allocation Table for Italy. Unless operating within the boundaries of the owner's property, the use of this 2.4 GHz Wireless LAN product requires a 'general authorization'. Please check with http://www.comunicazioni.it/it/ for more details.

This product is designed for indoor usage only. Outdoor usage is not recommended.

This product is designed for use with the included integral or external (dedicated) antenna(s). Use of non-dedicated or third-party antenna(s) is not recommended and is not supported by Linksys.

Power Output of Your Device

To comply with your country's regulations, you may have to change the power output of your wireless device. Proceed to the appropriate section for your device.

Note: The power output setting may not be available on all wireless products. For more information, refer to the documentation on your product's CD or at http://www.linksys.com/international.

Wireless Adapters

Wireless adapters have the power output set to 100% by default. Maximum power output on each adapter does not exceed 20 dBm (100 mW); it is generally 18 dBm (64 mW) or below. If you need to alter your wireless adapter's power output, follow the appropriate instructions for your computer's Windows operating system:

Wireless-G ADSL Gateway

Windows XP

1. Double-click the Wireless icon in your desktop's system tray.
2. Open the Wireless Network Connection window.
3. Click the Properties button.
4. Select the General tab, and click the Configure button.
5. In the Properties window, click the Advanced tab
6. Select Power Output.
7. From the pull-down menu on the right, select the wireless adapter's power output percentage.

Windows 2000

1. Open the Control Panel.
2. Double-click Network and Dial-Up Connections
3. Select your current wireless connection, and select Properties.
4. From the Properties screen, click the Configure button.
5. Click the Advanced tab, and select Power Output.
6. From the pull-down menu on the right, select the wireless adapter's power setting.

If your computer is running Windows Millennium or 98, then refer to Windows Help for instructions on how to access the advanced settings of a network adapter.

Wireless Access Points, Routers, or Other Wireless Products

If you have a wireless access point, router or other wireless product, use its Web-based Utility to configure its power output setting (refer to the product's documentation for more information).

Technical Documents on www.linksys.com/international

Follow these steps to access technical documents:

1. Browse to http://wwwlinksys.com/international.
2. Click the region in which you reside.
3. Click the name of the country in which you reside.
4. Click Products.
5. Click the appropriate product category.
6. Select a product.
7. Click the type of documentation you want. The document will automatically open in PDF format.

Note: If you have questions regarding the compliance of these products or you cannot find the information you are looking for, please contact your local sales office. Visit http://wwwlinksys.com/International for more details.

Wireless-G ADSL Gateway

Appendix I: Warranty Information

Linksys warrants to You that, for a period of three years (the "Warranty Period"), your Linksys Product will be substantially free of defects in materials and workmanship under normal use. Your exclusive remedy and Linksys' entire liability under this warranty will be for Linksys at its option to repair or replace the Product or refund Your purchase price less any rebates. This limited warranty extends only to the original purchaser.

If the Product proves defective during the Warranty Period call Linksys Technical Support in order to obtain a Return Authorization Number, if applicable. BE SURE TO HAVE YOUR PROOF OF PURCHASE ON HAND WHEN CALLING. If You are requested to return the Product, mark the Return Authorization Number clearly on the outside of the package and include a copy of your original proof of purchase. RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE. You are responsible for shipping defective Products to Linksys. Linksys pays for UPS Ground shipping from Linksys back to You only. Customers located outside of the United States of America and Canada are responsible for all shipping and handling charges.

ALL IMPLIED WARRANTYES AND CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THE WARRANTY PERIOD. ALL OTHER EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTYES, INCLUDING ANY IMPLIED WARRANTY OF NON-INFRINGEMENT, ARE DISCLAIMED. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to You. This warranty gives You specific legal rights, and You may also have other rights which vary by jurisdiction.

This warranty does not apply if the Product (a) has been altered, except by Linksys, (b) has not been installed, operated, repaired, or maintained in accordance with instructions supplied by Linksys, or (c) has been subjected to abnormal physical or electrical stress, misuse, negligence, or accident. In addition, due to the continual development of new techniques for intruding upon and attacking networks, Linksys does not warrant that the Product will be free of vulnerability to intrusion or attack.

TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT WILL LINKSYS BE LIABLE FOR ANY LOST DATA, REVENUE OR PROFIT, OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES, REGARDLESS OF THE THEORY OF LIABILITY (INCLUDING NEGLIGENCE), ARISING OUT OF OR RELATED TO THE USE OF OR INABILITY TO USE THE PRODUCT (INCLUDING ANY SOFTWARE), EVEN IF LINKSYS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL LINKSYS' LIABILITY EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT. The foregoing limitations will apply even if any warranty or remedy provided under this Agreement fails of its essential purpose. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to You.

This Warranty is valid and may be processed only in the country of purchase.

Please direct all inquiries to: Linksys, P.O. Box 18558, Irvine, CA 92623.

Appendix J: Contact Information

Need to contact Linksys?

Visit us online for information on the latest products and updates to your existing products at:

http://www.linksys.com/international

If you experience problems with any Linksys product, you can e-mail us at:

In Europe E-mail Address
Austria [e-mail]
Belgium [e-mail]
Denmark [e-mail]
France [e-mail]
Germany [e-mail]
Italy [e-mail]
Netherlands [e-mail]
Norway [e-mail]
Portugal [e-mail]
Spain [e-mail]
Sweden [e-mail]
Switzerland [e-mail]
United Kingdom & Ireland [e-mail]

Outside of Europe	E-mail Address
Latin America	[e-mail]
U.S. and Canada	[e-mail]

LINKSYS

A Division of Cisco Systems, Inc.

2,4GHz

Sans fil G

SANS FIL

Passerelle ADSL

WAG54G-FR V2-UG-41124NC BW

Passerelle ADSL sans fil G

Table des matières

Onglet Setup (Configuration)

16

Onglet Wireless (Sans fil)

24

Onglet Administration

39

Onglet Status (Etat)

43

Annexe A:Dépannage

47

Power (Alimentation)

Power (Alimentation)

Setup (Configuration)

Onglet Setup (Configuration)

Onglet Basic Setup (Configuration de base)

Onglet Setup (Configuration)

Passerelle ADSL sans fil G

RFC 1483 Routed

Figure 5-5: RFC 1483 Routed

Figure 5-6: RFC 2516 PPPoE

Passerelle ADSL sans fil G

Bridged Mode Only (Bridged Mode uniqueness)

Onglet Setup (Configuration)

Figure 5-7: RFC 2364 PPPoA

Figure 5-8: Bridged Mode uniqueness

Passerelle ADSL sans fil G

Onglet Setup (Configuration)

Figure 5-10:DynDNS.org

Figure 5-11: TZ0.com

Passerelle ADSL sans fil G

Onglet Advanced Routing (Routage avance)

Onglet Setup (Configuration)

Figure 5-12:Routage avancé

Passerelle ADSL sans fil G

Figure 5-16: WPA RADIUS

Chapitre 5: Configuration de la passerelle
Onglet Wireless (Sans fil)

Passerelle ADSL sans fil G

Figure 5-21: Pare-feu

Passerelle ADSL sans fil G

VPN

VPN Passthrough (Intercommunication VPN)

Onglet Security (Securite)

Passerelle ADSL sans fil G

Onglet Applications and Gaming (Applications etieux)

Single Port Forwarding (Transfert de connexion unique)

Port Range Forwarding (Transfert de connexion)

Onglet Administration

Management (Gestion)

Reporting (Rapports)

Figure 5-39: Test Ping

Tunnel 1: win->Router

G.992.1 (G.dmt), G.992.2 (G.lite), ITU G.992.3, ITU

G.992.5, ANSI T1.413i2, WAG54G-E1: Annex-B

WAG54G-DE: UR-2

Ports Power (Alimentation), LINE (Ligne, ADSL), Ethernet (1-4)

Voyants Power (Alimentation), Ethernet (1-4), Wireless-G

(Sans fil G, WLAN), DSL Internet

This Class B digital apparatus complies with Canadian ICES-003, RSS210.

This product may be used in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

The Belgian Institute for Postal Services and Telecommunications (BPT) must be notified of any outdoor wireless link having a range exceeding 300 meters. Consultez le site http://www.bipt.be pour de plus amples détails.

In case the product is used outdoors, the output power is restricted in some parts of the band. See Table 1 or check http://www.artelecom.fr/ for more details.

A Division of Cisco Systems, Inc.

2,4 GHz 802.11g

Wireless-G

ADSL-Gateway

Benutzerhandbuch

WIRELESS

CISCO SYSTEMS

Wireless-G ADSL-Gateway

WAG54G-DE_V2-UG-41025NC BW

Wireless-G ADSL-Gateway

Inhaltsverzeichnis

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

3) Man-in-the-Middle-Angriffe

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Vorderseite

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Sicherheit

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Registerkarte „Wireless Access“ (Wireless-Zugriff)

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Manual (Manuell)

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Port-Triggering

Wireless-G ADSL-Gateway

QOS

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

SNMP

Wireless-G ADSL-Gateway

Diagnose

Ping-Test

Ping-Test-Parameter

Wireless-G ADSL-Gateway

Firmware aktualisieren

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Lokales Netzwerk

Wireless-G ADSL-Gateway

Wireless

Wireless-G ADSL-Gateway

DSL-Verbindung

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Subnetmaske:255.255.255.0

WAG54G

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Tunnel 1: win -> Router

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Anweisung fur Windows 2000/XP

Wireless-G ADSL-Gateway

Anhang E: Aktualisierenden Firmware

Wireless-G ADSL-Gateway

Anhang F: Glossar

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

WEP-Schlüssel/Bit 64,128

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Norsk [Norwegian]:	Dette utstyet er i samivar med de grunleggende krav og andre relevante bestenmelser i EU-direktiv 1999/5/EF.
Polski [Polish]:	Urzadzenie jest zgodne z ogólanymi wymaganiymi oraz szcęgólnymi warunkami okreslonymi Dyrekriwyq UE: 1999/5/EC.
Portugues [Portuguese]:	Este equipoamento está em conformidade com os requisitos essenciais e Outras providções relevantes da Directa 1999/5/EC.
Slovensko [Slovenian]:	Ta naprava je skladna z bistveni imi zakladnymi poziadvkami a inymi pogoji Direktive 1999/5/EC.
Slovensky [Slovak]:	Toto zariadenie je v zhode so základnymi poziadvkami a inymi príslužnymi nariadeniimi direktiv: 1999/5/EC.
Suomi [Finnish]:	Tami laite taytäa direktivin 1999/5/EE olennaiset vaatmukset ja on sinala asettujien muiden laitetta koskeviem märfrälysten mukainen.
Svenska [Swedish]:	Denna utrustning年起 i overensstammelse med de visentliga kraven och andere relevanta bestenmelser i Direktiv 1999/5/EC.

Wireless-G ADSL-Gateway

This product may be used in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Wireless-G ADSL-Gateway

Anhang I: Garantieinformationen

Wireless-G ADSL-Gateway

Anhang J: Kontaktinformationen
