Atlas Pro 6 MX5503 - Router LINKSYS - Free user manual and instructions

Product type	WiFi 6 mesh router
Brand	Linksys
Model	Atlas Pro 6 MX5503 (MX5500 series)
WiFi standard	WiFi 6 (802.11ax) – AX5400
Frequency bands	2.4 GHz and 5 GHz
Maximum data rate	Up to 5400 Mbps (combined)
Antennas	13 internal antennas
Ports	1 Gigabit Internet port (yellow), 3 Gigabit Ethernet ports, 1 USB 3.0 port
Buttons	Power on/off, WPS, Reset
LED indicator	Multi-color LED (blue, purple, red, yellow)
Wireless security	WPA2-Personal, WPA3-Personal, encryption up to 128-bit
Software features	Parental controls, device prioritization, guest access, speed test, notifications, MAC filters
Setup	Via Linksys app (iOS 11.4+ / Android 6+)
Dimensions (L x W x H)	7.8 x 7.8 x 18.5 cm
Weight	0.95 kg
Power supply	Power adapter 12 V, 3 A
Operating temperature	0 °C to 40 °C
Operating humidity	10% to 80% non-condensing
Box contents	1 Velop node, power adapter, Ethernet cable, installation guide
Warranty	Limited manufacturer warranty (see Linksys website)
Support	Linksys.com/support/Velop

Frequently Asked Questions - Atlas Pro 6 MX5503 LINKSYS

How to set up the Atlas Pro 6 MX5503 router?

Download the Linksys app on your smartphone (iOS 11.4+ or Android 6+). Connect the power and the Ethernet cable from the modem to the yellow Internet port on the node. Open the app, create a Linksys Smart Wi-Fi account, and follow the on-screen instructions.

What do the LED indicator colors mean?

Flashing blue : startup ; Solid blue : connected ; Flashing purple : configuration in progress ; Solid purple : ready for setup ; Flashing red : node disconnected or too far away ; Solid red : no internet connection ; Solid yellow : weak connection (child node only).

How to connect a device using WPS?

From the Linksys app, go to Wi-Fi Settings and enable WPS. Then press the WPS button on the router (located under the device) or use the WPS option in the app. On the client device, select the WPS connection.

How to reset the router to factory defaults?

Press and hold the Reset button (located under the device) until the LED turns red, goes off, then flashes bright red. Release the button. All settings will be erased.

How to set up parental controls?

In the Linksys app, tap Parental Controls. You can pause internet access for certain devices or block specific websites. Changes apply immediately.

How to create a guest network?

In the app, go to Guest Access. Enable the guest network, change the name and password if desired. You can send the password via email or SMS from the app.

How to prioritize a device to improve its bandwidth?

Go to Device Prioritization in the app. Select up to three devices (wired or wireless) that will receive maximum priority. Velop will run a speed test to optimize distribution.

What to do if a child node disconnects?

Check that the child node is powered on and within range of the parent node. Enable notifications in the app to be alerted of disconnection. You can also move it closer to the parent or use a wired connection.

Where to find the administrator password?

The administrator password was created during setup. You can change it in the app under Velop Administration > Change Velop password and hint. A confirmation email will be sent for any changes.

Can I use the router without an internet connection?

Yes, connect to the router's WiFi network, then open the Linksys app in offline mode. Tap 'Use administrator password' to access local settings. Some online features (Linksys account) will not be available.

USER MANUAL Atlas Pro 6 MX5503 LINKSYS

Where to find more help 6

Set Up 7

Velop System Settings 9

Log in to the Linksys app ____ 9

Dashboard 10

Devices 11

To view or change device details 12

Wi-Fi Settings 13

Advanced Settings 14

Connect a Device with WPS 15

Guest Access 16

Speed Check 17

Parental Controls 18

Device Prioritization 19

Notifications 20

Velop Administration 21

Advanced Settings 23

Internet Settings 23

Port Settings 24

Wi-Fi MAC Filters 25

My Account 26

Feedback 27

Help 28

Connect Directly To Velop 29

Velop admin password 30

How to restore factory defaults 31

Specifications 32

Linksys Velop 32

Environmental 32

Product Overview

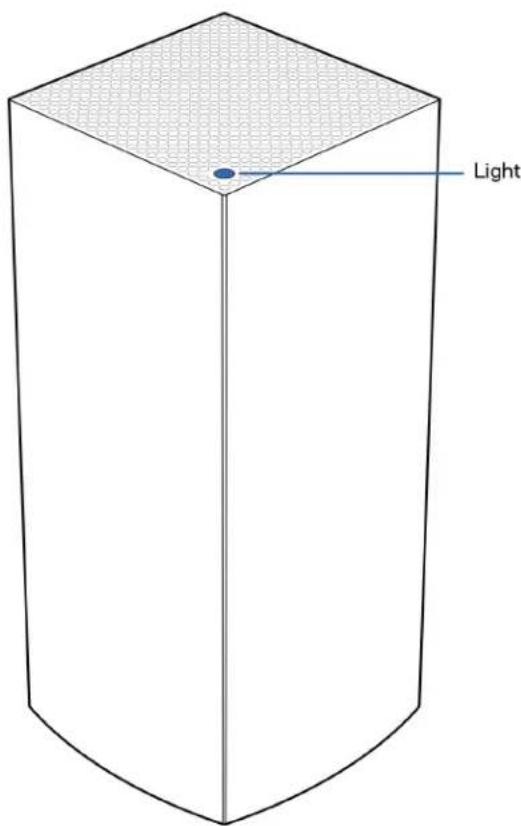

Front/top

The light on the top of your node gives you information about the node's operation.

Light description	Status
Blinking blue Starting up
Solid blue Connected
Blinking purple	Setup in progress
Solid purple Ready for setup
Blinking red DisconnectedChild node: too farParent node: unplugged from modem
Solid red	No internet from the modem
Solid yellow Weak connectionChild node only

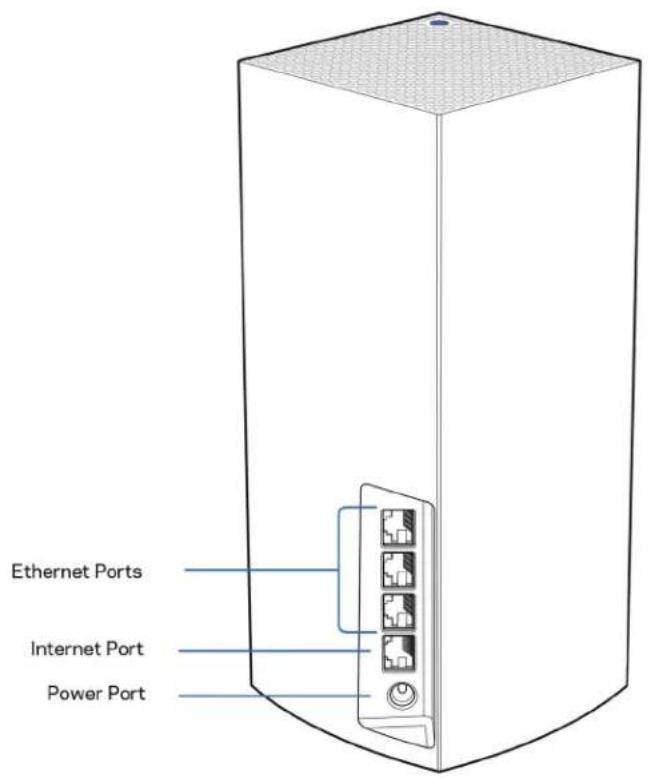

Back

Ethernet ports—Connect ethernet cables to these Gigabit ethernet (10/100/1000) ports and to other wired devices on your network. If you have more than one node in your Velop system, use one of these ports to connect to your modem or modem-router.

Note—For best performance, use a CAT5e or higher rated cable on the Ethernet port.

Internet port—Connect an ethernet cable to the yellow gigabit (10/100/1000) port, and to a broadband internet cable/DSL or fiber modem. If you are using this router as a child node in a mesh Wi-Fi system, you can use this port to create a wired connection to another node.

Power port—Connect the included AC power adapter to this port.

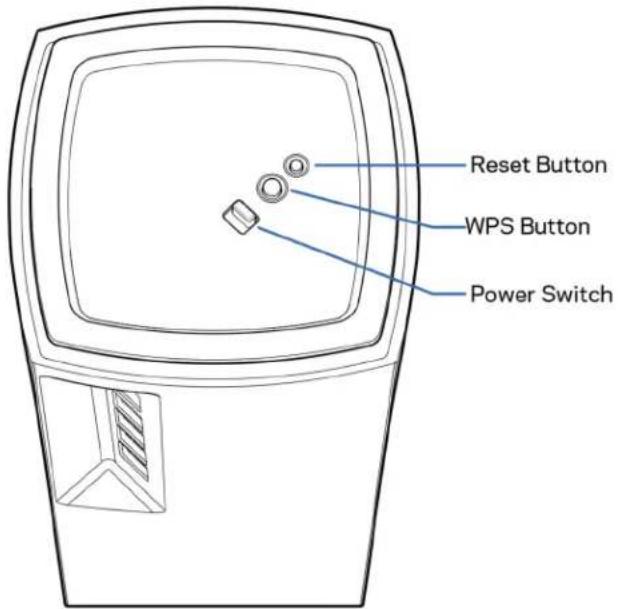

Bottom

Reset button—Press and hold until the light on top of the node turns red, fades and flashes bright red again to reset the node to its factory defaults.

Wi-Fi Protected Setup button—Press to connect WPS-enabled network devices.

Power switch—Slide to | (on) to power on the node.

Help

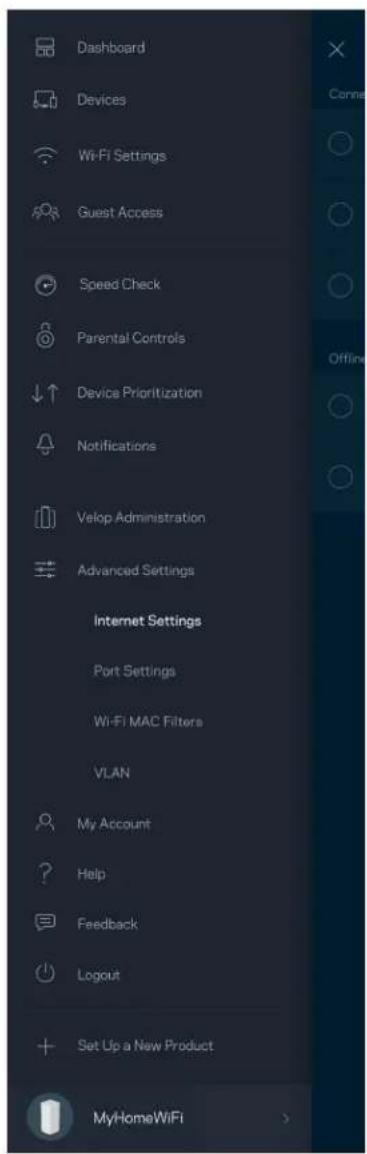

Where to find more help

• Linksys.com/support/Velop
• Linksys app help (launch the app and click Help in the main navigation menu)

Note—Licenses and notices for third party software used in this product may be viewed on http://support.linksys.com/en-us/license. Please contact http://support.linksys.com/en-us/gplcodecenter for questions or GPL source code requests.

Set Up

IMPORTANT—Velop nodes can be set up as primary nodes or child nodes. A primary node must be connected with an ethernet cable to your modem or modem router. Once set up wirelessly, secondary nodes can be connected to another node wirelessly or with ethernet cables.

If you are adding this new node as parent node to an existing Velop whole home mesh Wi-Fi system, factory reset all nodes and add them to the system after the new node is setup and working.

Download the Linksys app. You need this app to set up Velop.

Go to the app store for your device and search for Linksys.

Install the app, open it and follow the instructions.

Note—The app works with iOS 11.4 and later, and Android 6 and later.

You will create a Linksys Smart Wi-Fi account so you can use the app to view or change your Velop system settings from anywhere you have an internet connection.

Among the many things you can do with Linksys Smart Wi-Fi:

• Change your Wi-Fi name and password
- Set up guest access
- Connect devices to Wi-Fi with WPS
• Block internet with parental controls
• Test your internet connection speed

Note—During setup we'll send a verification email. From your home network, click the link in the email.

Other than plugging in the power and the ethernet cable, the app-based setup process does the work for you. Once connected, use the app to personalize your Wi-Fi by giving it a name and password. You also can give nodes names based on where they are so you can identify them in the rare case where things need attention.

Print this page, then record your Wi-Fi and account settings in the table as a reference. Store your notes in a safe place.

Wi-Fi Name
Wi-Fi Password
Admin Password
Guest Access Name
Guest Access Password
Linksys App Login Email
Linksys App Password

Velop System Settings

Using your Linksys app, you can view or change Velop system settings to make your Wi-Fi more secure or to work better with a device or game. You can access settings from anywhere in the world if you have an internet connection. You can also access settings using your router password when connected to your home network even if you do not have an internet connection.

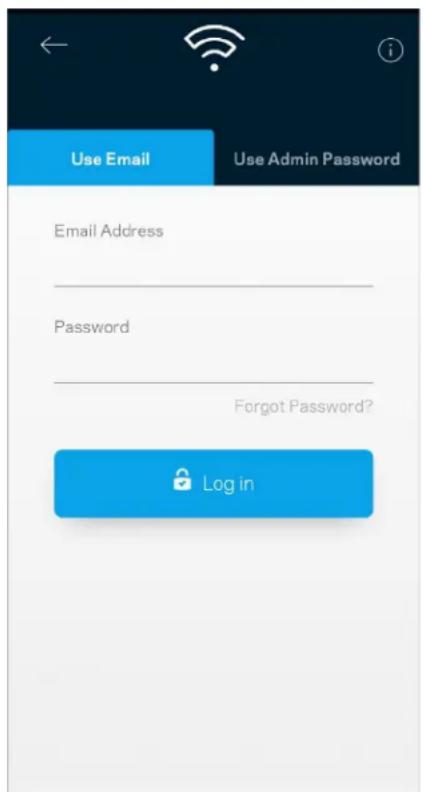

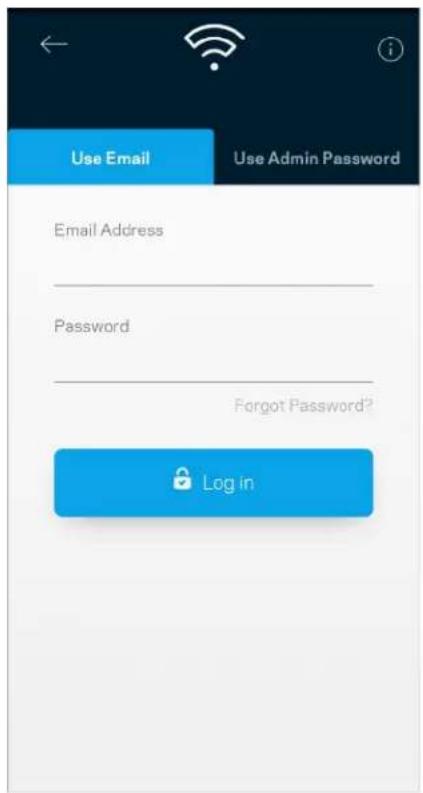

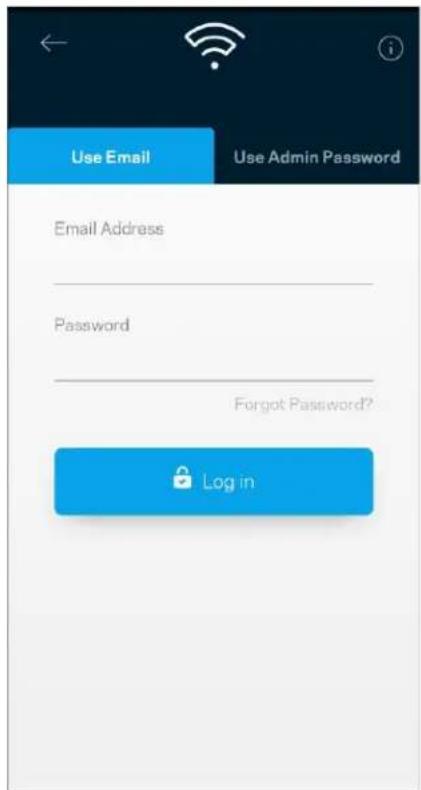

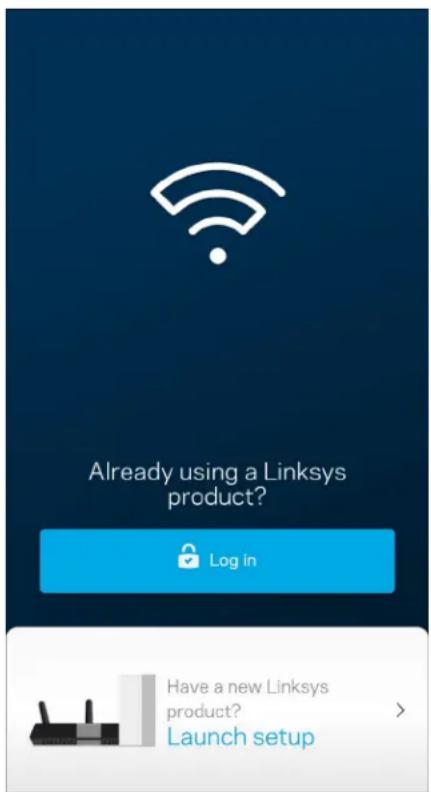

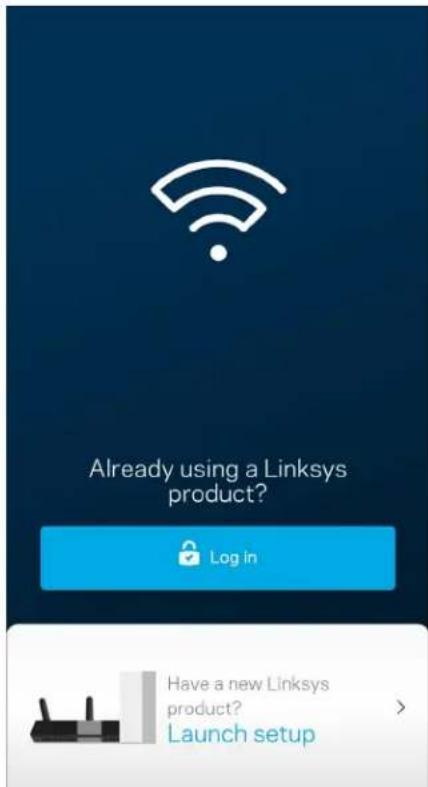

Log in to the Linksys app

1. Open the Linksys app.

1. Enter the email address you used when creating your account.
2. Enter your account password.
3. Tap Log in.

Dashboard

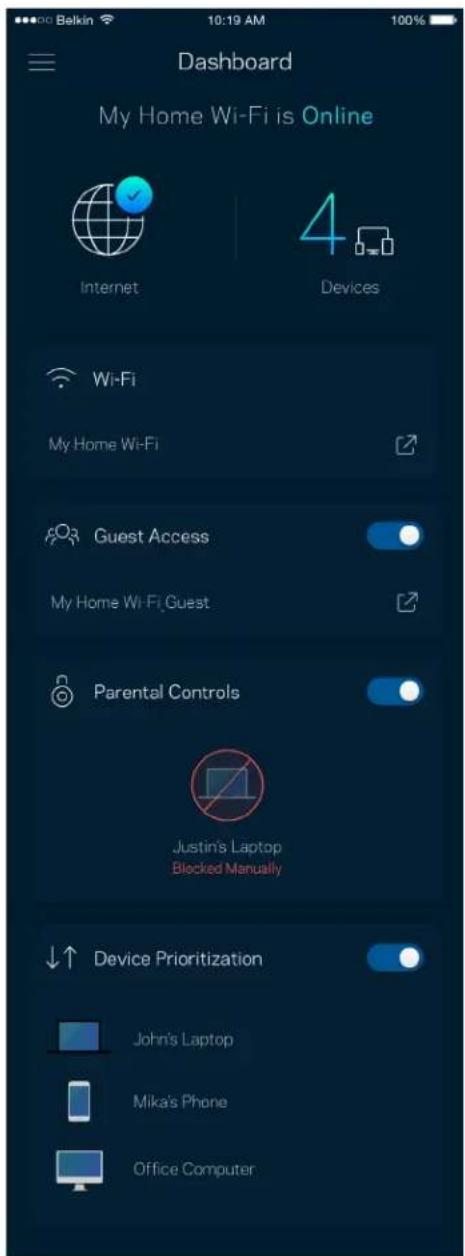

Dashboard is a snapshot of your Wi-Fi. See how many devices are connected to your Velop system. Share Wi-Fi password and allow guest access to your Wi-Fi. Dashboard also shows you if any devices have parental controls on them or have been prioritized for Wi-Fi access.

Devices

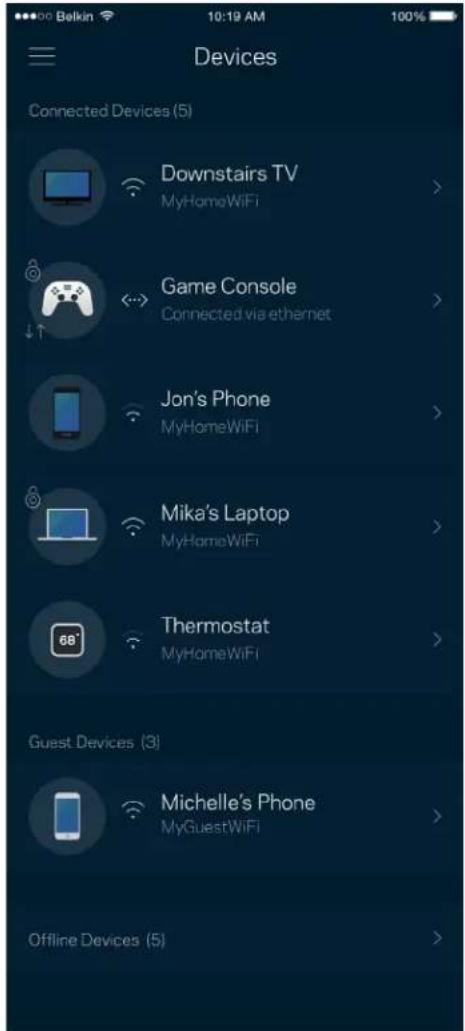

View and change details for all devices connected to your Wi-Fi. You can view devices on your main network and your guest network, or display information about each device.

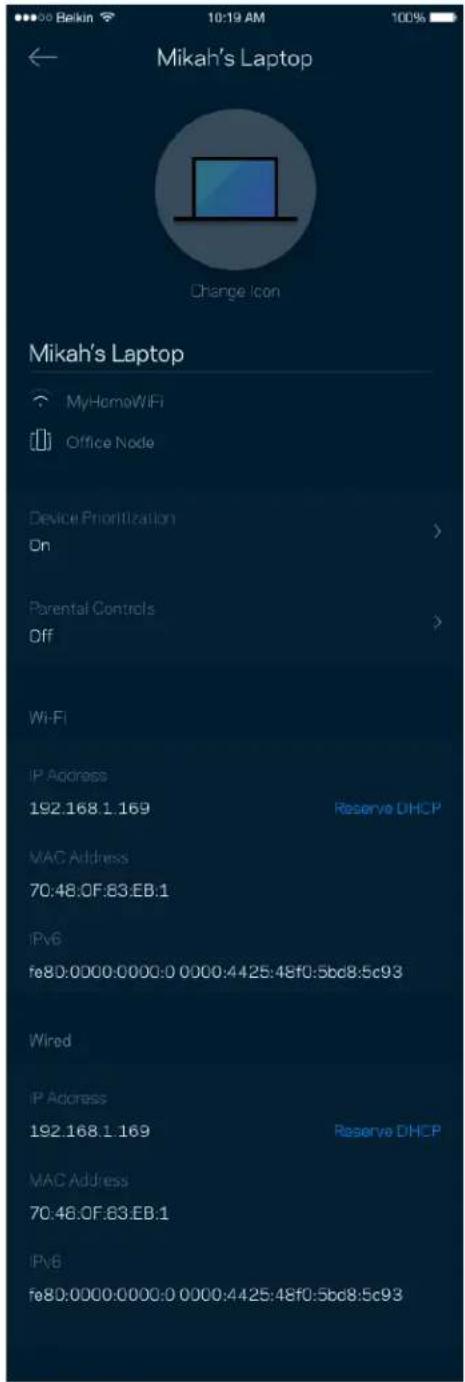

To view or change device details

From the Devices screen you can edit device names and change the device icons. You also can prioritize devices, set parental controls, and see Wi-Fi details. Tap on any device to see details.

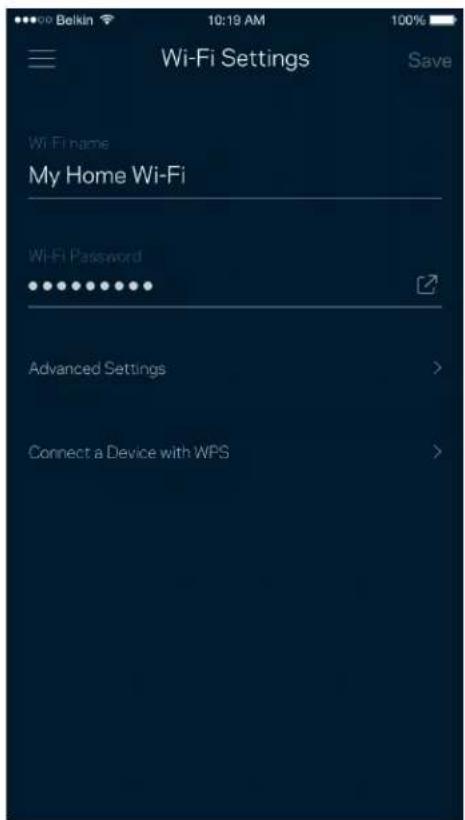

Wi-Fi Settings

View or change your Wi-Fi name and password and connect devices using Wi-Fi Protected Setup ^™ .

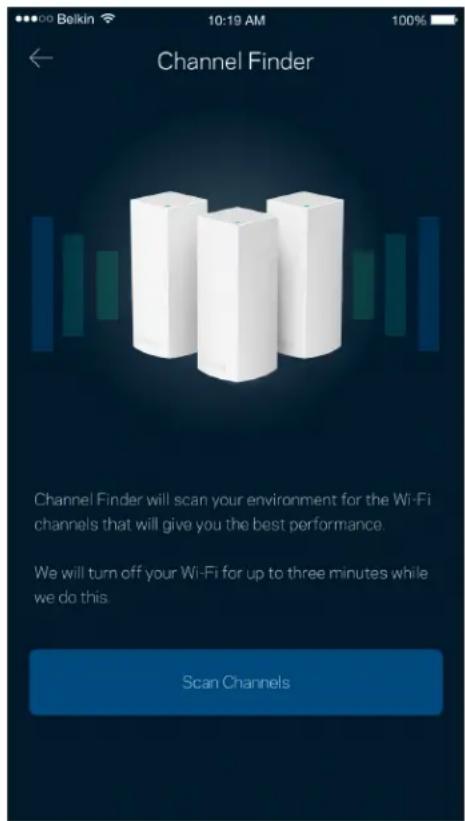

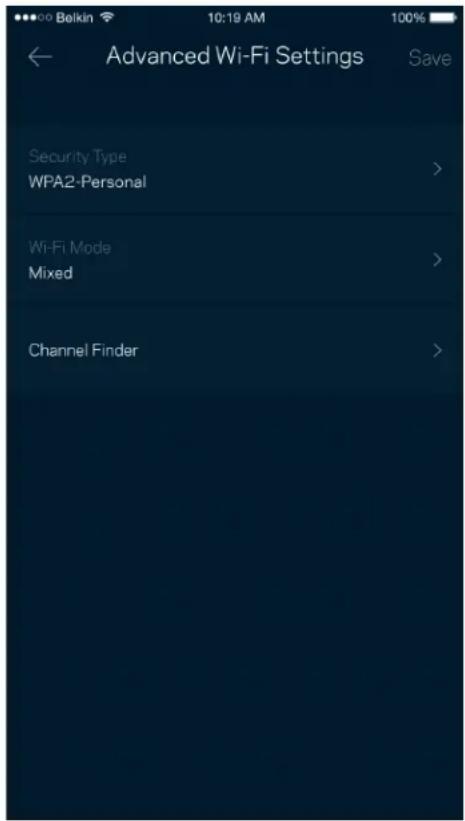

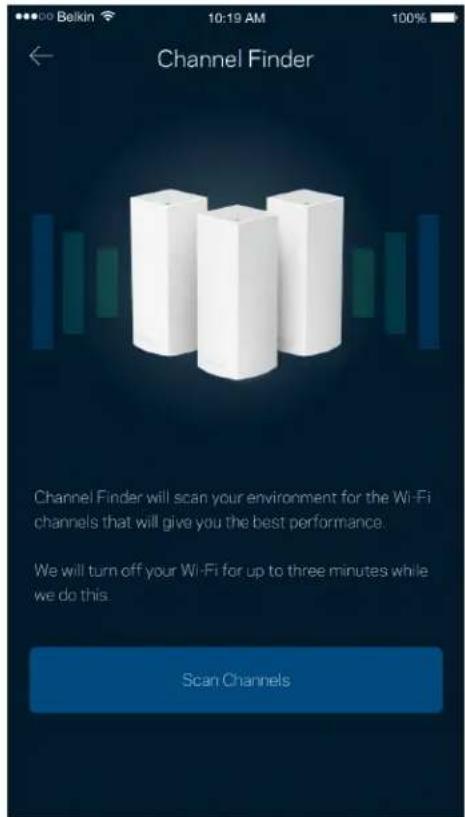

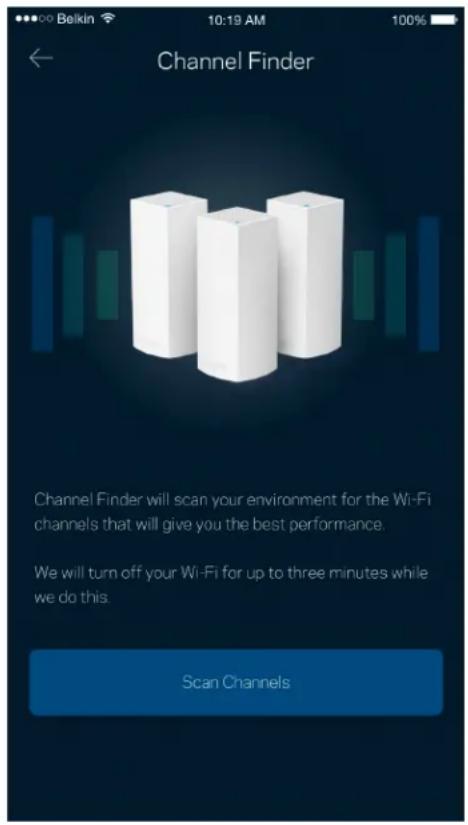

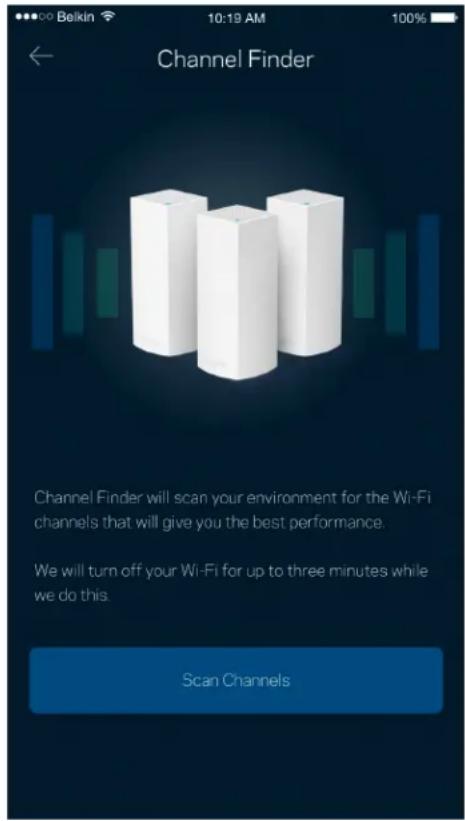

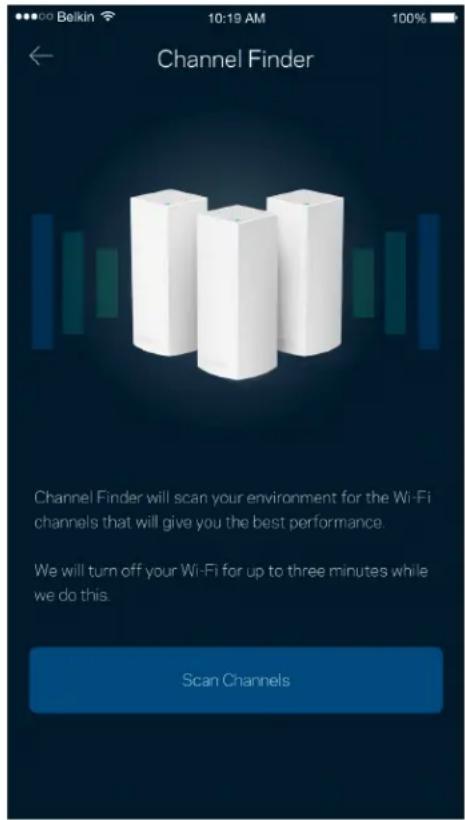

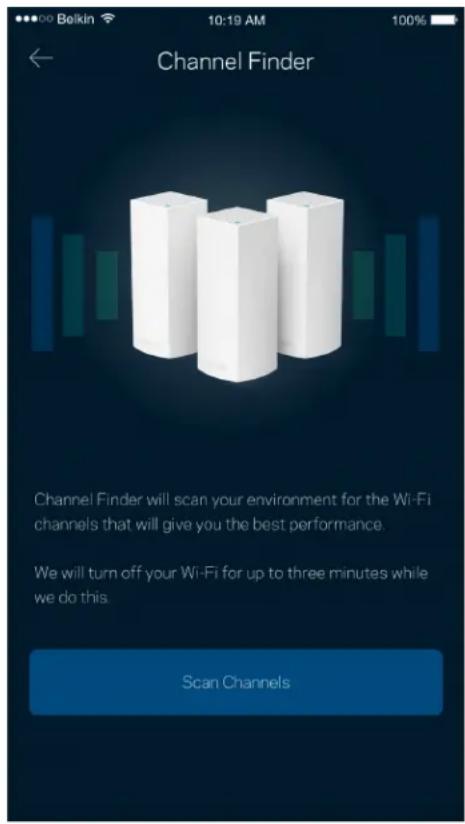

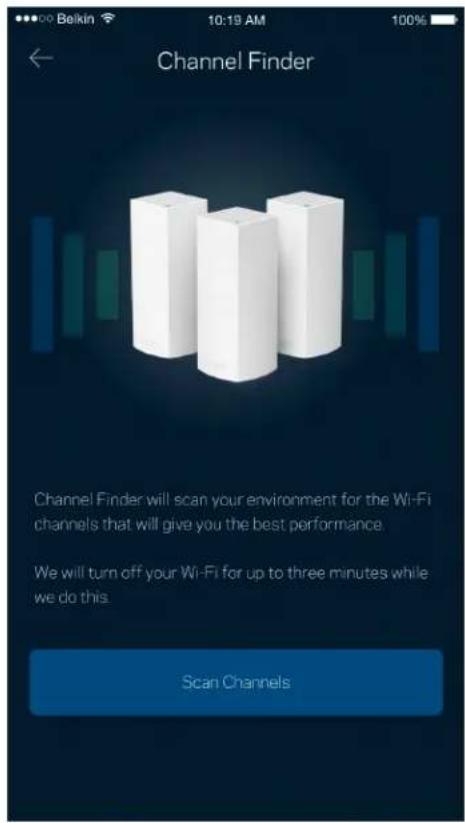

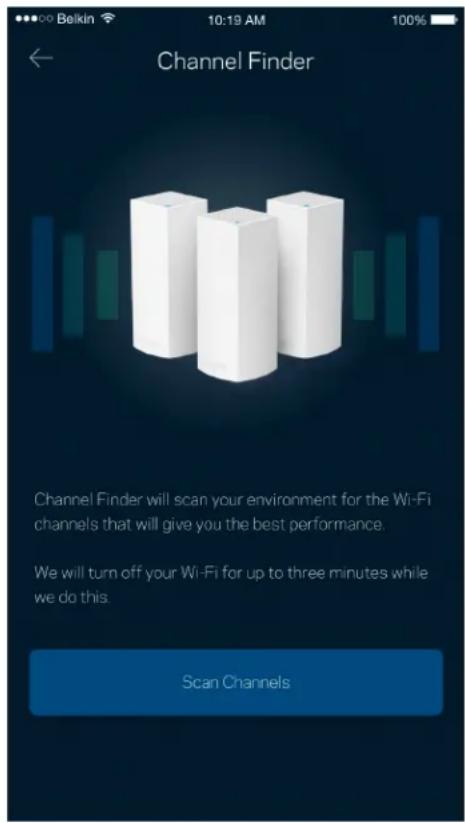

Advanced Settings

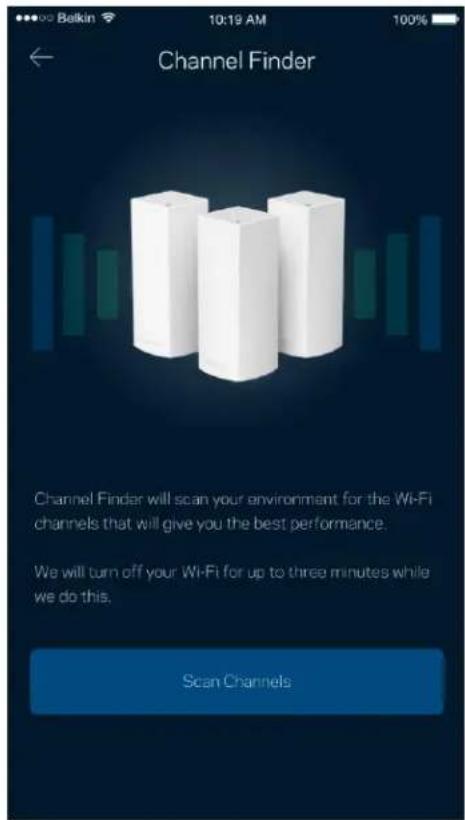

Advanced users can change the default security type and Wi-Fi mode. Do not change these unless you have a lot of experience with Wi-Fi networks. Channel Finder will search for the most-open Wi-Fi channels in your area to ensure you get the best performance from your Velop system. If you have more than one node in your Velop system, Channel Finder will find the best channel for each node.

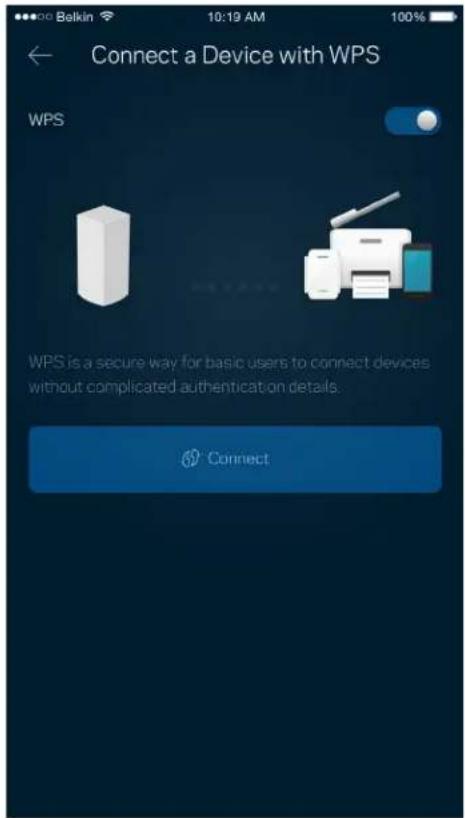

Connect a Device with WPS

Wi-Fi Protected Setup allows you to easily connect wireless devices to your Wi-Fi without manually entering security settings.

Guest Access

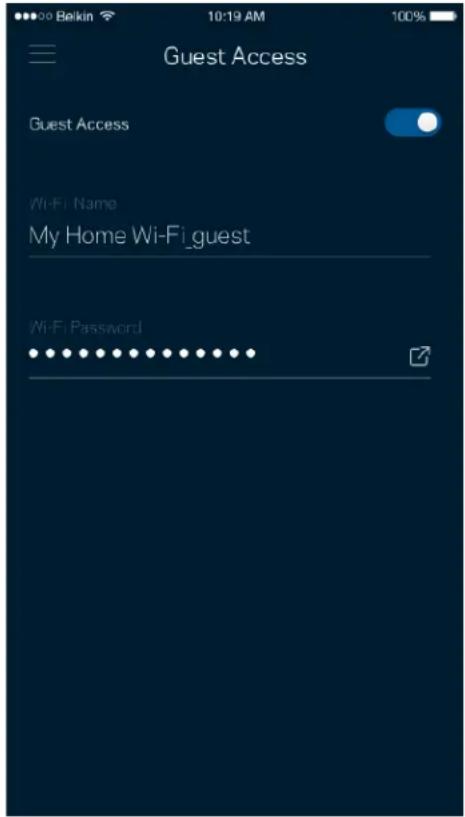

Use your Guest Access to allow guests to get online while restricting their access to other resources connected to your Wi-Fi. Send the password by text message or email.

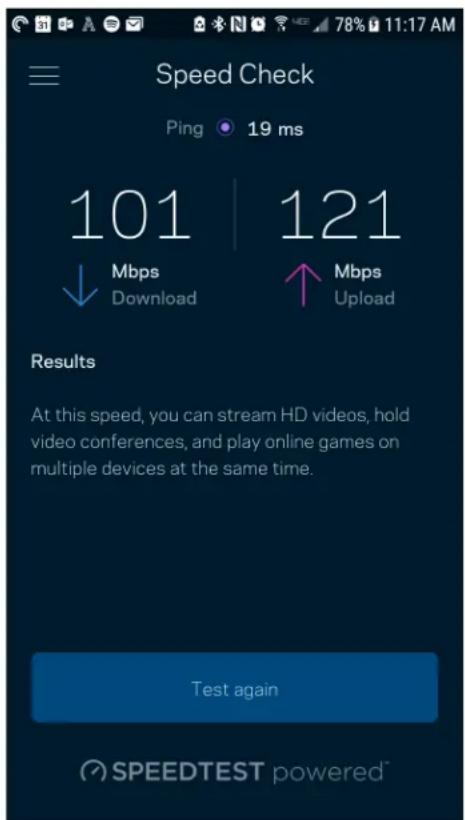

Speed Check

Run a speed check to make sure you are getting the speeds you are paying for. Speed check also helps in Device Prioritization because results determine how Wi-Fi is distributed to the prioritized devices.

• Download speed is the rate at which internet content is transferred to your Velop system.
• Upload speed is the rate at which you can upload content to the internet.

Note—Internet connection speeds are determined by a variety of factors, including ISP account type, local and worldwide internet traffic, and number of devices in your home that are sharing the internet connection.

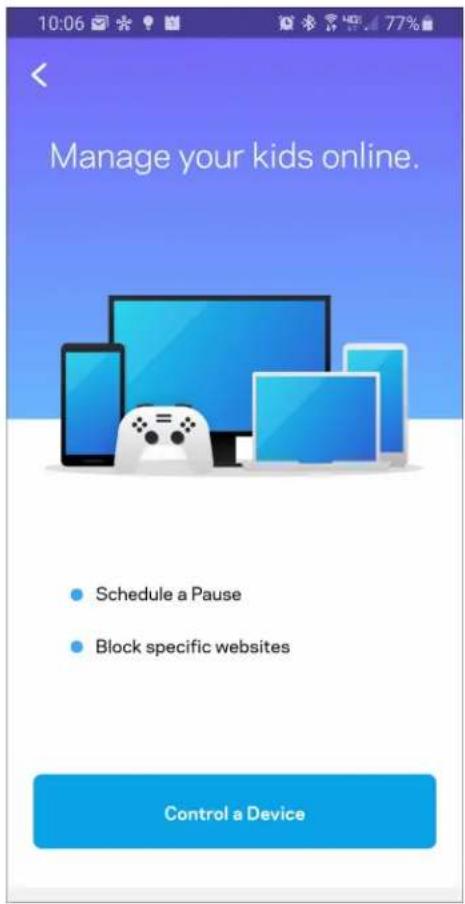

Parental Controls

Parental controls allow you to control when your kids are online and what they're doing there. Pause internet to specific devices, or block specific websites.

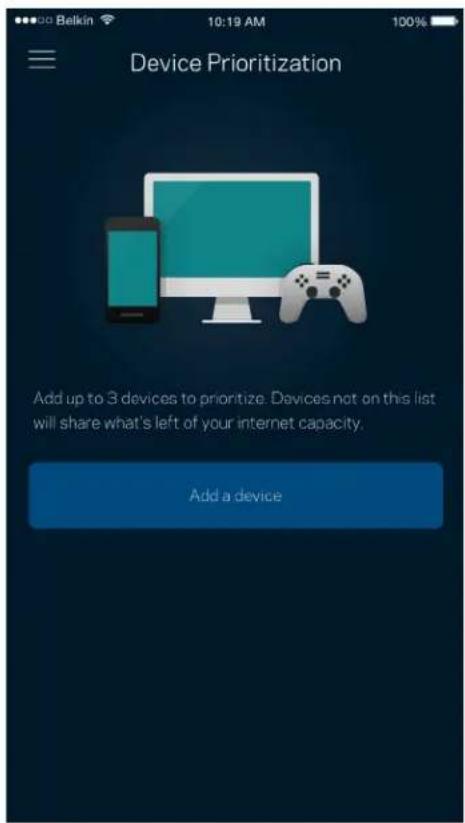

Device Prioritization

Choose up to three devices for priority usage of your internet connection. Those devices – wired and/or wireless – always will have the best access when connected. Velop runs a speed check to determine how to best distribute Wi-Fi to prioritized devices. Other devices will share the leftover capacity. Prioritized devices appear on Dashboard.

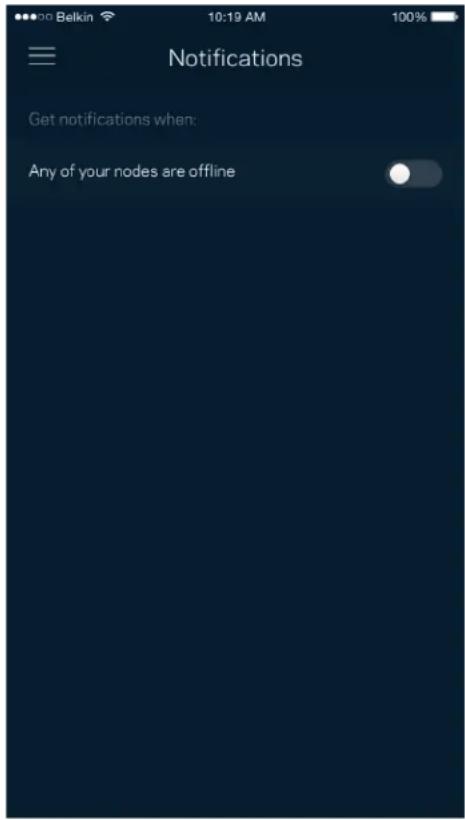

Notifications

If you have more than one node, Velop can notify you when secondary nodes in your system go offline. Secondary nodes are any that are not wired to your modem. You have to turn on notifications in your mobile device settings to allow Velop to notify you.

Velop Administration

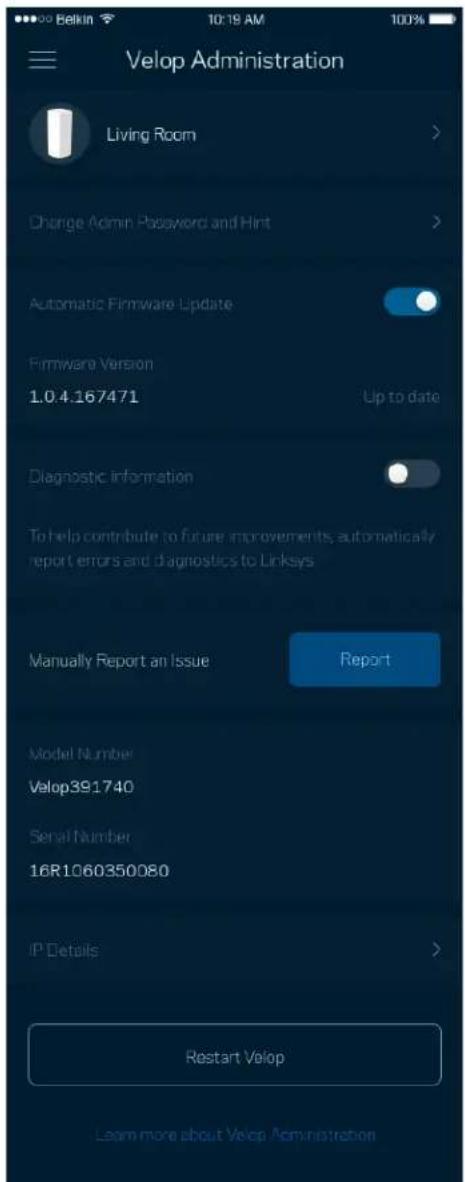

Use the Velop Administration screen to change the admin password and hint, and check various identifiers (model number, serial number, and IP details) for all nodes in your Wi-Fi.

Opt in to automatically report crashes to Linksys and contribute to improving the Wi-Fi experience. You also can manually report specific issues to Linksys.

The following information will be sent with your description of the issue:

• App version	• Login Type (cloud: show email address associated, local: display "Velop admin")
• Device model	• WAN Connection type (display Wi-Fi or ethernet)
• Device OS version	• Time: date (mo/day/year, time, time zone)

Advanced Settings

Internet Settings

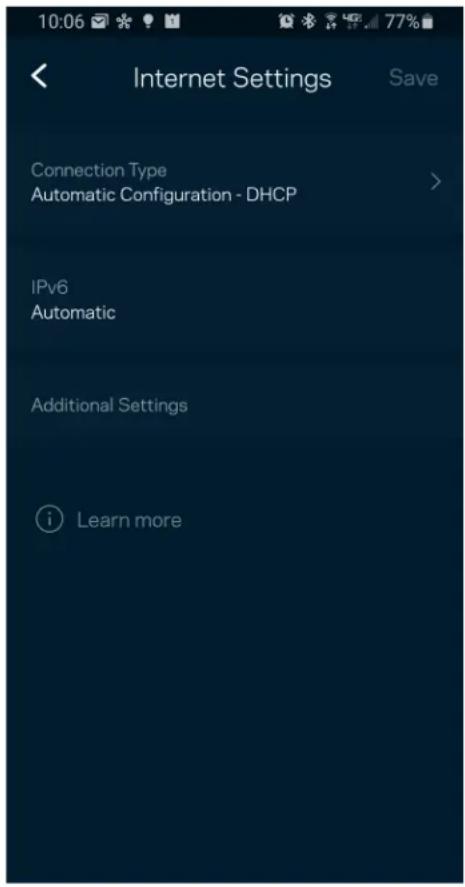

You can choose how your Velop system connects to the internet. The default is Automatic

Configuration - DHCP. Other connection types depend on your internet service provider or how you plan to use your Velop system. Advanced users can use Additional Settings to clone MAC addresses and set MTU (maximum transmission unit).

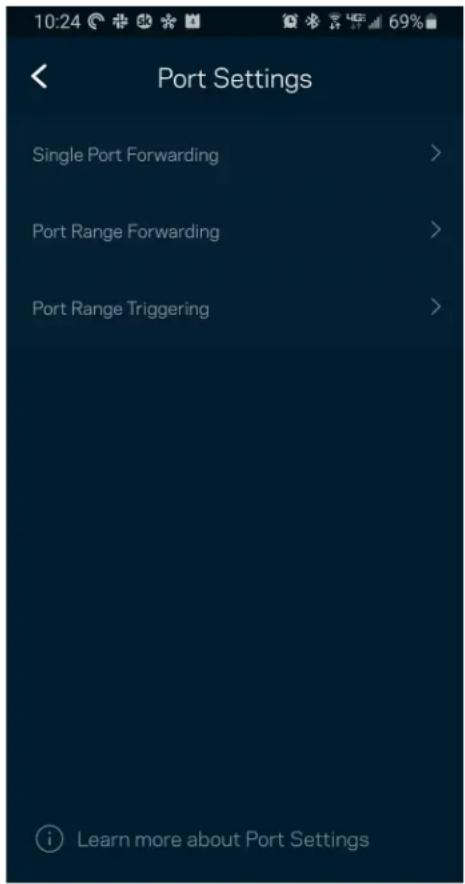

Port Settings

Port forwarding—for a single port, multiple ports or a range of ports—sends traffic inbound on a specific port or ports to a specific device or port on your Wi-Fi. In port range triggering, Velop watches outgoing data for specific port numbers. Velop remembers the IP address of the device that requests the data so that when the requested data returns, it is routed back to the proper device.

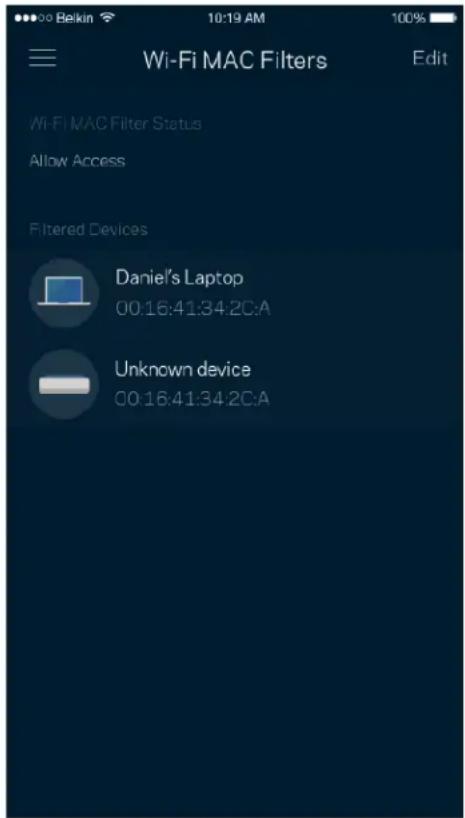

Wi-Fi MAC Filters

Every network device has a unique 12-digit MAC (media access control) address. You can create a list of MAC addresses and regulate how devices use your Wi-Fi.

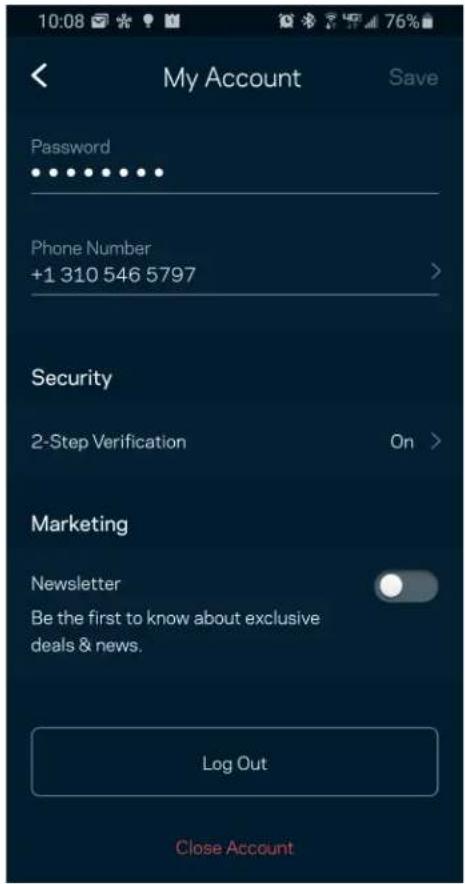

My Account

Change your Linksys app password and opt in to receive the latest news and deals from Linksys.

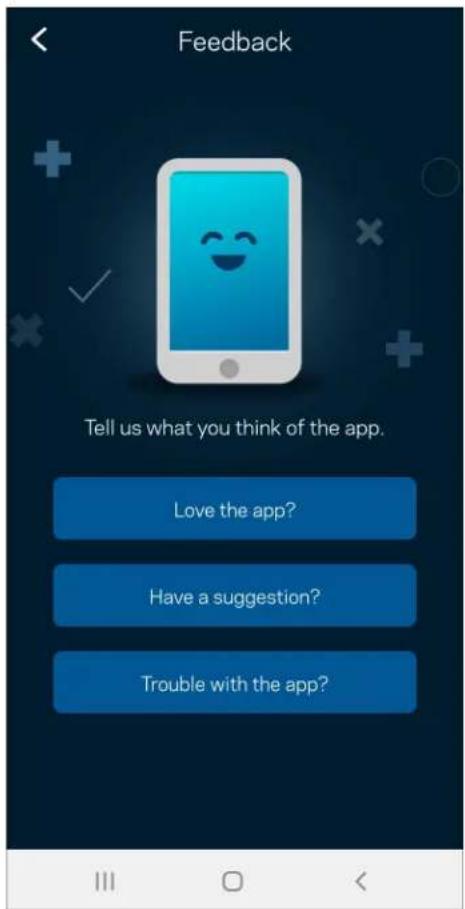

Feedback

Here's your chance to tell us what you think. Rate the app at your app store, send us a suggestion, or report an issue that's keeping you from a great experience.

Help

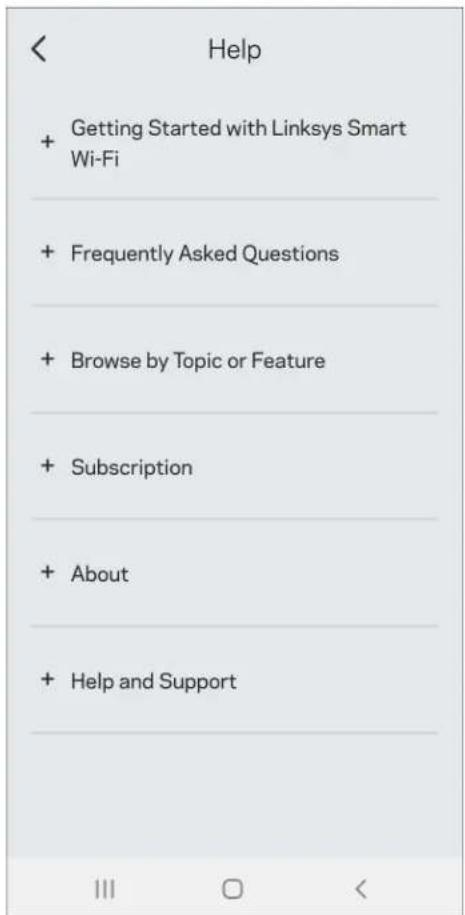

Having trouble with the app? Just need a little more information about a feature? Tap Help for an explanation.

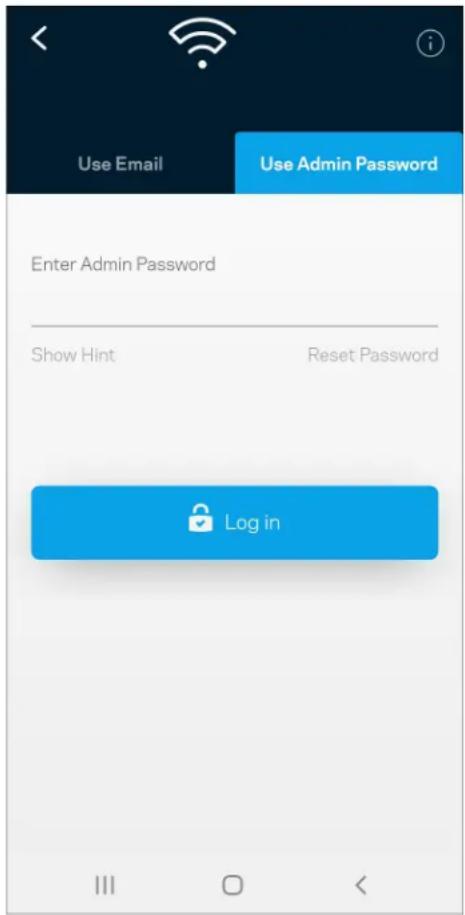

Connect Directly To Velop

If you are not connected to the internet you still can access your Velop system. Connect to your Wi-Fi name, launch the Linksys app and tap Use Admin Password. You will not be able to access your Linksys Wi-Fi account when not online.

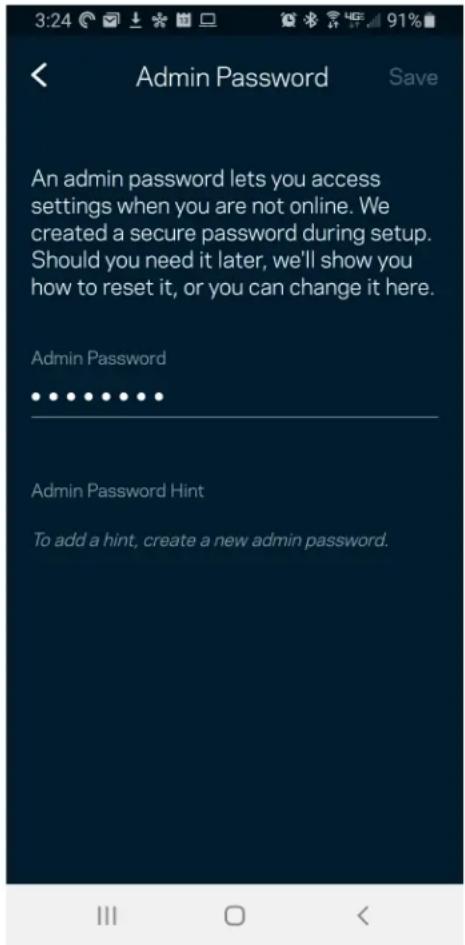

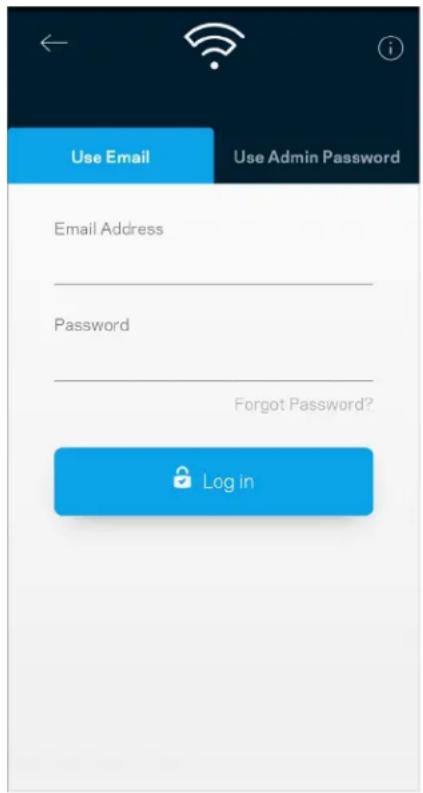

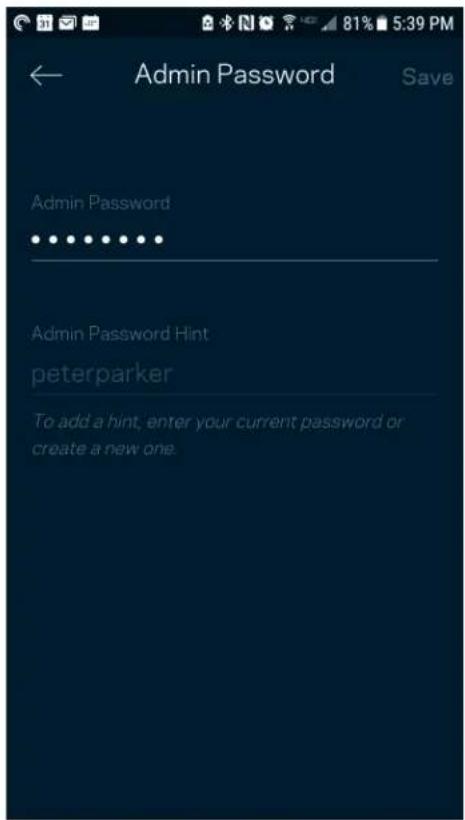

Velop admin password

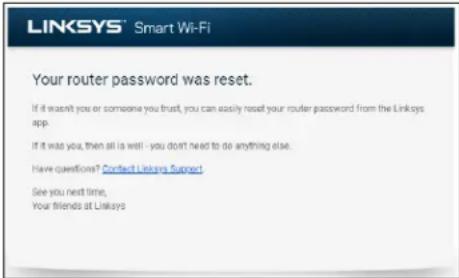

We created a secure admin password during setup. To change it, tap Velop Administration and Change Velop Password and Hint.

To keep your Velop system secure, we'll send you an email if someone changes the admin password.

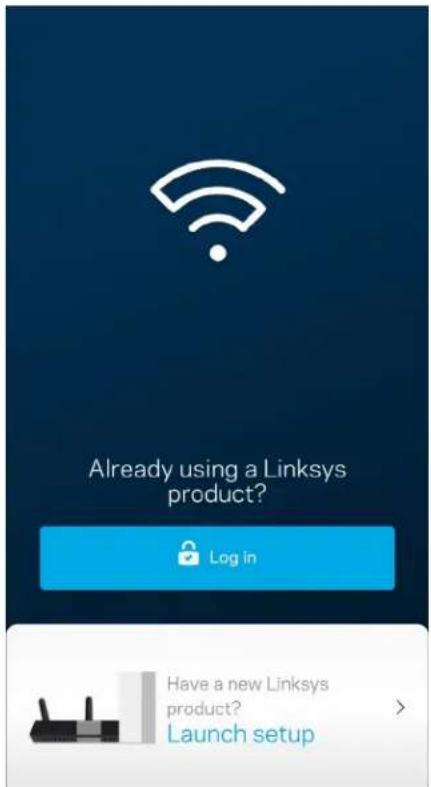

How to restore factory defaults

You should never need to factory reset your Velop—a very disruptive process. A factory reset restores your Velop system to the state it was when you took it out of its box, requiring you to go through the setup process again. All settings you have customized in setup and since - things such as Wi-Fi name, passwords, security type - will be erased. All wireless devices will disconnect from your Wi-Fi.

To reset Velop:

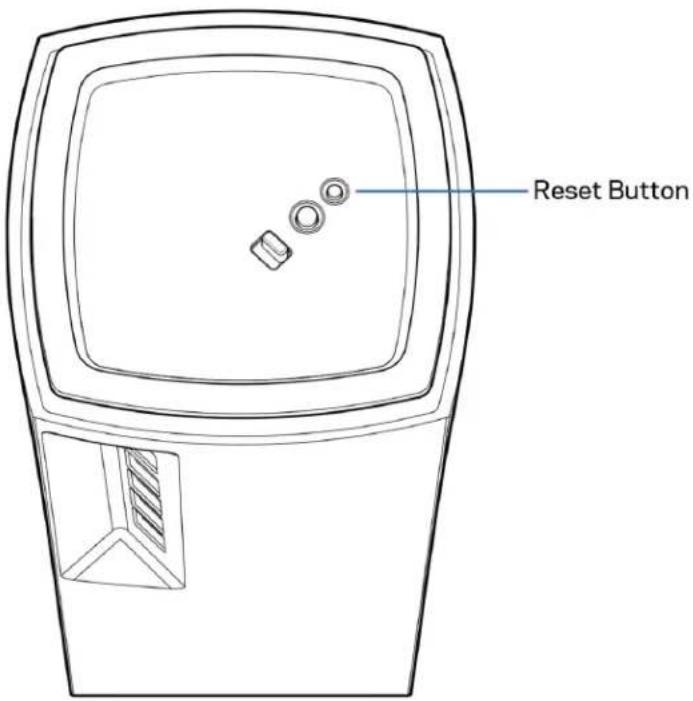

- With your node connected to power and turned on, press and hold the Reset button on the bottom. The light on top of the node will turn red and fade in pulses. Do not release the button until the light goes out and then turns bright red.

Specifications

Linksys Velop

Model Name Velop AX5400 WiFi 6 System

Model Number MX5500 series

Switch Port Speed 10/100/1000 Mbps

Radio Frequency 2.4 GHz and 5 GHz

# of Antennas 5 (internal)

Ports Ethernet, Internet, Power

Buttons Power switch, WPS, reset

Light One, multicolored light for power and status

Security Features WPA2-Personal, WPA3-Personal

Security Key Bits Up to 128-bit encryption

Environmental

Dimensions 3.4 inches x 3.4 inches x 7.3 inches

Unit Weight .50 kg (1.1 lb)

Power 12V, 2A

Certifications FCC, IC, CE, Wi-Fi (IEEE 802.11a/b/g/n/ac, draft 802.11ax)

Operating Temp. 32^ to 104^ F (0 to 40^ C)

Storage Temp. -4° to 140° F (-20 to 60° C)

Operating Humidity 10% to 80% relative humidity, non-condensing

Storage Humidity 5% to 90% non-condensing

Notes:

For regulatory, warranty, and safety information, go to Linksys.com/support/Velop.

Specifications are subject to change without notice.

Maximum performance derived from IEEE Standard 802.11 specifications. Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage.

Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions.

Visit linksys.com/support/Velop for award-winning technical support.

BELKIN, LINKSYS and many product names and logos are trademarks of the Belkin group of companies. Third-party trademarks mentioned are the property of their respective owners.

© 2021 Belkin International, Inc. and/or its affiliates. All rights reserved.

LINKSYS®

GUÍA DEL USUARIO

VELOP

Serie MX5500

Tabla de contenidos

Dispositivos

Acceso de Invitados

Prueba de velocidad

Notificaciones

Filtros MAC Wi-Fi

Mi cuenta

Su opinión

Ayuda

Conectar directamente a Velop

Administration Velop 21

Appareils

Paramètres avancés

Accès d'invité

Contrôle de vitesse

Notifications

Administration Velop

Paramètres de ports

Filtres MAC sans-fil

Mon compte

Commentaires

Aide

Certifications FCC, IC, CE, Wi-Fi (IEEE 802.11a/b/g/n/ac, draft 802.11ax)

Linksys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Wi-Fi. Linksys بحلات التعطل والمساهمة في تحسين تجربة.

بعض مشكلات.

وصف hairstyle.

إعدادات المن Fest

الاتصال ب Velop

Устройства

Разширени настройки

Достъп за гости

Известия

Wi-Fi MAC филтри

Моят акаунт

Обратна връзка

Помощ

Администраторска парола за Velop

Zařízení

Pokročilá nastavení

Rychlostní test

Priorita zařízení

Upozornění

Správa Velop

Nastavení portů

Filtry MAC pro Wi-Fi

Můj účet

Zpětná vazba

Nápověda

Heslo správce Velop

Enheder

Avancerede indstillinger

Gæsteadgang

Hastighedstjek

Enhedsprioritering

Meddelelser

Administration af Velop

Portindstillinger

Wi-Fi MAC-filtre

Min konto

Tilbagemelding

Hjælp

Velop administratoradgangskode.

Certificeringer FCC, IC, CE, Wi-Fi (IEEE 802.11a/b/g/n/ac, draft 802.11ax)

Geräte

Gastzugriff

Benachrichtigungen

Velop-Verwaltung

Port-Einstellungen

WLAN-MAC-Filter

Mein Konto

Feedback

Hilfe

Velop Admin-Password

Devices (Συσκευές)

Feedback (Σχόλια)

Help (Βοήθεια)

Dispositivos

Acceso de invitados

Prueba de velocidad

Notificaciones

Filtrado MAC de WiFi

Mi cuenta

Valoración

Ayuda

Seadmed

Täpsemad seaded

Külalise juurdepääs

Kiirustest

Teated

Pordi seaded

Wi-Fi MAC-filtrid

Minu konto

Tagasiside

Abi

Velopi administraatori parool

Laitteet

Lisäasetukset

Vieraskäyttö

Nopeustarkistus

Ilmoitukset

Velop-hallinta

Porttiasetukset

Wi-Fi-verkon MAC-suodattimet

Oma tili

Palaute

Ohje

Velop Administration (Administration Velop) 21

Paramètres avancés

Test de vitesse

Notifications

Velop Administration (Administration Velop)

Wi-Fi MAC Filters (Filtres MAC Wi-Fi)

Help (Aide)

Devices (Eszközök)

Sebességteszt

Help (Súgó)

Perangkat

Akses Tamu

Uji Kecepatan

Notifikasi

Administrasi Velop

Pengaturan Port

Filter MAC Wi-Fi

Akun Saya

Masukan

Bantuan

Kata sandi admin Velop

Cara memulihkan default pabrik

1. Aprire l'App Linksys.

Dispositivi

Accesso ospite

Test della velocità

Notifiche

Impostazioni porta

Filtri MAC Wi-Fi

Il mio account

Feedback

Guida

デバイス

デバイスの詳細を表示または変更するには

詳細設定

デバイスを WPS に接続

ゲスト アクセス

スピードテスト

デバイスの優先順位付け

通知

Velop の管理

ポート設定

Wi-Fi MAC フィルター

マイ アカウント

フィードバック

ヘルプ

Velop に直接接続

Velop 管理者アカウント

ファクトリ既定値に復元するには

장치

고급 설정

WPS와장치연결

게스트 액세스

장치 우선 순위 지정

알림

Velop 관리

포트 설정

Wi-Fi MAC 필터

내 계정

피드백

도움말

Velop 에 직접 연결

Velop 관리자 암호

출하시 기본값을 복구하는 방법

인증 FCC, IC, CE, Wi-Fi (IEEE 802.11a/b/g/n/ac, draft 802.11ax)

Irenginiai

Jrenginio prijungimas naudojant WPS

Svečio prieiga

Greičio patikra

Pranešimai

Prievado nuostatos

„Wi-Fi“ MAC filtrai

Mano paskyra

Atsiliepimai

Pagalba

lerices

İpaši iestatījumi

Ātruma pārbaude

Paziņojumi

Velop pārvaldība

Wi-Fi MAC filtri

Mans konts

Atsauksmes

Palīdzība

Velop administratora parole

Device Prioritization (Apparaatprioritering) 19

Notifications (Meldingen) 20

Velop-beheer 21

Devices (Apparaten)

Guest Access (Gasttoegang)

Snelheidscontrole

Device Prioritization (Apparaatprioritering)

Notifications (Meldingen)

Velop-beheer

Port Settings (Poortinstellingen)

WiFi MAC-filters

Mijn account

Feedback

Help

Fabrieksinstellingen terugzetten

Certificering FCC, IC, CE, Wi-Fi (IEEE 802.11a/b/g/n/ac, concept 802.11ax)

Velop-systeminnstillinger 9

Logg inn på Linksys-appen 9

Dashbord 10

Enheter 11

Velop-systeminnstillinger

1. Skriv inn e-postadressen du brukte när du opprettet kontoen.
2. Skriv inn kontopassordet ditt.
3. Trykk på Logg inn.

Dashbord

Enheter

Avanserte innstillinger

Gjestetilgang

Hastighetssjekk

Enhetsprioritering

Varslinger

Portinnstillinger

Wi-Fi MAC-filtre

Min konto

Tilbakemelding

Hjelp

Velop-administratorpassord

Knapper Strømbryter, WPS, tilbakestilling

Urządzenia

Powiadomienia

Ustawienia portu

Moje konto

Opinie

Pomoc

Dispositivos

Notificações

Administração Velop

Filtros MAC Wi-Fi

A minha conta

Comentários

Ajuda

Palavra-passe de administrador Velop

Dispositivos

Notificações

Filtros MAC do Wi-Fi

Minha conta

Opinião

Ajuda

Dispositive

Setări avansate

Acces invitați

Verificare viteză

Notificări

Administrare Velop

Setări port

Filtre MAC Wi-Fi

Contul meu

Feedback

Ajutor

Parola de administrator Velop

Устройства

Гостевой доступ

Измерение скорости

Приоритет устройств

Уведомления

Настройки портов

Моя учетная запись

Отзыв

Справка

设备

查看或更改设备详情

高级设置

使用 WPS 连接设备

来宾访问

速度测试

设备优先级设置

通知

Velop管理

端口设置

Wi-Fi MAC 筛选

我的帐户

反馈

帮助

直接连接至 Velop

Velop 管理员密码

如何恢复出厂默认设置

Tlačidlo Reset - Ak chcete resetovať uzol na továrenské nastavenia, podržte tlačidlo stlačené, kým sa indikátor na vrchnom paneli uzla nerozsvieti červeno, pomaly nezhasne a opät nezačne blikat jasne červeno.

Zariadenia (Devices)

Pokročilé nastavenia (Advanced Settings)

Prístup hostí (Guest Access)

Speed Check (Kontrola rýchlosti)

Prioritizácia zariadení (Device Prioritization)

Správa Velop (Velop Administration)

Nastavenia portov (Port Settings)

Filtre adries MAC (Wi-Fi MAC Filters)

Moje konto (My Account)

Odozva (Feedback)

Pomocník (Help)

Priame pripojenie k systému Velop

Číslo modelu MX5500 series

Rýchlost portov 10/100/1000 Mb/s

Frekvencia signálu 2,4 GHz a 5 GHz

Počet antén 13 (interné)

Rozhrania USB 3.0, ethernet, internet, napájanie

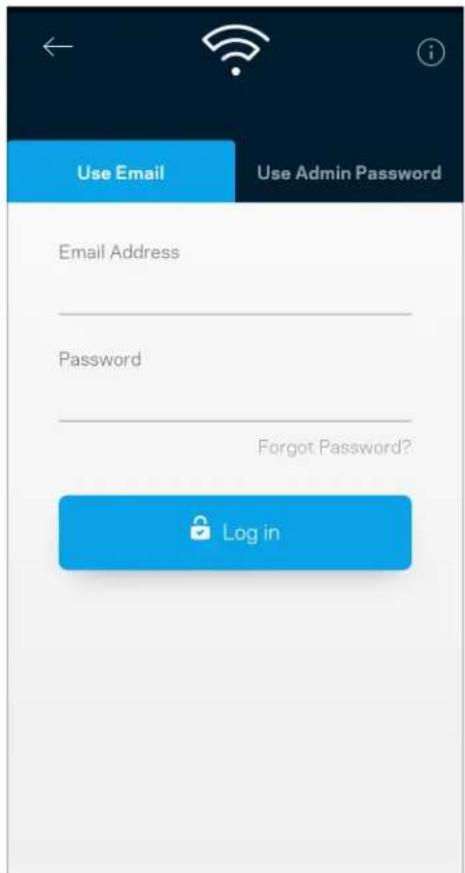

1. Vnesite e-poštni naslov, ki ste ga uporabili pri ustvarjanju računa.
2. Vnesite geslo računa.
3. Dotaknite se polja Log in (Prijava).

Nadzorna plošča

Naprave

Za ogled ali spremembo podrobnosti omrežne naprave

Dodatne nastavitve

Povežite napravo z WPS-om

Dostop za goste

Preizkus hitrosti

Obvestila

Skrbništvo Velop

Nastavitve vrat

Moj račun

Pomoč

Neposredna povezava s sistemom Velop

Skrbniško geslo Velop

Med nastavitvijo smo ustvarili varno skrbniško geslo. Če ga želite spremenite, se dotaknite polja Velop Administration (Skrbništvo Velop) in Change Velop Password and Hint (Spremeni skrbniško geslo Velop in namig).

WPA2-Personal, WPA3-Personal

FCC, IC, CE, Wi-Fi (IEEE 802.11a/b/g/n/ac, osnutek 802.11ax)

Temperatura za delovanje 32 °F do 104 °F (0 °C do 40 °C)

Temperatura za shranjevanje

-4 °F do 140 °F (-20 °C do 60 °C)

Enheter
