USER MANUAL Atlas 6 LINKSYS

Where to find more help 6

Set Up 7

Atlas 6 System Settings \_\_\_\_ 9

Log in to the Linksys app 9

Dashboard 10

Devices 11

To view or change device details 12

WiFi Settings 13

Advanced Settings 14

Connect a Device with WPS 15

Guest Access 16

Speed Check 17

Parental Controls 18

Priority 19

Notifications 20

Network Administration 21

Advanced Settings 22

Internet Settings 22

Port Settings 23

WiFi MAC Filters 24

Local Network Settings 25

My Account 26

Feedback 27

Help 28

Connect Directly To Linksys Atlas 6 29

Network admin password 30

How to restore factory defaults 31

Specifications 32

Linksys Atlas 6 32

Environmental 32

Product Overview

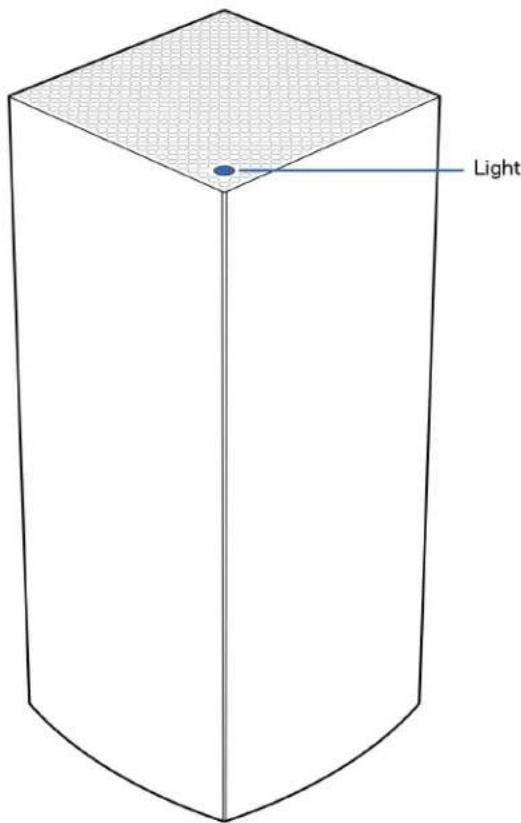

Front/top

Light

The light on the top of your node gives you information about the node's operation.

Light description	Status
Blinking blue Starting up
Solid blue Connected
Blinking purple Setup in progress
Solid purple Ready for setup
Blinking red DisconnectedChild node: too farParent node: unplugged from modem
Solid red No internet from the modem
Solid yellow Weak connectionChild node only

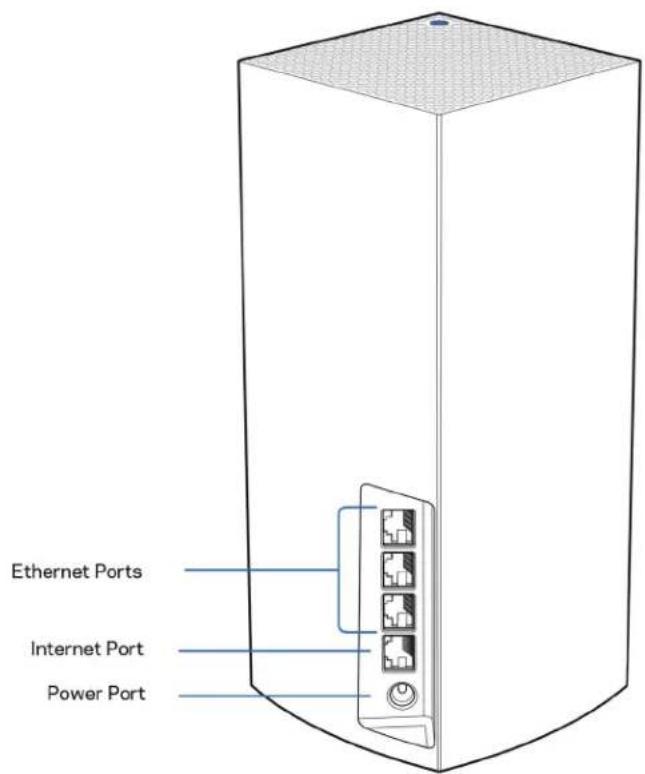

Back

Ethernet Ports Internet Port Power Port

Ethernet ports—Connect ethernet cables to these Gigabit ethernet (10/100/1000) ports and to other wired devices on your network. If you have more than one node in your mesh system, use one of these ports to connect to your modem or modem-router.

Note—For best performance, use a CAT5e or higher rated cable on the Ethernet port.

Internet port—Connect an ethernet cable to the yellow gigabit (10/100/1000) port, and to a broadband internet cable/DSL or fiber modem. If you are using this router as a child node in a mesh WiFi system, you can use this port to create a wired connection to another node.

Power port—Connect the included AC power adapter to this port.

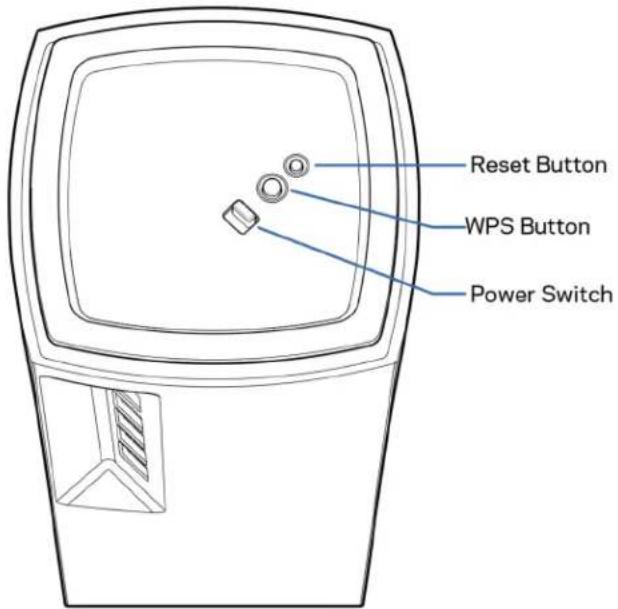

Bottom

Reset Button WPS Button Power Switch

Reset button—Press and hold until the light on top of the node turns red, fades and flashes bright red again to reset the node to its factory defaults.

WiFi Protected Setup button—Press to connect WPS-enabled network devices.

Power switch—Slide to | (on) to power on the node.

Help

Where to find more help

• Linksys.com/support/Atlas6
• Linksys app help (launch the app and click Help in the main navigation menu)

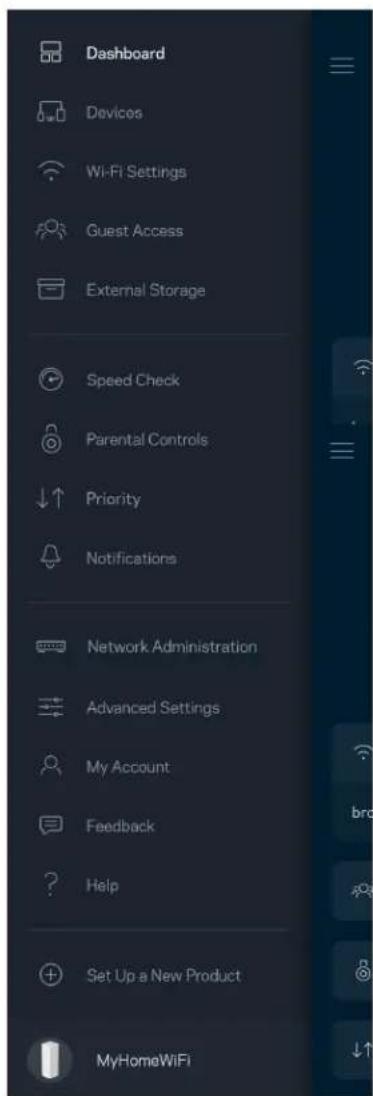

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Note—Licenses and notices for third party software used in this product may be viewed on http://support.linksys.com/en-us/license. Please contact http://support.linksys.com/en-us/gplcodecenter for questions or GPL source code requests.

Set Up

IMPORTANT—Atlas 6 nodes can be set up as primary nodes or child nodes. A primary node must be connected with an ethernet cable to your modem or modem router. Once set up wirelessly, secondary nodes can be connected to another node wirelessly or with ethernet cables.

If you are adding this new node as parent node to an existing Linksys whole home mesh WiFi system, factory reset all nodes and add them to the system after the new node is setup and working.

Download the Linksys app. You need this app to set up your Linksys Atlas 6.

Go to the app store for your device and search for Linksys.

Install the app, open it and follow the instructions.

Note—The app works with iOS 14.1 and later, and Android 6 and later.

You will create a Linksys Smart WiFi account so you can use the app to view or change your mesh system settings from anywhere you have an internet connection.

Among the many things you can do with Linksys Smart WiFi:

• Change your WiFi name and password
- Set up guest access
- Connect devices to WiFi with WPS
• Block internet with parental controls
• Test your internet connection speed

Note—During setup we'll send a verification email. From your home network, click the link in the email.

Other than plugging in the power and the ethernet cable, the app-based setup process does the work for you. Once connected, use the app to personalize your WiFi by giving it a name and password. You also can give nodes names based on where they are so you can identify them in the rare case where things need attention.

Print this page, then record your WiFi and account settings in the table as a reference. Store your notes in a safe place.

WiFi Name
WiFi Password
Router Password
Guest Access Name
Guest Access Password
Linksys App Login Email
Linksys App Password

Atlas 6 System Settings

Using your Linksys app, you can view or change Atlas 6 settings to make your WiFi more secure or to work better with a device or game. You can access settings from anywhere in the world if you have an internet connection. You can also access settings using your router password when connected to your home network even if you do not have an internet connection.

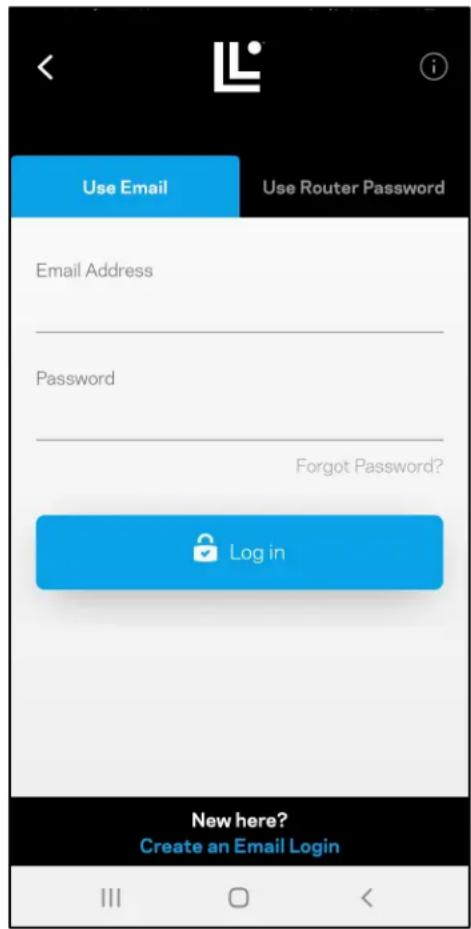

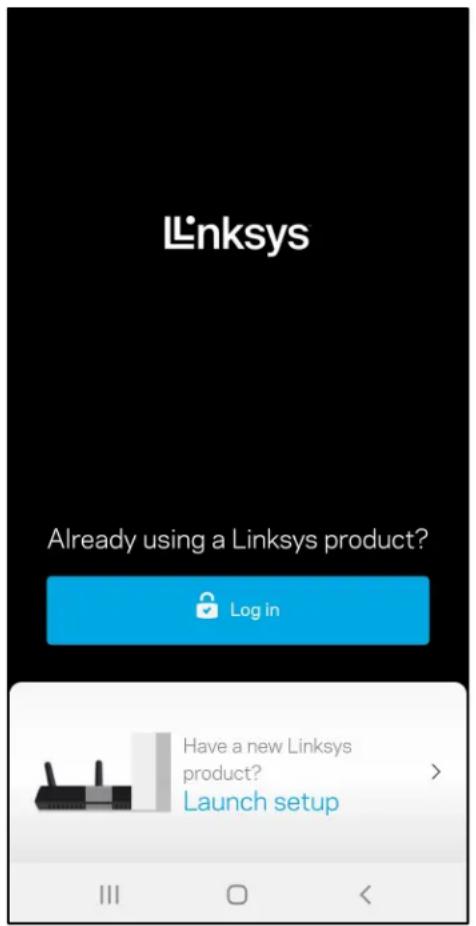

Log in to the Linksys app

1. Open the Linksys app.

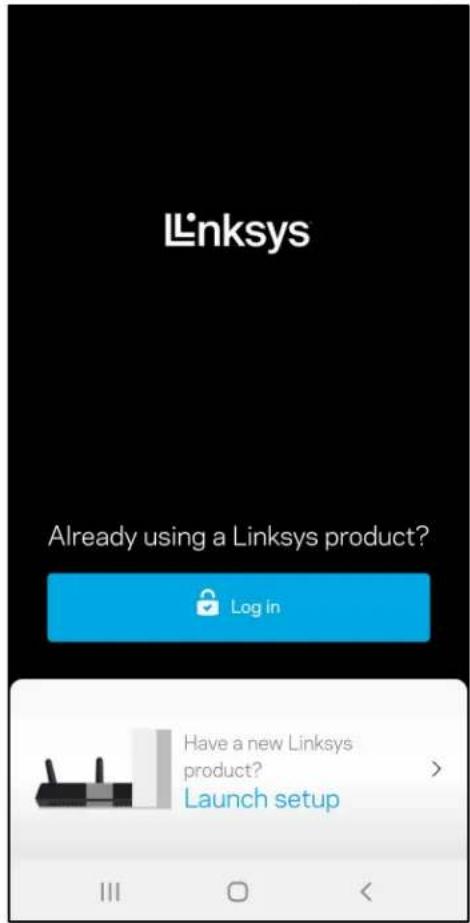

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

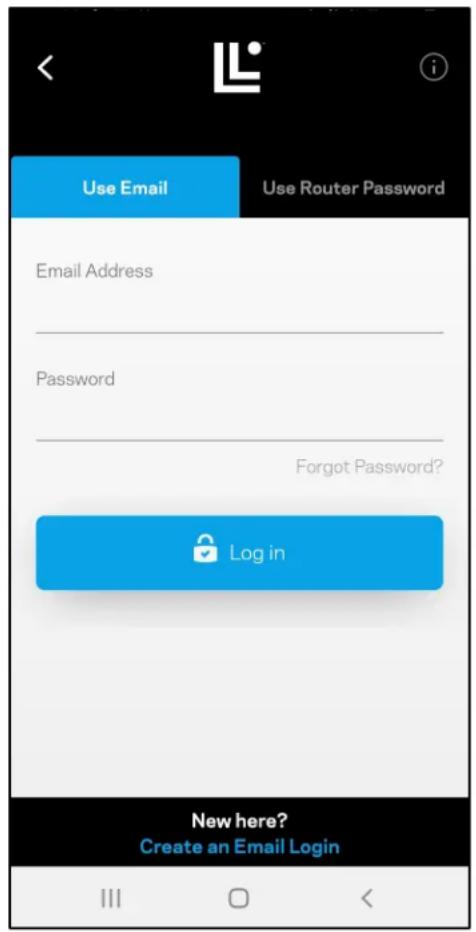

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

1. Enter the email address you used when creating your account.
2. Enter your account password.
3. Tap Log in.

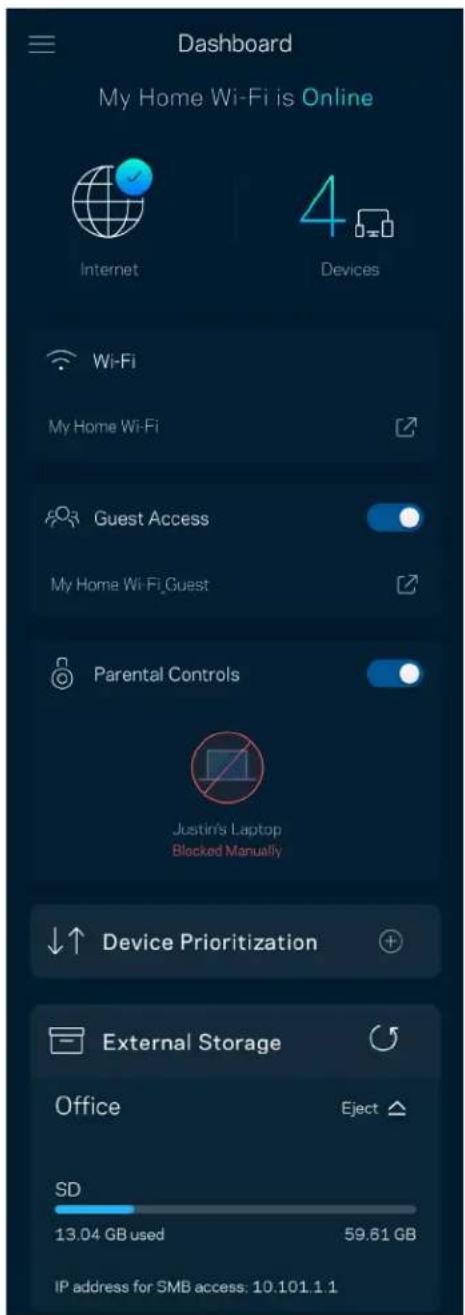

Dashboard

Dashboard is a snapshot of your WiFi. See how many devices are connected to your mesh system. Share WiFi password and allow guest access to your WiFi. Dashboard also shows you if any devices have parental controls on them or have been prioritized for WiFi access.

Dashboard My Home Wi-Fi is Online Internet 4 Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi_Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

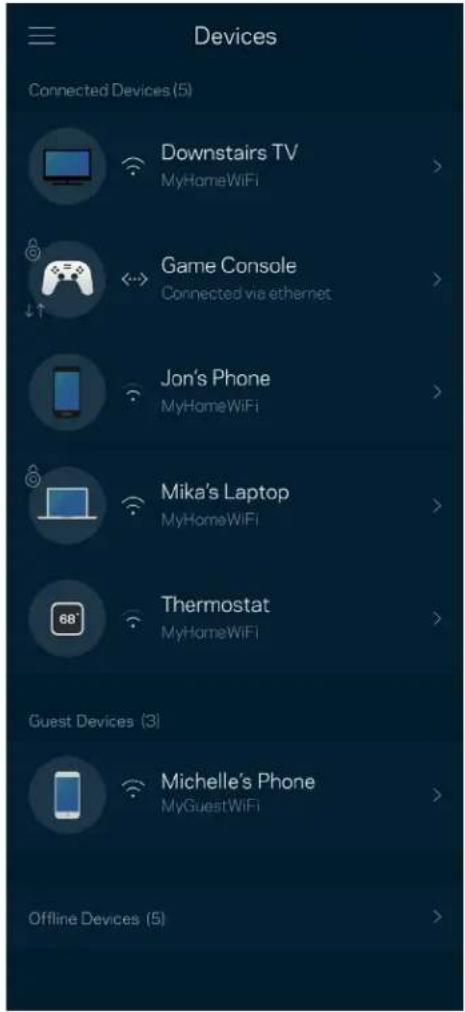

Devices

View and change details for all devices connected to your WiFi. You can view devices on your main network and your guest network, or display information about each device.

Devices Connected Devices (5) Downstairs TV MyHomeWiFi > Game Console Connected via ethernet > Jon's Phone MyHomeWiFi > Mika's Laptop MyHomeWiFi > Thermostat MyHomeWiFi > Guest Devices (3) Michelle's Phone MyGuestWiFi > Offline Devices (5)

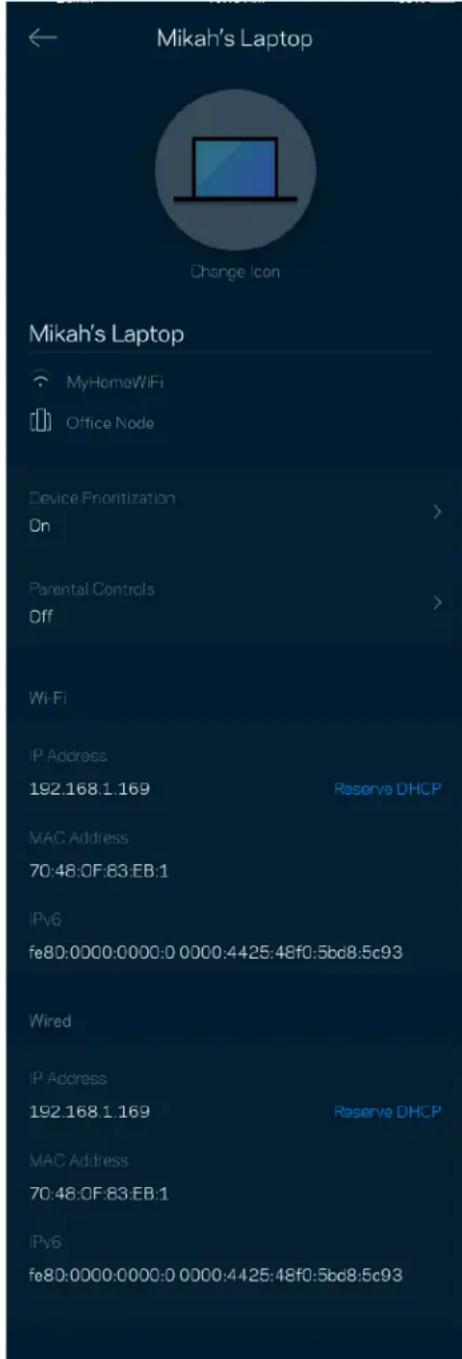

To view or change device details

From the Devices screen you can edit device names and change the device icons. You also can prioritize devices, set parental controls, and see WiFi details. Tap on any device to see details.

Mikah's Laptop Change Icon Mikah's Laptop MyHomeWiFi Office Node Device Prioritization On > Parental Controls Off > Wi-Fi IP Address 192.168.1.169 Reserve DHCP MAC Address 70:48:OF:83:EB:1 IPv6 fe8D:0000:0000:0 0000:4425:48f0:5bd8:5c93 Wired IP Address 192.168.1.169 Reserve DHCP MAC Address 70:48:OF:83:EB:1 IPv6 fe8D:0000:0000:0 0000:4425:48f0:5bd8:5c93

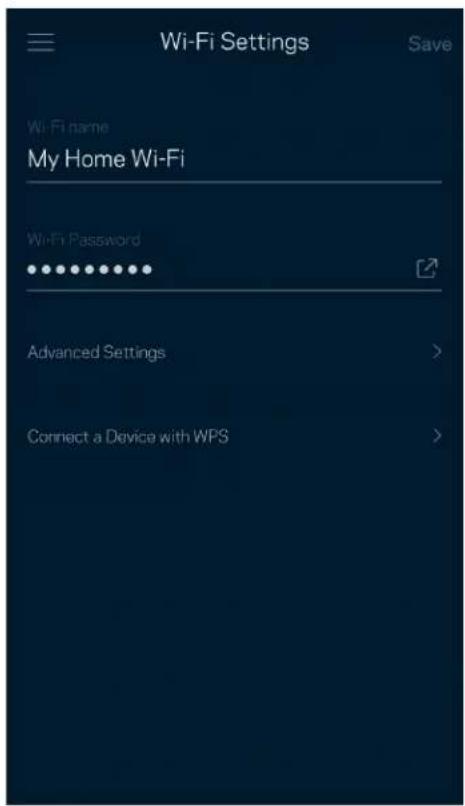

WiFi Settings

View or change your WiFi name and password and connect devices using WiFi Protected Setup ^™ .

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

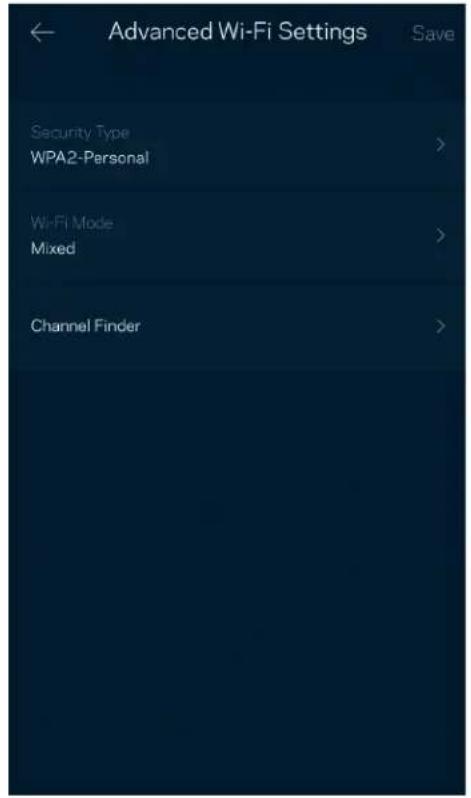

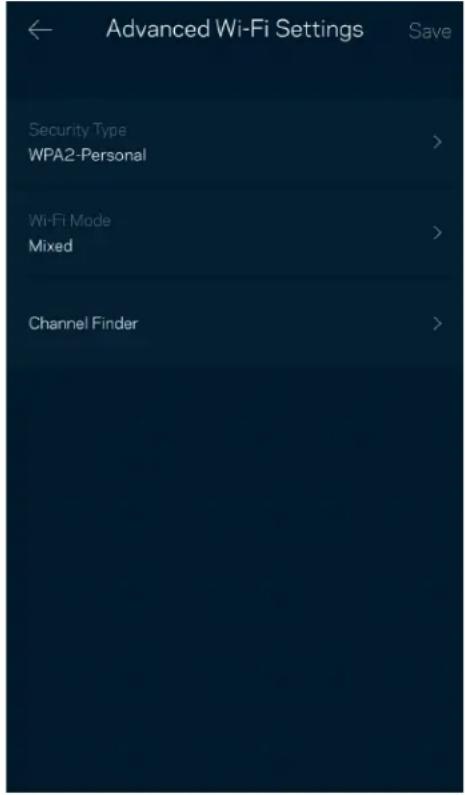

Advanced Settings

Advanced users can change the default security type and WiFi mode. Do not change these unless you have a lot of experience with WiFi networks. Channel Finder will search for the most-open WiFi channels in your area to ensure you get the best performance from your mesh system. If you have more than one node in your mesh system, Channel Finder will find the best channel for each node.

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

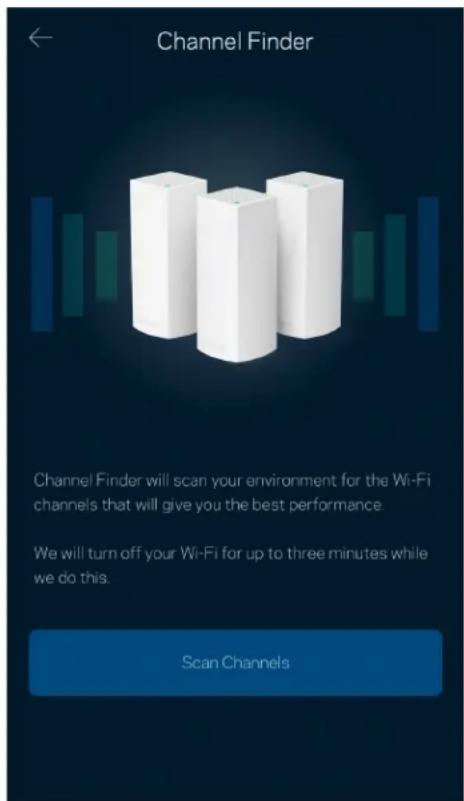

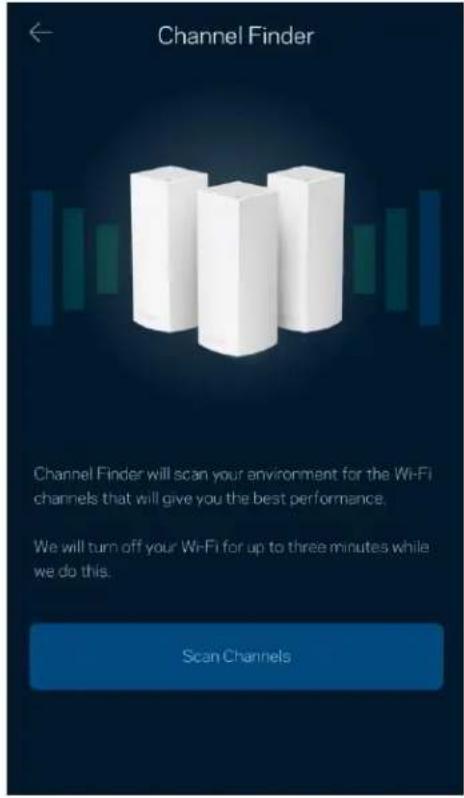

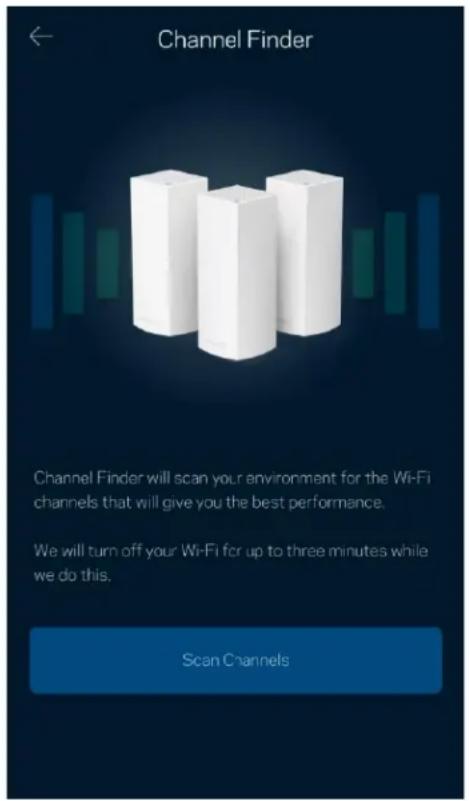

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

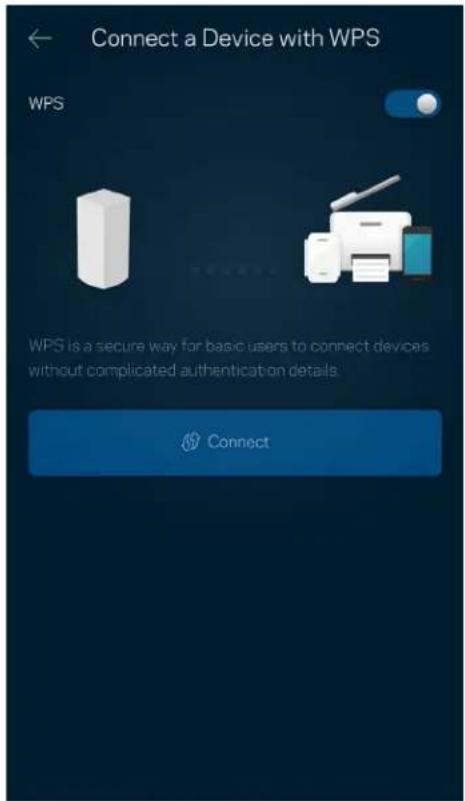

Connect a Device with WPS

WiFi Protected Setup allows you to easily connect wireless devices to your WiFi without manually entering security settings.

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details Connect

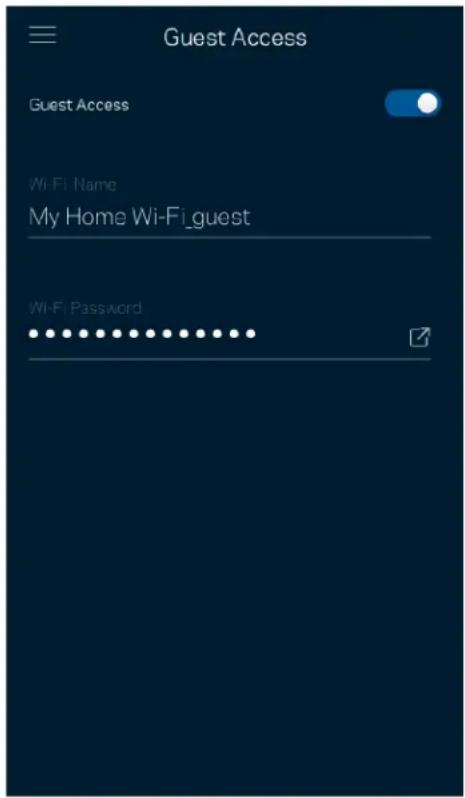

Guest Access

Use your Guest Access to allow guests to get online while restricting their access to other resources connected to your WiFi. Send the password by text message or email.

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-Fi Password

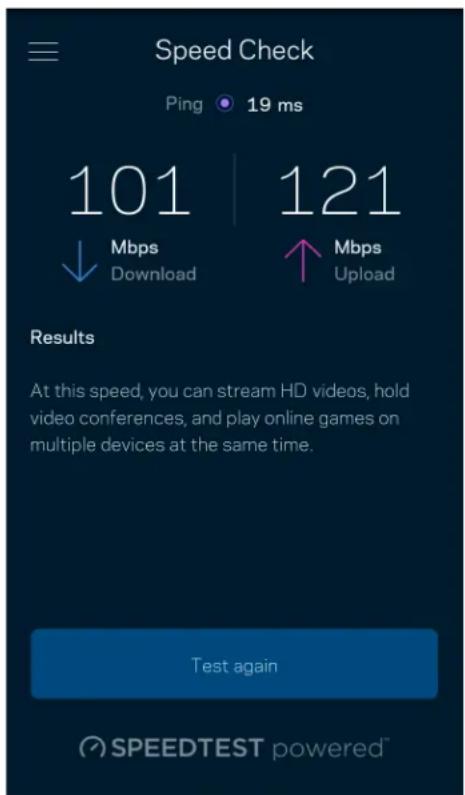

Speed Check

Run a speed check to make sure you are getting the speeds you are paying for. Speed check also helps in Device Prioritization because results determine how WiFi is distributed to the prioritized devices.

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

• Download speed is the rate at which internet content is transferred to your mesh system.
• Upload speed is the rate at which you can upload content to the internet.

Note—Internet connection speeds are determined by a variety of factors, including ISP account type, local and worldwide internet traffic, and number of devices in your home that are sharing the internet connection.

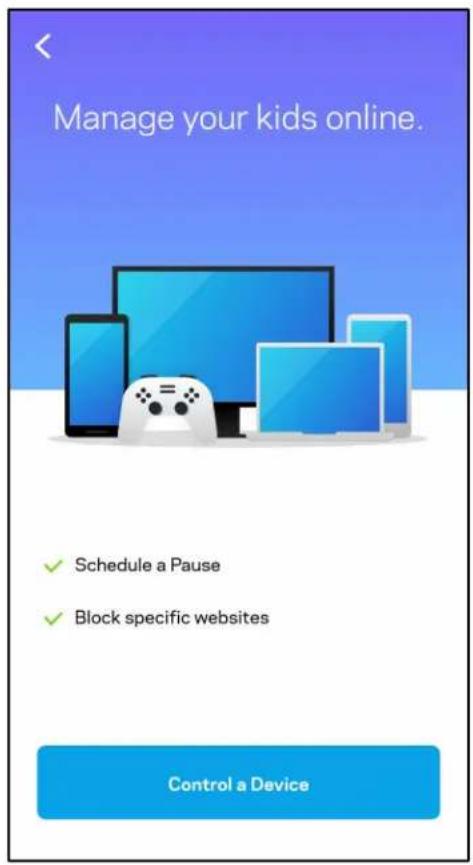

Parental Controls

Parental controls allow you to control when your kids are online and what they're doing there. Pause internet to specific devices, or block specific websites.

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

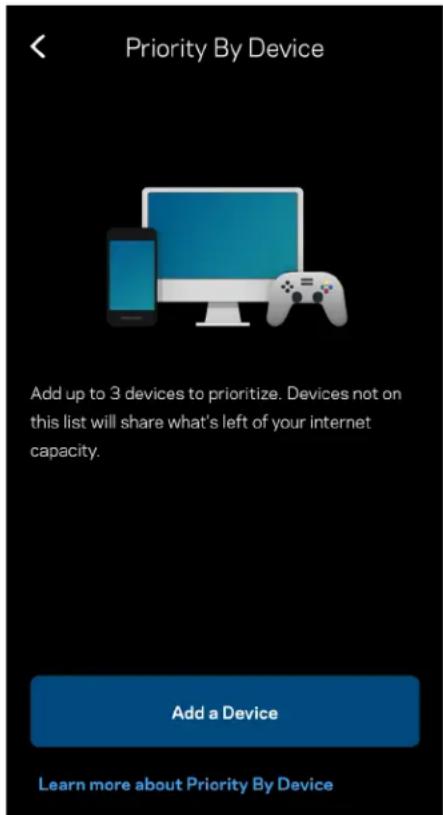

Priority

Choose up to three devices for priority usage of your internet connection. Those devices - wired and/or wireless - always will have the best access when connected. Atlas 6 runs a speed check to determine how to best distribute WiFi to prioritized devices. Other devices will share the leftover capacity. Prioritized devices appear on Dashboard.

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

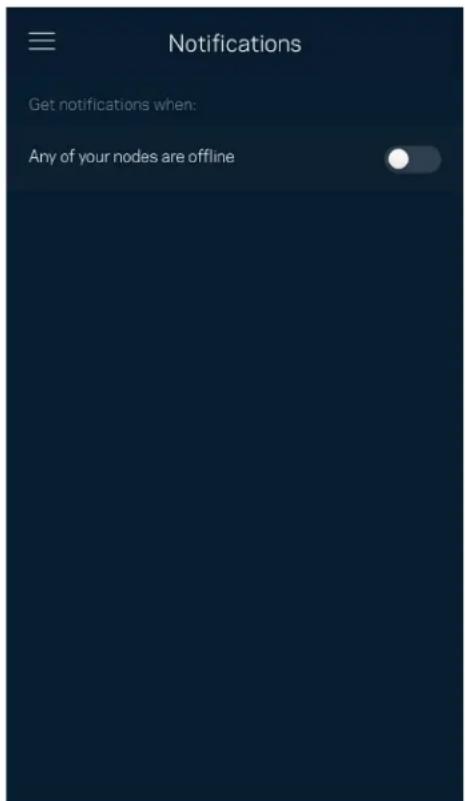

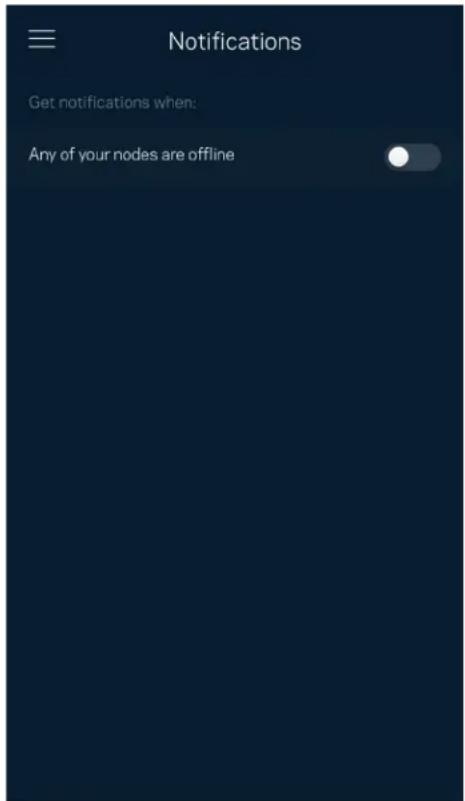

Notifications

If you have more than one node, Linksys can notify you when secondary nodes in your system go offline. Secondary nodes are any that are not wired to your modem. You have to turn on notifications in your mobile device settings to allow Linksys to notify you.

Notifications Get notifications when: Any of your nodes are offline

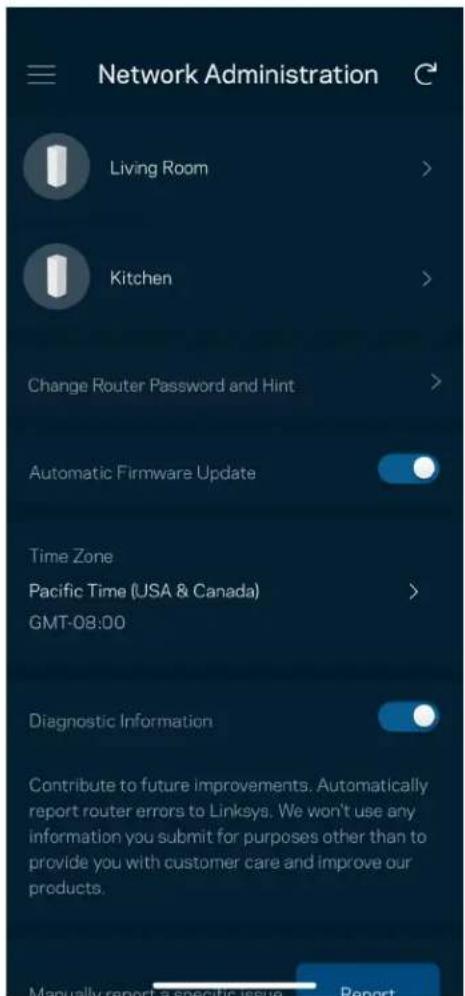

Network Administration

Use the Router Administration screen to change the admin password and hint, and check various identifiers (model number, serial number, and IP details) for all nodes in your WiFi.

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Opt in to automatically report crashes to Linksys and contribute to improving the WiFi experience. You also can manually report specific issues to Linksys.

The following information will be sent with your description of the issue:

App version	Login Type (cloud: show email address associated, local: display "Router admin")
Device model	WAN Connection type (display WiFi or ethernet)
Device OS version	Time: date (mo/day/year, time, time zone)

Advanced Settings

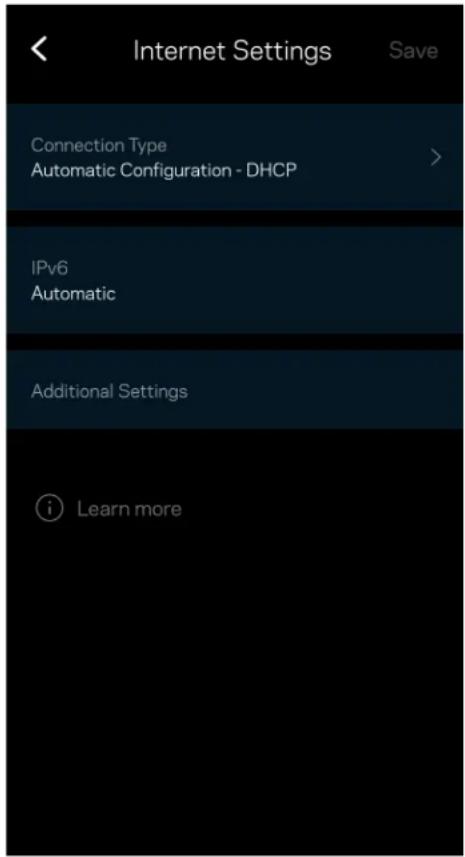

Internet Settings

You can choose how your mesh system connects to the internet. The default is Automatic

Configuration - DHCP. Other connection types depend on your internet service provider or how you plan to use your mesh system. Advanced users can use Additional Settings to clone MAC addresses and set MTU (maximum transmission unit).

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

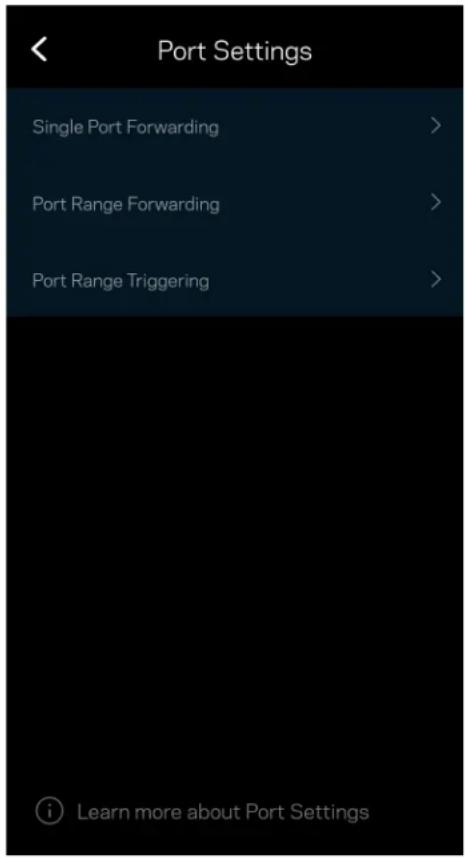

Port Settings

Port forwarding—for a single port, multiple ports or a range of ports—sends traffic inbound on a specific port or ports to a specific device or port on your WiFi. In port range triggering, your router watches outgoing data for specific port numbers. Your router remembers the IP address of the device that requests the data so that when the requested data returns, it is routed back to the proper device.

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

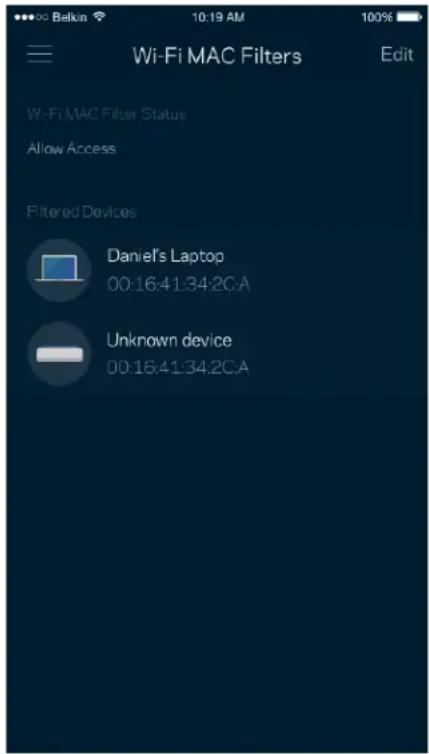

WiFi MAC Filters

Every network device has a unique 12-digit MAC (media access control) address. You can create a list of MAC addresses and regulate how devices use your WiFi.

Belkin 10:19 AM 100% Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34:2C:A Unknown device 00:16:41:34:2C:A

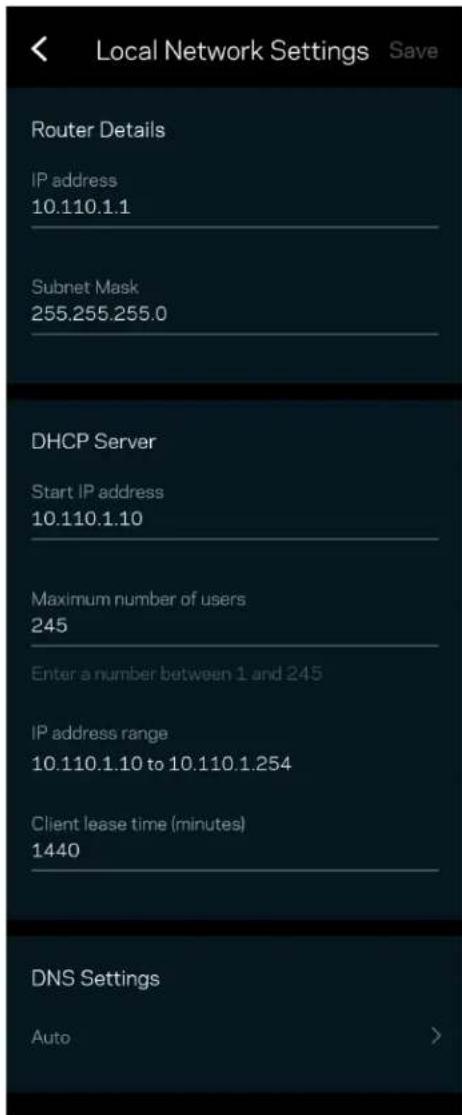

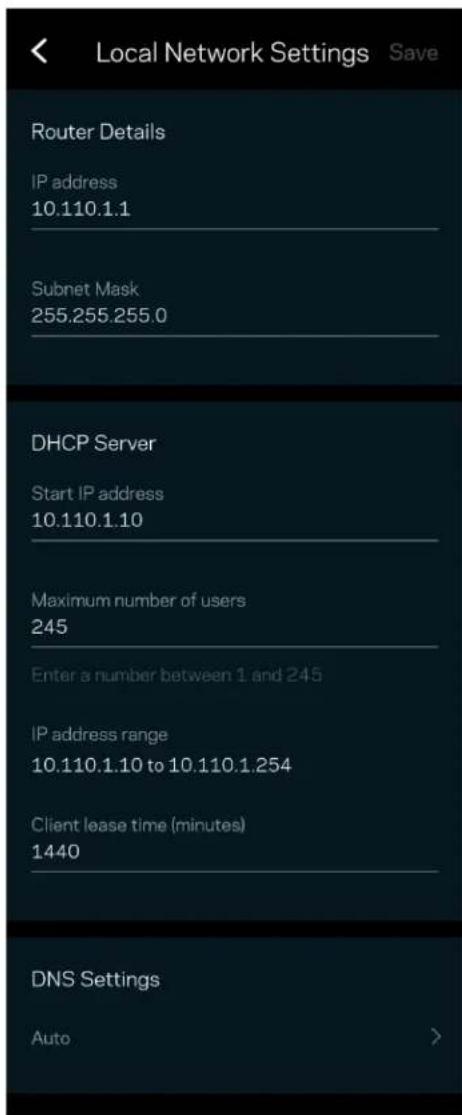

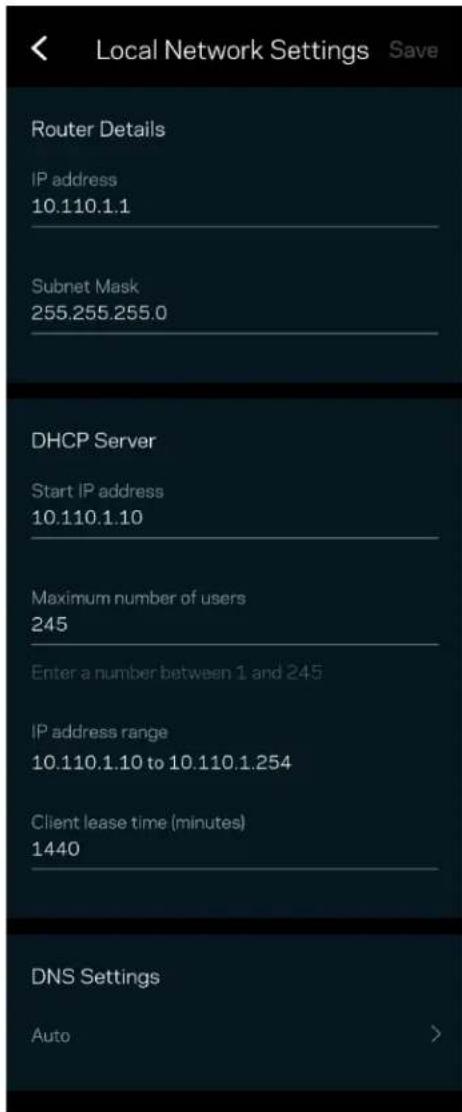

Local Network Settings

Details about the router and its connection status.

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

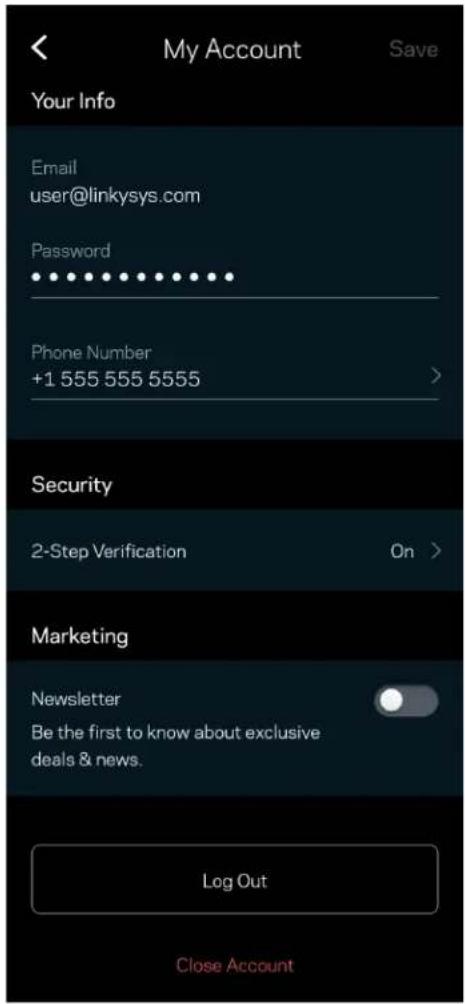

My Account

Change your Linksys app password and opt in to receive the latest news and deals from Linksys.

My Account Save Your Info Email [e-mail] Password • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Phone Number [phone] > Security 2-Step Verification On > Marketing Newsletter Be the first to know about exclusive deals & news. Log Out Close Account

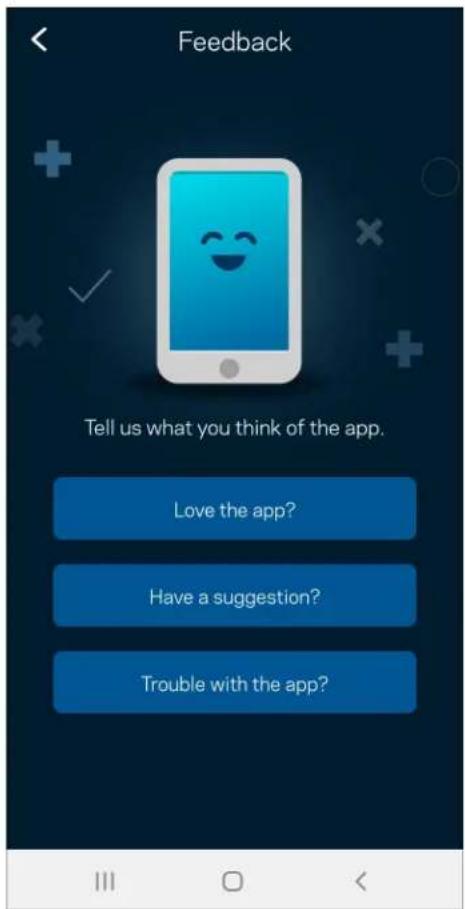

Feedback

Here's your chance to tell us what you think. Rate the app at your app store, send us a suggestion, or report an issue that's keeping you from a great experience.

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

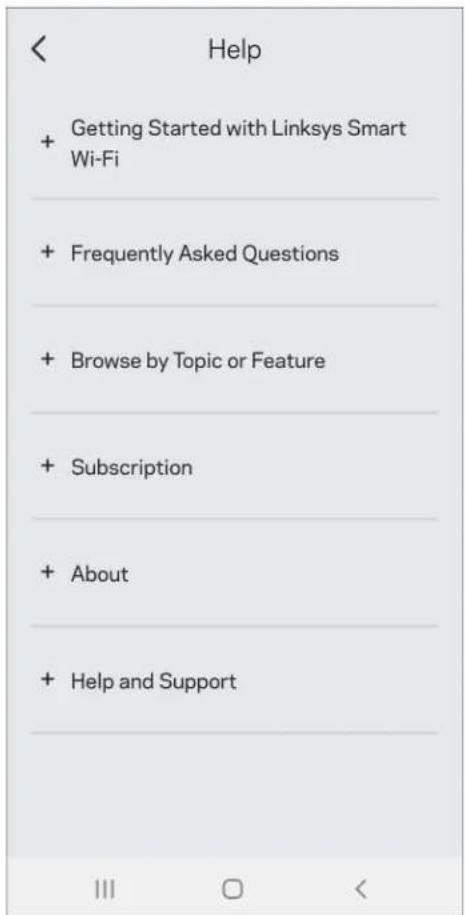

Help

Having trouble with the app? Just need a little more information about a feature? Tap Help for an explanation.

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

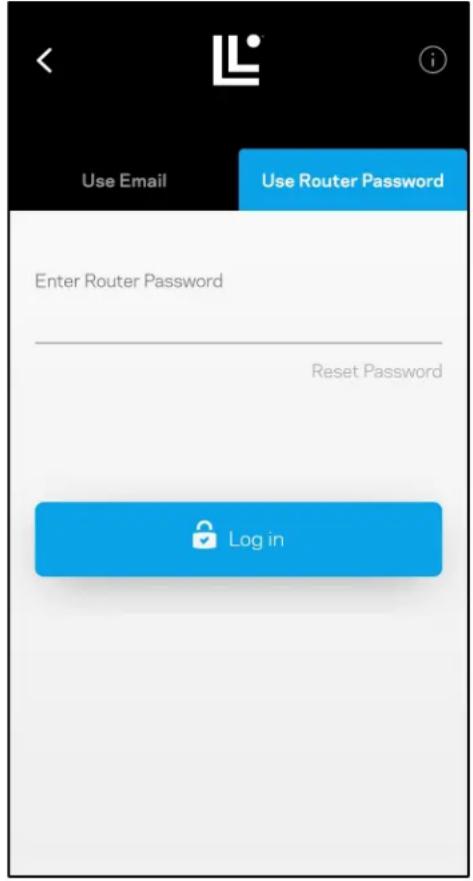

Connect Directly To Linksys Atlas 6

If you are not connected to the internet you still can access your mesh system. Connect to your WiFi name, launch the Linksys app and tap Use Router Password. You will not be able to access your Linksys WiFi account when not online.

Use Email Use Router Password Enter Router Password Reset Password Log in

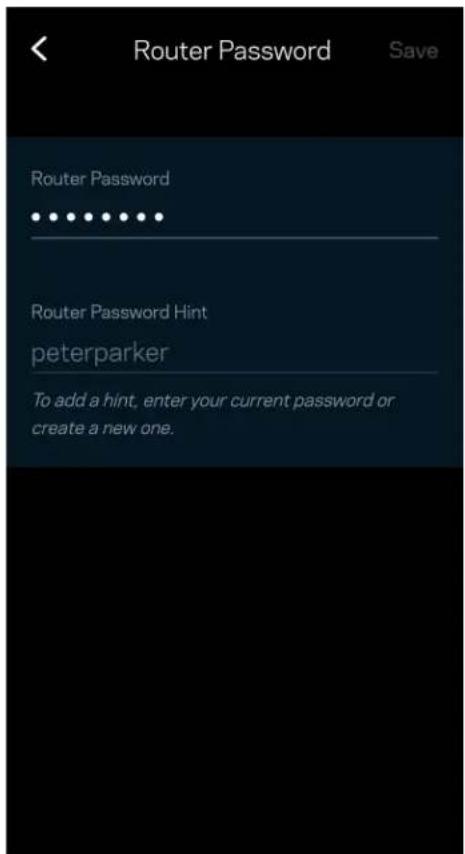

Router password

We created a secure router password during setup. This is not the same as the WiFi password you created to connect to your mesh system. To change the router password, tap Network Administration and Change Router Password and Hint.

Router Password Save Router Password • • • • • • • • • Router Password Hint peterparker To add a hint, enter your current password or create a new one.

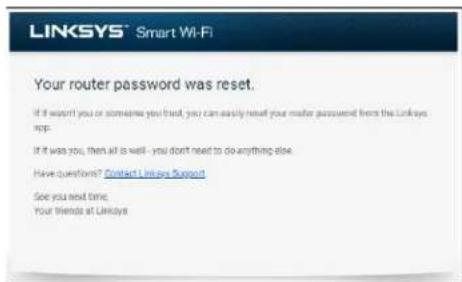

To keep your Linksys mesh system secure, we'll send you an email if someone changes the router password.

LINKSYS™ Smart Wi-Fi Your router password was reset. If it wasn't you or someone you tried, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Links Support See you next time Your friends at Linksys

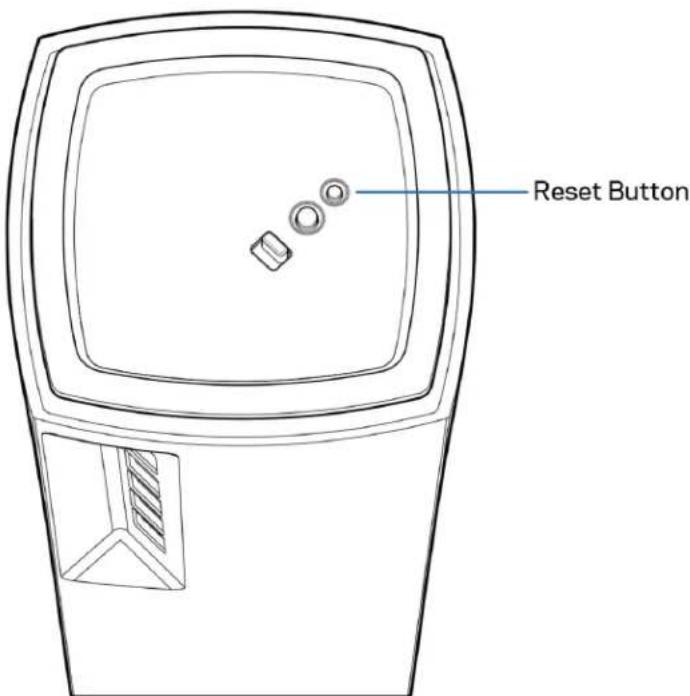

How to restore factory defaults

You should never need to factory reset your Atlas 6—a very disruptive process. A factory reset restores your router to the state it was when you took it out of its box, requiring you to go through the setup process again. All settings you have customized in setup and since – things such as WiFi name, passwords, security type – will be erased. All wireless devices will disconnect from your WiFi.

To reset your Atlas 6:

- With your node connected to power and turned on, press and hold the Reset button on the bottom. The light on top of the node will turn red and fade in pulses. Do not release the button until the light goes out and then turns bright red.

Reset Button

Specifications

Linksys Atlas 6

Model Name Atlas 6 AX3000 WiFi 6 System

Model Number MX2000 series

Switch Port Speed 10/100/1000 Mbps

Radio Frequency 2.4 GHz and 5 GHz

# of Antennas 3 (internal)

Ports Ethernet, Internet, Power

Buttons Power switch, WPS, reset

Light One, multicolored light for power and status

Security Features WPA2-Personal, WPA3-Personal

Security Key Bits Up to 128-bit encryption

Environmental

Dimensions 3.4 inches x 3.4 inches x 7.3 inches

Unit Weight 1.16lb

Power 12V, 1.5A

Certifications FCC, IC, CE, WiFi (IEEE 802.11a/b/g/n/ac, draft 802.11ax)

Operating Temp. 32^ to 104^ F (0 to 40^ C)

Storage Temp. -4° to 140° F (-20 to 60° C)

Operating Humidity 10% to 80% relative humidity, non-condensing

Storage Humidity 5% to 90% non-condensing

Notes:

For regulatory, warranty, and safety information, go to Linksys.com/support/Atlas6.

Specifications are subject to change without notice.

Maximum performance derived from IEEE Standard 802.11 specifications. Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage.

Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions.

Visit linksys.com/support/Atlas6 for award-winning technical support.

LINKSYS, Hydra, Atlas and many product names and logos are trademarks of the Linksys Holdings, Inc. and/or its affiliates.. Third-party trademarks mentioned are the property of their respective owners.

© 2022 Linksys Holdings Inc. and/or its affiliates. All rights reserved.

LNKPG-00913 A00

Linksys

GUÍA DEL USUARIO

ATLAS 6

Serie MX2000

Tabla de contenidos

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Dispositivos

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Acceso de invitados

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-FiPassword

Prueba de velocidad

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Prioridad

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Notificaciones

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

Filtros MAC de Wi-Fi

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34:2C:A Unknown device 00:16:41:34:2C:A

Ajustes de la Red Local

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Mi cuenta

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Ayuda

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Conecte directamente a Linksys Atlas 6

Use Email Use Router Password Enter Router Password Reset Password Log in

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support See you next time. Your friends at Linksys

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet 4 Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Appareils

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Paramètres avancés

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Accès d'invité

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-FiPassword

Contrôle de vitesse

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Priorité

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Notifications

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Paramètres de ports

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

Filtres MAC sans fil

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34.2C:A Unknown device 00:16:41:34.2C:A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Mon compte

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Aide

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

Router Password Save Router Password ... Router Password Hint peterparker To add a hint, enter your current password or create a new one.

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support. Give you next time. Your friends at Linksys

Ports Ethernet, Internet, Alimentation

Certifications FCC, IC, CE, WiFi (IEEE 802.11a/b/g/n/ac, draft 802.11ax)

16 WPS Household Management

17 وصول الضيف

18 التحقق من السرعة

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Dashboard My Home Wi-Fi is Online Internet 4 Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101 1.1

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name: My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Advanced Wi-Fi Settings Save Security Type > WPA2-Personal > Wi-Fi Mode > Mixed > Channel Finder >

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-FiPassword

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP IPv6 Automatic Additional Settings i Learn more

إعدادات المنず

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34:20:A Unknown device 00:16:41:34:20:A

Local Network Settings

Save

Router Details

IP address

10.110.1.1

Subnet Mask

255.255.255.0

DHCP Server

Start IP address

10.110.1.10

Maximum number of users

245

Enter a number between 1 and 245

IP address range

Client lease time (minutes)

1440

DNS Settings

Auto

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

كلمة مرور الموجه

LINKSYS™ Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linkups app. If it was you, then all is well - you don't need to do anything else. Have Questions? Contact Links Support See you next time. Your friends at Linkups

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet 4 Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Устройства

Devices Connected Devices (5) Downstairs TV MyHomeWiFi > Game Console Connected via ethernet > Jon's Phone MyHomeWiFi > Mika's Laptop MyHomeWiFi > Thermostat MyHomeWiFi > Guest Devices (3) Michelle's Phone MyGuestWiFi > Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Разширени настройки

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Достъп за гости

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-FiPassword

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Приоритет

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Известия

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

Wi-Fi MAC филтри

Wi-Fi MAC Filters Edit Wi Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34.2C:A Unknown device 00:16:41:34.2C:A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Моят акаунт

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Помощ

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

Парола на рутера

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support See your next time: Your friends at Linksys

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi_Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Zařízení

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Pokročilá nastavení

Advanced Wi-Fi Settings Save Security Type > WPA2-Personal > Wi-Fi Mode > Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-Fi.Password

Rychlostní test

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Priorita

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Oznámení

Notifications Get notifications when: Any of your nodes are offline

Správce sítě

Network Administration Living Room > Kitchen > Change Router Password and Hint > Automatic Firmware Update Time Zone Pacific Time (USA & Canada) > GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Nastavení portů

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34:2C:A Unknown device 00:16:41:34:2C:A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Můj účet

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Nápověda

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

Heslo směrovače

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support See you next time. Your linksys at Linksys

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi_Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Enheder

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Gæsteadgang

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-Fi.Password

Hastighedstjek

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Prioritet

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Beskeder

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room > Kitchen > Change Router Password and Hint > Automatic Firmware Update Time Zone Pacific Time (USA & Canada) > GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Portindstillinger

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

WiFi MAC-filtre

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34:2C:A Unknown device 00:16:41:34:2C:A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Min konto

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Hjælp

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support See you next time. Your linksys at Linksys

WPA2-Personal, WPA3-Personal

Sikkerhedsnøglebit

Op til 128-bit kryptering

Omgivelser

Mål

86,5 mm x 86,5 mm x 185,5

FCC, IC, CE, WiFi (IEEE 802.11a/b/g/n/ac, draft 802.11ax)

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet 4 Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Geräte

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Gastzugriff

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-FiPassword

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Priorität

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Benachrichtigungen

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Port-Einstellungen

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

WLAN-MAC-Filter

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34:2C:A Unknown device 00:16:41:34:2C:A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Mein Konto

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Hilfe

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

Router-Password

Router Password Save Router Password ... Router Password Hint peterparker To add a hint, enter your current password or create a new one.

LINKSYS™ Smart Wi-Fi Your router password was reset. If it wasn't you or someone your trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else Have questions? Contact Linksys Support See you next time Your friends at Linksys

Anschlüsse Ethernet, Internet, Strom

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet 4 Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Devices (Συσκευές)

Devices Connected Devices (5) Downstairs TV MyHomeWiFi > Game Console Connected via ethernet > Jon's Phone MyHomeWiFi > Mika's Laptop MyHomeWiFi > Thermostat MyHomeWiFi > Guest Devices (3) Michelle's Phone MyGuestWiFi > Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-FiPassword

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34.2C:A Unknown device 00:16:41:34.2C:A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Help (Βοήθεια)

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support See your next time: Your friends at Linksys

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet 4 Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Dispositivos

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Acceso de invitados

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-FiPassword

Prueba de velocidad

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Prioridad

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Notificaciones

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

Filtrado MAC de WiFi

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34.2C.A Unknown device 00:16:41:34.2C.A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Mi cuenta

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Ayuda

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support See you next time. Your linksys at Linksys

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Seadmed

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Täpsemad seaded

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Külalise juurdepääs

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-Fi.Password

Kiirustest

Speed Check Ping 19 ms 101 | 121 ↓ Mbps Download ↑ Mbps Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Prioriteet

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Teated

Notifications Get notifications when: Any of your nodes are offline

Võrgu haldus

Network Administration Living Room > Kitchen > Change Router Password and Hint > Automatic Firmware Update Time Zone Pacific Time (USA & Canada) > GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Pordi seaded

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

WiFi MAC-filtrid

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34.2C:A Unknown device 00:16:41:34.2C:A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Minu konto

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Abi

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

Ruuteri parool

Router Password Save Router Password ... Router Password Hint peterparker To add a hint, enter your current password or create a new one.

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you tried, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Links Support See you next time. Your friends at Linksys

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi_Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Laitteet

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Lisäasetukset

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Vieraskäyttö

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-Fi.Password

Nopeustarkistus

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Prioriteetti

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Ilmoitukset

Notifications Get notifications when: Any of your nodes are offline

Verkon hallinta

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Porttiasetukset

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34.2C:A Unknown device 00:16:41:34.2C:A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Oma tili

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Ohje

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

Reitittimen salasana

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support See you next time. Your friends at Linksys

Devices (Appareils) 11

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Devices (Appareils)

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-FiPassword

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Notifications

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

WiFi MAC Filters (Filtres MAC sans fil)

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34.2C:A Unknown device 00:16:41:34.2C:A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Help (Aide)

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

Router Password Save Router Password ... Router Password Hint peterparker To add a hint, enter your current password or create a new one.

LINKSYS™ Smart Wi-Fi Your router password was reset. If it wasn't you or someone your trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else Have questions? Contact Linksys Support See you next time Your friends at Linksys

Ports Ethernet, Internet, alimentation

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet 4 Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Devices (Eszközök)

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-FiPassword

Sebességteszt

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Prioritások

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

Wi-Fi MAC-szüröi

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34.2C:A Unknown device 00:16:41:34.2C:A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Help (Súgó)

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

Jelszó a routerhez

Router Password Save Router Password ... Router Password Hint peterparker To add a hint, enter your current password or create a new one.

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you tried, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Links Support See you next time. Your friends at Linksys

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Perangkat

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Akses Tamu

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-Fi.Password

Uji Kecepatan

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Prioritas

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Notifikasi

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Pengaturan Port

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

Filter MAC Wi-Fi

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34.2C:A Unknown device 00:16:41:34.2C:A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Akun Saya

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Bantuan

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

Kata Sandi Router

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support See you next time. Your friends at Linksys

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

1. Aprire l'App Linksys.

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet 4 Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Dispositivi

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Accesso ospite

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-Fi.Password

Test della velocità

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Priorità

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Notifiche

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Impostazioni porta

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

Filtri MAC WiFi

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34.2C.A Unknown device 00:16:41:34.2C.A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Il mio account

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Guida

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

Password del router

Router Password Save Router Password ... Router Password Hint peterparker To add a hint, enter your current password or create a new one.

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support. Give you next time. Your friends at Linksys

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet 4 Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

デバイス

Devices Connected Devices (5) Downstairs TV MyHomeWiFi > Game Console Connected via ethernet > Jon's Phone MyHomeWiFi > Mika's Laptop MyHomeWiFi > Thermostat MyHomeWiFi > Guest Devices (3) Michelle's Phone MyGuestWiFi > Offline Devices (5)

デバイスの詳細を表示または変更するには

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

詳細設定

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

WPS でデバイスを接続

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

ゲストアクセス

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-FiPassword

スピードテスト

Speed Check Ping 19 ms 101 | 121 ↓ Mbps Download ↑ Mbps Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

優先度

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

通知

Notifications Get notifications when: Any of your nodes are offline

ネットワーク管理

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products.

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

ポート設定

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

WiFi MAC フィルター

Wi-Fi MAC Filters Edit Wi-Fi/MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34:2C:A Unknown device 00:16:41:34:2C:A

ローカル ネットワーク設定

ルーターとその接続状態の詳細情報です。

Local Network Settings

Save

Router Details

Subnet Mask 255.255.255.0

DHCP Server

Start IP address 10.110.1.10

Maximum number of users 245

Enter a number between 1 and 245

Client lease time (minutes) 1440

DNS Settings

Auto

マイ アカウント

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

ヘルプ

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Linksys Atlas 6 に直接接続

Use Email Use Router Password Enter Router Password Reset Password Log in

ルーター パスワード

Router Password Save Router Password ..... Router Password Hint peterparker To add a hint, enter your current password or create a new one.

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support! See you next time, Your friends at Linksys

ファクトリ既定値に復元するには

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log In New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet 4 Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

장치

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

고급 설정

Advanced Wi-Fi Settings Save Security Type > WPA2-Personal > Wi-Fi Mode > Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

WPS 와 장치 연결

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

게스트 액세스

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-Fi Password

속도 점검

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

우선순위

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

알림

Notifications Get notifications when: Any of your nodes are offline

네트워크 관리

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue. Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

포트 설정

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

WiFi MAC 필터

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34:2C.A Unknown device 00:16:41:34:2C.A

로컬 네트워크 설정

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

내 계정

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

도움말

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

라우터 암호

Router Password Save Router Password ...... Router Password Hint peterparker To add a hint, enter your current password or create a new one.

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support! See you next time, Your friends at Linksys

출하시 기본값을 복구하는 방법

인증 FCC, IC, CE, WiFi (IEEE 802.11a/b/g/n/ac, draft 802.11ax)

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet 4 Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Irenginiai

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Irenginio prijungimas naudojant WPS

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Svečio prieiga

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-Fi.Password

Greičio patikra

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Prioritetas

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Pranešimai

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Prievado nuostatos

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

„WiFi“ MAC filtrai

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34.2C:A Unknown device 00:16:41:34.2C:A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Mano paskyra

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Pagalba

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support See you next time. Your friends at Linksys

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Dashboard My Home Wi-Fi is Online Internet Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi_Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

lerices

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Īpaši iestatījumi

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Ierices savienošana ar WPS

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Viesu piekluve

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-Fi.Password

Ātruma pārbaude

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Prioritāte

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Zinojumi

Notifications Get notifications when: Any of your nodes are offline

Tikla pārvaldība

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

WiFi MAC filtri

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34.2C.A Unknown device 00:16:41:34.2C.A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Mans konts

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Palīdzība

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

Maršrutētāja parole

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support See you next time. Your friends at Linksys

Sertifikāti FCC, IC, CE, WiFi (IEEE 802.11a/b/g/n/ac, draft 802.11ax)

Darba vides 32–104° F (0–40° C)

temperatūra

Glabāšanas vides -4–140° F (-20–60° C)

temperatūra

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi_Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Apparaten

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Gasttoegang

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-Fi.Password

Snelheidscontrole

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Prioriteit

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Meldingen

Notifications Get notifications when: Any of your nodes are offline

Netwerkbeheer

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Poortinstellingen

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

WiFi MAC-filters

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34:2C:A Unknown device 00:16:41:34:2C:A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Mijn account

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Help

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

Routerwachtwoord

Router Password Save Router Password ... Router Password Hint peterparker To add a hint, enter your current password or create a new one.

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you tried, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Links Support See you next time. Your friends at Linksys

Fabrieksinstellingen terugzetten

WPA2-Personal, WPA3-Personal

Beveiligingssleutel

FCC, IC, CE, WiFi (IEEE 802.11a/b/g/n/ac, concept 802.11ax)

Bedrijfstemperatuur

0 tot 40 °C

Opslagtemperatuur

-20 tot 60 °C

Systeminnstillinger for Atlas 6 9

Logg inn på Linksys-appen 9

Dashbord 10

Enheter 11

WiFi-innstillinger 12

Avanserte innstillinger 14

Koble til en enhet med WPS 15

Gjestetilgang 16

Hastighetssjekk 17

Foreldrekontroll 18

Prioritet 19

Varslinger 20

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Systeminnstillinger for Atlas 6

Dashboard My Home Wi-Fi is Online Internet Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi_Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Enheter

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Gjestetilgang

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-Fi.Password

Hastighetssjekk

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Prioritet

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Varslinger

Hvis du har flere enn én node, kan Linksys varsle deg når sekundære noder i systemet ditt går offline. Sekundære noder er noder som ikke er koblet til modemet ditt. Du må slå på varslinger i innstillingene til den mobile enheten for at Linksys skal kunne varsle deg.

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room > Kitchen > Change Router Password and Hint > Automatic Firmware Update Time Zone Pacific Time (USA & Canada) > GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Portinnstillinger

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

WiFi MAC-filtre

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34.2C.A Unknown device 00:16:41:34.2C.A

Lokale nettverksinnstillinger

Detaljer om ruteren og dens tilkoblingsstatus.

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Min konto

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Hjelp

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Koble direkte til Linksys Atlas 6

Use Email Use Router Password Enter Router Password Reset Password Log in

Ruterpassord

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linkips app. If it was you, then all is well - you don't need to do anything else Have questions? Contact Linkips Support See you next time. Your friends at Linkips

Porter Ethernet, Internett, Strøm

Knapper Strømbryter, WPS, tilbakestilling

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet 4 Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Urządzenia

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-FiPassword

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Priorytet

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Powiadomienia

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Ustawienia portu

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34.2C:A Unknown device 00:16:41:34.2C:A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Moje konto

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Pomoc

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

Hasło routera

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support See you next time. Your linksys at Linksys

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Dashboard My Home Wi-Fi is Online Internet 4 Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Dispositivos

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-Fi.Password

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Prioridade

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Notificações

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

Filtros MAC de WiFi

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34.2C.A Unknown device 00:16:41:34.2C.A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

A minha conta

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Ajuda

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support See you next time. Your linksys at Linksys

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet 4 Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Dispositivos

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-Fi.Password

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Prioridade

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Notificações

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

Filtros de MAC de Wi-Fi

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34.2C:A Unknown device 00:16:41:34.2C:A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Minha conta

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Ajuda

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

Senha do roteador

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support See you next time. Your friends at Linksys

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Dispositive

Devices Connected Devices (5) Downstairs TV MyHomeWiFi > Game Console Connected via ethernet > Jon's Phone MyHomeWiFi > Mika's Laptop MyHomeWiFi > Thermostat MyHomeWiFi > Guest Devices (3) Michelle's Phone MyGuestWiFi > Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Setări avansate

← Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Acces invitați

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-Fi Password

Verificare viteză

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Prioritate

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Notificări

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Setări port

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34:20:A Unknown device 00:16:41:34:20:A

Setări rețea locală

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Contul meu

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Ajutor

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

Parolă router

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else Have questions? Contact Linksys Support See you next time. Your friends at Linksys

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet 4 Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Устройства

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Гостевой доступ

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-FiPassword

Измерение скорости

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Приоритет

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Уведомления

Notifications Get notifications when: Any of your nodes are offline

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Настройки портов

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34.2C.A Unknown device 00:16:41:34.2C.A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Моя учетная запись

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Справка

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support See you next time. Your linksys at Linksys

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

Dashboard My Home Wi-Fi is Online Internet 4 Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

设备

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

查看或更改设备详情

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

使用 WPS 连接设备

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

来宾访问

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-Fi.Password

速度测试

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

优先级

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

通知

Notifications Get notifications when: Any of your nodes are offline

网络管理

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report...

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

端口设置

Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

WiFi MAC 过滤器

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34:2C:A Unknown device 00:16:41:34:2C:A

本地网络设置

有关路由器及其连接状态的详细信息。

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

我的帐户

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

帮助

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

路由器密码

LINKSYS™ Smart Wi-Fi Your router password was reset. If it wasn't you or someone you tried, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support See you next time Your friends at Linksys

如何恢复出厂默认设置

Reset Button WPS Button Power Switch

Tlačidlo Reset – Ak chcete resetovať uzol na továrenské nastavenia, podržte tlačidlo stlačené, kým sa indikátor na vrchnom paneli uzla nerozsvieti červeno, pomaly nezhasne a opät nezačne blikat’jasne červeno.

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Dashboard My Home Wi-Fi is Online Internet Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi_Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Zariadenia (Devices)

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Pokročilé nastavenia (Advanced Settings)

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Prístup hostí (Guest Access)

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-FiPassword

Speed Check (Kontrola rýchlosti)

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Priority (Priorita)

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Notifications Get notifications when: Any of your nodes are offline

Network Administration (Správa siete)

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Nastavenia portov (Port Settings)

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

WiFi MAC Filters (Filtre adries MAC v sieti Wi-Fi)

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34:2C:A Unknown device 00:16:41:34:2C:A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Moje konto (My Account)

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Pomocník (Help)

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Connect Directly To Linksys Atlas 6 (Pripojit priamo k Linksys Atlas 6)

Use Email Use Router Password Enter Router Password Reset Password Log in

Heslo smerovača

Router Password Save Router Password ... Router Password Hint peterparker To add a hint, enter your current password or create a new one.

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support. Give you next time. Your friends at Linksys

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Linksys Already using a Linksys product? Log in Have a new Linksys product? Launch setup

Use Email Use Router Password Email Address Password Forgot Password? Log in New here? Create an Email Login

1. Vnesite e-poštni naslov, ki ste ga uporabili pri ustvarjanju računa.
2. Vnesite geslo računa.
3. Dotaknite se polja Log in (Prijava).

Nadzorna plošča

Dashboard My Home Wi-Fi is Online Internet Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Naprave

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Za ogled ali spremembo podrobnosti omrežne naprave

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Dodatne nastavitve

Advanced Wi-Fi Settings Save Security Type WPA2-Personal > Wi-Fi Mode Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Povežite napravo z WPS-om

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Dostop za goste

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-Fi.Password

Preizkus hitrosti

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Prioriteta

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Obvestila

Notifications Get notifications when: Any of your nodes are offline

Upravljanje omrežja

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Nastavitve vrat

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34:2C:A Unknown device 00:16:41:34:2C:A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Moj račun

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Pomoč

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Use Email Use Router Password Enter Router Password Reset Password Log in

Router Password Save Router Password ... Router Password Hint peterparker To add a hint, enter your current password or create a new one.

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support. Give you next time. Your friends at Linksys

Ethernet Ports Internet Port Power Port

Reset Button WPS Button Power Switch

Dashboard Devices Wi-Fi Settings Guest Access External Storage Speed Check Parental Controls Priority Notifications Network Administration Advanced Settings My Account Feedback Help Set Up a New Product MyHomeWiFi

Dashboard My Home Wi-Fi is Online Internet Devices Wi-Fi My Home Wi-Fi Guest Access My Home Wi-Fi_Guest Parental Controls Justin's Laptop Blocked Manually Device Prioritization External Storage Office Eject SD 13.04 GB used 59.61 GB IP address for SMB access: 10.101.1.1

Enheter

Devices Connected Devices (5) Downstairs TV MyHomeWiFi Game Console Connected via ethernet Jon's Phone MyHomeWiFi Mika's Laptop MyHomeWiFi Thermostat MyHomeWiFi Guest Devices (3) Michelle's Phone MyGuestWiFi Offline Devices (5)

Wi-Fi Settings Save Wi-Fi name My Home Wi-Fi Wi-Fi Password Advanced Settings > Connect a Device with WPS >

Advanced Wi-Fi Settings Save Security Type > WPA2-Personal > Wi-Fi Mode > Mixed > Channel Finder >

Channel Finder Channel Finder will scan your environment for the Wi-Fi channels that will give you the best performance. We will turn off your Wi-Fi for up to three minutes while we do this. Scan Channels

Connect a Device with WPS WPS WPS is a secure way for basic users to connect devices without complicated authentication details. Connect

Gäståtkomst

Guest Access Guest Access Wi-Fi Name My Home Wi-Fi_guest Wi-Fi.Password

Hastighetskontroll

Speed Check Ping 19 ms 101 | 121 ↓ Mbps ↑ Mbps Download Upload Results At this speed, you can stream HD videos, hold video conferences, and play online games on multiple devices at the same time. Test again SPEEDTEST powered™

Manage your kids online. ✓ Schedule a Pause ✓ Block specific websites Control a Device

Prioritet

Priority By Device Add up to 3 devices to prioritize. Devices not on this list will share what's left of your internet capacity. Add a Device Learn more about Priority By Device

Meddelanden

Notifications Get notifications when: Any of your nodes are offline

Nätverksadministration

Network Administration Living Room Kitchen Change Router Password and Hint Automatic Firmware Update Time Zone Pacific Time (USA & Canada) GMT-08:00 Diagnostic Information Contribute to future improvements. Automatically report router errors to Linksys. We won't use any information you submit for purposes other than to provide you with customer care and improve our products. Manually report a specific issue... Report

Internet Settings Save Connection Type Automatic Configuration - DHCP > IPv6 Automatic Additional Settings i Learn more

Portinställningar

Port Settings Single Port Forwarding > Port Range Forwarding > Port Range Triggering >

Wi-Fi MAC Filters Edit Wi-Fi MAC Filter Status Allow Access Filtered Devices Daniel's Laptop 00:16:41:34.2C.A Unknown device 00:16:41:34.2C.A

Local Network Settings Save Router Details IP address 10.110.1.1 Subnet Mask 255.255.255.0 DHCP Server Start IP address 10.110.1.10 Maximum number of users 245 Enter a number between 1 and 245 IP address range 10.110.1.10 to 10.110.1.254 Client lease time (minutes) 1440 DNS Settings Auto >

Mitt konto

Feedback Tell us what you think of the app. Love the app? Have a suggestion? Trouble with the app?

Hjälp

Help + Getting Started with Linksys Smart Wi-Fi + Frequently Asked Questions + Browse by Topic or Feature + Subscription + About + Help and Support

Anslut direkt till Linksys Atlas 6

Use Email Use Router Password Enter Router Password Reset Password Log in

Routerlösenord

LINKSYS® Smart Wi-Fi Your router password was reset. If it wasn't you or someone you trust, you can easily reset your router password from the Linksys app. If it was you, then all is well - you don't need to do anything else. Have questions? Contact Linksys Support See you next time. Your friends at Linksys
