Product Type	WiFi 6 Mesh Router (mesh system)
Brand	Linksys
Model	Atlas 6 AX3000 MX2002
Dimensions (W x D x H)	8.6 cm x 8.6 cm x 18.5 cm
Weight	0.5 kg (1.16 lb)
Power	12 V, 1.5 A (adapter included)
Radio Frequencies	2.4 GHz and 5 GHz (dual band)
WiFi Standard	WiFi 6 (IEEE 802.11ax), backwards compatible
Maximum Speed	AX3000 (up to 2.4 Gbps on 5 GHz + 600 Mbps on 2.4 GHz)
Antennas	3 internal
Ethernet Ports	4 Gigabit ports (10/100/1000 Mbps) including 1 yellow Internet port
Buttons	On/Off, WPS, Reset
LED Indicator	Multicolor LED (blue, purple, red, yellow) for status
Wireless Security	WPA2-Personal, WPA3-Personal, 128-bit encryption
Software Features	Parental controls, device prioritization, guest access, speed test, notifications, network administration, port forwarding, MAC filters, WPS
Setup	Via Linksys app (iOS 14.1+ / Android 6+)
Operating Temperature	0 °C to 40 °C
Operating Humidity	10% to 80% (non-condensing)
Care and Cleaning	Clean with a soft, dry cloth; avoid moisture and chemicals
Repairability	Sealed device, no spare parts available; contact Linksys support

Frequently Asked Questions - Atlas 6 AX3000 MX2002 LINKSYS

How do I set up my Linksys Atlas 6?

Download the Linksys app from the App Store or Google Play, create a Linksys Smart WiFi account, then follow the instructions. Connect the main node to the modem via the yellow Internet port with an Ethernet cable, then turn it on.

What do the LED lights mean?

The LED indicates status: solid blue = connection established, flashing purple = setup in progress, flashing red = disconnected or too far, solid yellow = weak connection (child node only). See the manual for the full list.

How do I reset my router to factory settings?

Press and hold the Reset button (on the back) until the LED turns red, goes off, then flashes bright red. Then release. This clears all custom settings.

How do I change the WiFi password?

Open the Linksys app, go to WiFi Settings, change the name and password, then save. You can also do this via the web interface using the router password.

Can I connect devices without a password?

Yes, use the WPS (WiFi Protected Setup) function: press the WPS button on the back of the router, then enable WPS on the device. You can also share the password from the app via the Share button.

How do I prioritize a device to improve its speed?

In the app, go to Devices, select the device, then enable Prioritization. You can choose up to three devices to get the best bandwidth.

How do I set up parental controls?

In the app, go to Parental Controls. You can pause internet access for certain devices or block specific websites. Set schedules and restrictions per device.

What should I do if my internet connection is unstable?

Use the Speed Test feature in the app to check your speed. Make sure the Ethernet cable between the modem and router is securely connected. Restart the modem and router. If the problem persists, contact your ISP.

How do I access settings without an internet connection?

Connect to your router's WiFi network, open the Linksys app and use the Router Password option (enter the administrator password). You can then modify local settings.

How many nodes can I add?

The Linksys Atlas 6 mesh system can support multiple nodes. You can add up to 3 child nodes to extend wireless coverage. Setup is done via the app.

USER MANUAL Atlas 6 AX3000 MX2002 LINKSYS

Where to find more help 6

Set Up 7

Atlas 6 System Settings \_\_\_\_ 9

Log in to the Linksys app 9

Dashboard 10

Devices 11

To view or change device details 12

WiFi Settings 13

Advanced Settings 14

Connect a Device with WPS 15

Guest Access 16

Speed Check 17

Parental Controls 18

Priority 19

Notifications 20

Network Administration 21

Advanced Settings 22

Internet Settings 22

Port Settings 23

WiFi MAC Filters 24

Local Network Settings 25

My Account 26

Feedback 27

Help 28

Connect Directly To Linksys Atlas 6 29

Network admin password 30

How to restore factory defaults 31

Specifications 32

Linksys Atlas 6 32

Environmental 32

Product Overview

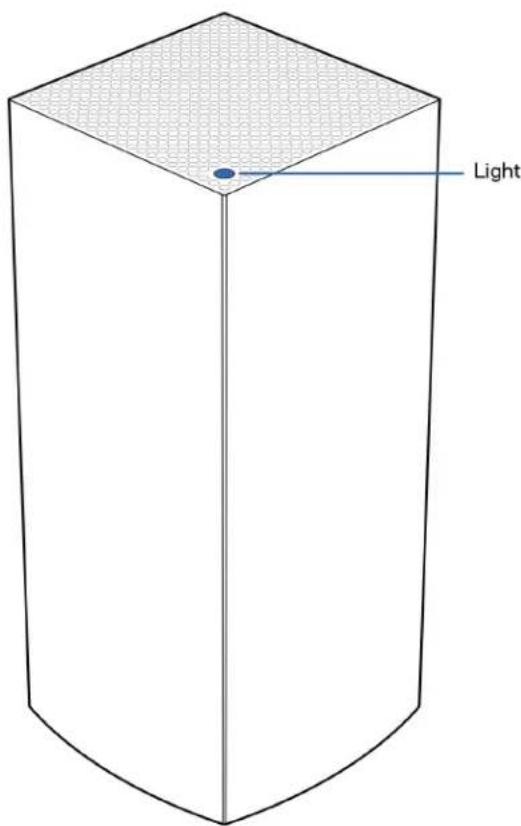

Front/top

The light on the top of your node gives you information about the node's operation.

Light description	Status
Blinking blue Starting up
Solid blue Connected
Blinking purple Setup in progress
Solid purple Ready for setup
Blinking red DisconnectedChild node: too farParent node: unplugged from modem
Solid red No internet from the modem
Solid yellow Weak connectionChild node only

Back

Ethernet ports—Connect ethernet cables to these Gigabit ethernet (10/100/1000) ports and to other wired devices on your network. If you have more than one node in your mesh system, use one of these ports to connect to your modem or modem-router.

Note—For best performance, use a CAT5e or higher rated cable on the Ethernet port.

Internet port—Connect an ethernet cable to the yellow gigabit (10/100/1000) port, and to a broadband internet cable/DSL or fiber modem. If you are using this router as a child node in a mesh WiFi system, you can use this port to create a wired connection to another node.

Power port—Connect the included AC power adapter to this port.

Bottom

Reset button—Press and hold until the light on top of the node turns red, fades and flashes bright red again to reset the node to its factory defaults.

WiFi Protected Setup button—Press to connect WPS-enabled network devices.

Power switch—Slide to | (on) to power on the node.

Help

Where to find more help

• Linksys.com/support/Atlas6

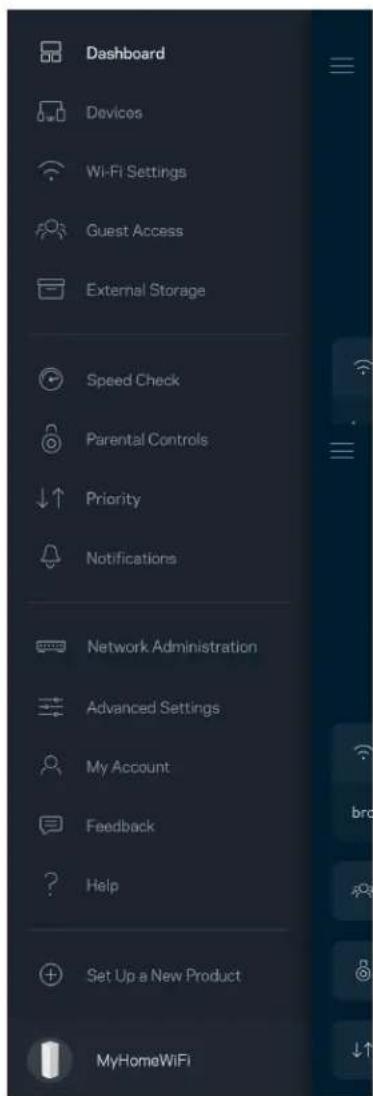

• Linksys app help (launch the app and click Help in the main navigation menu)

Note—Licenses and notices for third party software used in this product may be viewed on http://support.linksys.com/en-us/license. Please contact http://support.linksys.com/en-us/gplcodecenter for questions or GPL source code requests.

Set Up

IMPORTANT—Atlas 6 nodes can be set up as primary nodes or child nodes. A primary node must be connected with an ethernet cable to your modem or modem router. Once set up wirelessly, secondary nodes can be connected to another node wirelessly or with ethernet cables.

If you are adding this new node as parent node to an existing Linksys whole home mesh WiFi system, factory reset all nodes and add them to the system after the new node is setup and working.

Download the Linksys app. You need this app to set up your Linksys Atlas 6.

Go to the app store for your device and search for Linksys.

Install the app, open it and follow the instructions.

Note—The app works with iOS 14.1 and later, and Android 6 and later.

You will create a Linksys Smart WiFi account so you can use the app to view or change your mesh system settings from anywhere you have an internet connection.

Among the many things you can do with Linksys Smart WiFi:

• Change your WiFi name and password
- Set up guest access
- Connect devices to WiFi with WPS
• Block internet with parental controls
• Test your internet connection speed

Note—During setup we'll send a verification email. From your home network, click the link in the email.

Other than plugging in the power and the ethernet cable, the app-based setup process does the work for you. Once connected, use the app to personalize your WiFi by giving it a name and password. You also can give nodes names based on where they are so you can identify them in the rare case where things need attention.

Print this page, then record your WiFi and account settings in the table as a reference. Store your notes in a safe place.

WiFi Name
WiFi Password
Router Password
Guest Access Name
Guest Access Password
Linksys App Login Email
Linksys App Password

Atlas 6 System Settings

Using your Linksys app, you can view or change Atlas 6 settings to make your WiFi more secure or to work better with a device or game. You can access settings from anywhere in the world if you have an internet connection. You can also access settings using your router password when connected to your home network even if you do not have an internet connection.

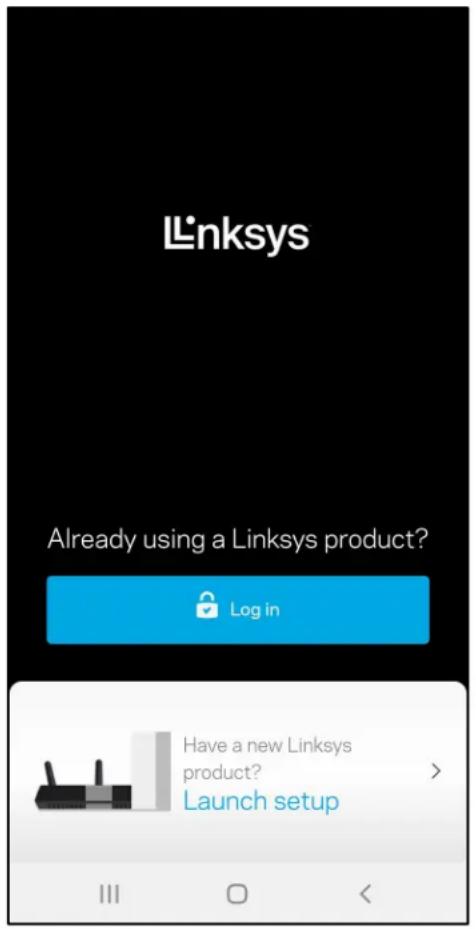

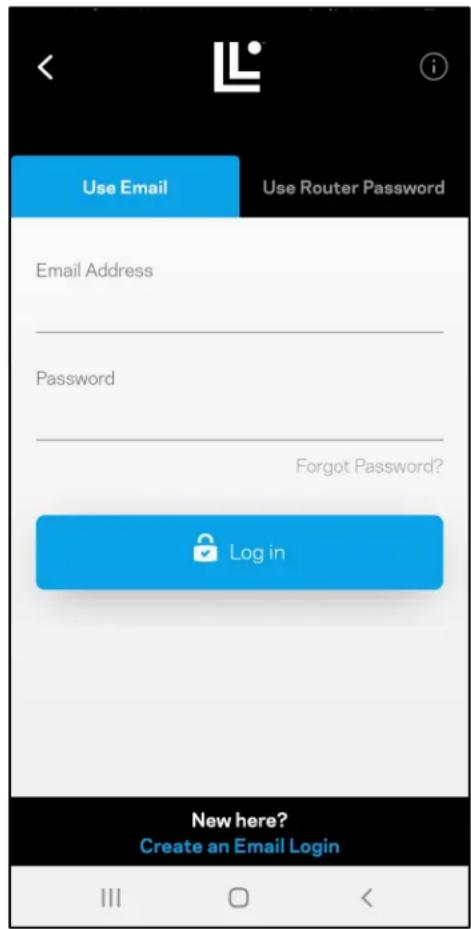

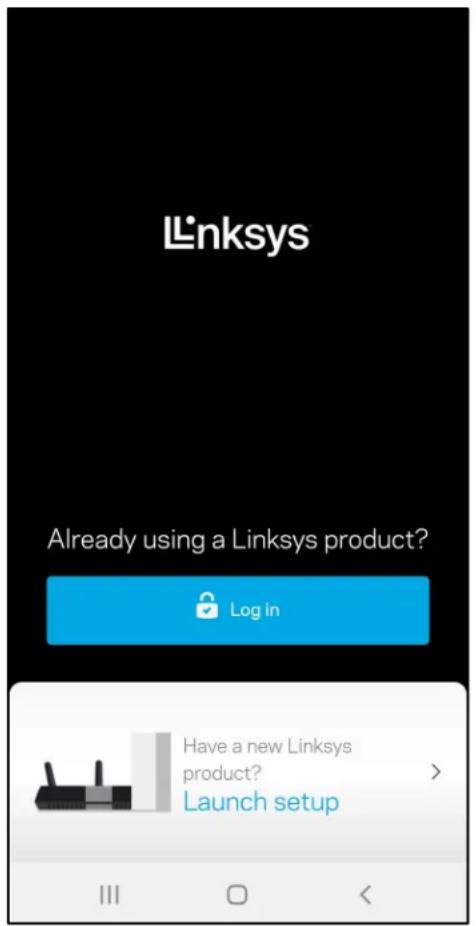

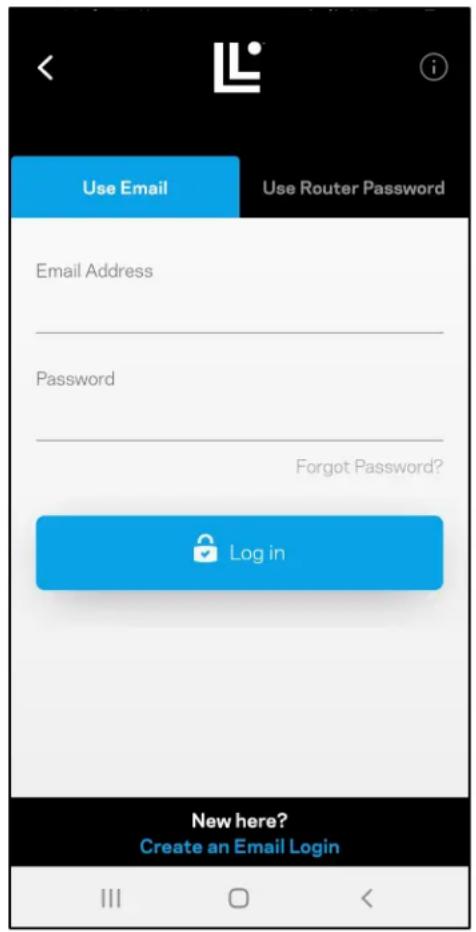

Log in to the Linksys app

1. Open the Linksys app.

1. Enter the email address you used when creating your account.
2. Enter your account password.
3. Tap Log in.

Dashboard

Dashboard is a snapshot of your WiFi. See how many devices are connected to your mesh system. Share WiFi password and allow guest access to your WiFi. Dashboard also shows you if any devices have parental controls on them or have been prioritized for WiFi access.

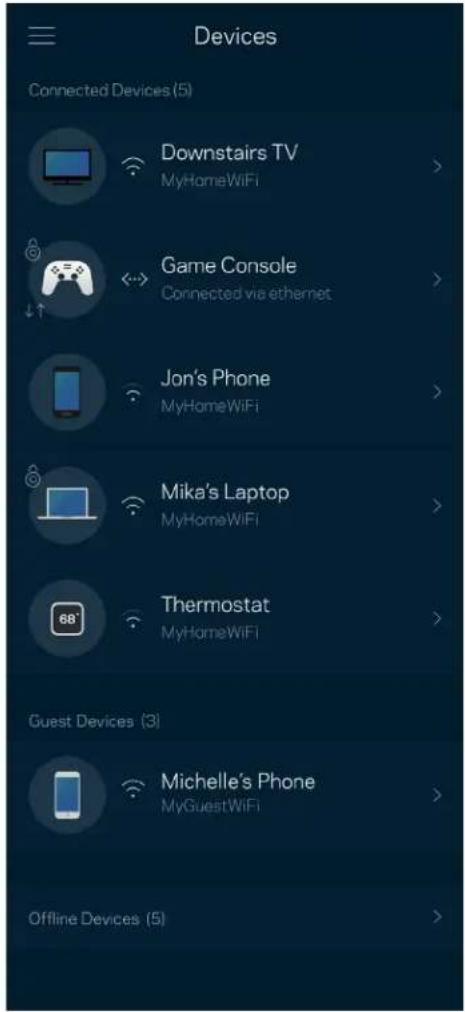

Devices

View and change details for all devices connected to your WiFi. You can view devices on your main network and your guest network, or display information about each device.

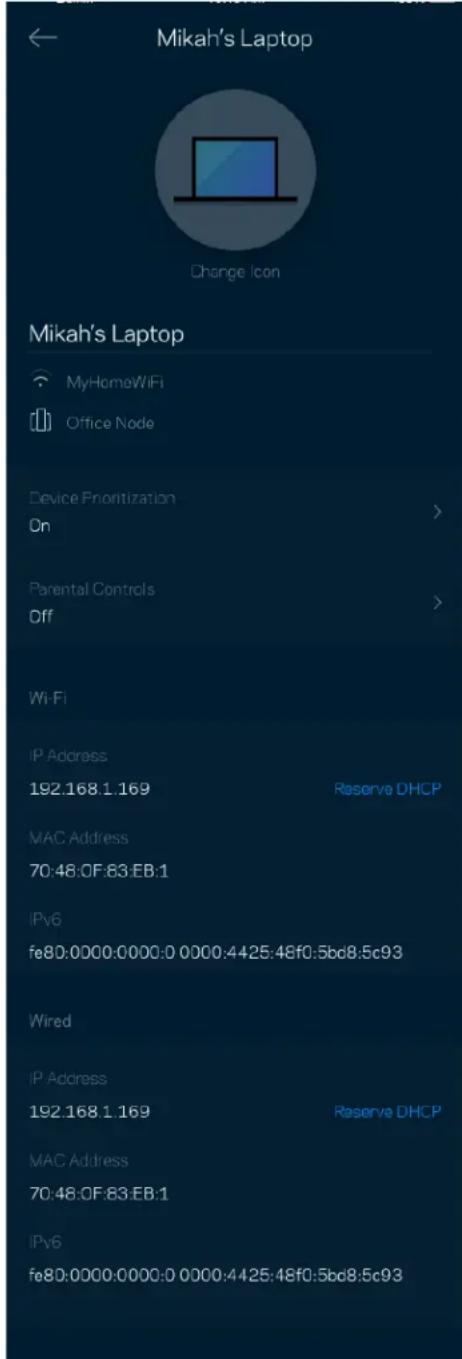

To view or change device details

From the Devices screen you can edit device names and change the device icons. You also can prioritize devices, set parental controls, and see WiFi details. Tap on any device to see details.

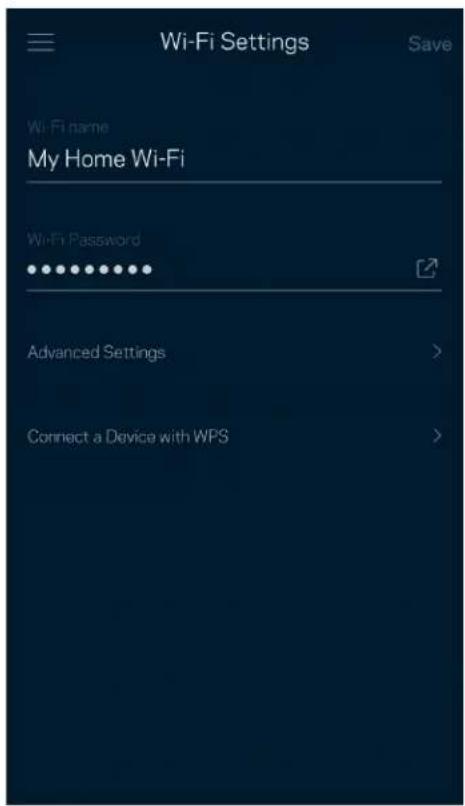

WiFi Settings

View or change your WiFi name and password and connect devices using WiFi Protected Setup ^™ .

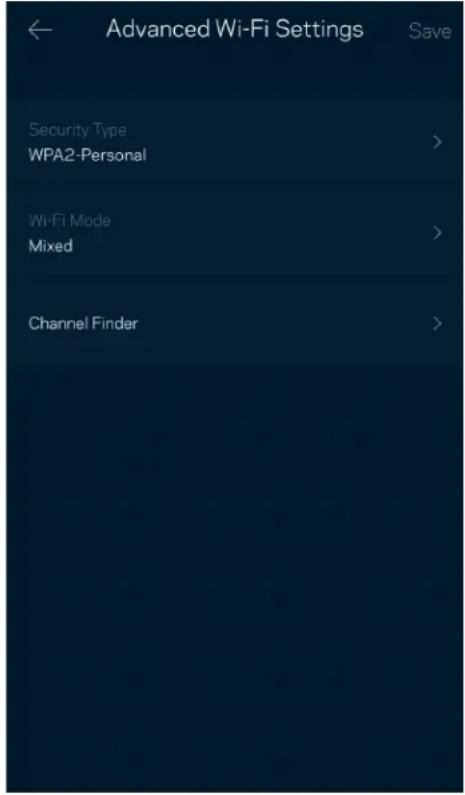

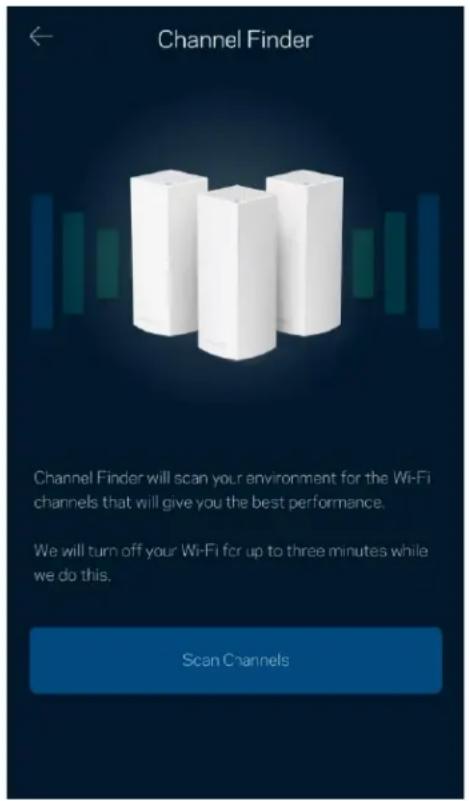

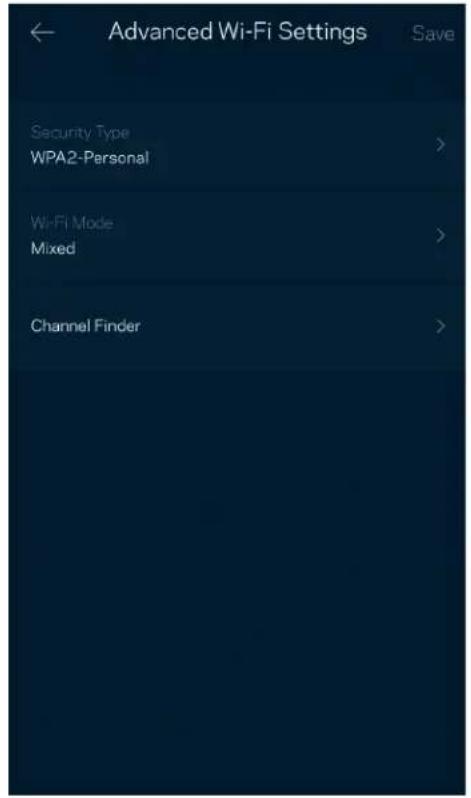

Advanced Settings

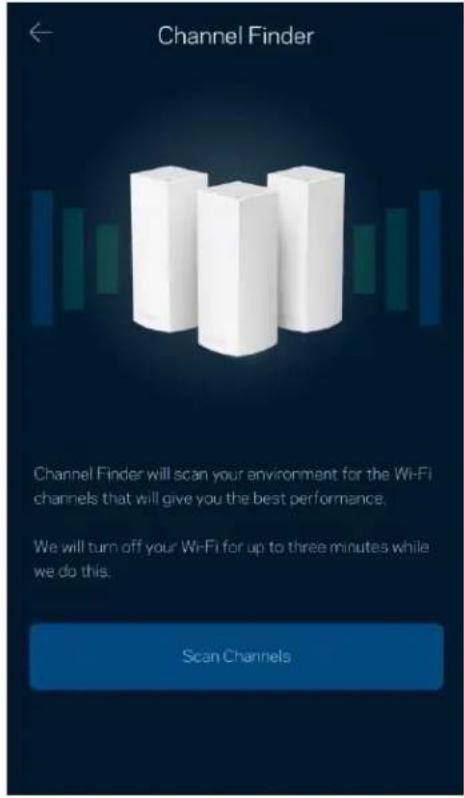

Advanced users can change the default security type and WiFi mode. Do not change these unless you have a lot of experience with WiFi networks. Channel Finder will search for the most-open WiFi channels in your area to ensure you get the best performance from your mesh system. If you have more than one node in your mesh system, Channel Finder will find the best channel for each node.

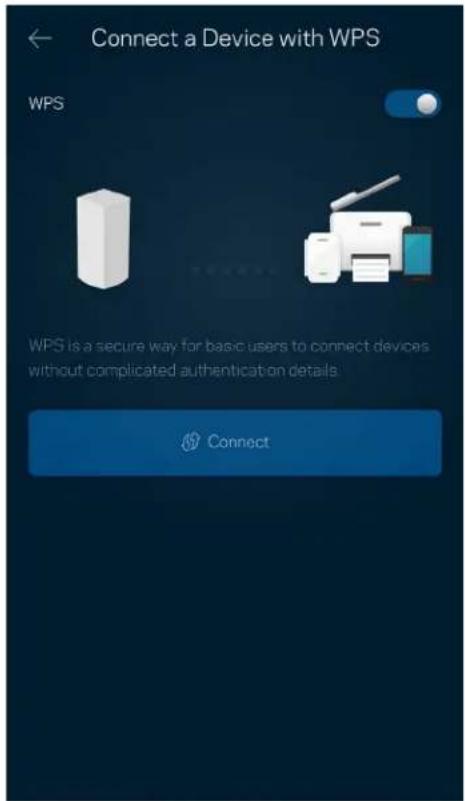

Connect a Device with WPS

WiFi Protected Setup allows you to easily connect wireless devices to your WiFi without manually entering security settings.

Guest Access

Use your Guest Access to allow guests to get online while restricting their access to other resources connected to your WiFi. Send the password by text message or email.

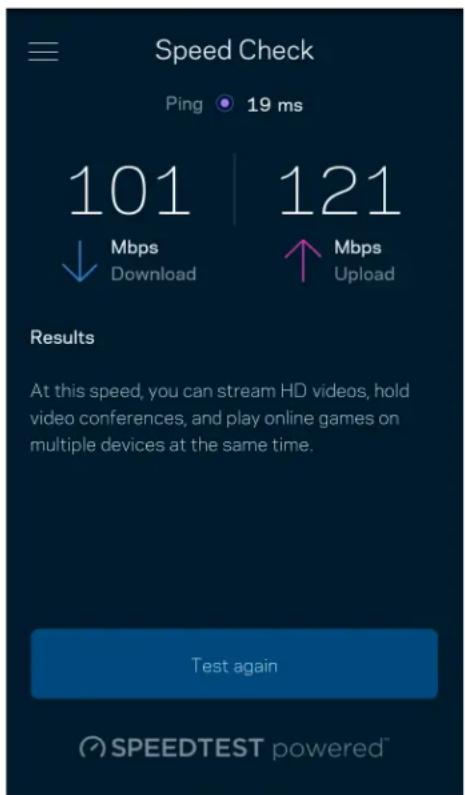

Speed Check

Run a speed check to make sure you are getting the speeds you are paying for. Speed check also helps in Device Prioritization because results determine how WiFi is distributed to the prioritized devices.

• Download speed is the rate at which internet content is transferred to your mesh system.
• Upload speed is the rate at which you can upload content to the internet.

Note—Internet connection speeds are determined by a variety of factors, including ISP account type, local and worldwide internet traffic, and number of devices in your home that are sharing the internet connection.

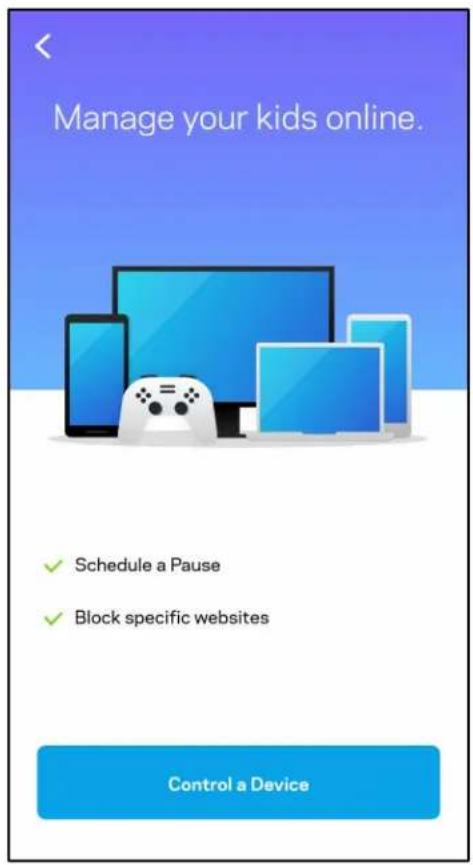

Parental Controls

Parental controls allow you to control when your kids are online and what they're doing there. Pause internet to specific devices, or block specific websites.

Priority

Choose up to three devices for priority usage of your internet connection. Those devices - wired and/or wireless - always will have the best access when connected. Atlas 6 runs a speed check to determine how to best distribute WiFi to prioritized devices. Other devices will share the leftover capacity. Prioritized devices appear on Dashboard.

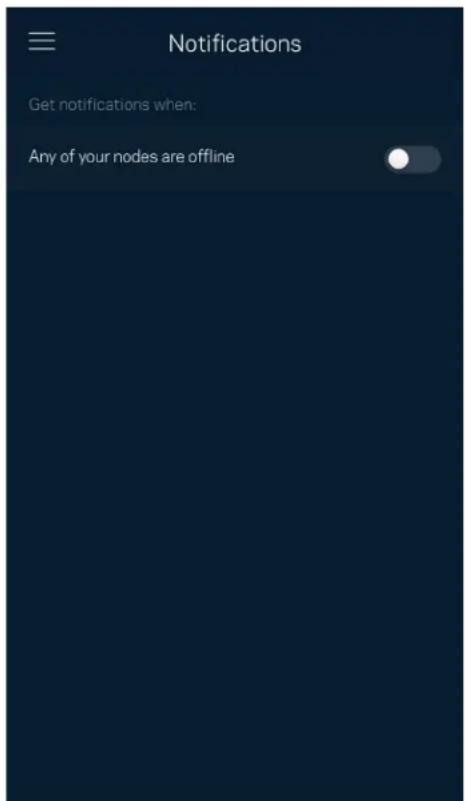

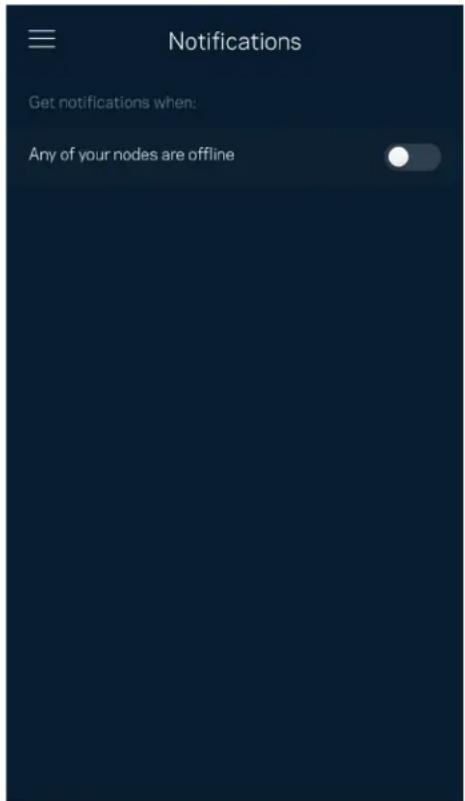

Notifications

If you have more than one node, Linksys can notify you when secondary nodes in your system go offline. Secondary nodes are any that are not wired to your modem. You have to turn on notifications in your mobile device settings to allow Linksys to notify you.

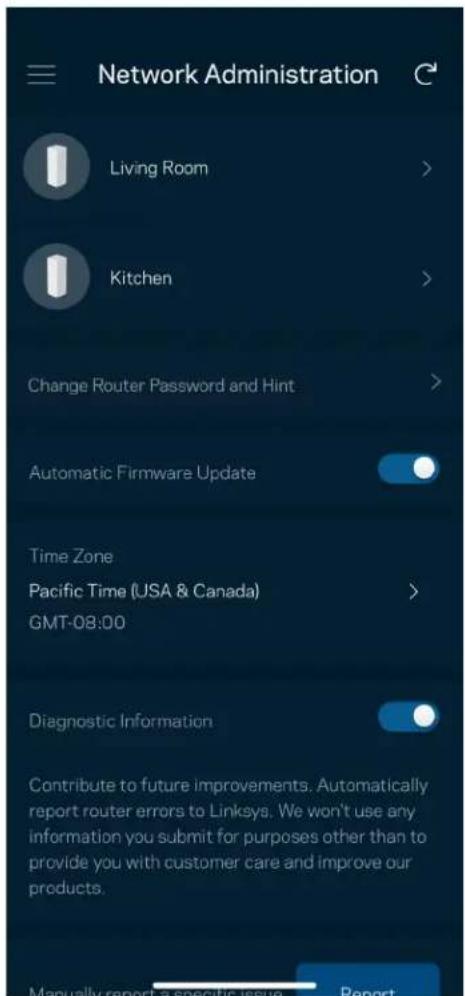

Network Administration

Use the Router Administration screen to change the admin password and hint, and check various identifiers (model number, serial number, and IP details) for all nodes in your WiFi.

Opt in to automatically report crashes to Linksys and contribute to improving the WiFi experience. You also can manually report specific issues to Linksys.

The following information will be sent with your description of the issue:

App version	Login Type (cloud: show email address associated, local: display "Router admin")
Device model	WAN Connection type (display WiFi or ethernet)
Device OS version	Time: date (mo/day/year, time, time zone)

Advanced Settings

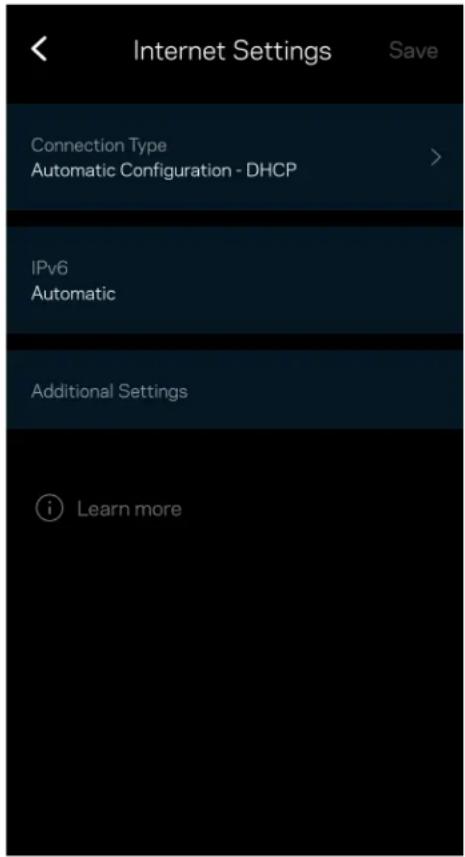

Internet Settings

You can choose how your mesh system connects to the internet. The default is Automatic

Configuration - DHCP. Other connection types depend on your internet service provider or how you plan to use your mesh system. Advanced users can use Additional Settings to clone MAC addresses and set MTU (maximum transmission unit).

Port Settings

Port forwarding—for a single port, multiple ports or a range of ports—sends traffic inbound on a specific port or ports to a specific device or port on your WiFi. In port range triggering, your router watches outgoing data for specific port numbers. Your router remembers the IP address of the device that requests the data so that when the requested data returns, it is routed back to the proper device.

WiFi MAC Filters

Every network device has a unique 12-digit MAC (media access control) address. You can create a list of MAC addresses and regulate how devices use your WiFi.

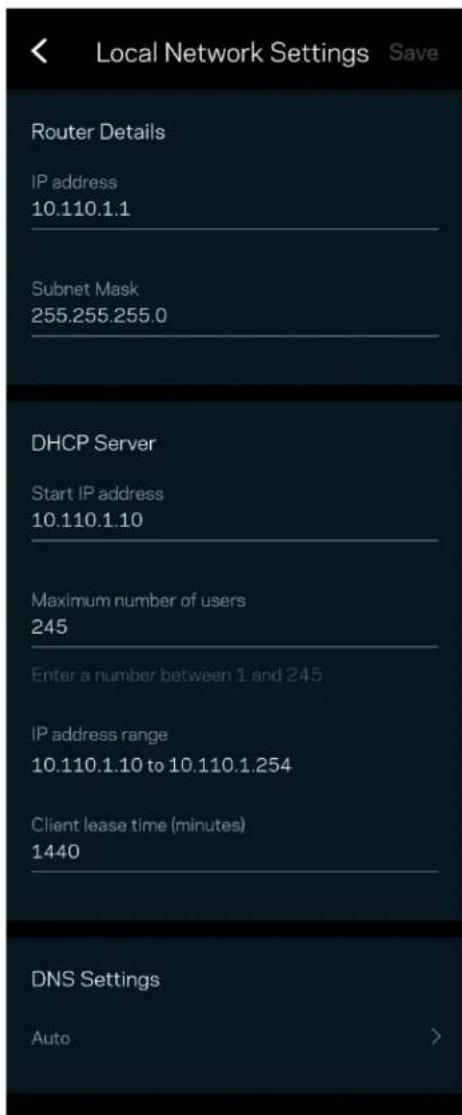

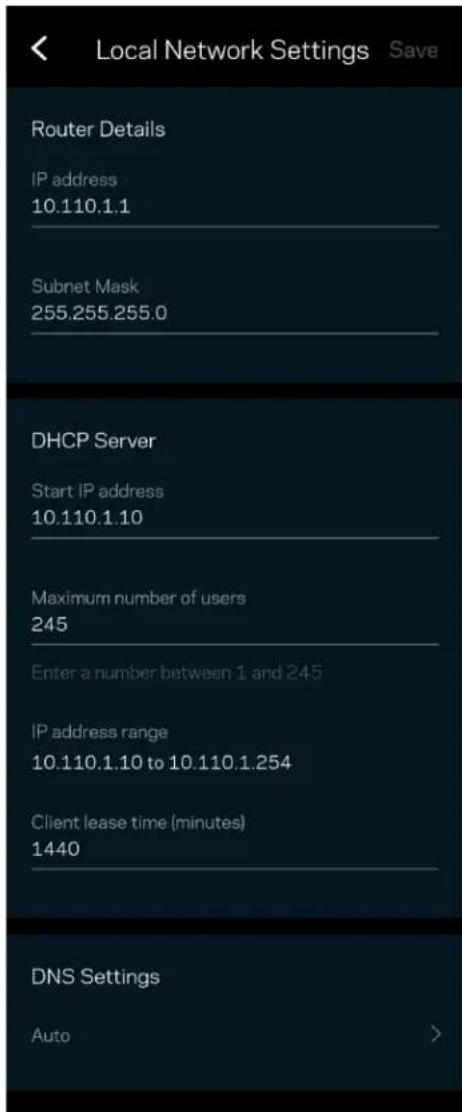

Local Network Settings

Details about the router and its connection status.

My Account

Change your Linksys app password and opt in to receive the latest news and deals from Linksys.

Feedback

Here's your chance to tell us what you think. Rate the app at your app store, send us a suggestion, or report an issue that's keeping you from a great experience.

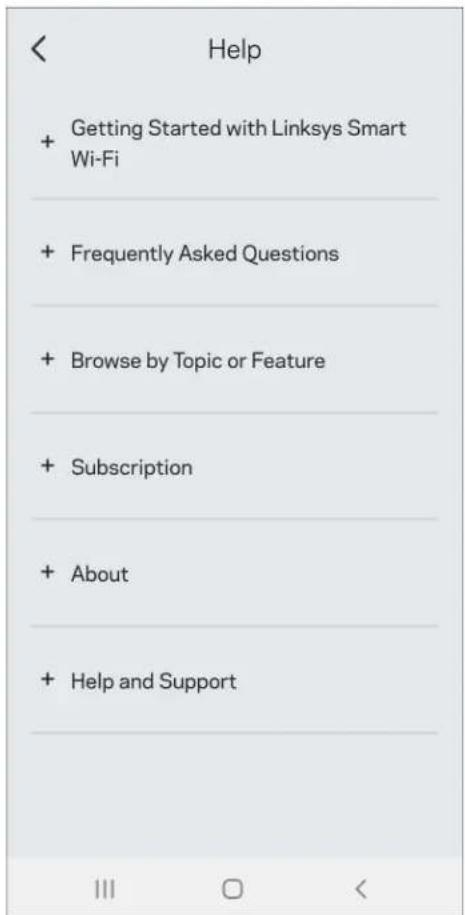

Help

Having trouble with the app? Just need a little more information about a feature? Tap Help for an explanation.

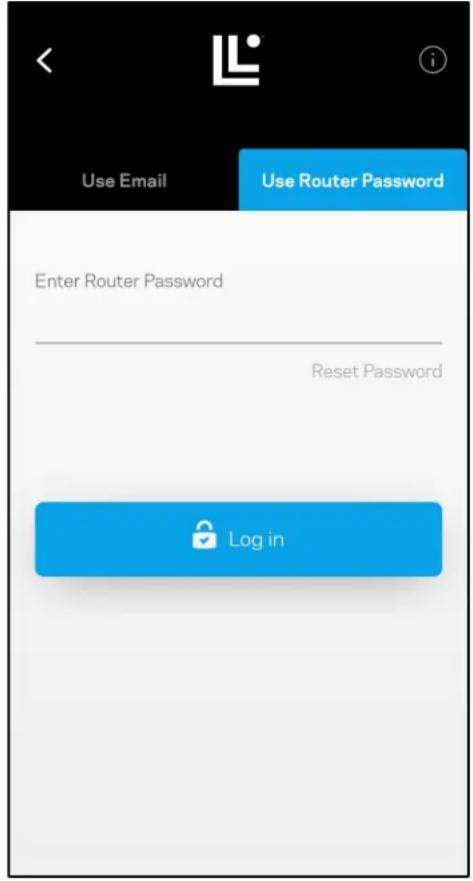

Connect Directly To Linksys Atlas 6

If you are not connected to the internet you still can access your mesh system. Connect to your WiFi name, launch the Linksys app and tap Use Router Password. You will not be able to access your Linksys WiFi account when not online.

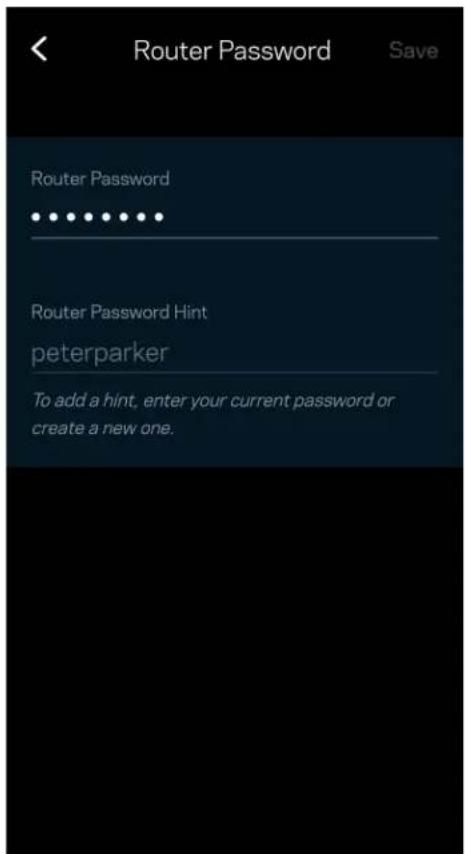

Router password

We created a secure router password during setup. This is not the same as the WiFi password you created to connect to your mesh system. To change the router password, tap Network Administration and Change Router Password and Hint.

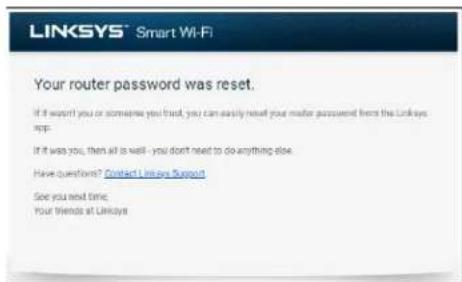

To keep your Linksys mesh system secure, we'll send you an email if someone changes the router password.

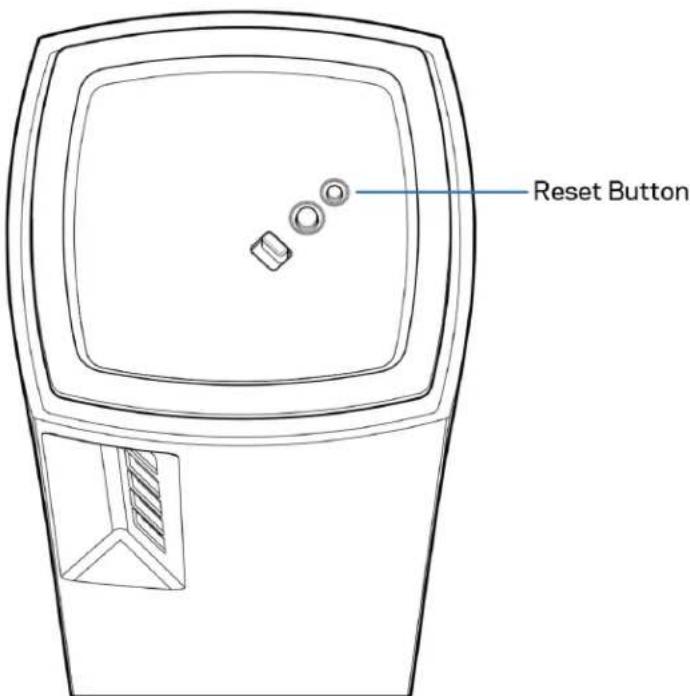

How to restore factory defaults

You should never need to factory reset your Atlas 6—a very disruptive process. A factory reset restores your router to the state it was when you took it out of its box, requiring you to go through the setup process again. All settings you have customized in setup and since – things such as WiFi name, passwords, security type – will be erased. All wireless devices will disconnect from your WiFi.

To reset your Atlas 6:

- With your node connected to power and turned on, press and hold the Reset button on the bottom. The light on top of the node will turn red and fade in pulses. Do not release the button until the light goes out and then turns bright red.

Specifications

Linksys Atlas 6

Model Name Atlas 6 AX3000 WiFi 6 System

Model Number MX2000 series

Switch Port Speed 10/100/1000 Mbps

Radio Frequency 2.4 GHz and 5 GHz

# of Antennas 3 (internal)

Ports Ethernet, Internet, Power

Buttons Power switch, WPS, reset

Light One, multicolored light for power and status

Security Features WPA2-Personal, WPA3-Personal

Security Key Bits Up to 128-bit encryption

Environmental

Dimensions 3.4 inches x 3.4 inches x 7.3 inches

Unit Weight 1.16lb

Power 12V, 1.5A

Certifications FCC, IC, CE, WiFi (IEEE 802.11a/b/g/n/ac, draft 802.11ax)

Operating Temp. 32^ to 104^ F (0 to 40^ C)

Storage Temp. -4° to 140° F (-20 to 60° C)

Operating Humidity 10% to 80% relative humidity, non-condensing

Storage Humidity 5% to 90% non-condensing

Notes:

For regulatory, warranty, and safety information, go to Linksys.com/support/Atlas6.

Specifications are subject to change without notice.

Maximum performance derived from IEEE Standard 802.11 specifications. Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage.

Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions.

Visit linksys.com/support/Atlas6 for award-winning technical support.

LINKSYS, Hydra, Atlas and many product names and logos are trademarks of the Linksys Holdings, Inc. and/or its affiliates.. Third-party trademarks mentioned are the property of their respective owners.

© 2022 Linksys Holdings Inc. and/or its affiliates. All rights reserved.
