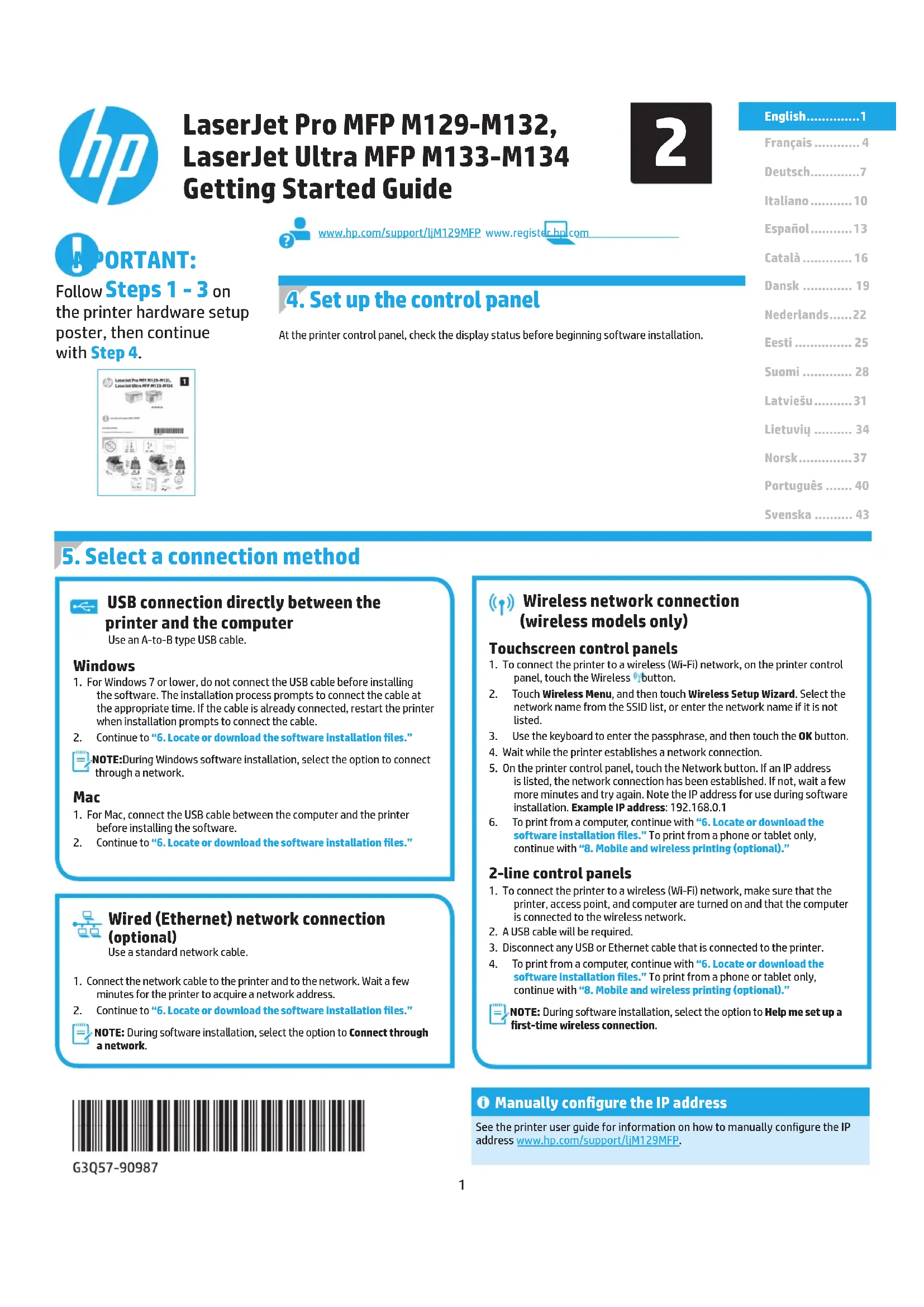

USER MANUAL LaserJet Ultra MFP M133 HP

Follow Steps 1 - 3 on the printer hardware setup poster, then continue with Step 4.

LaserJet Pro M8P H120-R131, LaserJet Ultra M8P H131-R134 1

www.hp.com/support/ljM129MFP www.register_hp.com

4. Set up the control panel

At the printer control panel, check the display status before beginning software installation.

5. Select a connection method

USB connection directly between the printer and the computer

Use an A-to-B type USB cable.

Windows

1. For Windows 7 or lower, do not connect the USB cable before installing the software. The installation process prompts to connect the cable at the appropriate time. If the cable is already connected, restart the printer when installation prompts to connect the cable.
2. Continue to "6. Locate or download the software installation files."

NOTE: During Windows software installation, select the option to connect through a network.

Mac

1. For Mac, connect the USB cable between the computer and the printer before installing the software.
2. Continue to "6. Locate or download the software installation files."

Wired (Ethernet) network connection (optional)

Use a standard network cable.

1. Connect the network cable to the printer and to the network. Wait a few minutes for the printer to acquire a network address.
2. Continue to "6. Locate or download the software installation files."

NOTE: During software installation, select the option to Connect through a network.

Barcode image with black and white vertical bars, no visible text or symbols beyond the pattern

G3Q57-90987

Wireless network connection (wireless models only)

Touchscreen control panels

1. To connect the printer to a wireless (Wi-Fi) network, on the printer control panel, touch the Wireless button.
2. Touch Wireless Menu, and then touch Wireless Setup Wizard. Select the network name from the SSID list, or enter the network name if it is not listed.
3. Use the keyboard to enter the passphrase, and then touch the OK button.
4. Wait while the printer establishes a network connection.
5. On the printer control panel, touch the Network button. If an IP address is listed, the network connection has been established. If not, wait a few more minutes and try again. Note the IP address for use during software installation. Example IP address: 192.168.0.1
6. To print from a computer, continue with "6. Locate or download the software installation files." To print from a phone or tablet only, continue with "8. Mobile and wireless printing (optional)."

2-line control panels

1. To connect the printer to a wireless (Wi-Fi) network, make sure that the printer, access point, and computer are turned on and that the computer is connected to the wireless network.
2. A USB cable will be required.
3. Disconnect any USB or Ethernet cable that is connected to the printer.
4. To print from a computer, continue with "6. Locate or download the software installation files." To print from a phone or tablet only, continue with "8. Mobile and wireless printing (optional)."

NOTE: During software installation, select the option to Help me set up a first-time wireless connection.

① Manually configure the IP address

See the printer user guide for information on how to manually configure the IP address www.hp.com/support/ljM129MFP.

6. Locate or download the software installation files

Method 1: Download HP Easy Start (Windows and OS X)

1. Go to 123.hp.com/laserjet, and click Download.
2. Follow the on-screen instructions and prompts to save the file to the computer.
3. Launch the software file from the folder where the file was saved, and continue with "7. Install the software."

Method 2: Download from the printer support website (Windows and OS X)

1. Go to www.hp.com/support/ljM129MFP.

2. Select Software and drivers.

3. Download the software for your printer model and operating system.

4. Launch the software file from the folder where the file was saved, and continue with "7. Install the software."

Method 3: Install from the printer CD(Windows only)

1. Insert the printer CD into the computer.
2. Continue with "7. Install the software."

7. Install the software

Windows solution

1. Insert the printer CD into the computer, or launch the software installation file downloaded from the web.
2. The software installer detects the language of the operating system, and then it displays the main menu of the installation program in the same language. When installing from the CD, if the installer program does not start after 30 seconds, browse the CD drive on the computer, and then launch the file named SETUP.EXE.
3. Follow the on-screen instructions to install the software.
4. When prompted to select a connection type, select the appropriate option for the type of connection:
5. Directly connect this computer using a USB cable
6. Connect through a network
7. Help me set up a first-time wireless connection

NOTE: When connecting through a network, the easiest way to detect the printer is to select Automatically find my product on the network.

OS X solution

Mac users can click the link on the CD, or go directly to 123.hp.com and download HP Easy Start to install the printer software.

1. Go to 123.hp.com.
2. Enter HP LaserJet Printers.
3. Click Begin, and then click Download to download HP Easy Start.
4. Open HP Easy Start, and then follow the on-screen instructions.

Readiris Pro for HP

Download this free software to enable extra scanning features, including Optical Character Recognition (OCR).

To download the software from the web, go to: www.hp.com/support/ljM129MFP

Select Drivers, select the appropriate operating system, and then click Next. Click Application - 3rd Party, and then click the Download button.

8. Mobile and wireless printing (optional)

8.1 Connect the device to the wireless network

To print from a phone or tablet, connect the device to the same wireless network as the printer.

Apple iOS devices (AirPrint)

Open the item to print, and select the Action icon. Select Print, select the printer, and then select Print.

Newer Android devices (4.4 or newer)

Open the item to print, and select the Menu button. Select Print, select the printer, and select Print.

Some devices require downloading the HP Print Service plugin app from the Google Play store.

Older Android Devices (4.3 or older)

Download the HP ePrint app from the Google Play store.

Windows Phone

Download the HP AiO Remote app from the Windows Store.

Learn more about mobile printing

To learn more about other mobile printing options, including additional ePrint solutions, scan the QR code, or see the "Mobile printing" section of the user guide.

8.2 Wi-FiDirect

(wireless models only)

Wi-Fi Direct enables close-proximity printing from a wireless mobile device directly to an Wi-Fi Direct-enabled printer without requiring a connection to a network or the Internet.

Enable Wi-Fi Direct

To enable Wi-Fi Direct from the control panel, complete the following steps.

1. 2-line control panels: On the printer control panel, press the Setup button, and then open the Network Setup menu. Touchscreen control panels: From the Home screen on the printer control panel, select the Connection Information button.

2. Open the following menus:

- Wi-Fi Direct

- Settings (touchscreen control panels only)

- On/Off

1. Touch the On menu item. Touching the Off button disables Wi-Fi Direct printing.

For more information on wireless printing and wireless setup, go to www.hp.com/go/wirelessprinting.

Discover the printer

1. From the mobile device, turn on the Wi-Fi, and search for wireless networks.
2. Select the printer, which will show up as 'HP-Print-model-name' as shown on the printer control panel. Example printer name: HP-Print-29-AJ 0JP 8620

9. Set up HP ePrint via email (optional)

Use HP ePrint via email to print documents by sending them as an email attachment to the printer's email address from any email enabled device, even from devices that are not on the same network.

To use HP ePrint via email, the printer must meet these requirements:

• The printer must be connected to a wired or wireless network and have Internet access.
• HP Web Services must be enabled on the printer, and the printer must be registered with HP Connected.

Enable HP Web Services

2-line LCD control panel

1. Once the printer is connected to a network, enter the printer's network IP address into a web browser. Use one of the following options to find the printer IP:

2. Go to "Find printer IP address," in this getting started guide
   • Refer to the user guide

3. On the web page that appears, click the HP Web Services tab.

4. Review and accept the terms of use, and then click the Enable button.

Touchscreen control panel

1. From the Home screen on the printer control panel, touch the Web Services button.
2. Touch the Enable Web Services button. The printer enables Web Services, and then prints an information page. The information page contains a printer code necessary to register the HP printer at HP Connected.
3. Go to www.hpconnected.com to create an HP ePrint account and complete the setup process.

10. Use the scan feature

Use the HP Scan software on your computer to start a scan job at the printer.

Windows

Open HP Printer Assistant, select Scan, and then select Scan a Document or Photo.

OS X

Click Applications, select HP, and then select HP Easy Scan.
