Product Type	CD Player/Recorder with AM/FM Radio
Brand	AEG
Model	SR 4314 CDMP3
Mains Power Supply	230 V, 50 Hz, 14 W
Battery Power Supply	6 x 1.5 V, type UM2/LR14
Output Power	60 W PMPO
Protection Class	II
Radio Frequency Bands	FM: 87.5 – 108 MHz; AM: 525 – 1615 kHz
Compatible Disc Formats	Audio CD, CD-R (playback); does not play MP3
CD Playback Functions	Play, pause, skip forward/backward, search, repeat (1 track or entire disc), track programming
Laser Type	Class 1
Headphone Jack	3.5 mm stereo jack
BBS (Bass Boost System)	Yes, switchable ON/OFF
Antenna	Telescopic antenna for FM
Display	LCD screen
Speakers	Built-in
Warranty	24 months
Cleaning and Maintenance	Wipe with a slightly damp cloth without additives; unplug before cleaning

Frequently Asked Questions - SR 4314 CDMP3 AEG

How to play a CD on the AEG SR 4314 CDMP3?

Set the function selector to CD. Open the CD compartment by pulling the lid at the tab. Place the disc with the printed side facing up, close the compartment. Press ▶II PLAY/PAUSE to start playback. The number of tracks will be displayed on the screen.

How to program tracks in a custom order?

First press ■ STOP, then press PROGRAM. '01' appears on the left. Select the desired track with ▶▶I SKIP or I◀◀ SKIP, then press PROGRAM again. Repeat for each track. Finally, press ▶II PLAY/PAUSE to start programmed playback.

How to use the repeat function?

During playback, press REPEAT. Once repeats the current track (REP flashes). Twice repeats the entire disc (REP lit). Three times turns off repeat.

What to do if the display shows 'Err' or 'nocd'?

'Err' means the disc is inserted incorrectly; reinsert it properly with the printed side up. 'nocd' appears if no disc is loaded; insert a CD. Close the lid properly.

Can this player play MP3s?

No, the device does not play MP3s. It is designed for audio CDs and CD-Rs burned in standard audio format. Even if the disc spins, no sound will be output.

How to improve FM radio reception?

For FM, extend and orient the telescopic antenna at the back of the device. Adjust the frequency with the TUNING dial to receive the desired station.

Can I use batteries and mains power at the same time?

When the mains cable is plugged in, the batteries are automatically put to rest. There is no risk, but it is unnecessary to keep batteries in if the device is constantly on mains.

How to clean the device?

Always unplug the device before cleaning. Wipe the outer surfaces with a slightly damp cloth without adding chemicals. Do not let moisture enter the interior.

What types of batteries to use and how to install them?

Use 6 UM2/R14 1.5 V batteries. Open the compartment at the bottom of the device, respect the polarity indicated inside. Do not mix different types of batteries or new and used ones together.

What to do if the device does not turn on?

Check that the function selector is not set to POWER OFF. If using batteries, ensure they are correctly installed and not empty. If plugged into mains, check the power outlet and cable.

USER MANUAL SR 4314 CDMP3 AEG

Black-and-white photo of a portable AEG radio with speaker grille and antenna (no visible text or symbols)

Overview of the Components ...... Page 3

8 Instruction Manual...... Page 31

Technical Data Page 33

0 Guarantee Page

FRANÇAIS

JEZYK POLSKI

Sommaire

Labeled diagram of a handheld device with numbered parts for identification

21 19 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V CELL UM-2 6x R14C 20 BACKWARD - 30 OUT V/80 BUTTON COMMAND CONTROL CONTINUM BUTTON

9 BBS Taste (ON/OFF)

D-47906 Kempen/Germany

9 Touche BBS (ON/OFF)

▶ II PLAY/PAUSE (3), la lecture continue.

REPEAT (4)

1	Vano	CD
2	■ CD/stop
3	▶II CD/stop/BAUY/PAUSE
4	Tasto	REPEAT

9 Tasto BBS (ON/OFF)

$$ O N = p \text { a }, O F F = a v. $$

Høre radio

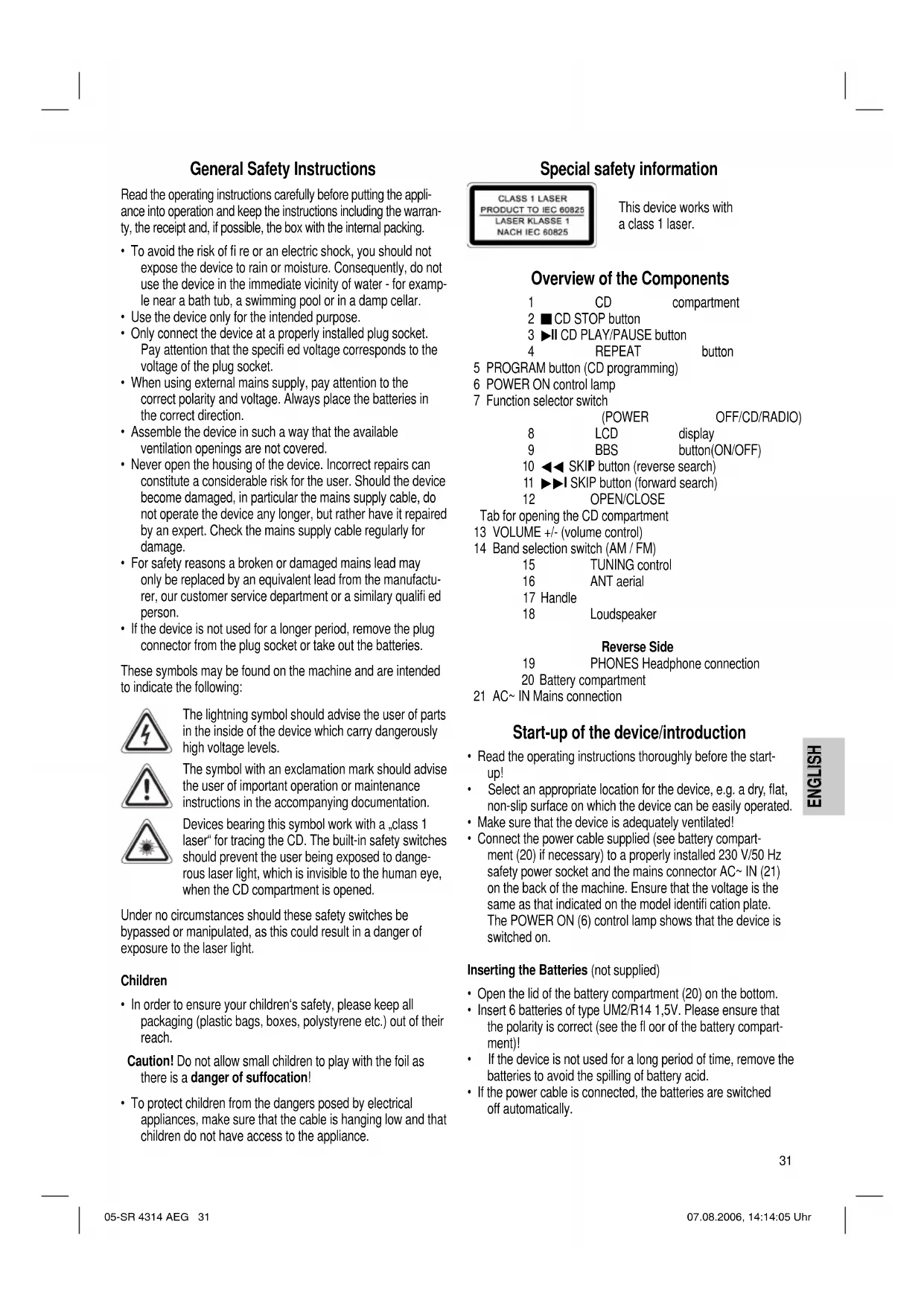

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

• To avoid the risk of fire or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for example near a bath tub, a swimming pool or in a damp cellar.
• Use the device only for the intended purpose.
• Only connect the device at a properly installed plug socket. Pay attention that the specified voltage corresponds to the voltage of the plug socket.
• When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction.
• Assemble the device in such a way that the available ventilation openings are not covered.
• Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage.
• For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.
• If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries.

These symbols may be found on the machine and are intended to indicate the following:

The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels.

The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation.

Devices bearing this symbol work with a „class 1 laser“ for tracing the CD. The built-in safety switches should prevent the user being exposed to dangerous laser light, which is invisible to the human eye, when the CD compartment is opened.

Under no circumstances should these safety switches be bypassed or manipulated, as this could result in a danger of exposure to the laser light.

Children

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

- To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.

Special safety information

This device works with a class 1 laser.

Overview of the Components

1 CD compartment
2 ■ CD STOP button
3 ▶II CD PLAY/PAUSE button
4 REPEAT button

5 PROGRAM button (CD programming)
6 POWER ON control lamp
7 Function selector switch

(POWER OFF/CD/RADIO)

8 LCD display 9 BBS button(ON/OFF)
10 ◀◀ SKIP button (reverse search)
11 ▶▶▶I SKIP button (forward search)
12 OPEN/CLOSE

Tab for opening the CD compartment

13 VOLUME +/- (volume control)
14 Band selection switch (AM / FM)

15 TUNING control
16 ANT aerial
17 Handle
18 Loudspeaker

Reverse Side

19 PHONES Headphone connection
20 Battery compartment

21 AC\~ IN Mains connection

Start-up of the device/introduction

• Read the operating instructions thoroughly before the start-up!
• Select an appropriate location for the device, e.g. a dry, flat, non-slip surface on which the device can be easily operated.
• Make sure that the device is adequately ventilated!
• Connect the power cable supplied (see battery compartment (20) if necessary) to a properly installed 230 V/50 Hz safety power socket and the mains connector AC\~ IN (21) on the back of the machine. Ensure that the voltage is the same as that indicated on the model identification plate. The POWER ON (6) control lamp shows that the device is switched on.

Inserting the Batteries (not supplied)

• Open the lid of the battery compartment (20) on the bottom.
• Insert 6 batteries of type UM2/R14 1,5V. Please ensure that the polarity is correct (see the floor of the battery compartment)!
• If the device is not used for a long period of time, remove the batteries to avoid the spilling of battery acid.

• If the power cable is connected, the batteries are switched off automatically.

• Different battery types or new and used batteries must not be used together.

• Then close the battery lid.

Warning: batteries are not to be disposed of together with domestic wastes. Dispose of the used batteries at the relevant collection bin or at your dealer's.

Never throw batteries into the fire.

Transport Safety Device, CD Compartment

• Please open the CD compartment (1) by folding open the CD compartment OPEN/CLOSE (12) lid to the front.
• Before operating the machine for the first time, remove the transport safety device from the CD player if it is still in place.

Headphone Socket

Please use headphones with a 3.5 mm stereo jack plug; these should be inserted into the PHONES socket (19). The loudspeakers are then switched off.

Volume

The desired volume can be sent using the VOLUME +/- regulator (13).

Switch-off

The machine is switched off when the function selector switch (7) is turned to the POWER OFF position. The POWER ON (6) control lamp goes off. Unplug the device.

BBS ON/OFF (9)

This is used to amplify the bass sounds. The switch can be in one of two positions,

ON or OFF.

Listening to the Radio

1. Turn the function selector switch (7) to the RADIO position.
2. Select the desired frequency band with the band selection switch (14).

Medium wave = AM; VHF = FM

1. For VHF/FM mode pull out the telescopic antenna (16) and turn it to improve reception.
2. Tune into the desired station using the TUNING regulator (15) (see display (8)).
3. To switch off the radio, shift the function selector (7) to the POWER OFF position.
4. The desired volume can be sent using the VOLUME regulator (13).

Playing CD's

1. Push the function selection switch (7) to CD.
2. Open the CD compartment (1) by pulling the lid upwards by the tab (12).

3. Insert a CD with the printed side facing up and close the CD deck.

4. „----“ appears in the display (8) followed by the number of tracks. Press the ▶II PLAY/PAUSE button (3) in order to play the CD. The CD will play from the first title „cd01“ appears in the display.

5. With ▶▶▶I SKIP (11) you can jump to the next or previous track etc. If the button is kept pressed down, the machine starts to search through the tracks. If the button is kept pressed down in stop mode the machine quickly plays through the songs until the desired track is reached. When the ▶▶▶ II PLAY/PAUSE (3) button is pressed the track begins to play back.
6. The ◀◀ SKIP button (10) can be used as follows:

Press once = This starts the current track again from the beginning.

Press a second time = This jumps back to the previous track.

Press a third time = This plays the song before etc. If the button is kept pressed down, the machine starts to search through the tracks. If the button is kept pressed down in stop mode the machine quickly plays through the songs until the desired track is reached. When the ▶ II PLAY/PAUSE (3) button is pressed the track begins to play back.

1. In order to remove a CD, please press the ■ STOP button (2), open the CD compartment and lift the CD out carefully.

Please note these instructions for playing back CDs and CDRs in MP3 format! The device is not able to play back MP3 fi les. The CD begins to turn, but the sound cannot be heard.

Note: Playback of CDs produced by the user cannot be guaranteed due to the large variety of software and CD media available.

Always keep the CD deck closed.

Note: If a CD has been inserted incorrectly, “- - -” flashes in the display and the letters „Err“ (Error) appear. If no CD has been inserted, “- - -” fl ashes in the display and the message „nocd“ appears.

▶II PLAY/PAUSE (3)

When a CD is playing:

You can brief y interrupt play back; the display (8) fl ashes. Press the ▶II PLAY/PAUSE (3) button again in order to continue playback.

REPEAT (4)

When a CD is playing the REPEAT button has a repeat function. First start the CD and then press the REPEAT button.

Press once: (REP fl ashes in the display). The current track is repeated continuously.

Press a second time: (the REP. emits a fixed light). The whole CD is played continuously.

Press a third time: The function is deactivated.

Programmed Repeat with the PROGRAM Button

This can be used to program any desired sequence of tracks.

1. Presshe ■ STOP key (2).
2. Press the PROGRAM key (5). „01“ for the storage location lights up on the left of the display (8). The two right-hand figures flash and indicate the track number; the letters PROG also flash. Use the ▶▶▶▶◀◀ SKIP buttons (11/10) to select the desired track and then press the PROGRAM button (5) again.
3. Presshe ▶II PLAY/PAUSE key (3). The playback starts. The selected track numbers are shown in the display in the correct order. Press this button to pause briefly the playback (see ▶II PLAY/PAUSE section).
4. Press once the ■ STOP key (2) to stop the playback while retaining the program.
5. To resume the playback of the program press first the PROGRAM key once and then the ▶II PLAY/PAUSE key.
6. In order to delete the programme, please press the PROGRAM button and then the ■ STOP button (2). The PROG control lamp (6) goes off.

The device stops automatically once the entire sequence of programmed tracks is completed. The programmed order remains in the memory until you change to the other mode, the CD is removed from the CD drawer or the device is switched off.

It is possible to combine the programmed tracks with the repeat function. After you have programmed and started the device, please press the REPEAT button (4) up to three times and then you can use the functions as described under „REPEAT“.

Please note:

There are a number of different recording and compression methods, as well as quality differences between CDs and self-recorded CDs.

Furthermore, the music industry does not adhere to fixed standards (copy protection).

For these reasons it is possible that in rare cases there are problems with the playback of CDs and MP3 CDs. This is not a malfunction of the device.

Cleaning and Maintenance

• Always remove the mains plug before cleaning the machine.
- Any marks on the surface can be wiped off with a slightly damp cloth without any additives.

Technical Data

Model: SR 4314 CD

Power supply: 230 V, 50 Hz

Power consumption: 14 W

Battery operation: 6 x 1,5 V, Type UM2/LR 14

Output rating:....60 W PMPO

Protection class: II

Radio section:

Frequency ranges: ......VHF / FM 87,5 \~ 108 MHz ......MW / AM 525 \~ 1615 kHz

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
