USER MANUAL HZ385E HONEYWELL

5HZ-370E/HZ-385E/HZ-3750E

HZ-370E HZ-385E HZ-3750EHZ-370E/HZ-385E/HZ-3750E

HZ-370E HZ-385E/HZ-3750E HZ-385E/HZ-3750E HZ-370E HZ-385E5

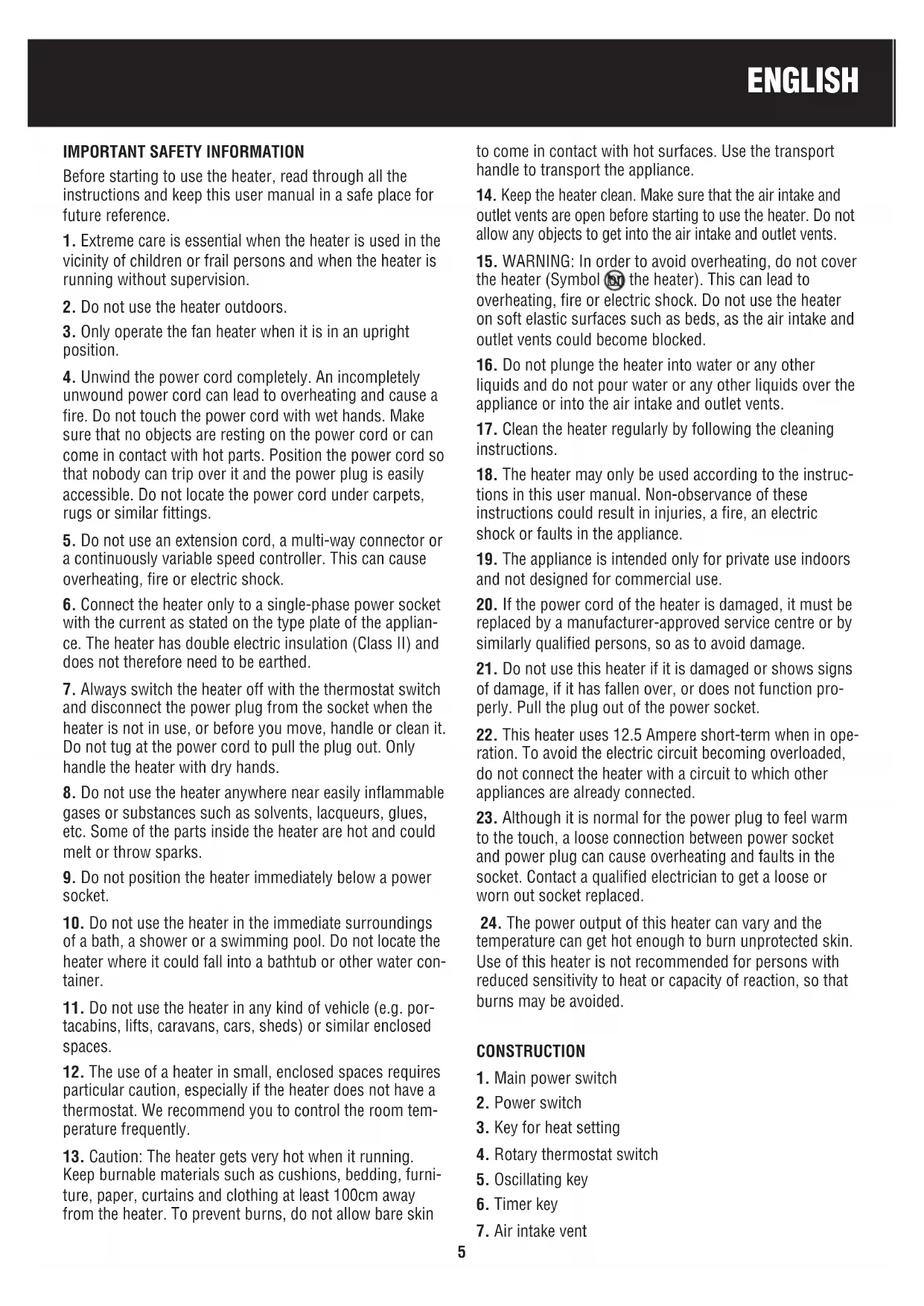

ENGLISH IMPORTANT SAFETY INFORMATION Before starting to use the heater, read through all the

instructions and keep this user manual in a safe place for

1. Extreme care is essential when the heater is used in the

vicinity of children or frail persons and when the heater is

running without supervision.

2. Do not use the heater outdoors.

3. Only operate the fan heater when it is in an upright

4. Unwind the power cord completely. An incompletely

unwound power cord can lead to overheating and cause a

fire. Do not touch the power cord with wet hands. Make

sure that no objects are resting on the power cord or can

come in contact with hot parts. Position the power cord so

that nobody can trip over it and the power plug is easily

accessible. Do not locate the power cord under carpets,

rugs or similar fittings.

5. Do not use an extension cord, a multi-way connector or

a continuously variable speed controller. This can cause

overheating, fire or electric shock.

6. Connect the heater only to a single-phase power socket

with the current as stated on the type plate of the applian-

ce. The heater has double electric insulation (Class II) and

does not therefore need to be earthed.

7. Always switch the heater off with the thermostat switch

and disconnect the power plug from the socket when the

heater is not in use, or before you move, handle or clean it.

Do not tug at the power cord to pull the plug out. Only

handle the heater with dry hands.

8. Do not use the heater anywhere near easily inflammable

gases or substances such as solvents, lacqueurs, glues,

etc. Some of the parts inside the heater are hot and could

melt or throw sparks.

9. Do not position the heater immediately below a power

10. Do not use the heater in the immediate surroundings

of a bath, a shower or a swimming pool. Do not locate the

heater where it could fall into a bathtub or other water con-

11. Do not use the heater in any kind of vehicle (e.g. por-

tacabins, lifts, caravans, cars, sheds) or similar enclosed

12. The use of a heater in small, enclosed spaces requires

particular caution, especially if the heater does not have a

thermostat. We recommend you to control the room tem-

perature frequently.

13. Caution: The heater gets very hot when it running.

Keep burnable materials such as cushions, bedding, furni-

ture, paper, curtains and clothing at least 100cm away

from the heater. To prevent burns, do not allow bare skin

to come in contact with hot surfaces. Use the transport

handle to transport the appliance.

14. Keep the heater clean. Make sure that the air intake and

outlet vents are open before starting to use the heater. Do not

allow any objects to get into the air intake and outlet vents.

15. WARNING: In order to avoid overheating, do not cover

the heater (Symbol on the heater). This can lead to

overheating, fire or electric shock. Do not use the heater

on soft elastic surfaces such as beds, as the air intake and

outlet vents could become blocked.

16. Do not plunge the heater into water or any other

liquids and do not pour water or any other liquids over the

appliance or into the air intake and outlet vents.

17. Clean the heater regularly by following the cleaning

18. The heater may only be used according to the instruc-

tions in this user manual. Non-observance of these

instructions could result in injuries, a fire, an electric

shock or faults in the appliance.

19. The appliance is intended only for private use indoors

and not designed for commercial use.

20. If the power cord of the heater is damaged, it must be

replaced by a manufacturer-approved service centre or by

similarly qualified persons, so as to avoid damage.

21. Do not use this heater if it is damaged or shows signs

of damage, if it has fallen over, or does not function pro-

perly. Pull the plug out of the power socket.

22. This heater uses 12.5 Ampere short-term when in ope-

ration. To avoid the electric circuit becoming overloaded,

do not connect the heater with a circuit to which other

appliances are already connected.

23. Although it is normal for the power plug to feel warm

to the touch, a loose connection between power socket

and power plug can cause overheating and faults in the

socket. Contact a qualified electrician to get a loose or

worn out socket replaced.

24. The power output of this heater can vary and the

temperature can get hot enough to burn unprotected skin.

Use of this heater is not recommended for persons with

reduced sensitivity to heat or capacity of reaction, so that

burns may be avoided.

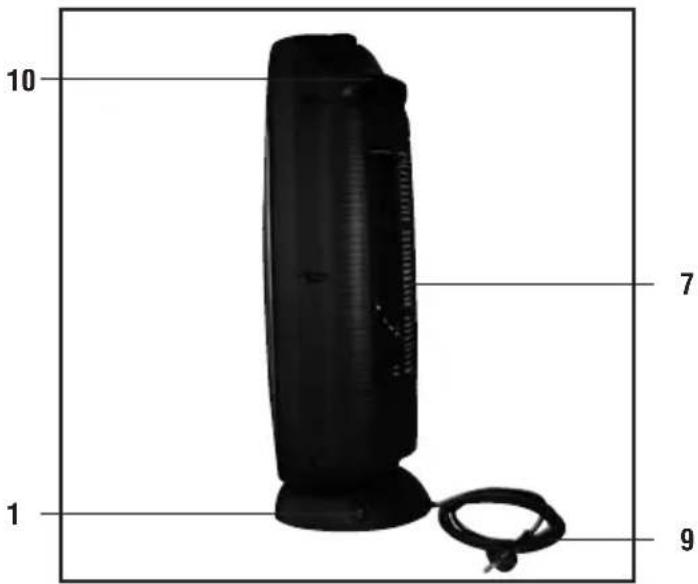

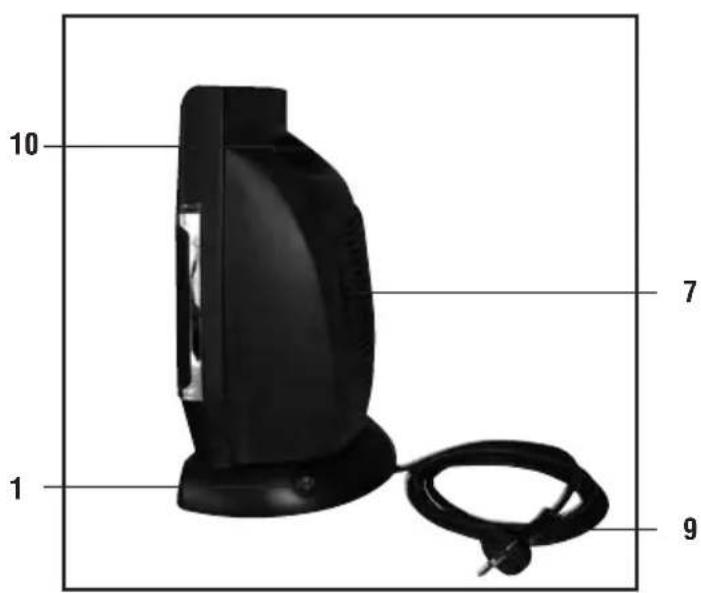

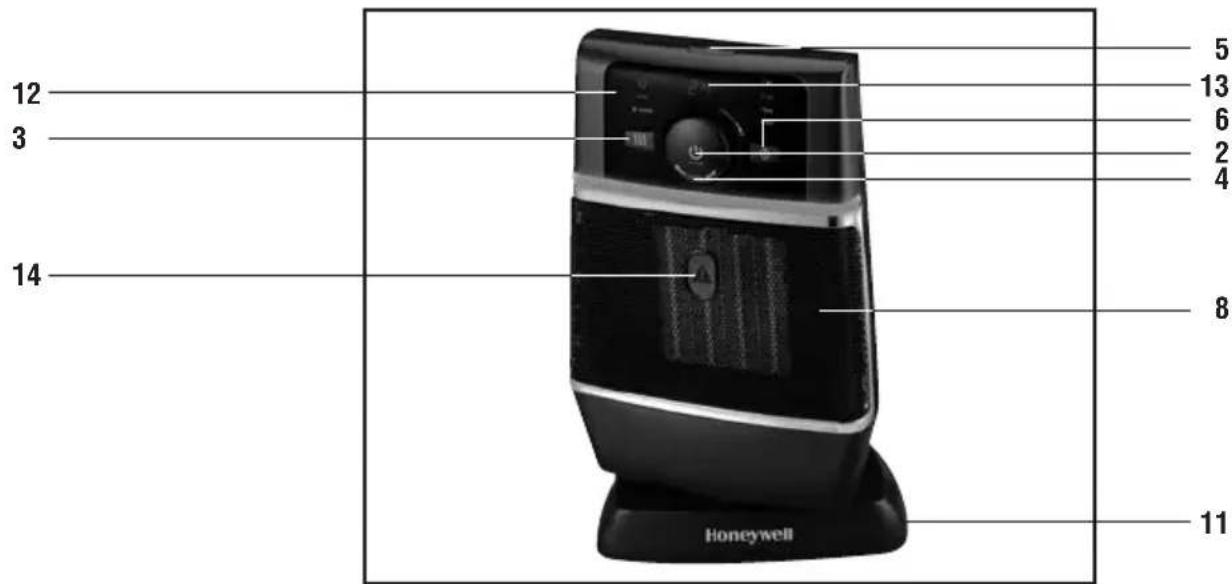

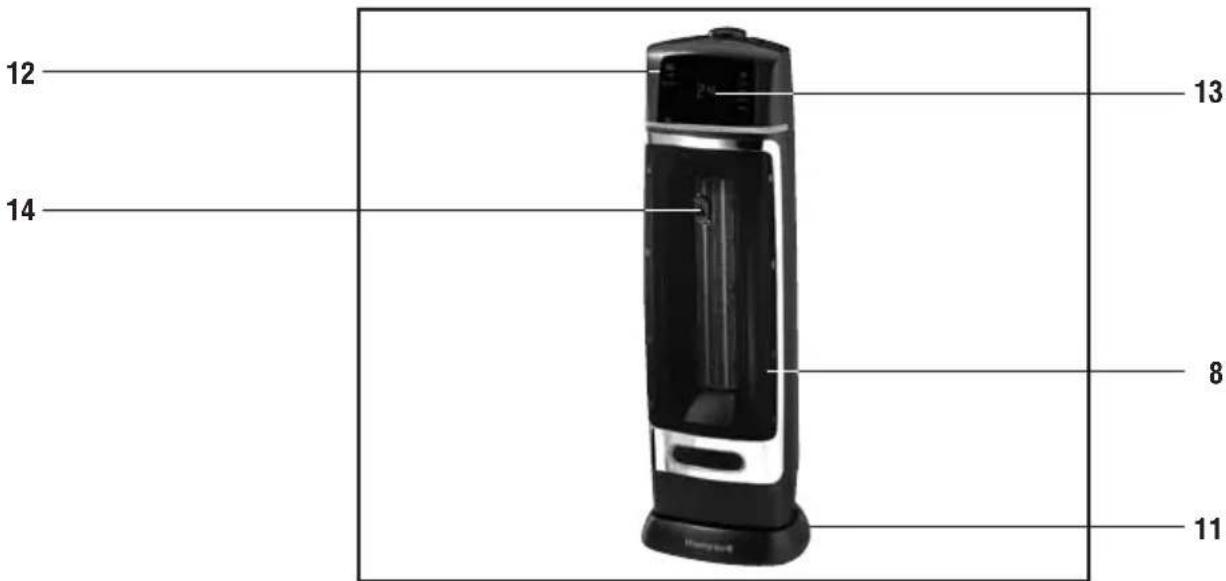

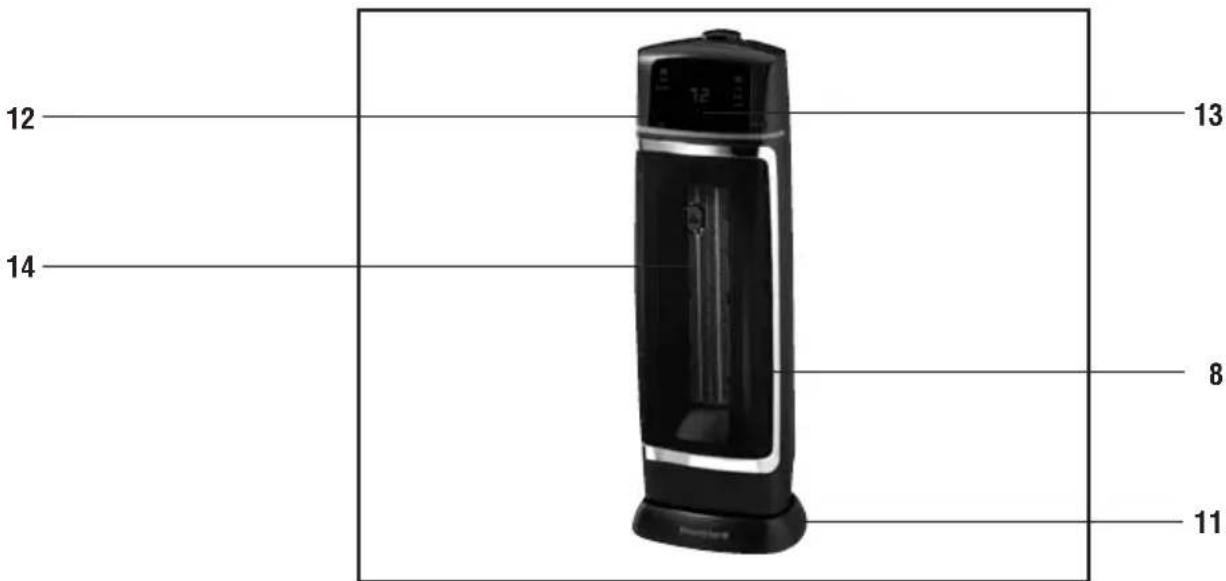

1. Main power switch

3. Key for heat setting

9. Power cord with power plug

1. Before starting to use the heater, read through all the

2. Unpack the heater and the power cord. Remove all the

packaging materials and dispose of them for recycling.

1. Place the heater only on a firm, even surface where the

heater cannot fall over, fall down or be knocked over.

2. Make sure that the main power switch (1) is on 0 so

that the heater is switched off. Insert the power plug into

the power socket. Do not touch the power cord with wet

3. Make sure that the air intake (7) and outlet (8) vents are

not covered and that no objects have got inside. The air

intake and outlet vents must always be free.

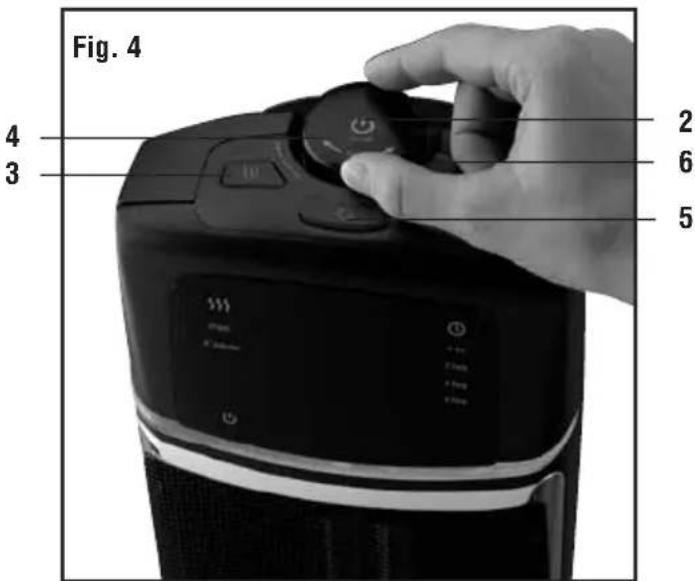

4. Press the power key (2) to start the heating operation.

The heater is now operating continuously at the highest

heating setting. On the display (12) and „max“ are lit

5. By pressing the heat setting key (3) several times

you can change the heating performance from 1800 Watts

to the energy-saving mode . Now the heater will ope-

rate continuously at 1100 Watts. appears on the dis-

play (12) and „max“ goes off. Press the key again to set

the heater back to 1800 Watts continuous running.

goes off on the display (12) and „max“ lights up.

Please note: As long as no temperature has been selected

with the rotary thermostat switch (4), the appliance

will operate continuously.

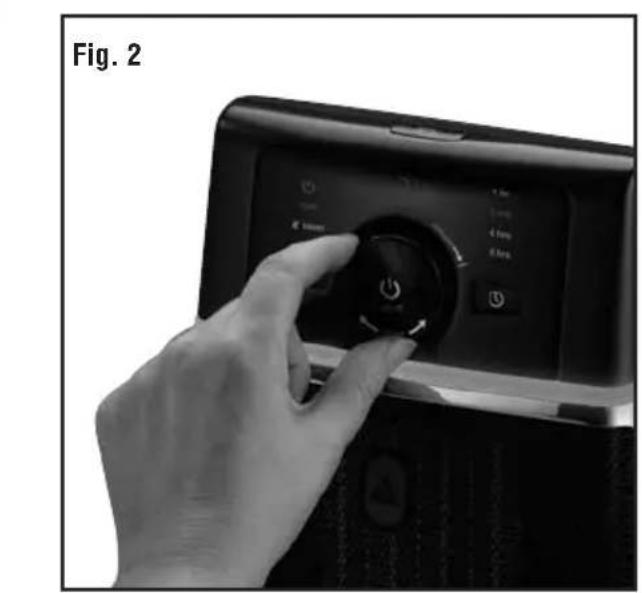

6. Turn the rotary thermostat switch (4) clockwise to

raise the temperature. If you turn it anti-clockwise, you

lower the temperature. The desired temperature can be

selected between about 7 °C and 27 °C.

First the preset value of 24°C appears on the temperature

display (13). You can then select the desired temperature

of between about 7 °C and 27 °C.

7. As soon as the desired temperature is programmed, the

current room temperature appears on the display (12).

8. The heating switches off shortly after the programmed

room temperature has been reached and the temperature

display (13) flashes.

9. As soon as the room temperature drops below the pro-

grammed value, the heater automatically starts operating

and will continue heating until the room temperature has

reached the programmed value.

10. Press the oscillating key (5) to switch the oscilla-

tion on. Switch the oscillation off by pressing the oscilla-

Programming the timer

1. The heater is equipped with a „TIMER“ function. This

function switches the heater off at the end of the pro-

grammed running time. 1,2,4 or 8 hours running time

2. Press the timer key (6)

1 x = 1 hour. „1 hr“ appears on the display (12).

2 x = 2 hours. „2 hr“ appears on the display.

3 x = 4 hours. „4 hr“ appears on the display.

4 x = 8 hours . „8 hr“ appears on the display.

The heater switches off automatically after the programm-

3. When a temperature setting has been selected before

the timer programming, the heater switches on and off

This heater is equipped with a Safeguard™ System (14)

which is located at the front on the air outlet vent (8).

When the appliance is heating, the Safeguard marker

changes colour from black to red. This signalizes that the

heater is hot and must not be touched until it has been

switched off and the marker has turned completely black

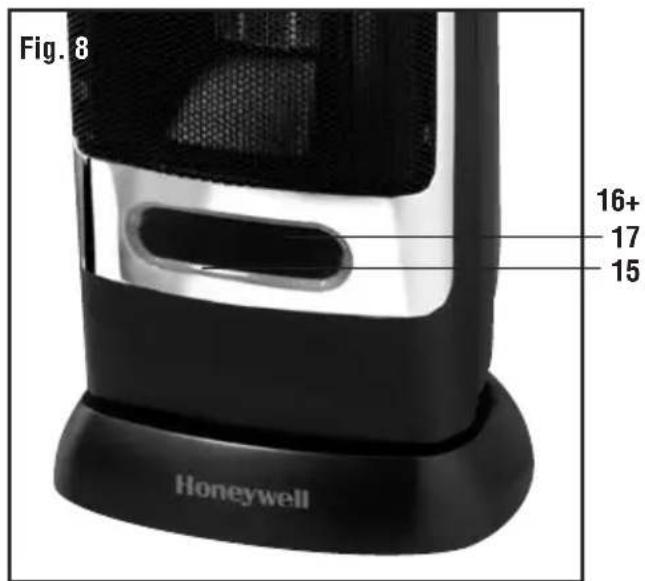

Auto-Off Sensor (only for HZ-385E)

The heater is equipped with a safety sensor Safety Senti-

nel™ (15). If an object is perceived to be too near the hea-

ter, the warning light (16) at the side of the sensor flashes

to warn about a blockage. If the object is not removed, the

sensor switches the heater off after a few seconds. As

soon as the object has been removed, the heater switches

itself back on after a few seconds delay.

To deactivate this function, press the sensor key (17). To

reactivate the function, press the sensor key again.7

ENGLISH Overheating shut-off for the heater

1. The heater is equipped with overheating shut-off which

switches the heater off automatically when the temperatu-

re inside the appliance exceeds the normal running tempe-

rature. This protective device applies only to the appliance

itself and has no influence on room temperature regulation.

2. The appliance will not function if the overheating shut-

3. Turn the power switch (2) to O and the thermostat

switch (4) to the lowest position. Pull the power plug out

4. Now allow the heater to cool at least until the Safeguard

marker is completely black.

5. Remove any objects from inside or in front of the air

intake (7) or outlet (8) vents, or use a vacuum cleaner to

clean the openings which caused the faulty running or

overheating. If heavy dust deposits are also visible inside

the heater, please get the appliance cleaned at a service

6. Resume using the heater as described under „User

Further safety features

1. This heater is equipped with a safety fuse which switches

the heater off when it is operating at an above normal tem-

2. The heater is equipped with tilt protection, If the heater

is not standing upright or tilts over, the tilt protection auto-

matically switches the heater off.

CLEANING, MAINTENANCE, DISPOSAL We recommend you to clean the heater regularly. Follow

the instructions for cleaning and maintenance, so as not

to impair the functioning of the heater.

1. Before you start with the cleaning, switch the heater off

at the main power switch (1) and pull the power plug out

of the socket. Allow the heater to cool at least until the

Safeguard marker is completely black again.

2. Clean the air intake (7) and outlet (8) vents with a vacu-

um cleaner to remove dust from the motor and heating

3. Clean the outside of the heater with a soft, dry cloth. Do

not use water, wax, polish, or chemical cleaners.

This symbol on the product or its packaging

indicates that the appliance cannot be treated as

normal domestic trash, but must be handed in

at a collection point for recycling electric and electronic

Your contribution to the correct disposal of this product

protects the environment and the health of your fellow

men. Health and the environment are endangered by

Further information about the recycling of this product can

be obtained from your local town hall, your refuse collection

service, or in the store at which you bought the product.

This regulation is valid only in EU member states.

CONDITION OF PURCHASE As condition of purchase the purchaser assumes respon-

sibility for the correct use and care of this KAZ product

according to these user instructions. The purchaser or

user must himself or herself decide when and for how

long this KAZ product is in use.

WARNING: IF PROBLEMS ARISE WITH THIS KAZ PRO-

DUCT, PLEASE OBSERVE THE INSTRUCTIONS IN THE GUARANTEE CONDITIONS. DO NOT ATTEMPT TO OPEN OR REPAIR THE KAZ PRODUCT YOURSELF, AS THIS COULD LEAD TO TERMINATION OF THE GUARANTEE AND CAUSE DAMAGE TO PERSONS AND PROPERTY.

1. Interruptor principal

GARNA I GARANTIVILLKOREN. FÖRSÖK INTE ATT

1. Hovedbryter for drift

1 x = 1 time. Displayet (12) viser "1 hr".

person for at undgå skader.

The Honeywell trademark is used by

Kaz, Inc. under licence from Honeywell

Intellectual Properties, Inc.
