USER MANUAL BH777FTE HONEYWELL

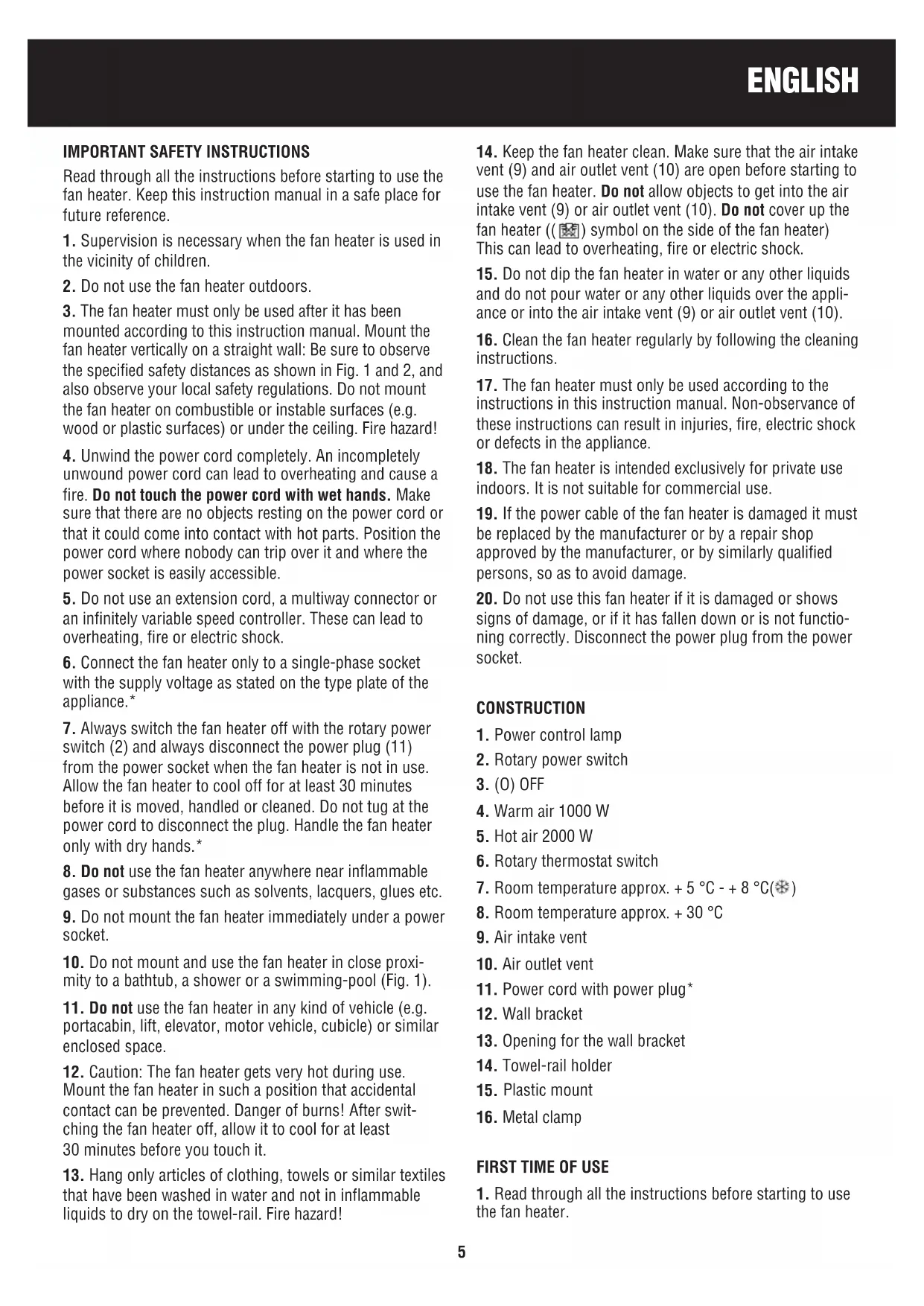

ENGLISH IMPORTANT SAFETY INSTRUCTIONS Read through all the instructions before starting to use the

fan heater. Keep this instruction manual in a safe place for

1. Supervision is necessary when the fan heater is used in

the vicinity of children.

2. Do not use the fan heater outdoors.

3. The fan heater must only be used after it has been

mounted according to this instruction manual. Mount the

fan heater vertically on a straight wall: Be sure to observe

the specified safety distances as shown in Fig. 1 and 2, and

also observe your local safety regulations. Do not mount

the fan heater on combustible or instable surfaces (e.g.

wood or plastic surfaces) or under the ceiling. Fire hazard!

4. Unwind the power cord completely. An incompletely

unwound power cord can lead to overheating and cause a

fire. Do not touch the power cord with wet hands. Make

sure that there are no objects resting on the power cord or

that it could come into contact with hot parts. Position the

power cord where nobody can trip over it and where the

power socket is easily accessible.

5. Do not use an extension cord, a multiway connector or

an infinitely variable speed controller. These can lead to

overheating, fire or electric shock.

6. Connect the fan heater only to a single-phase socket

with the supply voltage as stated on the type plate of the

7. Always switch the fan heater off with the rotary power

switch (2) and always disconnect the power plug (11)

from the power socket when the fan heater is not in use.

Allow the fan heater to cool off for at least 30 minutes

before it is moved, handled or cleaned. Do not tug at the

power cord to disconnect the plug. Handle the fan heater

only with dry hands.*

8. Do not use the fan heater anywhere near inflammable

gases or substances such as solvents, lacquers, glues etc.

9. Do not mount the fan heater immediately under a power

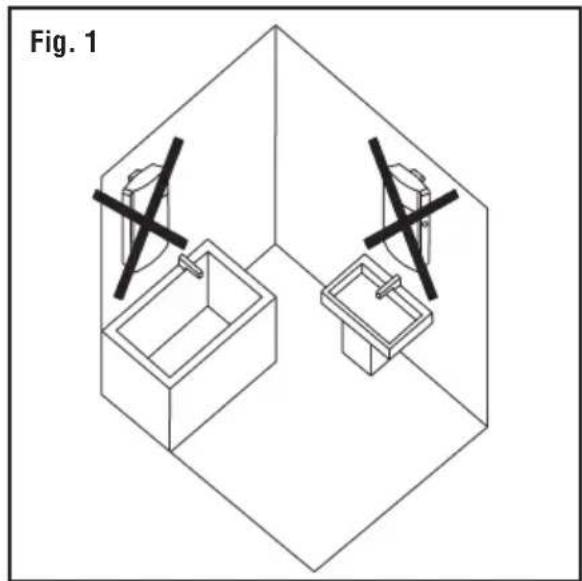

10. Do not mount and use the fan heater in close proxi-

mity to a bathtub, a shower or a swimming-pool (Fig. 1).

11. Do not use the fan heater in any kind of vehicle (e.g.

portacabin, lift, elevator, motor vehicle, cubicle) or similar

12. Caution: The fan heater gets very hot during use.

Mount the fan heater in such a position that accidental

contact can be prevented. Danger of burns! After swit-

ching the fan heater off, allow it to cool for at least

30 minutes before you touch it.

13. Hang only articles of clothing, towels or similar textiles

that have been washed in water and not in inflammable

liquids to dry on the towel-rail. Fire hazard!

14. Keep the fan heater clean. Make sure that the air intake

vent (9) and air outlet vent (10) are open before starting to

use the fan heater. Do not allow objects to get into the air

intake vent (9) or air outlet vent (10). Do not cover up the

fan heater (( ) symbol on the side of the fan heater)

This can lead to overheating, fire or electric shock.

15. Do not dip the fan heater in water or any other liquids

and do not pour water or any other liquids over the appli-

ance or into the air intake vent (9) or air outlet vent (10).

16. Clean the fan heater regularly by following the cleaning

17. The fan heater must only be used according to the

instructions in this instruction manual. Non-observance of

these instructions can result in injuries, fire, electric shock

or defects in the appliance.

18. The fan heater is intended exclusively for private use

indoors. It is not suitable for commercial use.

19. If the power cable of the fan heater is damaged it must

be replaced by the manufacturer or by a repair shop

approved by the manufacturer, or by similarly qualified

persons, so as to avoid damage.

20. Do not use this fan heater if it is damaged or shows

signs of damage, or if it has fallen down or is not functio-

ning correctly. Disconnect the power plug from the power

2. Rotary power switch

8. Room temperature approx. + 30 °C

11. Power cord with power plug*

13. Opening for the wall bracket

1. Read through all the instructions before starting to use

the fan heater.ENGLISH

2. Unpack the fan heater and the power cord. Remove all

packaging materials and dispose of them for recycling

3. Before starting to use the fan heater, mount it according

to the instructions for „wall mounting“.

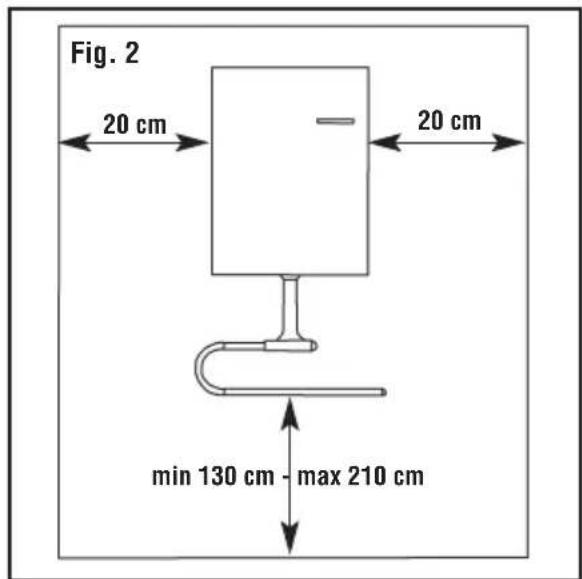

1. Mount the fan heater vertically on a straight wall. Strict-

ly observe the safety distances shown in Fig. 1 and 2.

Observe your local safety regulations. Do not mount the

fan heater on combustible or instable surfaces (e.g. wood

or plastic surfaces) or under the ceiling. Fire hazard!

2. Use the wall bracket (12) as a drill template. Mark two

holes and drill them in the wall.

3. Insert the two plugs into the holes and fix the wall bra-

cket (12) onto the wall with the two long screws. Make

sure that the horizontal hole of the wall bracket is on the

left side and the vertical hole on the right side and that the

indent is open to the top. Make sure that the wall bracket

is fixed securely to the wall.

4. Hang the fan heater on the wall bracket (12). Make sure

that it locks firmly into the indent on the wall bracket (12).

Adjust the hole in the wall bracket to fit the one in the ope-

ning and secure the fan heater on the wall bracket (12)

with the medium long screw.

5. Make sure that the fan heater is mounted securely and

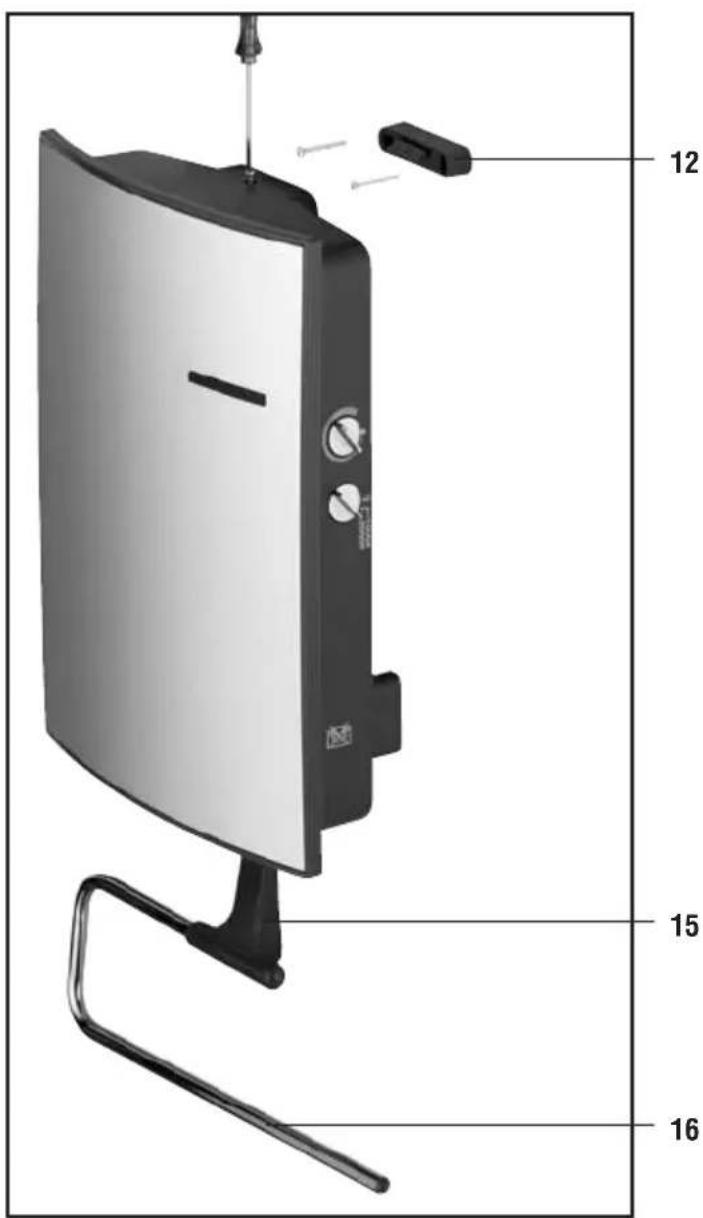

MOUNTING THE TOWEL-RAIL

1. Push the metal hanger (16) into the plastic mount (15).

2. Adjust the hole in the plastic mount (15) to fit the one in

the metal hanger (16) and secure the two parts with the

3. Push the plastic mount (15) into the holder (14) on the

rear side of the fan heater until it clicks into position.

4. Make sure that the plastic mount (15) is fitted securely,

and that it cannot become loose and fall off.

1. Check that the rotary power switch (2) is in the OFF (3)

position. Insert the power plug into the power socket. Do

not touch the power cord with wet hands.*

2. Make sure that the air intake vent (9) and air outlet vent

(10) are not covered up and that no objects have managed

to get into them. The air intake vent (9) and air outlet vent

(10) must always be free when the fan heater is in use.

3. Before handling, moving or cleaning the fan heater, turn

the rotary power switch (2) to the OFF (3) position and

disconnect the power plug from the power socket.*

4. Turn the rotary power switch (2) to the desired opera-

The power control lamp (1) lights up. When the rotary

power switch (2) is in the hot air 2000 W (5) position, you

cannot turn it further in a clockwise direction, only in an

anti-clockwise direction.

5. When the towel-rail is mounted, the heating performan-

ce is automatically reduced to 1000 W.

Rotary thermostat switch

1. When you operate the fan heater in the warm air (4) or

hot air (5) position, turn the rotary thermostat switch (6)

clockwise to the highest position (8).

2. When the desired room temperature has been reached,

turn the rotary thermostat switch (6) anticlockwise until

you hear a “click”. The fan heater now switches off.

3. Turn the rotary thermostat switch (6) slightly in a clockwi-

se direction. The fan heater now switches the heating on and

off automatically to maintain the desired room temperature.

4. The further you turn the rotary thermostat switch clock-

wise, the hotter the room temperature will get. The highest

position equals a room temperature of approx. 30 °C. The

lowest position ( ) (7) equals a room temperature of

5. It is normal for the thermostat not to switch on when

the room temperature is higher than 30 °C.

6. If the room temperature is lower than 5° - 8°C, the fan

heater will continue heating until the room temperature

has risen to more than 5° - 8 °C.

7. When the rotary thermostat switch (6) is in the highest

position (8), you can not turn it any further in a clockwise

direction, only anticlockwise

Overheating protection

1. The fan heater is equipped with overheating protection

which switches the fan heater off automatically if it over-

2. Turn the rotary power switch (2) to OFF (3) and discon-

nect the power plug from the power socket.*

3. Now let the fan heater cool for at least 30 minutes.

4. Remove any objects which might have got into the air

intake vent (9) or air outlet vent (10), or clean the ope-

nings which have caused the faulty running with a vacuum

cleaner or have caused overheating. If you can see that a

lot of dust has accumulated inside the fan heater, please

get the appliance cleaned at a service centre.7

5. Resume using the fan heater as described in the “user

CLEANING, MAINTENANCE, DISPOSAL We recommend you to clean the fan heater regularly. Plea-

se follow the instructions for cleaning and maintenance so

as to avoid impairing the functioning of the appliance.

1. Before you start cleaning the fan heater, turn the rotary

power switch (2) to OFF (3) and disconnect the power

plug from the power socket. Allow the fan heater to cool

for at least 30 minutes.*

2. Take the fan heater off the wall bracket. Clean the air inta-

ke vent (9) and air outlet vent (10) with a vacuum cleaner, to

remove the dust from the motor and heating element.

3. Clean the outer surfaces of the fan heater with a soft,

4. Resume using the fan heater as described in “wall

mounting” and the “user instructions”.

1. The fan heater needs no special maintenance, but it

should be serviced at least twice a year.

2. If the fan heater has to be repaired, be sure to contact

an authorized service centre.

This symbol on the product or its packaging indicates that

the appliance cannot be treated as normal domestic trash,

but must be handed in at a collection point for recycling

electric and electronic appliances.

Your contribution to the correct disposal of this product

protects the environment and the health of your fellow

men. Health and the environment are endangered by

Further information about the recycling of this product can

be obtained from your local town hall, your refuse collection

service, or in the store at which you bought the product.

This regulation is valid only in EU member states.

CONDITION OF PURCHASE As condition of purchase the purchaser assumes responsi-

bility for the correct use and care of this KAZ product

according to these user instructions. The purchaser or

user must himself or herself decide when and for how

long this KAZ product is in use.

WARNING: IF PROBLEMS ARISE WITH THIS KAZ PRO-

DUCT, PLEASE OBSERVE THE INSTRUCTIONS IN THE GUARANTEE CONDITIONS. DO NOT ATTEMPT TO OPEN OR REPAIR THE KAZ PRODUCT YOURSELF, AS THIS COULD LEAD TO TERMINATION OF THE GUARANTEE AND CAUSE DAMAGE TO PERSONS AND PROPERTY.

Technical modifications reserved.

* Any reference made in this manual to power cord with

plug is not valid in UK. In UK the unit must be hard-wird.

National rules and regulations must be observed.DEUTSCH
