USER MANUAL df770 HP

FCC Compliance Statement

Note: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one of

the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, only use shielded

interface cables when connecting to computer or peripheral devices.

Any changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate

This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.2

Selecting a Memory Source

Picture Rotate and Zoom

Copying and Deleting Pictures

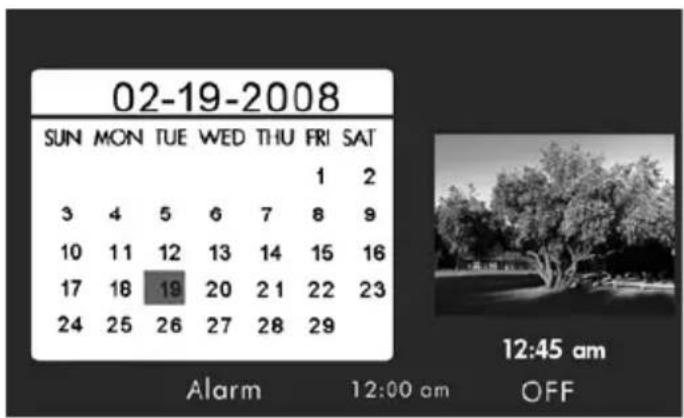

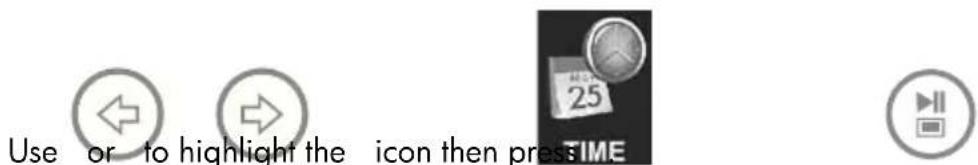

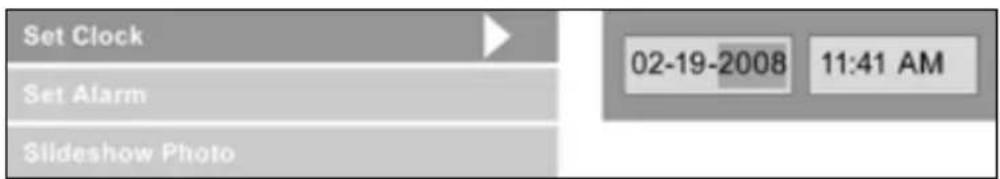

Calendar and Clock Display

Frequently Asked Questions

Cleaning and Care Tips

( For PC Connection )

IMPORTANT: Please keep this document for

technical support contact information.

2 Interchangeable frames

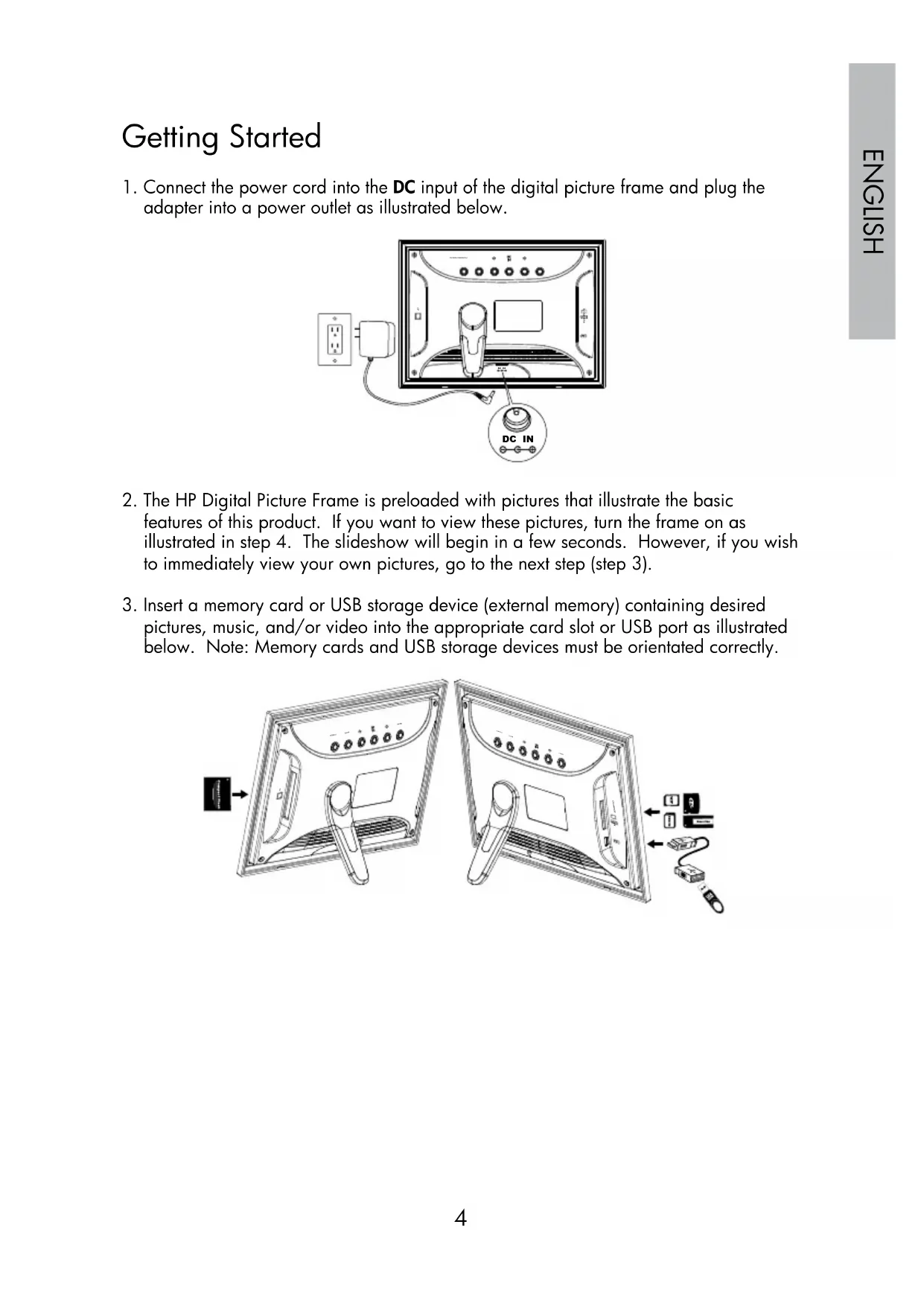

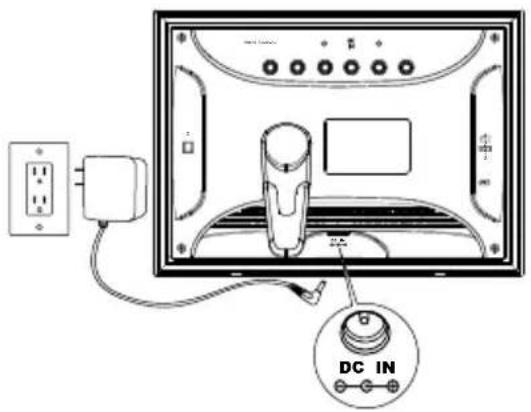

1. Connect the power cord into the DC input of the digital picture frame and plug the

adapter into a power outlet as illustrated below.

DC IN POWERMUTEMENUMS SD/MMC/XD CF DC IN

2. The HP Digital Picture Frame is preloaded with pictures that illustrate the basic

features of this product. If you want to view these pictures, turn the frame on as

illustrated in step 4. The slideshow will begin in a few seconds. However, if you wish

to immediately view your own pictures, go to the next step (step 3).

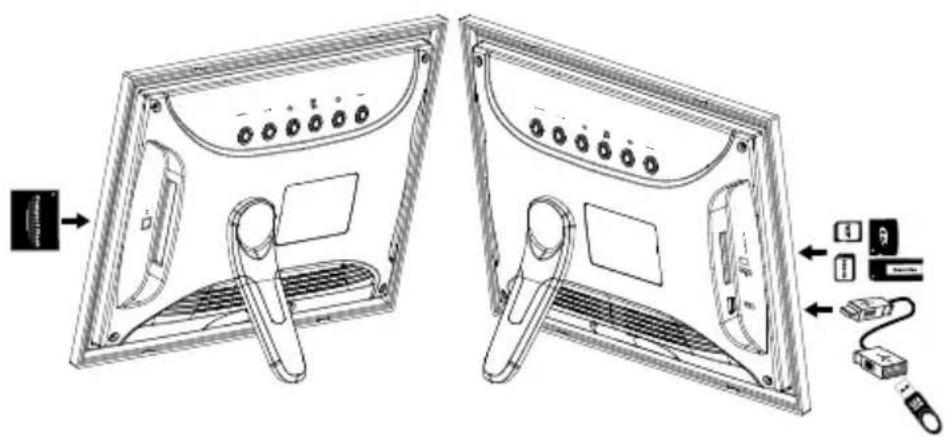

3. Insert a memory card or USB storage device (external memory) containing desired

pictures, music, and/or video into the appropriate card slot or USB port as illustrated

below. Note: Memory cards and USB storage devices must be orientated correctly.

CF POWER MUTE MENU POWER MUTE MENU MS SD/MMC/XD Getting Started5

4. Power on the digital picture frame.

DC INPOWERMUTEMENUMS SD/MMC/ XD CF POWER A slideshow of your pictures will begin automatically in a few seconds. If music tracks

are available on the same external memory device, the slideshow will be displayed with

background music unless disabled in the SETUP MENU. Enjoy it and have fun!

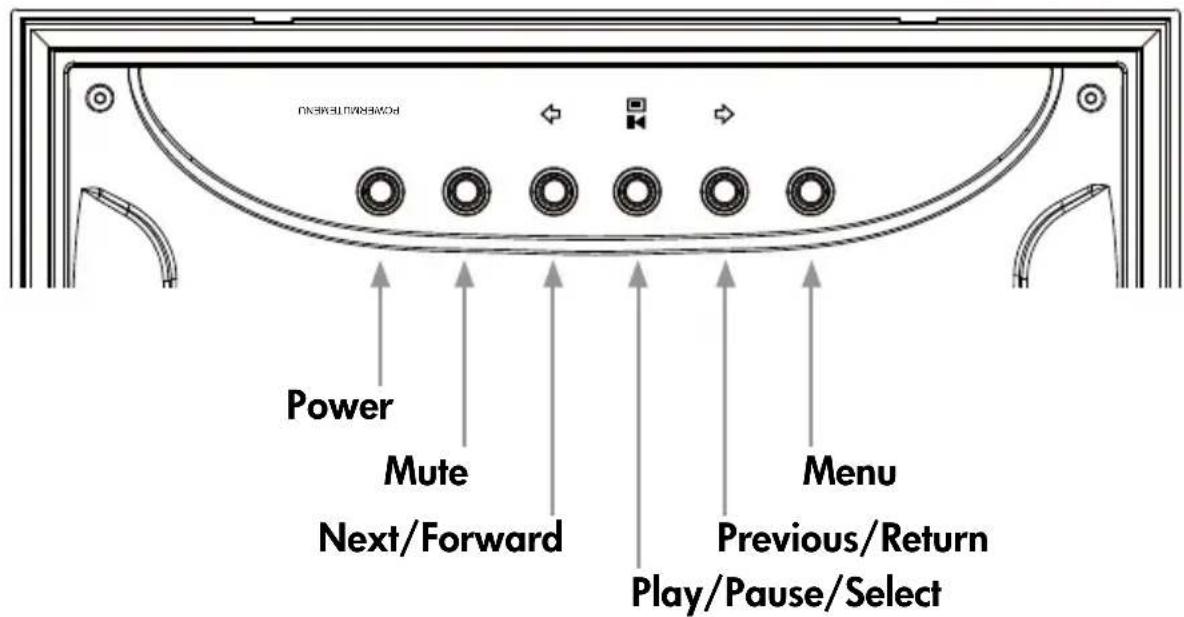

5. In addition to the remote control, the digital picture frame has basic control buttons on

the back as illustrated below.

DC IN POWERMUTEMENU MS SD/M MC/ XD CF Power

MENU: Press to access main menu mode or card selection mode

TIME SET: Press this button in the time mode to set up the date and time

SLIDESHOW: Press this button to begin a picture slideshow.

VIDEO PLAYBACK: Press this button to playback video files.

UP: Press to move up in thumbnail mode and Setup menu. Press to

increase value in TIME SET mode.

NEXT or FORWARD: Press to move right/forward in Photo Browse,

Thumbnail, menu mode, and TIME SET mode.

PLAY/PAUSE or SELECT: Press to change display mode (slide show,

browse, or thumbnail). Press to play or pause music or video files. Press

to make selections in menu or settings mode.

PREV or RETURN: Press to move left in browse, thumbnail or menu

mode, or return to previous screen in slide show mode.

DOWN: Press to move down in thumbnail mode and Setup menu. Press

to decrease value in TIME SET mode.

COPY/DEL: Press this button in Photo Browse mode or MUSIC mode to

initiate the copy or delete process.

ROTATE: Press to rotate the picture in Photo Browse mode.

ZOOM: Press to enlarge picture in Photo Browse mode.

VOL + / - : Press the + button to increase and the – button to decrease

audible playback volume.

BRIGHTNESS/CONTRAST/TINT/COLOR: Press this button during picture

browse mode to adjust basic appearance controls.7

1. Pull tab from remote control to activate.

PULL Should your remote control require a new battery, please purchase a 3 volt lithium

CR2025 model for replacement. The remote control has battery replacement

instructions stamped into the back side as illustrated below.

2. Power on the picture frame and allow the picture slideshow to begin. Press

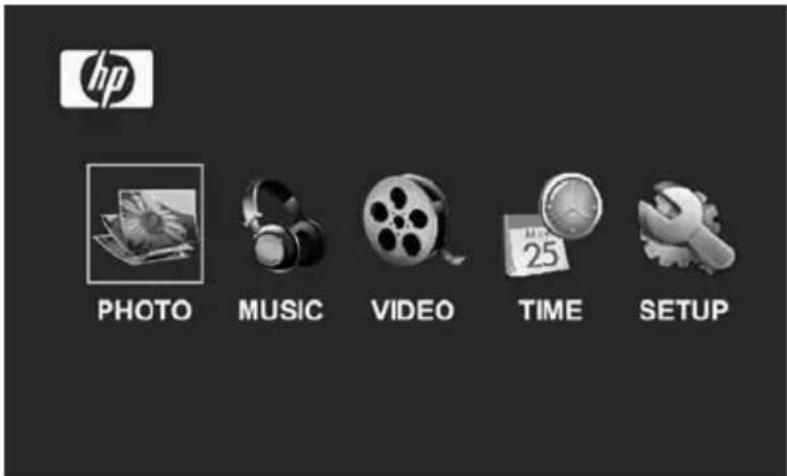

button once to view the MAIN MENU as illustrated below.

3. Press or to highlight the icon. Press the to open the

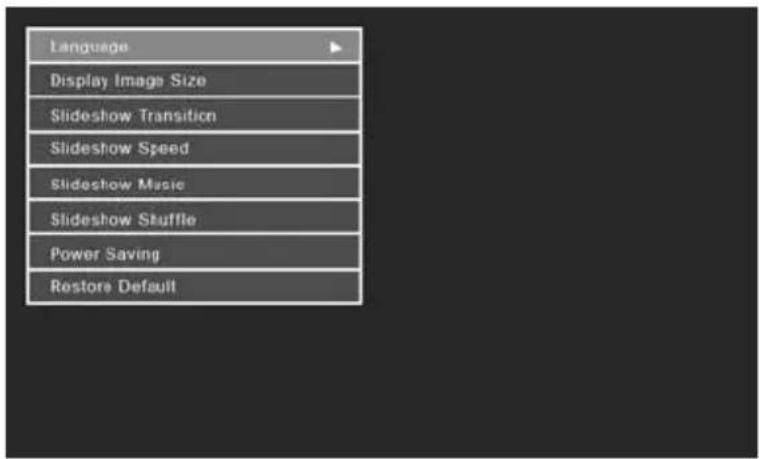

SETUP MENU as illustrated below

4. LANGUAGE setting will be highlighted in blue. Press the button to display

additional language selections. Note: If desired language is already selected, go to

5. Use or to highlight the desired On-Screen-Display language (OSD) and

press to select the language. Press to return to the setup menu.

6. Press or to highlight other options and press to select. Continue

to use or to highlight and to select the desired settings. Read

the next section titled SETUP MENU for details of these options.9

Choose from 7 On Screen Display languages. Options

are: English, German, French, Spanish, Portuguese, Italian,

The factory default is “English”.

Select “ORIGINAL” to display pictures with their original

properties. Display picture in full height in normal aspect

ratios. Many pictures may not fill the screen, and leave

space on both sides.

Select "OPTIMAL" to display pictures so that they fill the

entire screen. Pictures will likely be cropped on the top and

bottom to accomplish this feature.

The factory default option is “ORIGINAL”.

Slideshow Transition

Choose from 6 options and select the preferred transition.

Options are: Normal, Random, Fade, Curtain, Open_Door,

The default option is set to “RANDOM”.

Select the desired picture display duration. Options are:

5, 10, 30, 60 Seconds, I Hour, and 24 Hours. The default

option is “5” Seconds.

Select ON to allow playback of mp3 music during the

picture slideshow. Note: you must have mp3 file(s) on the

The factory default is set to “ON”.

Select ON to display pictures in a random order. Pictures

will not repeat until all have been displayed. Select OFF to

display pictures in sequential order.

The factory default is set to “OFF”.

This feature will automatically turn off the LCD to save

valuable energy. You can choose from 4 settings. Options

are: 2, 4, 8 hours or No Power Saving.

If you want to turn the LCD back on, press any button on the

photo frame or remote control.

The factory default is set to “No Power Saving”.

If you wish to restore ALL the settings to the factory default,

Automatic picture rotation to match frame orientation.

Picture slideshow with or without music.

• 6 different picture transition options

• Shuffle mode option

Multiple picture viewing options.

• View individual pictures in Browse mode (see later section)

• View Pictures in thumbnail mode

• Zoom and rotate individual pictures

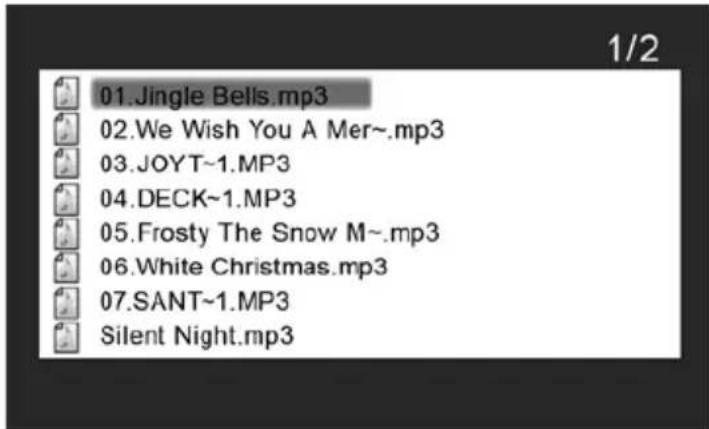

Playback music/audio tracks

• Music tracks must be in an mp3 file format

Playback video clips

• Video clips must be in an MPEG-1, MP4, or Motion JPEG file formats

Brightness, contrast, tint, and color adjustments in photo browse mode.

PC connection allows for adding pictures (as well as music and video files) to internal

or external memory. (see section titled Picture Options for details)

Add or delete pictures and mp3 music from memory sources.

7 on screen display languages

• English, French, Spanish, Italian, German, Dutch, and Portuguese11

The HP Digital Picture Frame can play back content from internal and external memory

devices such as USB flash drives and memory cards typically used with digital cameras.

More than one external memory device can be inserted at any given time. However,

content from only one memory source can be selected for playback.

To select the desired picture source, there are many methods to get to the memory

source selection menu.

1. In slideshow or browse mode: Press button twice.

2. In MAIN MENU mode: Press button once.

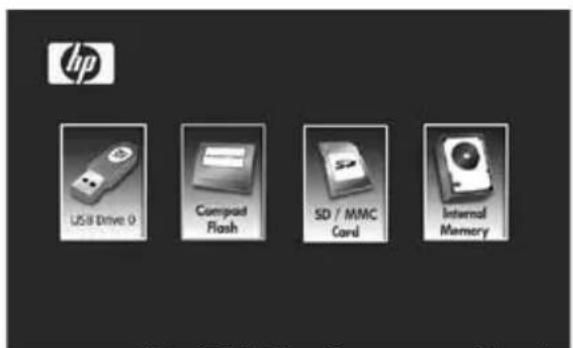

This will display the memory source screen as illustrated below. Note:

The screen may differ depending on type and number of external

memory devices that are inserted. Connect USB flash drives with

receptacle USB cable and then connect to digital photo frame.

SD/MMC card, Compact Flash, and USB Flash Drive inserted.

3. Use or to highlight the desired memory source icon. Press

to select. This will bring up the MAIN MENU for the memory source just

Slideshow mode will begin automatically a few seconds after the frame is powered on

or when an external memory card/USB Flash drive is inserted. There are two slideshow

modes, one with background music and the other without. Review the Initial Setup and

Setup Menu sections of this document for details on how to change desired settings.

To exit slideshow mode, press once. “Browse mode” will be displayed on the

lower right of the screen for a few seconds. This allows forward and previous picture

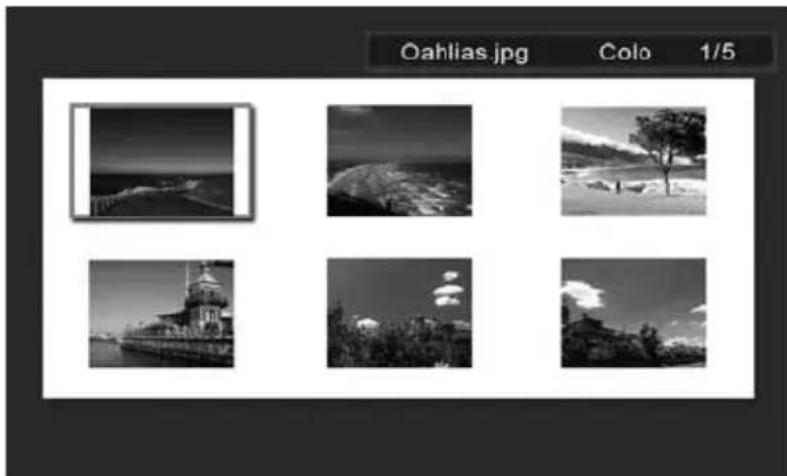

To view pictures in a thumbnail mode, press TWICE when in slideshow or ONCE

when in browse mode as illustrated below.

Use the arrow buttons to navigate to a picture. Press to view the selected

Pictures will be automatically rotated based on the frame orientation.

Pictures can be manually rotated by pressing the button in Photo Browse mode.

Note: each press of this button will rotate the picture by 90 degrees to the right.

Pictures can be zoomed to 5X by pressing the button in Photo Browse mode.

Note: each press of this button will increase the zoom by 1X until 5X. At 5X zoom, press

this button ONCE to return to the original view.

Picture Rotate and Zoom14

Copying pictures onto frame internal memory

From an external memory device: Insert an external memory device with pictures

you wish to copy. A slideshow of these pictures will begin shortly. Press

once to enter photo browse mode or twice to enter thumbnail mode. Select the

picture you wish to copy and press to display the copy/delete menu as

‘Copy picture to’ will be highlighted in blue. Press to display Internal

Memory. Press again to copy the desired picture onto the frame’s

internal memory. A Finished text box will be displayed indicating the picture is

now in the internal memory as illustrated below.

Use or to select another picture and repeat above step to copy to

Press to resume slideshow.

From a PC/laptop: For the first connection, it is recommended to remove all

external memory sources.

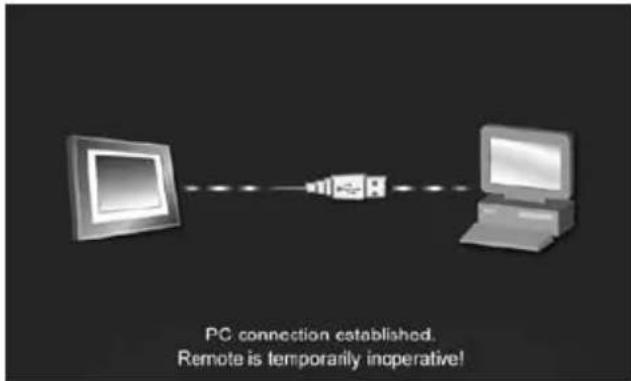

Power on the HP Digital Picture Frame. Connect the HP Digital Picture Frame to

your Windows™ 2000 (with service pack 4 or greater), Windows™ XP (with

Service Pack 2 or greater), or Windows™ Vista PC/notebook by using the USB

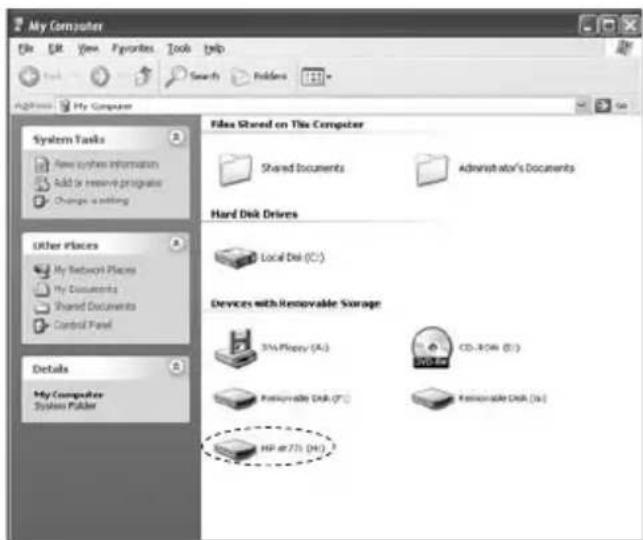

cable provided with the product. 3 new drive letters should appear in Windows

Explorer. These new drive letters represent the Digital Picture Frame’s internal

memory, memory card slot 1, and memory card slot 2. (see illustration below):

Copying and Deleting Pictures15

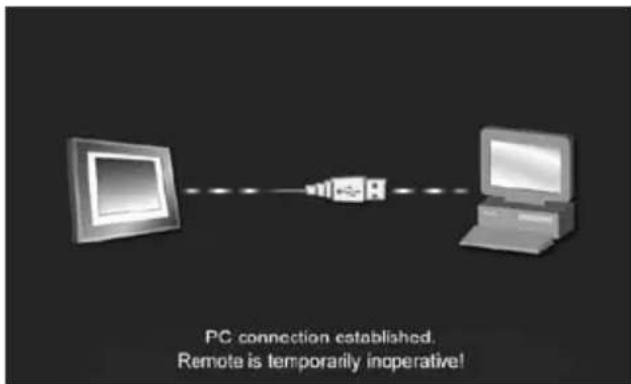

The digital picture frame will display the graphic below:

1 of the 3 new drive letters is the HP Digital Picture Frame’s internal memory and

labeled HP df770. Drive letter assignment MAY vary from PC to PC.

Use standard Windows™ explorer file copy and paste procedures to move

content onto the frame’s internal memory.

To check the picture frame's available memory, right click on the HP df770

drive letter and select Properties. A properties menu will appear displaying the

available/free space (in Mega Bytes [MB]).

When finished copying pictures, disconnect the PC/laptop by double-clicking on

the Safely Remove Hardware icon in the lower right on the screen of the

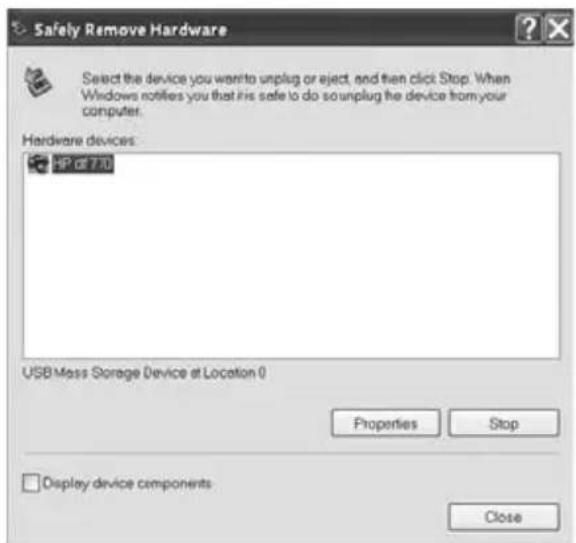

PC/Laptop. This will display the menu as illustrated below.16

Highlight the HP df770 drive and then click on the Stop button. After

notification, unplug the USB 2.0 cable from both the PC/Laptop and the

Deleting pictures from internal or external memory

Before deleting a picture or pictures, it is important to select the desired memory

source (see Selecting a Memory Source section for details).

Select the desired picture to be deleted and press the button to display

the copy/delete menu. Press to highlight ‘Delete picture’ text. Press

to display the YES and NO text. Use to highlight the desired

action. If YES is highlighted, press to delete the desired picture from

memory. The picture will disappear and the next picture (if additional pictures are

available) will be displayed.

If the frame is connected to a PC or laptop as previously described in Copying

pictures - From a PC/laptop section, pictures can be deleted using standard

Windows™ explorer file delete procedures.17

Go to the MAIN MENU (see Initial Setup section). Note: make sure the desired memory

source is selected (see Selecting a Memory Source section for details).

Use or to highlight the icon then press .

The frame will display a list of music/audio files found on the selected memory source as

The first music track in the list will be highlighted. Press to begin playback.

• The default playback mode is to play from first to last track then repeat from

• Press to adjust volume.

• Press or to playback other tracks (if available).

Copying and Deleting Music

The process for copying or deleting music onto or from the frame internal and external

memory sources is the same as described in the previous section titled Copying and

Deleting Pictures. Please refer to this section for details

Supported audio format: .mp3

There are two methods to playback video files on a memory source. Note: make sure the

desired memory source is selected (see Selecting a Memory Source section for details).

to begin play back of compatible video clip(s).

• The default playback mode is to play from first to last clip then repeat

• Press to adjust volume.

• Press to pause playback.

• Press to view the list of compatible video clips.

2. Go to the MAIN MENU (see Initial Setup section).

Use the or to highlight the icon then press .

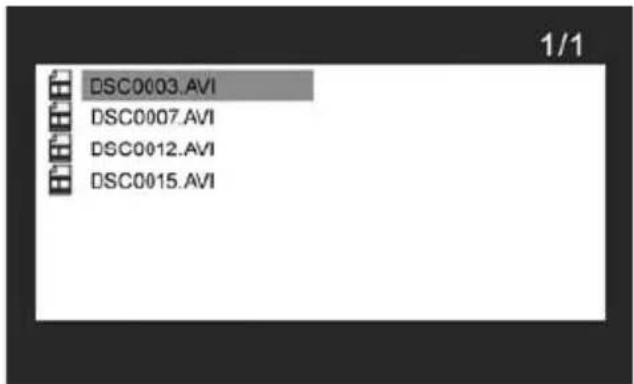

The frame will display a list of supported video clips/files found on the selected

memory source as illustrated below.

Use the or to highlight a desired video clip. Press to start

• The default playback mode is to play from first to last clip then repeat

• Press to adjust volume.

• Press to pause playback.

• Press to return to the list of video files.

Copying and Deleting Videos

Video clips CANNOT be copied or deleted using the feature.

However, if connected to a PC or Laptop, video clips can be managed using the same

procedures as described in the Copying pictures – From a PC/laptop section.

Supported Video formats: MPEG-1, MP4, and Motion JPEG20

Go to the MAIN MENU (see Initial Setup section).

Use or to highlight the icon then press .

The frame will display the calendar and clock screen similar to the illustration below.

Initially, the calendar and clock will display an incorrect date and time until they are

properly set up. To adjust the date and time, press the button to display the

TIME SET menu as shown below.

Setting the Calendar and Clock:

• The Set Clock option will be highlighted. Press the or button to open

the Set Clock screen as shown below.

Calendar and Clock Display21

• Use the and buttons to move between the calendar and clock values.

• Use the and buttons to change the date and time values.

• Press when desired date and time are selected. This will return to the TIME SET menu.

• Use and to highlight the Set Alarm or Slideshow Photo options.

Press to select the desired option.

• Highlight the Set Alarm option. Press the or button to open the Set

• Use the and buttons to move between the date, time, and alarm ON

• Use the and buttons to change these values.

• Press when desired settings are selected. This will return to the TIME SET

Setting the Slideshow Photo feature:

• Highlight the Slideshow Photo option. Press the or button to open the

Slideshow Photo screen.

• Use the and buttons to highlight Internal Memory or None option.

− Internal Memory will display pictures from the frame’s internal memory in a

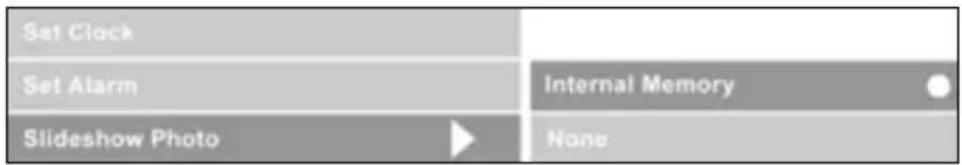

slideshow mode while in Calendar mode as shown below:

• Note: ONLY pictures from the internal memory will be displayed.

• Press to select desired option. This will return to the TIME SET menu and

display the selected feature.

• Press the button to remove the TIME SET menu. Press again to display

the MAIN MENU screen.

NOTE: If the Digital Picture Frame is unplugged from power source, all clock settings

will need to be setup again.23

Specications - df770

Internal speakers 1.0 W x2

USB Ports USB 2.0 (USB thumbdrive and PC connection)

Internal memory 128 MB Supported Memory cards

Media Files Supported:

English, French, Spanish, Italian, German,

Dutch, and Portuguese24

Frequently Asked Questions

How far away can I use the remote

My remote control doesn’t work?

You may need to change the battery. Please

use a lithium 3V-model number CR2025 only.

Why can’t I display some of my

Some picture/image file formats are not

supported. Please refer to the specifications.

Why can’t I play some of my music

Some music file formats are not supported.

Please refer to the specifications.

Why can’t I play some of my video

Some video file formats are not supported.

Please refer to the specifications.

Can I delete pictures from external

memory cards or flash drives?

Yes, refer to the Picture Options section of this

Can I delete pictures from internal

Yes, refer to the Picture Options section of this

How can I switch to the internal

Remove all external memory sources.Or press

the button until the memory source

selection screen is displayed. Use and

to highlight internal memory icon and

Why can’t I use my Windows™ 98

or Me system to copy content onto

The appropriate USB drivers are not supplied

for this product and are NOT native to these

I have lost or damaged my remote

and/or power adapter. Can I

Yes. Visit www.hp.com/support for more

How can I find the latest

information/FAQs about my HP Digital Picture Frame?

Visit www.hp.com/support for more details and

the latest information.25

√ Please power off the HP Digital Picture Frame before cleaning.

√ DO NOT push on the screen too firmly.

√ DO NOT spray or pour liquid cleaning agents directly on the screen or frame.

√ DO NOT use ammonia, alcohol, or abrasive detergent cleaning agents.

Cleaning the Screen:

1. Wipe screen with a clean, soft, lint-free cloth to remove dust and loose

2. If further cleaning is required, apply an appropriate cleaning agent

(approved for LCD displays) to a clean, soft, lint-free cloth and wipe the

• NOTE: do not apply too much pressure on the screen to avoid damaging it.

Cleaning the Frame and Backing:

1. Use a clean, soft, lint-free cloth to remove dust and loose particles.

2. If desired, apply an appropriate cleaning agent to a clean, soft, lint-free

cloth and wipe the appropriate surfaces.

Cleaning and Care Tips26

Should you have a technical support question or your HP Digital Picture frame requires

service within the warranty period, please contact the original point of purchase or an

authorized HP reseller in your country. If service is not available at those locations,

please contact an HP Branded Product warranty agent from the support contact list

provided below. A service agent will work with you to troubleshoot your issue and

if necessary, issue a Return Material Authorization (RMA) number in order to replace

your HP Branded Product. For warranty claims, you will be required to provide a copy

of your original dated sales receipt as proof of purchase and the issued RMA number.

You will be responsible for shipping charges when shipping the product to the service

center. The service agent will provide you with an address and you will also be

responsible for any shipping charges to the warranty service center. Once your

product is received by this service center, a replacement unit will be shipped back to

you typically within 5 business days.

Language Email Address

Dutch hollands@hpodd.com

French francais@hpodd.com

Deutsch deutsch@hpodd.com

Italiano italiano@hpodd.com

Japanese nippon@hpodd.com

Korean korean@hpodd.com

Portuguese portugues@hpodd.com

Espanol espanol@hpodd.com

Contact/Phone Support:

Country Language Number

Europe Region (EMEA)

ITALIA Italian + 39 269682189

United States English 1.866.694.7633

Canada English and French 1.866.694.7633Français

TIME SET (AJUSTAR HORA).

(Español), Italian (Italiano), German

None (Clock Display).

English (Inglese), French (Francese), Spanish

German (Duits), French (Frans), Spanish (Spaans), Portuguese

De fabrieksinstelling is “ON” (AAN).

De fabrieksinstelling is “OFF” (UIT).

De fabrieksinstelling is “No Power Saving” (Geen

• English (Engels), French (Frans), Spanish (Spaans), Italian (Italiaans), German

English (Engels), French (Frans), Spanish

Europe Region (EMEA)

Spanish (스페인어), Portuguese (포르투갈어), Italian (이탈

Media Files Supported:
