USER MANUAL DigiFrame 1870 BRAUN

90411 Numberg/Germany

www.braun-phototechnik.de

Gebrauchsanweisung

Instruction Manual

Mode d'emploi

Please note that this Digital Picture Frame comes in different versions. The detailed features of each Digital Picture Frame are specified on the package.

Remarque!

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

Design and specifications are subject to change without notice.

Aus, Surround 1, Surround 2

11.4.4 EQ

Thank you for purchasing this Digital Photo Frame. It is designed to allow quick and easy viewing of photos taken with your digital camera, mobile phone, or from a memory card. Please read this user manual carefully to learn the correct way to use the digital photo frame.

Contents:

1. Stand Installation 12
   2a. Rear and Left Side View 13
   2b. Remote Control 14
   2c. Installing & Replacing the Battery 14
2. Getting Started 15
3. Operating Instructions 15
   USB and Memory Card 15
4. Picture Mode/Delete Function 15
5. Music Mode/Delete Function 16
6. Video Mode/Delete Function.. 16
7. Scrolling Subtitle Function 17
   9.HDMI-IN Function. 17
   10.AV in 18
8. Setup. 18
9. Specifications 20
10. Troubleshooting 20

Packaging Check List:

1. 18.5 inch digital photo frame
2. AC/DC adapter
3. Remote control
4. User manual
5. Bracket, screw

Cautions:

Precautions and maintenance

• For indoor use only
• To avoid risk of fire or electric shock, do not expose the unit to moisture or condensation.
• To avoid overheating, do not block the ventilation holes on the back of the Digital Photo Frame.
• Keep the Digital Photo Frame out of direct sunlight.
• Do not dismantle the Digital Photo Frame. There is a risk of electric shock and there are no user-serviceable parts inside.
• Dismantling the Digital Photo Frame will void your warranty.

Cleaning the LCD Screen

• Treat the screen carefully. Because the screen of the Digital Photo Frame is made of glass and it would easily be broken or scratched.
• If fingerprints or dust accumulate on the LCD screen, we recommend using a soft, non-abrasive cloth such as a camera lens cloth to clean the LCD screen.
• Moisten the cleaning cloth with the cleaning solution and apply the cloth to the screen.

WARNING:

Please power off the unit before inserting or removing a card or USB device.

Failure to do so may cause damage to the card/USB and the unit.

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture

Note:

This Device is for private use only and not designed for commercial utilization.

Features:

1. Supported picture formats: JPEG, BMP, PNG
2. Supported audio formats: MP3
3. Supported video formats: MPEG1, MPEG2, MPEG4, H.264, RM, RMVB, MOV, MJPEG, DivX
4. Supported memory cards: SD/MMC/MS
5. USB port: USB 2.0
6. HDMI interface: supports HDMI-IN function
   7.AVIN
7. Slideshow with background music

8. Supports scrolling subtitles when playing photo, music, movie files

9. Supports time bar when playing photo, music, movie files

10. Built-in clock and alarm clock, scheduled auto on/off
11. Adjustable brightness, contrast, saturation
12. OSD languages: English and other languages selectable

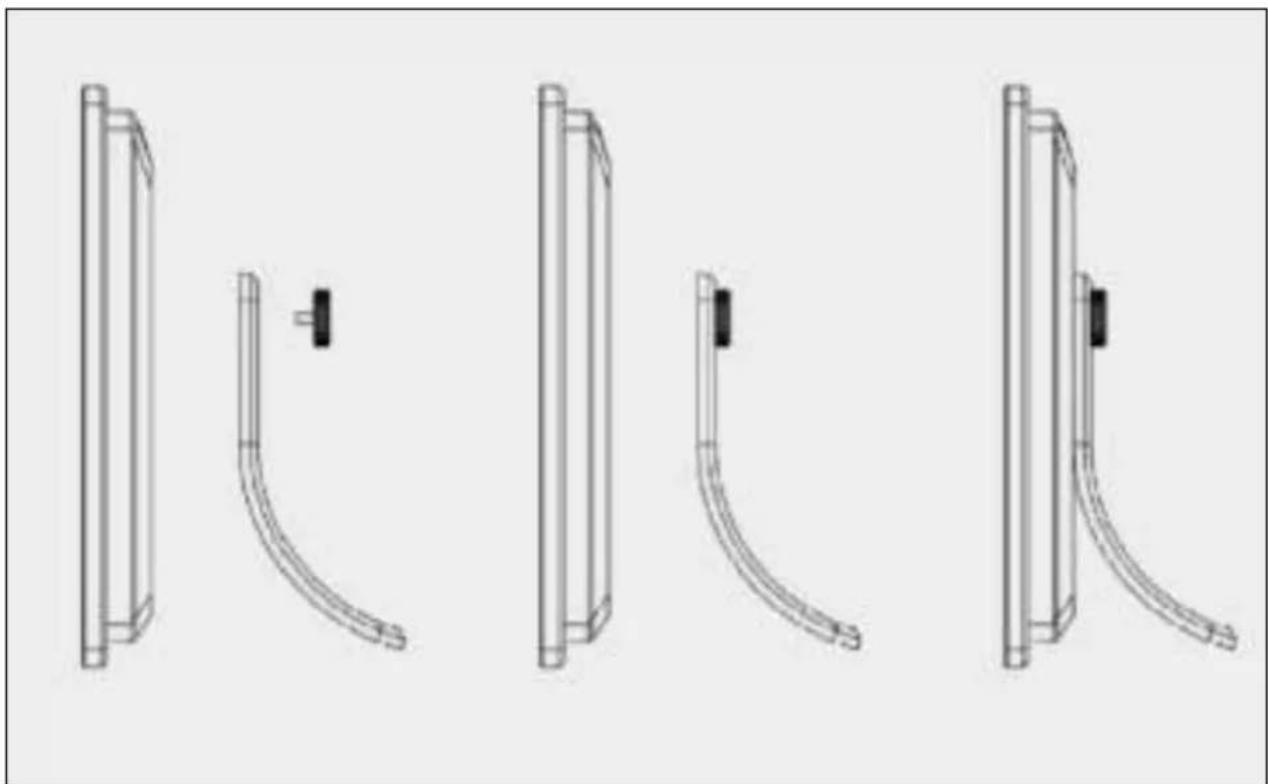

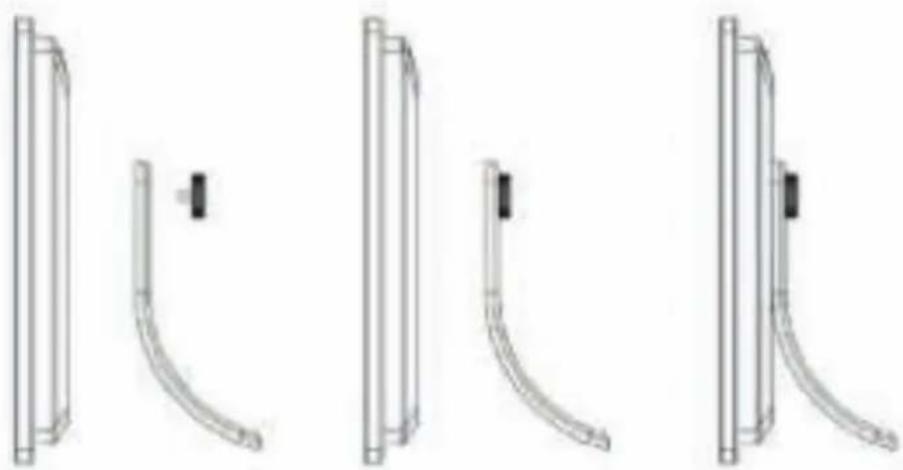

1. Stand Installation

Insert the screw with the bracket in the slot of the digital photo frame, move the bracket up and down to adjust the frame angle, then rotate the screw

until the stand is locked in place before standing the photo frame upright.

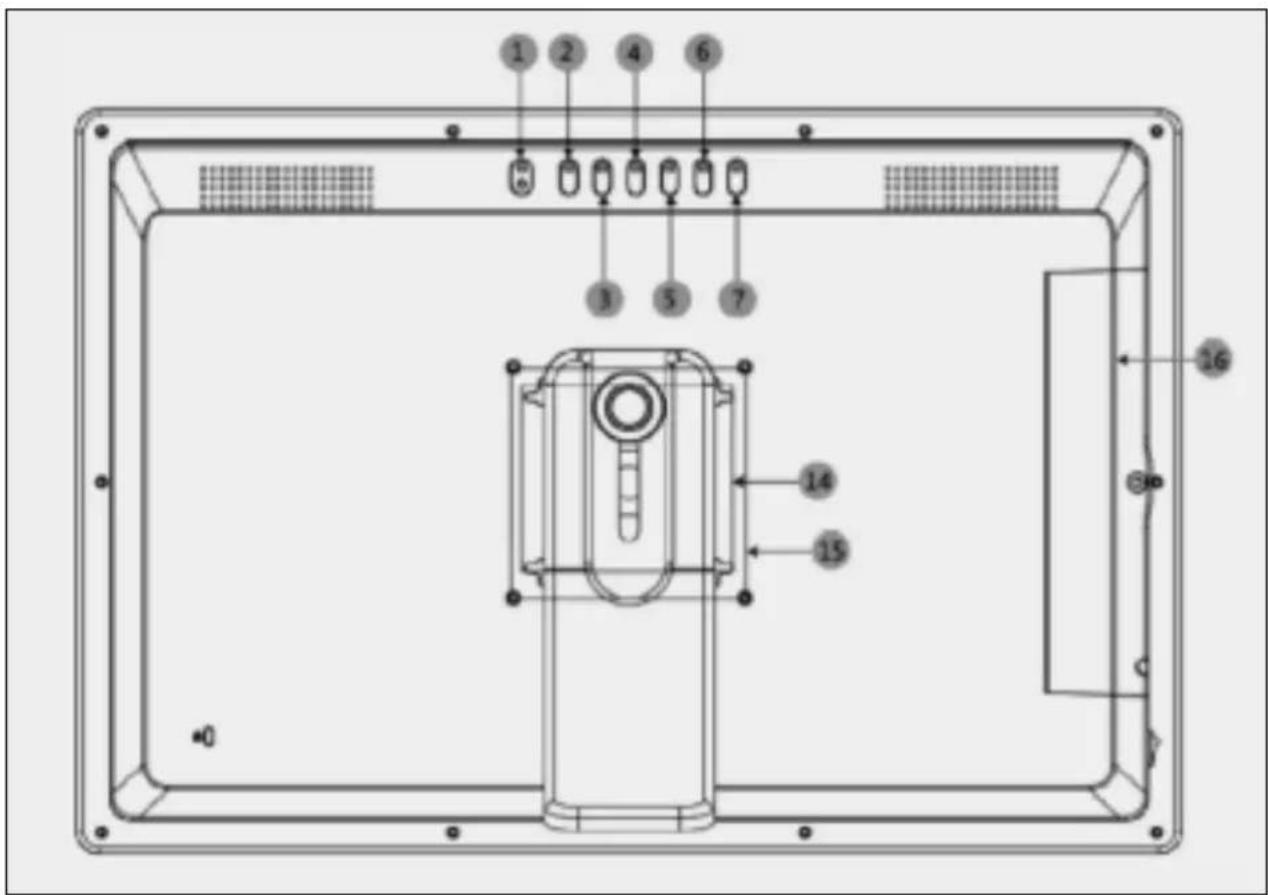

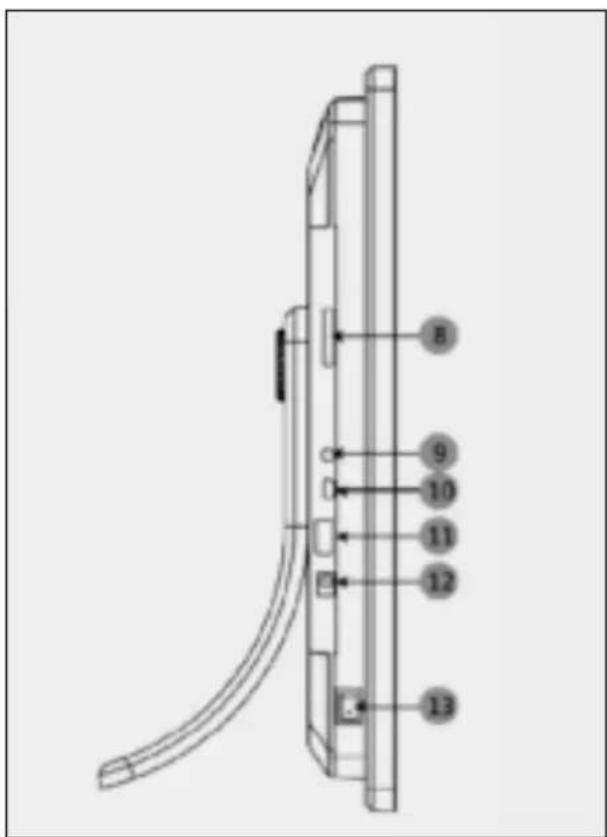

2a. Rear and Left Side View

1. POWER
2. RIGHT, Vol+
3. LEFT, Vol -
4. DOWN
5. UP
6. OK
7. EXIT
8. SD/SDHC/MMC/MS card slot
   9.AV IN
   10.HDMI-IN interface
9. USB port
10. DC IN
11. MAIN SWITCH
12. Keyholes for Wall-mounting (7.5 mm screws)
13. 100 mm Standard Mounting holes (M4 screws)
14. Cover for card/USB interfaces

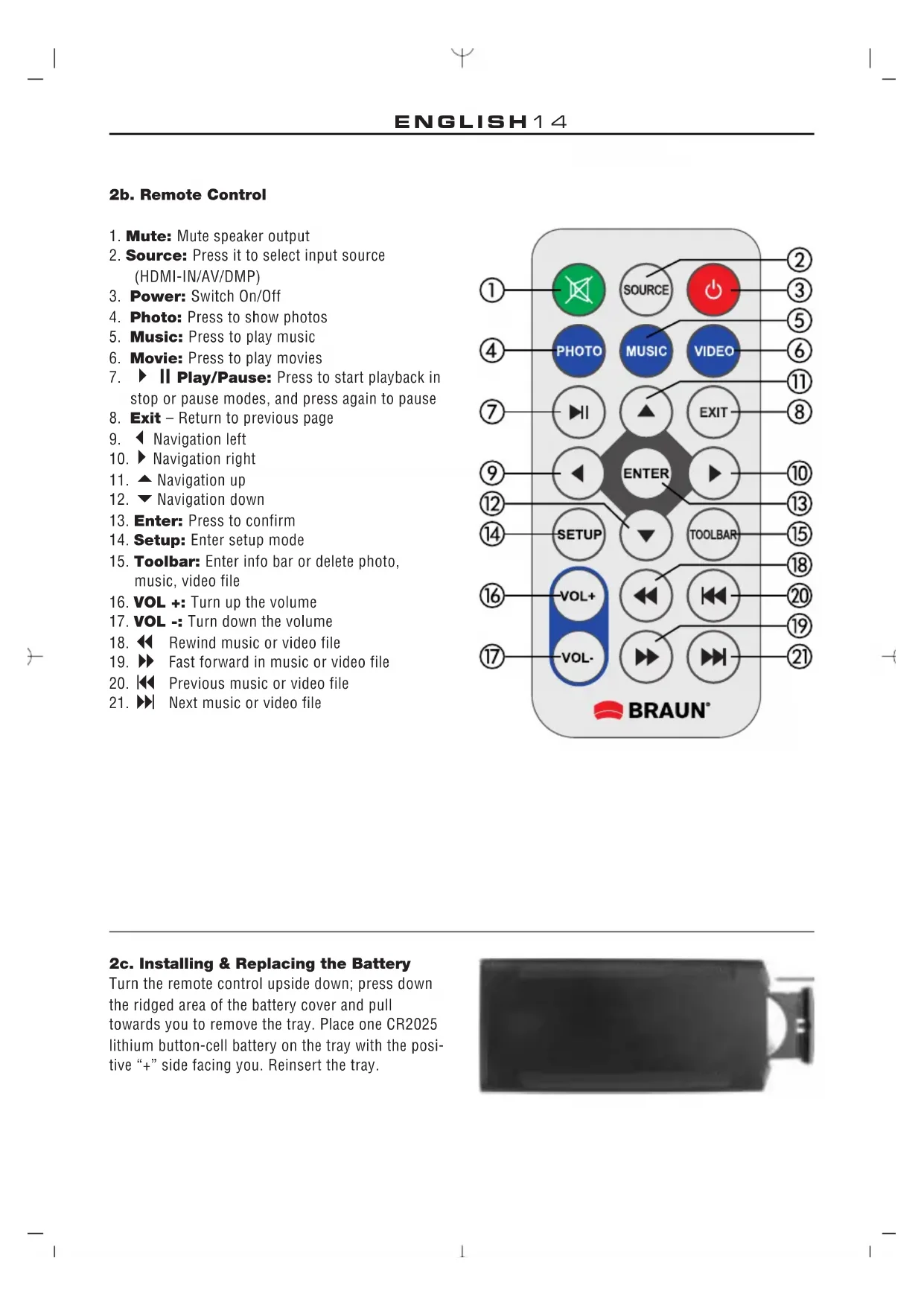

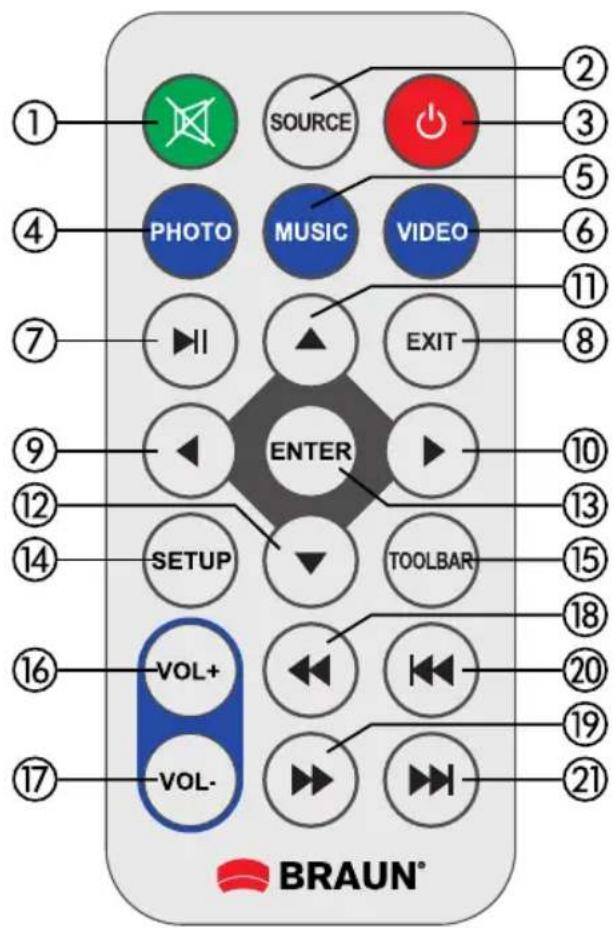

2b. Remote Control

1. Mute: Mute speaker output
2. Source: Press it to select input source (HDMI-IN/AV/DMP)
3. Power: Switch On/Off
4. Photo: Press to show photos
5. Music: Press to play music
6. Movie: Press to play movies
7. Play/Pause: Press to start playback in stop or pause modes, and press again to pause
8. Exit - Return to previous page
9. Navigation left
10. Navigation right
11. Navigation up
12. Navigation down
13. Enter: Press to confirm
14. Setup: Enter setup mode
15. Toolbar: Enter info bar or delete photo, music, video file
16. VOL +: Turn up the volume
17. VOL -: Turn down the volume
18. Rewind music or video file
19. Fast forward in music or video file
20. Previous music or video file
21. Next music or video file

2c. Installing & Replacing the Battery

Turn the remote control upside down; press down the ridged area of the battery cover and pull towards you to remove the tray. Place one CR2025 lithium button-cell battery on the tray with the positive "+" side facing you. Reinsert the tray.

3. Getting Started

3.1 Plug one end of the included AC adapter into a standard 110-240V AC electrical outlet and the other end into DC in of the photo frame.
3.2 Remove the protective film covering the LCD.
3.3 Remove the plastic battery insulator from the battery compartment and make sure that the remote control has a battery inserted. Please refer to "Installing & Replacing the Battery" if you need a new battery.
3.4 Power on the unit by pressing the Power button on the remote control.

4. Operating Instructions

After turning the unit on it will show the start-up picture.

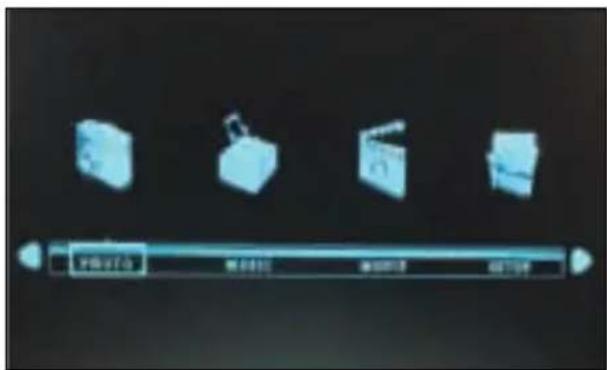

4.1 Main Menu

After showing the start-up picture, it will automatically enter the main menu.

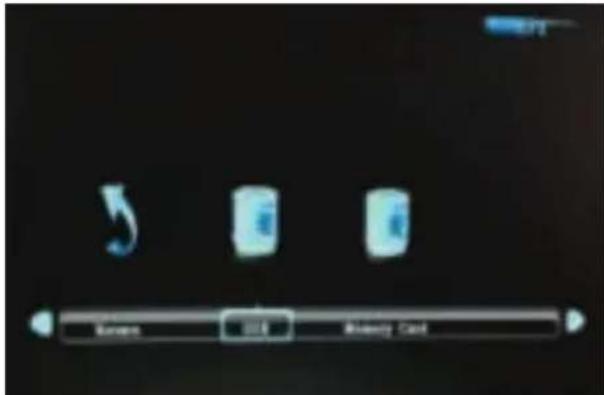

USB and Memory Card

The unit supports SD/MMC/MS and USB 2.0. Press Enter to select the source device.

Note:

1) Make sure there are supported picture, music and video files on the card or USB device.
2) You can also select Auto-play Music, Movie or Photo + Music in the Setup menu.

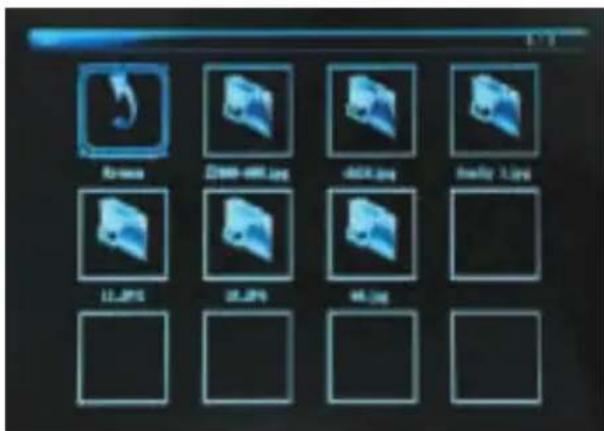

5. Picture Mode/Delete Function

Highlight Photo from the main menu, press Enter to select USB 2.0 or memory card for playback, then press Enter again to access thumbnail mode. Press (\triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle

Delete function: In thumbnail mode, use to select the picture file to be deleted, then press Toolbar to confirm.

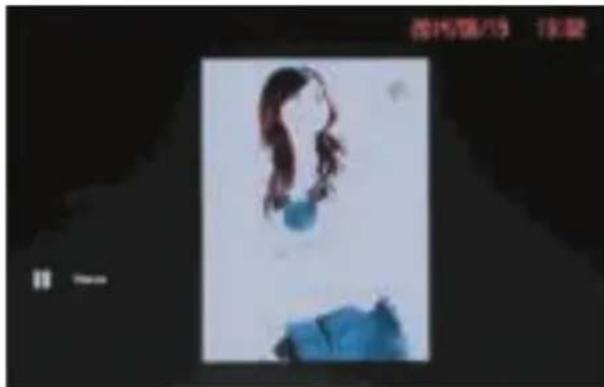

PicturePlayback

When playing the single picture, press Toolbar to enter information bar and set up the item.

Note:

1) In the setup menu, press to enter the time setup menu, here you can set up Time format, Time position, Time colour of the time bar.
2) In the sub-menu Time format you can select "Off" to close the time bar.
3) Press Toolbar to enter info bar, then use to operate.

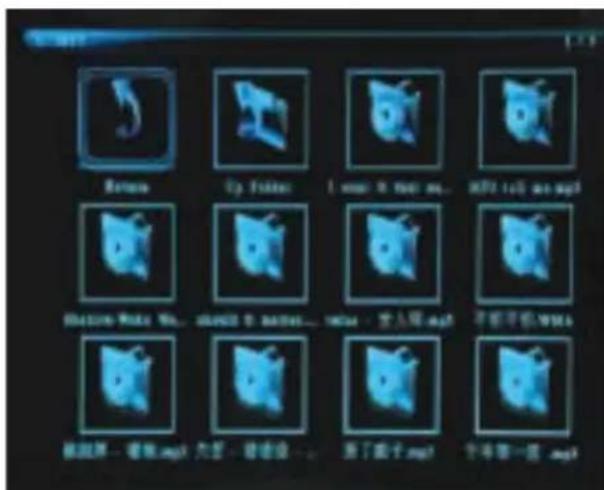

6. Music Mode/Delete Function

Highlight Music from the main menu, press Enter to select USB 2.0 or memory card for play, then press Enter again to access thumbnail mode.

Press to select the music for playback and press Enter to confirm.

Delete Function:

In thumbnail mode, use (\triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle to select the music file to be deleted, then press Toolbar to confirm.

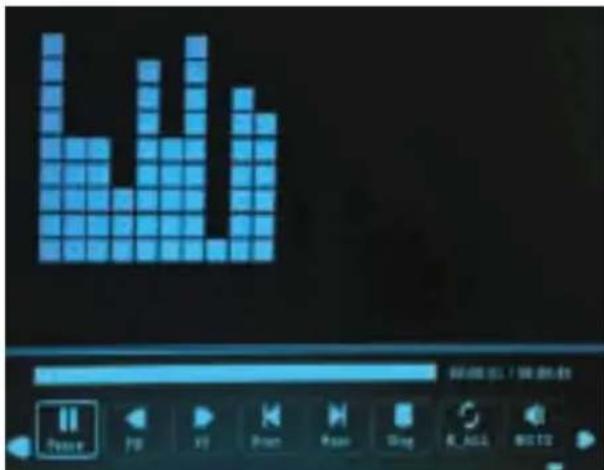

MusicPlayback

During music playback, press Toolbar to enter the music information bar, select with and press Enter to operate.

Note:

1) In the setup menu, press to enter the time setup menu, here you can set up Time format, Time position, Time colour of the time bar.
2) In the sub-menu of Time format, you can select "Off" to close the time bar.
3) Press Toolbar to enter info bar, then use to operate.

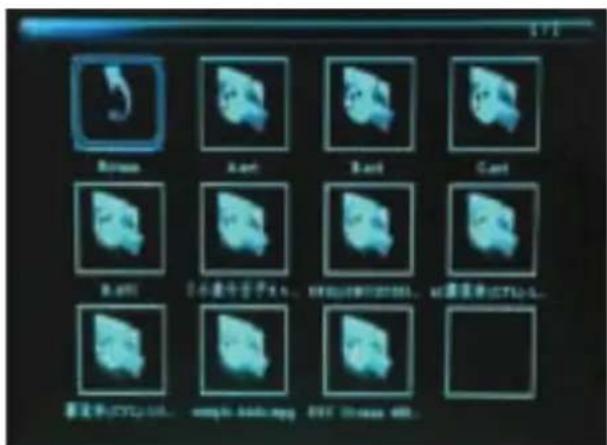

7. Video Mode/Delete Function

Highlight Video from the main menu, press Enter to select USB 2.0 or memory card for playback, then press Enter again to access thumbnail mode.

Press to select the video for playback and press Enter to confirm.

Delete Function:

In thumbnail mode, use to select the video file to be deleted and press Toolbar to confirm.

Video Playback

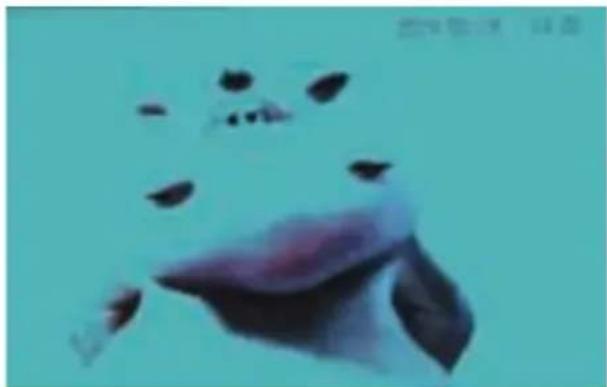

When playing a single video, press Toolbar to enter info bar to set up.

Note:

1) In the setup menu, press to enter the time setup menu, here you can set up Time format, Time position, Time colour of the time bar.
2) In the sub-menu of Time format, you can select "Off" to close the time bar.
3) Press Toolbar to enter info bar, then use to operate.

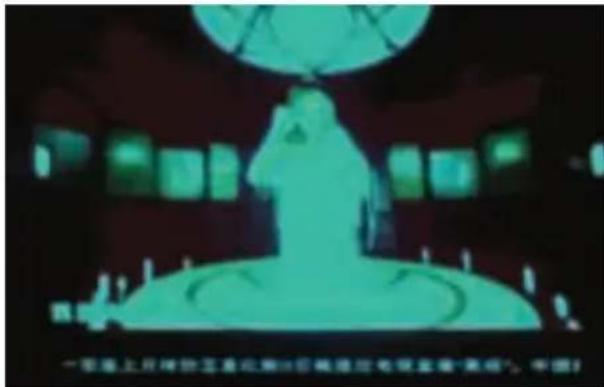

8. Scrolling Subtitle Function

The unit supports scrolling subtitles when playing photo, music, video files.

Note:

Follow these steps to set up scrolling subtitle:

a) Create a TXT file.
b) Save as TXT file in "Unicode" format and name it "SCROLL.TXT".

c) Copy this TXT file to USB stick or memory card.
d) Insert the USB stick or memory card, it will show the subtitle when playing the photo, music or movie file.

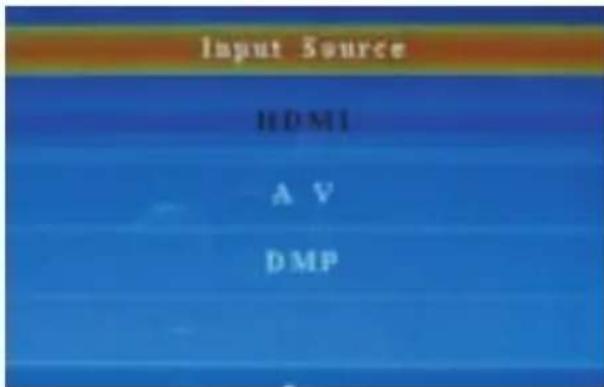

9. HDMI-IN Function

Connect the HDMI-out device to HDMI-IN interface of the photo frame. Press Source and select input source "HDMI".

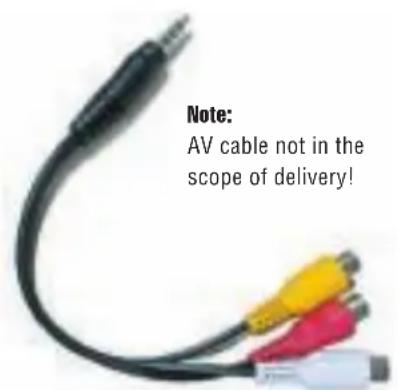

10. AV IN

Connect the Video device to the AV IN press Source and select input source "AV"

11. Setup

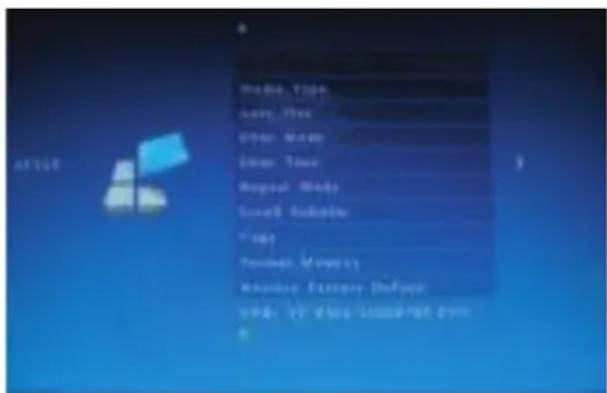

11.1 Setup Menu

Highlight Setup in the main menu, press Enter to access, press to select the item (Note: press Exit to return to the main menu and press SETUP to return to the previous menu).

11.1.1 Language: English, Espanol, Deutsch, Francais.
11.1.2 Media_Type: Press Enter, then select "Photo, Music, Movie, Photo+ Music, Off" to setup Auto-play.
11.1.3 AutoPLAY: USB, Memory Card.
11.1.4 Slide Mode: Off/On.
11.1.5 Slide Time: 3S/5S/10S/30S/60S.
11.1.6 Repeat Mode: All/One/Off.
11.1.7 Scroll Subtitle: Black, White, Red, Blue, Green, Off.
11.1.8 Copy: Supports copy function between memory card and USB disk.

11.1.9 Format Memory: Press Enter and then press to select Yes or No to format the built-in memory

11.1.10 Restore Factory Default: Press Enter and use to select or deselect reset.

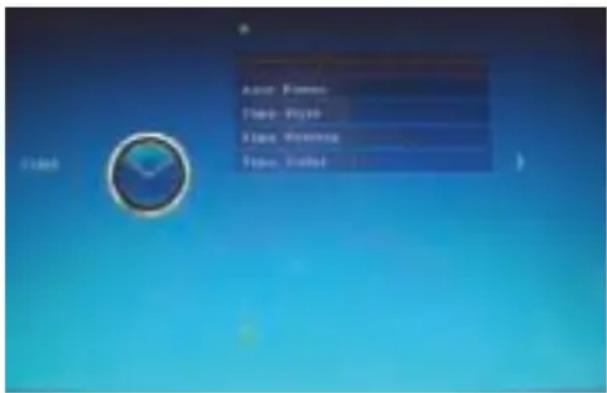

11.2 Time Setup

Highlight Setup in the main menu, press Enter and use to select and access the Time setup menu. Press to select the item and press Enter to confirm (Note: press Exit to return to the main menu and press SETUP to return to the previous menu).

11.2.1 Clock: Press Enter, then use to set up Date, Month, Year, Hour, Minute, Sec and press Enter to confirm.
11.2.2 Auto Power on/off

Press Enter, then use to select "Once, Every Day, Off" to set up the frequency of Auto Power on/off. Use to enter and select the desired alarm. Use to select Off/On. If selecting "On", then you can set up Hour and Min, to Auto power on/off.

11.2.3 Time Style: Press Enter, then use to select Time format. Press Enter to confirm.
11.2.4 Time Position: Press Enter, then use to select "Right-Top, Left-Top". Press Enter to confirm.
11.2.5 Time Colour: Press Enter to select "White, Black, Red, Blue, Yellow" to set up the desired time colour, then press Enter to confirm.

11.3 Picture Setup

Highlight Setup in the main menu, press Enter and use to select and access the picture setup menu. Press to select the item and press Enter to confirm (Note: press Exit to return to the main menu and press SETUP to return to the previous menu).

11.3.1 Picture Mode:

a) Press Enter to select "Standard, Mild, User, Dynamic".
b) If selecting "User", you can set up the following:
Contrast: Use to select from 00 (lowest) to 100 (highest).
Colour: Use to select from 00 (lowest) to 100 (highest).
Sharpness: Use to select from 00 (lowest) to 100 (highest)
11.3.2 Aspect Ratio: Fit, Just Scan, Panorama
11.3.3 Picture Adjust
a) Press Enter to select "Cool, Medium, Warm, User".
b) If selecting "User", you can set up the following:
Red: Use to select from 00 (lowest) to 100 (highest).
Green: Use to select from 00 (lowest) to 100 (highest).
Blue: Use to select from 00 (lowest) to 100 (highest)

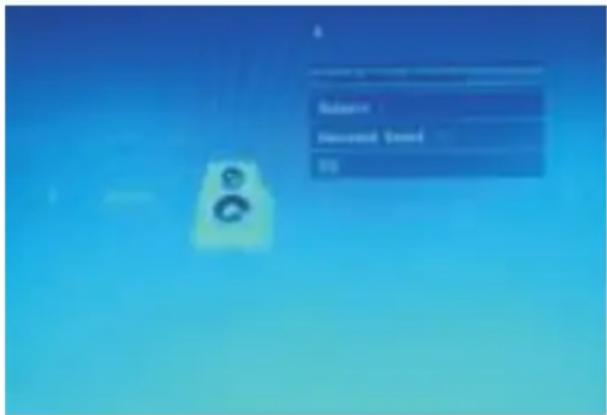

11.4 Klangeinstellung

Highlight Setup in the main menu, press Enter and use to select and access the sound setup menu. Press to select the desired item and press Enter to confirm (Note: press Exit to return to the main menu and press SETUP to return to the previous menu).

11.4.1 Sound Mode

a) Press Enter to select "Standard, Music, Movie, Sports, User".
b) If selecting "User", you can set up the following: Treble: Use to select from 00 (lowest) to 100 (highest).
Bass: Use to select from 00 (lowest) to 100 (highest).
10.4.2 Balance:
Use to select from -50 (lowest) to 50 (highest).
10.4.3 Surround Sound: Off, Surround 1, Surround 2
10.4.4 EQ
120Hz: Use to select from 00 (lowest) to 100 (highest).
500Hz: Use to select from 00 (lowest) to 100 (highest).
1.5KHz: Use to select from 00 (lowest) to 100 (highest).
5KHz: Use to select from 00 (lowest) to 100 (highest).
10KHz: Use to select from 00 (lowest) to 100 (highest).

12. Technical Specifications

• A dapter: Input AC 100-240V 50/60HZ Output DC: 12V/1.5A
• Picture Format: JPEG, BMP
  Audio Format: MP3
  Video formats: MPEG1, MPEG2, MPEG4, Divx4.0, Divx5.0, M-JPEG, AVI, MOV, RMVB
  Memory Cards: SD/SDHC/MS/MMC
• USB: USB Host
  Screen Parameter: Screen Size: 47 cm, 18,5 Zoll TFT Resolution: 1366x768 Pixel Aspect Ratio: 16:9 Operating temperature: 0^ 40^ Moisture: 10 - 85%

13. Troubleshooting Guide

If you are having problems with your player, please consult this guide. If you need further assistance, please contact Technical Support.

No power:

• Please check whether the plug is inserted correctly.

Remote control no function:

• Please check whether the battery has power (the battery can be used for half a year in normal conditions). Replace with new battery if necessary.

Can not read the CARD or USB:

• Please confirm whether there is storage in the card or USB device.
• Empty devices cannot be read.

Can not play the file:

• Please confirm if the file format is compatible with the player.

Display too bright or too dark:

• Please adjust the brightness or contrast in the setup menu.

The color is light or no color:

• Please adjust the color and contrast setup.

No sound:

• Please check whether the volume is correct and the player is not in Mute mode.

Introduction:

English Netherlands

Source -> Bron

SETUP INSTELLING

ToolBar Taakbalk

EXIT->Verlaten

2c. De Batterij Installeren & Vervangen

11.4.3 Surround Sound: Uit, Surround 1, Surround 2

11.4.4 EQ

VARNINGSINFORMATION:

11 EuvaipoAoynon Baoon

Tnroe hnt m bia pa to atpnya onv urooxn nnc npaeac kopvicac uanmote to atpnu a poc ta mnu kipoc ta kau va pvpuicctte yuwa nsc kopvicac kai oabcpomantc to ohyovrac m bia npnv apactt mykopvca at opba Bton.

92
