DigiFrame 1083 - Digital photo frame BRAUN - Free user manual and instructions

Product Type	Digital Photo Frame
Brand	Braun
Model	DigiFrame 1083
Screen Size (diagonal)	9.7 inches (24.6 cm)
Supported Image Formats	JPEG, BMP, PNG
Supported Audio Formats	MP3
Supported Video Formats	MPEG1, MPEG2, MPEG3, H.264, RM, RMVB, MOV, MJPEG, DivX
Memory Card Types	SD, SDHC, MMC
Connectivity	USB 2.0, HDMI (input), headphone jack
Speaker	Built-in
Main Features	Slideshow with music, clock, scheduled on/off, brightness/contrast/saturation adjustment, zoom, rotation, USB to SD copy, PC connection
File Copy	USB to SD card (via Auto Copy setting)
PC Connection	USB for file transfer (copy/delete/modify)
OSD Languages	English and other languages (French available depending on version)
Power Supply	AC adapter (not specified)
Manufacturer	BRAUN PHOTO TECHNIK GMBH
Country of Origin	Germany

Frequently Asked Questions - DigiFrame 1083 BRAUN

How to insert an SD memory card?

Insert the SD/SDHC/MMC card into the designated slot on the frame. Make sure the frame is turned off or insert the card gently. The frame will automatically recognize the files.

How to play music on the frame?

In the main menu, select Music with the arrow keys, then press OK. Choose the source (USB or memory card), then browse files with the up/down keys to select a track and press OK to play. During playback, press OK to display controls (play, next, etc.).

How to copy files from a USB flash drive to an SD card?

Connect the USB flash drive to the frame's USB port and insert an SD card. Go to the Setting menu, press OK, then select Auto Copy and set it to On. The copy starts automatically. Note that the files must be at the root of the USB device.

How to connect the frame to a computer?

Turn on the frame, then connect it to a computer via the provided USB cable. The computer detects the frame and you can copy, delete, or modify files in the internal memory or SD card. Restart the frame after operations.

How to use the HDMI input?

Connect an HDMI device (e.g., a computer) to the frame's HDMI-IN interface. Press the SOURCE button on the frame, select HDMI with the arrow keys, then press OK to confirm.

How to set the automatic on/off?

In the Setting menu, select the Calendar or Timer option (depending on version). Use the arrow keys to set the on and off times. Confirm with OK.

How to rotate a photo?

In photo playback mode, press the ROTATE button to rotate the image 90° with each press.

How to zoom in on a photo?

In photo playback mode, press the ZOOM button to enlarge the image. Use the arrow keys to move the zoomed area. Press ZOOM again to reduce the zoom.

What video formats are supported?

The frame supports the following video formats: MPEG1, MPEG2, MPEG3, H.264, RM, RMVB, MOV, MJPEG, DivX.

How to change the menu language?

Go to the Setting menu. Select the Language option and choose the desired language from those available (English, French, etc.). Confirm with OK.

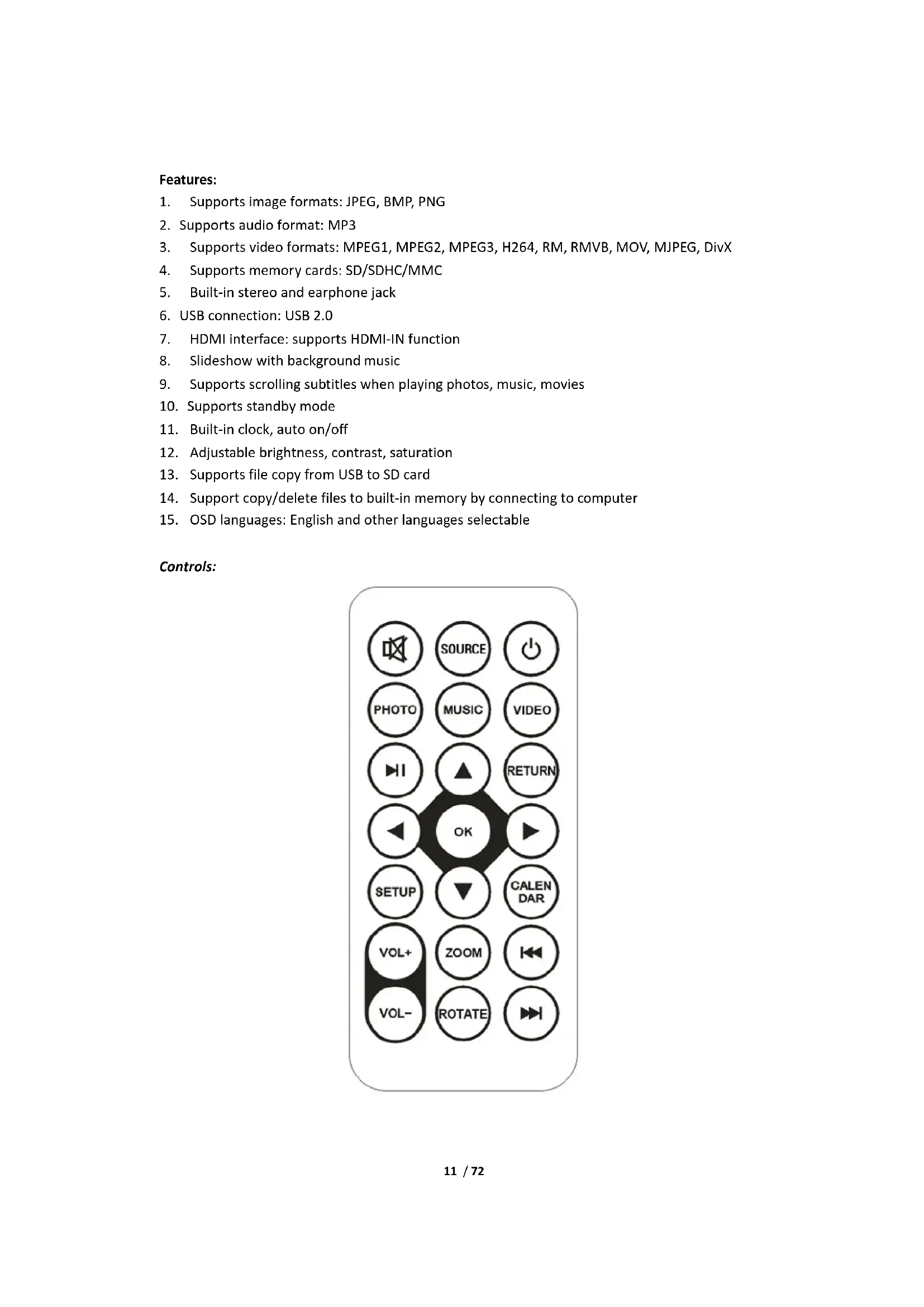

USER MANUAL DigiFrame 1083 BRAUN

1. Supports image formats: JPEG, BMP, PNG
2. Supports audio format: MP3
3. Supports video formats: MPEG1, MPEG2, MPEG3, H264, RM, RMVB, MOV, MJPEG, DivX
4. Supports memory cards: SD/SDHC/MMC
5. Built-in stereo and earphone jack
6. USB connection: USB 2.0
7. HDMI interface: supports HDMI-IN function
8. Slideshow with background music
9. Supports scrolling subtitles when playing photos, music, movies
10. Supports standby mode
11. Built-in clock, auto on/off
12. Adjustable brightness, contrast, saturation
13. Supports file copy from USB to SD card
14. Support copy/delete files to built-in memory by connecting to computer
15. OSD languages: English and other languages selectable

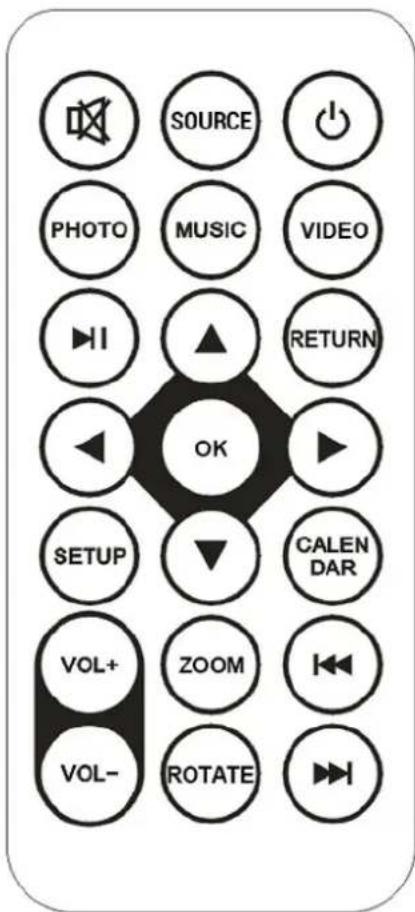

Controls:

POWER	Switch on/off.
MUTE	Mute
SOURCE	Signal input HDMI/AV/DMP
PHOTO	Photo playback mode directly
MUSIC	Music playback mode directly
VIDEO	Video-playback mode directly
▶II	Play or pause
RETURN	Back to previous screen
▲▼←	Move up/down/left/right cursor keys.
OK	Confirmation
SETUP	Setup menu
CALENDAR	Calendar function directly
VOL+ VOL-	Volume adjustment
ZOOM	Enlarge the photo in photo play mode
ROTATE	Rotate the photo in photo play mode
▶▶▶	Select previous or next file

Main Menu:

Supports SD/SDHC/MMC and USB 2.0. Press to access photo, music, video, calendar and settings menus. Press OK button to confirm selection.

08:20

Tuesday 05, January


Note: Make sure there are supported picture, music or video files on the memory card or USB device.

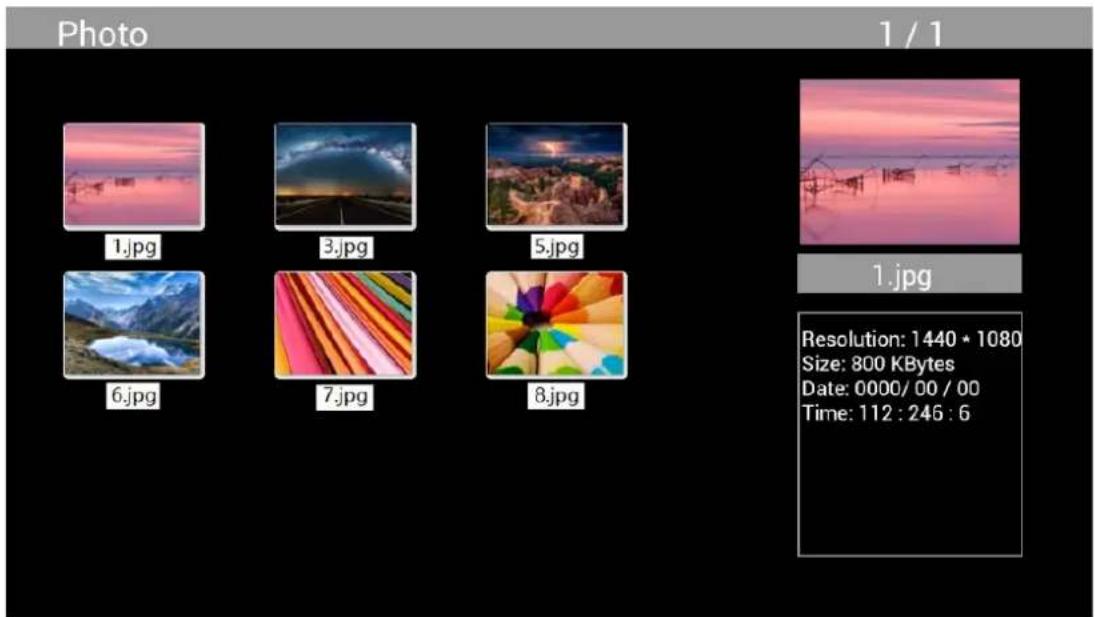

Picture Mode:

Highlight Photo from the main menu, press OK to select the USB or memory card for playback and press RETURN to access thumbnail mode. Press to select the photo for playback and press OK to confirm.

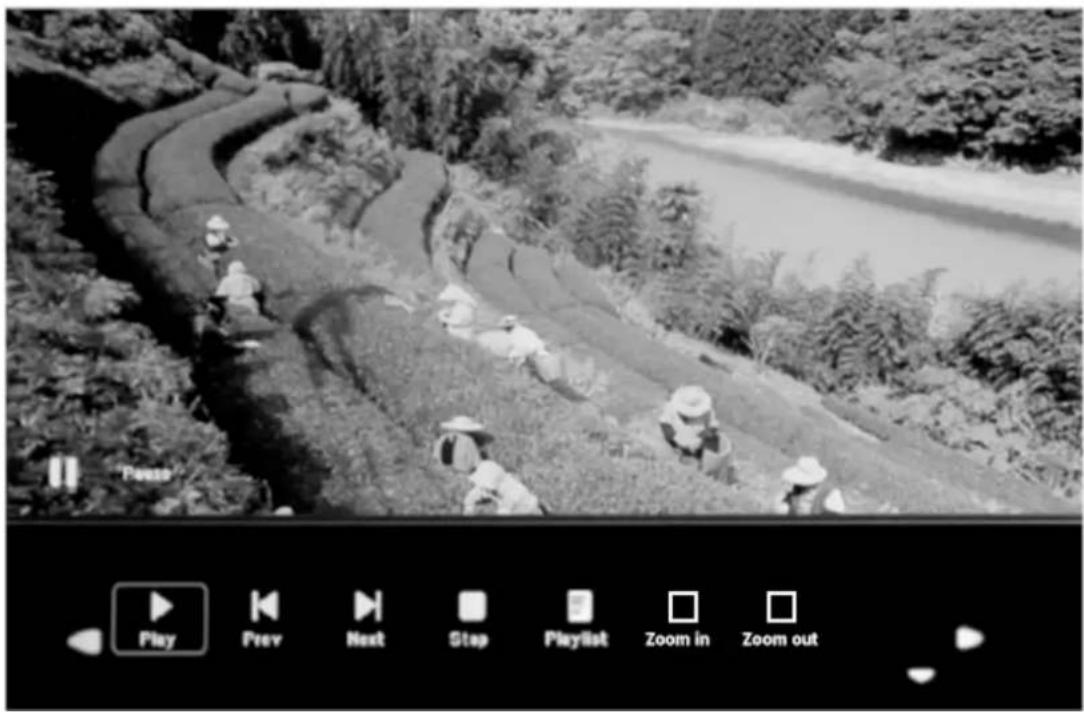

During photo playback, press OK to display the on-screen controls and select the desired function with Play, Previous, Next, Stop, Playlist, Zoom in, Zoom out, Move, then press OK to confirm.

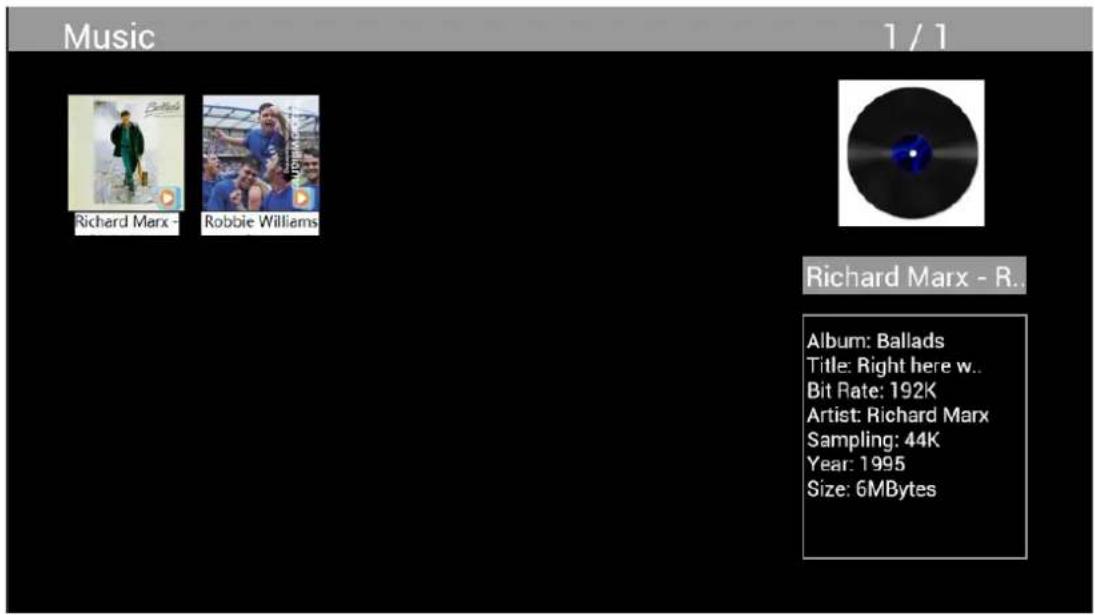

Music Mode

Highlight Music from the main menu, press OK to select the USB 2.0 or memory card for playback and press RETURN to access thumbnail mode. Press to select the music for playback and press OK to confirm.

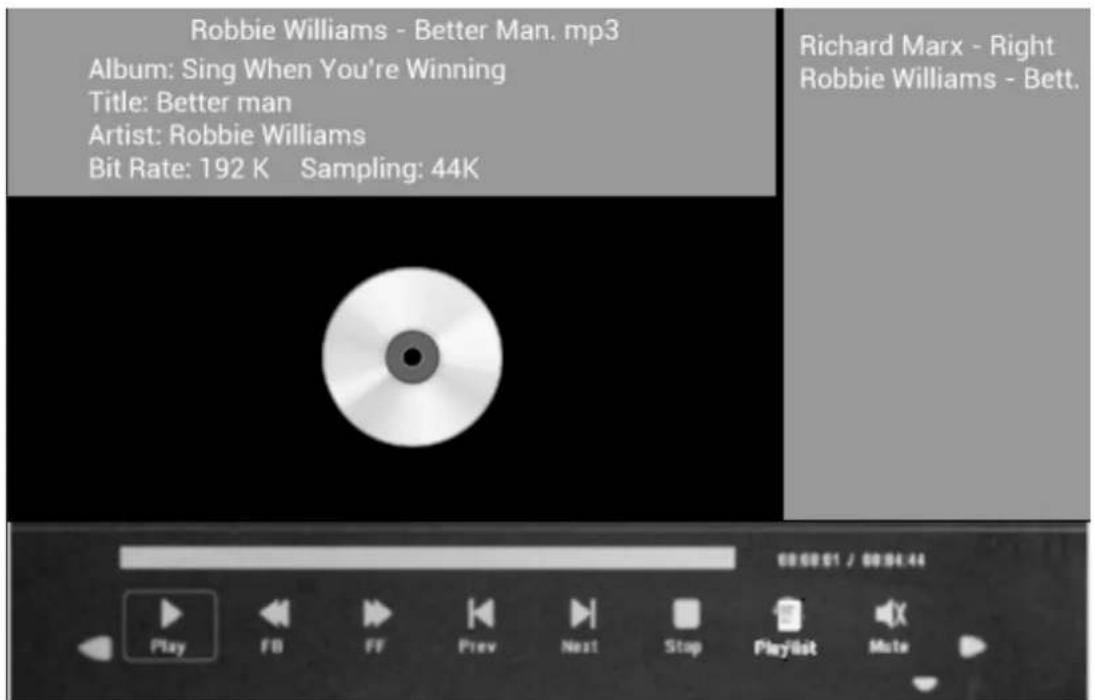

MusicPlayback:

During music playback, press OK to display the on-screen controls and select the desired function with : Play, Fast Rewind, Fast Forward, Previous, Next, Stop, Mute, Playlist, then press OK to confirm.

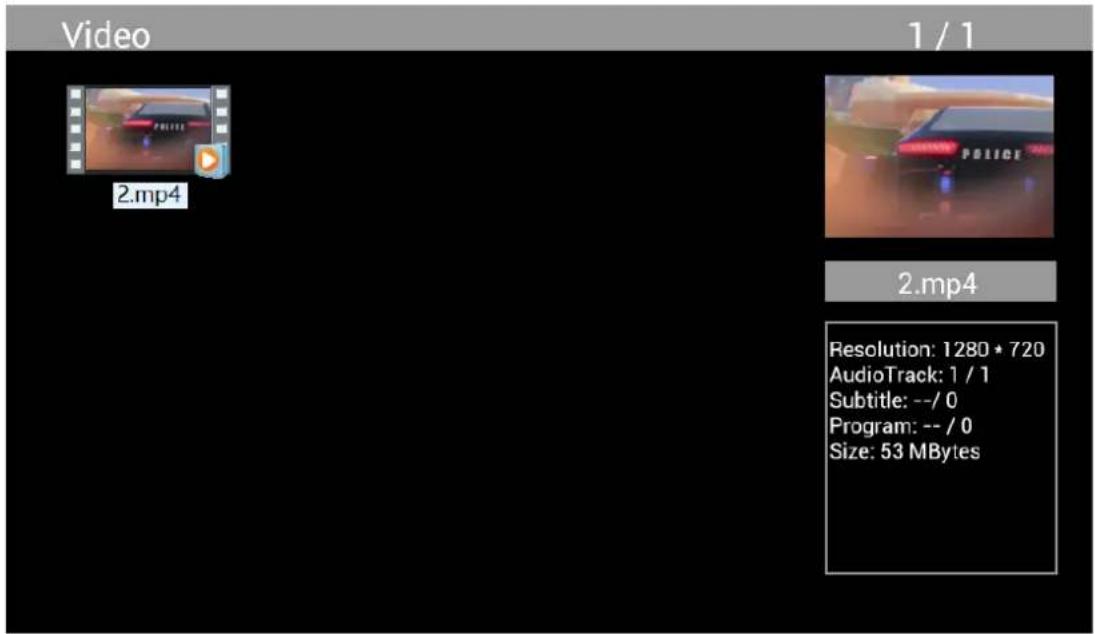

Video Mode

Highlight Video from the main menu, press OK to select USB 2.0 or memory card for playback and press RETURN again to access thumbnail mode. Press to select the movie for playback and press OK to confirm.

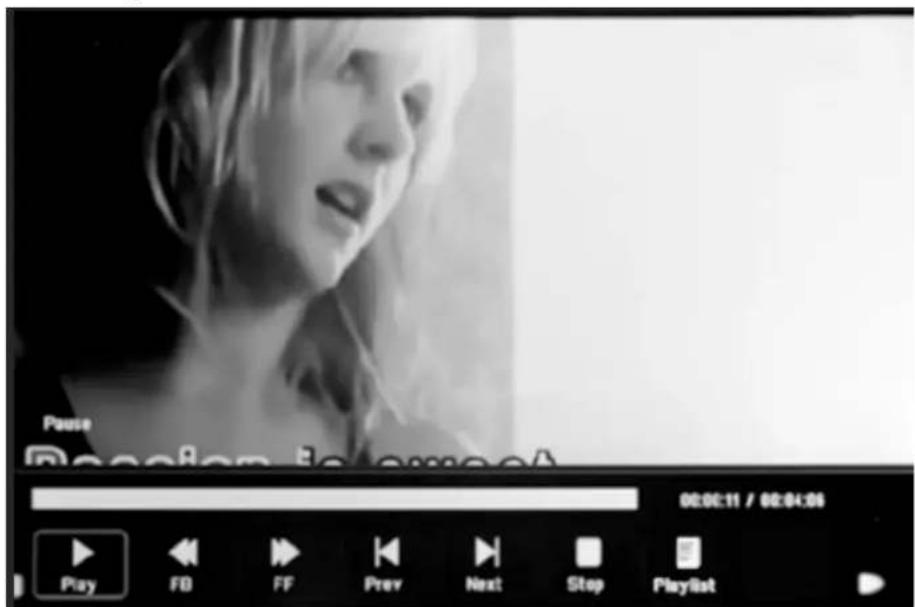

Video Playback:

During video playback, press OK to display the on-screen controls and select the desired function with Play, Fast Rewind, Fast Forward, Previous, Next, Stop, Playlist, Aspect then press OK to confirm.

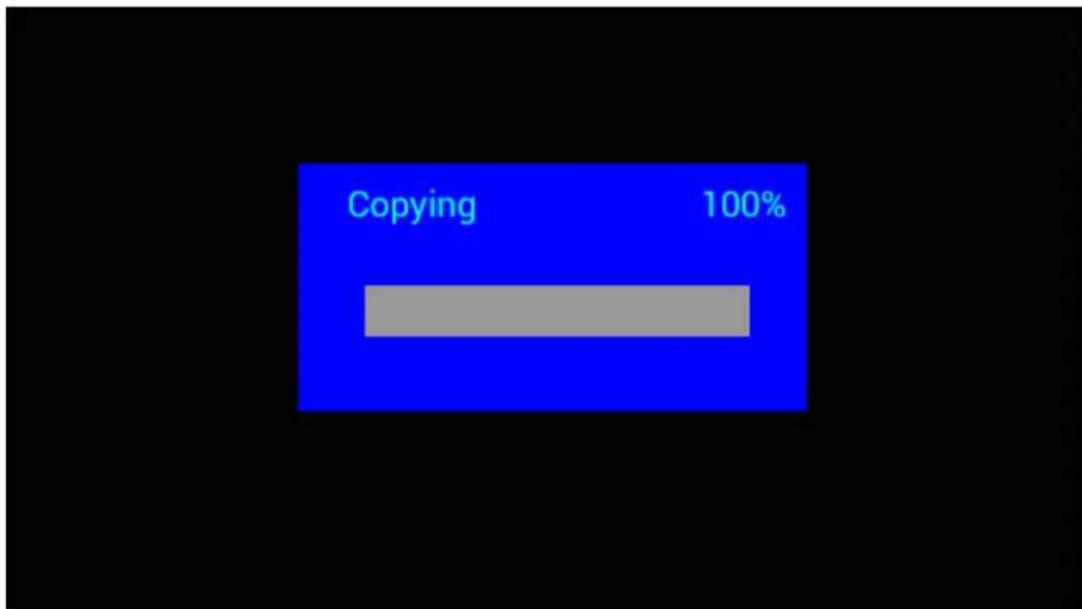

Copy Function for Image, Music and Video Files:

Copying all files from USB device to SD Card is supported. Highlight Setting and press OK to Settings menu, press to select Setting option, press to select and set the Auto Copy in the list, and set the value to On. The progress is displayed.

After successfully copying all files, the slideshow will start automatically.

Note: Make sure the photo/music/videos files are saved in the root directory of the USB device, not in any folder of the USB. Otherwise copying will fail.

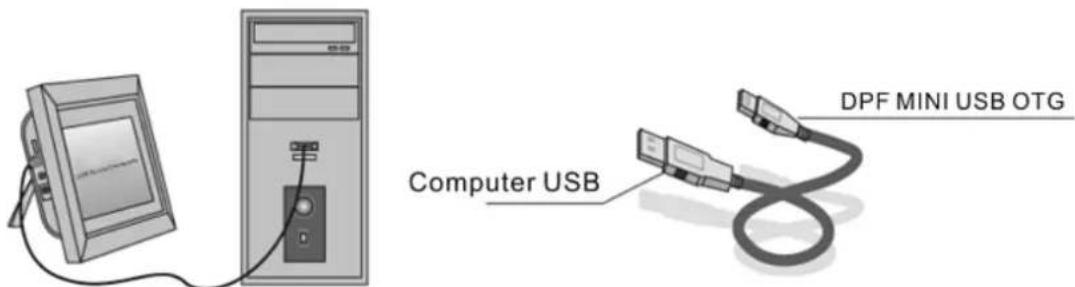

PC Connection:

You can connect the unit to external equipment using USB Cable for file copying, deleting and editing operations.

A. Turn on the digital photo frame, connect it with your Windows2000/XP/Vista/WIN7 PC using a USB cable
B. The unit will be detected automatically and a "Connecting" icon will be displayed. You can then copy, delete, or edit files in the built-in memory or other storage devices. You need to restart the digital photo frame after you finished copying, deleting, editing or inserting a memory card.

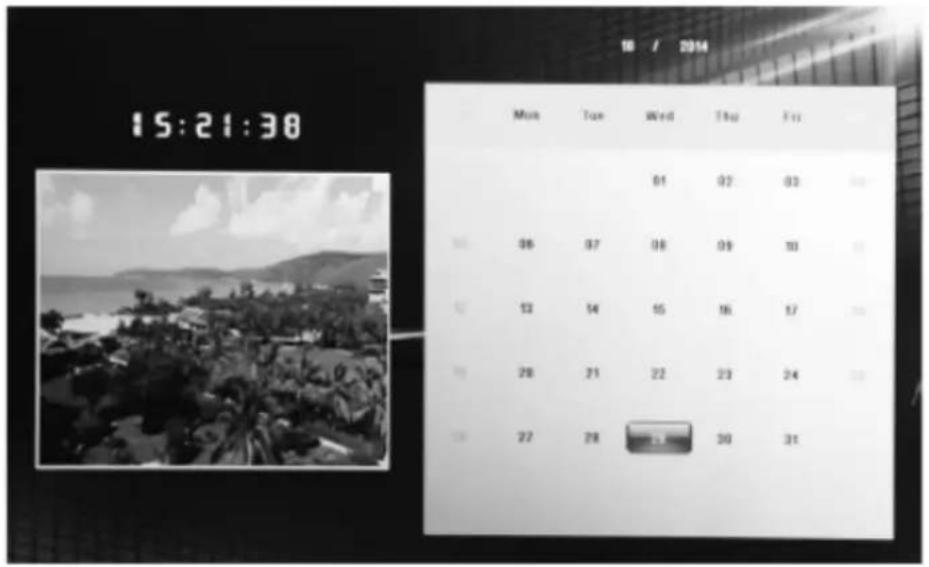

Calendar:

Press the Calendar menu from the main menu. Browse the calendar with

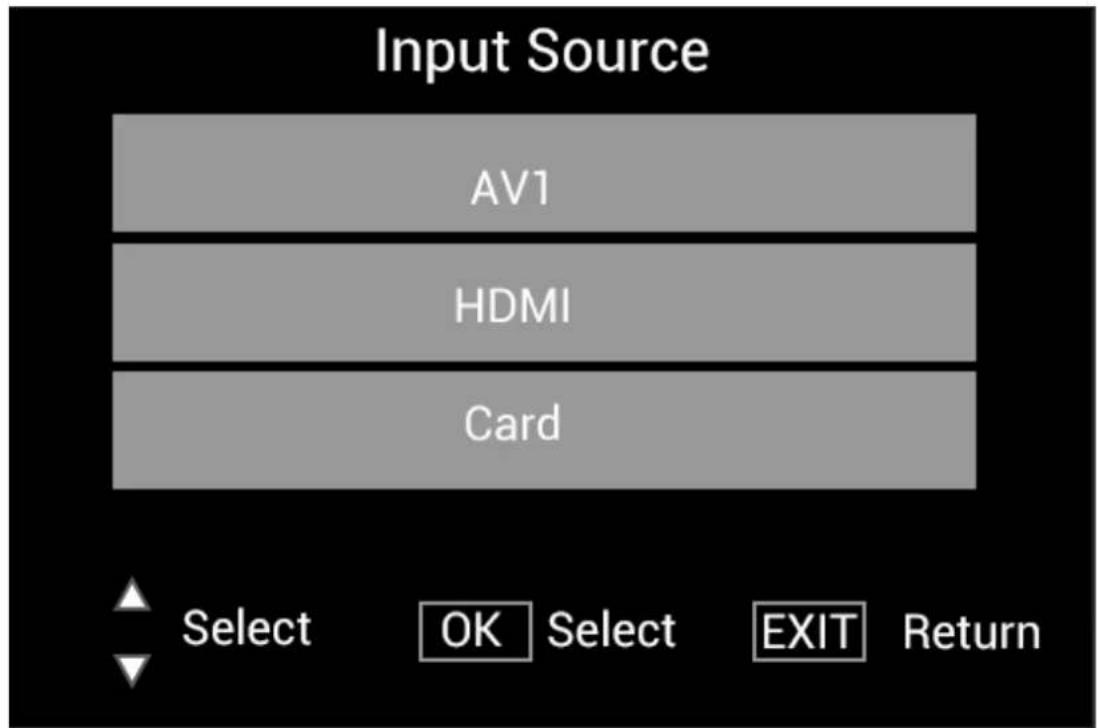

HDMI-IN Function:

Connect the HDMI device at the HDMI-IN interface of the digital picture frame. Press SOURCE, press to highlight the HDMI option, and press OK to select HDMI as input source.

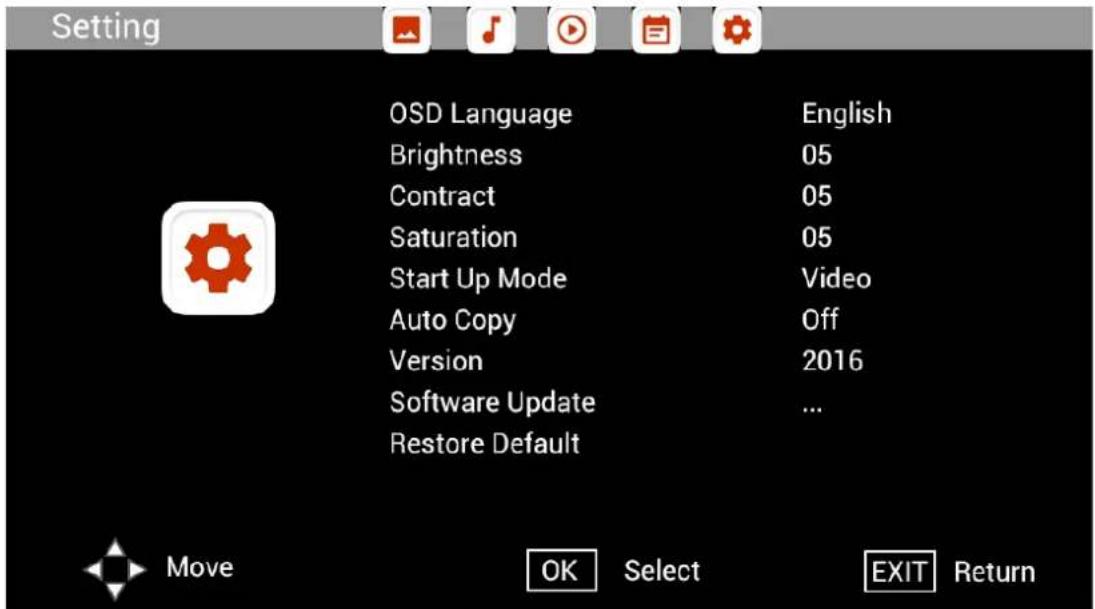

Setup Menu

Select Setting in the main menu, press to select sub-menu Setup list: Photo, Music, Video,

Calendar, Setting, press to highlight the setting option, and press to set the Value.

Technical Support

We are committed to providing the best customer service support. If you need assistance with your BRAUN product, please contact the BRAUN Technical Support department prior to returning this device. Reach out to us in any of the following ways:

This device has been tested and found to comply with the limits for a digital device according to the CE regulations. These limits are intended to provide reasonable protection against harmful interference in home installations. The declaration of conformity is available on our homepage.
