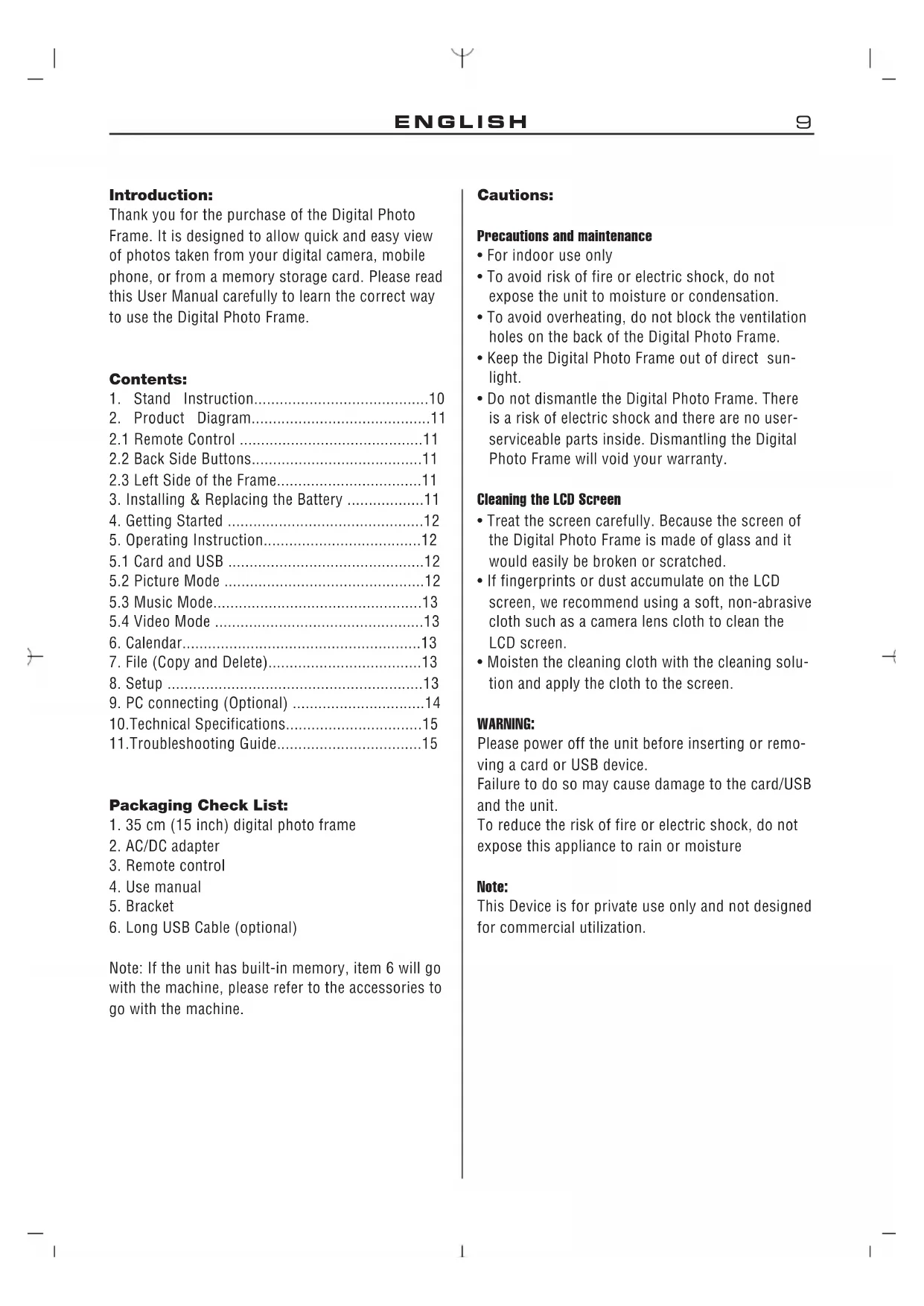

Thank you for the purchase of the Digital Photo Frame. It is designed to allow quick and easy view of photos taken from your digital camera, mobile phone, or from a memory storage card. Please read this User Manual carefully to learn the correct way to use the Digital Photo Frame.

Contents:

1. Stand Instruction....10
2. Product Diagram....11
   2.1 Remote Control 11
   2.2 Back Side Buttons....11
   2.3 Left Side of the Frame....11
3. Installing & Replacing the Battery .....11
4. Getting Started 12
5. Operating Instruction....12
   5.1 Card and USB 12
   5.2 Picture Mode 12
   5.3 Music Mode....13
   5.4 Video Mode 13
6. Calendar....13
7. File (Copy and Delete)....13
8. Setup 13
9. PC connecting (Optional) 14
10. Technical Specifications....15
    11.Troubleshooting Guide....15

Packaging Check List:

1. 35 cm (15 inch) digital photo frame
2. AC/DC adapter
3. Remote control
4. Use manual
5. Bracket
6. Long USB Cable (optional)

Note: If the unit has built-in memory, item 6 will go with the machine, please refer to the accessories to go with the machine.

Cautions:

Precautions and maintenance

• For indoor use only
• To avoid risk of fire or electric shock, do not expose the unit to moisture or condensation.
• To avoid overheating, do not block the ventilation holes on the back of the Digital Photo Frame.
• Keep the Digital Photo Frame out of direct sunlight.
• Do not dismantle the Digital Photo Frame. There is a risk of electric shock and there are no user-serviceable parts inside. Dismantling the Digital Photo Frame will void your warranty.

Cleaning the LCD Screen

• Treat the screen carefully. Because the screen of the Digital Photo Frame is made of glass and it would easily be broken or scratched.
• If fingerprints or dust accumulate on the LCD screen, we recommend using a soft, non-abrasive cloth such as a camera lens cloth to clean the LCD screen.
• Moisten the cleaning cloth with the cleaning solution and apply the cloth to the screen.

WARNING:

Please power off the unit before inserting or removing a card or USB device.

Failure to do so may cause damage to the card/USB and the unit.

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture

Note:

This Device is for private use only and not designed for commercial utilization.

Features:

1. upport picture format: JPEG
2. Support audio format: Mp3& WMA
3. Support video format: MPEG1, MPEG2, MPEG4, M-JPEG and AVI
4. Support memory card: SD/SDHC/MMC/MS.
5. USB connection: Mini USB & USB 2.0
6. Built-in Flash Memory with picture storage
7. Built in Memory support PC connection and file storage (Optional, please see information on the giftbox)
8. Auto Slideshow when inserting Memory Card
9. Picture & Music: Slideshow pictures with background music

10. Support viewing pictures in thumbnail mode

11. Built-in Clock and calendar with slideshow window, schedule auto on/off.

12. Image-display mode: slideshow, preview, zoom, rotate function.
13. Adjustable slideshow speed and kinds of transition slideshow
14. Adjustable brightness, contrast, saturation, hue
15. Copy files to Memory and delete files in the Cards & Memory & Card
16. Built-in stereo speaker (2x2W) and earphone jack
17. Variable stand (vertical and horizontal), the DPF can hung on the wall
18. OSD Language: English, German and other languages selectable

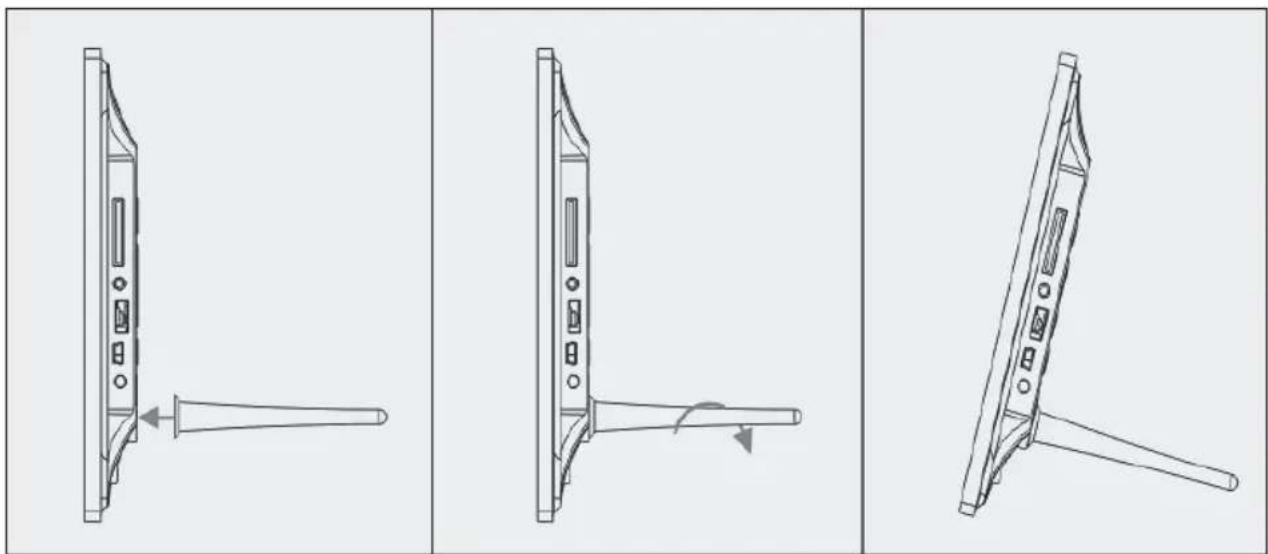

1. Stand Instruction

Insert the bracket into the slot of the digital photo frame and rotate the bracket clockwise to set it tight. Please make sure the stand is locked before

then put it on the table steadily .Please refer to the illustration showing below.

Three technical line drawings of a device handle with arrows indicating movement, shown from front to side (no text or symbols)

2. Product Diagram

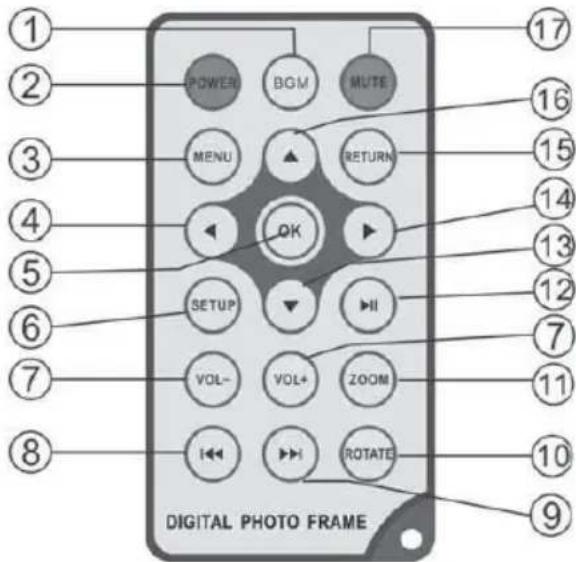

2.1 Remote Control

1 BGM - Slideshow with background music.

2 POWER: Switch On/Off.

3 MENU: Menu for Copy, Delete, Rotate, Zoom.

4 ◀ Functional selection button from right to left cursor

5 OK TO Confirm or Switch Pause /Play Function in the music mode

6 SETUP: Go directly to Setup mode.

7 VOL +/-: Turn up/down the volume.

8 Move back to previous music or video file

9 ▶▶▶I Move forward to next music or video file

10 ROTATE: Clockwise 90°In the picture pause mode each time

11 ZOOM: Change magnification 5 times In the single picture pause mode

12 ▶ Press it to Play under stop or pause Status; Press it to Pause on playing Status

13 ▼ Functional selection button from the top to the bottom cursor.

14 ▶ Functional selection button from left to right cursor

1 2 3 4 5 6 7 8 POWER BGM MUTE MENU RETURN OK SETUP VOL- VOL+ ZOOM I←→I ROTATE 17 16 15 14 13 12 7 11 10 9 DIGITAL PHOTO FRAME

15 RETURN: Return to upper page

16 ▲ Functional selection button from the bottom to the top cursor

17 MUTE: Press Mute button to silence the voice temporarily.

① EXIT ② ENTER ③ UP ④ DOWN ⑤ LEFT ⑥ RIGHT ⑦ SETUP

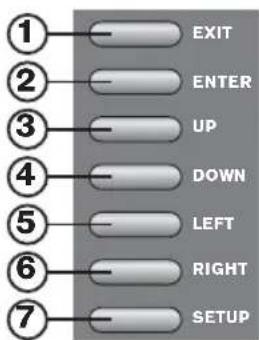

2.2 Back side Buttons

1. Exit
2. PLAY/PAUSE/OK, ENTER long: On/Off
3. Previous/Up
4. Next/Down
5. Left, Vol- (Music/Video)
6. Right, Vol+ (Music/Video)
7. Set Up

2.3 Left side of the frame

1. SD/MMC/MS CARD
2. Earphone Jack
3. MINI USB
4. USB 2.0
5. DC IN

Top-down view of a black rectangular electronic device with ventilation grilles and a small circular component attached (no visible text or symbols)

3. Installing & Replacing the Battery

Place the upside of the remote control down, press down on the ridged area of the battery cover and pull towards you to remove the tray. Place one CR2025 lithium button-cell battery on the tray with the positive "+" side facing you. Reinsert the tray.

4. Getting Started

4.1 Extend the digital photo frame bracket on the back of the frame to the widest position for greatest stability, and then plug one end of the included AC adapter into a standard 110-240V AC electrical outlet and the other end into the left side the frame.
4.2. Remove the protective film covering the LCD.
4.3. Remove the plastic battery insulator from the battery compartment and make sure the remote control has a battery inside. Please refer to "Installing & Replacing Battery" if you need a new battery.
4.4. Power on the unit by pressing the Power button on the remote control or Enter long at the back side of the unit.

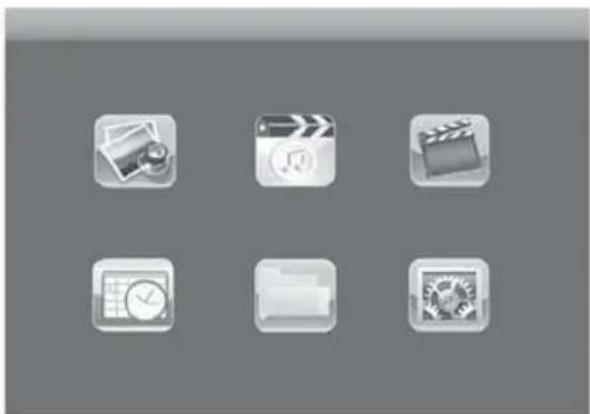

5. Operating Instruction

After turning on the unit, it will show the startup picture, press RETURN to get to the card select interface.

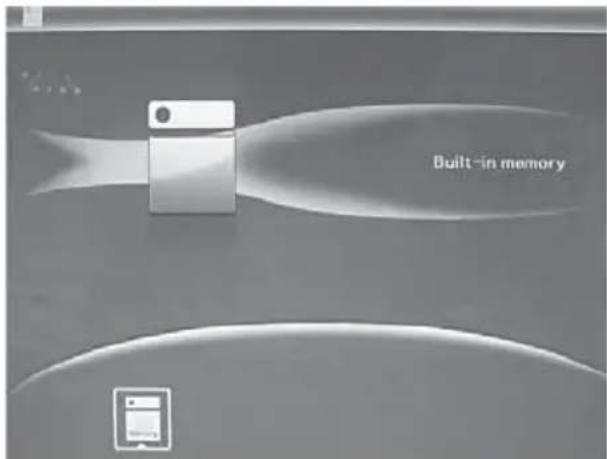

Built-in memory

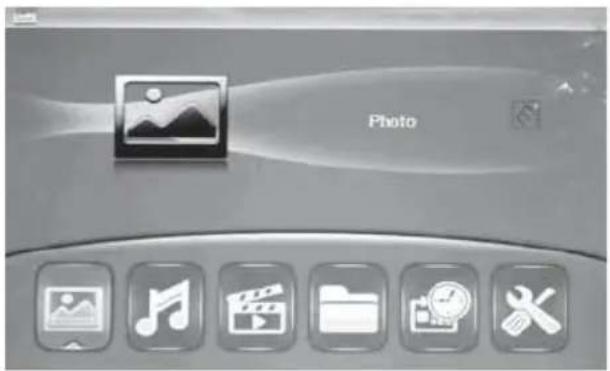

5.1 Card and USB

It supports SD/SDHC/MMC/MS and USB 2.0. After inserting a card or USB device, slideshow will play automatically, then press RETURN twice to access to photo, file, calendar and setup. Press OK (▶II) to confirm.


Note:

1. Make sure there are supported picture files, music an video files in the Card or USB device.
2. If there are supported picture and music files in the Card or USB Device, slideshow will play automatically with background music.

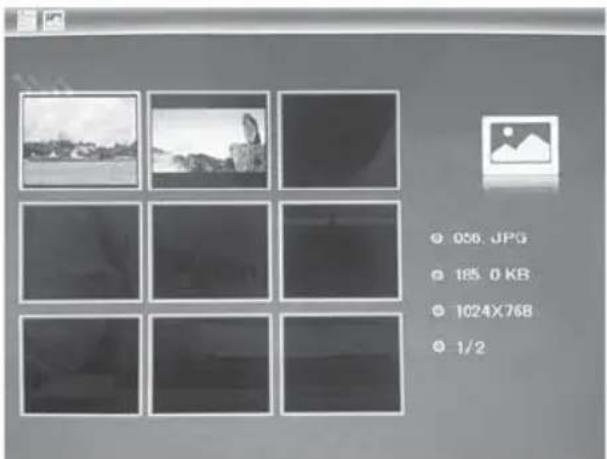

5.2 Picture Mode

Press RETURN to choose "MEMORY CARD" in the main menu. Highlight Photo, press OK (▶II) to access to the nine-picture mode, use ▲▼◀▶ to choose the picture, press OK (▶II) to play the picture in single window.

056.JPG 185.0 KB 1024X768 1/2

Press OK to start slideshow pictures in the selected slide mode.

Change slide mode as follows: press SETUP to choose SLIDE MODE (single /triple/ four windows), select with ▲▼, press OK to confirm.

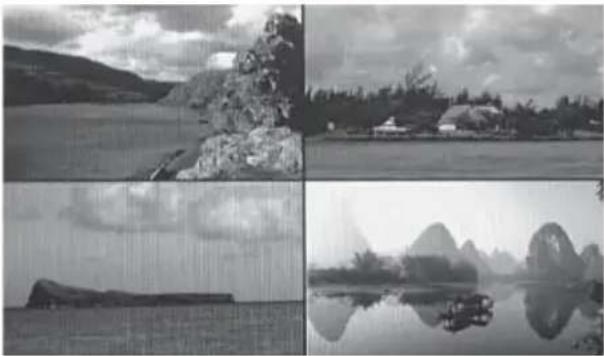

Four-panel black-and-white landscape photo showing mountains, lakes, and a river with a small boat on the water (no text or symbols)

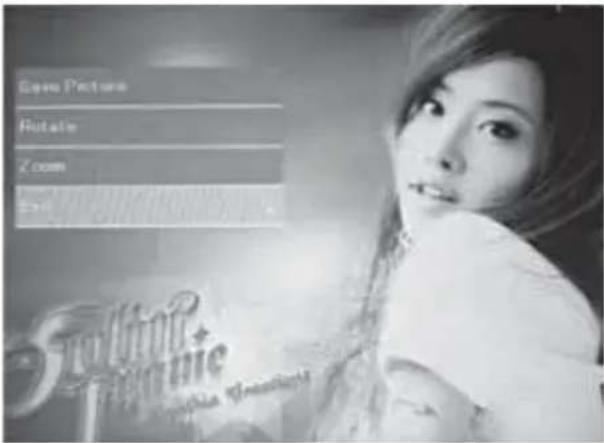

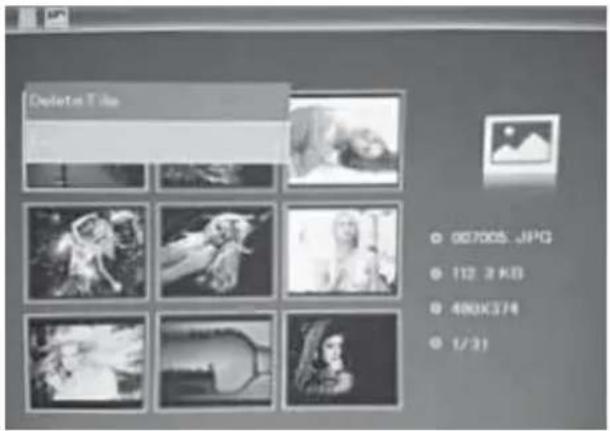

Copy & Delete function

In 12-picture mode, use ▲▼◀▶ to select the picture you want to copy to the built-in memory, press OK (▶II) to enter the single-picture mode, then press MENU to enter copy interface, press OK to confirm.

Save Picture Rotate Zoom 2nd Sofing Sofingie

In 12-picture mode, use ▲▼◀▶ to select the picture you want to delete, then press MENU to enter delete interface, press OK to confirm.

Delete Tile 007005.JPG 112.2 KB 480X374 1/31

5.3. Music Mode

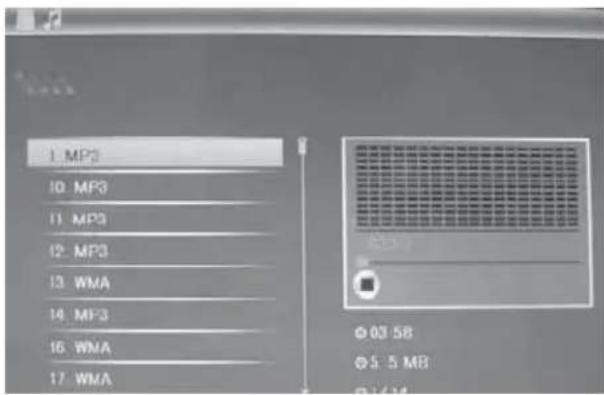

Press RETURN to choose "MEMORY CARD" in the main menu. Choose Music, press OK (▶II) to enter the music interface, press ▲▼ to select the music from the playlist, then press OK (▶II) to confirm. Press VOL+/- to turn up/ down the volume.

1. MP3 10. MP3 11. MP3 12. MP3 13. WMA 14. MP3 16. WMA 17. WMA 03:58 5:5 MB

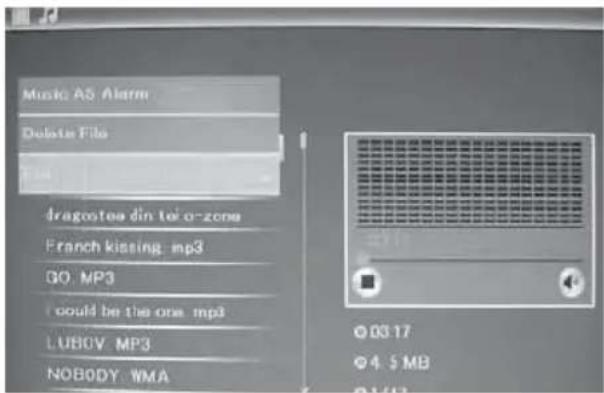

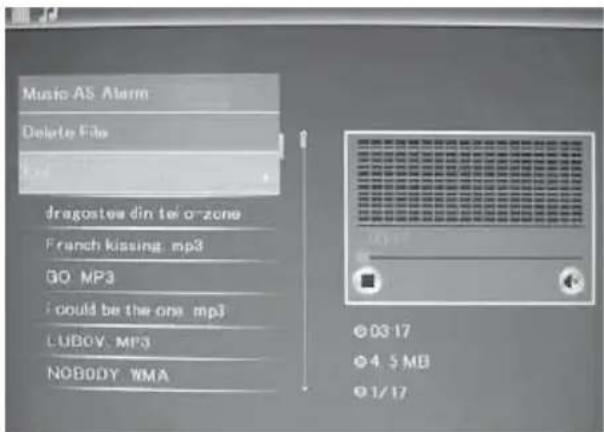

Delete function

Use ◀▶ to select the music you want to delete, then press MENU to enter delete interface, press OK to confirm.

Music A5 Alarm Delete File dragotea din tel o-zone French kissing. mp3 GO. MP3 I could be the one. mp3 LUBOV MP3 NOBODY WMA 03 17 4 $ MB

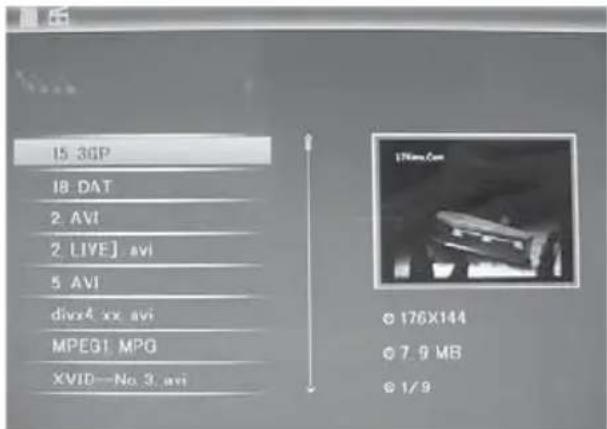

5.4 Video Mode

Press RETURN to choose "MEMORY CARD" in the main menu. Choose Video, press OK (▶II) to enter the video interface, press ▲▼ to select the video from the playlist, then press OK (▶II) to confirm. Press VOL+/- to turn up/ down the volume.

15.3GP 18.DAT 2.AVI 2.LIVE] avi 5.AVI divx4.xx.avi MPEG1.MPG XVID--No.3.avi © 176X144 © 7.9 MB © 1/9

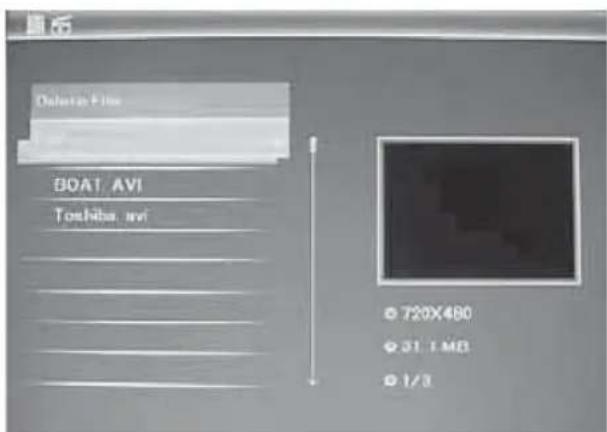

Delete function

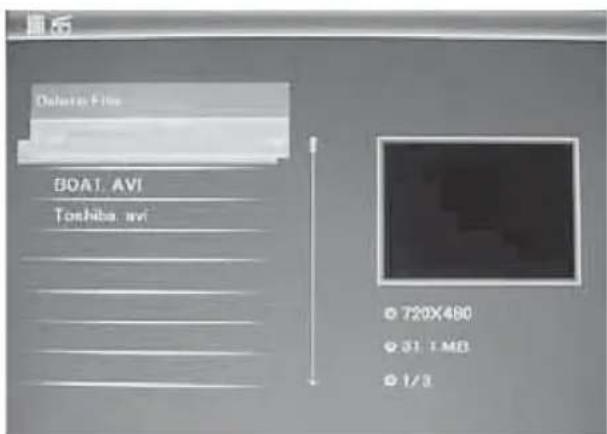

Use ◀▶ to select the video you want to delete, then press MENU to enter delete interface, press OK to confirm.

显示 Delphi File BOAT AVI Toshiba.avi 720X480 31 1 MB 1/3

Press RETURN to choose "MEMORY CARD" in the main menu. Press File, then press OK (▶II) to access to file interface. You can browse all the files in the memory card in this mode, and delete files in built-in memory or external device.

divx4 xx.avi 04.JPG 042.JPG 046.JPG 047.JPG 048.JPG 06.JPG 327205.JPG © 1024X768 © 207.9 KB © 3/52

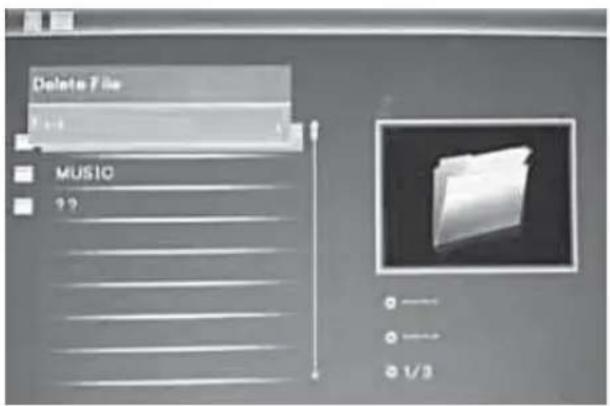

Delete function

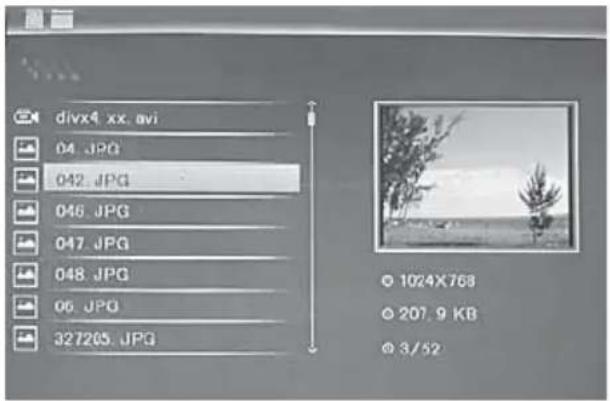

Use ▲▼ to select the file you want to delete, then press MENU to enter delete interface, press OK to confirm.

Delete File MUSIC 12

7. Calendar

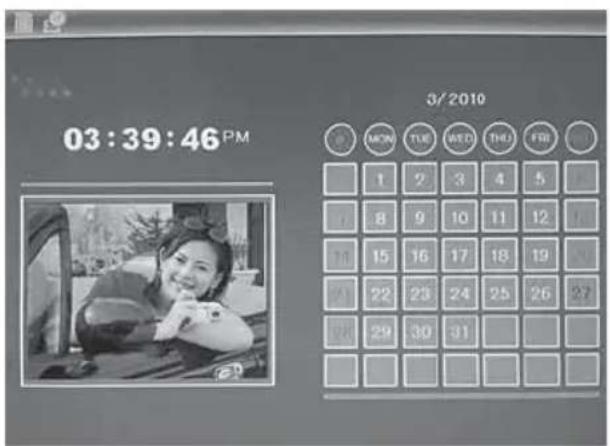

Select Calendar from the main menu, press OK (▶II) to enter. The time is displayed on the top of left side. under the time, the pictures in the memory card slidshow automatically.

03:39:46PM 3/2010 MON TUE WED THU FRI 1 2 3 4 5 8 9 10 11 12 15 16 17 18 19 22 23 24 25 26 27 29 30 31

8. Setup

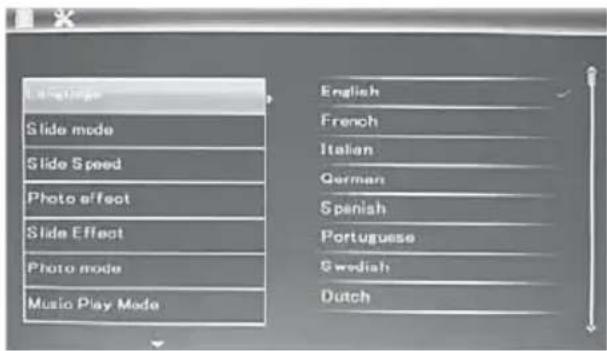

Select Setup from the main menu, and then press OK (▶II) to access to Setup interface. Use ▲▼ to select the item you want to set up. Press OK to show the sub menu, select with ▲▼, then press OK to confirm.

English French Italian German Spanish Portuguese Swedish Dutch

8.1 Language: English, French Italian, German, Spanish, Dutch, Portuguese, Swedish, Greek among others
8.2 Image order: Sequence / Shuffle
8.3 Start mode: Slide show / Music / Video / Pictures / Calendar
8.4 Slide mode: Single window, Four windows, triple windows
8.5 Slide speed: 3/5/15/30 seconds, 1/5/15/30 minutes and 1 hour
8.6 Photo effect: color, mono, sepia
8.7 Slide effect: Random, Split horizontal/vertical in/out, Jalousie, Fade, Insert, Off
8.8 Photo mode: Auto fit, Optiomal, Full
8.9 Music Play Mode: Single Repeat, Circular, No Repeat

8.10 Video Mode: Original, Screen

8.11 Display

Contrast: Use ▲▼ to select between 00 (lowest) and 40 (highest).

Brightness: Use ▲▼ to select between 00 (lowest) and 40 (highest).

Saturation: Use ▲▼ to select a point between 00(lowest) and 40(highest).

Tint: Use ▲▼ to select between 00(most color) to 40(least color).

8.12 Set time/date: Press OK, choose setup items with ▲▼ as follows: Year, Month, Date, Hour, Minute, Second, press OK, use ◀▶ to set, Press Save Time to confirm.
8.13 Set time format: 12/24, Press OK, select with ▲▼, press OK, then use ▲▼ to set, press OK to confirm.
8.14 Alarm: Press OK, choose setup items with ▲▼ as follows: Status, Number, Hour, Minute, Mode, press OK, use ◀▶ to set, Press OK to confirm.
8.15 Auto Power On: Press OK, choose setup items with ▲▼ as follows: Hour, Minute, Status, press OK, use ◀▶ to set, Press OK to confirm.
8.16 Format built-in memory: Press OK, choose No/Yes with ▲▼, Press OK to confirm.
8.17 Reset setting: Press OK enter, use ▲▼ to select or unselect to reset all settings to default values, press OK to confirm.
8.18 Exit: Press to exit setup interface.

9. PC Connection (Optional)

You can connect the unit to the external equipment by using USB Cable for file copy & delete or edit Operation.

A. Please turn on the digital photo frame, then connect it with your PC supported Windows 2000/XP/Vista/WIN7 system by using USB cable
B. The unit will be automatically detected and it will display "Connecting" Icon, then you can copy& delete & edit files between built-in memory and other storage device. You need to restart the digital photo frame after you finished the copy/delete or inserted or edit Operation.

Computer USB DPF MINI USB OTG

NOTE: Never disconnect the USB cable when files are transferring or running. Doing so may damage your DPF. Press Safely Remove Hardware Icon in the computer is the right operation way.

10. Technical Specifications

• Adapter: Input AC 100-240V 50/60HZ Output DC: 12V/1.5A
• Picture Format: JPEG
  • Audio Format: MP3& WMA
  • Video formats: MPEG1, MPEG2, MPEG4, M-JPEG and AVI
  • Memory Cards: SD/SDHC/MS/MMC
• USB: USB Host; MINI USB (connected with the long USB Cable)
• Screen Parameter: Screen Size: 38 cm, 15 inch TFT Resolution: 1024 x 768 Pixel
  Contrast: 500:1
  Aspect Ratio: 4:3
  Brightness: 350cd/m2
  Viewing Angle: 60°(left/right/vertical/horizontal)
  Working Temperature: 0°\~40°, Humidity: 10-85%
• Weight: 1660g
  • Dimensions: 366 x 292 x 32 mm (WxHxD)

11.Troubleshooting Guide

If you are having problems with your player, please consult both this guide and manual. If you need further assistance, please contact Technical Support.

No power:

- Please check whether the plug is inserted correctly.

Remote control no function:

- Please check whether the battery has power (the battery can be used for half a year in normal conditions). Replace with new battery if necessary.

Can not read the CARD or USB:

• Please confirm whether there is storage in the card or USB device.
• Empty devices cannot be read.

Can not play the file:

- Please confirm if the file format is compatible with the player.

Display too bright or too dark:

- Please adjust the brightness or contrast in the setup menu.

The color is light or no color:

- Please adjust the color and contrast setup.

No sound:

- Please check whether the volume is correct and the player is not in Mute mode.

Introduction :

Three technical line drawings showing a device with a handle, labeled in Chinese (no text or symbols on the devices themselves)

Top-down view of a black rectangular electronic device with ventilation grilles and a small circular component attached (no visible text or symbols)

Built-in memory

5.1 Carte et USB

Four-panel black-and-white landscape photo showing mountains, trees, and water reflections (no text or symbols)

Save Picture Rotate Zoom 2.00 Tollip Organic Renewable Restaurants

Music AS Alarm Delete File dragostes din tel o-zone French kissing: mp3 GO: MP3 I could be the one.mp3 LUBOV: MP3 NOBODY: TMA 03.17 4.5 MB 1/17

5.4 Mode vidéo

Delete File MUSIC 12

6. Calendrier

English Slide mode Slide Speed Photo effect Slide Effect Photo mode Music Play Mode English French Italian German Spanish Portuguese Swedish Dutch

Computer USB OPF MINI USB OTG

REMARQUE :

Three technical line drawings showing a device's front, side, and top views with arrows indicating movement (no text or symbols)

2 POWER: Tasto On/Off.

3 MENU: Menu per Copiare, Cancellare, Ruotare, Zoom.

Top-down view of a black rectangular electronic device with ventilation grilles and a small circular component attached (no visible text or symbols)

Built-in memory

5.1 Scheda e USB

Four-panel black-and-white landscape photo collage showing mountains, lakes, and a small boat on water (no text or symbols)

Music AS Alarm Dubate File dragostee din tel o-zone French kissing. mp3 GO. MP3 I could be the one. mp3 LUBOV MP3 NOBODY WMA 00:17 4.5 MB 1/17

5.4 Video

Delete File MUSIO 12

7. Calendario

English Slide mode Slide Speed Photo effect Slide Effect Photo mode Music Play Mode English French Italian German Spanish Portuguese Swedish Dutch

Computer USB DPF MINI USB OTG

NOTA:

Three technical line drawings of a device handle with arrows indicating movement, shown from front to side (no text or symbols)

Top-down view of a black rectangular electronic device with ventilation grilles and a small circular component attached (no visible text or symbols)

Built-in memory

5.1 Tarjeta y USB

Four-panel black-and-white landscape photo collage showing mountains, a lake, and karst mountains under cloudy skies (no text or symbols)

Music AS Alarm Delete File dragostes din tel orzone French kissing.mp3 GO.MP3 I could be the one.mp3 LUBOV.MP3 NOBODY.WMA 00317 04.5 MB 01/17

5.4 Modo vídeo

Delete File MUSIC 12

7. Calendario

Language Slide mode Slide Speed Photo effect Slide Effect Photo mode Music Play Mode English French Italian German Spanish Portuguese Swedish Dutch

Computer USB DPF MINI USB OTG

OBSERVACIÓN:

Three technical line drawings of a device handle with arrows indicating movement, shown from front to side (no text or symbols)

2. Product-diagram

2.1 Afstandsbediening

Top-down view of a black rectangular electronic device with ventilation grilles and a small circular component attached (no text or symbols visible)

Built-in memory

5.1 Kaart en USB

Four-panel black-and-white landscape photo collage showing mountains, rivers, and landscapes under cloudy skies (no text or symbols)

Music AS Alarm Delete File dragostos din tel o-zone Franch kissing: mp3 GO: MP3 I could be the one: mp3 LUBOV: MP3 NOBODY: WMA 03:17 4.5 MB 01/17

5.4 Videomodus

15.3GP 18.DAT 2.AVI 2[LIVE]avi 5.AVI divx4.xx.avi MPEG1.MPG XVID--No.3.avi © 176X144 © 7.9 MB © 1/9

Delete functie

Delete File MUSIC 12

7. Kalender

Language Slide mode Slide Speed Photo effect Slide Effect Photo mode Music Play Mode English French Italian German Spanish Portuguese Swedish Dutch

Computer USB DPF MINI USB OTG

OPMERKING:

Three technical line drawings showing a device with a handle, labeled in Chinese (no text or symbols on the devices themselves)

Top-down view of a black rectangular electronic device with ventilation grilles and a small circular component attached (no visible text or symbols)

Built-in memory

Four-panel black-and-white landscape photo collage showing mountains, trees, and water reflections (no text or symbols)

Save Picture Restore Zoom 2nd Oscitic Renewable Restaurants

Press RETURN to choose "MEMORY CARD" in the main menu. Choose Music, press OK (▶II) to enter the music interface, press ▲▼ to select the music from the playlist, then press OK (▶II) to confirm. Press VOL+/- to turn up/ down the volume.

1. MP3 10. MP3 11. MP3 12. MP3 13. WMA 14. MP3 16. WMA 17. WMA Ø 03 58 Ø 5.5 MB Ø 1/4

Função de apagar

Use ◀▶ to select the music you want to delete, then press MENU to enter delete interface, press OK para confirmar.

Music AS Alarm Delete File dragostes din te o-zone French kissing. mp3 GO MP3 I could be the one. mp3 LUBOV MP3 NOBODY WMA 03:17 4.5 MB 1/17

5.4 Modo de vídeo

Press RETURN to choose "MEMORY CARD" in the main menu. Choose Video, press OK (▶II) to enter the video interface, press ▲▼ to select the video from the playlist, then press OK (▶II) to confirm. Press VOL+/- to turn up/ down the volume.

15.3GP 18.DAT 2.AVI 2.LIVE] .avi 5.AVI divx4.xx.avi MPEG1.MPG XVID---No 3.avi © 176X144 © 7.9 MB © 1/9

Função de apagar

Use ◀▶ to select the video you want to delete, then press MENU to enter delete interface, press OK to confirm.

Delete Files BOAT, AVI Toshiba.avi 720X490 31:1 MB 1/3

6. Ficheiro

Delete File MUSIC 12

7. Calendário

Language Slide mode Slide Speed Photo effect Slide Effect Photo mode Music Play Mode English French Italian German Spanish Portuguese Swedish Dutch

Computer USB DPF MINI USB OTG

OBSERVAÇÃO:

INNEHÅLLSFÖRTECKNING:

Three technical line drawings of a device handle with arrows indicating movement, shown from front to side (no text or symbols)

2. Produktdiagram

2.1 Fjärrkontroll

1. SD/MMC/MSminne- skort
2. Hörlursuttag
3. MINI-USB
4. USB 2.0
5. ELANSLUTNING

Top-down view of a black rectangular electronic device with ventilation grilles and a small circular component attached (no visible text or symbols)

Built-in memory

5.1 Kort och USB

Four-panel black-and-white landscape photo collage showing mountains, a lake, and a river with karst mountains reflected in water (no text or symbols)

Funktion kopiera & radera

Delete File Music 12

7. Kalender

Language Slide mode Slide Speed Photo effect Slide Effect Photo mode Music Play Mode English French Italian German Spanish Portuguese Swedish Dutch

Computer USB DPF MINI USB OTG

Top-down view of a black rectangular electronic device with a small white connector and a small arrow pointing to its side (no visible text or symbols)

4. Πρώτα βήματα

Three grayscale icons representing Memory, Card, and an external battery (no text or symbols on the devices themselves)

Six grayscale icon buttons arranged in a 2x2 grid, each containing a unique symbol (e.g., film clapperboard, clock, document) — no text or labels present.

Οδηγία:

● family.JPG ● 87.3KB ● 000X600 ● 2/11

Nothing in the world .mp3 Only love .wms Free loop .wms The day you went away .mp3 Trouble is a friend .mp3 Promie do not come easy .wms Leave .wms Do not lead me .mp3

Computer USB DPF MINI USB OTG

Three technical line drawings of a device with a handle, showing different angles and orientations (no text or symbols)

2. Diagramă produs

2.1 Telecomandă

① ② ③ ④ ⑤

Top-down view of a black rectangular electronic device with ventilation grilles and a handle (no visible text or symbols)

Built-in memory

Four-panel black-and-white landscape photo showing mountains, trees, and water with no visible text or symbols

Mune AS Alarm Delete File dragostes din tel o-zone French kissing .mp3 QO MP3 I could be the one .mp3 LUBOV MP3 NOBODY WMA

5.4 Modul video

Delete Time BOAT AVI Toshiba avi 720X480 31.1 MEL 1/3

6. Fişier

Delete File MUSIC 2.7

7. Calendar

Language Slide mode Slide Speed Photo effect Slide Effect Photo mode Music Play Mode English French Italian German Spanish Portuguese Swedish Dutch

Computer USB DPF MINI USB OTG
