USER MANUAL X99464MK2 AEG

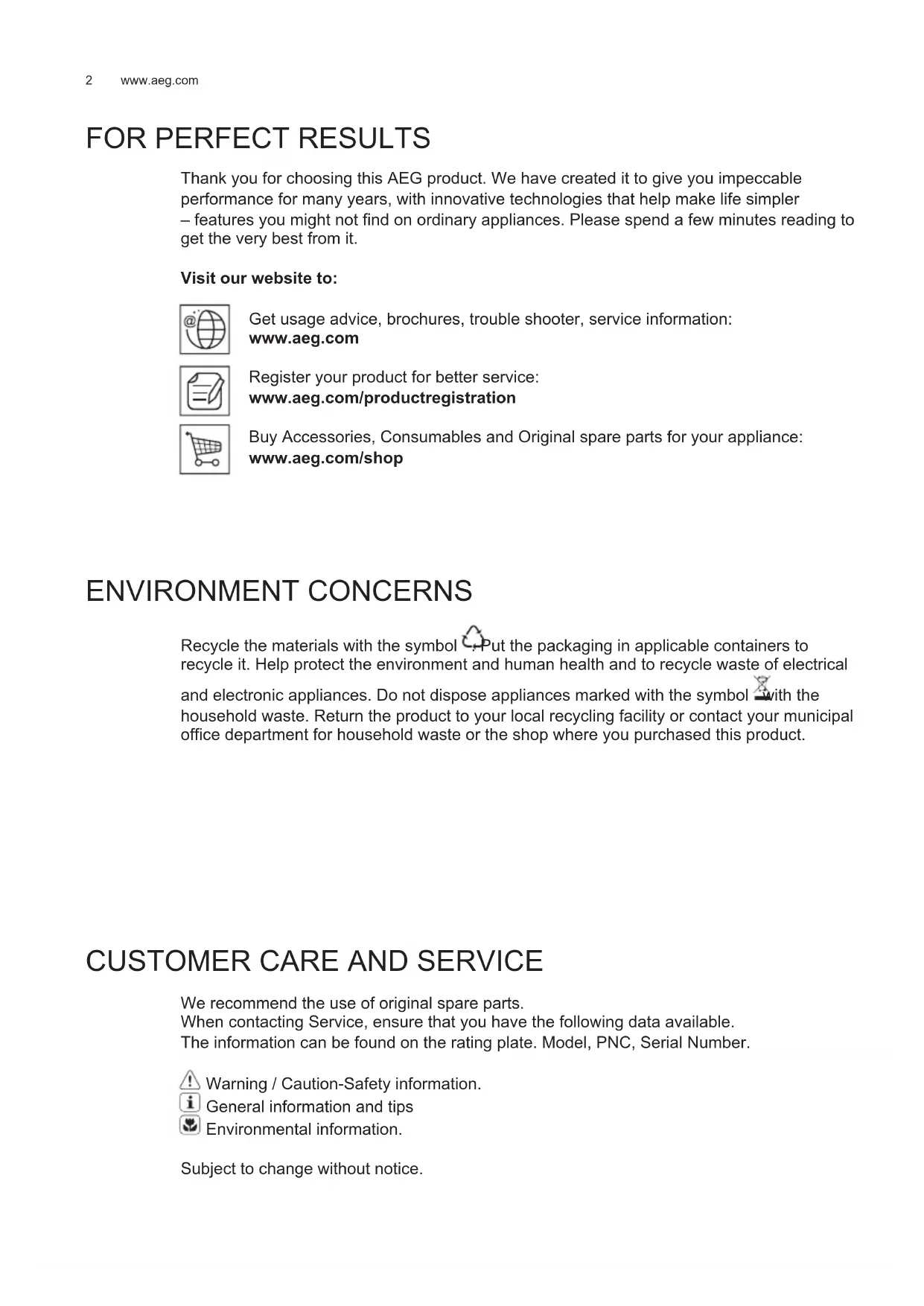

FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable

performance for many years, with innovative technologies that help make life simpler

– features you might not find on ordinary appliances. Please spend a few minutes reading to

get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

ENVIRONMENT CONCERNS Recycle the materials with the symbol . Put the packaging in applicable containers to

recycle it. Help protect the environment and human health and to recycle waste of electrical

and electronic appliances. Do not dispose appliances marked with the symbol with the

household waste. Return the product to your local recycling facility or contact your municipal

office department for household waste or the shop where you purchased this product.

CUSTOMER CARE AND SERVICE We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information.

General information and tips

Environmental information.

Subject to change without notice.

1. SAFETY INSTRUCTIONS Caution! Closely follow the instructions

set out in this manual. All responsibility,

for any eventual inconveniences,

damages or fires caused by not

complying with the instructions in this

manual, is declined. The extractor hood

has been designed exclusively for

Caution! Do not connect the appliance

to the mains until the installation is fully

Before any cleaning or maintenance

operation, disconnect hood from

the mains by removing the plug or

disconnecting the mains electrical

Always wear work gloves for all installation

and maintenance operations. The

appliance is not intended for use by

children or persons with impaired physical,

sensorial or mental faculties, or if lacking

in experience or knowledge, unless they

are under supervision or have been

trained in the use of the appliance by a

person responsible for their safety. This

appliance is designed to be operated

by adults, children should be monitored

to ensure that they do not play with the

appliance. This appliance is designed to

be operated by adults. Children should not

be allowed to tamper with the controls or

play with the appliance. Never use the hood

without effectively mounted grating! The

hood must NEVER be used as a support

surface unless specifically indicated. The

premises where the appliance is nstalled

must be sufficiently ventilated, when the

kitchen hood is used together with other

gas combustion devices or other fuels. The

ducting system for this appliance must not

be connected to any existing ventilation

system which is being used for any other

purpose such as discharging exhaust

fumes from appliances burning gas or other

fuels. The flaming of foods beneath the

hood itself is severely prohibited. The use

of exposed flames is detrimental to the

filters and may cause a fire risk, and must

therefore be avoided in all circumstances.

Any frying must be done with care in order

to make sure that the oil does not overheat

Caution! Accessible parts of the hood

may became hot when used with

With regards to the technical and safety

measures to be adopted for fume

discharging it is important to closely follow

the regulations provided by the local

authorities. The hood must be regularly

cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance

with the maintenance instructions provided

in this manual). Failure to follow the

instructions provided in this user guide

regarding the cleaning of the hood and

filters will lead to the risk of fires. Do not

use or leave the hood without the lamp

correctly mounted due to the possible risk

of electric shocks. We will not accept any

responsibility for any faults, damage or fires

caused to the appliance as a result of the

non-observance of the instructions included

Warning! Failure to install the screws

or fixing device in accordance with

these instructions may result in

2. USE The hood serves to aspirate the fumes and

vapors resulting from cooking.

The attached installation manual indicates

the version to be used depending on the

model you have, the suction version with

external evacuation or filtering with

internal recirculation .

3. INSTALLATION The mains power supply must correspond

to the rating indicated on the plate situated

inside the hood. If provided with a plug

connect the hood to a socket in compliance

with current regulations and positioned in

an accessible area, after installation. If it not

fitted with a plug (direct mains connection)

or if the plug is not located in an accessible

area, after installation, apply a double

pole switch in accordance with standards

which assures the complete disconnection

of the mains under conditions relating to

over-current category III in accordance with

installation instructions.

Warning! Before re-connecting the

hood circuit to the mains supply and

checking the efficient function, always

check that the mains cable is correctly

assembled.www.aeg.com

4.1 Grease filter - The grease filter must

be cleaned once a month using non

aggressive detergents, either by hand or

in the dishwasher, which must be set to a

low temperature and a short cycle. When

washed in a dishwasher, the grease filter

may discolour slightly, but this does not

affect its filtering capacity.

4.2 NON-washable activated charcoal

filter - The saturation of the charcoal filter

occurs after more or less prolonged use,

depending on the type of cooking and the

regularity of cleaning of the grease filter.

In any case it is necessary to replace the

cartridge at least every four mounths.

The charcoal filter may NOT be washed or

The minimum distance between the

supporting surface for the cooking

equipment on the hob and the lowest part

of the range hood must be not less than

50cm from electric cookers and 65cm from

gas or mixed cookers. If the instructions for

installation for the gas hob specify a greater

distance, this must be adhered to.

4. MAINTENANCE ATTENTION! Before performing any

maintenance operation, isolate the

hood from the electrical supply by

switching off at the connector and

removing the connector fuse.

Or if the appliance has been connected

through a plug and socket, then the plug

must be removed from the socket.

The cooker hood should be cleaned

regularly (at least with the same frequency

with which you carry out maintenance of the

fat filters) internally and externally. Clean

using the cloth dampened with neutral liquid

detergent. Do not use abrasive products.

Warning! Failure to carry out the basic

cleaning recommendations of the

cooker hood and replacement of the

filters may cause fire risks. Therefore,

we recommend observing these

The manufacturer declines all responsibility

for any damage to the motor or any

fire damage linked to inappropriate

maintenance or failure to observe the above

safety recommendations.5

5. CONTROLS The hood is fitted with a control panel with

aspiration speed selection control

and a light switch to control cooking area

lights. Use the high suction speed in cases

of concentrated kitchen vapours. It is

recommended that the cooker hood suction

is switched on for 5 minutes

prior to cooking and to leave in operation

during cooking and for another 15

minutes approximately after terminating

4. Motor increase/Motor ON

5. Extraction mode selection

Grease filter saturation indicator

6. Filtration mode selection

Carbon filter saturation indicator

The lighting of the corresponding symbol

indicates the type of extraction mode being

- The transition from one mode to

another must occur only with the motor

- During the transition from one mode

to another, the motor will automatically

shut off, and then resume operation in

the previously set speed.

The hood is designed to be used in

combination with a Window sensor KIT

(not provided by the manufacturer);

installing the Windows sensor KIT, the hood

working in suction mode will automatically

switch to filtering every time when the kit

which with the hood is equipped detects

that the window is closed in the room where

the hood is installed.

When the window is detected as open

again, the hood will switch back to suction

It is recommended to purchase the KIT FDS 100 - Elektrotechnik Schabus,

available at the authorized centers

Elektrotechnik Schabus or directly on the

website www.elektrotechnik-schabus.de

- The electrical connection of the kit

to the hood must be performed by

specialized technical personnel.

- The hood manufacturer declines all

responsibility for any inconvenience,

damage, fire caused by defects and/

or malfunctioning and/or incorrect

installation of the KIT.

- Special functions:

Timed intensive function

Selecting the fourth speed, this remains

timed for 5 minutes, then the motor will

return to the second speed.

- Metal grease filters indicator reset

Every 40 hours of use, the system will

notify you, by flashing symbol 5 (motor

off), the need to clean the metal grease

To clear the warning message, after

cleaning the metal grease filters, press

and hold button 5 (motor off) for more

than 5 seconds; a beep will indicate the

- Carbon filters indicator reset

Every 160 hours of use, the system will

notify you, by flashing symbol 6 (motor

off), the need to replace carbon filters.

To clear the warning message, after

replacing the carbon filters, press and

hold button 6 (motor off) for more than 5

seconds; a beep will indicate the reset

has occurred.www.aeg.com

Signalling malfunctions:

when the system fails to switch, for

mechanical reasons, from the suction

mode to filtering mode (or vice versa)

the hood will remain in OFF state and

the problem will be indicated by the

blinking of the central LEDs for speed;

- Electrical connection error

when the system detects problems with

the electrical connection, the hood will

remain in OFF state and the problem

will be indicated by the blinking of the

LEDs for speed 1 + speed 3.

In both cases, you can only use the

To resume normal hood operation,

please contact the technical support

6. LIGHTING The hood is equipped with a lighting system

based on LED technology.

The LEDs guarantee an optimum lighting,

a duration up to 10 times as long as the

traditional lamps and allow to save 90%

Caution! Do not look directly into the

For replacement, contact the technical

www.aeg.com/productregistration
