USER MANUAL DDF458 MAKITA

Cordless Driver Drill INSTRUCTION MANUAL 4

• Specicationsmaydi󰀨erfromcountrytocountry.

• Theweightmaydi󰀨erdependingontheattachment(s),includingthebatterycartridge.Thelightestandheavi- estcombination,accordingtoEPTA-Procedure01/2014,areshowninthetable. Applicable battery cartridge and charger Batterycartridge D.C.14.4 V Model BL1415N/BL1430/BL1430B/BL1440/BL1450/BL1460B D.C.18 V Model BL1815N/BL1820/BL1820B/BL1830/BL1830B/BL1840/ BL1840B/BL1850/BL1850B/BL1860B Charger DC18RC/DC18RD/DC18RE/DC18SD/DC18SE/DC18SF/ DC18SH

• Someofthebatterycartridgesandchargerslistedabovemaynotbeavailabledependingonyourregionof residence.

WARNING: Only use the battery cartridges and chargers listed above.Useofanyotherbatterycartridges

andchargersmaycauseinjuryand/orre. Intended use The tool is intended for drilling and screw driving in wood, metal and plastic. Noise ThetypicalA-weightednoiseleveldeterminedaccord- ingtoEN62841-2-1: Sound pressure level (L

WARNING: Wear ear protection.

WARNING: The noise emission during actual

use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Vibration Thevibrationtotalvalue(tri-axialvectorsum)deter- minedaccordingtoEN62841-2-1: Workmode:drillingintometal Vibrationemission(a h,D ):2.5m/s

or less Uncertainty(K):1.5m/s 25 ENGLISH NOTE:Thedeclaredvibrationtotalvalue(s)hasbeen measured in accordance with a standard test method andmaybeusedforcomparingonetoolwithanother. NOTE:Thedeclaredvibrationtotalvalue(s)mayalso beusedinapreliminaryassessmentofexposure.

WARNING: The vibration emission during

actual use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). EC Declaration of Conformity For European countries only TheECdeclarationofconformityisincludedasAnnexA to this instruction manual. SAFETY WARNINGS General power tool safety warnings

WARNING: Read all safety warnings, instruc-

tions, illustrations and specications provided with this power tool. Failure to follow all instructions listedbelowmayresultinelectricshock,reand/or seriousinjury. Save all warnings and instruc- tions for future reference. Theterm"powertool"inthewarningsreferstoyour mains-operated(corded)powertoolorbattery-operated (cordless) power tool. Cordless driver drill safety warnings Safety instructions for all operations

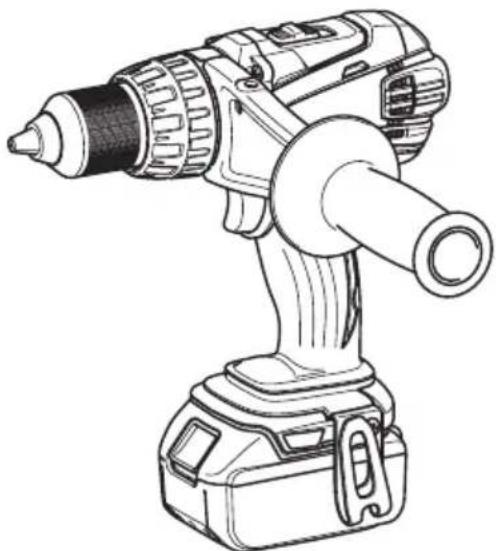

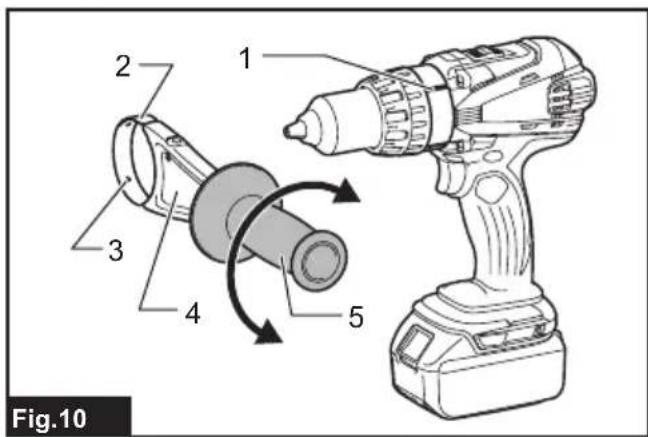

1. Use the auxiliary handle(s). Loss of control can

causepersonalinjury.

2. Hold the power tool by insulated gripping

surfaces, when performing an operation where the cutting accessory or fasteners may contact hidden wiring. Cuttingaccessoryorfasteners contactinga"live"wiremaymakeexposedmetal parts of the power tool "live" and could give the operator an electric shock.

3. Always be sure you have a rm footing. Be

sure no one is below when using the tool in high locations.

4. Hold the tool rmly.

5. Keep hands away from rotating parts.

6. Do not leave the tool running. Operate the tool

only when hand-held.

7. Do not touch the drill bit or the workpiece

immediately after operation; they may be extremely hot and could burn your skin.

8. Some material contains chemicals which may

be toxic. Take caution to prevent dust inhala- tion and skin contact. Follow material supplier safety data.

9. If the drill bit cannot be loosened even you

open the jaws, use pliers to pull it out. In such a case,pullingoutthedrillbitbyhandmayresultin injurybyitssharpedge. Safety instructions when using long drill bits

1. Never operate at higher speed than the max-

imum speed rating of the drill bit.Athigher speeds,thebitislikelytobendifallowedtorotate freelywithoutcontactingtheworkpiece,resulting inpersonalinjury.

2. Always start drilling at low speed and with the

bit tip in contact with the workpiece.Athigher speeds,thebitislikelytobendifallowedtorotate freelywithoutcontactingtheworkpiece,resulting inpersonalinjury.

3. Apply pressure only in direct line with the bit

and do not apply excessive pressure. Bits can bendcausingbreakageorlossofcontrol,resulting inpersonalinjury. SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble battery cartridge.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them

out with clear water and seek medical atten- tion right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, overheating, possible burns and even a breakdown.6 ENGLISH

6. Do not store the tool and battery cartridge in

locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Be careful not to drop or strike battery.

9. Do not use a damaged battery.

10. The contained lithium-ion batteries are subject

to the Dangerous Goods Legislation require- ments. Forcommercialtransportse.g.bythirdparties, forwarding agents, special requirement on pack- agingandlabelingmustbeobserved. Forpreparationoftheitembeingshipped,consult- ing an expert for hazardous material is required. Pleasealsoobservepossiblymoredetailed national regulations. Tapeormasko󰀨opencontactsandpackupthe batteryinsuchamannerthatitcannotmove around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita.Installingthebatteriesto non-compliantproductsmayresultinare,exces- siveheat,explosion,orleakofelectrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool. SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Useofnon-genuineMakitabatteries,orbatteriesthat havebeenaltered,mayresultinthebatterybursting causingres,personalinjuryanddamage.Itwill alsovoidtheMakitawarrantyfortheMakitatooland charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery car-

tridge. Overcharging shortens the battery service life.

3. Charge the battery cartridge with room tem-

perature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. Charge the battery cartridge if you do not use

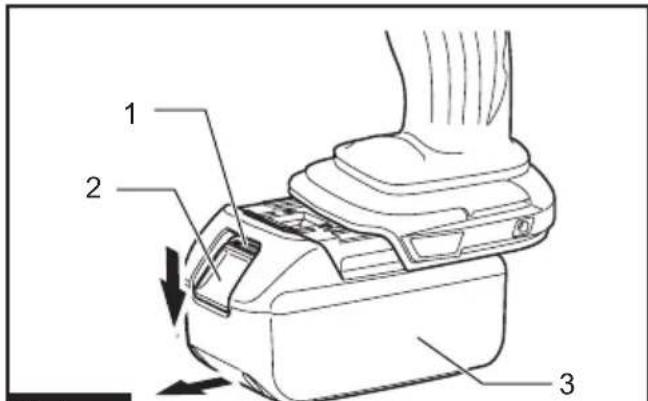

it for a long period (more than six months). FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge CAUTION: Always switch o󰀨 the tool before installing or removing of the battery cartridge. CAUTION: Hold the tool and the battery car- tridge rmly when installing or removing battery cartridge.Failuretoholdthetoolandthebattery cartridgermlymaycausethemtoslipo󰀨yourhands andresultindamagetothetoolandbatterycartridge andapersonalinjury. ►Fig.1: 1. Red indicator 2. Button 3.Batterycartridge Toremovethebatterycartridge,slideitfromthetool whileslidingthebuttononthefrontofthecartridge. Toinstallthebatterycartridge,alignthetongueonthe batterycartridgewiththegrooveinthehousingandslip itintoplace.Insertitallthewayuntilitlocksinplace withalittleclick.Ifyoucanseetheredindicatoronthe uppersideofthebutton,itisnotlockedcompletely. CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, itmayaccidentallyfalloutofthetool,causinginjuryto youorsomeonearoundyou. CAUTION: Do not install the battery cartridge forcibly.Ifthecartridgedoesnotslideineasily,itis notbeinginsertedcorrectly. Indicating the remaining battery capacity Only for battery cartridges with the indicator ►Fig.2: 1. Indicator lamps 2.Checkbutton Pressthecheckbuttononthebatterycartridgetoindi- catetheremainingbatterycapacity.Theindicatorlamps light up for a few seconds. Indicator lamps Remaining capacityLighted O󰀨 Blinking75% to 100%50% to 75%25% to 50%0% to 25%Charge the battery.Thebatterymayhavemalfunctioned.7 ENGLISH NOTE: Depending on the conditions of use and the ambienttemperature,theindicationmaydi󰀨erslightly fromtheactualcapacity. Tool / battery protection system Thetoolisequippedwithatool/batteryprotectionsys- tem.Thissystemautomaticallycutso󰀨thepowerto extendtoolandbatterylife.Thetoolwillautomatically stopduringoperationifthetoolorbatteryisplaced underoneofthefollowingconditions: Overload protection This protection works when the tool is operated in a mannerthatcausesittodrawanabnormallyhighcur- rent.Inthissituation,turnthetoolo󰀨andstoptheappli- cationthatcausedthetooltobecomeoverloaded.Then turn the tool on to restart. Overheat protection Thisprotectionworkswhenthetoolorbatteryisover- heated.Inthissituation,letthetoolandbatterycool beforeturningthetoolonagain. Overdischarge protection Thisprotectionworkswhentheremainingbattery capacitygetslow.Inthissituation,removethebattery fromthetoolandchargethebattery. Indicating the remaining battery capacity ►Fig.3: 1. Button 2.Batteryindicator Withthetoolstopped,pressthebuttonontheswitch panel.Theremainingbatterycapacitywillbedisplayed onthebatteryindicator. Theremainingbatterycapacityisshownasthefollowingtable. Battery indicator status Remaining battery capacity 50% to 100% 20% to 50% 0% to 20% NOTE:Beforecheckingtheremainingbatterycapac- ity,besuretostopthetool. Switch action ►Fig.4: 1. Switch trigger CAUTION: Before installing the battery car- tridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released. Tostartthetool,simplypulltheswitchtrigger.Tool speedisincreasedbyincreasingpressureontheswitch trigger. Release the switch trigger to stop. Lighting up the front lamp ►Fig.5: 1. Lamp CAUTION: Do not look in the light or see the source of light directly. Pulltheswitchtriggertolightupthelamp.Thelamp keepsonlightingwhiletheswitchtriggerisbeingpulled. Thelampgoesoutapproximately10secondsafter releasing the switch trigger. NOTE:Useadryclothtowipethedirto󰀨thelensof the lamp. Be careful not to scratch the lens of lamp, or itmaylowertheillumination. Reversing switch action ►Fig.6: 1. Reversing switch lever CAUTION: Always check the direction of rotation before operation. CAUTION: Use the reversing switch only after the tool comes to a complete stop. Changing the directionofrotationbeforethetoolstopsmaydam- age the tool. CAUTION: When not operating the tool, always set the reversing switch lever to the neu- tral position. This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the AsideforclockwiserotationorfromtheBsideforcoun- terclockwise rotation. When the reversing switch lever is in the neutral posi- tion,theswitchtriggercannotbepulled. Speed change ►Fig.7: 1. Speed change lever CAUTION: Always set the speed change lever fully to the correct position.Ifyouoperatethe toolwiththespeedchangeleverpositionedhalfway betweenthe"1"sideand"2"side,thetoolmaybe damaged. CAUTION: Do not use the speed change lever while the tool is running.Thetoolmaybedamaged. Position of speed change lever Speed Torque Applicable operation 1 Low High Heavyload- ing operation 2 High Low Light loading operation Tochangethespeed,switcho󰀨thetoolrst.Select the"2"sideforhighspeedor"1"forlowspeedbuthigh torque. Be sure that the speed change lever is set to the correctpositionbeforeoperation. Ifthetoolspeediscomingdownextremelyduringthe operation with "2", slide the lever to the "1" and restart the operation.8 ENGLISH Selecting the action mode NOTICE:Alwayssettheringcorrectlytoyour desiredmodemark.Ifyouoperatethetoolwiththe ringpositionedhalfwaybetweenthemodemarks,the toolmaybedamaged. NOTICE: Do not change the action mode while rotating. ►Fig.8: 1.Actionmodechangingring2. Mark 3.Arrow This tool has two action modes.

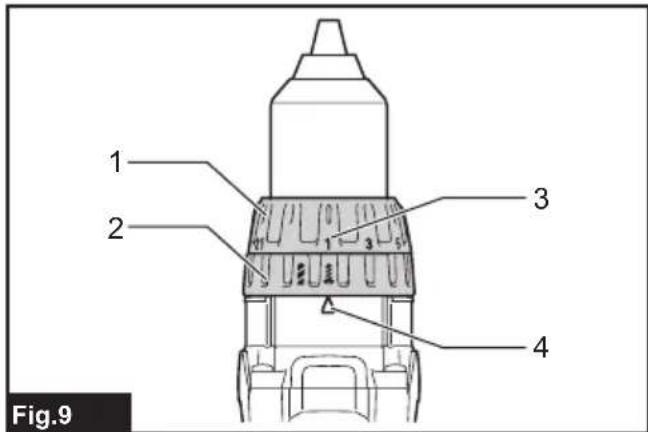

bodybyturningtheadjustingring. Beforeactualoperation,driveatrialscrewintoyour material or a piece of duplicate material to deter- mine which torque level is required for a particular application. ASSEMBLY CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before carrying out any work on the tool. Installing side grip (auxiliary handle) ►Fig.10: 1. Groove 2.Steelband3.Protrusion 4.Gripbase5. Side grip Alwaysusethesidegriptoensureoperatingsafety. Attachthesidegripsothattheprotrusionsonthegrip baseandsteelbandtinthegroovesonthetoolbarrel. Thentightenthegripbyturningclockwise. Dependingtheoperations,youcanattachthesidegrip upwardorright/leftsideofthetool. Installing or removing driver bit/ drill bit ►Fig.11: 1. Sleeve Turn the sleeve counterclockwise to open the chuck jaws.Placethedriverbit/drillbitinthechuckasfar as it will go. Turn the sleeve clockwise to tighten the chuck.Toremovethedriverbit/drillbit,turnthesleeve counterclockwise. Installing driver bit holder Optional accessory ►Fig.12: 1.Driverbitholder2.Driverbit Fitthedriverbitholderintotheprotrusionatthetoolfoot on either right or left side and secure it with a screw. Whennotusingthedriverbit,keepitinthedriverbit holders.Driverbits45mm-longcanbekeptthere. Installing hook CAUTION: When installing the hook, always secure it with the screw rmly. If not, the hook maycomeo󰀨fromthetoolandresultinthepersonal injury. ►Fig.13: 1. Groove 2. Hook 3. Screw Thehookisconvenientfortemporarilyhangingthetool. Thiscanbeinstalledoneithersideofthetool.Toinstall the hook, insert it into a groove in the tool housing on either side and then secure it with a screw. To remove, loosen the screw and then take it out. OPERATION CAUTION: Always insert the battery cartridge all the way until it locks in place.Ifyoucanseethe redindicatorontheuppersideofthebutton,itisnot lockedcompletely.Insertitfullyuntiltheredindicator cannotbeseen.Ifnot,itmayaccidentallyfalloutof thetool,causinginjurytoyouorsomeonearound you. CAUTION: When the speed comes down extremely, reduce the load or stop the tool to avoid the tool damage. Holdthetoolrmlywithonehandonthegripandthe other hand on the handle to control the twisting action. ►Fig.14 Screwdriving operation CAUTION: Adjust the adjusting ring to the proper torque level for your work. CAUTION: Make sure that the driver bit is inserted straight in the screw head, or the screw and/or driver bit may be damaged. First, turn the action mode changing ring so that the arrowonthetoolbodypointstothe marking. Placethepointofthedriverbitinthescrewheadand applypressuretothetool.Startthetoolslowlyandthen increasethespeedgradually.Releasetheswitchtrigger as soon as the clutch cuts in. NOTE: When driving wood screw, pre-drill a pilot hole 2/3thediameterofthescrew.Itmakesdrivingeasier and prevents splitting of the workpiece.9 ENGLISH Drilling operation First, turn the action mode changing ring so that the arrow points to the marking. Then proceed as follows. Drilling in wood Whendrillinginwood,thebestresultsareobtained with wood drills equipped with a guide screw. The guide screwmakesdrillingeasierbypullingthedrillbitinto the workpiece. Drilling in metal Topreventthedrillbitfromslippingwhenstartinga hole, make an indentation with a center-punch and hammeratthepointtobedrilled.Placethepointofthe drillbitintheindentationandstartdrilling. Useacuttinglubricantwhendrillingmetals.Theexcep- tionsareironandbrasswhichshouldbedrilleddry. CAUTION: Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressurewillonlyservetodamagethetipofyourdrill bit,decreasethetoolperformanceandshortenthe service life of the tool. CAUTION: Hold the tool rmly and exert care when the drill bit begins to break through the workpiece. There is a tremendous force exerted on thetool/drillbitatthetimeofholebreakthrough. CAUTION: A stuck drill bit can be removed simply by setting the reversing switch to reverse rotation in order to back out. However, the tool may back out abruptly if you do not hold it rmly. CAUTION: Always secure workpieces in a vise or similar hold-down device. CAUTION: If the tool is operated continuously until the battery cartridge has discharged, allow the tool to rest for 15 minutes before proceeding with a fresh battery. MAINTENANCE CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before attempting to perform inspection or maintenance. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. TomaintainproductSAFETYandRELIABILITY,repairs, carbonbrushinspectionandreplacement,anyother maintenanceoradjustmentshouldbeperformedby MakitaAuthorizedorFactoryServiceCenters,always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specied in this manual.Theuseofanyother accessories or attachments might present a risk of injurytopersons.Onlyuseaccessoryorattachment for its stated purpose. Ifyouneedanyassistanceformoredetailsregard- ingtheseaccessories,askyourlocalMakitaService Center.

WARNING: This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Symbols The followings show the symbols used for the equipment. Be sure that you understand their meaning before use.CAUTION:1. SAVE THESE INSTRUCTIONS – This manual containsimportant safety and operating instructions for battery charger.2. Before using battery charger, read all instructions andcautionary markings on (1) battery charger, (2) battery, and (3)product using battery.3. CAUTION – To reduce risk of injury, charge only Makita typerechargeable batteries. Other types of batteries may burstcausing personal injury and damage.4. Non-rechargeable batteries cannot be charged with thisbattery charger.5. Use a power source with the voltage specified on thenameplate of the charger. 6. Do not charge the battery cartridge in presence of flammableliquids or gases.7. Do not expose charger to rain or snow.8. Never carry charger by cord or yank it to disconnect fromreceptacle.9. After charging or before attempting any maintenance orcleaning, unplug the charger from the power source. Pull byplug rather than cord whenever disconnecting charger.10. Make sure cord is located so that it will not be stepped on,tripped over, or otherwise subjected to damage or stress.11. Do not operate charger with damaged cord or plug. If the cordor plug is damaged, ask Makita authorized service center toreplace it in order to avoid a hazard.12. Do not operate or disassemble charger if it has received asharp blow, been dropped, or otherwise damaged in any way;take it to a qualified serviceman. Incorrect use or reassemblymay result in a risk of electric shock or fire. 13. Do not charge battery cartridge when room temperature isBELOW 10°C (50°F) or ABOVE 40°C (104°F). When thebattery temperature is under 0°C (32°F), charging may notstart.14. Do not attempt to use a step-up transformer, an enginegenerator or DC power receptacle.15. Do not allow anything to cover or clog the charger vents. Charging 1. Plug the battery charger into the proper AC voltage source.Charging light will flash in green color repeatedly. 2. Insert the battery cartridge into charger until it stops adjustingto the guide of charger. Terminal cover of charger can beopened with inserting and closed with pulling out the batterycartridge. 3. When the battery cartridge is inserted, the red charging lightwill light up and charging will begin with a preset brief melodysound coming out for assurance as to which sound will comeout to notify the completion of charging.4. With finish of charge, the charging light will change from redone to green one and the melody sound or buzzer sound (along beep) comes out to notify completion of charge.5. Charging time varies by temperature (10°C (50°F) – 40°C(104°F)) that battery cartridge is charged at and conditions ofthe battery cartridge, such as a battery cartridge which is newor has not been used for a long period of time. 6. After charging, remove the battery cartridge from charger andunplug the charger. Changing melody of completed charging 1. Inserting the battery cartridge into charger brings out lastpreset brief melody sound of completed charging. 2. Removing and re-inserting it within five seconds after thisaction makes the melody sound change.3. Every time removing and re-inserting it within another fiveseconds after this, the melody sound changes in order. ENGLISH

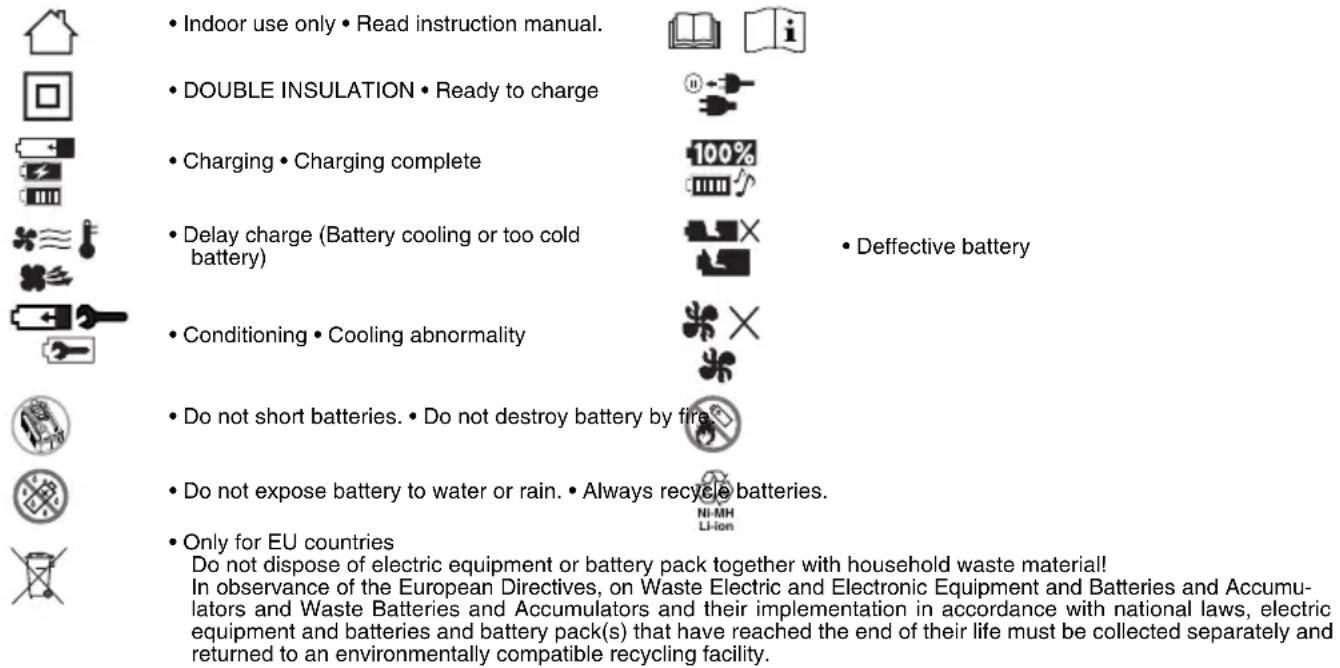

• Indoor use only • Read instruction manual. • DOUBLE INSULATION • Ready to charge• Charging • Charging complete• Delay charge (Battery cooling or too cold battery)• Deffective battery• Conditioning • Cooling abnormality• Do not short batteries. • Do not destroy battery by fire.• Do not expose battery to water or rain. • Always recycle batteries.• Only for EU countriesDo not dispose of electric equipment or battery pack together with household waste material!In observance of the European Directives, on Waste Electric and Electronic Equipment and Batteries and Accumu-lators and Waste Batteries and Accumulators and their implementation in accordance with national laws, electricequipment and batteries and battery pack(s) that have reached the end of their life must be collected separately andreturned to an environmentally compatible recycling facility.3

4. When the desired melody sound comes out, leave the battery

cartridge being inserted and the charge will begin. When a “short beep” mode is selected, no completed charging signals comes out. (Silent Mode)

5. With finish of charge, the green light remains lit with the red

light going out and the melody sound preset at the insertion of battery cartridge or buzzer sound (a long beep) comes out to notify completion of charge. (In selected silent mode, no sounds come out.)

6. Preset melody sound remains stored even when the charger

is unplugged. *1 These batteries can be charged with DC18RC only. NOTE:

• The battery charger is for charging Makita-battery cartridge. Never use it for other purposes or for other manufacturer’s batteries.

• When you charge a battery cartridge which is new or has not been used for a long period of time, it may not accept a full charge until after discharging it completely and recharging a couple of times. (Ni-MH battery only)

• If charging light may flash in red color, battery condition is as below and charging may not start. – Battery cartridge from just-operated tool or battery cartridge that has been left in a location exposed to direct sunlight for a long time. – Battery cartridge that has been left for a long time in a location exposed to cold air. When the battery cartridge is too hot, charging will begin after the cooling fan installed in the charger cools the battery car- tridge. Charging will begin after the battery cartridge tempera- ture reaches the degree at which charging is possible.

• If the charging light flashes alternately in green and red color, charging is not possible. The terminals on the charger or battery cartridge are clogged with dust or the battery cartridge is worn out or damaged. Cooling system

• This charger is equipped with cooling fan for heated battery in order to enable the battery to prove its own performance. Sound of cooling air comes out during cooling, which means no trouble on the charger.

• Yellow light will flash for warning in the following cases. – Trouble on cooling fan – Incomplete cool down of battery, such as, being clogged with dust The battery can be charged in spite of the yellow warning light. But the charging time will be longer than usual in this case. Check the sound of cooling fan, vent on the charger and battery, which can be sometime clogged with dust.

• The cooling system is in order although no sound of cooling fan comes out, if the yellow warning light will not flash.

• Always keep clean the vent on charger and battery for cooling.

• The products should be sent to repair or maintenance, if the yellow warning light will frequently flash. Conditioning charge Conditioning charge can extend the life of battery by automatically searching the optimum charging condition for the batteries in every situation. The battery employed in the following conditions repeatedly requires “conditioning charge” to prevent fast wear out. In that case, yellow light lights up.

1. Recharge of battery with its high temperature

2. Recharge of battery with its low temperature

3. Recharge of full charged battery

4. Over-discharge of battery (continue to discharge battery in

spite of down of power.) The charging time of such battery is longer than usual. Voltage 9.6 V 12 V 14.4 V Capacity (Ah) Charging time (Minutes) Number of cells 8 10 12 Ni-MH Battery cartridge B9017A — — 1.7 20

Voltage 14.4 V 18 V 14.4 V 18 V Capacity (Ah) according to IEC61960 Charging time (Minutes) Number of cells 4 5 8 10 Li-ion Battery cartridge BL1415 BL1815 — — 1.3 15
