PHC9790 - Hair straighteners BOSCH - Free user manual and instructions

Product type	Hair curler
Brand	Bosch
Model	PHC9790
Supply voltage	220-240 V ~ 50/60 Hz
Power	88 W
Temperature range	120 °C to 200 °C (adjustable in 10 °C steps)
Display	Digital screen
Recommended temperature (fine hair)	Up to 140 °C
Recommended temperature (normal hair)	Around 180 °C
Recommended temperature (thick hair)	From 180 °C
Auto shut-off	After 70 minutes
Key lock	Yes (+ and - keys)
Safety	Auto shut-off, key lock, do not use near water
Cleaning	With a damp cloth, do not immerse
Maintenance	Let cool before cleaning, do not use harsh cleaner
Spare parts	Available via Bosch after-sales service
Warranty	According to distributor conditions
Usage type	Domestic
General information	Domestic use only, not professional

Frequently Asked Questions - PHC9790 BOSCH

How to turn the Bosch PHC9790 hair curler on and off?

To turn on, press and hold the on/off switch for about 1 second. To turn off, repeat the same operation.

How to adjust the temperature?

Use the + and - buttons to adjust the temperature in 10°C steps, from 120°C to 200°C. The temperature blinks during heating and displays continuously once reached.

What temperature should I choose based on my hair type?

For fine hair: up to 140°C. For normal hair: around 180°C. For thick hair: from 180°C. For damaged hair, reduce to 140°C.

How to use the key lock?

Set the desired temperature, then press and hold the - button for 3 seconds. The lock symbol appears. To disable, repeat the operation.

How long does it take for the device to heat up?

The heating time is not specified, but the temperature blinks until it is reached. Expect about 30 to 60 seconds.

Does the device automatically shut off?

Yes, the hair curler automatically shuts off after 70 minutes of inactivity. To turn it back on, press and hold the on/off switch.

How to clean the hair curler?

Let the device cool down and unplug it. Clean the exterior with a damp cloth. Do not use harsh cleaners and never immerse the device in water.

Can I use the hair curler on wet hair?

No, use the device only on dry hair. Using it on wet hair can damage the hair and the device.

What to do in case of malfunction?

Unplug the device and contact Bosch after-sales service. Repairs must be carried out by an authorized professional.

Where to find spare parts?

Spare parts are available from Bosch after-sales service. Visit www.bosch-home.fr or contact 0 892 698 009.

USER MANUAL PHC9790 BOSCH

Register your new Bosch now: www.bosch-home.com/welcome

PHC 9790

BOSCH

de Gebrauchsanleitung en Instruction manual fr Mode d'emploi it Istruzioni per l'uso nl Gebruiksaanwijzing da Brugsanvising no Brugsanvisining sv Brugsanvisning fi Käyttöohje es Instrucciones de uso

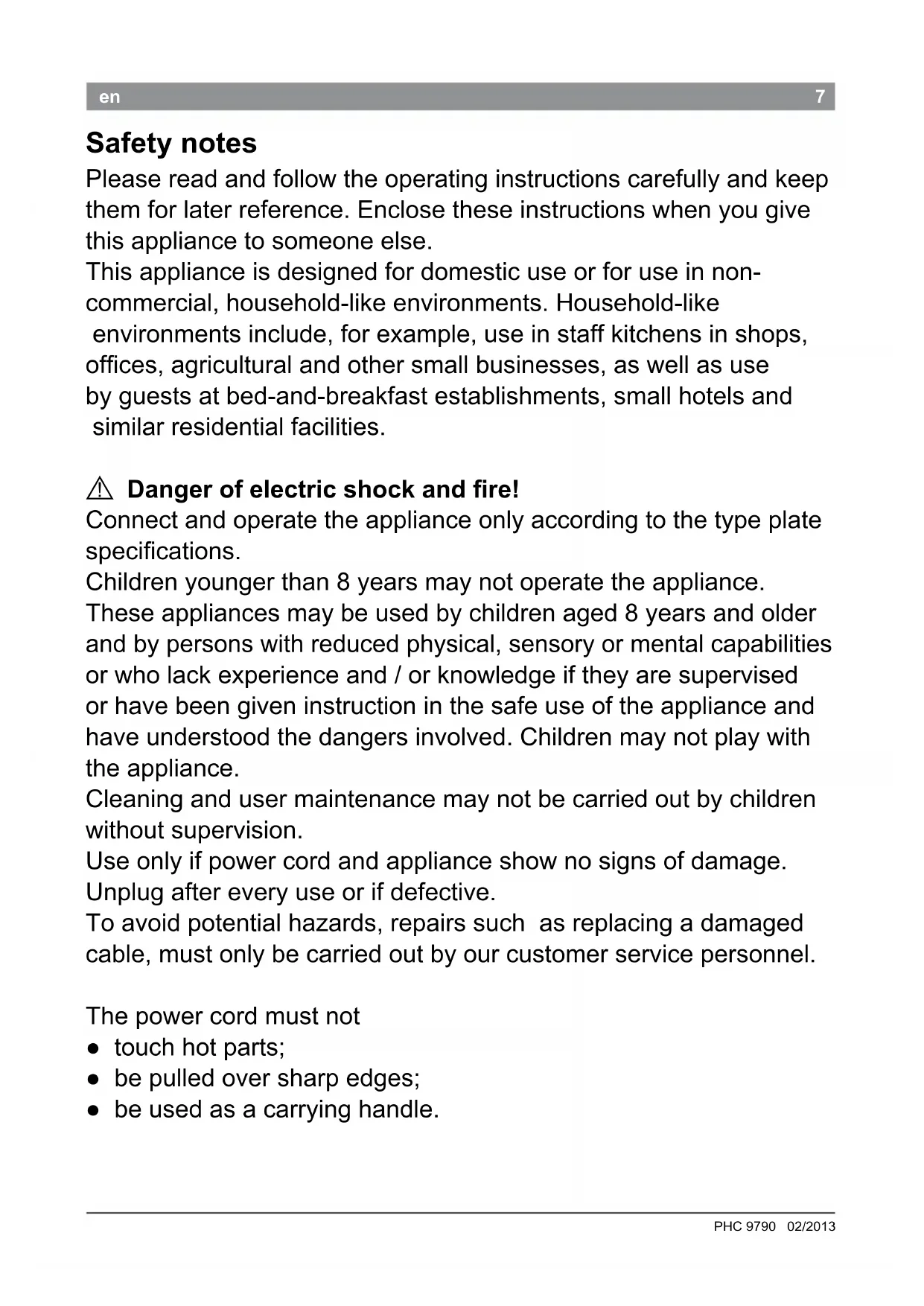

Please read and follow the operating instructions carefully and keep them for later reference. Enclose these instructions when you give this appliance to someone else.

This appliance is designed for domestic use or for use in non-commercial, household-like environments. Household-like environments include, for example, use in staff kitchens in shops, offices, agricultural and other small businesses, as well as use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

Danger of electric shock and fire!

Connect and operate the appliance only according to the type plate specifications.

Children younger than 8 years may not operate the appliance.

These appliances may be used by children aged 8 years and older and by persons with reduced physical, sensory or mental capabilities or who lack experience and / or knowledge if they are supervised or have been given instruction in the safe use of the appliance and have understood the dangers involved. Children may not play with the appliance.

Cleaning and user maintenance may not be carried out by children without supervision.

Use only if power cord and appliance show no signs of damage. Unplug after every use or if defective.

To avoid potential hazards, repairs such as replacing a damaged cable, must only be carried out by our customer service personnel.

The power cord must not

• touch hot parts;
• be pulled over sharp edges;
• be used as a carrying handle.

Unplug the appliance before cleaning it.

Never immerse the appliance in water.

Do not use a steam cleaner.

The heating element will become hot. Hold the appliance only by its handle. Only use on dry hair; under no circumstances use the appliance on artificial hair. Place the appliance on heat-resistant surfaces only.

Do not use near water contained in bath tubs, sinks or other containers.

Risk of fatal injury!

Never allow the appliance to come into contact with water.

Even an appliance that has been switched off poses a danger;

therefore unplug the appliance after every use or when interrupted in its use. Installing a ground fault circuit interrupter up to 30 mA in the house offers additional protection. Please consult an electrician.

Risk of suffocation!

Do not allow children to play with packaging material.

Risk of burns!

Avoid any skin contact.

Congratulations on purchasing this Bosch appliance.

You have acquired a high-quality product that will bring you a lot of enjoyment.

These operating instructions are for curling tongs.

Parts and operating controls

1 on/off switch 2 Temperature selector + / - (min 120°C - 200°C) 3 Display 4 Heating element 5 Clip

Operation

• Plug in the appliance and place it on a level, heat-resistant surface.
• To switch on, hold down the on/off switch 1 for about 1 second. The preset temperature (140°C) lights up on the display 3.
• The desired temperature can now be set using the temperature selector 2 at intervals of 10 between 120°C and 200°C .
• Up to 140°C for fine, delicate hair
• Approx. 180°C for normal hair
• 180°C or higher for thick or wavy hair.

Tip: Reduce the temperature for damaged hair (the ideal temperature is approx. 140°C ) to protect it.

The appliance heats up, the preset temperature flashes in the display.

The appliance is ready for use when the preset temperature is illuminated and no longer flashing.

Note: To switch off, hold down the on/off switch 1 for about 1 second.

Use

Risk of burns!

Never allow appliance to come into contact with skin (scalp or ears).

• Only use the appliance on dry hair.
• Use only on untreated, healthy hair.
• Use less frequently on permed, coloured or affected hair.

Note: Fine hair responds very quickly to the treatment. The even heat emission is especially gentle on the hair.

• Comb the hair and section it into even strands (about 2-3 cm wide). The finer the strands, the tighter the curl, as all the hair comes into contact with the heated curling tongs.
• Open the curling tongs by pressing the clip 5.
• Insert a strand of hair and close the clip. Figure a
• Now pull the curling tongs down to the ends of the hair and turn to wind up the strand. Figure b

Important: If you have long hair, use the entire surface of the heated barrel. This spreads the heat evenly through the hair and delivers better styling results.

• Leave the curling tongs in the hair for a few seconds to shape the curl.
• Release the strand of hair by opening the clip with small movements while removing the curling iron sideways from the hair strand.

N.B.: Make sure that the curl is not pulled straight when removing the curling tongs. For longer lasting curls, use a hair clip to hold the curl in place while it is still rolled up.

Tip: Allow hair to cool completely before styling.

Give your hair extra volume by running your fingers through the curls.

For more natural looking waves, you can also use the curling tongs as a hairdresser would with the clip closed.

Hold the strand of hair by its tip and wrap it in a spiral around the closed curling tongs.

Figure c

Leave the curling tongs in the hair for a few seconds to create the wave.

When the curl has formed, let go of the strand of hair.

Tip: For a more modern look, don't wrap the strand of hair starting at the roots, but leave the first few centimeters straight.

For more information about styling with Bosch appliances, visit

www.bosch-personalstyle.com

Button lock

To make handling the appliance easier, you can lock the "+" and - buttons. If the button lock has been activated, the set temperature cannot be changed by accidentally pressing the buttons.

• Set the desired temperature.
• Press and hold the “-” button for three seconds.
• The button lock is activated, and the display shows the 0 - 1 symbol.
• To deactivate the button lock, press and hold the “-” button again for three seconds; the button lock symbol disappears.

Automatic shut-off

For safety reasons this appliance is equipped with an automatic shut-off function.

• The appliance switches off automatically 70 minutes after it was switched on or after the temperature selector 2 was adjusted for the last time. The display will go dark.

Note: Use the on/off switch 1 to switch the appliance back on.

Cleaning and maintenance

Danger of electric shock!

Allow the appliance to cool and unplug it before cleaning.

Never submerse the appliance in water.

Do not use a steam cleaner.

Wipe off the appliance with a damp cloth and dry off with a clean, dry cloth. Do not use strong or abrasive cleansers.

Storage

Allow the appliance to cool and unplug it before storage.

Disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

Technical specifications

Electrical connection (voltage / frequency)	220 – 240 V 50 / 60 Hz
Output 88 W

Be careful to avoid contact with skin (scalp or ears).

Do not pull the appliance over sharp edges, do not use it for ironing clothes.

Before cleaning, unplug the appliance from the socket.

Never immerse the appliance in water.

Do not use a steam generator.

The heating element heats up. Hold the appliance only by the handle. The appliance is not intended for use on wet hair. Place the appliance on a heat-resistant surface.

Do not use the appliance near bathtubs, sinks, or other containers holding water.

Danger of burns!

Do not allow the appliance to come into contact with water. The appliance poses a risk of electric shock; unplug the appliance from the outlet after each use and during breaks in operation. For additional safety, it is recommended to install a residual current device with a rated tripping current not exceeding 30 mA. Consult an electrician.

Danger of burns!

Do not allow children to play with the packaging materials.

Warning! Risk of fire!

Avoid contact between the appliance and skin.

Thank you for purchasing the Bosch appliance.

You have purchased a high-quality product that will satisfy you for many years.

This instruction manual describes the hair straightener.

Parts and controls

1 On/off switch 2 Temperature selector + / - (min. 120°C - max. 200°C) 3 Display 4 Heating element 5 Lock

Operation

• Switch on the appliance and place it on a flat, heat-resistant surface.
• To turn on the device, press and hold the on/off switch for about 1 second. The previously set heating temperature (140 °C) will appear on the display.
• Now you can set the desired temperature from 120 °C to 200 °C in 10-degree increments using the temperature switch 2.

- Up to 140°C for fine, delicate hair - Approx. 180°C for normal hair - 180°C or higher for thick or curly hair.

Tip: If your hair is damaged, you should lower the temperature (ideal temperature is about 140 °C).

The device heats up, and the set temperature value appears on the display. The device is ready for use when the set temperature value lights up steadily.

Note: To turn off the device, press and hold the on/off switch for about 1 second.

Use

Warning! Risk of burns!

Avoid contact with the scalp and ears.

Use the device on dry hair. Use the device only on healthy, untreated hair. - If your hair has been permed, dyed, or treated in any other way, use the device with caution.

Information: Fine hair is damaged very quickly. Distribute the heat evenly over the hair.

• Divide the combed hair into equal sections about 2-3 cm wide. The thinner the section, the curlier the hair will be, because in thin sections all the hair touches the hot plates.
• Open the plates by pressing the clamp 5. Insert a section of hair and close the clamp. Fig. a
• Now pull the plates down to the ends of the hair and curl the section. Fig. b

Important information: If you have thick hair, use the entire surface of the heating plate. This way, the heat is distributed evenly over the hair and optimal styling is achieved.

Twist the hair strands into curls. Pull the hair strands out, carefully opening the hair clip and sliding it along the hair strand.

Note: Repeat the straightening process.

For a longer-lasting curl, use the hair clip, securing the hair in a twisted position.

Recommendation: Before styling, let the hair cool down.

When sliding the clips with your fingers, the waves become more defined.

For a more natural wave, you can use the hair clip to create a wave, then secure it with a clip.

Take the end of the hair strand and wrap it around the closed clip. See figure c.

To add more waves, twist the hair strand for a few seconds in the hair. After that, the clips are ready, pull out the hair strand.

Tip: For a more modern look, wrap the hair strand from the roots, and secure it for a few centimeters.

For additional information on styling hair with Bosch appliances, visit the website www.bosch-personalstyle.com

Button lock

Never immerse the appliance in water.

Do not use the appliance with wet hands.

The heating element gets very hot. Hold the appliance only by the handle. Hair must be dry. The appliance is not intended for use on artificial hair.

Place the appliance only on heat-resistant surfaces.

Do not immerse the device in water, do not place it in a bathtub, sink, or other containers.

Danger to life!

Never allow the device to come into contact with water.

AUTOMATIC SHUT-OFF

For safety reasons, the device is equipped with an automatic shut-off function.

• The device automatically switches off 70 minutes after it is switched on or after the last time the temperature regulator 2 was adjusted.

Note: To switch the device back on, use the on/off switch 1.

Danger of electric shock!

Before cleaning the device, unplug it from the socket and wait for it to cool down.

Never immerse the device in water. Do not use steam cleaning devices.

Wipe the device with a slightly damp cloth, then dry it. Do not use abrasive or aggressive cleaning agents.

Storage

Before storing the device, unplug it from the socket and wait for it to cool down.

Disposal

Disposal of the device using environmentally safe methods. This device is marked in accordance with European standards 2012/19/EG on the disposal of electrical and electronic equipment (waste electrical and electronic equipment - WEEE). These standards define the rules for the return and disposal of old devices in force in the territory of the Russian Federation. You can obtain information about current disposal options from the store where you purchased the device.

Warranty terms

You can obtain comprehensive information about the warranty terms at your nearest authorized service center or at the service center of the manufacturer LLC "VSK Bytovaya Tekhnika" or in the accompanying documentation.

We reserve the right to make changes.

Technical specifications
