1401 Office - Shredder PRIMO - Free user manual and instructions

Product Type	Document Shredder
Brand	Primo
Model	1401 Office
Cut Type	Strip cut or Cross cut (depending on version)
Cut Size (mm)	5.8 / 3.9 / 1.9 (strip) or 3.9 x 30 / 1.9 x 15 (cross)
Security Level DIN 32757-1	2 to 4 depending on version
Cutting Capacity (A4 sheets 80 g/m²)	7 to 24 sheets depending on version
Working Width	240 mm
Bin Volume	33 liters
Dimensions (W x D x H)	375 x 279 x 583 mm
Weight	11.5 kg (strip) / 12.5 kg (cross)
Power Supply	230 V, 50 Hz / 100-115 V, 50/60 Hz
Power	440 W
Cutting Speed	80 mm/s (strip) / 90 mm/s (cross)
Noise Level (idle/load)	58 dB(A) / 59-63 dB(A)
Accepted Materials	Paper, credit cards (depending on cut size), staples, paper clips
Main Functions	Auto start/stop, reverse function (jam clearing), child safety
Maintenance	Regular oiling of the cutting head with special oil (supplied)
Cleaning	Soft cloth and non-corrosive soapy water
Safety	Automatic shutdown in case of jam or full bin, liquid protection
Package Contents	Shredder, 5 waste bags, 1 bottle of oil 50 ml, manual
Optional Accessories	Waste bags (ref. 1.661.995.050), oil 250 ml (ref. 1.235.997.401)

Frequently Asked Questions - 1401 Office PRIMO

What is the maximum number of sheets the shredder can accept at once?

The capacity depends on the model. For strip cut, it ranges from 12 to 24 sheets depending on the cut width. For cross cut, from 7 to 19 sheets. Please refer to the technical specifications table in the manual for exact values.

What to do in case of a paper jam?

Move the rocker switch to position 2 (reverse) and hold it to eject the paper. Then divide the stack in half and insert the sheets one by one. Do not toggle the switch between positions 1 and 2, as this could damage the mechanism.

How to oil the cutting head?

Turn off the shredder (position 2). Inject special cutting head oil into the paper insertion opening across the entire width. Run the mechanism several times without paper (position 2) to distribute the oil.

Can I shred paper clips and staples?

Yes, the robust cutting mechanism withstands staples and paper clips. However, avoid shredding large quantities at once.

The shredder stops suddenly, what should I do?

Several possible causes: the bin is full (empty it), the bin is not correctly positioned, the motor overheated (let it cool 15-20 min), or a jam occurred. Also check that the plug is connected and the switch is on 1.

What materials can I safely destroy?

The shredder is designed for standard paper. Credit cards and loyalty cards can be destroyed only with cut sizes 1.9 mm / 3.9 mm / 5.8 mm / 3.9x30 mm. Do not shred tapes, cables, or materials that could become tangled.

How to clean the exterior of the device?

Before cleaning, turn off the device and unplug it. Use a soft cloth moistened with non-corrosive soapy water. Do not use abrasive products, gasoline, or thinner.

Where is the serial number or rating plate located?

The rating plate (no. 5) is located under the device cover. It indicates voltage, frequency, and other technical specifications.

What to do if the warning light turns on?

The warning light (no. 1) may indicate motor overheating, a jam, or a full bin. Consult the 'Troubleshooting' section of the manual to diagnose and resolve the issue.

Can I use the shredder without the bin in place?

No, the shredder does not work if the shredding bin is not properly in contact. Check that it is correctly positioned in the cabinet.

USER MANUAL 1401 Office PRIMO

West Chester, PA 19380

USA

Phone: [phone]

Fax: [phone]

E-mail: [e-mail]

www.hsmofamerica.com

1. Proper use, warranty

The shredder is designed exclusively for destroying paper.

Depending on the cutting type, it can also handle small quantities of the following materials:

Credit and charge cards:

1.9 / 3.9 / 5.8 / 3.9 x 30 mm only

Its sturdy drive mechanism is not damaged by paper clips and staples.

We provide a warranty for the device in accordance with our general sales and delivery terms. This warranty excludes wear, damage due to improper handling, natural depreciation, and actions taken by third parties.

3. Safety instructions

• Read all instructions before start-up of the paper shredder. Save these instructions for later use.
• Follow all warnings and instructions marked on the product!
• Make sure no liquid is spilled on or in the paper shredder.
• If the shredder is damaged or does not function properly, switch the device off, pull out the mains plug and inform our service engineers.
• Keep paper shredder out of the reach of children.
• This shredder should be operated only with an operator in attendance.

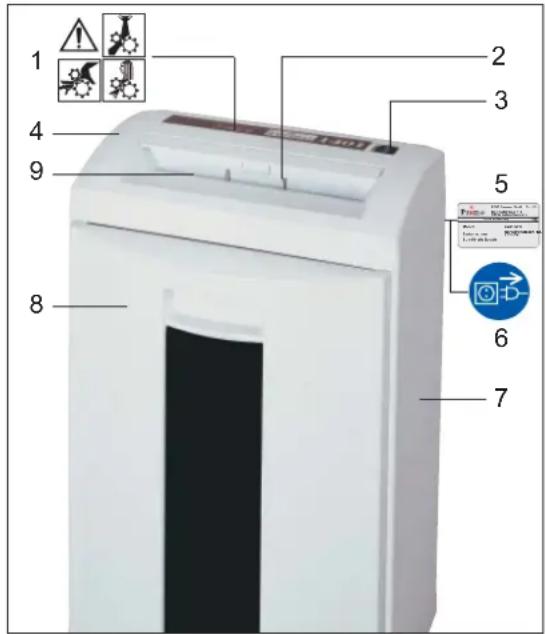

2. Machine components

Risk of injury!

Do not reach into the paper feed slot.

Risk of injury from slivers!

Wear protective goggles when destroying hard credit cards.

Risk of injury by pulling in!

Keep long hair, loose articles of clothing, ties, scarves, jewellery etc. away from feed opening. Material with the tendency to form loops, e.g. tapes, strapping material, etc. must not be shredded.

1 Warning advice
2 Automatic start stop control
3 Rocker switch
4 Cover
5 Name plate
6 Caution label
7 Bottom frame
8 Shredded material container
9 Paper feed opening

Before changing the location, cleaning or anything else other than normal operation turn off and unplug the paper shredder!

Maintenance and service work may be per for med on ly by:

HSM cu sto mer ser vi ce
- specially trained staff (e.g. qua li fi ed electri cians)
- service technicians from our contracting partners

4. Scope of delivery

• Paper shredder, ready for connection, in carton packing
• 5 Bags for shredded material
• Special cutting block oil 50 ml (cross cut)
• Operating instructions

Acces sories:

• Bag for shredded material, order No.: 1.661.995.050
• Special cutting block oil 250 ml, order No.: 1.235.997.401

5. Installation

• This paper shredder should never be placed near or over a radiator or heat source.
• The ventilation slots must not be blocked or covered and they must be at a distance of at least 10cm away from walls or furniture.
• Make sure the mains plug is easily accessible.
• Before plugging in the mains plug, check that the voltage and frequency of your local mains supply correspond to those stated on the type plate.

6. Putting into operation

Switching the paper shredder on

Press rocker switch pos. 1.
- Rocker switch locks in.
- Paper shredder is ready for operation (standby).

Feed paper

See "Technical data" for sheet capacity.

• The shredding process is started by the automatic start stop control in the paper feeding opening.
• Paper is pulled into cutting system and cut.
• When the paper fee ding opening is free again, the cut ting sy stem automatically switches off after app rox. 3 sec. and returns to standby.

Swt ching paper shredder off

• Tap rocker switch pos. 2. Rocker switch resets to zero position.

7. Troubleshooting

Pa per jam

You have fed in too much paper.

Caution!

Do not press rocker switch alternately forwards/backwards (pos. 1 / pos. 2):

Cutting unit can be damaged.

• Press and hold down rocker switch pos. 2.
• Paper is pus hed out.
• Se pa rata pa per stack.
  Press rocker switch pos. 1.
  Feed pa per successively.

Cut material container full

• Paper shredder switches off Empty the cut material container, because if it is too full, malfunctions can occur in the cutting system
• Tap rocker switch pos. 2.
• Empty full shredded material container.

Shredded material container contact interrupted

• Paper shredder switches off.
• Check whether shredded material container is correctly inserted in bottom frame.

If other faults occur, please check the following before calling our customer service:

• Is mains plug in serTed?
  Is rocker switch turned on?
  Is the mo tor over lo aded? alow mo tor to cool down for 15 - 20 min.

8. Maintenance and care

Cleaning:

• Switch off the shredder, pull out the mains plug.
• When cleaning only use a soft cloth and a mild soap-water solution. Never use scouring agents, cleaning fluid, petroleum or thinners.

When the cutting capacity drops or the noise increases (Cross cut):

• Switch paper shredder off: Tap rocker switch pos. 2.
• Spray special cutting block oil through paper feed opening across the whole width of the cutting system blades.
• Run cutting system backwards (pos. 2) without feeding paper. Paper dust and particles are shaken off.

9. Technical Data

Cutting type Strip cut Cross cut
Shred size (mm) 5.8 3.9 1.9 3.9 x 30 1.9 x 15
Safety rating DIN 32757 - 1	2	2	3	3	4
Cutting capacity (sheets), DIN A4 70 g/m280 g/m2	22 - 2417 - 19	16 - 1813 - 15	12 - 149 - 12	12 - 149 - 11	9 - 117 - 9
Weight	11.5 kg			12.5 kg
Cutting speed	80 mm/s			90 mm/s
Noise level (Idle running/ load)	58 dB(A) / 59 - 63 dB(A)
Lo ading width	240 mm
Voltage	230 V, 50 Hz100 V, 50/60 Hz - 115 V, 60 Hz
Power for the maximum number of sheets	440 W
Dimensions W x D x H (mm)	375 x 279 x 583
Volume of shredded material bag	33 l

Technical and optical modifications reserved.

Declaration of Conformity

Machinery directive 98/37/EG

EMC directive 89/336/EWG

Low voltage directive 73 / 23 / EWG

declares herewith, that the paper shredders Primo 1401 aboved mentioned correspond with the EC Machine Directive including all relevant modifications.

Applied standards and technical specifications:

EN 55014-1:2000 + A1:2001 + A2:2002
EN 55014-2:1997 + A1:2001
EN60950-1:2001 EN294:1992

EN 61000-3-2:2000
EN 61000-3-3:1995 + A1:2001

Salem, 02.11.2005

R. quetior

Rolf Gasteier - Technical Director

Machine type inspection for compliance with the requirements of the EC Machine Directive was carried out by the "Administration"/Inspection Authority Committee of Experts, Subject Area Office Machines and Devices", on the premises of the Verwaltungs-Berufsgenossenschaft, Deelbogenkamp 4, D-22297 Hamburg. This inspection authority is the authority responsible in accordance with Annex V of the EC Machine Directive.

Directive machines 98/37/EG

Directive CEM 89/336/EWG

Rolf Gasteier - Director technique

Risk for skandor - splitter!
