USER MANUAL 1800 Office PRIMO

Exterior view of a white industrial washing machine (no visible text or symbols)

BETRIEBSANLEITUNG

AKTENVERNICHTER

OPERATING INSTRUCTIONS

PAPER SHREDDER

NOTICE D'UTILISATION

DESTRUCTEUR DE DOCUMENTS

MANUALE OPERATIVO

DISTRUGGIDOCUMENTI

INSTRUCCIONES DE SERVICIO

DESTRUCTORA DE DOCUMENTOS

West Chester, PA 19380

USA

Phone: [phone]

Fax: [phone]

E-mail: [e-mail]

www.hsmofamerica.com

Abstract black-and-white graphic with three stylized human figures and gear-like shapes (no text or symbols)

Verletzungsgefahr!

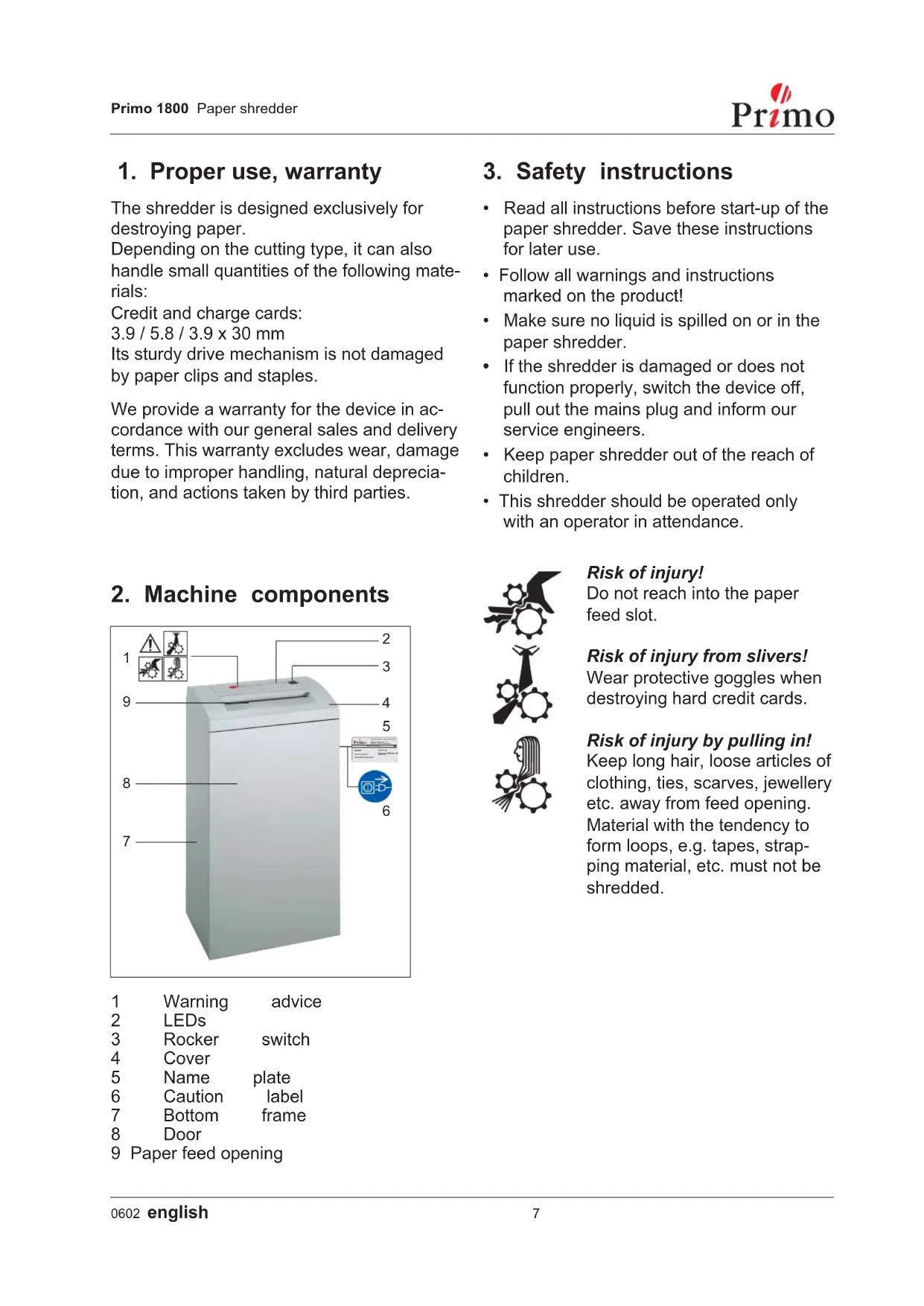

1. Proper use, warranty

The shredder is designed exclusively for destroying paper.

Depending on the cutting type, it can also handle small quantities of the following materials:

Credit and charge cards:

3.9 / 5.8 / 3.9 x 30 mm

Its sturdy drive mechanism is not damaged by paper clips and staples.

We provide a warranty for the device in accordance with our general sales and delivery terms. This warranty excludes wear, damage due to improper handling, natural depreciation, and actions taken by third parties.

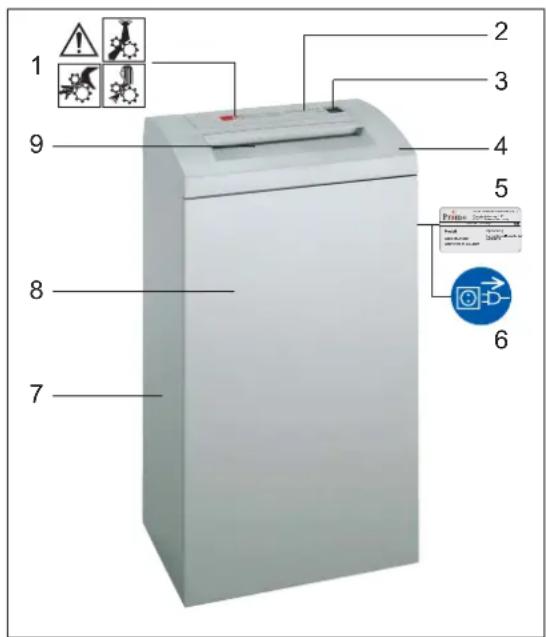

1. Machine components


1 2 3 4 5 6 7 8 9

1 Warning advice

2 LEDs

3 Rocker switch

4 Cover

5 Name plate

6 Caution label

7 Bottom frame

8 Door

9 Paper feed opening

3. Safety instructions

• Read all instructions before start-up of the paper shredder. Save these instructions for later use.
• Follow all warnings and instructions marked on the product!
• Make sure no liquid is spilled on or in the paper shredder.
• If the shredder is damaged or does not function properly, switch the device off, pull out the mains plug and inform our service engineers.
• Keep paper shredder out of the reach of children.
• This shredder should be operated only with an operator in attendance.

Abstract black-and-white graphic with three stylized human figures and gear-like shapes, no text or symbols present.

Risk of injury!

Do not reach into the paper feed slot.

Risk of injury from slivers!

Wear protective goggles when destroying hard credit cards.

Risk of injury by pulling in!

Keep long hair, loose articles of clothing, ties, scarves, jewellery etc. away from feed opening.

Material with the tendency to form loops, e.g. tapes, strapping material, etc. must not be shredded.

Before changing the location, cleaning or anything else other than normal operation turn off and unplug the paper shredder!

Maintenance and service work may be per for med on ly by:

• HSM cu sto mer ser vi ce
- special ly trai ned staff (e.g. qua li fi ed electri cians)
• service technicians from our con tracting part ners

4. Scope of delivery

• Paper shredder, ready for connection, in carton packing
• 5 Bags for shredded material
  • Special cutting block oil 50 ml (cross cut)
• Operating instructions

Acces so ries:

• Bag for shredded material, order No.: 1.661.995.050
  • Special cutting block oil 250 ml, order No.: 1.235.997.401

5. Installation

• This paper shredder should never be placed near or over a radiator or heat source.
• The ventilation slots must not be blocked or covered and they must be at a distance of at least 10 cm away from walls or furniture.
• Make sure the mains plug is easily accessible.
• Before plugging in the mains plug, check that the voltage and frequency of your local mains supply correspond to those stated on the type plate.

6. Putting into operation

Switching the paper shredder on

• Press rocker switch pos. 1.
• Rocker switch locks in.
• Green LED lights.
• Paper shredder is ready for operation (standby).

Feed paper

See „Technical data“ for sheet capacity.

- The shredding process is star-ted by a pho to -cell in the paper feeding opening.

- When the paper fee ding opening is free again, the cutting system automatically switches off after app rox. 3 sec. and returns to standby.

Swit ching paper shredder off

• Tap rocker switch pos. 2.
• Rocker switch resets to zero position.

7. Troubleshooting

Pa per jam

You have fed in too much paper.

Caution!

Do not press rocker switch alternately forwards/backwards (pos. 1 / pos. 2):

Cutting unit can be damaged.

- Press and hold down rocker switch pos. 2.

- Pa per is pus hed out.

- Se pa ra te pa per stack.

- Press rocker switch pos. 1.

- Feed pa per successively.

Cut material container full

- Red LED on control panel lights.

• Paper shredder switches off

Empty the cut material container, because if it is too full, malfunctions can occur in the cutting system

- Tap rocker switch pos. 2.

- Remove full shredded material bag and insert new bag.

Door contact interrupted

- Red LED on control panel lights.

• Paper shredder switches off.

- Check whether front door is closed properly.

If other faults occur, please check the following before calling our customer service:

• Is mains plug in ser ted?

• Is rocker switch tur ned on?

• Is the mo tor over lo aded?

al low mo tor to cool down for 15 - 20 min.

8. Maintenance and care

Cleaning:

• Switch off the shredder, pull out the mains plug.
• When cleaning only use a soft cloth and a mild soap-water solution. Never use scouring agents, cleaning fluid, petroleum or thinners.

When the cutting capacity drops or the noise increases (Cross cut):

• Switch paper shredder off: Tap rocker switch pos. 2.
• Spray special cutting block oil through paper feed opening across the whole width of the cutting system blades.
• Run cutting system backwards (pos. 2) without feeding paper.
• Paper dust and particles are shaken off.

9. Technical Data

Cutting type		Strip cut		Cross cut
Shred size (mm)		5.8	3.9	3.9 x 30	1.9 x 15
Safety rating DIN 32757 – 1		2	2	3	4
Cutting capacity (sheets), DIN A4	70 g/m2	22 - 24	16 - 18	12 - 14	9 - 11
	80 g/m2	17 - 19	13 - 15	9 - 11	7 - 9
Cutting speed		80 mm/s		90 mm/s
Weight		19 kg		20 kg
Noise level (Idle running/ load)		53 dB(A) / 59 - 63 dB(A)
Loading width		240 mm
Voltage		230 V, 50 Hz100 V, 50/60 Hz – 115 V, 60 Hz
Power for the maximum number of sheets		440 W
Dimensions W x D x H (mm)		401 x 272 x 727
Volume of shredded material bag		48 l

Technical and optical modifications reserved.

Declaration of Conformity

Machinery directive 98 / 37 / EG

EMC directive 89 / 336 / EWG

Low voltage directive 73 / 23 / EWG

declares herewith, that the paper shredders Primo 1800 aboved mentioned correspond with the EC Machine Directive including all relevant modifications.

Applied standards and technical specifications:

• EN 55014-1:2000 + A1:2001 + A2:2002 • EN 61000-4-4:1995 + A1:2001 + A2:2001
• EN 55014-2:1997 + A1:2001 • EN 61000-4-5:1995 + A1:2001
• EN 61000-3-2:2000 • EN 61000-4-6:1996 + A1:2001
• EN 61000-3-3:1995 + A1:2001 • EN 61000-4-11:1994 + A1:2001
• EN 61000-4-2:1995 + A1:1998 + A2:2001 • EN 60950-1:2001
• EN 294:1992

Salem, 01.07.2003

R. Guetteier

Rolf Gasteier - Technical Director

Machine type inspection for compliance with the requirements of the EC Machine Directive was carried out by the „Administration“/Inspection Authority Committee of Experts, Subject Area „Office Machines and Devices“, on the premises of the Verwaltungs-Berufsgenossenschaft, Deelbögenkamp 4, D-22297 Hamburg. This inspection authority is the authority responsible in accordance with Annex V of the EC Machine Directive.
