Brand	Clatronic
Model	UM 3284
Type	Blender
Power supply	220-240 V~, 50/60 Hz
Power consumption	500 W
Protection class	I
Bowl capacity	1.5 L
Recommended filling quantity	0.5 - 1.5 L
Net weight	3.1 kg
Number of speeds	2 speeds (slow and fast)
Pulse function	Yes (position P)
Operation type	Continuous operation (1 min max) and pulsed (1 min max)
Bowl material	Plastic
Blade material	Stainless steel
Safety	Circuit breaker, safety switch
Bowl cleaning	Dishwasher or warm water
Motor block cleaning	Slightly damp cloth
Included accessories	Lid, measuring cap (50 ml), blade unit, O-ring
Uses	Blend, crush ice (via Pulse)
Max liquid temperature	60 °C
Certifications	Compliant with European directives

Frequently Asked Questions - UM 3284 CLATRONIC

How to use the Pulse function on the Clatronic UM 3284 blender?

Turn the selector to the P position and hold it down to operate the appliance in bursts. Release to stop. Use this function for a maximum of 1 minute, then let it cool for 2 minutes.

Can I blend hot foods in the blender?

No, never pour liquid at a temperature above 60 °C into the appliance, as this poses a risk of burns.

How to clean the Clatronic UM 3284 blender?

Unplug the appliance. The bowl can go in the dishwasher or be cleaned with warm water. The other parts (blade unit, gasket, safety disc) can be briefly rinsed with hot water. The housing can be cleaned with a slightly damp cloth.

What to do if the blender does not start?

Check the electrical connection and the position of the rotary knob. Make sure the mixing bowl and safety disc are correctly positioned, as a safety switch prevents operation if assembly is incorrect.

How to crush ice with this blender?

Fill the bowl to a maximum of 1/3 with ice cubes. Only use the Pulse function (position P) to chop the ice.

What is the maximum capacity of the bowl?

The maximum capacity is 1.5 liters. Do not fill beyond this limit.

Can I let the blender run continuously?

Yes, but not more than 1 minute of continuous operation. After that, stop the appliance and let it cool before using again.

How to disassemble the blender for complete cleaning?

Unscrew the screw cap counterclockwise. Remove the blade unit, O-ring, and safety disc. Caution, the blades are sharp!

Can the lid cap be used as a measuring cup?

Yes, the cap can be used as a measuring cup. Filled to the brim, it corresponds to 50 ml.

What are the important safety precautions?

Never put your hands in the bowl while it is operating. Do not remove the lid during blending. Use the appliance on a flat, stable surface. Always unplug before cleaning.

USER MANUAL UM 3284 CLATRONIC

Exterior view of a modern kitchen blender with clear glass and black casing (no text or symbols visible)

CE

UNIVERSALMIXER

Universele mixer • Mixeur multifonctions • Batidora multifunción • Batedeira universa Frullatore universale • Universal Mixer • Mikser uniwersalny • Univerzální mixé Univerzális mixer • Універсальний міксер • Универсальный миксер

UM 3284

DEUTSCH

Inhalt

Overview and Assembly of the Controls ...... Page 3

Instruction Manual ...... Page 23

Technical Data.... Page 25

JEZYK POLSKI

Spis treści i

Technical diagram of a blender with numbered parts for identification and assembly reference.

B

Line drawing of a blender with handle and spool, no text or symbols present

C

Diagram showing a blender being placed into a square<|im_start|> Dominican-style blender (no text or symbols present)

D

Line drawing of a blender with a handle and lid, showing a downward arrow indicating compression or cooling process (no text or symbols)

E

Line drawing of a blender with handle and spout (no text or symbols)

D-47906 Kempen/Germany

⚠ WAARSCHUWING: GEVAAR VOOR LETSEL!

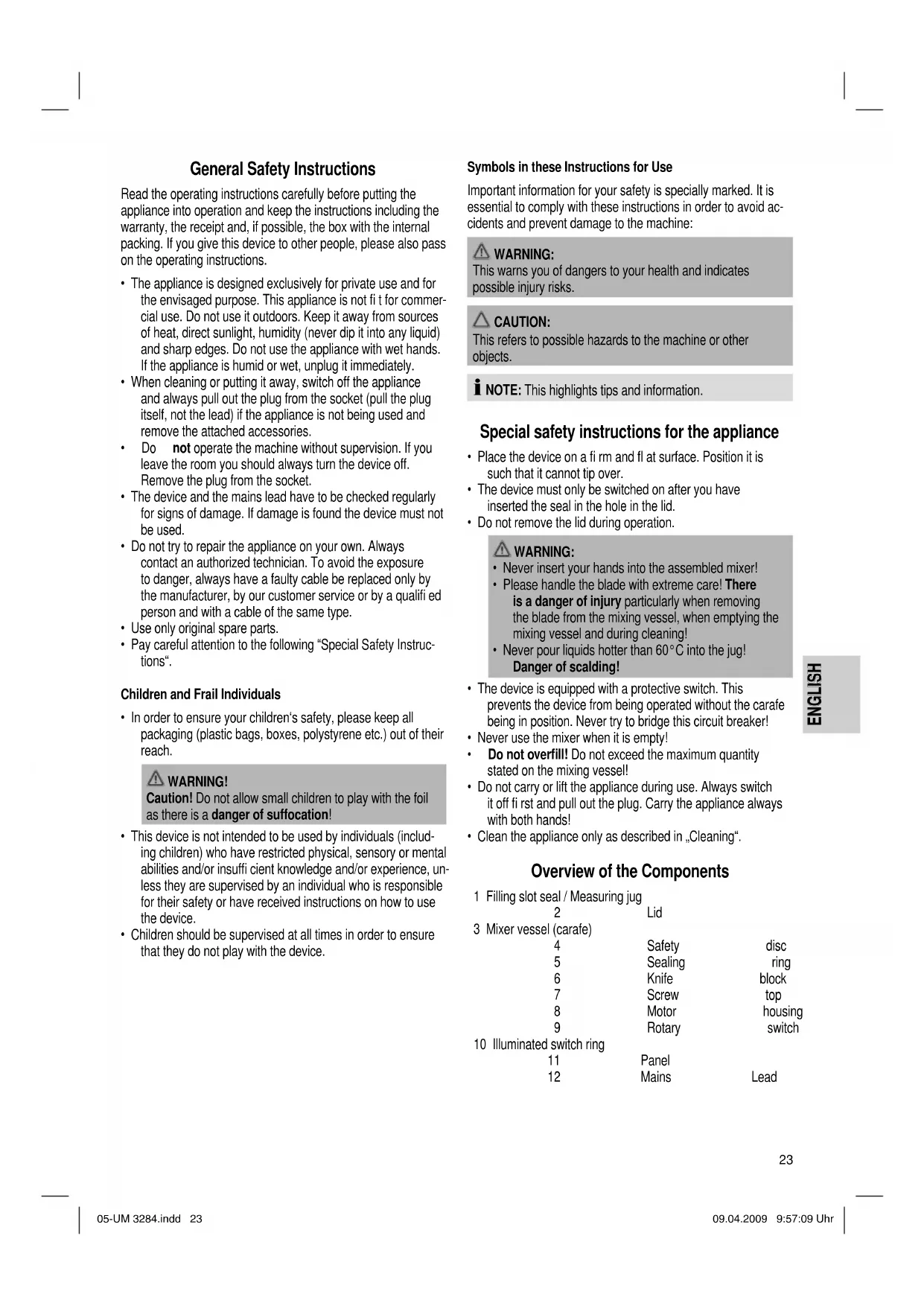

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.
• Children should be supervised at all times in order to ensure that they do not play with the device.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

Special safety instructions for the appliance

• Place the device on a firm and fl at surface. Position it is such that it cannot tip over.
• The device must only be switched on after you have inserted the seal in the hole in the lid.
• Do not remove the lid during operation.

WARNING:

• Never insert your hands into the assembled mixer!
• Please handle the blade with extreme care! There is a danger of injury particularly when removing the blade from the mixing vessel, when emptying the mixing vessel and during cleaning!

• Never pour liquids hotter than 60°C into the jug! Danger of scalding!

• The device is equipped with a protective switch. This prevents the device from being operated without the carafe being in position. Never try to bridge this circuit breaker!

• Never use the mixer when it is empty!
• Do not overfill! Do not exceed the maximum quantity stated on the mixing vessel!
• Do not carry or lift the appliance during use. Always switch it off fi rst and pull out the plug. Carry the appliance always with both hands!
• Clean the appliance only as described in „Cleaning“.

Overview of the Components

1 Filling slot seal / Measuring jug
	2 Lid
3 Mixer vessel (carafe)
	4 Safety	disc
	5 Sealing	ring
	6 Knife	block
	7 Screw	top
	8 Motor	housing
	9 Rotary	switch
10 Illuminated switch ring
	11 Panel
	12 Mains	Lead

Installation

Mains Lead

Remove the mains lead from the storage compartment in the bottom section.

Mixing Vessel

1. Check any preassembled parts! (Fig. A + B)

The safety disc (4), sealing ring (5), blade block (6) and screw top (7) must be assembled in the correct order.

CAUTION:

• Do not forget to insert the sealing ring as otherwise the carafe will leak.
  • Always place the sealing ring on the blade block.
• The screw top must be straight when screwed into place.

• The three guide mechanisms of the safety disc must lie in the recesses of the screw top.

• Place the carafe on the motor housing (8) (Fig. C). You can select whether the handle of the carafe should point to the left or right.

NOTE:

When the carafe is placed in position the assembled safety disc presses on the safety switch of the motor housing. If incorrectly installed the mixer cannot be operated.

Instructions for Use

• Please clean the mixer vessel, the lid and seal before initial use in warm soapy water.
• Please cut the items that are to be mixed into small pieces beforehand.
• Ingredients: Do not put any hot items into the mixing vessel.
• Seal: The seal can also be used as a measuring jug (full to the brim = 50 ml).
• Short-term operation: The device is suitable for short-term operation of not more than 1 minute. After this time it should be switched off.
• Pulse operation: Pulse mode is turned on by turning the switch to the "P" position and releasing it again. The device should not be used in this mode for more than 1 minute. Allow it to cool down for 2 minutes before using it again!
• Chopping up Ice Cubes: The blade in the mixing vessel is also suitable for chopping up ice cubes. Please only fill the carafe up to 1/3 full with ice cubes. Only pulse mode "P" should be used for chopping up ice cubes.

Operation

Electrical connection

Check whether the electrical voltage that you intend to use is the same as that of the machine. Details are to be found on the label on the base.

Preparation

• Ensure that the function switch (9) is in the "0" position.
• Place the mixing vessel in position.
• Now put the ingredients that are to be mixed into the mixing vessel (max. 1.5 litres).
• Press the lid (2) tightly onto the carafe (Fig. D). It must tightly seal the mixer vessel.
• Close the lid with the seal (1) (Fig. E). Note the recesses on the inside of the lid. Turn the seal tight in a clockwise direction.
• Connect the mains lead to a properly installed 230 V, 50 Hz safety power socket. The switch ring (10) lights up.
• Please hold the carafe firmly during mixing.

Mixing

• For constant mixing (continuous mode):

If the device is operated on levels 1 and 2 the switch locks in place in the respective position.

Level 1 = low rpm

Level 2 = high rpm

Shift the selector to "0" to switch off the appliance.

- For pulse mode (mixing at brief intervals):

Move the switch to the "0" position. The switch snaps into place. The appliance is off now. Turn the switch now to position "P". The switch must be kept in this position for the desired interval. When the switch is released, it returns automatically to "0" position.

Adding further ingredients to be mixed

Please switch off the machine before doing so. Spices or other ingredients that are to be mixed can be inserted through the hole in the seal.

Stopping Operation

• Turn the switch to the "0" position.
• Remove the mains plug from the socket. The illumination goes off.
• Remove the mixing vessel.
  • Take off the lid before pouring.

IMPORTANT NOTE:

Citrus juices and food containing acids should never be stored in metal vessels.

• The mains lead can be stored in the bottom section.

Cleaning

Preliminary Cleaning

- Half fill the mixing vessel with water and turn the switch to "P" for approximately 10 seconds. Then pour out the liquid.

WARNING:

• Always remove the plug before cleaning!
- Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• For thorough cleaning, please remove the mixing vessel.
  • Always disassemble the mixer after use

WARNING: DANGER OF INJURY!

The blades on the blade block are sharp. Please be careful when dismantling, cleaning and reassembling the individual parts.

- Unscrew the screw top in a clockwise direction from the carafe. Remove the blade block and the sealing ring from the screw top. When removing the safety disc, use the thread on the carafe.

Carafe

The carafe can be cleaned in the dishwasher or warm soapy water.

Safety Disc, Sealing Ring, Blade Block and Screw Top

• These parts should only be briefly rinsed off with hot water.
• After all parts have been cleaned and dried, assemble your mixer as described under Installation.

Housing

Only a moderately moist cloth should be used for cleaning the outside of the device.

Troubleshooting

- Device is not working.

Remedy:

Check the mains connection.

Check the position of the rotary switch.

Other possible causes:

The device is fitted with a safety switch.

This prevents the motor from starting up unintentionally.

Remedy:

Check that the mixer vessel and safety disc are firmly installed.

Noise development

The sound pressure level in the ear of an operator (LpA) was measured according to DIN EN ISO 3744.

Sound pressure level detected: 82 dB(A) (no limit)

Technical Data

Model: UM 3284

Power supply: 220-240 V\~, 50/60 Hz

Power consumption: 500 W

Protection class: I

Short-term operation: 1 Min.

Filling quantity: 0,5-1,5 Litre

Net weight: 3,1 kg

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
