USER MANUAL SM 3694 CLATRONIC

Exterior view of a modern ceramic blender with a transparent body and mint green base (no text or symbols visible)

DEUTSCH

Inhalt

Overview of the Components ......Page 3

Instruction Manual......Page 30

Troubleshooting Page 33

Line drawing of a thermos flask with internal components and an arrow indicating rotation (no text or symbols)

Line drawing of a thermos flask with lid and side compartments, showing internal structure (no text or symbols)

Bedienungsanleitung

2 Granny-Smith-Äpfel

5-6 Minzblätter

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Instructions for the Appliance

WARNING:

• Risk of cuts! The mixer blades are sharp!
• Before replacement of accessories or additional parts which move during operation, the appliance must be switched off and cut off from the mains.
• Do not touch moving parts.
• Always check that the accessories are seated solidly and securely before switching the appliance on.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING:

• This appliance shall not be used by children.
- Keep the appliance and its cord out of reach of children.
• Children shall not play with the appliance.
- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

CAUTION:

This appliance must not be immersed in water for cleaning. Please follow the instructions provided in chapter "Cleaning".

• Do not use the appliance if the mixing vessel is empty.
• Do not operate the appliance for longer than 60 seconds. Then let it cool down for approx. 60 seconds before using it again.
  • After 5 uses in a row, let the appliance to cool to room temperature before you use it again.
• Do not manipulate any of the safety switches!
• Do not remove the bottle during operation.
• Do not put your hands into the mixing blades.

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging materials like foils, filling materials, cable holders, and carton packaging.
3. Check the scope of deliveries for completeness.
4. Should the package contents be incomplete or damages be found, do not take the appliance into operation. Take it immediately back to the dealer.

NOTE:

There may still be dust or production remains on the appliance. We recommend that you clean the appliance as described under "Cleaning".

Overview of the Components / Scope of Delivery

1 Lid
2 Bottle
3 Knife block
4 P button
5 Base section with motor

Application

Location

Set the appliance onto a solid, level surface.

Preparation of the Appliance

i NOTE:

• Because of the risk of burning, do not fill with liquids at a temperature of above 50 °C.
• Do not fill the bottle above the 600 ml mark.

• If the ingredients produce a lot of froth, do not overfill the bottle. Reduce the quantity accordingly.

• Fill your ingredients into the bottle and tighten the knife block by hand. (Fig. A)

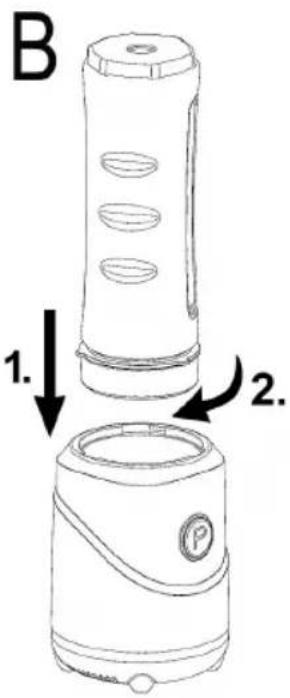

• Turn the bottle round and place it with the knife block onto the base appliance. Note the recesses on the base unit. Tighten the bottle as far as it will go. (Fig. B)

Electrical Connection

• Check that the mains voltage is correct before you connect the plug to the socket. The specifications of the appliance are shown on the type label.
• Only connect the appliance to a tested socket.

Operation

Did you connect the plug? Next, press the button P.

- You can press intermittently or until all ingredients have been mixed.

NOTE: Short-time operation

Do not let the motor run for longer than 60 seconds and then pause for 60 seconds.

i NOTE: Safety switch

Operation is prevented if the knife block or the bottle is not fitted correctly.

End of Operation

Has your smoothie been mixed well?

• Then release the P button and pull the plug from the socket.
• Remove the knife block with the bottle from the base appliance and turn the bottle round.

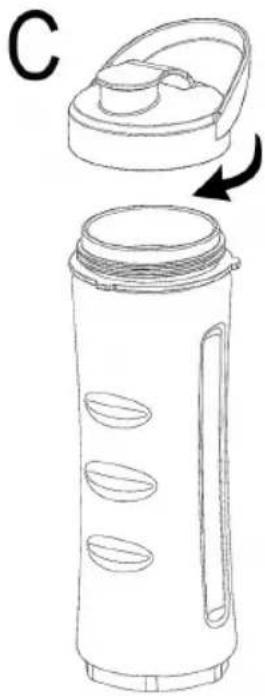

• Now replace the knife block through the lid. (Fig. C)

Tips and Recipes

• Cut large fruits in advance into smaller pieces.
• If necessary, remove the core.
• Use plenty of liquid to support the mixing process.
  • The smoothie maker cannot crush hard fruits or ice.

Raspberry Cream Smoothie

Glasses: 4

Ingredients:

200 g raspberries

150 g skimmed milk yogurt

100 g whipped cream

50 g powdered sugar

Preparation:

Mix the raspberries and the yogurt in the smoothie maker. Stir in the liquid cream. Season with powdered sugar and pour into glasses. Decorate with fresh raspberries.

Strawberry Mango Smoothie

Glasses: 4

Ingredients:

1 ripe mango
300 g strawberries
2 tbsp. mango syrup
2 tbsp. cranberry full-fruit syrup
200 ml soy drink calcium with vanilla

Preparation:

Peel the mango and cut off the pulp along the seed. Weigh 250 g of pulp. Rinse the strawberries thoroughly and dab them dry. Put 4 strawberries and the remaining mango aside. Cut the remaining strawberries and the weighed mango into small pieces. Mix the fruits, both syrups, and the soy drink in the smoothie maker. Cut the remaining mango into small cubes, stir them in, and freeze in the freezer for at least 2 hours. Fill the drink into glasses and decorate with strawberries.

Orange Carrot Smoothie

Glasses: 4

Ingredients:

300 g carrots
Salt
4 juice oranges
1 pc. fresh ginger (3 cm)
1 pinch of red pepper
2 tbsp. maple syrup
1 bunch coriander
1 lime
1 tbsp. rape seed oil
Freshly ground pepper
Lime slices for decoration

Preparation:

Peel the carrots and cook them in a little salt water for approx. 30 minutes. Then drain them and let them cool. Squeeze the orange and measure 250 ml juice. Peel the ginger and grate it. Mix carrots, orange juice, ginger, red pepper, and maple syrup together in the Smoothie Maker and cool the mixture well. Rinse the coriander, shake it dry, and pull off the leaves. Squeeze the lime. Stir in the coriander, 1 to 2 tbsp. lime juice, and oil. Pour the carrot mixture into glasses and add a little coriander. Season with salt and pepper and serve. If desired, decorate with a slice of lime.

Apple Kiwi Smoothie

Glasses: 4

Ingredients:

1 pc. (approx. 40 g) fresh ginger

4 kiwi fruit

150 g salad cucumber

2 granny smith apples

5 to 6 leaves of mint

250 ml clear apple juice

Crushed ice

Preparation:

Peel the ginger and grate it. Peel the kiwi fruit and cut them into pieces. Peel the cucumber and the apples, remove the seeds, and cut into small pieces. Wash the mint and dab it dry. Mix in the smoothie maker together with the apple juice. Together with the crushed ice, pour into four glasses and serve immediately.

• Do you also have recipes for soups, mixed drinks, shakes, or cocktails?
  They can also be mixed easily in the smoothie maker.

- Replacement bottles you may purchase from your retailer.

Cleaning

WARNING:

• Always remove the plug before cleaning.
- Under no circumstances should you immerse the appliance in water for cleaning purposes. Otherwise this might result in an electric shock or fire.
- The blades on the knife block are very sharp. A risk of injury exists! Proceed carefully when disassembling, cleaning and assembling the individual parts.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.

Lid, Bottle, Knife Block

• Clean these components in a rinsing bath.
  • Dry the parts before fitting them.

Housing

Only a moderately moist cloth should be used for cleaning the outside of the appliance.

Storage

• Clean the appliance as described above.
• We recommend storing the appliance in its original packaging if out of use for a long period of time.
  • Always store the appliance out of reach of children and in a well-ventilated, dry place.

Troubleshooting

Problem Possible cause Solution
The appli-ance is not working.	The appliance has no power supply.	Check the mains connection.
	The appliance is fitted with a safety switch. This prevents the motor from starting up unintentionally.	Check for correct fitment of knife block and bottle.

Technical Data

Model: SM 3694

Power supply: 220-240V\~, 50-60Hz

Power rating: 250 W

Protection class:......II

Capacity: max. 600 ml

Net weight: .... approx. 0.83 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
