USER MANUAL SM 3739 CLATRONIC

(1). Reiniging WAARSCHUWING:

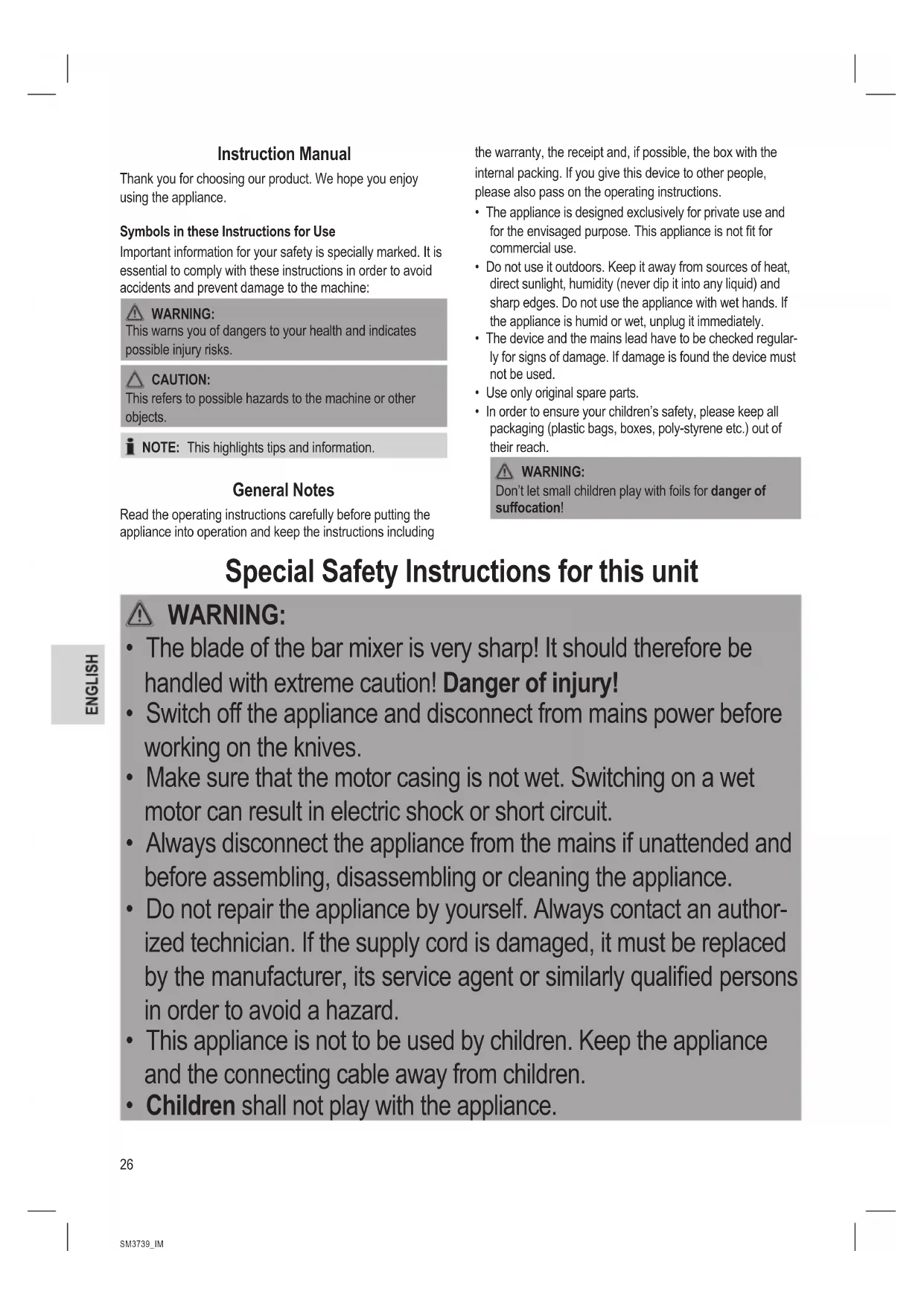

This warns you of dangers to your health and indicates possible injury risks. CAUTION: This refers to possible hazards to the machine or other objects. NOTE: This highlights tips and information. General Notes Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not t for commercial use.

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

• The device and the mains lead have to be checked regular- ly for signs of damage. If damage is found the device must not be used.

• Use only original spare parts.

• In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, poly-styrene etc.) out of their reach.

Don’t let small children play with foils for danger of suffocation! Special Safety Instructions for this unit

• The blade of the bar mixer is very sharp! It should therefore be handled with extreme caution! Danger of injury!

• Switch off the appliance and disconnect from mains power before working on the knives.

• Make sure that the motor casing is not wet. Switching on a wet motor can result in electric shock or short circuit.

• Always disconnect the appliance from the mains if unattended and before assembling, disassembling or cleaning the appliance.

• Do not repair the appliance by yourself. Always contact an author- ized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• This appliance is not to be used by children. Keep the appliance and the connecting cable away from children.

• Children shall not play with the appliance.27 SM3739_IM 14.03.19

• Appliances can be used by persons with reduced physical, sen- sory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• The motor housing must not be immersed in water for cleaning. Please observe all relevant instructions provided in chapter “Cleaning”. CAUTION: Do not chop very hard ingredients with this appliance, such as ice cubes, nutmeg or larger pieces of cooking chocolate. The blade can be damaged!

• Ensure that the mains power cable does not touch hot surfaces (e.g. hot pots). Intended Use This appliance is intended to puree and/or mix foodstuffs and beverages. It is for instance suitable for preparing mayon- naise, dips, sauces, soups, baby food and milkshakes. The appliance is intended for amounts common in the private household. Use in hot foods is possible. It is intended for the use in private households and similar applications. It is only to be used as instructed in this user manual. The appliance is not intended for commercial use. Any other use is not intended and can result in damages or personal injuries. The manufacturer assumes no liability for damages caused by improper use. Supplied parts 1 Motor unit 1 Hand-held blender Unpacking the appliance

1. Remove the appliance from its packaging.

2. Remove all packaging materials such as lms, ller

material, cable clips and carton.

3. Check the contents for completeness.

NOTE: Production residue or dust may have collected on the appliance. We recommend cleaning the appliance accord- ing to chapter “Cleaning”. Overview of the Components 1 Eyelet 2 Push button I 3 Push button TURBO 4 Motor casing 5 Buttons for attaching / detaching 6 Blender 7 Knife28 SM3739_IM 14.03.19 Instructions for use

• Chop up large pieces of solid food before mashing (max. Ø

1.5 cm) and add a little liquid.

• Short-time operating: Do not operate the appliance longer than 1 minute continuously. Leave the device to cool down for at least 5 minutes before using again. Assembly / Dismantling

WARNING: Risk of injury!

When attaching accessories there is the risk of pinching your ngers. Please be especially careful. Observe additional Figure on page 3. Assemble the motor housing and the hand blender as follows:

1. Press both buttons (5) simultaneously.

2. Attach the motor casing (4) on the

blender (6) until it clicks into place. Observe the recesses on the blender.

3. Release the buttons. Motor casing and

blender are tightly connected. To detach press and hold both buttons simultaneously and pull the blender from the motor casing. Electrical connection

1. Ensure that your mains power corresponds with the speci-

cations of the appliance. The specications are printed on the type label.

2. Connect the mains cable to a properly installed and

earthed wall outlet. Operation

When using the appliance in hot foods, there is a risk of burning due to hot splashing.

1. Submerge the entire blender head in foodstuff or bever-

age. Keep the appliance upright. In this way you avoid spatters.

2. Hold the grip with one hand in such way that you can

press one of the push buttons (I or TURBO) at the same time.

• Push button I (2): This switches on the minimum speed.

• Push button TURBO (3): This provides the maximum speed and cannot be regulated.

3. Pulsed mode is switched on by pressing the appropriate

push button at intervals and then releasing it again.

4. The device switches itself off when the button is released.

WARNING: Risk of injury!

The motor overtravels. Wait until the knife comes to a complete standstill. NOTE: Interrupt the process if the maximum speed is too slow. Reduce the quantity of the food being mixed. First break up any solid food.

5. Pull out the plug from the socket after use.

6. After cleaning hang the appliance on its eyelet (1).

• Always remove the plug before cleaning.

• Under no circumstances should you immerse the motor housing in water in order to clean it. Otherwise this might result in an electric shock or re.

• The blade of the bar mixer is very sharp! Please be very careful. CAUTION:

• Do not use a wire brush or any abrasive items.

• Do not use any acidic or abrasive detergents. NOTE: Fill a container with hot water and let the blender run in it for pre-cleaning as described under “Operation”.

• Wipe the casing with a damp cloth.

• If you want to clean the hand blender (mixing rod) thor- oughly, detach it from the motor housing as described under “Assembly / Dismantling”.29 SM3739_IM 14.03.19 Cleaning In Sudsy Water You can briey rinse the blender in warm sudsy water. After- wards rinse in clean water. Dry the blender thoroughly. Storage

• Clean the appliance as described and allow it to dry.

• We recommend that you keep the appliance in the original packaging if it will not be used for long periods.
